SERVICE MANUAL
ADDENDUM
Feb. 2012
CONTENTS
REPLACEMENT PAGES . . . . . . . . . . . . . . . . . 5-1 to 5-3 and 5-6
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . 1

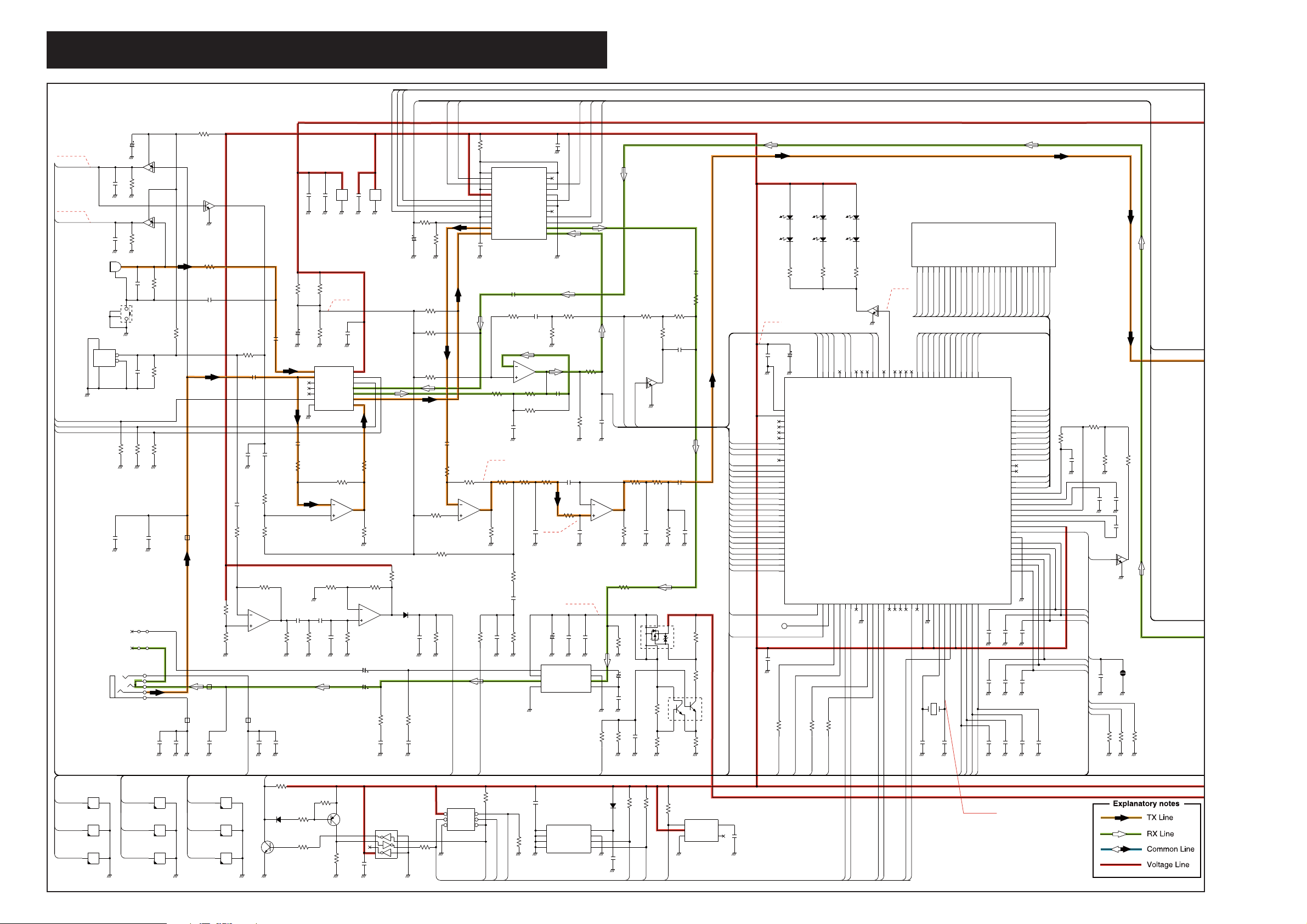

VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . 5

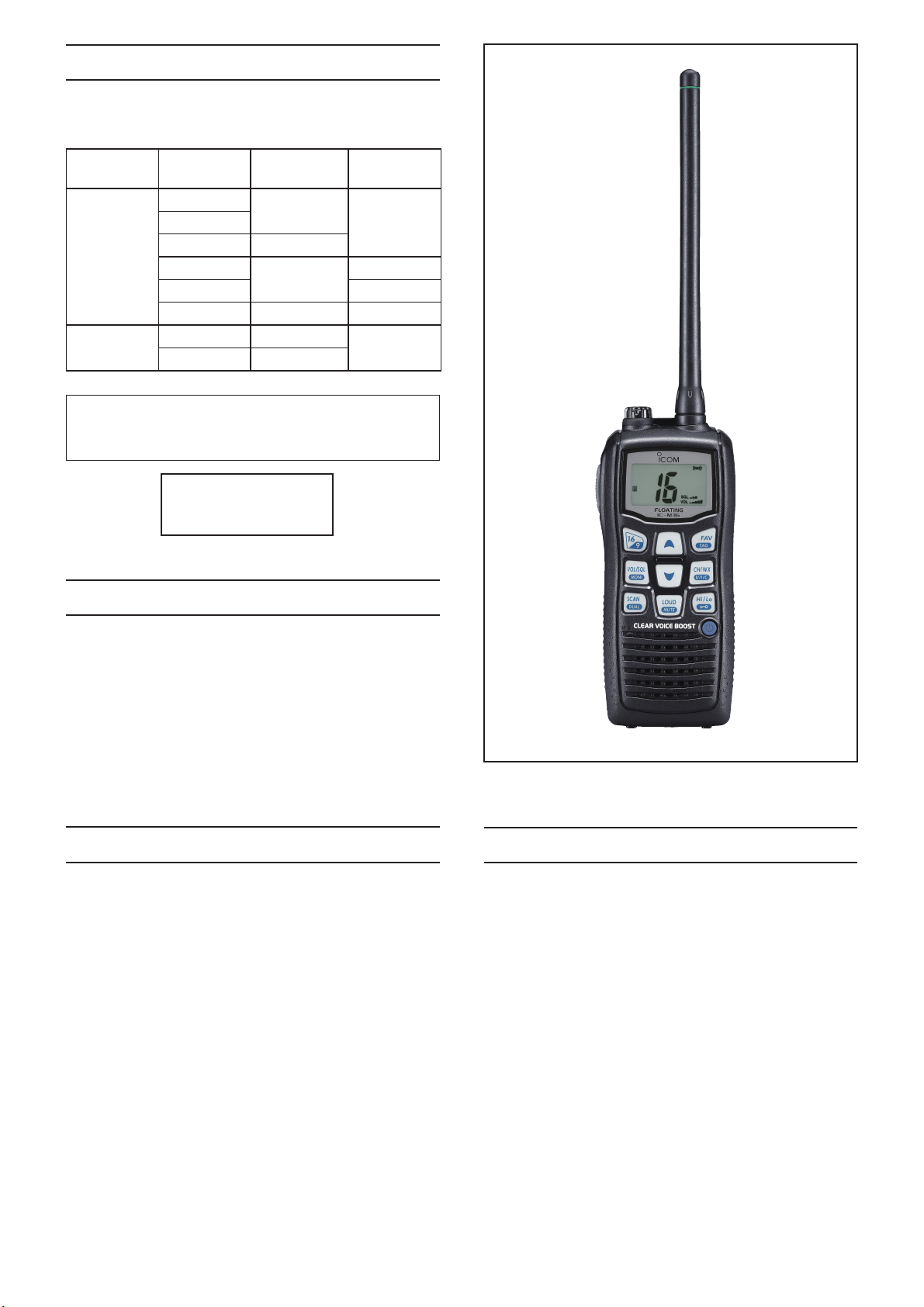

[VERSION LIST]
MODEL VERSION AC
ADAPTER
TX
Hi-POWER
IC-M35
CHN
BC-147SE 6 W
EUR-1
EUR
UK
N/A
FRG
BC-147SE 6 W (1 W)
HOL 6 W
AUS BC-147SV 5 W
IC-M36
USA
BC-147SA 6 W
SEA

(Replacement page)
5 - 1
SECTION 5
.
ADJUSTMENT PROCEDURE
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
Adjustment software CS-M36/35 ADJ (Revision 1.0 or later) JIG cable
• OPC-478 or OPC-478UC
• Modified OPC-1655
(See the illust below)
RF power meter
(50 Ω terminated)
Measuring range : 0.1–10 W
Frequency range : 100–300 MHz
SWR : Less than 1.2 : 1
Audio generator
(AG)
Frequency range : 300–3000 Hz
Output level : 1–500 mV
Modulation
Analyzer
Frequency range : 30–300 MHz
Measuring range : 0 to ±10 kHz
Frequency counter
Frequency range : 0.1–300 MHz
Frequency accuracy : ±1 ppm or better
Input level : Less than 1 mW
AC millivoltmeter Measuring range : 10 mV to 10 V
Standard signal
generator (SSG)
Frequency range : 0.1–300 MHz
Output level : 0.1 mV to 32 mV
(–127 to –17 dBm)
Attenuator Power attenuation : 30 dB
Capacity : More than 10 W
Speaker Impedance : 50
Ω
Capacity : More than 1 W
█REQUIRED EQUIPMENTS
5-1 PREPARATION

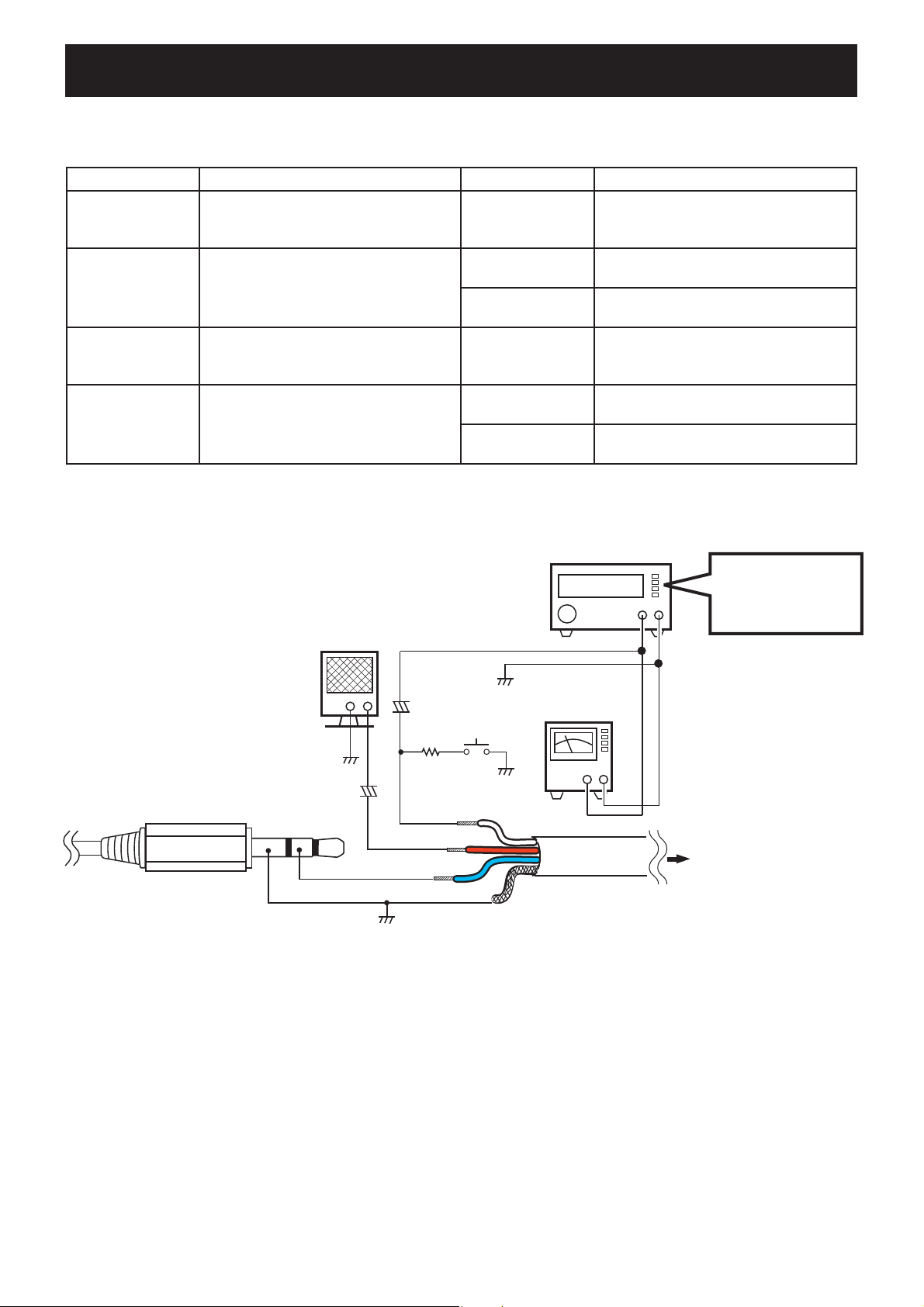

█JIG CABLE
+−
EXT. SPEAKER
(1 W/8 Ω)
SETTING;
Frequency : 1 kHz
Level : 25 mVrms
Waveform : Sine wave
AUDIO GENERATOR
(300–3000 Hz/1–500 mV)
+−
+−
AC
MILLIVOLT METER
(10 mV to 10 V)
+
47 µF
+
4.7 µF
OPC-478/UC WHITE (MIC)
(MIC line)
(SP line)
BLUE (CLONE)
SHIELD (GND)
(CLONE line)
OPC-1655
(Parts No.: 8900016330)
To the transceiver
RED (AFOUT)
PTT
33 k
Ω
Feb. 2012

(Replacement page)
Feb. 2012
5 - 2
Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
█ADJUSTMENT SOFTWARE INSTALLATION
qQuit all applications if Windows is running.
wInsert the CD into the appropriate CD drive.
eDouble-click the “Setup.exe” contained in the ‘CS-M36/35 ADJ ’ folder in the CD drive.
rThe “Welcome to the InstallShield Wizard for CS-M36/35 ADJ ” will appear. Click [Next>].
tThe “Choose Destination Location” will appear. Then click [Next>] to install the software to the destination folder.
(e.g. C:\Program Files\Icom\CS-M36)
y
After the installation is completed, the “InstallShield Wizard Complete” will appear. Then click [Finish].
uEject the CD.
iProgram group ‘CS-M36 ADJ’ appears in the ‘Programs’ folder of the start menu, and ‘CS-M36/35 ADJ’ icon appears on the
desk top screen.
█ADJUSTMENT SOFTWARE SCREEN
█COMMON CONNECTION
REFERENCE FREQUENCY
TX POWER (High)
TX POWER (A-High)
TX POWER (Low)
TX POWER (E-Low)
DEVIATION
RX SENSITIVITY
*; NEVER MODIFY
(*)
(*)
(*)
(*)
SQUELCH
RSSI
Click to open the “I/O check window”
Click to load the setting from the transceiver
(The values shown in the above screen are example only. Each transceiver has their own values.)
JIG cable
Modified OPC-1655
OPC-478UC
(USB type)
[SP MIC] cap
PC
OPC-478
(RS-232C type)
to USB port
to RS-232C port

5 - 3
ADJUSTMENT ADJUSTMENT
ITEM
TRANSCEIVER’S
CONDITION OPERATION VALUE
PLL LOCK
VOLTAGE
(VERIFICATION)
1
[LVIN]
(I/O check
window)
• CH. : 16
• Receiving
1) Connect an RF power meter (or a
Dummy load) to the antenna connector.
2) Verify that the lock voltage is in the
specified range on the "I/O check
window" (see the illust below).
1.9–2.9 V
(Verify)
2 • CH. : 16
• TX power : Low
• Transmitting
1.7–2.8 V
(Verify)
REFERENCE
FREQUENCY
1
[Ref. Freq.]
• CH. : 16
• TX power : Low
• Transmitting
1) Connect an RF power meter (or a
Dummy load) to the antenna connector.
2) Loose couple a Frequency counter to
the antenna connector.
3) Adjust the TX frequency.
156.8000 MHz
5-2 FREQUENCY ADJUSTMENTS
RF POWER METER
(10 W/50 Ω)
JIG cable
(Loose Coupling)
FREQUENCY COUNTER
(0.1–300 MHz)
LOCK VOLTAGE
I/O CHECK WINDOW
Click to reload
the parameter
(The values shown in the above screen are example only.
Each transceiver has their own values.)
Select an adjustment item using [↑] / [↓] keys, then set to the specified value using [←] / [→] keys on the connected PC’s keyboard.
Feb. 2012 (Replacement page)

(Replacement page)
Feb. 2012
5 - 6
JIG cable
ATTENUATOR
(30 dB/10 W)
MODULATION ANALYZER
(0.1–300 MHz)
SETTING;
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P-P)/2
ADJUSTMENT ADJUSTMENT
ITEM
TRANSCEIVER’S
CONDITION OPERATION VALUE
DEVIATION 1
[MOD]
• CH. : 16
• TX power : Low
• Transmitting
1) Connect a Modulation analyzer to
the antenna connector through an
Attenuator.
2) Apply specified audio signals through
the JIG cable. (see the illust below).
3) Adjust the deviation.
±4.30 to ±4.40
kHz
Select an adjustment item using [↑] / [↓] keys, then set to the specified value using [←] / [→] keys on the connected PC’s keyboard.
5-4 TRANSMIT ADJUSTMENTS (continued)
+−
EXT. SPEAKER
(1 W/8 Ω)
SETTING;
Frequency : 1 kHz
Level : 25 mVrms
Waveform : Sine wave
AUDIO GENERATOR
(300–3000 Hz/1–500 mV)
+−
+−
AC
MILLIVOLT METER
(10 mV to 10 V)
+
47 µF
+
4.7 µF
OPC-478/UC WHITE (MIC)
(MIC line)
(SP line)
BLUE (CLONE)
SHIELD (GND)
(CLONE line)
OPC-1655
(Parts No.: 8900016330)
To the transceiver
RED (AFOUT)
PTT
33 k
Ω
█JIG CABLE

Feb. 2012
1
SECTION 6.
SECTION 6. PARTS LIST
REF PARTS DESCRIPTION M. H/V
NO. NO. LOCATION
[MAIN UNIT]
IC1 1130011671 S.IC MB15E03SLPFV1-G-ER-6E1 B 36.2/11.8
IC2 1180002690 S.REG S-812C36AMC-C2Q-T2G B 32.9/17.4
IC50 1120002830 S.IC NJM2125F-TE1-#FZZB T 94.9/15.9
IC170 1110003201 S.IC TA31136FNG(EL) B 11.5/15.3
IC190 1190001350 S.IC M62364FP 600D B 20.2/41.1
IC200 1110006350 S.IC LM2902PWR B 12.6/29.7
IC220 1110005350 S.IC NJM2870F05-TE1-#FZZB B 96.8/20.7
IC260 1130011770 S.IC CD4066BPWR B 10.6/40.0
IC340 1130015560 S.IC S-24C64CI-T8T1U3 B 96.8/26.3
IC341 1110005771 S.IC S-80942CNMC-G9CT2G B 97.2/34.6
IC360 1140015080 S.IC UPD780318GC-512-9EB-A T 95.7/30.0
IC362 1110002420 S.IC NJM2073M-TE1-#ZZZB B 49.1/44.7
IC363 1110006380 S.IC LM2904PWR B 71.1/39.9
IC364 1130007111 S.IC TC7W04FU(TE12LF) B 85.9/26.0
Q3 1560000811 S.FET 2SK1069-4-TL-E B 32.1/6.3
Q20 1590003790 S.TRA KRC404E RTK/P B 50.1/12.4
Q21 1530004011 S.TRA KTC3770U-C-RTK/P B 54.4/11.4
Q22 1530004011 S.TRA KTC3770U-C-RTK/P B 57.1/8.0
Q23 1530002381 S.TRA 2SC4215-Y(TE85LF) B 52.8/16.8
Q24 1530002381 S.TRA 2SC4215-Y(TE85LF) B 56.8/18.6
Q25 1530002381 S.TRA 2SC4215-Y(TE85LF) B 48.5/18.7
Q50 1530004011 S.TRA KTC3770U-C-RTK/P B 63.8/9.8
Q53 1560001241 S.FET RD01MUS1-T113 B 68.7/8.5
Q54 1560001630 S.FET RD09MUP2-T102 B 75.6/9.9
Q90 1580000751 S.FET 3SK294(TE85LF) B 69.3/22.4
Q150 1580000731 S.FET 3SK293(TE85LF) B 61.8/24.8
Q151 1530003890 S.TRA KTC3880S Y-RTK/P T 20.4/14.4
Q220 1510001090 S.TRA KTA2015Y-RTK/P B 61.4/37.7
Q221 1510001090 S.TRA KTA2015Y-RTK/P B 63.9/37.7
Q222 1510001090 S.TRA KTA2015Y-RTK/P B 66.4/37.7
Q224 1590003800 S.TRA KTC811U-GR-RTK/P B 58.8/41.4
Q225 1520000840 S.TRA KTA1664Y-RTF/P B 63.3/41.6
Q230 1550000090 S.FET RSQ035P03TR B 48.6/36.6
Eqv. 1550000290 S.FET UPA1914TE-T1-AT
Eqv. 1550000330 S.FET FDC610PZ
Q231 1590003800 S.TRA KTC811U-GR-RTK/P B 52.7/36.5
Q240 1590003790 S.TRA KRC404E RTK/P T 88.9/20.1
Q250 1590003770 S.TRA KRA302E-RTK/P B 77.8/42.9
Q251 1590003770 S.TRA KRA302E-RTK/P B 77.8/44.9
Q350 1530002691 S.TRA 2SC4116-GR(TE85RF) B 85.6/34.1
Q351 1590003780 S.TRA KRA304E-RTK/P T 97.7/14.4
Q352 1590003790 S.TRA KRC404E RTK/P T 87.6/39.5
Q353 1550000090 S.FET RSQ035P03TR B 107.7/28.7
Eqv. 1550000290 S.FET UPA1914TE-T1-AT
Eqv. 1550000330 S.FET FDC610PZ
Q354 1590003790 S.TRA KRC404E RTK/P B 104.6/30.8
Q355 1590003790 S.TRA KRC404E RTK/P B 105.0/32.9
Q356 1590003780 S.TRA KRA304E-RTK/P B 107.1/32.4
Q357 1590003790 S.TRA KRC404E RTK/P T 88.4/16.8
Q358 1590003790 S.TRA KRC404E RTK/P B 53.7/39.6
Q360 1590003790 S.TRA KRC404E RTK/P B 22.5/10.0
Q361 1510000771 S.TRA 2SA1586-GR(TE85LF) B 86.5/29.9
Q362 1590003790 S.TRA KRC404E RTK/P B 75.6/41.2
D1 1750000771 S.VAR HVC376BTRF-E B 28.3/17.5
D3 1750001340 S.DIO KDS160E RTK/P B 25.1/10.0
D20 1790001261 S.DIO MA2S077G0L B 47.6/10.9
D21 1790001261 S.DIO MA2S077G0L B 47.8/12.9
D22 1750000711 S.VAR HVC350BTRF-E B 53.0/7.8
D23 1750000711 S.VAR HVC350BTRF-E B 54.2/7.8
D50 1750001310 S.DIO KDS114 RTK/PA B 64.0/15.5
D51 1750001310 S.DIO KDS114 RTK/PA B 63.4/17.9
D52 1750000581 S.DIO 1SV307(TPH3F) B 96.3/6.8
D90 1750001310 S.DIO KDS114 RTK/PA B 92.1/15.2
D91 1790001670 S.DIO RB706F-40T106 B 87.9/11.7
D92 1750001190 S.VAR KDV214E RTK/P B 80.8/23.2
D93 1750001190 S.VAR KDV214E RTK/P B 76.6/24.2
D130 1750001190 S.VAR KDV214E RTK/P B 66.8/25.8
D131 1750001190 S.VAR KDV214E RTK/P B 64.6/25.7
D350 1750000550 S.DIO 1SS355 TE-17 B 88.0/34.7
D353 1790001241 S.DIO MA2S7280GL B 85.5/14.8
D354 1750001340 S.DIO KDS160E RTK/P B 72.2/35.3
D355 1750001340 S.DIO KDS160E RTK/P B 99.4/29.3
FI150 2030000350 MON 21R15AB (FL-368)
FI151 2030000481 MON 21R15AB (FL-399A)
FI170 2020002410 CER LTM450FW <JJE>
X1 6050011740 S.XTA CR-766 TSS-6035B 21.250 MHz B 28.7/12.6
X170 6070000300 S.DIS JTBM450CX24 <JJE> B 17.7/8.5
X360 6050012460 S.XTA CR-834(SMD-49/7.9872 MHz)
<JJE> B 91.5/32.2
L1 6200009141 S.COI NLV25T-6R8J T 17.5/8.5
L20 6200011021 S.COI ELJRF 82NJFB B 45.8/18.5
L21 6200003711 S.COI NLV25T-2R7J B 46.4/7.7
L22 6200011410 S.COI C2520C-82NG-A B 50.7/9.0
L23 6200011031 S.COI ELJRF R10JFB B 54.7/16.2
L24 6200011031 S.COI ELJRF R10JFB B 54.7/18.0
L25 6200011031 S.COI ELJRF R10JFB B 48.3/16.8
L26 6200007001 S.COI ELJRE 82NGFA B 61.2/19.5
L50 6200006981 S.COI ELJRE R10GFA B 65.4/11.7
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
L51 6200007001 S.COI ELJRE 82NGFA B 64.0/6.9
L53 6200007690 S.COI LQW2BHN18NJ03L B 70.6/13.7
L55 6200012750 S.COI 0.20-1.0-7TL 25N <COMO> B 80.6/10.7
L56 6200012570 S.COI 0.26-1.0-3TL 6.8N <COMO> B 81.2/8.1
L57 6200012680 S.COI 0.30-1.3-5TL 20N <COMO> B 85.0/8.1
L58 6200003711 S.COI NLV25T-2R7J B 94.3/9.2
L80 6200012470 S.COI 0.30-1.7-7TL 45.3N <COMO> B 91.1/7.7
L81 6200012770 S.COI 0.26-1.1-7TR 24N <COMO> B 101.0/8.6
L82 6200012780 S.COI 0.30-1.4-6TL 27.2N <COMO> B 104.4/11.4
L90 6200012470 S.COI 0.30-1.7-7TL 45.3N <COMO> B 97.9/12.6
L92 6200007750 S.COI LQW2BHN56NJ03L B 79.9/21.0
L93 6200007750 S.COI LQW2BHN56NJ03L B 76.0/19.5
L96 6200007750 S.COI LQW2BHN56NJ03L B 68.5/25.7
L97 6200007750 S.COI LQW2BHN56NJ03L B 64.4/21.5
L98 6200003680 S.COI LQH31MNR82M03L B 58.3/24.9
R1 7510001661 S.THR NTCG16 4LH 473JT B 36.8/17.7
R2 7030003940 S.RES ERJ3GEYF 104 V (100K) B 39.4/17.7
R3 7030005050 S.RES ERJ2GEJ 103 X (10K) B 29.6/19.7
R4 7030005240 S.RES ERJ2GEJ 473 X (47K) B 30.0/18.4
R5 7030007280 S.RES ERJ2GEJ 331 X (330) B 30.4/8.8
R6 7030005120 S.RES ERJ2GEJ 102 X (1K) B 45.8/12.2
R7 7030005240 S.RES ERJ2GEJ 473 X (47K) B 48.7/11.2
R8 7030005010 S.RES ERJ2GEJ 681 X (680) B 35.7/8.2
R10 7030005000 S.RES ERJ2GEJ 471 X (470) B 36.9/7.8
R11 7030005120 S.RES ERJ2GEJ 102 X (1K) B 29.7/7.0
R12 7030005050 S.RES ERJ2GEJ 103 X (10K) B 34.4/6.5
R13 7030005210 S.RES ERJ2GEJ 822 X (8.2K) B 31.3/4.3
R20 7030004980 S.RES ERJ2GEJ 101 X (100) B 46.8/17.0
R22 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 39.1/7.9
R23 7030005120 S.RES ERJ2GEJ 102 X (1K) B 48.6/9.3
R24 7030005090 S.RES ERJ2GEJ 104 X (100K) B 47.9/14.3
R25 7030005090 S.RES ERJ2GEJ 104 X (100K) B 47.0/14.3
R26 7030008010 S.RES ERJ2GEJ 123 X (12K) B 54.9/13.2
R27 7030008010 S.RES ERJ2GEJ 123 X (12K) B 57.5/9.9
R28 7030009160 S.RES ERJ2GEJ 181 X (180) B 55.7/9.6
R29 7030005000 S.RES ERJ2GEJ 471 X (470) B 54.9/14.1
R30 7030005070 S.RES ERJ2GEJ 683 X (68K) B 53.1/14.1
R31 7030005010 S.RES ERJ2GEJ 681 X (680) B 54.9/15.0
R32 7030005000 S.RES ERJ2GEJ 471 X (470) B 55.9/16.2
R33 7030007350 S.RES ERJ2GEJ 393 X (39K) B 55.0/19.3
R34 7030005000 S.RES ERJ2GEJ 471 X (470) B 49.7/17.0
R35 7030005070 S.RES ERJ2GEJ 683 X (68K) B 50.3/18.6
R36 7030005120 S.RES ERJ2GEJ 102 X (1K) B 50.0/14.9
R37 7030007270 S.RES ERJ2GEJ 151 X (150) B 32.4/15.2
R38 7030005050 S.RES ERJ2GEJ 103 X (10K) B 25.1/7.9
R39 7030005050 S.RES ERJ2GEJ 103 X (10K) B 41.5/12.8
R40 7030005220 S.RES ERJ2GEJ 223 X (22K) B 41.1/10.7
R41 7030005050 S.RES ERJ2GEJ 103 X (10K) B 40.6/12.8
R42 7030005220 S.RES ERJ2GEJ 223 X (22K) B 41.1/11.6
R43 7030005050 S.RES ERJ2GEJ 103 X (10K) B 40.9/15.3
R44 7030005220 S.RES ERJ2GEJ 223 X (22K) B 41.8/15.3
R45 7030005050 S.RES ERJ2GEJ 103 X (10K) B 40.0/15.3
R46 7030005220 S.RES ERJ2GEJ 223 X (22K) B 39.1/15.3
R47 7030008410 S.RES ERJ2GEJ 392 X (3.9K) T 21.8/8.9
R50 7030005120 S.RES ERJ2GEJ 102 X (1K) B 62.6/16.1
R52 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 65.7/15.0
R53 7030004980 S.RES ERJ2GEJ 101 X (100) B 66.4/13.8
R54 7030005530 S.RES ERJ2GEJ 100 X (10) B 65.5/13.8
R55 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 63.9/11.6
R56 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 61.5/8.9
R57 7030005570 S.RES ERJ2GEJ 820 X (82) B 61.5/9.8
R65 7030005100 S.RES ERJ2GEJ 154 X (150K) T 90.8/17.6
R66 7030007350 S.RES ERJ2GEJ 393 X (39K) T 92.7/16.6
R67 7030005090 S.RES ERJ2GEJ 104 X (100K) T 92.7/14.5
R68 7030004980 S.RES ERJ2GEJ 101 X (100) T 91.8/12.9
R69 7030007340 S.RES ERJ2GEJ 153 X (15K) B 66.8/4.9
R70 7030007340 S.RES ERJ2GEJ 153 X (15K) B 64.9/5.0
R71 7030004980 S.RES ERJ2GEJ 101 X (100) B 65.8/6.1
R72 7030005710 S.RES ERJ2GEJ 121 X (120) B 72.1/13.9
R73 7030005120 S.RES ERJ2GEJ 102 X (1K) B 68.8/4.9
R74 7030005050 S.RES ERJ2GEJ 103 X (10K) B 70.1/5.3
R75 7030004980 S.RES ERJ2GEJ 101 X (100) B 71.9/6.9
R76 7030000280 S.RES MCR10EZHJ 150 (151) B 93.5/11.8
R80 7030003670 S.RES ERJ3GEYJ 823 V (82K) B 107.0/11.2
R83 7030005090 S.RES ERJ2GEJ 104 X (100K) T 86.9/14.6
R90 7030005590 S.RES ERJ2GEJ 680 X (68) [CHN] B 88.8/15.4
7030005590 S.RES ERJ2GEJ 680 X (68) [EUR-1]
7030005590 S.RES ERJ2GEJ 680 X (68) [EUR]
7030005590 S.RES ERJ2GEJ 680 X (68) [UK]
7030005590 S.RES ERJ2GEJ 680 X (68) [FRG]
7030005590 S.RES ERJ2GEJ 680 X (68) [HOL]
R91 7030005110 S.RES ERJ2GEJ 224 X (220K) B 79.8/24.6
R93 7030005050 S.RES ERJ2GEJ 103 X (10K) B 80.7/25.6
R94 7030005110 S.RES ERJ2GEJ 224 X (220K) B 75.5/25.2
R95 7030005090 S.RES ERJ2GEJ 104 X (100K) B 71.6/22.8
R96 7030005700 S.RES ERJ2GEJ 274 X (270K) B 70.4/20.2
R97 7030004990 S.RES ERJ2GEJ 221 X (220) B 70.9/26.5
R100 7030010040 S.RES ERJ2GEJ-JPW B 62.7/13.8
R103 7030005050 S.RES ERJ2GEJ 103 X (10K) B 72.5/22.8
R104 7030009270 S.RES ERJ2GEJ 821 X (820) B 66.4/21.6
R105 7030005110 S.RES ERJ2GEJ 224 X (220K) B 66.7/27.9
R107 7030005110 S.RES ERJ2GEJ 224 X (220K) B 65.8/27.9
R108 7030010040 S.RES ERJ2GEJ-JPW B 62.9/26.8
R109 7030005530 S.RES ERJ2GEJ 100 X (10) B 56.7/24.2
R110 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 54.9/25.8
R111 7030005090 S.RES ERJ2GEJ 104 X (100K) B 62.3/22.4
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.

Feb. 2012
2
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
R113 7030004980 S.RES ERJ2GEJ 101 X (100) B 72.5/24.0
R115 7030006610 S.RES ERJ2GEJ 394 X (390K) B 59.9/24.9
R120 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 62.8/19.3
R121 7030005230 S.RES ERJ2GEJ 334 X (330K) [USA] B 59.9/23.2
7030005230 S.RES ERJ2GEJ 334 X (330K) [SEA]
7030006610 S.RES ERJ2GEJ 394 X (390K) [CHN]
7030006610 S.RES ERJ2GEJ 394 X (390K) [EUR-1]
7030006610 S.RES ERJ2GEJ 394 X (390K) [EUR]
7030006610 S.RES ERJ2GEJ 394 X (390K) [UK]
7030006610 S.RES ERJ2GEJ 394 X (390K) [FRG]
7030006610 S.RES ERJ2GEJ 394 X (390K) [HOL]
7030005230 S.RES ERJ2GEJ 334 X (330K) [AUS]
R122 7030005230 S.RES ERJ2GEJ 334 X (330K) B 61.1/22.8
R152 7030005120 S.RES ERJ2GEJ 102 X (1K) B 30.8/25.8
R153 7030005120 S.RES ERJ2GEJ 102 X (1K) T 24.5/13.6
R154 7030005090 S.RES ERJ2GEJ 104 X (100K) T 20.2/16.6
R155 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 18.6/16.5
R156 7030005000 S.RES ERJ2GEJ 471 X (470) T 18.3/14.7
R170 7030009280 S.RES ERJ2GEJ 391 X T 17.3/14.7
R171 7030005120 S.RES ERJ2GEJ 102 X (1K) B 16.6/14.8
R172 7030005000 S.RES ERJ2GEJ 471 X (470) B 15.4/18.6
R173 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 8.5/13.4
R174 7030005700 S.RES ERJ2GEJ 274 X (270K) B 7.2/17.6
R175 7030005600 S.RES ERJ2GEJ 273 X (27K) B 8.4/19.3
R176 7030005120 S.RES ERJ2GEJ 102 X (1K) B 7.2/19.2
R192 7030009280 S.RES ERJ2GEJ 391 X B 37.3/22.5
R193 7030005000 S.RES ERJ2GEJ 471 X (470) B 25.2/42.8
R194 7030005090 S.RES ERJ2GEJ 104 X (100K) B 37.3/20.3
R201 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 9.6/33.9
R202 7030005090 S.RES ERJ2GEJ 104 X (100K) B 11.4/34.5
R203 7030005110 S.RES ERJ2GEJ 224 X (220K) B 9.4/32.7
R204 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 9.3/31.1
R205 7030005210 S.RES ERJ2GEJ 822 X (8.2K) B 7.0/27.0
R206 7030008290 S.RES ERJ2GEJ 183 X (18K) B 8.1/30.6
R207 7030005600 S.RES ERJ2GEJ 273 X (27K) B 8.1/31.5
R212 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 8.2/25.7
R213 7030005070 S.RES ERJ2GEJ 683 X (68K) B 7.6/24.5
R214 7030007340 S.RES ERJ2GEJ 153 X (15K) B 8.8/22.3
R220 7030005240 S.RES ERJ2GEJ 473 X (47K) B 60.9/35.8
R221 7030005050 S.RES ERJ2GEJ 103 X (10K) B 62.0/34.6
R222 7030005240 S.RES ERJ2GEJ 473 X (47K) B 64.2/35.8
R223 7030005050 S.RES ERJ2GEJ 103 X (10K) B 64.6/33.7
R224 7030005240 S.RES ERJ2GEJ 473 X (47K) B 66.3/35.8
R225 7030005050 S.RES ERJ2GEJ 103 X (10K) B 67.4/34.6
R226 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 56.5/40.6
R227 7030005050 S.RES ERJ2GEJ 103 X (10K) B 59.8/43.1
R228 7030005220 S.RES ERJ2GEJ 223 X (22K) B 58.1/43.1
R230 7030005600 S.RES ERJ2GEJ 273 X (27K) B 52.9/33.9
R231 7030005160 S.RES ERJ2GEJ 105 X (1M) B 52.5/32.7
R235 7030005930 S.RES ERJ3GEYF 334 V (330K) B 62.2/45.4
R236 7030008090 S.RES ERJ3EKF 1503 V (150K) B 60.9/46.9
R240 7030004990 S.RES ERJ2GEJ 221 X (220) T 91.1/19.4
R241 7030005010 S.RES ERJ2GEJ 681 X (680) T 90.6/20.6
R242 7030005010 S.RES ERJ2GEJ 681 X (680) T 91.5/20.6
R245 7030005120 S.RES ERJ2GEJ 102 X (1K) T 101.2/22.1
R250 7030005090 S.RES ERJ2GEJ 104 X (100K) B 79.9/42.5
R251 7030008280 S.RES ERJ2GEJ 271 X (270) B 75.3/44.1
R252 7030005060 S.RES ERJ2GEJ 333 X (33K) B 30.2/45.3
R253 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 15.4/32.9
R255 7030005170 S.RES ERJ2GEJ 474 X (470K) B 14.2/34.1
R256 7030007340 S.RES ERJ2GEJ 153 X (15K) B 12.3/34.4
R257 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 15.8/34.1
R258 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 14.1/35.3
R260 7030005310 S.RES ERJ2GEJ 124 X (120K) B 16.8/31.9
R261 7030007350 S.RES ERJ2GEJ 393 X (39K) B 15.9/31.3
R262 7030008290 S.RES ERJ2GEJ 183 X (18K) B 17.2/33.7
R263 7030005090 S.RES ERJ2GEJ 104 X (100K) B 11.2/35.7
R264 7030005090 S.RES ERJ2GEJ 104 X (100K) B 12.3/44.3
R265 7030005090 S.RES ERJ2GEJ 104 X (100K) B 6.9/38.8
R270 7030005050 S.RES ERJ2GEJ 103 X (10K) B 28.5/45.3
R271 7030005060 S.RES ERJ2GEJ 333 X (33K) B 14.9/22.9
R272 7030005310 S.RES ERJ2GEJ 124 X (120K) B 14.5/24.1
R273 7030005220 S.RES ERJ2GEJ 223 X (22K) B 13.6/24.1
R274 7030006610 S.RES ERJ2GEJ 394 X (390K) B 11.5/22.7
R275 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.3/23.0
R276 7030008300 S.RES ERJ2GEJ 184 X (180K) B 12.7/24.1
R277 7030005090 S.RES ERJ2GEJ 104 X (100K) B 11.5/24.5
R278 7030005120 S.RES ERJ2GEJ 102 X (1K) B 15.7/26.3
R279 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 15.7/25.4
R284 7030005530 S.RES ERJ2GEJ 100 X (10) B 44.6/45.7
R286 7030005050 S.RES ERJ2GEJ 103 X (10K) B 49.5/40.2
R288 7030005110 S.RES ERJ2GEJ 224 X (220K) B 50.1/39.0
R289 7030005050 S.RES ERJ2GEJ 103 X (10K) B 51.7/38.7
R300 7030005290 S.RES ERJ2GEJ 682 X (6.8K) B 7.5/28.2
R340 7030005090 S.RES ERJ2GEJ 104 X (100K) B 99.0/30.4
R341 7030005050 S.RES ERJ2GEJ 103 X (10K) B 98.0/31.8
R343 7030005050 S.RES ERJ2GEJ 103 X (10K) B 99.4/35.2
R346 7030005090 S.RES ERJ2GEJ 104 X (100K) B 86.3/35.9
R351 7030005060 S.RES ERJ2GEJ 333 X (33K) B 87.0/32.8
R352 7030005290 S.RES ERJ2GEJ 682 X (6.8K) B 87.9/31.9
R353 7030005240 S.RES ERJ2GEJ 473 X (47K) B 84.8/29.0
R361 7030005120 S.RES ERJ2GEJ 102 X (1K) T 105.4/34.9
R363 7030005120 S.RES ERJ2GEJ 102 X (1K) T 105.1/34.0
R364 7030005050 S.RES ERJ2GEJ 103 X (10K) T 106.0/33.1
R367 7030010040 S.RES ERJ2GEJ-JPW [SEA] T 106.3/25.7
7030010040 S.RES ERJ2GEJ-JPW [FRG]
7030010040 S.RES ERJ2GEJ-JPW [AUS]
R371 7030005170 S.RES ERJ2GEJ 474 X (470K) T 87.5/37.9
R372 7030007310 S.RES ERJ2GEJ 155 X (1.5M) T 87.5/37.0
R373 7030005160 S.RES ERJ2GEJ 105 X (1M) T 87.6/36.1
R374 7030006610 S.RES ERJ2GEJ 394 X (390K) T 88.8/36.5
R376 7030005090 S.RES ERJ2GEJ 104 X (100K) B 8.5/32.7
R377 7030005080 S.RES ERJ2GEJ 823 X (82K) B 8.8/29.4
R378 7030005080 S.RES ERJ2GEJ 823 X (82K) B 9.1/27.3
R379 7030005080 S.RES ERJ2GEJ 823 X (82K) B 10.6/25.4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
R380 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 89.8/11.8
R381 7030005050 S.RES ERJ2GEJ 103 X (10K) T 90.5/14.6
R382 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 88.1/14.6
R383 7030008010 S.RES ERJ2GEJ 123 X (12K) T 89.3/14.2
R384 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 95.7/13.7
R386 7030005050 S.RES ERJ2GEJ 103 X (10K) T 99.5/15.2
R387 7030005090 S.RES ERJ2GEJ 104 X (100K) B 79.8/45.2
R388 7030005170 S.RES ERJ2GEJ 474 X (470K) B 13.2/35.3
R390 7030005090 S.RES ERJ2GEJ 104 X (100K) B 7.1/37.9
R391 7030005240 S.RES ERJ2GEJ 473 X (47K) B 9.4/24.5
R392 7030010040 S.RES ERJ2GEJ-JPW B 16.2/19.5
R395 7030005090 S.RES ERJ2GEJ 104 X (100K) B 88.1/28.2
R396 7030010040 S.RES ERJ2GEJ-JPW B 89.4/38.7
R397 7030005700 S.RES ERJ2GEJ 274 X (270K) B 108.2/30.9
R398 7030005050 S.RES ERJ2GEJ 103 X (10K) B 106.6/30.9
R399 7030005230 S.RES ERJ2GEJ 334 X (330K) B 103.2/32.6
R400 7030005100 S.RES ERJ2GEJ 154 X (150K) B 103.2/33.5
R401 7030005070 S.RES ERJ2GEJ 683 X (68K) T 90.4/16.4
R402 7030005090 S.RES ERJ2GEJ 104 X (100K) B 50.4/40.2
R427 7030008280 S.RES ERJ2GEJ 271 X (270) B 51.3/40.9
R428 7030007340 S.RES ERJ2GEJ 153 X (15K) B 52.5/41.0
R429 7030005530 S.RES ERJ2GEJ 100 X (10) B 44.8/40.6
R430 7030005700 S.RES ERJ2GEJ 274 X (270K) B 50.8/35.9
R431 7030005050 S.RES ERJ2GEJ 103 X (10K) B 50.8/37.5
R432 7030005060 S.RES ERJ2GEJ 333 X (33K) B 75.3/38.8
R433 7030005050 S.RES ERJ2GEJ 103 X (10K) B 76.2/43.4
R434 7030005220 S.RES ERJ2GEJ 223 X (22K) B 75.3/39.7
R435 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 73.8/40.9
R437 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 73.2/43.7
R438 7030005090 S.RES ERJ2GEJ 104 X (100K) B 70.4/44.2
R439 7030005100 S.RES ERJ2GEJ 154 X (150K) B 73.2/36.9
R440 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 69.5/46.5
R441 7030007340 S.RES ERJ2GEJ 153 X (15K) B 68.6/46.5
R442 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 68.5/41.1
R443 7030005090 S.RES ERJ2GEJ 104 X (100K) B 68.7/39.9
R444 7030005220 S.RES ERJ2GEJ 223 X (22K) B 70.1/35.6
R445 7030007310 S.RES ERJ2GEJ 155 X (1.5M) B 74.7/36.3
R446 7030005230 S.RES ERJ2GEJ 334 X (330K) B 68.5/42.9
R447 7030010040 S.RES ERJ2GEJ-JPW [SEA] T 106.3/26.6
7030010040 S.RES ERJ2GEJ-JPW [CHN]
7030010040 S.RES ERJ2GEJ-JPW [EUR-1]
7030010040 S.RES ERJ2GEJ-JPW [EUR]
7030010040 S.RES ERJ2GEJ-JPW [HOL]
R448 7030010040 S.RES ERJ2GEJ-JPW [UK] T 106.6/27.5
7030010040 S.RES ERJ2GEJ-JPW [HOL]
7030010040 S.RES ERJ2GEJ-JPW [AUS]
R449 7030008290 S.RES ERJ2GEJ 183 X (18K) B 84.6/31.2
R450 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 54.1/38.1
R451 7030005220 S.RES ERJ2GEJ 223 X (22K) B 52.4/34.8
R452 7030005060 S.RES ERJ2GEJ 333 X (33K) B 54.0/34.8
R453 7030010040 S.RES ERJ2GEJ-JPW [CHN] B 90.0/14.9
7030010040 S.RES ERJ2GEJ-JPW [EUR-1]
7030010040 S.RES ERJ2GEJ-JPW [EUR]
7030010040 S.RES ERJ2GEJ-JPW [UK]
7030010040 S.RES ERJ2GEJ-JPW [FRG]
7030010040 S.RES ERJ2GEJ-JPW [HOL]
R454 7030010040 S.RES ERJ2GEJ-JPW B 61.3/21.6
R456 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 88.4/25.4
R457 7030005090 S.RES ERJ2GEJ 104 X (100K) B 73.7/37.8
C1 4030016930 S.CER C1005 JB 1A 104K-T B 38.0/16.6
C2 4030016790 S.CER C1005 JB 1E 103K-T B 28.8/18.8
C3 4030017440 S.CER C1005 CH 1H 221J-T B 30.0/16.8
C4 4030017640 S.CER C1005 CH 1H 150J-T B 28.7/16.4
C5 4030017640 S.CER C1005 CH 1H 150J-T B 28.8/8.4
C6 4030017460 S.CER C1005 JB 1H 102K-T B 45.8/11.3
C7 4030016790 S.CER C1005 JB 1E 103K-T B 34.1/15.2
C8 4030017350 S.CER C1005 CH 1H 020B-T T 18.8/6.3
C9 4030017350 S.CER C1005 CH 1H 020B-T T 16.4/6.3
C11 4550007480 S.TAN F930J106MAABMA B 37.8/6.0
C12 4030017460 S.CER C1005 JB 1H 102K-T T 14.9/8.2
C13 4030016930 S.CER C1005 JB 1A 104K-T B 37.8/7.8
C15 4030017460 S.CER C1005 JB 1H 102K-T B 26.4/6.5
C16 4030017460 S.CER C1005 JB 1H 102K-T B 34.8/5.2
C17 4030017460 S.CER C1005 JB 1H 102K-T B 30.4/4.3
C20 4030017460 S.CER C1005 JB 1H 102K-T B 45.5/16.4
C21 4030017610 S.CER C1005 CH 1H 090C-T B 45.5/17.3
C22 4030017610 S.CER C1005 CH 1H 090C-T B 45.5/19.7
C24 4550000550 S.TAN TEESVA 1V 224M8R B 41.3/6.7
Eqv. 4550008150 S.TAN F921V224MAA
C25 4030017460 S.CER C1005 JB 1H 102K-T B 45.8/9.5
C26 4030018010 S.CER C1005 CH 1H 360J-T B 48.6/7.7
C27 4030018010 S.CER C1005 CH 1H 360J-T B 45.8/10.4
C28 4030017460 S.CER C1005 JB 1H 102K-T B 45.7/13.8
C29 4030017460 S.CER C1005 JB 1H 102K-T B 51.6/12.1
C30 4030017460 S.CER C1005 JB 1H 102K-T B 45.7/14.7
C31 4030017460 S.CER C1005 JB 1H 102K-T B 56.5/14.1
C32 4030017550 S.CER C1005 CH 1H 1R5B-T B 53.1/9.6
C33 4030017440 S.CER C1005 CH 1H 221J-T B 56.8/11.7
C34 4030017550 S.CER C1005 CH 1H 1R5B-T B 55.3/8.2
C35 4030017460 S.CER C1005 JB 1H 102K-T B 56.8/10.8
C36 4030017460 S.CER C1005 JB 1H 102K-T B 52.6/15.0
C37 4030017520 S.CER C1005 CH 1H 0R3B-T B 53.1/13.2
C38 4030017460 S.CER C1005 JB 1H 102K-T B 54.1/19.3
C39 4030017630 S.CER C1005 CH 1H 120J-T B 53.2/18.9
C40 4030017640 S.CER C1005 CH 1H 150J-T B 57.4/16.7
C41 4030017460 S.CER C1005 JB 1H 102K-T B 51.2/18.9
C42 4030017380 S.CER C1005 CH 1H 050B-T B 52.2/18.9
C43 4030017400 S.CER C1005 CH 1H 220J-T B 46.7/19.3
C44 4030017460 S.CER C1005 JB 1H 102K-T B 50.0/14.0
C50 4030017460 S.CER C1005 JB 1H 102K-T B 65.7/15.9
C51 4030017400 S.CER C1005 CH 1H 220J-T B 63.9/13.4
C52 4030017460 S.CER C1005 JB 1H 102K-T B 63.9/12.5
C53 4030017460 S.CER C1005 JB 1H 102K-T B 61.5/10.7
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.

Feb. 2012
3
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
C54 4030017640 S.CER C1005 CH 1H 150J-T B 64.3/8.0
C55 4030017410 S.CER C1005 CH 1H 240J-T B 62.7/8.0
C56 4030016790 S.CER C1005 JB 1E 103K-T T 91.8/16.6
C57 4030016930 S.CER C1005 JB 1A 104K-T T 99.0/16.1
C58 4030016930 S.CER C1005 JB 1A 104K-T T 91.8/14.5
C59 4030017730 S.CER C1005 JB 1H 471K-T T 92.7/12.9
C60 4030017460 S.CER C1005 JB 1H 102K-T T 90.5/13.2
C61 4510008570 S.ELE EEE1CA220SR B 104.0/21.5
C62 4030017460 S.CER C1005 JB 1H 102K-T B 79.3/13.2
C63 4030016790 S.CER C1005 JB 1E 103K-T B 69.6/16.0
C64 4030017460 S.CER C1005 JB 1H 102K-T B 64.0/5.0
C65 4030017430 S.CER C1005 CH 1H 101J-T B 70.6/11.6
C66 4030017460 S.CER C1005 JB 1H 102K-T B 71.9/5.3
C67 4030017730 S.CER C1005 JB 1H 471K-T B 82.5/11.7
C68 4030017420 S.CER C1005 CH 1H 470J-T B 81.8/12.8
C69 4030017420 S.CER C1005 CH 1H 470J-T B 68.8/14.9
C70 4030007130 S.CER C1608 CH 1H 101J-T B 83.0/8.2
C71 4030008560 S.CER C1608 CH 1H 300J-T B 87.7/7.2
C72 4030006860 S.CER C1608 JB 1H 102K-T B 87.7/8.6
C73 4030017460 S.CER C1005 JB 1H 102K-T B 92.1/10.2
C74 4030017460 S.CER C1005 JB 1H 102K-T B 93.8/6.8
C77 4030016930 S.CER C1005 JB 1A 104K-T B 63.1/5.0
C78 4030016930 S.CER C1005 JB 1A 104K-T B 71.0/5.3
C80 4030017460 S.CER C1005 JB 1H 102K-T B 98.7/8.5
C81 4030017390 S.CER C1005 CH 1H 180J-T B 90.3/5.4
C82 4030017390 S.CER C1005 CH 1H 180J-T B 92.0/5.4
C83 4030017400 S.CER C1005 CH 1H 220J-T B 99.3/7.0
C84 4030018120 S.CER C1005 CH 1H 110J-T B 102.7/9.1
C85 4030017410 S.CER C1005 CH 1H 240J-T B 102.7/7.2
C86 4030017610 S.CER C1005 CH 1H 090C-T B 104.8/8.0
C89 4030017590 S.CER C1005 CH 1H 070C-T B 104.3/9.3
C90 4030017610 S.CER C1005 CH 1H 090C-T B 97.8/9.7
C91 4030017620 S.CER C1005 CH 1H 100C-T B 94.4/14.5
C92 4030017460 S.CER C1005 JB 1H 102K-T B 88.0/16.6
C93 4030017460 S.CER C1005 JB 1H 102K-T [CHN] B 89.7/16.2
4030017460 S.CER C1005 JB 1H 102K-T [EUR-1]
4030017460 S.CER C1005 JB 1H 102K-T [EUR]
4030017460 S.CER C1005 JB 1H 102K-T [UK]
4030017460 S.CER C1005 JB 1H 102K-T [FRG]
4030017460 S.CER C1005 JB 1H 102K-T [HOL]
C94 4030017570 S.CER C1005 CH 1H 040B-T B 84.9/16.6
C95 4030017400 S.CER C1005 CH 1H 220J-T B 79.7/22.9
C96 4030017460 S.CER C1005 JB 1H 102K-T B 78.9/24.6
C97 4030017360 S.CER C1005 CH 1H 030B-T B 84.3/15.1
C98 4030017350 S.CER C1005 CH 1H 020B-T B 78.5/23.4
C99 4030017650 S.CER C1005 CH 1H 270J-T B 77.9/24.6
C100 4030017570 S.CER C1005 CH 1H 040B-T B 76.8/21.6
C101 4030017400 S.CER C1005 CH 1H 220J-T [USA] B 75.9/22.5
4030017400 S.CER C1005 CH 1H 220J-T [SEA]
4030017620 S.CER C1005 CH 1H 100C-T [CHN]
4030017620 S.CER C1005 CH 1H 100C-T [EUR-1]
4030017620 S.CER C1005 CH 1H 100C-T [EUR]
4030017620 S.CER C1005 CH 1H 100C-T [UK]
4030017620 S.CER C1005 CH 1H 100C-T [FRG]
4030017620 S.CER C1005 CH 1H 100C-T [HOL]
4030017400 S.CER C1005 CH 1H 220J-T [AUS]
C102 4030016790 S.CER C1005 JB 1E 103K-T B 70.3/24.4
C103 4030017420 S.CER C1005 CH 1H 470J-T B 70.3/25.3
C104 4030016790 S.CER C1005 JB 1E 103K-T B 70.0/27.0
C109 4030017460 S.CER C1005 JB 1H 102K-T B 67.3/23.2
C110 4030017660 S.CER C1005 CH 1H 330J-T B 65.7/26.2
C111 4030017460 S.CER C1005 JB 1H 102K-T B 64.5/28.5
C112 4030017570 S.CER C1005 CH 1H 040B-T [USA] B 66.4/20.7
4030017570 S.CER C1005 CH 1H 040B-T [SEA]
4030017360 S.CER C1005 CH 1H 030B-T [CHN]
4030017360 S.CER C1005 CH 1H 030B-T [EUR-1]
4030017360 S.CER C1005 CH 1H 030B-T [EUR]
4030017360 S.CER C1005 CH 1H 030B-T [UK]
4030017360 S.CER C1005 CH 1H 030B-T [FRG]
4030017360 S.CER C1005 CH 1H 030B-T [HOL]
4030017570 S.CER C1005 CH 1H 040B-T [AUS]
C113 4030017540 S.CER C1005 CH 1H R75B-T B 66.4/24.1
C114 4030017670 S.CER C1005 CH 1H 390J-T [USA] B 64.5/27.4
4030017670 S.CER C1005 CH 1H 390J-T [SEA]
4030017420 S.CER C1005 CH 1H 470J-T [CHN]
4030017420 S.CER C1005 CH 1H 470J-T [EUR-1]
4030017420 S.CER C1005 CH 1H 470J-T [EUR]
4030017420 S.CER C1005 CH 1H 470J-T [UK]
4030017420 S.CER C1005 CH 1H 470J-T [FRG]
4030017420 S.CER C1005 CH 1H 470J-T [HOL]
4030017670 S.CER C1005 CH 1H 390J-T [AUS]
C115 4030017380 S.CER C1005 CH 1H 050B-T B 65.9/22.8
C116 4030017570 S.CER C1005 CH 1H 040B-T B 63.9/24.0
C117 4030017370 S.CER C1005 CH 1H 3R5B-T [USA] B 77.6/22.5
4030017370 S.CER C1005 CH 1H 3R5B-T [SEA]
4030017350 S.CER C1005 CH 1H 020B-T [CHN]
4030017350 S.CER C1005 CH 1H 020B-T [EUR-1]
4030017350 S.CER C1005 CH 1H 020B-T [EUR]
4030017350 S.CER C1005 CH 1H 020B-T [UK]
4030017350 S.CER C1005 CH 1H 020B-T [FRG]
4030017350 S.CER C1005 CH 1H 020B-T [HOL]
4030017370 S.CER C1005 CH 1H 3R5B-T [AUS]
C119 4030017420 S.CER C1005 CH 1H 470J-T [USA] B 56.7/25.8
4030017420 S.CER C1005 CH 1H 470J-T [SEA]
4030017500 S.CER C1005 CH 1H 560J-T [CHN]
4030017500 S.CER C1005 CH 1H 560J-T [EUR-1]
4030017500 S.CER C1005 CH 1H 560J-T [EUR]
4030017500 S.CER C1005 CH 1H 560J-T [UK]
4030017500 S.CER C1005 CH 1H 560J-T [FRG]
4030017500 S.CER C1005 CH 1H 560J-T [HOL]
4030017420 S.CER C1005 CH 1H 470J-T [AUS]
C120 4030016970 S.CER C1005 JB 1E 223K-T B 55.8/24.2
C121 4030017460 S.CER C1005 JB 1H 102K-T B 54.9/24.2
C122 4030016790 S.CER C1005 JB 1E 103K-T B 61.0/17.4
C125 4030016930 S.CER C1005 JB 1A 104K-T B 35.1/18.1
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
C126 4030017460 S.CER C1005 JB 1H 102K-T B 37.4/15.2
C127 4030017420 S.CER C1005 CH 1H 470J-T B 24.0/10.0
C128 4030017730 S.CER C1005 JB 1H 471K-T B 24.0/11.6
C129 4030016930 S.CER C1005 JB 1A 104K-T B 23.8/8.3
C130 4030017340 S.CER C1005 CH 1H 010B-T [CHN] B 62.6/20.2
4030017340 S.CER C1005 CH 1H 010B-T [EUR-1]
4030017340 S.CER C1005 CH 1H 010B-T [EUR]
4030017340 S.CER C1005 CH 1H 010B-T [UK]
4030017340 S.CER C1005 CH 1H 010B-T [FRG]
4030017340 S.CER C1005 CH 1H 010B-T [HOL]
C131 4030017620 S.CER C1005 CH 1H 100C-T B 62.6/21.1
C132 4030017460 S.CER C1005 JB 1H 102K-T B 35.5/16.6
C133 4030017460 S.CER C1005 JB 1H 102K-T T 20.1/8.9
C134 4030017580 S.CER C1005 CH 1H 060C-T B 55.8/25.8
C154 4030017460 S.CER C1005 JB 1H 102K-T B 52.6/25.7
C155 4030017360 S.CER C1005 CH 1H 030B-T T 25.5/22.1
C156 4030017460 S.CER C1005 JB 1H 102K-T T 22.9/13.6
C157 4030016970 S.CER C1005 JB 1E 223K-T T 20.2/17.5
C158 4030017460 S.CER C1005 JB 1H 102K-T T 20.2/18.4
C159 4030016790 S.CER C1005 JB 1E 103K-T T 18.3/13.0
C160 4030018240 S.CER C1005 JB 1H 562K-T T 17.3/16.9
C170 4030017460 S.CER C1005 JB 1H 102K-T B 16.2/13.6
C171 4030017680 S.CER C1005 CH 1H 820J-T B 15.9/16.4
C174 4030017460 S.CER C1005 JB 1H 102K-T B 13.8/18.6
C176 4030017460 S.CER C1005 JB 1H 102K-T B 15.0/19.9
C177 4030016930 S.CER C1005 JB 1A 104K-T B 6.8/15.3
C178 4030018890 S.CER C1005 JB 0J 224K-T B 6.8/14.4
C179 4030017720 S.CER C1005 JB 1H 331K-T B 6.3/17.6
C180 4030017720 S.CER C1005 JB 1H 331K-T B 8.4/18.4
C181 4030016930 S.CER C1005 JB 1A 104K-T B 6.8/16.3
C191 4030016790 S.CER C1005 JB 1E 103K-T B 16.8/29.7
C192 4510008540 S.ELE EEE1CA100SR B 40.2/21.2
C193 4030016790 S.CER C1005 JB 1E 103K-T B 25.2/44.4
C194 4030016790 S.CER C1005 JB 1E 103K-T B 15.2/42.0
C200 4030016790 S.CER C1005 JB 1E 103K-T B 15.9/29.7
C202 4030016930 S.CER C1005 JB 1A 104K-T B 7.9/29.4
C205 4030016960 S.CER C1005 JB 1E 183K-T B 8.5/24.5
C206 4030017460 S.CER C1005 JB 1H 102K-T B 8.8/23.2
C207 4030016930 S.CER C1005 JB 1A 104K-T B 7.6/22.9
C220 4510008660 S.ELE EEE0JA220SR B 57.6/37.0
C221 4030016790 S.CER C1005 JB 1E 103K-T B 62.5/35.8
C222 4030016790 S.CER C1005 JB 1E 103K-T B 65.1/34.9
C223 4030016790 S.CER C1005 JB 1E 103K-T B 67.9/35.8
C224 4510008660 S.ELE EEE0JA220SR B 65.3/47.1
C225 4030018890 S.CER C1005 JB 0J 224K-T B 59.1/44.5
C226 4030016790 S.CER C1005 JB 1E 103K-T B 94.6/19.8
C227 4550007270 S.TAN F931A475MAABMA [USA] B 57.3/46.1
Eqv. 4550005980 S.TAN TEESVA 1A 475M8R [USA]
C227 4550007270 S.TAN F931A475MAABMA [SEA] B 57.3/46.1
Eqv. 4550005980 S.TAN TEESVA 1A 475M8R [SEA]
C227 4550005980 S.TAN TEESVA 1A 475M8R [CHN] B 57.3/46.1
Eqv. 4550007270 S.TAN F931A475MAABMA [CHN]
C227 4550007270 S.TAN F931A475MAABMA [EUR-1] B 57.3/46.1
Eqv. 4550005980 S.TAN TEESVA 1A 475M8R [EUR-1]
C227 4550007270 S.TAN F931A475MAABMA [EUR] B 57.3/46.1
Eqv. 4550005980 S.TAN TEESVA 1A 475M8R [EUR]
C227 4550005980 S.TAN TEESVA 1A 475M8R [UK] B 57.3/46.1
Eqv. 4550007270 S.TAN F931A475MAABMA [UK]
C227 4550007270 S.TAN F931A475MAABMA [FRG] B 57.3/46.1
Eqv. 4550005980 S.TAN TEESVA 1A 475M8R [FRG]
C227 4550005980 S.TAN TEESVA 1A 475M8R [HOL] B 57.3/46.1
Eqv. 4550007270 S.TAN F931A475MAABMA [HOL]
C227 4550005980 S.TAN TEESVA 1A 475M8R [AUS] B 57.3/46.1
Eqv. 4550007270 S.TAN F931A475MAABMA [AUS]
C228 4030017460 S.CER C1005 JB 1H 102K-T B 93.9/22.0
C229 4030017460 S.CER C1005 JB 1H 102K-T B 105.1/27.5
C230 4550007380 S.TAN F931D225MAABMA B 105.1/25.9
C231 4030018890 S.CER C1005 JB 0J 224K-T B 53.4/32.7
C233 4030016790 S.CER C1005 JB 1E 103K-T B 62.2/47.5
C250 4030016930 S.CER C1005 JB 1A 104K-T B 79.8/43.4
C251 4510008540 S.ELE EEE1CA100SR B 72.4/47.1
C252 4030017460 S.CER C1005 JB 1H 102K-T B 31.5/45.2
C253 4030016950 S.CER C1005 JB 1A 473K-T B 30.2/46.2
C254 4030016930 S.CER C1005 JB 1A 104K-T B 15.0/35.3
C260 4510008540 S.ELE EEE1CA100SR B 20.6/33.0
C261 4030016930 S.CER C1005 JB 1A 104K-T [USA] B 10.0/35.1
4030016930 S.CER C1005 JB 1A 104K-T [SEA]
4030018890 S.CER C1005 JB 0J 224K-T [CHN]
4030018890 S.CER C1005 JB 0J 224K-T [EUR-1]
4030018890 S.CER C1005 JB 0J 224K-T [EUR]
4030018890 S.CER C1005 JB 0J 224K-T [UK]
4030018890 S.CER C1005 JB 0J 224K-T [FRG]
4030018890 S.CER C1005 JB 0J 224K-T [HOL]
4030016930 S.CER C1005 JB 1A 104K-T [AUS]
C262 4030016790 S.CER C1005 JB 1E 103K-T B 7.5/36.4
C263 4030016790 S.CER C1005 JB 1E 103K-T B 11.5/23.6
C264 4030018240 S.CER C1005 JB 1H 562K-T B 13.6/22.5
C265 4030017690 S.CER C1005 CH 1H 121J-T B 14.1/25.4
C266 4030017030 S.CER C1005 JB 1A 273K-T B 16.1/24.2
C280 4030018900 S.CER C1005 JB 0J 474K-T B 49.9/41.4
C282 4510008540 S.ELE EEE1CA100SR B 48.6/32.3
C283 4030016930 S.CER C1005 JB 1A 104K-T B 48.2/40.5
C284 4030017460 S.CER C1005 JB 1H 102K-T B 48.2/39.6
C285 4030016930 S.CER C1005 JB 1A 104K-T B 51.7/39.6
C286 4510009530 S.ELE 10 CE 150 BSS B 40.8/34.9
C288 4030016950 S.CER C1005 JB 1A 473K-T B 44.6/47.3
C289 4510009530 S.ELE 10 CE 150 BSS B 40.3/43.7
C300 4030017770 S.CER C1005 JB 1H 332K-T B 7.9/27.0
C340 4030016790 S.CER C1005 JB 1E 103K-T B 97.4/30.6
C341 4030008890 S.CER C1608 JB 1H 273K-T B 94.9/34.3
C350 4030016790 S.CER C1005 JB 1E 103K-T T 104.3/24.8
C351 4030016790 S.CER C1005 JB 1E 103K-T B 88.1/27.0
C360 4030016790 S.CER C1005 JB 1E 103K-T T 97.7/19.1
C361 4030016950 S.CER C1005 JB 1A 473K-T T 90.4/41.1
C363 4030016950 S.CER C1005 JB 1A 473K-T T 94.0/41.3
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.

Feb. 2012
4
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
C364 4030016950 S.CER C1005 JB 1A 473K-T T 94.9/41.3
C365 4030016950 S.CER C1005 JB 1A 473K-T T 96.6/41.3
C366 4030016950 S.CER C1005 JB 1A 473K-T T 99.3/40.7
C367 4030016950 S.CER C1005 JB 1A 473K-T T 93.1/41.3
C370 4030018070 S.CER C1005 CH 1H 300J-T B 95.0/30.9
C371 4030017400 S.CER C1005 CH 1H 220J-T B 95.6/32.1
C372 4030016930 S.CER C1005 JB 1A 104K-T B 84.7/35.9
C373 4030018900 S.CER C1005 JB 0J 474K-T T 87.5/35.2
C374 4030018900 S.CER C1005 JB 0J 474K-T T 89.9/37.8
C375 4030018900 S.CER C1005 JB 0J 474K-T T 89.0/38.1
C377 4030017740 S.CER C1005 JB 1H 821K-T B 9.1/28.2
C378 4030017780 S.CER C1005 JB 1H 472K-T B 9.4/26.1
C379 4030017420 S.CER C1005 CH 1H 470J-T B 12.2/25.4
C380 4030017460 S.CER C1005 JB 1H 102K-T T 87.3/13.4
C381 4030017460 S.CER C1005 JB 1H 102K-T T 99.5/14.3
C382 4030018860 S.CER C1005 JB 0J 105K-T B 27.6/46.2
C383 4030018860 S.CER C1005 JB 0J 105K-T B 13.9/37.8
C384 4030016930 S.CER C1005 JB 1A 104K-T B 79.8/44.3
C385 4030016790 S.CER C1005 JB 1E 103K-T B 9.1/35.1
C386 4030018900 S.CER C1005 JB 0J 474K-T T 90.0/39.3
C387 4030017460 S.CER C1005 JB 1H 102K-T T 91.3/41.5
C389 4550007520 S.TAN F931A106MAABMA B 90.9/23.5
C390 4030017460 S.CER C1005 JB 1H 102K-T B 105.1/29.3
C391 4030017460 S.CER C1005 JB 1H 102K-T B 60.4/45.2
C392 4030017460 S.CER C1005 JB 1H 102K-T B 103.2/34.4
C393 4030016950 S.CER C1005 JB 1A 473K-T T 97.5/41.3
C394 4030016950 S.CER C1005 JB 1A 473K-T T 92.2/41.5
C410 4030017420 S.CER C1005 CH 1H 470J-T T 105.3/41.8
C411 4030017420 S.CER C1005 CH 1H 470J-T T 103.4/46.4
C412 4030017420 S.CER C1005 CH 1H 470J-T T 109.6/38.1
C413 4030017420 S.CER C1005 CH 1H 470J-T T 100.8/44.3
C414 4030017440 S.CER C1005 CH 1H 221J-T T 100.8/45.2
C415 4030017440 S.CER C1005 CH 1H 221J-T T 103.4/45.5
C417 4030017460 S.CER C1005 JB 1H 102K-T B 14.1/39.1
C421 4030016790 S.CER C1005 JB 1E 103K-T B 52.6/47.6
C422 4030016950 S.CER C1005 JB 1A 473K-T B 45.2/39.4
C423 4550004040 S.TAN TEESVA 0J 685M8R B 54.3/44.5
Eqv. 4550007170 S.TAN F930J685MAABMA
C424 4030017460 S.CER C1005 JB 1H 102K-T B 75.8/37.6
C426 4030018860 S.CER C1005 JB 0J 105K-T B 73.9/42.1
C427 4030016930 S.CER C1005 JB 1A 104K-T B 74.4/43.3
C428 4030016960 S.CER C1005 JB 1E 183K-T B 69.2/45.3
C429 4030016960 S.CER C1005 JB 1E 183K-T B 69.1/44.1
C430 4030017730 S.CER C1005 JB 1H 471K-T B 68.5/42.0
C431 4030016930 S.CER C1005 JB 1A 104K-T B 74.3/35.2
C432 4030017460 S.CER C1005 JB 1H 102K-T T 98.4/41.3
C433 4030016930 S.CER C1005 JB 1A 104K-T B 68.7/38.2
C434 4030016950 S.CER C1005 JB 1A 473K-T B 73.7/39.7
C435 4030018890 S.CER C1005 JB 0J 224K-T B 99.5/27.7
J250 6450001910 CON HSJ1594-010150
J253 6510021901 S.CON BM02B-ASRS-TF(LF)(SN) B 78.9/39.3
DS240 5040003060 S.LED SML-512WWT86 T 92.2/4.7
DS241 5040003060 S.LED SML-512WWT86 T 99.7/4.7
DS242 5040002310 S.LED SML-311YTT86 T 47.7/34.0
DS243 5040002310 S.LED SML-311YTT86 T 62.9/34.8
DS244 5040002310 S.LED SML-311YTT86 T 47.7/18.4
DS245 5040002310 S.LED SML-311YTT86 T 62.9/17.6
DS246 5030003001 LCD S11000-1 <SUC>
MC250 7700002710 MIC EM6027P-46C33-G <HOR>
S250 2260001900 SWI SW-149 (SKHLLD)
EP2 6910014690 S.BEA MPZ1608S221A-T B 72.3/16.0
EP3 6910014690 S.BEA MPZ1608S221A-T B 80.4/13.4
EP4 6910012350 S.BEA MMZ1608Y 102BT T 103.0/43.1
EP5 6910012350 S.BEA MMZ1608Y 102BT T 105.4/39.8
EP6 6910012350 S.BEA MMZ1608Y 102BT T 111.8/35.7
EP7 6910012350 S.BEA MMZ1608Y 102BT T 104.8/45.4
EP360 8930077940 LCD SRCN-3168-SP-N-W (SHJ)
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.

Feb. 2012
*; Refer to “PARTS LIST.”
5
SECTION 10
SECTION 10
.
VOLTAGE DIAGRAM
DS242
SML-311YT
DS243
SML-311YT
DS244
SML-311YT
DS245
SML-311YT
0.1
C283
0.1
C285
0.1
C372
0.01
C191
0.01
C193
0.01
C194
0.01
C200
0.01
C262
0.01
C340
0.01
C350
0.01
C360
0.001
C206
0.001
C284
0.001
C252
0.047
C288
0.047
C361
0.047
C363
0.047
C364
0.047
C365
0.047
C366
0.1
C202
0.1
C207
0.01
C263
0.0033
C300
0.027
C266
0.018
C205
0.0047
C378
R192
390
R193
470
R194
100K
R202
100K
R204
4.7K
R205
8.2K R206
18K
R207
27K
R230
27K
R212
1.5K
R213
68K
R214
15K
R231
1M
R241
680
R242
680
R341
10K
R263
100K
R250
100K
R264
100K
R265
100K
R252
33K
R257
4.7K R258
4.7K
R274
390K
R277
100K
R275
10K
R278
1K
R284
10
R286
10K
R300 6.8K
R377
82K
R378
82K
R379
82K
R376
100K
0.47
C280
22P
C371
820P
C377
10 EEE-S
C192
10 EEE-S
C251
10 EEE-S
C260
10 EEE-S
C282
CP360
CP10S
CF20
CP351
KEY
S320
KEY
S321
KEY
S322
KEY
S323
KEY
S324
KEY
S325
KEY
S326
S-80942CNMC
IC341
1OUT
2VDD
3VSS 4
NC
5
CD
0.027
C341
CD4066BPWR
IC260
1I/O1
2O /I1
3O /I2
4I/O2
5CONT2
6CONT3
7VSS 8
I/O 3
9
O /I3
10
O /I4
11
I/O 4
12
CONT4
13
CONT1
14
VDD
1
C383
0.1
C384
100K
R387
470K
R388
100K
R390
47K
R391
LM2902PWR
IC200
6
5
7
LM2902PWR
IC200
2
3
1
LM2902PWR
IC200
13
12
14
LM2902PWR
IC200
9
10
8
LM2902PWR
IC200
V+
4
GND
11
M62364FP
IC190
1VIN1
2VOUT1
3VOUT2
4VIN2
5VDD
6LD
7CLK
8DI
9VIN3
10 VOUT3
11 VOUT4
12 VIN4 13
VIN5
14
VOUT5
15
VOUT6
16
VIN6
17
DO
18
VDAREF
19
RESET
20
GND
21
VIN7
22
VOUT7
23
VOUT8
24
VIN8
0.1
C254
0.01
C385
47P
C379
R253
5.6K
R255
470K
R201
2.2K
R203
220K
MMZ1608Y102BT
EP4
MMZ1608Y102BT
EP5
MMZ1608Y102BT
EP6
MMZ1608Y102BT
EP7
47P
C410
47P
C411
0.47
C373
0.47
C374
0.47
C375
0.47
C386
R364
10K
*R367
0.047
C393
100K
R395
10 F93
C389
R346
100K
KEY
S327
KEY
S328
R271
33K
R251
270
R240
220
0.047
C394
47P
C412
47P
C413
R363
1K
R361
1K
R288
220K
0.1
C250
0.001
C387
*R447
ERJ2GE-JPW
*R448
S-24C64CI-T8T1U3
IC340
1A0
2A1
3A2
4VSS 5
SDA
6
SCL
7
WP
8
VCC
R340
100K
R343
10K
R273
22K
R272
120K
R279
1.5K
0.0056
C264
30P
C370
10K
R270
220P
C414
220P
C415
CR-834
X360
MC250
EM6027P
ERJ2GE-JPW
R396
S11000-1
DS246
1SEG0 2SEG1 3SEG2 4SEG3 5SEG4 6SEG5 7SEG6 8SEG7 9SEG8
10 SEG9 11 SEG10 12 SEG11 13 SEG12 14 SEG13 15 SEG14 16 SEG15 17 SEG16 18 SEG17 19 SEG18 20 SEG19 21 SEG20 22 SEG21 23 COM0 24 COM1 25 COM2
0.001
C417
R373
1M
R372
1.5M
R371
470K
NJM2073M
IC362
1OUT_A
2VCC
3OUT_B
4GND 5
-IN_B
6
+IN_B
7
+IN_A
8
-IN_A
0.01
C421
10
R429
RSQ035P03TR
Q230
1 2 34
5
6
270K
R430
R276
180K
10K
R431
R260
120K
R262
18K
R261
39K
0.047
C422
270
R427
15K
R428
33K
R432
10K
R433
0.001
C424
LM2904PWR
IC363
2
3
1
LM2904PWR
IC363
6
5
7
LM2904PWR
IC363
V+
8
GND
4
0.1
C427
0.018
C428
0.018
C429
470P
C430
4.7K
R437
4.7K
R440
15K
R441
22K
R444
1.5M
R445
0.001
C432
1.8K
R442
330K
R446
0.1
C433
1.5K
R435R256
15K
DS240
SML-512WW
DS241
SML-512WW
BM02B-ASRS-TF
J253
1
2
3 4
ERDS2T0
W1
ERDS2T0
W2
J250
HSJ1594-010150
KRC404E
Q352
KRC404E
Q240
KRC404E
Q 358
KRA302E
Q251
Q250
KRA302E
R289
10K
100K
R402
0.01
C351
1SS355
D350
2SC4116
Q350
2SA1586
Q361
R351
33K
R352
6.8K
R353
47K
18K
R449
TC7W04FU
IC364
1
2
3
4
5
6
7
8
0.22
C231
KTC811U
Q231
1 2 34
5 6
4.7K
R450
06FLT-SM2-TB
J252
12
34
56
150
C286
150
C289
33K
R452
22K
R451
0.047
C367
KRC404E
Q362
1
C382
1
C426
KDS160E
D354
4.7K
R456
0.1
C431
100K
R443
0.047
C434
100K
R457 150K
R439
0.047
C253
100K
R438
R374
390K
SW-149 (SKHLLD)
S250
22K
R434
6.8 MSVA
C423
UPD780318GC-512-9EB-A
IC360
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
0.22
C435
DB2S31400
D355
120P
C265
*C261
0.22 ECJ10 6.3V B
SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG10 SEG11 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM1 COM2 COM0
MCON
DETO
CLONE
AFOUT
MIC
GNDE
COM0
COM1
COM2
SEG0
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21
SCLK
VOLOUT
TXMS
DETMS
ATTS
EXPTT
PTTIN
BPCTRL
PON
16/9
CH/WX
UP
DOWN
FAV
VOL
SCAN
SQL
ESCK
16/9
UP
DOWN
SCAN
CH/WX
SQL
H/L
FAV
VOL
H/L
PTTM
WET
PTTSW
TDEC
KEYM1
KEYM2
KEYM3
WDECV
FCON
PCON
T1CON
SQLI
SQLO
ESDA
LEDS
BEEP
MODC
UNLK
PS
SDATAO
DASTB
EXDET
LCDS
A TIS
PWSW
NOISV
RSSIV
BATTV
ERXDI ETXDO ESCK ESDA
RES
RES VPP
DAST
SCK
SDATA
LOINV TDETV
KEYM1
KEYM2
KEYM3
DET
DETDET
ATIS
LCDS
MICMS
V5VS
AFVS
S5VS
LOW
R5VS
T5VS
DAST PLSTB SDATA SCK
BTYPE
RES
BPCTRL
EXDET
MOD MOD
DET
MOD
BEEP
NDET AFVS
WE T
TEMPV
MSENS
PTTIN
MICMS
DETMS
PTTM
WDECV
DETIN
MICO
MICIN
NDET
RES
VPP
SPO
EXDET
ETXDO
AFV
EXPTT
ERXDI
S5V S5V
CPU5VCPU5V CPU5V
CPU5V
DAST
7.9869MMHz
4.20VP-P
1.84V
1.88V
PTTIN
ON :4.82V
OFF:0.00V
OFF:0.00V
ON :4.81V
EXPTT
4.95V
1.89V
LEDON
4.93V
TX:0.00V
RX:7.39V

Feb. 2012
6
*; Refer to “PARTS LIST.”
NJM2125F
IC50
1
2
3
4
5
R80
82K
R2
100K
NJM2870
IC220
1CTRL
2GND
3NB 4
VOUT
5
VIN
D20
MA2S077G0
0.001
C72
R235
330K
R236
150K
MPZ1608S221A
EP3
MPZ1608S221A
EP2
RB706F
D91
0.1
C1
0.1
C58
0.1
C57
0.1
C177
0.1
C181
0.01
C2
0.01
C7
0.01
C56
0.01
C221
0.01
C222
0.01
C223
0.01
C226
0.01
C233
0.001
C6
0.001
C20
0.001
C12
0.001
C25
0.001
C28
0.001
C30
0.001
C29
0.001
C31
0.001
C44
0.001
C35
0.001
C36
0.001
C38
0.001
C41
0.001
C50
0.001
C52
0.001
C53
0.001
C60
0.001
C62
0.001
C64
0.001
C66
0.001
C158
0.001
C170
0.001
C174
0.001
C176
0.001
C228
0.001
C229
0.001
C381
0.001
C380
470P
C59
470P
C67
0.0056
C160
0.022
C157
0.01
C159
150
R76
CR-766
X1
18N
L53
Q 220
KTA2015 Q221 KTA2015 Q 222
KTA2015
Q225
KTA1664
D21
MA2S077G0
R3
10K
R4
47K
R5
330
R6
1K
R7
47K
R20
100
R23
1K
R24
100K
R25
100K
R28
180
R30
68K
R31
680
R33
39K
R34
470
R35
68K
R36
1K
R50
1K
R52
4.7K
R53
100
R55
3.3K
R56
1.2K
R65
150K
R67
100K
R68
100
R69
15K
R70
15K
R71
100
R75
100
R73
1K
R74
10K
R154
100K
R156
470
R170
390
R173
1.5K
R172
470
R227
10K
R245
1K
10K
R381
2.2K
R384
12K
R383
2.7K
R382
10K
R386
220P
C3
15P
C5
2P
C8
2P
C9
9P
C21
9P
C22
1.5P
C32
1.5P
C34
220P
C33
0.3P
C37
12P
C39
15P
C40
5P
C42
22P
C43
22P
C51
24P
C55
15P
C54
100P
C65
47P
C68
0.001
C73
0.001
C74
0.001
C80
18P
C81
18P
C82
22P
C83
11P
C84
24P
C85
9P
C86
7P
C89
9P
C90
10P
C91
0.001
C154
0.001
C156
82P
C171
0.22
C178
Q90
3SK294
3SK293
Q150
C93
0.001
0.001
C96
0.01
C102
47P
C103
0.001
C121
0.022
C120
0.01
C104
0.001
C109
0.001
C111
0.75P
C113
5P
C115
L92
56N
L93
56N
56N
L96
56N
L97
10
R109
330K
R122
0
R108
100K
R111 R91
220K
R93
10K
R94
220K
R95
100K
R96
270K
10K
R103
820
R104
220K
R105
220K
R107
R120
2.2K
RD01MUS1
Q53
2.7U
L58
82N
L51
TA31136FNG
IC170
1OSCIN
2OSCOUT
3MIXOUT
4VCC
5IFIN
6DEC
7FILOUT
8FILIN 9
AFOUT
10
QUAD
11
IFOUT
12
RSSI
13
N-DET
14
N-REC
15
GND
16
MIXIN
Q23
2SC4215
Q24
2SC4215
Q25
2SC4215
HVC376B
D1
1SV307
D52
0
R100
22 EEE-S
C220
22 EEE-S
C224
CP80
CP10S
CP245
CP10S
CP240
CP10S
CP1
CP10S
Q 151
KTC3880S
0.001
C15
0.001
C16
0.001
C17
10K
R12
1K
R11
8.2K
R13
R175
27K
R176
1K
0
R392
M B15E03SLPFV1
IC1
1
OSCI 2
OSCO 3
VP 4
VCC 5
DO 6
GND 7
XFIN 8
FIN
9CLK
10 DAT
11 LE
12 PS
13 ZC
14 L/F
15 P
16 R
S-812C36AMC
IC2
1GND
2VIN
3VOUT 4
NC
5
NC
10K
R39
10K
R41
10K
R43
10K
R45
22K
R40
22K
R42
22K
R44
22K
R46
150
R37
0.001
C126
0.001
C132
0.1
C125
47P
C127
0.1
C129
470P
C128
0.001
C133 3.9K
R47
DB2S31400
D353
22P
C95
2P
C98
33P
C110
D92
KDV214E
D93
KDV214E
D130
KDV214E KDV214E
D131
RSQ035P03TR
Q353
1 2 34
5
6
270K
R397
10K
R398
0.001
C390
0.001
C391
0.001
C392
CP300
CP10S
68K
R401
330K
R399
150K
R400
R1 NTCG16
KDS160E
D3
R22
5.6K
10 F93
C11
R29
470
R32
470
R26
12K
R27
12K
10K
R38
KRC404E
Q360
R155
2.2K
330P
C179
330P
C180
27P
C99
R153
1K
0.1
C13
R8
680
R10
470
36P
C26
36P
C27
*C101
10P ECJ10 CH
*C112
47P ECJ10 CH
3P
C97
R171
1K
X170
J
TBM450CX24
*R90
68 ERJ2GE
*C114
47P ECJ10 CH
0.1
C77
0.1
C78
47P C69
2.2 F93
C230
4.7 MSVA
C227
R224
47K
R222
47K
R220
47K
R225
10K
R223
10K
R221
10K
2SK1069
Q3 L1
6.8U
R54
10
R72
120
10K
R380
100P
C70
30P
C71
2775
MP20
1
2
3
4
L57
20N
FI150
FL-368
FI151
FL-399A
R83
100K
15P
C4
R226
4.7K R228
22K
0.22
C225
100
R113
KEY
S329
D50
KDS114
D51
KDS114
D90
KDS114
Q21
KTC3770U
Q22
KTC3770U
Q20
KRC404E
D23
HVC350B
D22
HVC350B
L20
82N
L21
2.7U
L22
82N
L23
0.1U
L24
0.1U
L25
0.1U
0.22 SVA
C24
L82
27.2N
L81
24N
L80
45.3N
L56
6.8N
L55
25N
22 EEE-S
C61
L90
45.3N
L98
0.82U
Q50
KTC3770U
L50
0.1U
KRA304E
Q351
KRC404E
Q 357
KRC404E
Q 354
KRC404E
Q355
KRA304E
Q 356
KTC811U
Q224
1 2 34
5 6
LTM450FW
FI170
I O
R66
39K
4P
C94
*R453
ERJ2GE-JPW
R57
82
0.01
C63
0.001
C92
4P
C100
0
R454
1.8K
R110
390K
R115
0.01
C122
RD09MUP2
Q54
*C117
2P ECJ10 CH B
220
R97
R174
270K
*C130
1P
6P
C134
3P
C155
*C119
56P
*R12
390K
1
4P
C116
R152
1k
82N
L26
10P
C131
GND
T5VS
R5VS V5VS
BATTV
PS
PON
UNLK
V5V
V5V
T5V
T5V
T5V
LOINV
TEMPV
NOISV
SQLI SQLO T1CON
LOW
BTYPE
PWSW
R5V
R5V
RSSIV
PCON MODC FCON
DET
DET
TDETV
TXMS
SCK
SDATA
PLSTB
S5VS
MOD
MOD
S5V S5V
S5V
CPU5V
2nd Lo
PON :4.94V
POFF:0.00V
7.40V4.95V
RX:0.00V
TX:4.82V
RX:4.88V
TX:0.00V
4.89V
RX:1.13V
TX:0.00V
TX:0.00V
V61.4:XR
V75.2:XR
TX:0.00V
TX:0.00V
RX:3.01V
1W:0.16V
6W:0.70V
6W:2.47V
1W:1.52V
RX:2.04VRX:0.00V
TX:0.76V
RX:0.00V
TX:1.45V
RX:0.00V
TX:4.71V
RX:1.30V
TX:0.71V
TX:2.37V
RX:2.45VRX:2.47V
TX:2.47V
3.59V
TX:0.00V
RX:1.83V
3.55V

S-14520XZ-C1
Oct. 2008
VHF MARINE TRANSCEIVER

This service manual describes the latest technical
information for the IC-M35 and IC-M36 VHF MARINE
TRANSCEIVER at the time of publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than specified. This will ruin
the transceiver.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver’s
front-end.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom parts numbers
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1110003491 S.IC TA31136FNG IC-M36 MAIN UNIT 5 pieces
8820001210 Screw 2438 screw IC-M35 Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and ICOM logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
ORDERING PARTS
1. Make sure that the problem is internal before
disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a Standard Signal
Generator or a Sweep Generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a Deviation Meter or Spectrum
Analyzer when using such test equipment.
8. READ the instructions of test equipment throughly
before connecting a test equipment to the transceiver.
REPAIR NOTES
INTRODUCTION
CAUTION
UNIT ABBREVIATIONS:
CH=CHASSIS
M=MAIN UNIT
MODEL VERSION AC
ADAPTER
TX
Hi-POWER
IC-M35
[CHN] BC-174E 6 W[EUR]
[UK] N/A
[FRG] BC-174E 6 W (1 W)
[HOL] 6 W
[AUS] BM-95V 5 W
IC-M36 [USA] BC-147SA 6 W
[SEA] BC-174E
(IC-M36)

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTION
SECTION 4 CIRCUIT DESCRIPITON
4-1 RECEIVER CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4-2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-3 FREQUENCY SYNTHESIZER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4-4 VOLTAGE BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4-5 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5-2 FREQUENCY ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
5-3 RECEIVE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5-4 TRANSMIT ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
SECTION 6 PARTS LIST
SECTION 7 MECHANICAL PARTS
SECTION 8 BOARD LAYOUTS
SECTION 9 BLOCK DIAGRAM
SECTION 10 VOLTAGE DIAGRAM

1 - 1
SECTION 1
.
SPECIFICATIONS
ïGENERAL
• Frequency coverage : Transmit 156.025–157.425 MHz
Receive 156.050–163.275 MHz
• Mode : FM (16K0G3E)
• Channel spacing : 25 kHz
• Power supply requirement : BP-251 and BP-252 only
• Current drain (at 7.4 V DC) : TX (6 W/1 W) 1.5 A/0.7 A typical
Max. audio 0.3 A typical (internal speaker)
0.2 A typical (external speaker)
Power save 10 mA typical
• Frequency stability : ±10 ppm
• Operating temperature range : –20°C to +60°C; –4°F to +140°F
• Dimensions : 62 (W)
×139.5(H) ×43(D) mm
(projections not included) 27⁄16(W) ×51⁄2(H) ×111⁄16(D) inch
• Weight : Approx. 295 g; 10.4 oz
(incl. BP-252, FA-SC58V and MB-109)
ïTRANSMITTER
• Output power (at 7.4 V DC) : 6 W (High) and 1 W (Low)
• Modulation system : Variable reactance frequency modulation
• Maximum frequency deviation : ±5 kHz
• Adjacent channel power : 70 dB
• Spurious emissions : –68 dBc typical
ïRECEIVER
• Receive system : Double-conversion superheterodyne
• Sensitivity (12 dB SINAD) : 0.25 μV typical
• Squelch sensitivity : 0.35 μV typical (at threshold)
• Intermodulation : 70 dB typical
• Spurious response : 70 dB typical
• Adjacent channel selectivity : 70 dB typical
• Audio output power (at 10% distortion)
Internal speaker : 0.70 W typical with a 16 Ωload
External speaker : 0.35 W typical with an 8 Ωload
1-2 IC-M361-1 IC-M35
ïGENERAL
• Frequency coverage : Transmit 156.000–161.450 MHz
Receive 156.000–163.425 MHz
• Mode : FM (16K0G3E)
• Channel spacing : 25 kHz
• Power supply requirement : BP-251 and BP-252 only
• Current drain (at 7.4 V DC)
TX at 6 W : 1.5 A typical
at 5 W : 1.3 A typical
at 1 W : 0.7 A typical
at 0.5 W : 0.6 A typical
RX Max. audio
Internal speaker : 0.3 A typical
External speaker : 0.2 A typical
Power save : 10 mA typical
• Frequency stability : ±1.5 kHz
• Operating temperature range : –15°C to +55°C
• Dimensions : 62 (W) u139.5 (H) u43 (D) mm
(Projections not included)
• Weight : Approx. 295 g
(incl. BP-252, FA-SC58V and MB-109)
ïTRANSMITTER
• Output power (at 7.4 V DC) : 6 W (High) and 1 W (Low)*
* 5 W (High) and 1 W (Low) for Australian
version
1 W (High) and 0.5 W (Low) for German
version depending on the pre-setting
• Modulation system : Variable reactance frequency
modulation
• Maximum frequency deviation : ±5 kHz
• Adjacent channel power : 70 dB
• Spurious emissions : 0.25 μW
ïRECEIVER
• Receive system : Double-conversion superhetero-
dyne
• Sensitivity (20 dB SINAD) : –2 dBμ emf typical
• Squelch sensitivity : –6 dBμ emf typical (at threshold)
• Intermodulation : 68 dB
• Spurious response : 70 dB*
* 65 dB for Australian version
• Adjacent channel selectivity : 70 dB
• Audio output power (at 10% distortion)
Internal speaker : 0.7 W typical with a 16 ȍload
External speaker : 0.2 W with an 8 ȍload
All stated specifications are subject to change without notice or obligation.

1 - 2
NOTE: Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT
be lawfully used by the general public in U.S.A. waters.
* Low power only.
Channel number Frequency (MHz)
03 156.150 160.75003
03A 156.150 156.150
156.200 160.80004
02 156.100 160.70002
04A 156.200 156.200
156.250 160.85005
05A 05A 156.250 156.250
06 06 156.300 156.30006
156.350 160.95007
07A 07A 156.350 156.350
08 08 156.400 156.40008
09 09 156.450 156.45009
10 10 156.500 156.50010
11 11 156.550 156.55011
12 12 156.600 156.60012
13* 13*
156.650 156.650 13
14 14
156.700 156.700 14
15* 15*
156.750 156.750 15*
16 16
156.800 156.800 16
17* 17*
156.850 156.850 17
156.900 161.500 18
18A 18A
156.900 156.900
156.950 161.550
19
19A 19A 156.950 156.950
20 20* 157.000 161.60020
20A 157.000 157.000
01A 156.050 156.050
USA
01 156.050 160.65001
CAN Transmit Receive INT
Channel number Frequency (MHz)
157.100 161.70022
22A 22A 157.100 157.100
23 157.150 161.75023
21b Rx only 161.650
23A 157.150 157.150
24 24 157.200 161.80024
25 25 157.250 161.85025
25b Rx only 161.850
26 26 157.300 161.90026
27 27 157.350 161.95027
28 28 157.400 162.00028
28b Rx only 162.000
60 156.025 160.62560
156.075 160.67561
61A 61A 156.075 156.075
156.125 160.72562
62A 156.125 156.125
156.175 160.77563
63A 156.175 156.175
64 156.225 160.82564
64A 64A 156.225 156.225
156.275 160.87565
65A 65A 156.275 156.27565A
156.325 160.92566
66A 66A* 156.325 156.32566A
67* 67 156.375 156.37567
21A 21A 157.050 157.050
USA
21 157.050 161.65021
CAN Transmit Receive INT
Channel number Frequency (MHz)
71 71 156.575 156.57571
72 72 156.625 156.62572
73 73 156.675 156.67573
70 70 RX only 156.52570
74 74 156.725 156.72574
75* 75* 156.775 156.77575*
76* 76* 156.825 156.82576*
77* 77* 156.875 156.87577
156.925 161.52578
78A 78A 156.925 156.925
156.975 161.57579
79A 79A 156.975 156.975
157.025 161.62580
80A 80A 157.025 157.025
157.075 161.67581
81A 81A 157.075 157.075
157.125 161.72582
82A 82A 157.125 157.125
83 157.175 161.77583
83A 83A 157.175 157.175
83b Rx only 161.775
84 84 157.225 161.82584
84A 157.225 157.225
85 85 157.275 161.87585
85A 157.275 157.275
86 86 157.325 161.92586
69 69 156.475 156.47569
68
USA
68 156.425 156.42568
CAN Transmit Receive INT
Channel number Frequency (MHz)
88 88 157.425 162.02588
88A 157.425 157.425
87A 157.375 157.375
87 87 157.375 161.97587
86A
USA
157.325 157.325
CAN Transmit Receive INT
Frequency (MHz)
RX only 162.425
RX only 162.450
RX only 162.500
RX only 162.475
RX only 162.525
RX only 161.650
RX only 161.775
RX only 163.275
RX only 162.400
RX only 162.550
Transmit Receive
WX channel
4
5
6
3
7
8
9
10
2
1
1-3 MARINE CHANNEL LIST
• For IC-M36
• For IC-M35
• International channels
01
02
03
04
05
06
07
08
09
10
156.050
156.100
156.150
156.200
156.250
156.300
156.350
156.400
156.450
156.500
160.650
160.700
160.750
160.800
160.850
156.300
160.950
156.400
156.450
156.500
11
12
13
14
15*
1
16
17*
1
18
19
20
156.550
156.600
156.650
156.700
156.750
156.800
156.850
156.900
156.950
157.000
156.550
156.600
156.650
156.700
156.750
156.800
156.850
161.500
161.550
161.600
21
22
23
24
25
26
27
28
60
61
157.050
157.100
157.150
157.200
157.250
157.300
157.350
157.400
156.025
156.075
161.650
161.700
161.750
161.800
161.850
161.900
161.950
162.000
160.625
160.675
62
63
64
65
66
67
68
69
70
71
156.125
156.175
156.225
156.275
156.325
156.375
156.425
156.475
Rx only
156.575
160.725
160.775
160.825
160.875
160.925
156.375
156.425
156.475
156.525
156.575
72
73
74
75*
2
76*
2
77
78
79
80
81
156.625
156.675
156.725
156.775
156.825
156.875
156.925
156.975
157.025
157.075
156.625
156.675
156.725
156.775
156.825
156.875
161.525
161.575
161.625
161.675
82
83
84
85
86
87
88
157.125
157.175
157.225
157.275
157.325
157.375
157.425
161.725
161.775
161.825
161.875
161.925
157.375
157.425
CH Frequency (MHz)
Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive
• USA channels (for U.K. versions only)
*UK marina channels: M1=37A (Tx/Rx: 157.850 MHz), M2=P4 (Tx/Rx: 161.425 MHz) for U.K. versions only.
The programmed channels are differ according to versions.
01A
––
03A
––
05A
06
07A
08
09
10
11
156.050
–––
156.150
–––
156.250
156.300
156.350
156.400
156.450
156.500
156.550
156.050
–––
156.150
–––
156.250
156.300
156.350
156.400
156.450
156.500
156.550
12
13
14
15
16
17
18A
19A
20
20A
21A
156.600
156.650
156.700
156.750
156.800
156.850
156.900
156.950
157.000
157.000
157.050
156.600
156.650
156.700
156.750
156.800
156.850
156.900
156.950
161.600
157.000
157.050
22A
23A
24
25
26
27
28
37A*
61A
––
63A
157.100
157.150
157.200
157.250
157.300
157.350
157.400
157.850
156.075
–––
156.175
157.100
157.150
161.800
161.850
161.900
161.950
162.000
157.850
156.075
–––
156.175
64A
65A
66A
67
68
69
70
71
72
73
74
156.225
156.275
156.325
156.375
156.425
156.475
Rx only
156.575
156.625
156.675
156.725
156.225
156.275
156.325
156.375
156.425
156.475
156.525
156.575
156.625
156.675
156.725
77
78A
79A
80A
81A
82A
83A
84
84A
85
85A
156.875
156.925
156.975
157.025
157.075
157.125
157.175
157.225
157.225
157.275
157.275
156.875
156.925
156.975
157.025
157.075
157.125
157.175
161.825
157.225
161.875
157.275
86
86A
87
87A
88
88A
P4*
157.325
157.325
157.375
157.375
157.425
157.425
161.425
161.925
157.325
161.975
157.375
162.025
157.425
161.425
CH Frequency (MHz)
Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive CH Frequency (MHz) Transmit Receive
*
1 Channels 15 and 17 may also be used for on-board communications provided the effective radiated power does not exceed 1 W, and subject to the national
regulations of the administration concerned when these channels are used in its territorial waters.
*
2 The output power of channels 75 and 76 are limited to low power (1 W) only. The use of these channels should be restricted to navigation-related communications
only and all precautions should be taken to avoid harmful interference to channel 16, e.g. by means geographical separation.

2 - 1
SECTION 2
.
INSIDE VIEWS
CPU (under the LCD)
(IC360)
VCO
• MAIN UNIT
(TOP VIEW)
• MAIN UNIT
(BOTTOM VIEW)
1st IF MIXER
(Q150)
QUAD OP AMP (AF FILETR/AF AMPs)
(IC200)
INTERNAL MICROPHONE
(MC250)
“VCC” LINE SWITCH
(Q353)
1ST IF FILTERS
(FI150, 151)
1ST IF AMP
(Q151)
AF POWER AMP
(IC362)
CPU CLOCK
(X360)
AF POWER AMP SWITCH
(Q230)
PLL IC
(IC1)
REFERENCE FREQUENCY OSCILLATOR
(X1)
2ND IF FILTER
(FI170)
PRE-DRIVER AMP
(Q53)
TX POWER AMP
(Q54)
IF IC
(IC170)
DISCRIMINATOR
(X170)
3V REGULATOR
(IC2)
INVERTER (data interface)
(IC364)
“CPU5V” LINE REGULATOR
(IC220)
AF MUTE SWITCH
(IC260)
D/A CONVERTER
(IC190)
AF POWER AMP REGULATOR
(Q231)
AMBIENT NOISE AMP
(IC363)
5V REGULATOR
(Q225)
CPU RESET IC
(IC341)
EEPROM
(IC340)

3 - 1
SECTION 3
.
DISASSEMBLY INSTRUCTION
1. REMOVING FRONT PANEL
• Unscrew 4 screws from the rear panel, and remove
the rear panel from the front panel.
NOTICE: NOT to lost 2 o-rings.
3. REMOVING MAIN UNIT
1) Unsolder 2 points from the top side, and 1 point from the
bottom side.
2. REMOVING CHASSIS
1) Unsolder 2 points from the speaker.
2)
Unscrew ANT nut from the antenna connector, and 5 screws
from the MAIN UNIT.
3) Take off the chassis with MAIN UNIT from the front panel
in the direction of the arrow.
REAR PANEL
O-ring
Screw
Screw
FRONT PANEL
TOP SIDE
MAIN UNIT
CHASSIS
Screw x4
MICROPHONE
CABLE
TOP SIDE
Unsolder
Unsolder
TOP SIDE
TOP SIDE
TOP SIDE BOTTOM SIDE
MAIN UNITMAIN UNIT
MAIN UNIT
Screw
(short) x3
Screw (long)
Unsolder
ANT NUT
ANT CONNECTOR
TOP SIDE
2) Unscrew 4 screws from the MAIN UNIT.
3) Disconnect the microphone cable from the MAIN UNIT.
4) Take off the MAIN UNIT from the chassis.

4 - 1
1ST IF, 2ND IF AND DEMODULATOR CIRCUITS
• 1ST IF CIRCUITS
The RX signals are mixed with 1st LO signals to be
converted into the 21.7 MHz 1st IF signal at the 1st mixer
(Q150). The converted 1st IF signal is filtered by the crystal
filter (FI150, 151) to remove unwanted out-of-band signals.
The filtered 1st IF signal is amplified by the 1st IF AMP
(Q151), then applied to the IF IC (IC170, pin 16).
• 2ND IF AND DEMODULATOR CIRCUITS
IC170 is an IF IC contains 2nd local oscillator, 2nd mixer,
limiter and quadrature detector in its package.
The 21.25 MHz reference frequency signal from the PLL
IC (IC1, pin 2) is applied to the IF IC (IC170, pin 2) as the
2nd LO signal, and mixed with 21.7 MHz 1st IF signal from
the 1st AMP (Q151). The resulting signal of 450 kHz 2nd IF
signal is output from pin 3 of IC170.
The 2nd IF signal is filtered by external ceramic filter (FI170)
to extract 450 kHz signal only, then applied to internal
quadrature detector and frequency-demodulated. The
demodulated AF signals are output from pin 9.
4-1 RECEIVER CIRCUITS
RF CIRCUITS
RF circuits consist of RF filters, antenna switch (ANT SW),
RF amplifier (RF AMP), etc., and extracts and amplifies the
signal of frequency which is desired to receive.
• ANTENNA SWITCHING CIRCUIT
The RF signals from the antenna are passed through the
LPF (L81, 82, C83–86, 89) and antenna SW (D52, 90, L90,
C90, 91), then applied to the RF AMP (Q90) via the 2-staged
tuned BPF (D92, 93, L92, 93, C95, 97–100, C117).
• RF AMPLIFIER
The filtered RX signals are amplified by the RF AMP (Q90),
and passed through another 2-staged BPF (D130, 131, L96,
97, 110, 112–115) to remove unwanted signals. The filtered
signals are applied to the 1st mixer (Q150).
The quadrature detector is a frequency demodulator which
uses a discriminator (X170) as a phase delayer, and
provides demodulation without any adjustment.
SQUELCH CIRCUIT
A portion of AF signals from the IF IC is level-adjusted by
the D/A converter (IC190), and applied to the noise amplifer
(IC170, R174–176, C179, 180).
Only noise components (approx. 30 kHz signal) are
amplified by the noise amplifier, and rectified by internal noise
detector to be converted into DC voltage corresponding
to noise level; the squelch voltage. The squelch voltage is
applied to the A/D port of the CPU (IC360). The CPU (IC360)
compares input voltage and preset squelch level to control
audio signals ON/OFF (emit/mute).
RX AF CIRCUITS
The demodulated AF signals from the IF IC (IC170, pin 9) are
passed through the AF mute SW (IC260) and LPF (IC200C,
R271–273, C264, 265). The filtered AF signals are passed
through another LPF (R279, C266) to remove 3 kHz and
higher signals, and level-adjusted by the D/A converter (IC190),
and de-emphasized by R286, C285 to obtain –6 dB/oct. of
frequency response, then applied to AF power amplifier (IC362).
IC362 is an AF power amplifier IC which can provide 0.35 W
of output power with 8 ohms load, or 0.7 W of output power
with 16 ohms load.
• RF CIRCUITS
• 2ND IF, DEMODULATOR AND RX AF CIRCUITS
• 1ST IF CIRCUITS
SECTION 4
.
CIRCUIT DESCRIPTION
LPF
ANT
SW
ANTENNA
BPF
RF
AMP
BPF BPFBPF
To 1st mixer
D131 D
TX CIRCUITS
92
D52
Q90 D93
D90
D130
T1CON
BPF
IF
AMP
21.7MHz
1st IF signal
FI150
Q151
To IF IC
From RF AMP
1st LO signals
from VCO
Q150
FI151
X170
450KHz
BPF
LPF
AF
AM P
X1
21.25MHz
AF
MUT E
From 1st IF AMP
IC1
PLL IC
DE -
ENPHA
IF IC
D/A IC
SPO
AF OUT
J250
IC170
FI170
450KHz
IC190
IC362
IC200C
VOLIN
VOL
BEEP
SQLO
SQLI
RSSI
NOISE LEVEL
21.25 MHz
2ND LO signal
DET
Int. SP
Ext. SP
NJM2073M
IC260D
DETMS
SP1

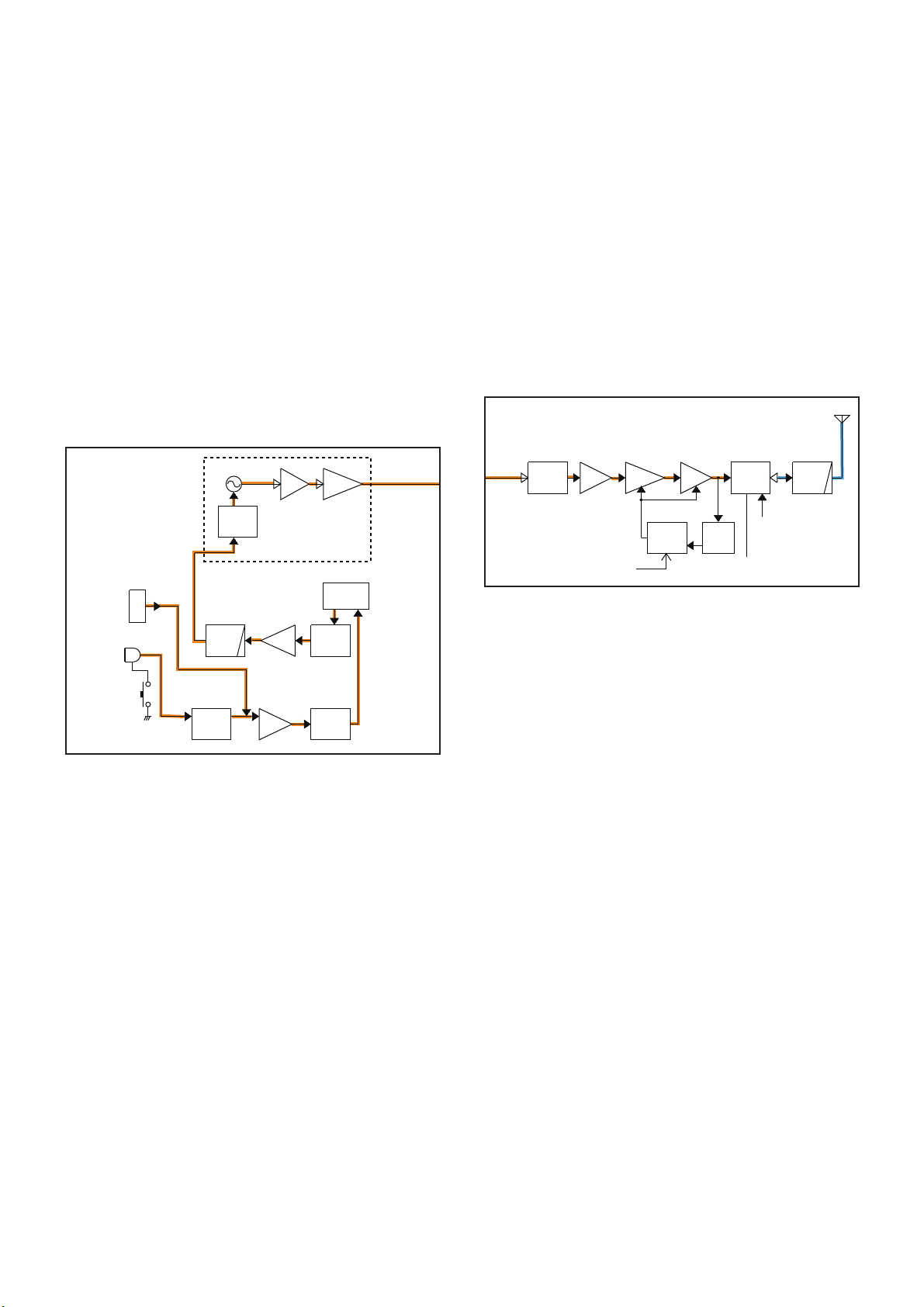

• TX AF AND MODULATION CIRCUITS
• TX AMPLIFIERS AND APC CIRCUIT
4 - 2
4-2 TRANSMITTER CIRCUITS
TX AF CIRCUITS
AF signals from the microphone (MIC signals) are passed
through the MIC line SW (IC260A) and amplified by MIC
AMP (IC200B), then passed through the MIC mute SW
(IC260C).
The MIC line SW (IC260A) selects the MIC signal path (from
int. MIC or from ext. MIC), and the MIC mute SW (IC260C)
disconnects the MIC line in receiving.
The MIC signals from the MIC mute SW (IC260C) are
adjusted its amplitude (=deviation) by the D/A converter
(IC190), and pre-emphasized by R201 and C385 to obtain
+6 dB/oct of frequency response.
Pre-emphasized MIC signals are amplitude-limited by the
limiter (IC200A) to prevent over deviation, and filtered by the
splatter filter (IC200D) to remove 3 kHz and higher signals,
then applied to the VCO for frequency modulation.
TX AMPLIFIERS
The frequency-modulated signal from the VCO (TX signal)
is passed through the LO SW (D50), and amplified by the
buffer AMP (Q50), driver AMP (Q53) and power AMP (Q54)
in sequence, to obtain TX output power.
APC CIRCUIT
A portion of TX output signal is rectified by D91 to be
converted into the DC voltage which corresponds to TX
power level.
IC50 compares the detected voltage and TX power setting
voltage from D/A converter (IC190). The resulting voltage
from IC50 controls the gain of both the driver (Q53) and the
power (Q54) AMPs to keep the TX output power stable.
To LO switch
BUFFBUFF
LPF LIMIT
AM P
MIC
AMP
MIC LINE
SW
MIC
MUT E
Q24
Q23
Q 21,Q22
MOD
MUT E
PRE
ENPHA
D/A
MIC
J250
VCO
Q20
IC190
IC200A
IC200D
IC200B
[PTT]
Int. MIC
[SP MIC]
D20
D21
D22,D23
INMIC
EXTMIC
MOD
IC260A IC260C
MC250
S250
LPF
ANT
SW
ANTENNA
J1
PWR
AM P
DRIVE
PRELO
SW BUFF
From VCO
APC
CTRL
T5V
D52
Q53 Q54
D50 Q50
PWR
DET
D91
IC50
D90
Q357
PCON
