ICON Health & Fitness NordicTrack Commercial 2450 User manual

USER’S MANUAL
Model No. NTL17122.5
Serial No.
Write the serial number in the space
above for reference.
REGISTER YOUR
PRODUCT
MEMBER CARE
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
nordictrack.com
To register your product and
activate your warranty today, go
to my.nordictrack.com.
For service at any time, go to
my.iFIT.com.
Or call 1-833-680-IFIT
(1-833-680-4348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
Serial Number
Decal

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE TREADMILL ..............................................................17
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING.....................................................30
EXERCISE GUIDELINES ....................................................................33
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

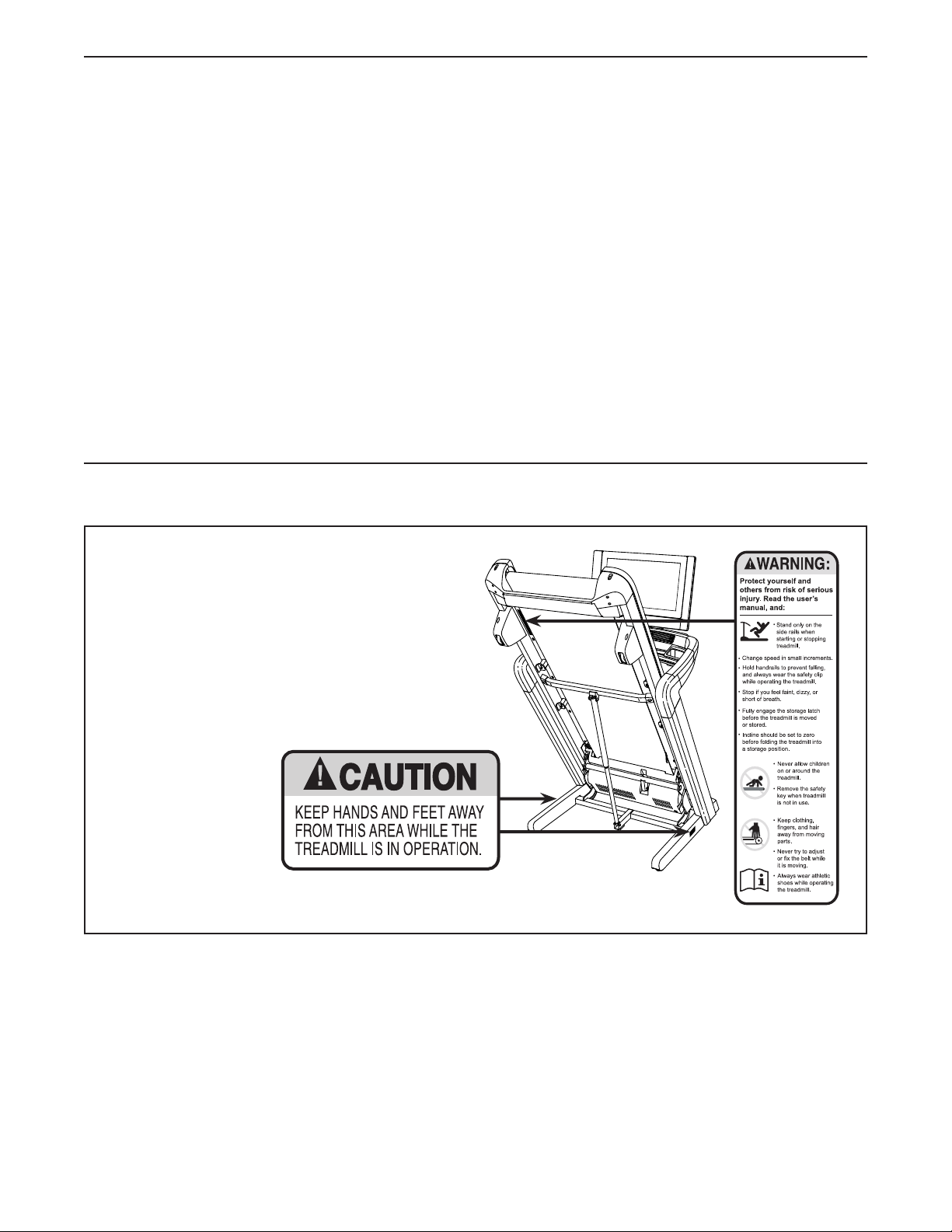

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
305284
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of iFIT Inc. The Bluetooth®word mark and logos are reg-
istered trademarks of Bluetooth SIG, Inc. and are used under license. Wi-Fi is a registered trademark of Wi-Fi
Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.

3
1. It is the responsibility of the owner to ensure
that all users of the treadmill are adequately
informed of all warnings and precautions.
2. Keep children under age 16 and pets away
from the treadmill at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age 35
or persons with pre-existing health problems.
4. Consult your health care provider before
beginning or continuing any exercise
program during pregnancy. Use the treadmill
only as authorized by your health care
provider.
5. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
6. Use the treadmill only as described in this
manual.
7. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
8. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
9. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
10. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
11. The treadmill should be used only by per-
sons weighing 300 lbs. (135 kg) or less.
12. Never allow more than one person on the
treadmill at a time.
13. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

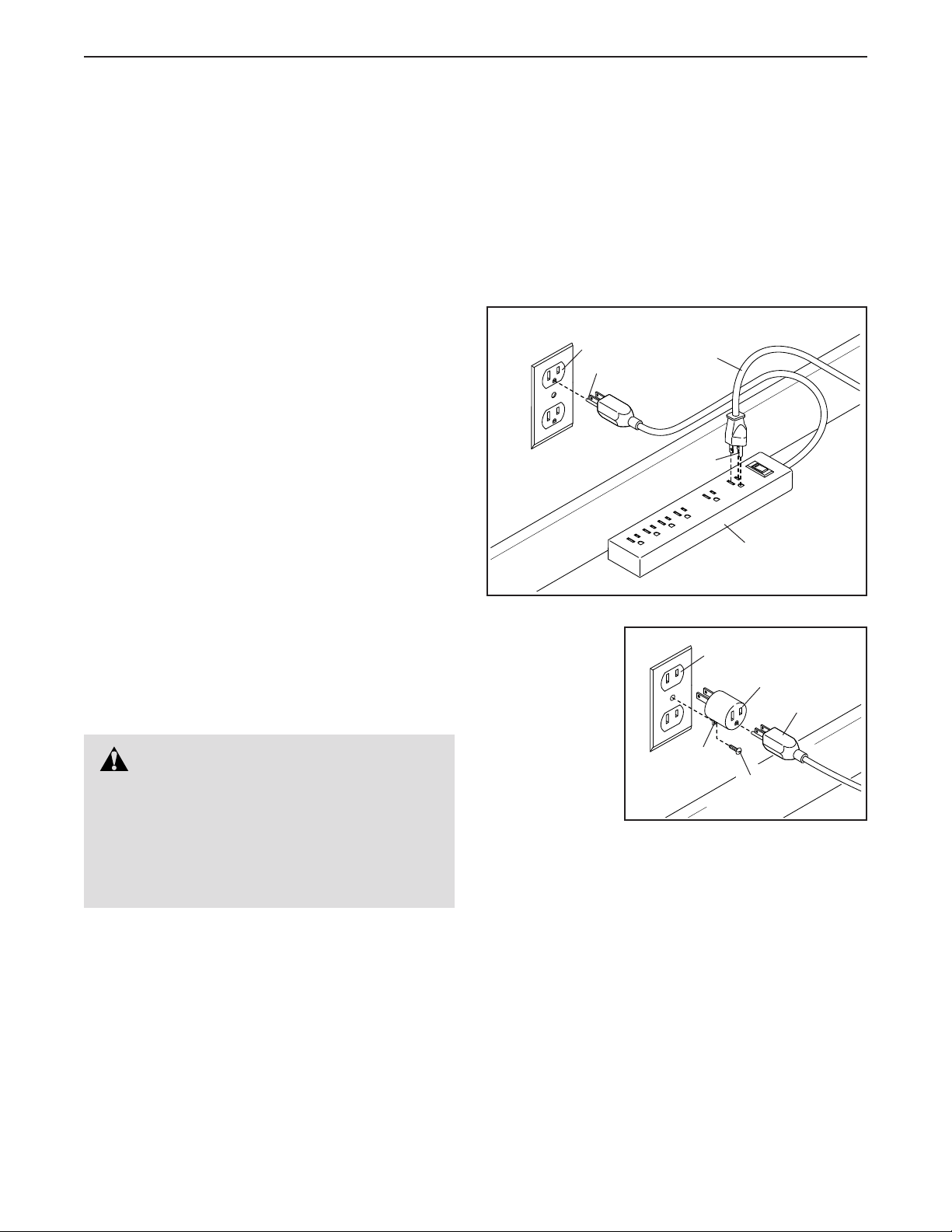

14. Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page 17).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
15. Use only a surge suppressor that meets all of
the specifications described on page 17. To
purchase a surge suppressor, see your local
NORDICTRACK dealer, call the telephone
number on the front cover of this manual, or
see your local electronics store.
16. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
17. Keep the power cord and the surge suppres-
sor away from heated surfaces.
18. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 30 if the treadmill is not working
properly.)
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
19. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 19). Always wear the clip while using the
treadmill.
20. Be careful when mounting and dismounting
the treadmill. Always stand on the foot rails
when starting or stopping the walking belt.
Always hold the handrails while using the
treadmill.
21. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
22. Keep fingers, hair, and clothing away from
the moving walking belt.
23. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
24. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 6 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
25. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 8 and HOW TO FOLD AND MOVE
THE TREADMILL on page 29.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
26. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
27. Do not change the incline of the treadmill by
placing objects under the treadmill.
28. Never insert any object into any opening on
the treadmill.
29. Inspect and properly tighten all parts each
time the treadmill is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
30. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
31. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the new NORDICTRACK®
COMMERCIAL 2450 treadmill. The COMMERCIAL
2450 treadmill provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

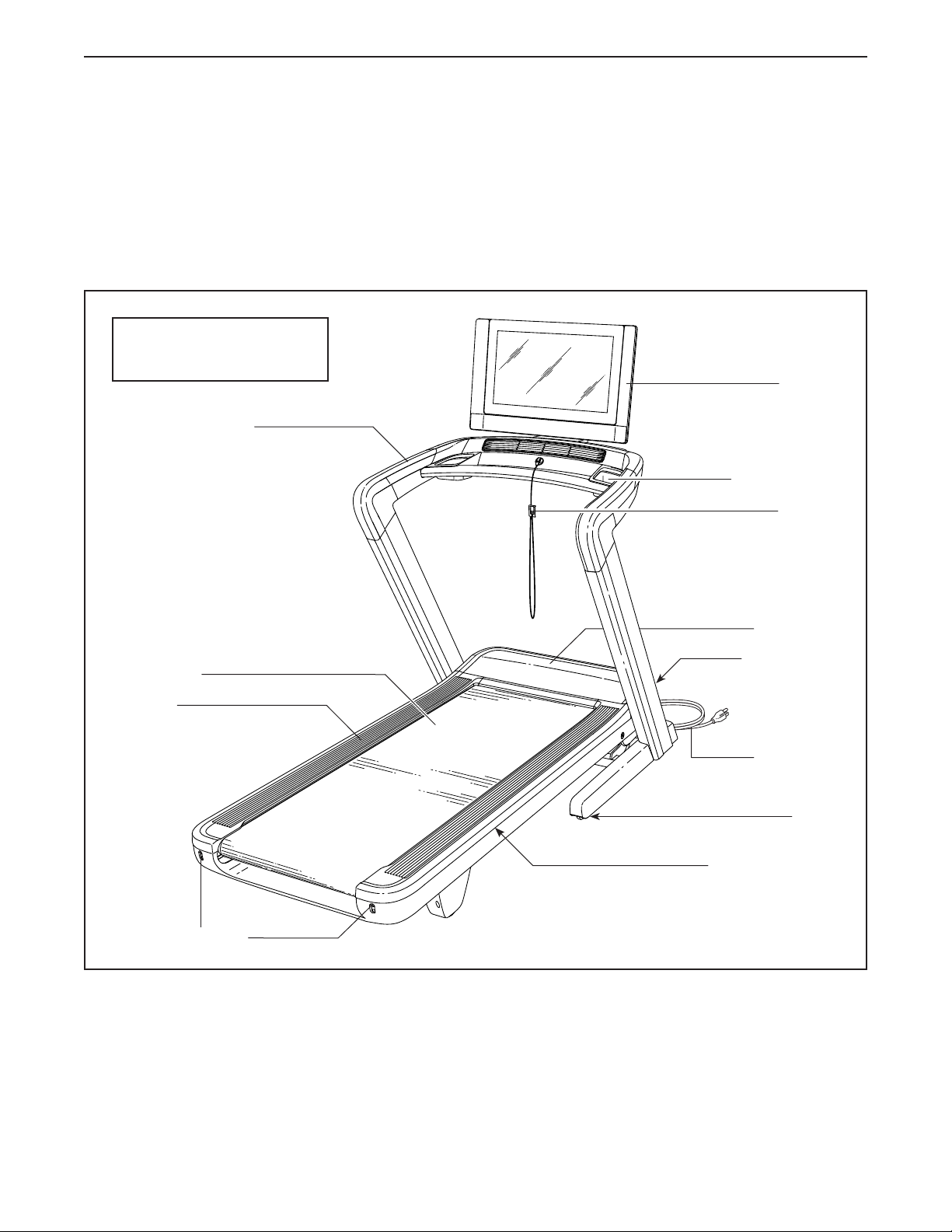

the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Key/Clip
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller Screws
Platform Cushions
Length: 6 ft. 7 in. (200 cm)
Width: 3 ft. 2 in. (96 cm)
Power Cord

7
PART IDENTIFICATION CHART

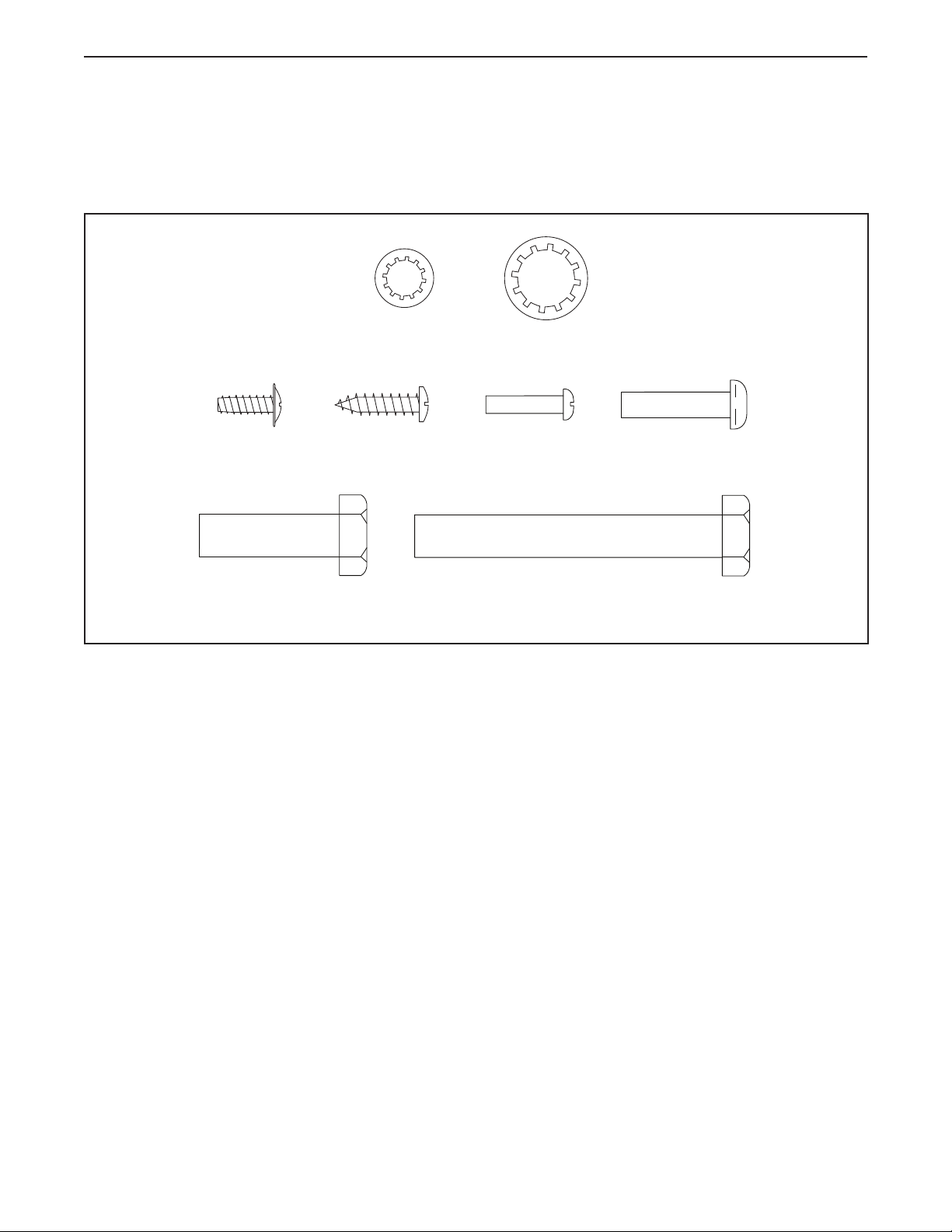

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (9)–12
5/16" Star
Washer (7)–2
3/8" x 2 3/4" Screw (2)–8
3/8" x 1 1/4"
Screw (1)–4
#8 x 3/4"
Screw (4)–14
Ground Screw
(5)–1
M4 x 20mm
Screw (6)–2
M6 x 25mm
Screw (8)–4

8
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
To avoid damaging parts, do not use power tools.
ASSEMBLY
1. To use the assembly steps in this manual, first see the helpful tips below.

9
2. Make sure that the power cord is unplugged.

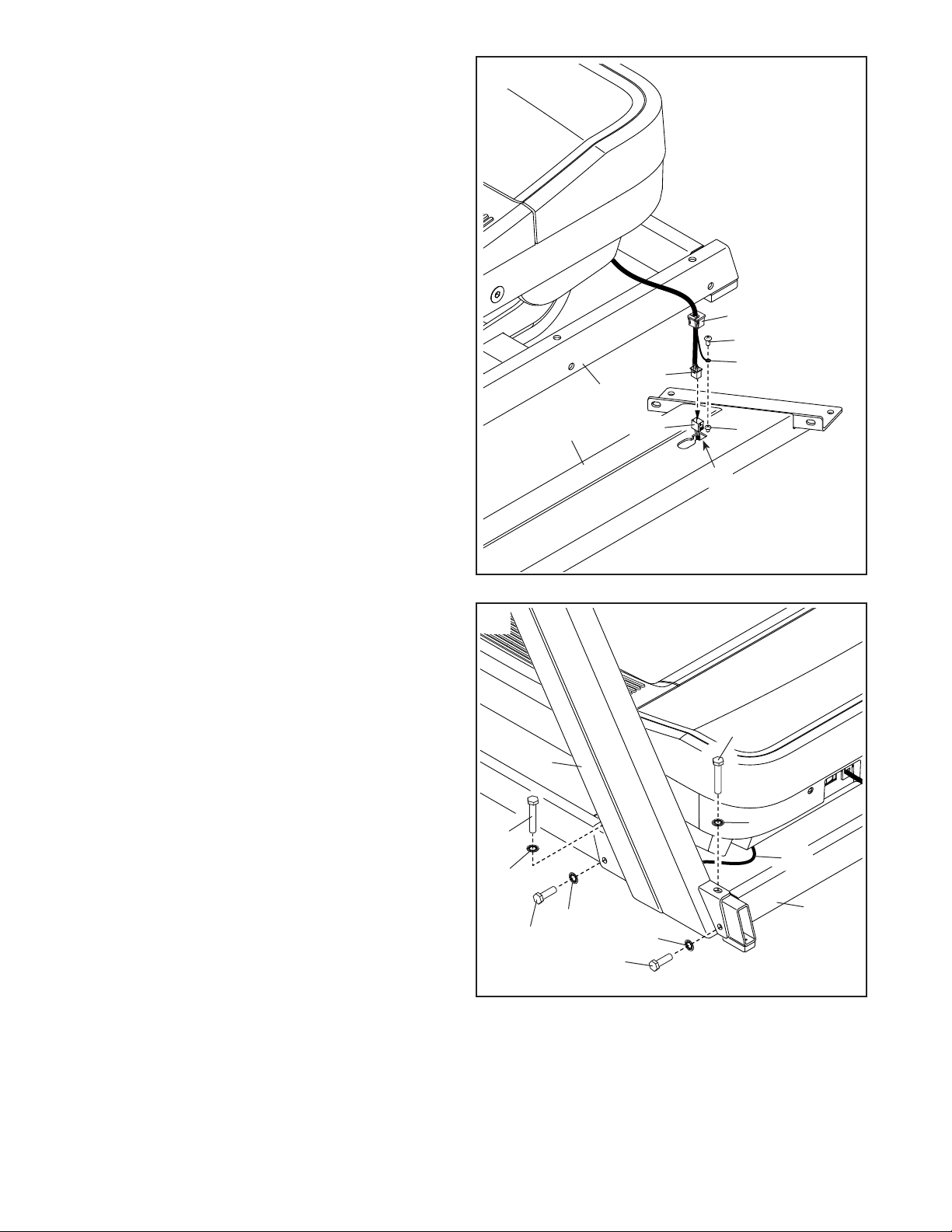

Identify the Right Upright (114), and lay it near
the Base (118) as shown.
Next, connect the Belly Pan Wire (96) to the
Upright Wire (120) in the Right Upright (114).
The connectors should slide together eas-
ily and snap into place with an audible click.
If they do not, turn one connector and try
again.
Next, insert the Wires (96, 120) into the indicated
square hole (A), and press the Grommet (97)
into the square hole.
Then, remove and discard the indicated
screw (B), and attach the ground wire (C) to the
Right Upright (114) with a Ground Screw (5).
B
97
96
118
114
5
C
3. Have a second person hold the Right Upright
(114) against the Base (118). Make sure not to
pinch the Belly Pan Wire (96).
Insert two 3/8" x 2 3/4" Screws (2) with two 3/8"
Star Washers (9) into the top of the bracket on
the Right Upright (114), and partially tighten the
Screws into the Base (118); do not fully tighten
the Screws yet.
Then, partially tighten two 3/8" x 1 1/4" Screws
(1) with two 3/8" Star Washers (9) into the side
of the bracket on the Right Upright (114); do not
fully tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
3
1
9
9
114
118
2
2
9
120
A
1
9
96
2

10

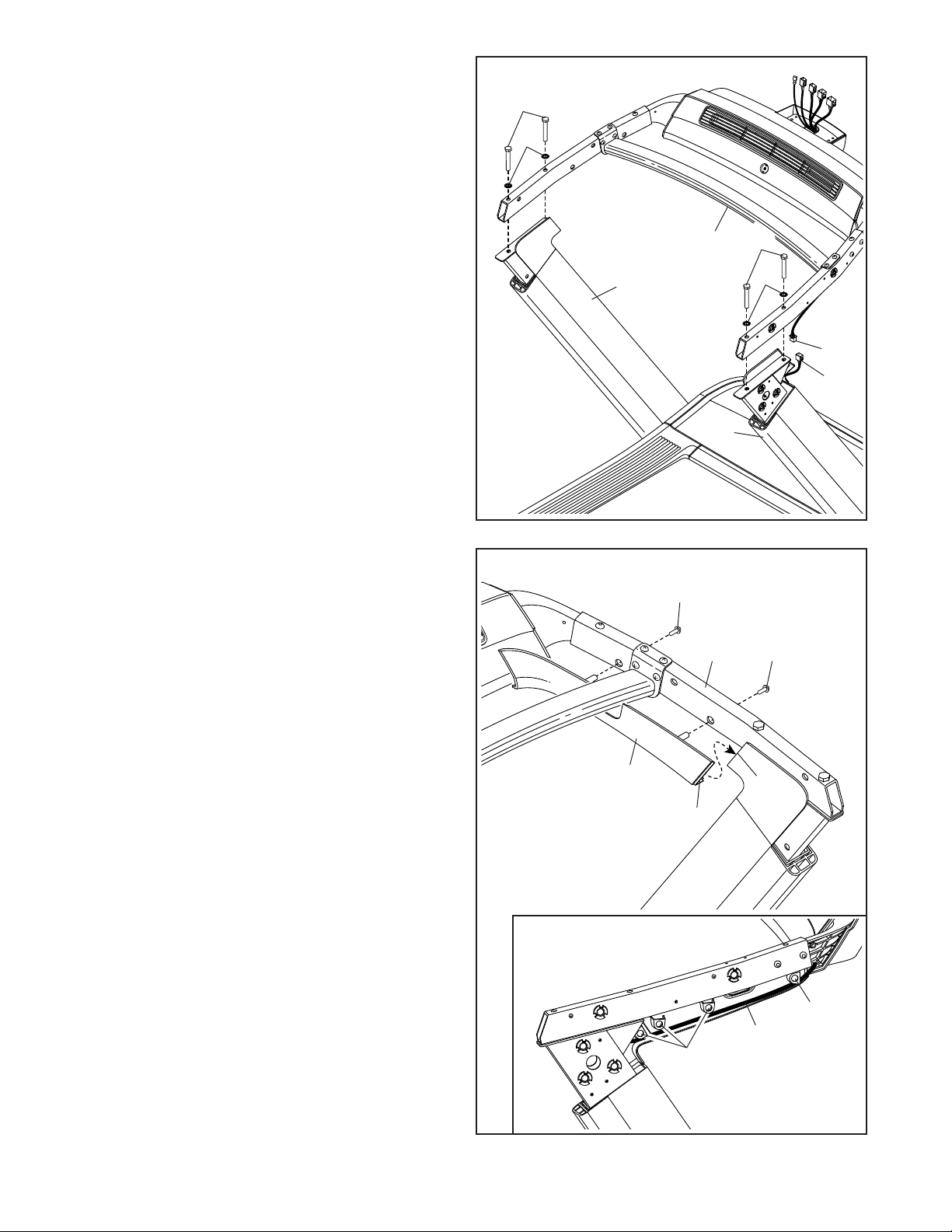

4. Do not pinch the Wires (119, 120) during
this step. With the help of a second person,
hold the handrail assembly (D) on the Left and
Right Uprights (113, 114). Attach the handrail
assembly with four 3/8" x 2 3/4" Screws (2)
and four 3/8" Star Washers (9); start all four
Screws, and then tighten them.
Next, connect the Handrail Wire (119) to the
Upright Wire (120). The connectors should
slide together easily and snap into place
with an audible click. If they do not, turn one
connector and try again. Then, insert the wires
into the Right Upright (114).
4
5
120
113
105
Q
D
D
2
4
9
4
119
114
104
9
2
5. Identify the Right Inner Console Base Cover
(105). Note: If the Right Inner Console Base
Cover is preassembled, go to step 6.
Insert the edge (Q) of the Right Inner Console
Base Cover (105) under the edge of the Right
Upright Inner Cover (104) as you press the Right
Inner Console Base Cover against the handrail
assembly (D).
See the inset drawing. Make sure that the
wires (119, 120) are inserted under the four
indicated bosses (N).
Attach the Right Inner Console Base Cover
(105) with two #8 x 3/4" Screws (4); start both
Screws, and then tighten them. Do not over-
tighten the Screws.
Attach the Left Inner Console Base Cover
(not shown) to the left side of the handrail
assembly (D) in the same way. Note: There is
not a wire on the left side.
119,
120
N
N
Side View

11
6

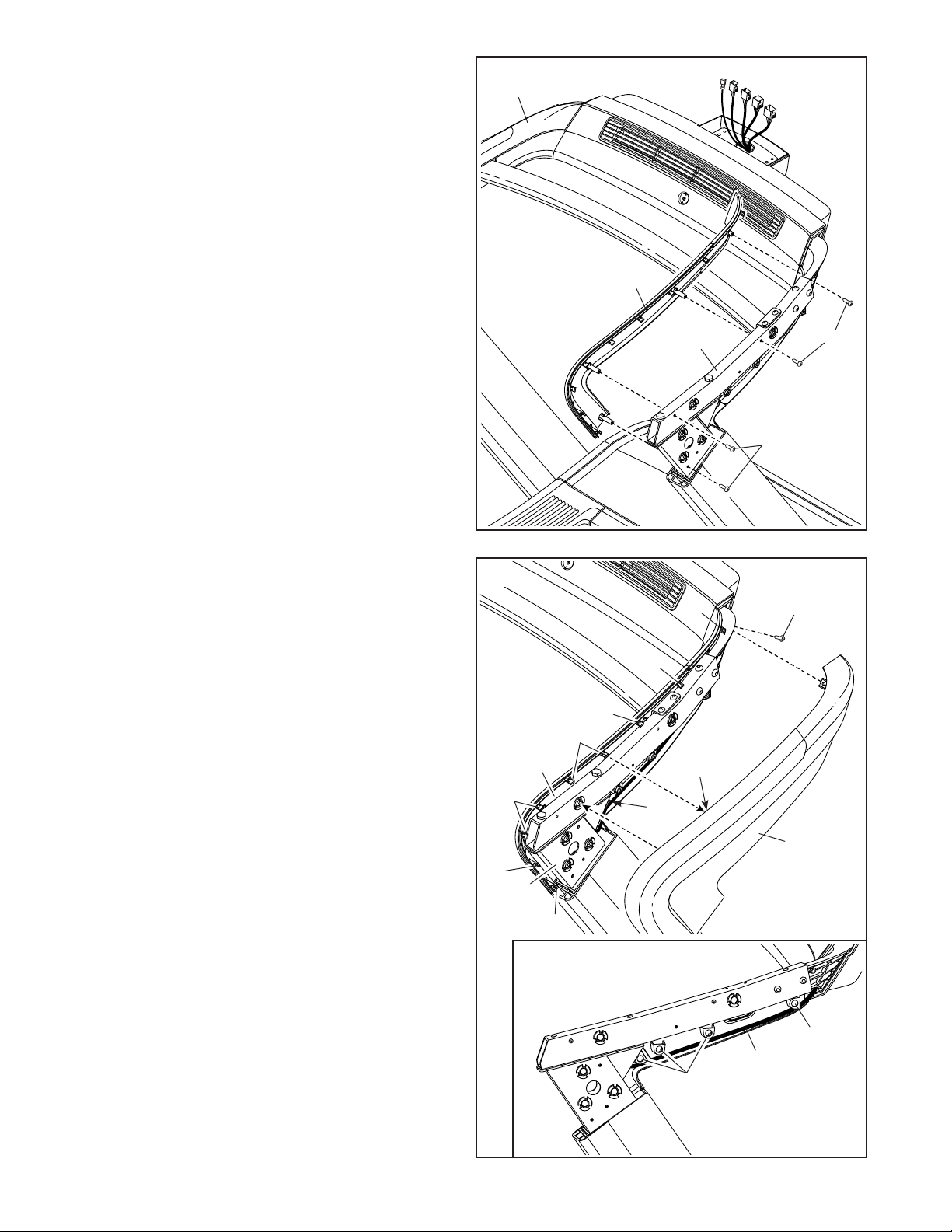

6. Identify the Right Inner Grip (102), and attach it
to the right side of the handrail assembly (D) with
four #8 x 3/4" Screws (4); start all four Screws,
and then tighten them. Do not overtighten the
Screws.
Attach the Left Inner Grip (101) to the left side
of the handrail assembly (D) in the same way.
D
101
4
102
4
7
7. See the inset drawing. Make sure that the
wires (119, 120) are inserted under the four
indicated bosses (N). Do not pinch the wires
during this step.
Identify the Right Outer Grip (103), and press
it onto the handrail assembly (D) and the
Right Upright (114) as shown. Note: The nine
indicated tabs (O) must slide into the corre-
sponding square holes (P) in the Right Outer
Grip.
Then, tighten a #8 x 3/4" Screw (4) into the Right
Outer Grip (103) in the location shown.
Attach the Left Outer Grip (not shown) to the
left side of the treadmill in the same way.
114
D
O
O
P
103
O
O
O
O
O4
119,
120
119,
120
N
N
Side View

12
8E
D

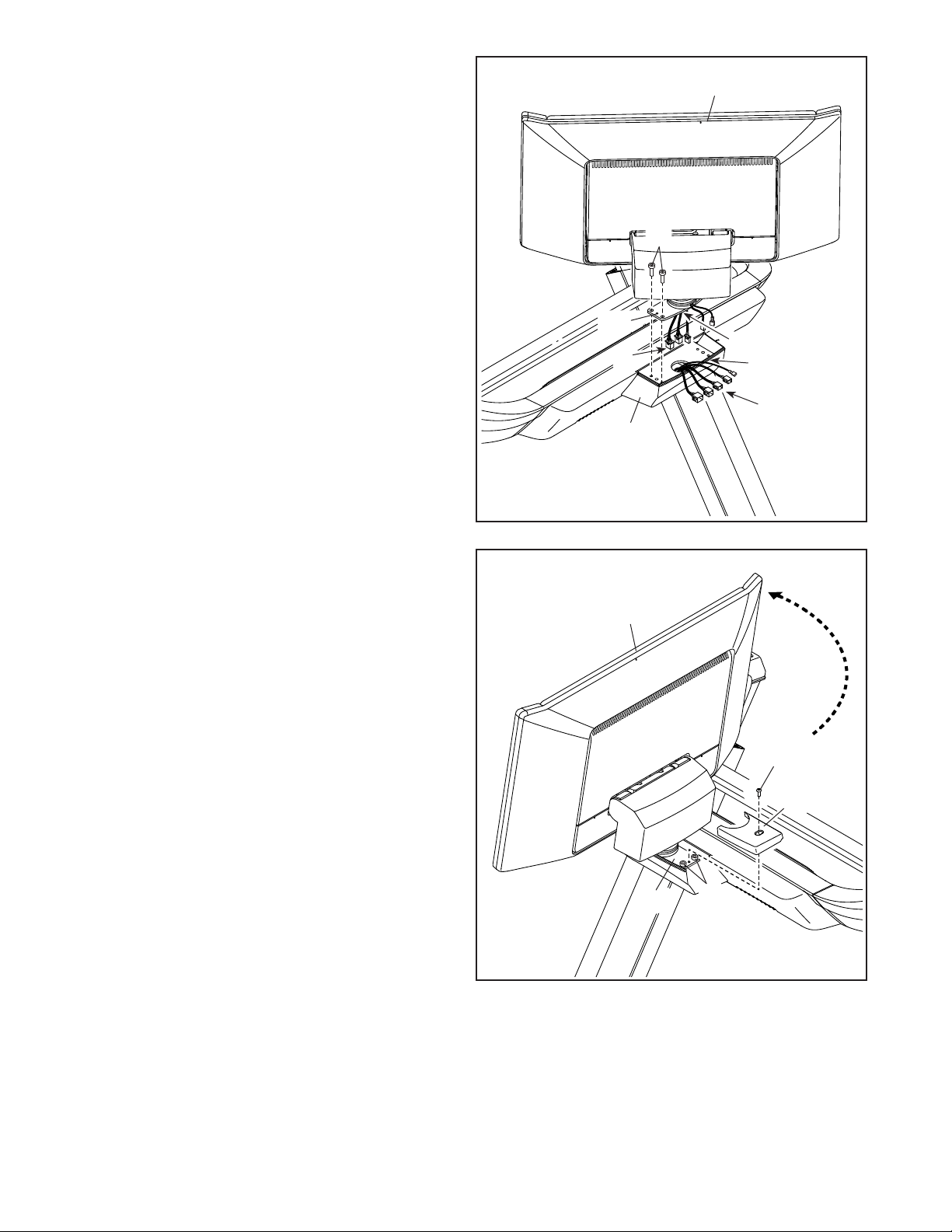

8. Have a second person hold the console assem-
bly (E) near the handrail assembly (D).
Connect the wires (F) from the console assembly
(E) to the wires (G) from the handrail assembly
(D). The connectors should slide together
easily and snap into place with an audible
click. If they do not, turn one connector and
try again.
Do not pinch the wires (F, G) during this step.
Insert the wires into the handrail assembly (D) as
you set the console assembly (E) on the handrail
assembly. Make sure that the console assem-
bly is properly oriented so that the curved
edge (L) of the Console Pivot Bracket (138)
faces the front (M) of the handrail assembly.
Attach the console assembly (E) with two
M6 x 25mm Screws (8); do not fully tighten the
Screws yet.
G
FM
8
138
L
9
9. Rotate the console assembly (E) so that it
faces the opposite direction. Tighten two
M6 x 25mm Screws (8) into the Console Pivot
Bracket (138); start both Screws, and then
firmly tighten them.
Next, identify the Left Pivot Cover (136). Attach
the Left Pivot Cover to the Console Pivot Bracket
(138) with an M4 x 20mm Screw (6); do not
overtighten the Screw.
6
8
138
136
E

13
10
10. Rotate the console assembly (E) back to
its original position. Firmly tighten the two
M6 x 25mm Screws (8) that you attached in
step 8.
Next, identify the Right Pivot Cover (137). Attach
the Right Pivot Cover to the Console Pivot
Bracket (138) with an M4 x 20mm Screw (6); do
not overtighten the Screw.
8
6
138
137
E

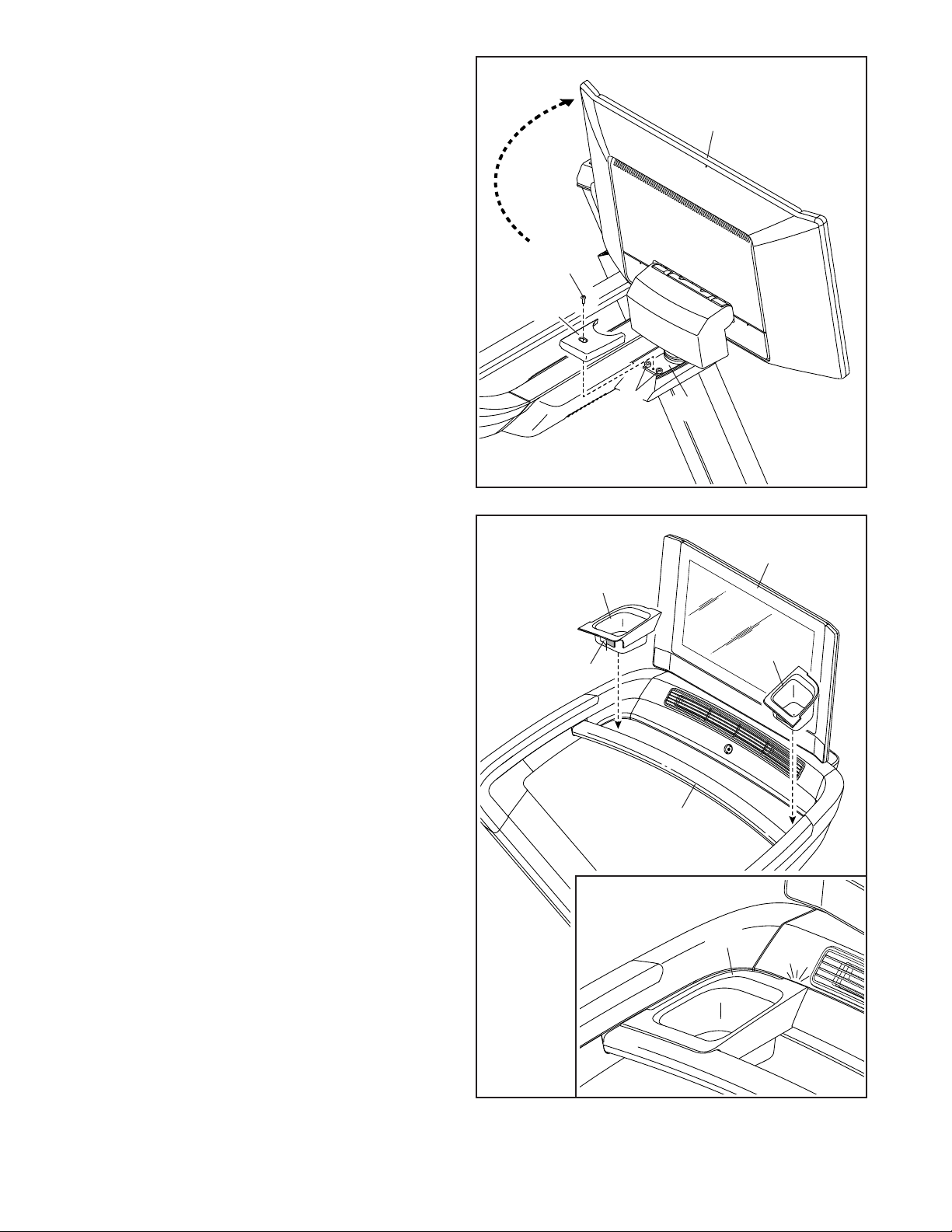

11. Rotate the console assembly (E) to the position
shown.
Next, identify the Left and Right Trays (141, 142).
Orient the Left Tray (141) as shown. Next, peel
the backing (A) off the adhesive pad on the Left
Tray. Then, press the Left Tray onto the handrail
assembly (D) until it snaps into place (see the
inset drawing).
Attach the Right Tray (142) in the same way.
11
142
D
141
E
141
A

14
12. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.
Raise the Frame (74) to the position shown.
IMPORTANT: Do not raise the Frame past the
vertical position. Have a second person hold
the Frame until step 14 is completed.
Remove the two 5/16" x 1 1/4" Screws (26)
from the Latch Crossbar (76). Note: The Latch
Crossbar is not preattached to the treadmill.
Next, orient the Latch Crossbar (76) as shown.
Make sure that the “This side toward belt”
sticker (H) is facing the treadmill. Attach
the Latch Crossbar to the brackets (I) on the
Frame (74) with the two 5/16" x 1 1/4" Screws
(26) that you just removed and two 5/16" Star
Washers (7).
74
76 H
7
26
12
I
I
7
26

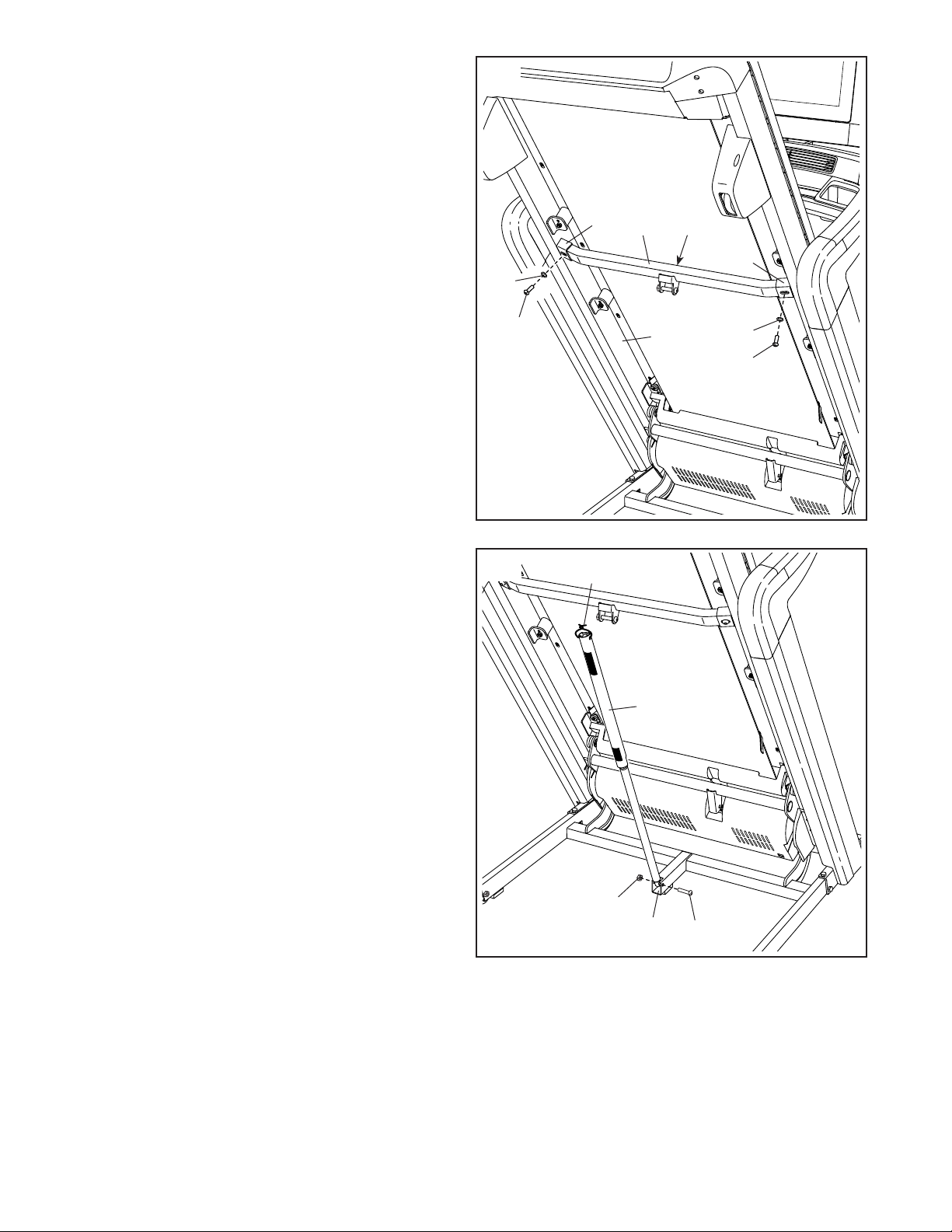

13. Remove the 5/16" Nut (49) and the 5/16" x 1 3/4"
Bolt (25) from the bracket on the Base (118).
Next, orient the Storage Latch (75) as shown.
Attach the lower end of the Storage Latch
(75) to the bracket on the Base (118) with the
5/16" x 1 3/4" Bolt (25) and the 5/16" Nut (49).
Then, raise the Storage Latch (75) to a vertical
position, and remove the tie (J).
118
75
25
49
J
13

15

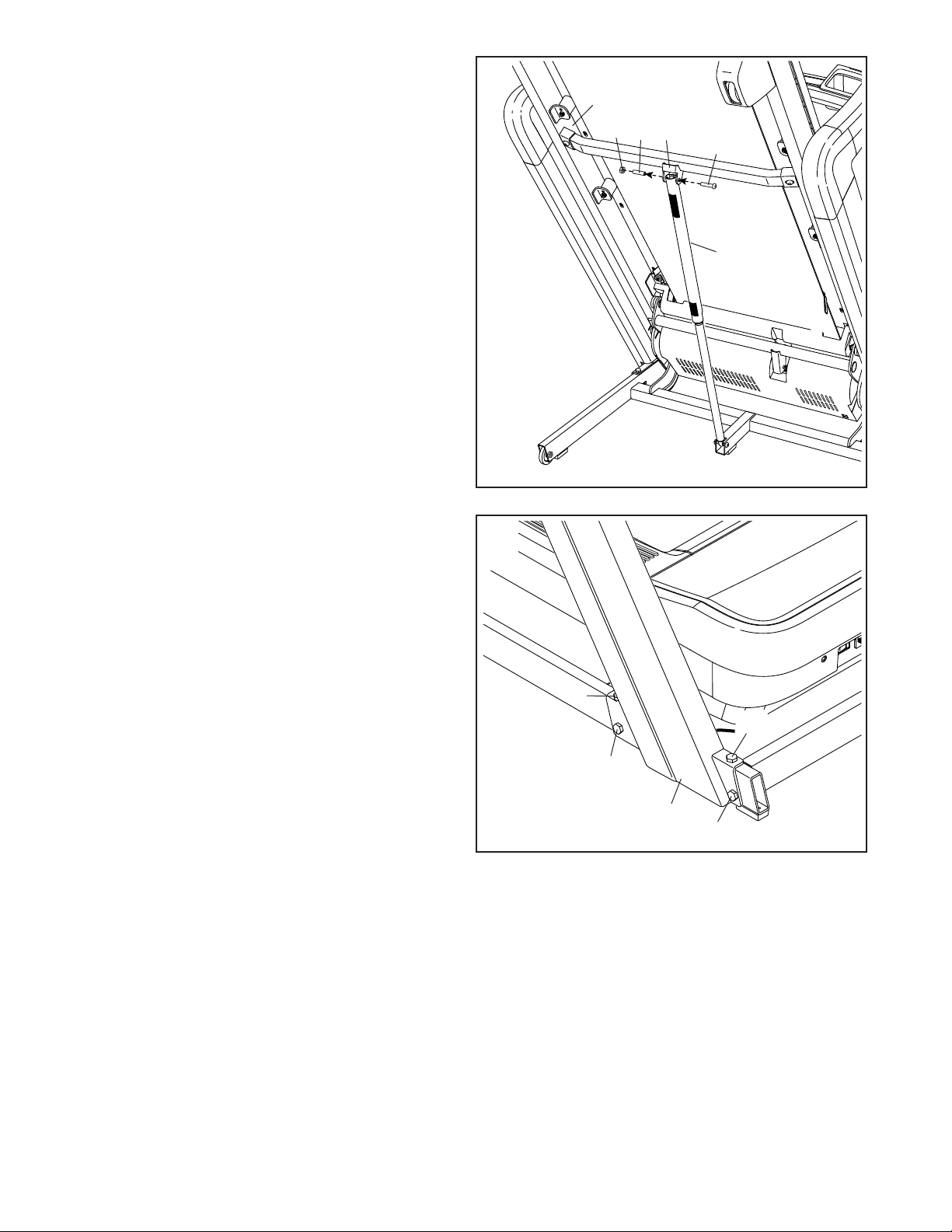

14. Remove the 5/16" Nut (49) and the 5/16" x 2 1/4"
Bolt (27) from the bracket on the Latch Crossbar
(76).
Next, align the upper end of the Storage Latch
(75) with the bracket on the Latch Crossbar (76),
and insert the 5/16" x 2 1/4" Bolt (27) through the
bracket and the Storage Latch. This will push a
spacer (K) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (49) onto the
5/16" x 2 1/4" Bolt (27). Do not overtighten the
Nut; the Storage Latch (75) must be able to
pivot.
Then, lower the Frame (74) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 29).
76 27
74
49 K
75
14
15. Firmly tighten the two 3/8" x 2 3/4" Screws (2)
and the two 3/8" x 1 1/4" Screws (1) in the Right
Upright (114).
Repeat this step on the left side of the
treadmill.
15
1
2
1
2
114

16
16. See HOW TO CONNECT THE POWER CORD
on page 17, and plug in the power cord. Then,
see HOW TO USE THE MANUAL MODE on
page 21, and adjust the incline of the treadmill
to 10%.

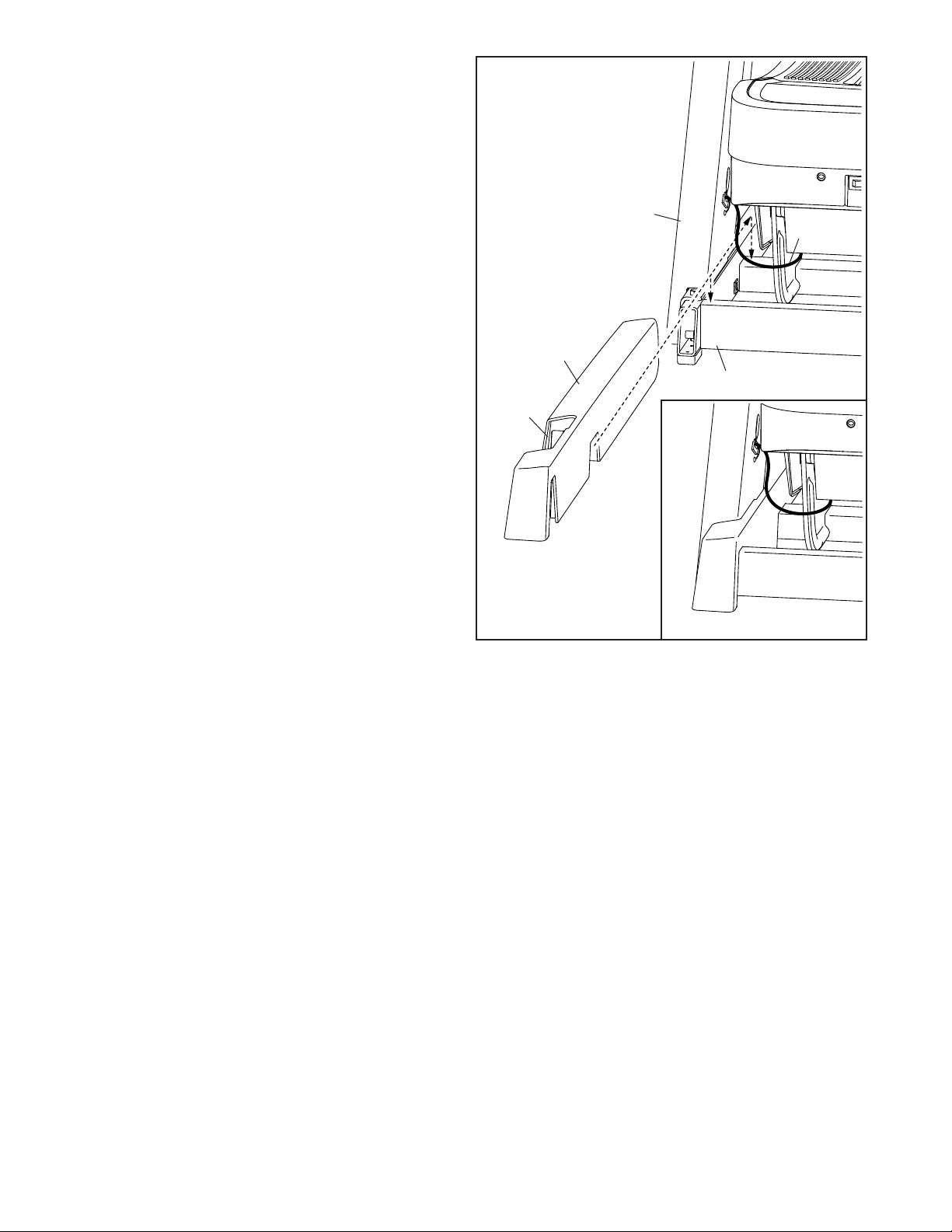

Next, identify the Right Base Cover (121).
Position the large cutout (I) in the Right Base
Cover around the Right Upright (114), and slide
the Right Base Cover downward onto the Base
(118). Make sure that the Belly Pan Wire (96)
is on top of the Right Base Cover as shown
in the inset drawing.
Then, slide the Left Base Cover (not shown)
onto the left side of the treadmill. Note: There
are no wires on the left side of the treadmill.
16
118
121
114
17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 31 and 32). Note: Extra hardware
may be included.
To register your product and activate your warranty today, go to my.nordictrack.com.
96
I

17
HOW TO USE THE TREADMILL
HOW TO CONNECT THE POWER CORD
Use a Surge Suppressor
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your home’s
power. Voltage surges, spikes, and noise interference
can result from weather conditions or from other appli-
ances being turned on or off. To decrease the risk of
damaging the treadmill, always use a surge sup-
pressor (A) with the treadmill. To purchase a surge
suppressor, see precaution 15 on page 3.
Use only a surge suppressor (A) that is UL 1449 listed
as a transient voltage surge suppressor (TVSS). The
surge suppressor must have a UL suppressed volt-
age rating of 400 volts or less and a minimum surge
dissipation of 450 joules. The surge suppressor must
also be electrically rated for 120 volts AC and 15
amps. There must be a monitoring light on the surge
suppressor to indicate whether it is functioning prop-
erly. Failure to use a properly functioning surge
suppressor could result in damage to the control
system of the treadmill and serious injury to users.
Plug in the Power Cord
The treadmill must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. The treadmill power cord (B) has a plug with
a grounding pin (C) (see drawing 1 on this page).
Plug the power cord (B) into a surge suppressor
(A), and plug the surge suppressor into an appropri-
ate outlet (D) that is properly installed and grounded
in accordance with all local codes and ordinances.
The outlet must be on a nominal 120-volt circuit
capable of carrying 15 or more amps. To avoid
overloading the circuit, do not plug other electrical
devices, except for low-power devices such as cell
phone chargers, into the surge suppressor or into
an outlet on the same circuit. IMPORTANT: If the
treadmill is connected to an AFCI-equipped outlet
and your circuit breaker trips repeatedly when the
treadmill is used, see the front cover of this manual
to purchase an arc filter.
A temporary
adapter (E)
may be used
to connect the
surge sup-
pressor (A)
to a 2-pole
receptacle (F)
if a properly
grounded outlet
is not available.
The lug (G) or wire extending from the adapter must
be connected with a metal screw (H) to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
DANGER: Improper connection
of the power cord increases the risk of elec-
tric shock. Do not modify the plug—if it will
not fit an outlet, have a proper outlet installed
by a qualified electrician. If you are unsure
whether the treadmill is properly grounded,
contact a qualified electrician.
1
A
C
D
C
B
2
E
F
G
H
A

18

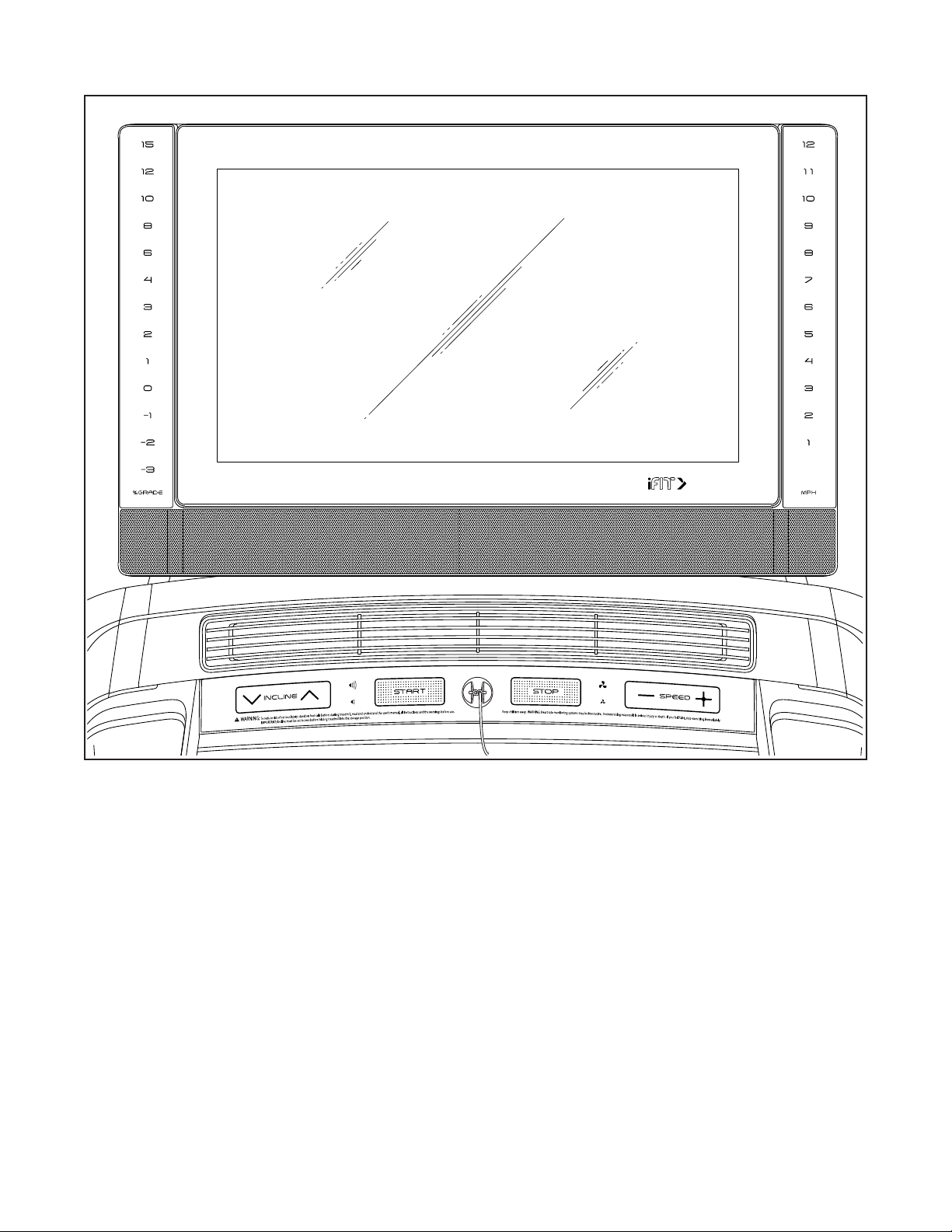

CONSOLE DIAGRAM
ETNT17122V1
FEATURES OF THE CONSOLE
The advanced treadmill console offers a selection of
features designed to make your workouts more effec-
tive and enjoyable.
The console features wireless technology that enables
the console to connect to iFIT. With iFIT, you can
access a large and varied workout library. Each work-
out automatically controls the speed and incline of
the treadmill as an iFIT trainer guides you through an
effective exercise session. You can also create your
own workouts, track your workout results, and access
many other features.
When you use the manual mode of the console, you
can change the speed and incline of the treadmill with
the touch of a button. As you exercise, the console will
display instant exercise feedback.
You can even measure your heart rate when you use a
compatible heart rate monitor. See page 28 to pur-
chase a heart rate monitor.
To turn on the power, see page 19. To learn how to
use the touch screen, see page 19. To set up the
console, see page 20.

19
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.

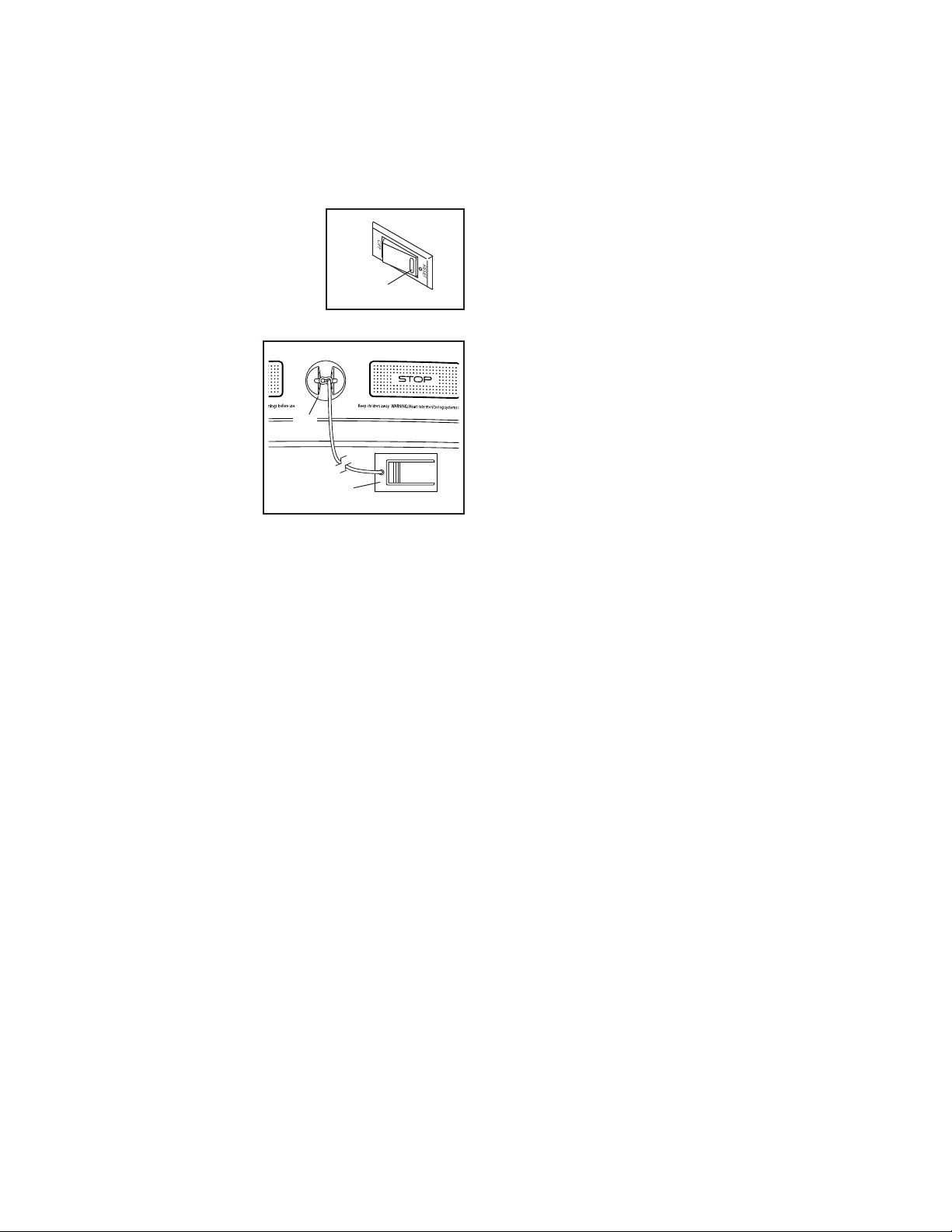

Plug in the power cord (see
page 17). Next, locate the
power switch on the treadmill
frame near the power cord.
Press the power switch into
the reset position (I).
Next, stand on the
foot rails of the
treadmill. Locate the
clip (J) attached to
the key (K), and slide
the clip securely onto
the waistband of your
clothes. Then, insert
the key into the con-
sole. Note: It may
take some time for
the console to be ready for use. IMPORTANT: In an
emergency, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see HOW TO CHANGE
CONSOLE SETTINGS on page 25. For simplicity, all
instructions in this section refer to miles.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets.
You can slide or ick your nger against the screen
to move certain images on the screen, such as
the displays in a workout (see step 5 on page 21).
However, you cannot zoom in and out by sliding your
ngers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch ?123. To view
more characters, touch ~[<. Touch ?123 again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).
I
ETNT17122
J
K

20
HOW TO SET UP THE CONSOLE
Before using the treadmill for the first time, set up the
console.
1. Connect to your wireless network.
To access the internet, download iFIT workouts,
and use several other features of the console, you
must connect the console to a wireless network.
Follow the prompts on the screen to connect the
console to your wireless network.
2. Customize settings.
Fill in the form on the screen to set the console
to display the desired unit of measurement and
your time zone. Note: If you need to change these
settings later, see HOW TO CHANGE CONSOLE
SETTINGS on page 25.
3. Log into or create an iFIT account.
Provide your email address, and follow the prompts
on the screen to sign up for or log into your iFIT
account.
4. Check for firmware updates.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Update. The console will check for
firmware updates. See step 5 on page 26 for more
information.
5. Calibrate the incline system.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, touch
Calibrate Incline, and then touch Begin to calibrate
the incline system. See step 6 on page 26 for more
information.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 21. To use a
featured workout, see page 22. To create a draw-
your-own-map workout, see page 23. To use an iFIT
workout, see page 24.
To view or change console settings, see page 25.
To connect to a wireless network, see page 27.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 31).
