ICON Health & Fitness NordicTrack T6.5 S User manual

USER’S MANUAL
Model No. NTL17915-INT.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
Serial
Number
Decal
iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................16
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
MAINTENANCE AND TROUBLESHOOTING.....................................................26
EXERCISE GUIDELINES ....................................................................29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

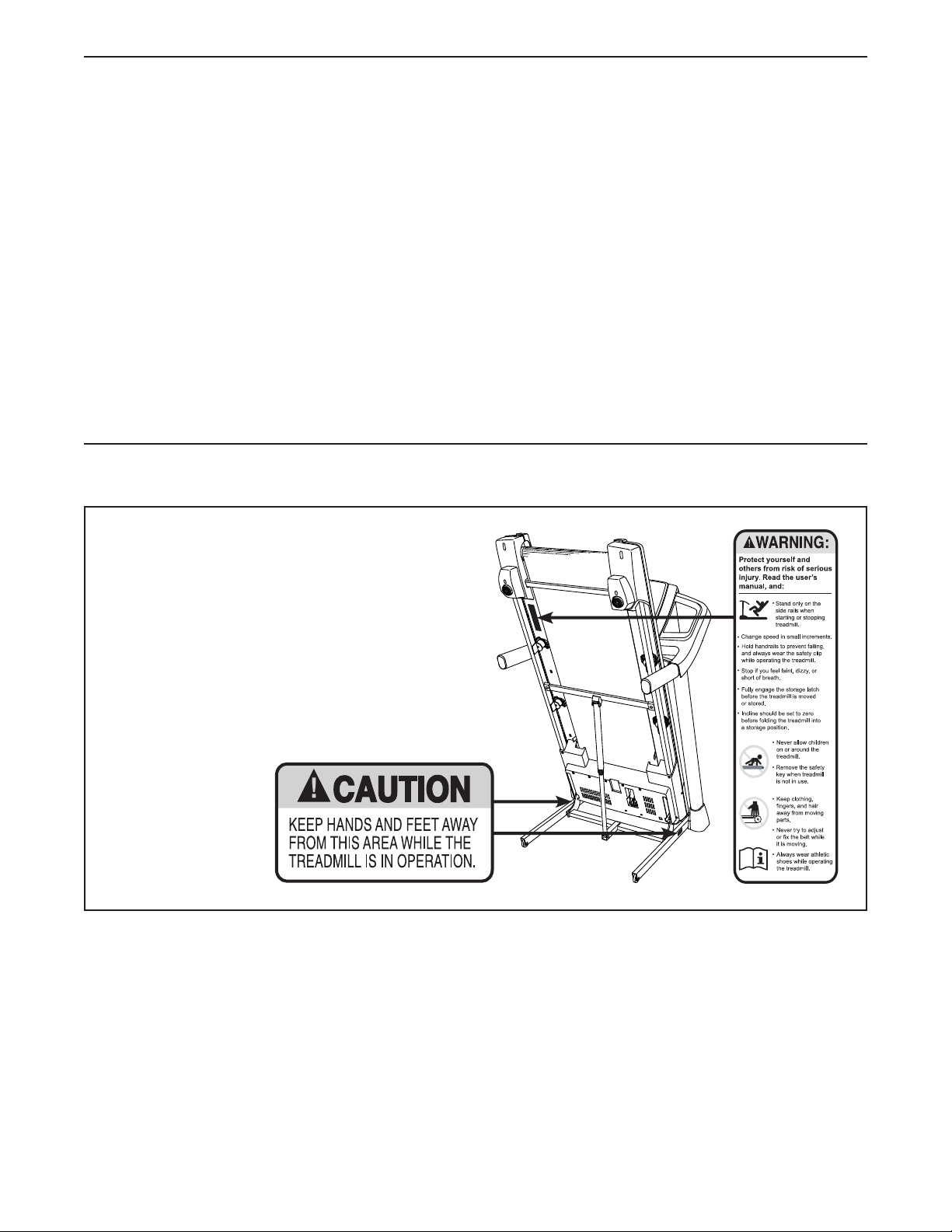

This drawing shows the locations of the warn-
ing decals. If a decal is missing or illegible,
call the telephone number on the front cover
of this manual and request a free replace-
ment decal. Apply the decal in the location
shown. Note: The decals may not be shown at
actual size.
WARNING DECAL PLACEMENT
305284
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App store is a trademark of
Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC.
The Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
TABLE OF CONTENTS

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 16 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 300 lbs. (136 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
13. When connecting the power cord (see
page 16), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm2) cord that is
no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated
surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 26 if the treadmill is not working
properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 18). Always wear the clip while using
the treadmill.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
19. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
20. Keep fingers, hair, and clothing away from
the moving walking belt.The treadmill is
capable of high speeds. Adjust the speed in
small increments to avoid sudden jumps in
speed.
21. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
22. Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
23. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 25.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
24. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
25. Do not change the incline of the treadmill by
placing objects under the treadmill.
26. Never insert any object into any opening on
the treadmill.
27. Inspect and properly tighten all parts each
time the treadmill is used.
28. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
29. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the new NORDICTRACK®
T 6.5 S treadmill. The T 6.5 S treadmill provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Heart Rate Monitor
Console
Key/Clip
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller Screws
Platform Cushions
Length: 6 ft. 1 in. (185 cm)
Width: 3 ft. (91 cm)
Weight: 181 lbs. (82 kg)

6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
5/16" x 3/4"
Screw (8)–2
5/16" x 3" Screw (28)–4
1/4" x 1/2"
Screw (4)–4
3/8" Star
Washer (13)–8
5/16" Star
Washer (11)–6
#10 Star
Washer (5)–4
3/8" x 2 3/8" Screw (7)–4
3/8" x 1 3/4" Screw (18)–2
3/8" x 1 1/4"
Screw (31)–2
#8 x 1/2" Screw
(1)–10
Ground Screw
(14)–1
#10 x 1 1/4"
Screw (9)–4

7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
To avoid damaging parts, do not use power tools.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

8

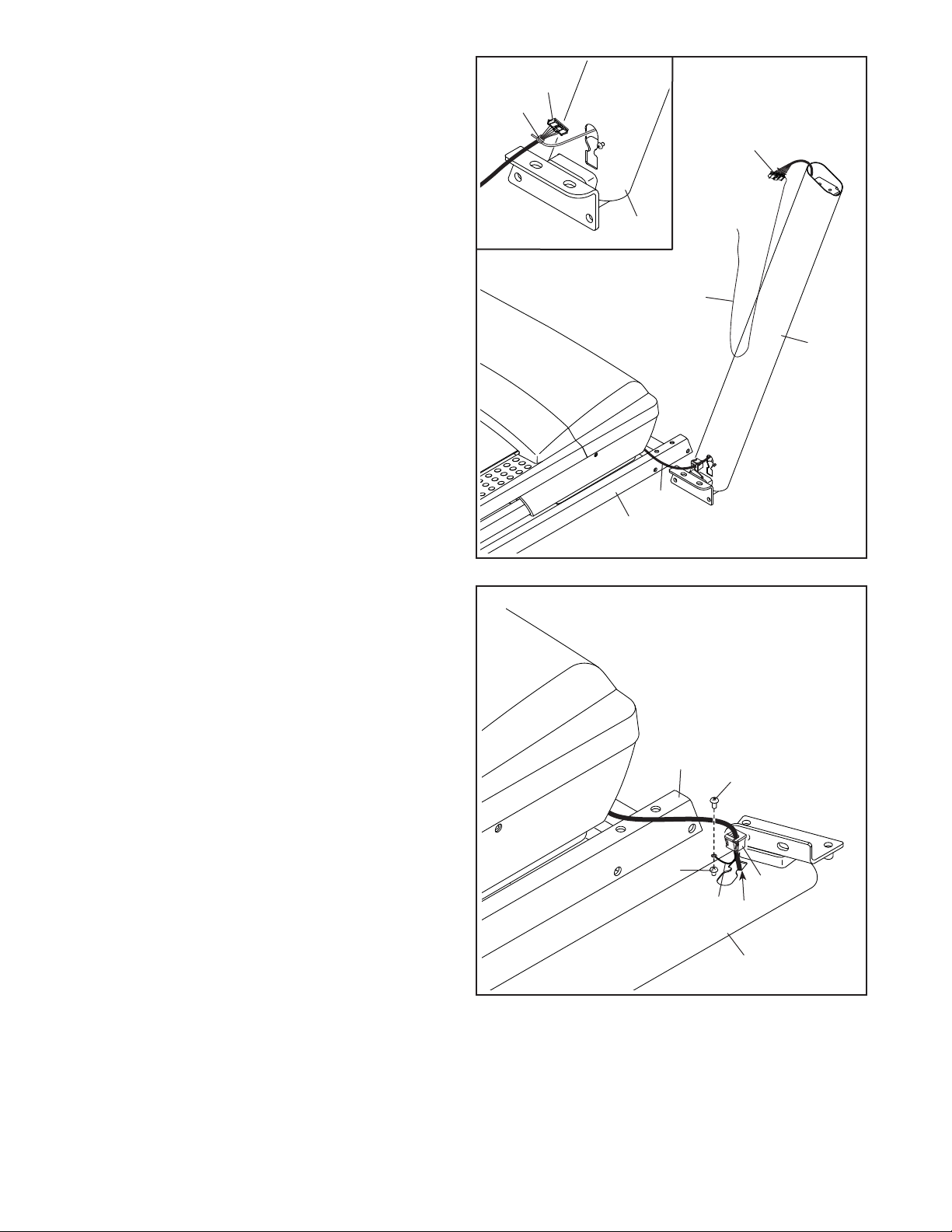

3. Lay the Right Upright (90) near the Base (6).
Press the Grommet (77) into the square hole (B)
in the Right Upright (90). Make sure not to
pinch the ground wire (C).
If there is a screw (D) preattached to the Right
Upright (90), remove and discard it.
Then, attach the ground wire (C) to the Right
Upright (90) with a Ground Screw (14). 6
90
14
90
A
281
77
CB
D
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (6).
Next, identify the Right Upright (90). Have a
second person hold the Right Upright near the
Base (6).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end
of the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
6
81
90
81
A
3

9
5. Identify the Left and Right Base Covers (82, 83).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (89, 90) as shown. Do
not press the Left and Right Base Covers into
place yet.
83
90
82
89
5
4. Hold the Right Upright (90) against the Base (6).
Make sure not to pinch the Upright Wire (81).
Attach the Right Upright (90) with two 3/8" x
2 3/8" Screws (7), a 3/8" x 1 1/4" Screw (31),
a 3/8" x 1 3/4" Screw (18), and four 3/8" Star
Washers (13) as shown; do not fully tighten
the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
4
31
18
6
13 13
90
7
13
81

10

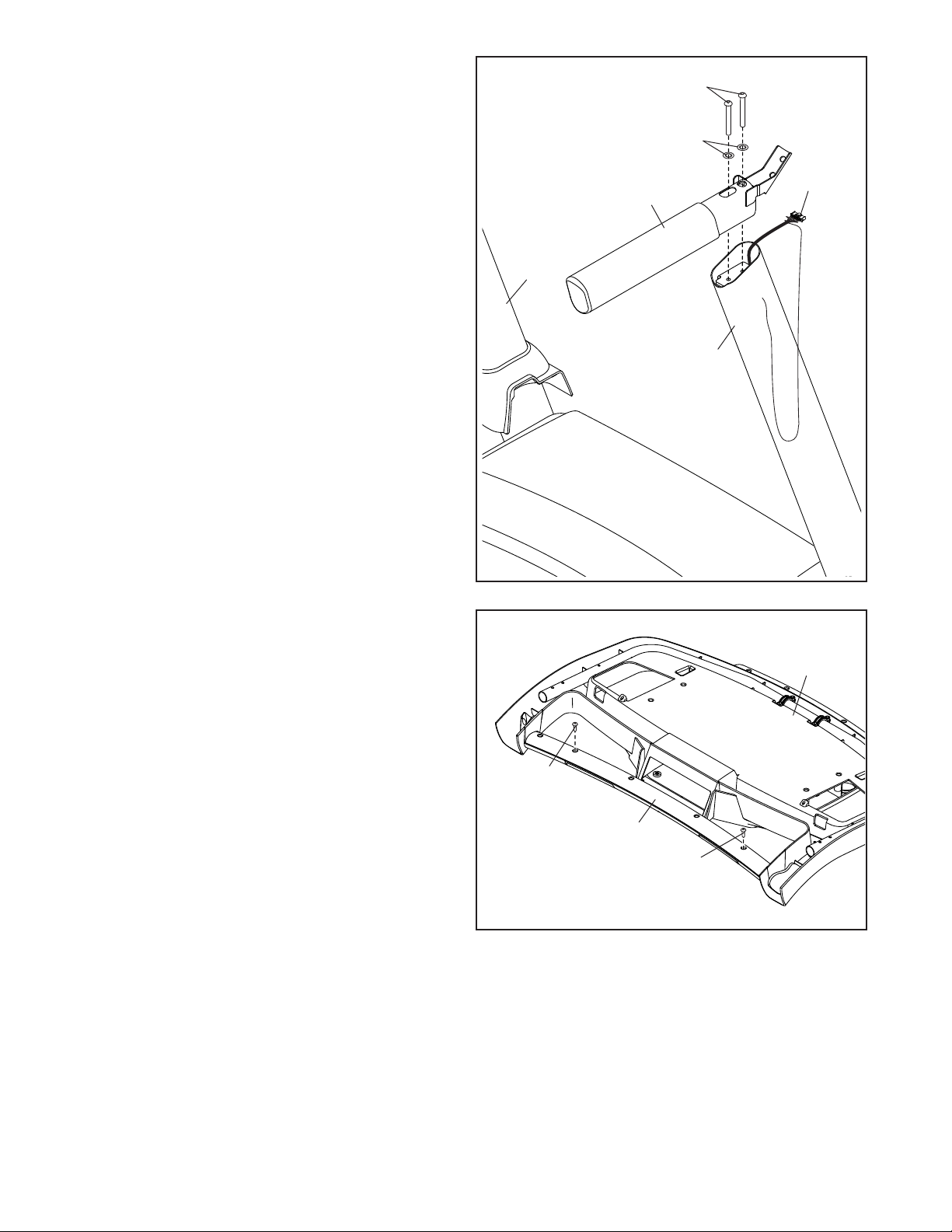

6. Identify the Right Handrail (84).
Attach the Right Handrail (84) to the Right
Upright (90) with two 5/16" x 3" Screws (28) and
two 5/16" Star Washers (11); start both Screws,
and then tighten them. Make sure not to
pinch the Upright Wire (81).
Attach the Left Handrail (not shown) to the
Left Upright (89) in the same way. Note: There
are no wires on the left side.
11
81
84
28
6
90
89
64
23
E
E
7
7. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(E). Then, remove the Pulse Crossbar (23).
