1.Introduction



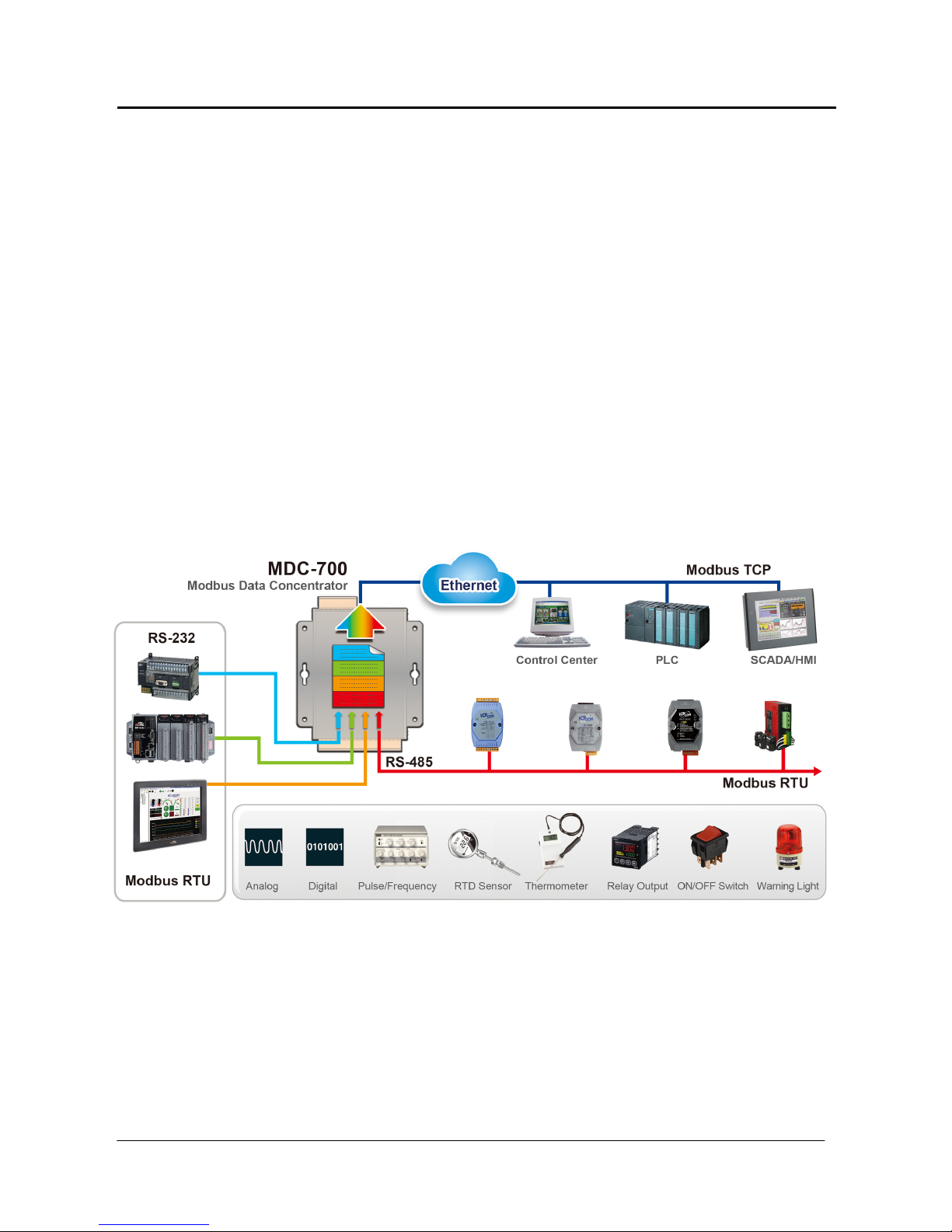

TheMDC‐700seriesmoduleisaModbusDataConcentratorwhichcanconcentratedatafrom

severalModbusRTUslavedeviceswithRS232/RS‐485interfaceandallowsModbusTCPmastersto

read/writedataviaEthernet/LAN.TheModbusmastercanuseoneModbuscommandtogetalldata

onthoseModbusRTUslavedevicesviatheMDC‐700concentrator.Inotherwords,throughthehelp

ofaMDC‐700module,theModbusRTUslavedevicescanbeaccessedoverEthernetwithbetter

readandwriteperformance.



TheMDC‐700seriesmodulehastheabilitytoperformupto250ModbusRTUcommandsto

read/writedatafrom/toModbusRTUslavedevicesandallowsupto8ModbusTCPmasterstoget

thepolleddata.ThesupportforModbusTCPprotocolmakestheMDC‐700wellintegratedinto

PC‐basedapplicationssuchasSCADA(SupervisorControlandDataAcquisition)andHMI(Human

MachineInterface)programs.



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐4‐

Features



HTML5Web‐basedUserInterface



HTML5isthelatestversionoftheHTMLmarkuplanguage.Itissupportedbymostcurrent

browsersincludingMozillaFirefox,AppleSafari,GoogleChromeandsoon.

Forthereason,theWeb‐BaseduserinterfacefortheMDC‐700isaccessiblefromawidevarietyof

devicesanywhere.Userscanconfigurethemoduleandmonitorconnectionstatusofeachpolling

definitionthroughtheirsmartphones,tabletsordesktopswithoutalineofcode.



GreatCapabilityofSharedMemory

TheMDC‐700seriesmodulecanperformupto250pollingdefinitions.Andthe

internalsharedmemoryhasfourtablestostorethepolledAI,AO,DIandDOdata.

Eachtablecanstoreupto9600registers.

Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐5‐

Config.CSVtoEaseHardWorkofEditingalotofDefinition

Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐6‐

SupportforModbusTCPMasterandModusRTUMaster

TheModbuspollingdefinitionisdefinedinaConfig.CSVfile.Editing/checkingalotofpolling

definitionsisahardworkanditmaybemakingmistakes.ACSVformatfilecaneasethework

byusingExcel.Furthermore,thebuilt‐inwebserverallowsuserstoimport/exportthe

Config.CSVviaasimplemouse‐clickaction.

TheMDC‐700canbeaccessedbyModbusTCPMasterandModusRTUMaster.Changingthe

modeforaCOMportfromMastertoSlaveallowsaconnectedModusRTUMasterto

read/writedatafrom/totheModbusRTUslavedevicesontheotherCOMports.



2.HardwareInformation

2.1.Appearance



Connectors:(ForMDC

COM3

‐714/MDC714)

COM4

COM5

LEDIndicator

ConfigurationDisplay

Connectors:

Power

COM2

Reset



EthernetPortCOM1



LEDIndicator



TheLEDisusedasaheartbeatindicatorandslowstoapproximatelyoneflashpersecond.



EthernetPort



TheMDC‐700isequippedwithaRJ45portforEthernetLAN

connection.When100BASE‐TXisoperating,the10/100MLED

islitorange.When10BASE‐Tisoperatingorthemachineis

notconnectedtothenetwork,itisturnedoff.Whenan

EthernetlinkisdetectedandanEthernetpacketisreceived,

theLink/ActLEDislitgreen.



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐7‐



PowerConnector





ConfigurationDisplay

MDC‐700includesa5‐digit7‐SegmentLEDdisplaytoindicateconfigurationinamoduleas

below:



TheIPaddressfortheMDC‐700

11111.



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐8‐



1.192

2.168

3.255

4.1

22222.

502

001

33333.

1.1152

2.1152

44444.

1.801

2.801

(192.168.255.1)

ModbusTCPcommunicationsettings

Port:502

NetID:1

BaudratesettingforeachCOMport

COM1:115200bps

COM2:115200bps

DataformatsettingforeachCOMport

COM1:8N1

COM2:8N1

55555.ThecountofTCP/IPconnection

000:NoTCP/IPconnection



Reset



ShortingtheRESETpintoGNDpinover3secondsca

resettheIP/SubnetMask/Gatewayaddressestothe

factorydefaultsettings.

n



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐9‐

2.2.Specifications



MDC‐711MDC‐714MDC‐741

Ethernet

Portx1,10/100Base‐TX

ProtocolModbus/TCPSlave

Max.Connection8

COMPort

RS‐232x1,(TXD,RXD,RTS,CTS,GND)x4,(TXD,RXD,RTS,

CTS,GND)

RS‐485x1,(Data+,Data‐)x4,(Data+,Data‐)x1,(Data+,Data‐)

BaudRate1200,2400,4800,9600,19200,38400,57600,115200(bps)

DataFormatN81,E81,O81

ProtocolModbusRTUMaster

Max.Node32nodesforeachRS‐485port

PollingDefinition250definitionsforallRS‐232/485ports

SharedMemory9600registersforeachofAI,AO,DIandDODataSystem

System

5‐Digit7SegmentLED

Display

Yes,todisplayIPaddress

SystemLEDIndicatorYes,todisplayheartbeat

Mechanical

Dimension(WxHxD)102mmx125mmx28mm

InstallationWallMount

Power

RequiredSupply

Voltage

+10VDC~+30VDC(non‐regulated)

PowerConsumption2.5W

Environment

OperatingTemperature ‐25°C~+75°C

StorageTemperature‐30°C~+80°C

Humidity10~90%RH,non‐condensing



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐10‐

2.3.WiringConnections

RS‐232Wiring



3‐wireConnectionWiring



5‐wireConnectionWiring



RS‐485Wiring



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐11‐

2.4.Dimensions



LeftSideViewFrontView

TopView

BottomViewRearView

Unit:mm



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐12‐

2.5.MountingtheHardware

Wall/Panelmounting



Step1:Installthefourmountingscrewsintothe4keyholemountingholes.

Step2:Fastenthescrewssecurely.



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐13‐



 



DINRailmounting



Step1:AlignthescrewholesoftheDIN‐railclipwiththeholesonthebacksideofthemodule,

andthenfastenthescrewssecurely.







1



Step2:HookuppertaboverupperflangeofDINrail.

Step3:TiltthemoduletowardDINrailuntilitsnapssecurelytoDINrail



2



Copyright©2014ICPDASCo.,Ltd.AllRightsReserved.∗E‐mail:[email protected]‐14‐



3



3.Configuration

ThenecessaryconfigurationforModbusTCPcommunication,ModbusRTUcommunicationand

pollingdefinitionishandledbyasinglefilenamed“config.csv”.Justfollowtheeasy‐to‐useformat

definedintheconfig.csvfileandimportthenewconfig.csvfileviaasimplemouse‐clickonthemain

pageoftheMDC‐700,thedataonthoseModbusRTUslavedevicescanbeaccessedoveran

Ethernet.



OnlytheFunctioncode01/02/03/04canbeusedintheconfig.csvfile:

01:ReadCoilStatus(ReadDO)

02:ReadInputStatus(ReadDI)

03:ReadHoldingRegisters(ReadAO)

04:ReadInputRegisters(ReadAI)



IfyouwouldliketowritedatatoadigitaloranalogoutputchannelonaModbusRTUslavedevice,

theoutputchannelneedsbemappedwithalocalregisteraddressintheMDC‐700byeditingthe

pollingdefinitionwithusingcorrespondingreadfunctioncode(01or03).RefertoSection6.FAQ‐Q4

formoredetailedsteps.



ThefollowingsectionwillhelpyoutosetupyourMDC‐700module.Aftercompletingthefollowing

steps,youcanobtainconfigurationandotherinformationrelatedtotheMDCmoduleand

associatedslavedevicesinyourbrowser.



Basicoperatingprocedure

Step1:AssignavalidIPaddresstotheMDC‐700.

Step2:Edittheconfig.csvfile.

Notethatbeforeeditingthisfile,youshouldconfirmtheparametervalueforany

associatedSlavedevices.

Step3:Uploadtheconfig.csvfiletotheMDC‐700.

3.1.AssigninganIPaddresstoMDC‐700

TheMDC‐700isanEthernetdevice,whichcomeswithadefaultIPaddressof192.168.255.1;

therefore,youmustfirstassignavalidIPaddressofyournetworktothemodule.Toaccessthe

MDC‐700byusingweb‐basedinterface,youhavetoknowtheIPaddresssettinginthemodule.



STEP1:ConnectthePCandMDC‐700moduletoanEthernetHub/Switch,andpoweronallthe

devices.YoucanalsoconnectaMDC‐700toPCdirectlywithanEthernetcable.



STEP2:SettheIPconfigurationonyourcomputer.

IftheMDCmoduleisnewwithusingthedefaultIPaddressof192.168.255.1,youmustchose

anIPaddressforthecomputerintherangeof192.168.255.2–192.168.255.253thatisnot

alreadyinuse.



NOTE:DetailsonhowtochangetheIPaddressonyourcomputerdependuponthetype

architectureandoperatingsystemyouareusing.UsetheHelpandSupportfunctionalityon

yourcomputerandsearchfor"IPAddressing".



STEP3:Openawebbrowserandgotothewebsiteathttp://192.168.255.1,where192.168.255.1is

theIPaddressinyourMDCmodule.



STEP4:Confirmtheconnectionstatusiconisopenonthepage.





DenotestheconnectionbetweenthecomputerandtheMDC‐moduleisopen.



DenotestheconnectionbetweenthecomputerandtheMDC‐moduleisfailed.



STEP4:ChooseavalidIPaddressofthenetworkforyourMDC‐700module

Scrolldownto‘EthernetConfiguration’section,inputtheIP/SubnetmaskandGateway

addressesandclickonthe“Apply”button.MakesurethattheIPaddressyoupickisnot

currentlyinusebyanotherdeviceonthenetwork.



NOTE:TheIP/Subnetmask/GatewaymodifiedinaMDC‐700canberesettofactorydefaults

byshortingtheRESETpintoGNDpinover3seconds.TheLEDdisplaywillshow“RESET”as

belowandtheIPaddresssetpreviouslywillbeclearedandreturnedtothefactorydefault.



3.2.Editingtheconfig.csvfile

TheMDCmoduleisconfiguredbyaconfig.csvfiletoworkwithyourmasterandRTUslavedevices.

TheCommaSeparatedValues(CSV)filescanbeviewedandeditedinspreadsheetapplicationslike

MicrosoftExcel,orinanytexteditor,inwhichthecommacharacter(,)typicallyseparateseachfield

oftext.Inatexteditor,itlookslikethis:



Thefilename“config.csv”cannotbechanged;itcontainsfourmainsectionsthatneedtobeedited:

(1)ModbusConnection,(2)Moduleinformation,(3)COMPortConfigurationand(4)Polling

Definition.Eachsectionstartswitha“#”character;followsarenamesforparametersinthissection.

Arowstartingwitha“*”characterisasetofsettingsinasection.

NOTE:

Thenameforeachparametercannotbechanged.

Youcanmakeacopyoftheconfig.csvfileinthreewaysandmodifyittomeetyour

requirements:

1.Exporttheconfig.csvfileinyourMDC‐700.(See3.3.Importing/exportingtheconfig.csvfile)

2.Downloadthefilefrom

http://ftp.icpdas.com/pub/cd/8000cd/napdos/modbus/mdc700/firmware/.



ModbusConnection



TheModbusConnectionsectionisusedtoconfiguretheModbusIDoftheMDC‐700andtheTCP

portnumberforModbusTCPcommunication.



TCPPort:DefinestheTCP/IPPortnumber,intheexamplesetto502.(Defaultvalue)

ModbusID:DefinestheModbusIDoftheMDC‐700,intheexamplesetto1.(Defaultvalue)



ModuleInformation



TheModuleInformationsectionisusedtorecordauxiliarydescriptionfortheMDC‐700.Itwillbe

displayedonthemainpageoftheMDC‐700,andcanbeusedtoidentifyoneMDC‐700fromthe

others.



#ModuleInfo

*thisismydataconcentrator

#TCPPortModbusID

*5021

ModuleInfo:DefinestheauxiliarydescriptionfortheMDCmodule.Thestringconstanthasa

maximumlengthof32characters.



COMPortConfiguration



TheCOMPortConfigurationisusedtoconfiguretheparametersfortheRS‐485Modbus

communicationconnectionbetweentheMDC‐700andtheRTUslavedevices.

NOTE:OnlyonesetofconfigurationsettingsisallowedforeachCOMport.



#ComPortNoBaudRateDataBitParity StopBit Timeout PollDelayOperatingMode

*111520080 1 100 20Master

*211520080 1 100 20Master

*311520080 1 100 20Master

*411520080 1 100 20Master

*511520080 1 100 20Master



TheconnectionconfigurationforaCOMportconsistsof8parametersdefinedasfollows.

ComPortNoSpecifiestheCOMportnumberinMDCmodule.TheCOMportnumbercanbe1

or2forMDC‐711,andcanbe1,2,3,4or5forMDC‐714andMDC‐741.

BaudRateDefinesthetransmissionspeedbetweentheMDCmoduleandtheRTUslave

devices.TheBaudRatecanbesetto1200/2400/4800/9600/19200/34800/

57600/115200(bps)dependingontheRTUslavedevicebeingused.

DataBitDefinesthenumberofdatabitsineachcharacter.Itisfixedto8andtheRTUslave

devicesneedbesetto8‐bitdata,too.

ParityDefinestheParitybit.Theparitybitcanbesetto0(none),1(even)or2(odd).

StopBitDefinestheStopbits.Itisfixedto1,onestopbit.

TimeoutDefinestheperiodoftimethattheMDCmodulewillwaitforaresponsefromthe

RTUslavedevice.Theavailablerangeisfrom50to6000(ms).

PollDelayDefinesthePollDelaybetweeneachscanforModbusRTUcommunication.

Theavailablerangeisfrom20to6000(ms).

OperatingModeDefinestheoperatingmode.

‐Master:thecomportisusedtoconnectModbusRTUslavedevices.

TheMDC‐700isactingasamastertosendrequeststoslavedevices.

‐Slave:thecomportisusedtoconnectModbusRTUmasterdevices.

Themasterdevicescanread/writedatafrom/totheMDC‐700.



ICP DAS USA MDC-700 Series User manual

Popular Control Unit manuals by other brands
