ICT Protege PRT-KLCD User manual

PRT-KLCD
Protege Alphanumeric LCD Keypad
User Manual

2PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011
The specifications and descriptions of products and services contained in this manual were correct at the time of
printing. Integrated Control Technology Limited reserves the right to change specifications or withdraw products
without notice. No part of this document may be reproduced, photocopied, or transmitted in any form or by any
means (electronic or mechanical), for any purpose, without the express written permission of Integrated Control
Technology Limited. Designed and manufactured by Integrated Control Technology Limited. Protege® and the
Protege® Logo are registered trademarks of Integrated Control Technology Limited. All other brand or product
names are trademarks or registered trademarks of their respective holders.
Copyright © Integrated Control Technology Limited 2003-2011. All rights reserved.
Publication Date: April 2011

PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011 3
Contents
1Introduction_______________________________________________________________ 5
1.1Legend...........................................................................................................................5
1.2Terminology...................................................................................................................
6
2Operation ________________________________________________________________ 8
2.1Indicator Lights..............................................................................................................8
2.2Visual Display ................................................................................................................
9
2.3Audible Tone .................................................................................................................9
2.4Keypad Function .........................................................................................................10
2.5Text Entry ....................................................................................................................10
2.6Option Entry ................................................................................................................11
2.7Text Search .................................................................................................................12
2.8Menu Operation
...........................................................................................................13
2.9Offline Menu Operation ...............................................................................................14
2.10Logon To LCD Keypad................................................................................................15
2.11Alarm Memory .............................................................................................................15
2.12Trouble Display............................................................................................................17
2.13General Trouble List ....................................................................................................18
2.14System Trouble List.....................................................................................................19
2.15Access Trouble List
.....................................................................................................20
2.16Bypassed Zone List.....................................................................................................20
3Arming/Disarming ________________________________________________________ 22
3.1Exit Delay.....................................................................................................................22
3.2Disarming Areas ..........................................................................................................22
3.3Regular Arming Areas..................................................................................................23
3.4Stay Arming
.................................................................................................................25
3.5Force Arming
...............................................................................................................26
3.6Area 24hr Status..........................................................................................................27
3.7Bypassing Zones.........................................................................................................28
4Events __________________________________________________________________ 30
4.1Viewing Events ............................................................................................................30
5User Codes ______________________________________________________________ 31
5.1Master Code................................................................................................................31
5.2Duress Code................................................................................................................31
5.3Programming User Codes...........................................................................................31
6Access Levels____________________________________________________________ 38
6.1Master Access Level ...................................................................................................38

4PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011
6.2Programming Access Levels.......................................................................................38
7Menu Groups ____________________________________________________________ 41
7.1Master Menu Group ....................................................................................................41
7.2Programming Menu Groups
........................................................................................41
8Area Groups _____________________________________________________________ 46
8.1All Areas Group ...........................................................................................................46
8.2Programming Area Groups..........................................................................................46
9Door Groups _____________________________________________________________ 48
9.1All Doors Group...........................................................................................................48
9.2Programming Door Groups
.........................................................................................48
10Floor Groups_____________________________________________________________ 50
10.1All Floors Group...........................................................................................................50
10.2Programming Floor Groups.........................................................................................50
11Elevator Groups __________________________________________________________ 52
11.1All Elevators Group......................................................................................................52
11.2Program Elevator Groups............................................................................................52
12Time Setting _____________________________________________________________ 54
12.1Setting the Date and Time
...........................................................................................54
13Schedules _______________________________________________________________ 55
13.1Programming Schedules .............................................................................................55
13.2View Schedule Status..................................................................................................56
14Holidays_________________________________________________________________ 57
14.1Programming Holidays................................................................................................57
15Daylight Savings _________________________________________________________ 59
15.1Programming Daylight Savings ...................................................................................59
16Special Features _________________________________________________________ 60
16.1Offline Menu Access ...................................................................................................60
16.2Offline Door Unlock .....................................................................................................134H61
64H16.3Disable Audible Output ...............................................................................................135H62
65H16.4Messages ....................................................................................................................136H62
66H16.5Panic Alarm .................................................................................................................137H62
67H16.6Fire Alarm ....................................................................................................................138H63
68H16.7Smoke Detector Reset ................................................................................................139H63
69H17Warranty ________________________________________________________________ 140H64

PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011 5
1Introduction
Thank you for choosing the Protege Integrated Alarm and Access Control System. The Protege System will give
you peace of mind by providing reliable security protection, building automation and access control for your
premises.
The Protege System is an advanced technology security system specifically designed to enhance the
functionality of security, building automation and access control by providing a complete integrated solution with
local monitoring and offsite communication.
The elegant Protege LCD Keypad allows complete control of your security and access control system with a user
friendly LCD display and 24 key ergonomic keypad.
All the actions performed in your system will be executed and displayed through the Protege keypad. Therefore,
before using your Protege Integrated Alarm and Access Control System, we highly recommend you read this
manual carefully and have your security professional or property manager explain basic system operation to you.
Optional management software
(Protege System Management Suite) is available and is recommended to
enhance your productivity when using the Protege System. For more information visit the Integrated Control
Technology website (http://www.incontrol.co.nz) or ask your System Administrator.

1.1 Legend
Indicates a warning or advisory message
Indicates a tip, suggestion, or general note
[TEXT] Bold text enclosed in brackets is used to show key press information or menu shortcut sequences.
This Key Is Shown as
[ARM]
[DISARM]
[MENU]
[STAY]
[FORCE]
[MEMORY]
[BYPASS]
[CLEAR]
[ENTER]
[FUNCTION]


6PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011
1.2 Terminology
To ensure that you manage your Protege System effectively please familiarise yourself with the following terms
used throughout this manual.

Areas / Partitions
An area or partition is used to divide large systems in to manageable regions. For example a building may have a
Warehouse Area, Administration Area and Production Area. An area operates like an individual alarm and is
armed and disarmed independently.

Zone Inputs
Movement detectors, door contacts and other protection devices are connected to the system on zone inputs. A
zone belongs to an area to protect the area and system from unauthorised entry. For example the reception
movement sensor zone would be assigned to the Administration Area.

Trouble Zone Inputs
Trouble zones operate similar to zones however they are used to monitor the status and condition of the system.
For example if the enclosure door on the main control device is opened it will open the Enclosure Tamper trouble
zone.

PGM Programmable Outputs
PGM's or Programmable Outputs are used to control devices from the Protege System. A PGM can be used to
activate lighting, activate a siren, turn on an indicator or unlock a door.

Automation Outputs
Automation Outputs are used to control devices that are required to be operated regularly by a user. For
example outdoor lighting, irrigation or HVAC (heating ventilation and air conditioning) systems can be connected
to automation outputs.

Doors
When access control is enabled in a system, users are restricted access by programming the doors in a door
group. To gain entry or exit from a door the user must present a card, key tag or access the door using
alternative means (keypad control, remote or system management application).

LCD Keypads
LCD Keypads are used for all functions within the Protege System and are typically located near an entrance or
door to allow areas within the system to be armed and disarmed.


PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011 7
Card Readers
Card readers can be used to provide many functions within the Protege System. Primarily used to manage the
access of users through doors, a card reader can also be used for time and attendance, area arming and
disarming, elevator access control and car park management allowing the access control and alarm system to
be seamlessly integrated. Ask your installation company or security professional for more information.

Users
A user is a person or entity that uses the system to arm, disarm, access a door or use a function within the
system.

Access Level
An access level is assigned to a user and defines the functions that the user has access to on a keypad, what
areas they can arm or disarm, and the doors and elevators they can access.

Menu Group
A menu group is assigned to an access level and is used to restrict a users ability to access certain functions on
the LCD Keypad.

Area Group
Area groups are assigned to an access level and are used to control the areas that a user can arm and disarm.
An area group can be assigned for arming and disarming. Areas assigned in the disarm area group can also be
armed by the user.

Door Group
Door groups are assigned to an access level and are used to control access through the doors within the door
group.

Floor Group
Floor groups are assigned to an access level and are used to control access to floors in an elevator. You must
also be assigned an elevator group.

Elevator Group
Elevator groups are assigned to an access level and are used to control access to a group of elevators. You
must also be assigned a floor group to define the floors you are allowed to access.

8PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011
2Operation
The following section provides you with information on how to use the Protege LCD Keypad.
When the text [USER CODE] is shown this indicates that you are required to logon with your user code.
The default Master Code to gain access to your system is [123456] followed by the [ENTER] key. This
code MUST be changed.
Many of the features and options must be enabled by the installation company or security professional.


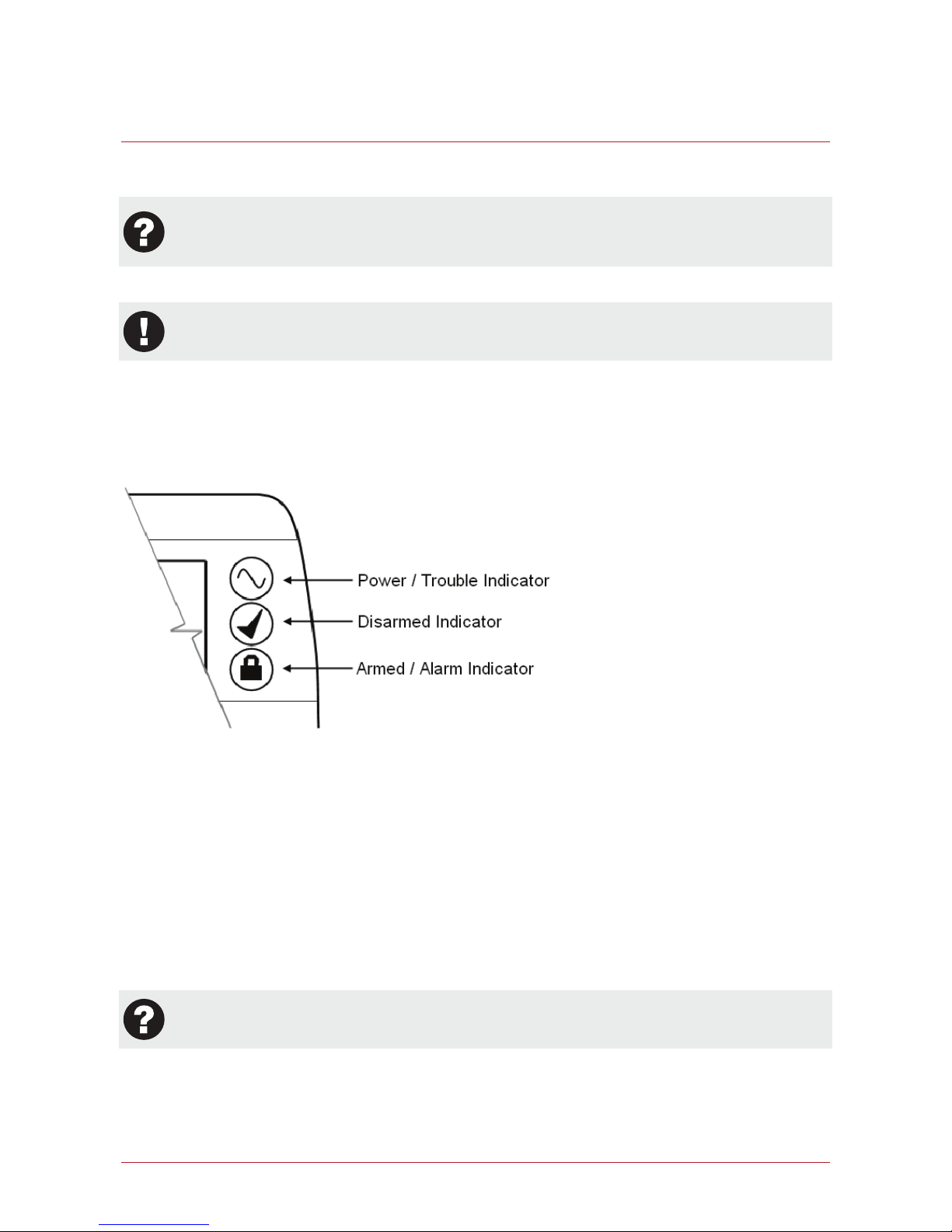

2.1 Indicator Lights
The Protege LCD keypad features three status indicator lights showing the condition of the Protege Security
System.

Power / Trouble Indicator
When FLASHING, indicates that there is a trouble condition present. When ON, the system is powered and
operating normally. If there is a complete power failure this indicator will be OFF.

Disarmed Indicator
Indicates when the system is disarmed. When ON, the system is disarmed, enter your user code to arm.

Armed / Alarm Indicator
When FLASHING the system is in alarm and you need to enter your user code to silence the alarm. When ON,
the system is armed, enter your user code to disarm.
Indication of the system status and the operation of the indicators are programmable and may not
function as above. Verify the operation with your installation company or security professional.


PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011 9
2.2 Visual Display
The Protege LCD keypad features a rich 32 Character LCD (Liquid Crystal Display) showing customised
messages. All messages are shown on the LCD display screen.

2.3 Audible Tone
When you press a key on the Protege LCD keypad a short audible tone is generated. Other tones are generated
when certain functions are used, you should be familiar with the following audible tone outputs.

Confirmation Tone
When an operation is successfully completed on the keypad the keypad generates a series of four audible tones.
The display will also show the success or failure of the operation.

Rejection Tone
When the system times out or when an operation is incorrectly entered on the keypad, it will generate a
continuous audible tone for three seconds.
If required the audible key press tone can be silenced by pressing and holding the [CLEAR] key for 3
seconds. This option must be enabled by your security professional or system administrator.


10 PRT-KLCD Protege Alphanumeric LCD Keypad User Manual | April 2011
2.4 Keypad Function
The Protege LCD keypad incorporates a backlit silicone membrane keypad. The primary function that each key
performs is shown below, in some cases these may vary based on the function or action being performed.
Key Function
0 - 9 Numerical keys from [0] to [9] are used to enter your User Code to logon to the Protege LCD
Keypad.
When in a scroll display the [1] key scrolls the display up and the [3] key scrolls down. When
controlling devices the [1] key turns the device on, [2] key turns the device off and the [3] key
will latch the device in the on state.
ARM The [ARM] key is used to start the arming process for an Area/Partition.
DISARM The [DISARM] key is used to silence alarms, disarm the Area/Partition and cancel an arming
sequence.
MENU The [MENU] key is used to access the menu and can be followed by menu shortcut
selection key(s), the numerical key representing the menu item.
STAY ARMING The [STAY] key is used to start the stay arming (see page 25) process for an Area/Partition.
FORCE ARMING The [FORCE] key is used to force arm (see page 26) an Area/Partition.
MEMORY The [MEMORY] key provides a shortcut to the memory view menu from the area control
screen, to perform a text search action or a jump function from a programming list selection
entry.
BYPASS The [BYPASS] key can be pressed when a zone is breached during an arming process to
bypass the displayed zone.
CLEAR The [CLEAR] key will log off the user currently logged on the keypad. When pressed while
not logged in the display will be refreshed.
ENTER The [ENTER] key is used to confirm an action on the keypad, acknowledge memory and
alarm information and move to the next programming screen.
FUNCTION The [FUNCTION] key can be programmed to unlock a door.

 

The arrow keys are used to scroll the menu, move the focus of a program window to the
next screen and move the cursor when programming or editing values.

2.5 Text Entry
The Protege LCD keypad can be used to program text names for objects in the system (Users, Zones, Areas and
Doors). To program the text value the numerical keys operate similar to the text entry on a telephone.
