iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

OPTIONAL ACCESSORIES
ADS-HRN(AV)-CHR01
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro CH1 Installation Harness
INSTALL GUIDE
CHRYSLER 200
20112012
retains steering wheel controls, Uconnect, Uconnect BlUetooth, and more!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler 200 2011-2012
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle as per the Getting Started
section, and that you carefully
review the Installation Diagram and
Vehicle Wire Reference Chart.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
DURING INSTALLATION
Installation Instructions 3
Wiring Diagram 4
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler 200 2011-2012
Automotive Data Solutions Inc. © 2014 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH1 T-harness and
match the wire functions.
STEP 2
• Remove the factory radio.

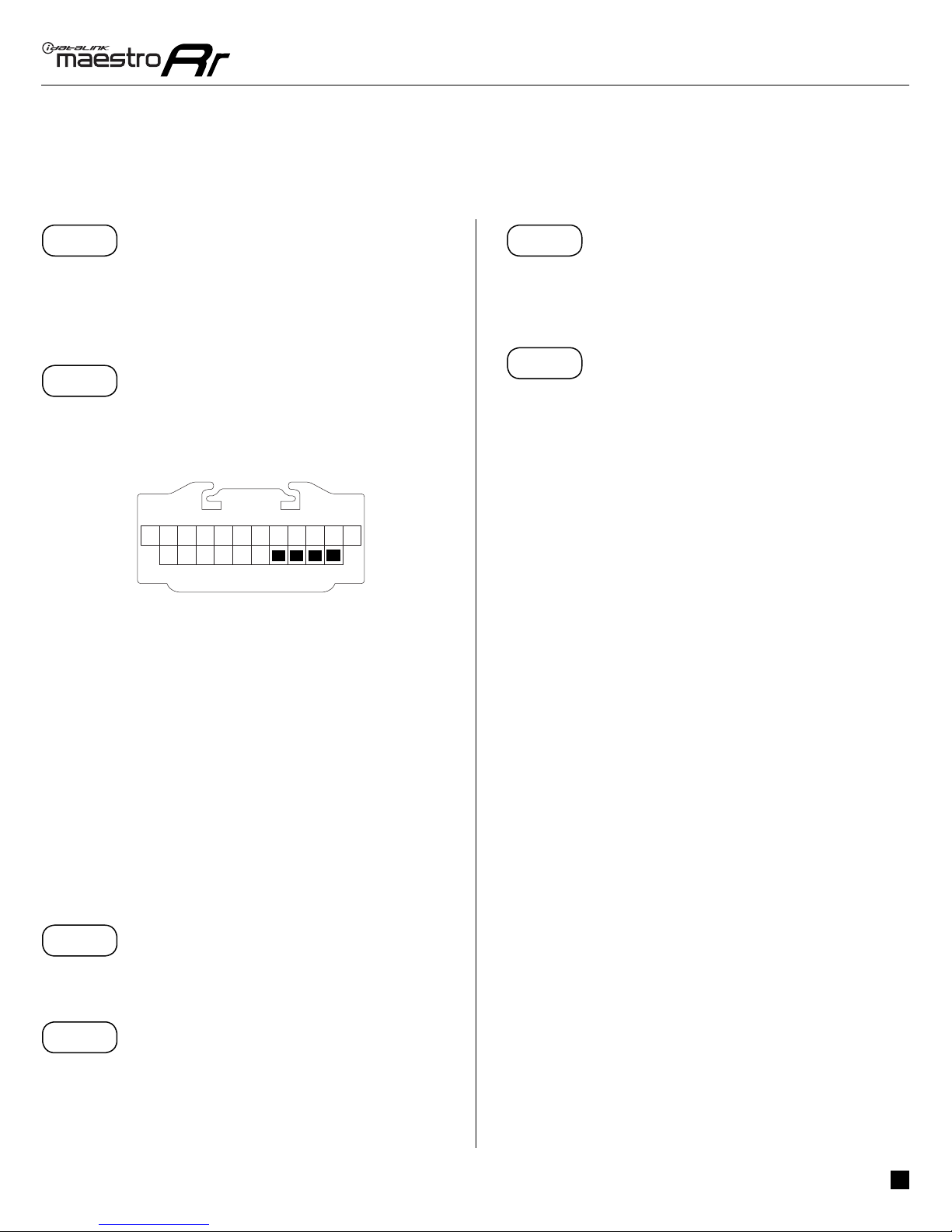

• Access the main 22 pin factory radio connector (2.1) and
determine if you have a factory amplifier.
If you don’t have wires in PIN 19, 20, 21 and 22, you have a
factory amplifier:
• Plug the female GREEN connector to the male GREEN
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male WHITE
connector of your CH1 T-harness.
If you have wires in PIN 19, 20, 21 and 22, you don’t have a
factory amplifier:
• Plug the female GREEN connector to the male WHITE
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male GREEN
connector of your CH1 T-harness.
STEP 3
• Plug the female RED connector to the male BLACK
connector.
STEP 4
• Connect the factory harness to the CH1 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Radio Control cable to the aftermarket radio.
STEP 6
• Connect all the harnesses to the Maestro RR module.
The module is now ready to be used.
Insert the aftermarket radio in the dashboard housing and
test all the functionalities.
Reassemble the dashboard carefully.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
87651 109
19181716
432
15
14
13 21
11 12
2220
Fig. 2.1
2

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler 200 2011-2012
Automotive Data Solutions Inc. © 2014 4
C
AF
G
C
A
G
F
2
E
E
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
GREEN WHITE
WHITE GREEN
CONNECTIONS WITHOUT AMP
CONNECTIONS WITH AMP
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH1 T-HARNESS
FACTORY RADIO
HARNESS
RED/BROWN (NC)
YELLOW/BROWN (NC)
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITEWHITE
BLACKRED
RADIO CONTROL CABLE
BLACK (NC)

OPTIONAL ACCESSORIES
ADS-HRN(AV)-CHR01
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro CH1 Installation Harness
INSTALL GUIDE
CHRYSLER 300
20082010
retains steering wheel controls, Uconnect, Uconnect BlUetooth, and more!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler 300 2008-2010
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle as per the Getting Started
section, and that you carefully
review the Installation Diagram and
Vehicle Wire Reference Chart.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
DURING INSTALLATION
Installation Instructions 3
Wiring Diagram 4
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler 300 2008-2010
Automotive Data Solutions Inc. © 2014 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH1 T-harness and
match the wire functions.
STEP 2
• Remove the factory radio.
• Access the main 22 pin factory radio connector (2.1) and
determine if you have a factory amplifier.
If you don’t have wires in PIN 19, 20, 21 and 22, you have a
factory amplifier:
• Plug the female GREEN connector to the male GREEN
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male WHITE
connector of your CH1 T-harness.
If you have wires in PIN 19, 20, 21 and 22, you don’t have a
factory amplifier:
• Plug the female GREEN connector to the male WHITE
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male GREEN
connector of your CH1 T-harness.
STEP 3
• Plug the female RED connector to the male BLACK
connector.
STEP 4
• Connect the factory harness to the CH1 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Radio Control cable to the aftermarket radio.
STEP 6
• Connect all the harnesses to the Maestro RR module.
The module is now ready to be used.
Insert the aftermarket radio in the dashboard housing and
test all the functionalities.
Reassemble the dashboard carefully.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
87651 109
19181716
432
15
14
13 21
11 12
2220
Fig. 2.1
2

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler 300 2008-2010
Automotive Data Solutions Inc. © 2014 4
C
AF
G
C
A
G
F
2
E
E
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
GREEN WHITE
WHITE GREEN
CONNECTIONS WITHOUT AMP
CONNECTIONS WITH AMP
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH1 T-HARNESS
FACTORY RADIO
HARNESS
RED/BROWN (NC)
YELLOW/BROWN (NC)
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITEWHITE
BLACKRED
RADIO CONTROL CABLE
BLACK (NC)

OPTIONAL ACCESSORIES
ADS-HRN(AV)-CHR01
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro CH1 Installation Harness
INSTALL GUIDE
CHRYSLER SEBRING
20072010
retains steering wheel controls, Uconnect, Uconnect BlUetooth, and more!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler seBring 2007-2010
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle as per the Getting Started
section, and that you carefully
review the Installation Diagram and
Vehicle Wire Reference Chart.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
DURING INSTALLATION
Installation Instructions 3
Wiring Diagram 4
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler seBring 2007-2010
Automotive Data Solutions Inc. © 2014 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH1 T-harness and
match the wire functions.
STEP 2
• Remove the factory radio.
• Access the main 22 pin factory radio connector (2.1) and
determine if you have a factory amplifier.
If you don’t have wires in PIN 19, 20, 21 and 22, you have a
factory amplifier:
• Plug the female GREEN connector to the male GREEN
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male WHITE
connector of your CH1 T-harness.
If you have wires in PIN 19, 20, 21 and 22, you don’t have a
factory amplifier:
• Plug the female GREEN connector to the male WHITE
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male GREEN
connector of your CH1 T-harness.
STEP 3
• Plug the female RED connector to the male BLACK
connector.
STEP 4
• Connect the factory harness to the CH1 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Radio Control cable to the aftermarket radio.
STEP 6
• Connect all the harnesses to the Maestro RR module.
The module is now ready to be used.
Insert the aftermarket radio in the dashboard housing and
test all the functionalities.
Reassemble the dashboard carefully.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
87651 109
19181716
432
15
14
13 21
11 12
2220
Fig. 2.1
2

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler seBring 2007-2010
Automotive Data Solutions Inc. © 2014 4
C
AF
G
C
A
G
F
2
E
E
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
GREEN WHITE
WHITE GREEN
CONNECTIONS WITHOUT AMP
CONNECTIONS WITH AMP
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH1 T-HARNESS
FACTORY RADIO
HARNESS
RED/BROWN (NC)
YELLOW/BROWN (NC)
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITEWHITE
BLACKRED
RADIO CONTROL CABLE
BLACK (NC)

OPTIONAL ACCESSORIES
ADS-HRN(AV)-CHR01
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro CH1 Installation Harness
INSTALL GUIDE
CHRYSLER TOWN AND COUNTRY
20082011
retains steering wheel controls, Uconnect, Uconnect BlUetooth, and more!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler town and coUntry 2008-2011
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle as per the Getting Started
section, and that you carefully
review the Installation Diagram and
Vehicle Wire Reference Chart.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
DURING INSTALLATION
Installation Instructions 3
Wiring Diagram 4
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler town and coUntry 2008-2011
Automotive Data Solutions Inc. © 2014 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH1 T-harness and
match the wire functions.
STEP 2
• Remove the factory radio.
• Access the main 22 pin factory radio connector (2.1) and
determine if you have a factory amplifier.
If you don’t have wires in PIN 19, 20, 21 and 22, you have a
factory amplifier:
• Plug the female GREEN connector to the male GREEN
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male WHITE
connector of your CH1 T-harness.
If you have wires in PIN 19, 20, 21 and 22, you don’t have a
factory amplifier:
• Plug the female GREEN connector to the male WHITE
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male GREEN
connector of your CH1 T-harness.
STEP 3
• Plug the female BLACK connector to the male BLACK
connector.
STEP 4
• Connect the factory harness to the CH1 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Radio Control cable to the aftermarket radio.
STEP 6
• Connect all the harnesses to the Maestro RR module.
The module is now ready to be used.
Insert the aftermarket radio in the dashboard housing and
test all the functionalities.
Reassemble the dashboard carefully.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
87651 109
19181716
432
15
14
13 21
11 12
2220
Fig. 2.1
1

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler town and coUntry 2008-2011
Automotive Data Solutions Inc. © 2014 4
C
AF
G
C
A
G
F
1
E
E
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
GREEN WHITE
WHITE GREEN
CONNECTIONS WITHOUT AMP
CONNECTIONS WITH AMP
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH1 T-HARNESS
FACTORY RADIO
HARNESS
RED/BROWN (NC)
YELLOW/BROWN (NC)
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITEWHITE
BLACKBLACK
RADIO CONTROL CABLE
RED (NC)

OPTIONAL ACCESSORIES
ADS-HRN(AV)-CHR01
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR01-AS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro CH1 Installation Harness
INSTALL GUIDE
CHRYSLER TOWN AND COUNTRY
20122014
retains steering wheel controls, Uconnect, Uconnect BlUetooth, and more!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler town and coUntry 2012-2014
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle as per the Getting Started
section, and that you carefully
review the Installation Diagram and
Vehicle Wire Reference Chart.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
DURING INSTALLATION
Installation Instructions 3
Wiring Diagram 4
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum

ADS-RR(SR)-CHR01-AS maestro.idatalink.com
chrysler town and coUntry 2012-2014
Automotive Data Solutions Inc. © 2014 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH1 T-harness and
match the wire functions.
STEP 2
• Remove the factory radio.
• Access the main 22 pin factory radio connector (2.1) and
determine if you have a factory amplifier.
If you don’t have wires in PIN 19, 20, 21 and 22, you have a
factory amplifier:
• Plug the female GREEN connector to the male GREEN
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male WHITE
connector of your CH1 T-harness.
If you have wires in PIN 19, 20, 21 and 22, you don’t have a
factory amplifier:
• Plug the female GREEN connector to the male WHITE
connector of your CH1 T-harness.
• Plug the female WHITE connector to the male GREEN
connector of your CH1 T-harness.
STEP 3
• Plug the female RED connector to the male BLACK
connector.
STEP 4
• Connect the factory harness to the CH1 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Radio Control cable to the aftermarket radio.
STEP 6
• Connect all the harnesses to the Maestro RR module.
The module is now ready to be used.
Insert the aftermarket radio in the dashboard housing and
test all the functionalities.
Reassemble the dashboard carefully.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
87651 109
19181716
432
15
14
13 21
11 12
2220
Fig. 2.1
2
