IDEAL AP 100 User manual

Air Puriers

AP 100
EN Operating Instructions
EN Please read and follow all safety rules and instructions in this manual
before operating.

- 40 -
AP 100
EN TABLE OF CONTENTS
Caution |
Safety precautions
1. When Installing 44
2. When Using 45
3. When Cleaning 48
Preparation |
Names of Each Part 49
Screen Composition 51
Installing and Preparing
1. Select Installation Location 54
2. Filter Installation 55
Use |
Using
1. Initial Action 58
2. Auto Mode 60
3. Set Fan Speed (Manual Mode) 60
4.
PlasmaWave® 61
5. Sleep Mode 61
6. Set Timer 62
7. Set Wi-Fi Connection 63
8. Set Brightness 65
9. Set Volume 65
How to Manage and Clean
1. How to Replace Filter 68
2. How to Clean Pre-Filter 70
3. How to Clean Fine Dust Sensor 71
4. Cleaning exterior / cleaning interior 72
Others |
Malfunction and Checking Measures 73
Product Specifications 76
Warranty 77

- 41 -
Cleansing
filter section
Replacement
filter section
Replacement
filter section
Fixed
section
Stage 1: Fine Mesh Cleancel®Pre-Filter
Filters large household particles such as dust, pet hair,
pollen, and lint.
Stage 2:
PM2.5 Filter
Removes 99.9% of ultrafine pollutants measuring 2.5µm
by mounting a PM2.5 exclusive filter.
Stage 3: Antimicrobial Material
Removes 99.9% of viruses, bacteria, and mold that
cause diseases.
Stage 4: Active
Carbon Filter
Removes foul smells and harmful gases indoors by
absorbing odor particles from food, mold, cigarette
smoke, etc, in the activated carbon micro orifice with a
high-performance granular active filter.
Stage 6: True
HEPA Filter
Filters not only PM2.5 ultrafine dust but also 99.97% of
fine pollutants that measure 0.3µm.
Stage 5: PlasmaWave ®
Provides clean air by removing various harmful substances
from the air as well as bacteria and mold that can cause
diseases.
Stage 1 Stage 4 Stage 5 Stage 6
Fine Mesh
Cleancel® Pre-Filter
Stage 2
PM2.5 Filter
Stage 3
Antimicrobial
Material
Active Carbon Filter PlasmaWave® True HEPA Filter

- 42 -
AP 100
PACKAGE CONTENTS
Product Instruction manual
FEATURES
Smart sensor
Operates automatically by
comprehensively analyzing and
detecting indoor air contamination
levels through dust/smell/
illumination level sensors.
Full-Color LCD touch screen
The 4-inch Full-Color LCD touch
screen provides innovatively
improved usability and convenience.
Various operation modes
Various functions, such as auto,
manual, and sleep modes can be
selected as desired depending on the
living environment.
IAM artificial intelligence system
This allows a clean and pure living
environment to be maintained at all
times by responding automatically to
the condition of indoor air, and can
be controlled remotely even from
outside when the user goes out, goes
to work, or goes on a trip.
Outdoor/indoor
environment information
The home screen shows local weather
data, as temperature, weather
conditions and Pollution level
(dust PM2.5) along with the indoor air
conditions.
Automatic filter management
The current condition of the filter can
be seen through an exclusive APP and
the LCD touch screen, and an alarm
and message informs the user in
advance when it is time to replace a
filter.
Mobile remote control
A mobile device can be used as an
indoor remote control and used to
check the condition of the indoor air
by connecting it to the air purifier.
Timer setup
The timer can be set to run the
product between 1 and 12 hours and
to power off automatically.
Luftreiniger
Air Puriers
Puricateur
AP 100
DE Betriebsanleitung
EN Operating Instructions
FR Mode d´emploi
DE Bitte lesen Sie vor Inbetriebnahme des Gerätes unbedingt diese
Betriebsanleitung und beachten Sie die Sicherheitshinweise.
EN Please read and follow all safety rules and instructions in this manual
before operating.
FR Nous vous prions de lire attentivement le mode d’emploi avant d’utiliser la
machine, et attirons votre attention sur les consignes de sécurité.

- 43 -
Installation

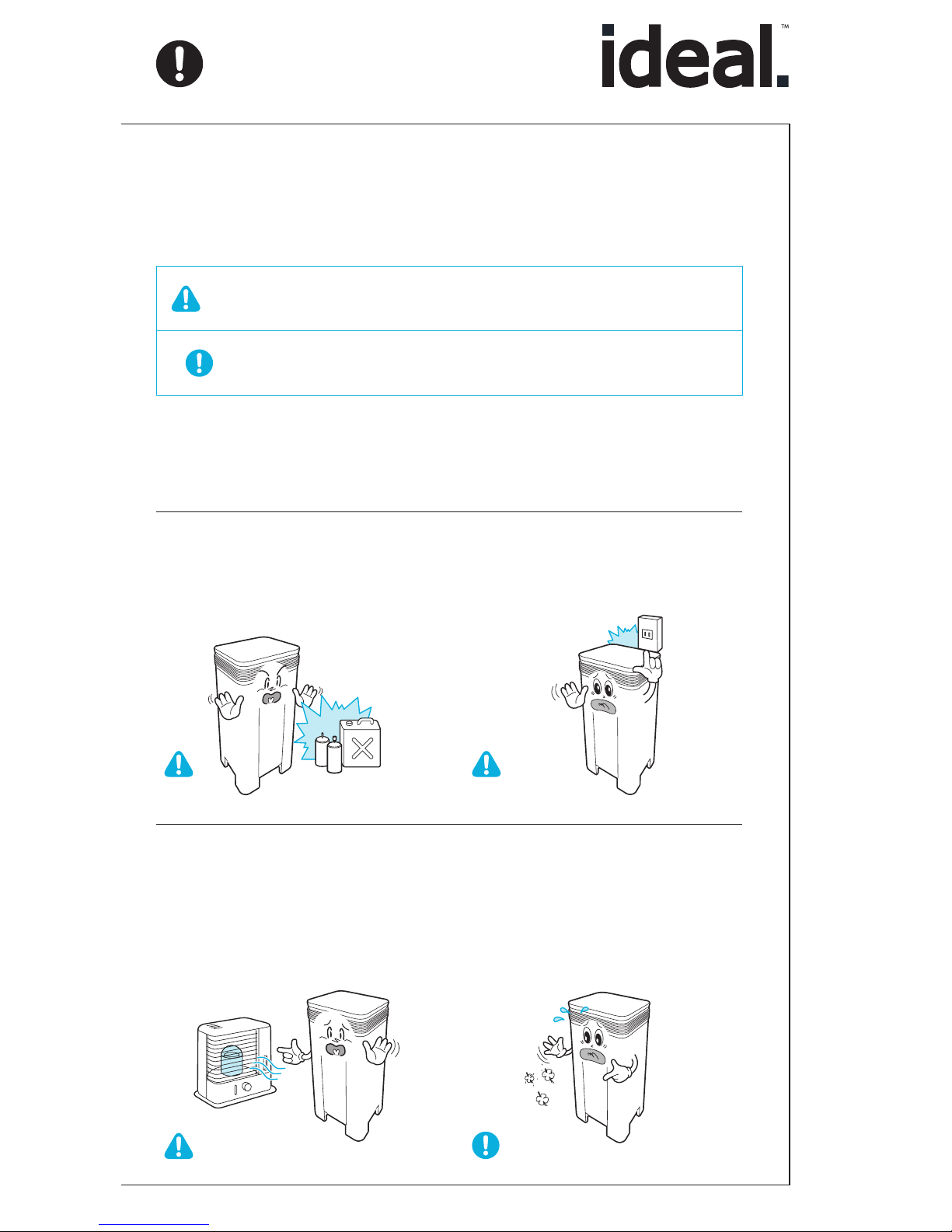

Do not place near flammable
materials (aerosol sprays, fuel oil,
gases, etc.).
This may cause an explosion or fire.
Do not install below an electrical
outlet.
This may cause fire.
Do not place near any gas- or heat-
producing appliances, such as gas
appliances, heaters, and fireplaces.
This may cause the unit to become
deformed, discolored, or to catch fire.
Do not install where large
quantities of noxious gases are
present, including carbon
monoxide and gases emitted by
animals.
This may cause the unit to break down.
Product Specifications
Before operating this equipment, carefully read and follow these safety cautions and
instructions to avoid damage and ensure safe use.
WARNING Follow these instructions to reduce the risk of serious
injury or death.
NOTICE Failure to follow these safety instructions may lead to
personal injury or property damage.
Safety Instructions | Installation

- 44 -
AP 100
Installation | Safety Instructions
Installation

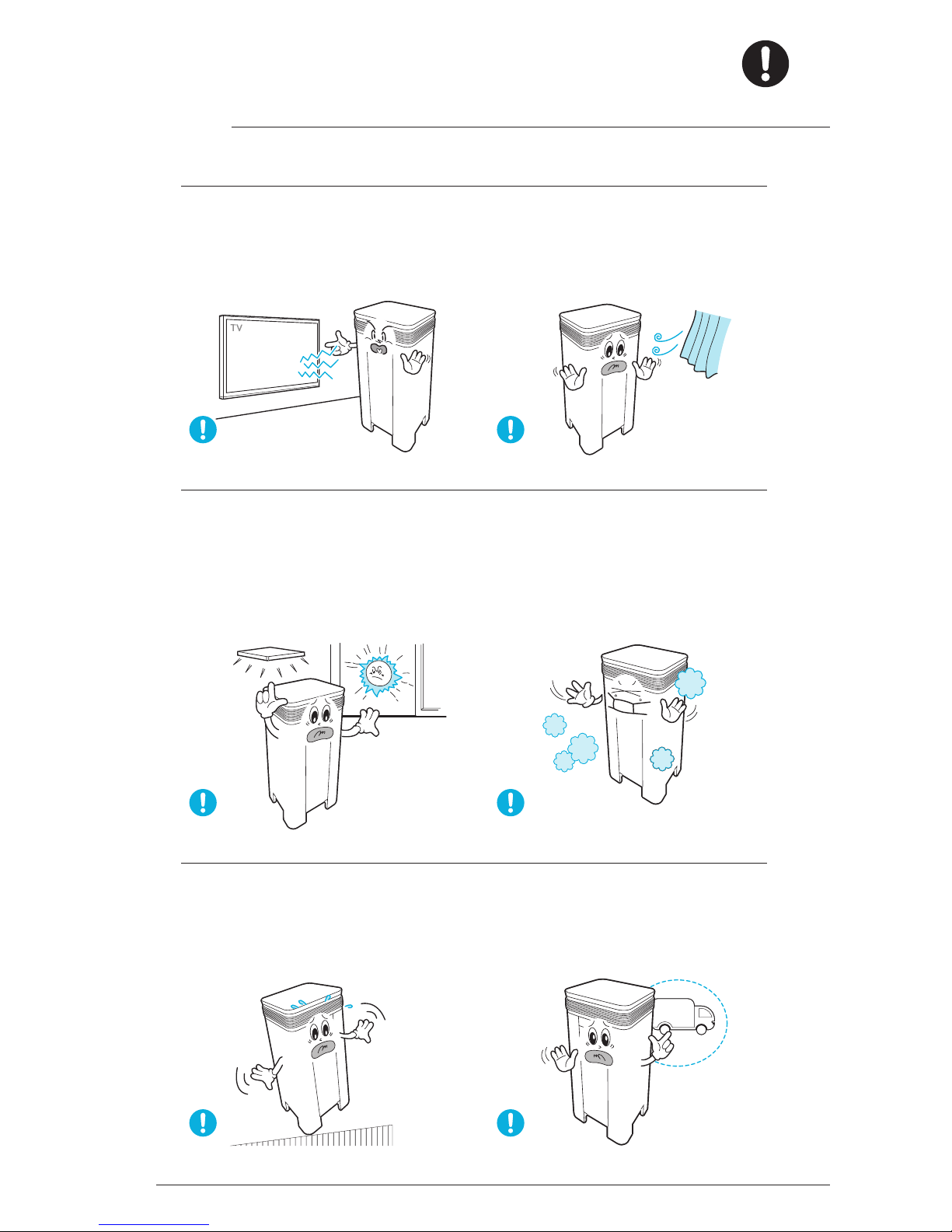

Do not install near electronics such
as TVs, radios, or air conditioners.
Electromagnetic interference may cause
the unit to malfunction.
Do not place the unit facing into
wind or drafts.
This may cause the sensors to fail.
Do not install under direct
sunlight, lighting fixtures with
inverters, or lighting fixtures with
automatic detection sensors.
This may cause the unit’s sensors to
malfunction.
Do not use around mist or fumes
from industrial oil or around large
quantities of metallic dust.
This may result in fire or may cause
product failure.
Do not install in confined spaces or
on slanted or uneven surfaces.
This may cause product failure or
deformation.
Do not install in any sort of
transport (motor vehicles, boats,
ships, etc.).

- 45 -
Operation
Do not use in places that are very
humid or moist or where the unit
may get wet, such as bathrooms.
This may result in fire or electric shock.
Unplug the power cord when not
in use for long periods.
Leaving it plugged in could cause the
insulation to deteriorate, posing a risk of
short circuit and fire.
Do not plug other appliances into
the same outlet. Provide an
exclusive outlet for this unit.
Also, do not arbitrarily extend the power
cord. Risk of electric shock or fire may
result from plugging several appliances
into one outlet, modifying the power
cord, or using an extension cord.
Do not pull on the power cord
when unplugging the unit.
This may cause electric shock or fire.
Do not touch the plug with wet
hands.
This may result in electric shock.
Do not damage the power cord by
forcefully bending, pulling,
twisting, bundling, or pinching it,
or by placing heavy objects on it.
Damaging the power cord could lead to a
short circuit, resulting in electric shock or
fire.
Safety Instructions | Operation

- 46 -
AP 100

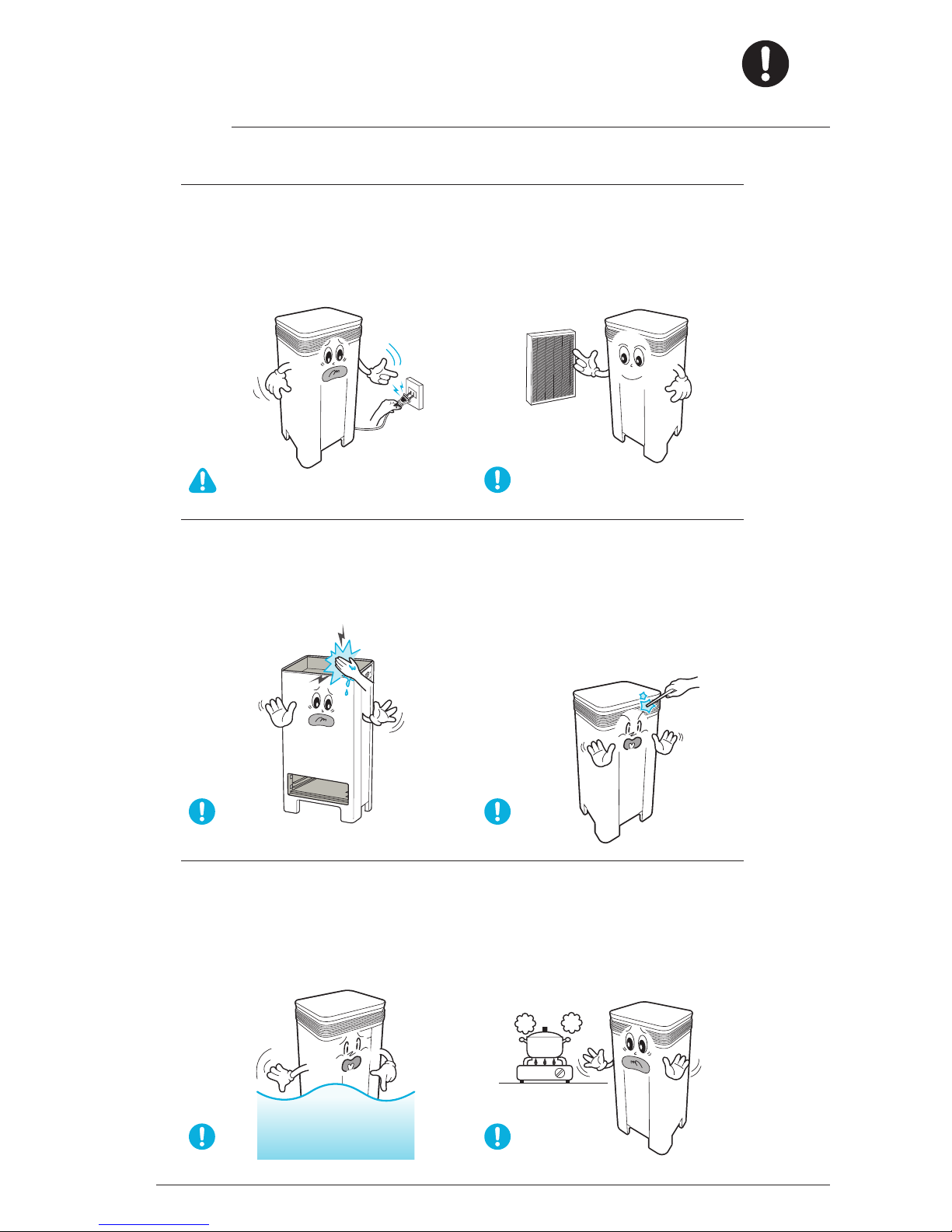

Operation
Do not unplug or move the unit
while it is running.
This may cause product failure or fire.
Make sure the filters have been
inserted before running the unit.
Running it without filters shortens the
product’s service life and may cause
electric shock or injury.
Do not touch the interior of the
unit with wet hands.
The high voltage may cause electric
shock.
Do not insert foreign objects into
the vents, such as pins, rods, and
coins.
Make especially sure that children follow
safety rules around the unit. Unsafe
behavior may result in product failure or
injury from burns or electric shocks.
If the unit becomes submerged in
water, unplug it and contact the
service center.
If you attempt to dry and operate the unit after
it has been submerged, this could result in
product failure, electric shock, fire, or injury.
When cooking foods with strong
odors, reduce use of the unit as
much as possible.
The filters may become permeated with
the cooking odors, possibly affecting the
filters’performance and service life.
Operation | Safety Instructions

- 47 -
Operation
Do not step on or place heavy
objects on top of the unit.
This could result in personal injury, or
may cause product failure or
deformation.
Do not use in places with
extremely high or low
temperatures.
This product is for indoor use (5-30˚C).
Using it outside this temperature range
may cause deformation, discoloration, or
shortened filter life.
If the product emits unusual
noises, smells, or smoke, unplug
the power cord immediately and
contact the IDEAL service center.
Such occurrences may lead to electric
shock or fire.
Never disassemble, repair or
modify this product yourself.
This may cause product failure, electric
shock, or fire. If repairs are needed,
contact the service center.
Do not subject the product to
strong blows or physical shocks.
This may lead to product failure.
Do not allow intake or outlet vents
to become blocked, for instance by
furniture, laundry, curtains, or
other objects.
Such blockage may lead to increased
internal temperatures, causing product
deformation.
Safety Instructions | Operation

- 48 -
AP 100
Cleaning | Safety Instructions
Operation
Do not tie up or bundle the power
cord when operating the unit.
This may cause electric shock or fire.
Do not use for specialized
purposes or sites, such as places
devoted to animals and plants,
precision instruments, or art
conservation.
Cleaning
Do not use flammable sprays or
liquid detergents.
This may cause product failure, electric
shock or fire.
Do not let water run over the Unit.
This may lead to product failure, electric
shock or fire.
Do not allow children to clean or
maintain the unit by themselves.
Adult supervision is absolutely necessary.
Before cleaning or performing
maintenance, unplug the power
cord and be sure the fan has
stopped.
Not doing so could result in electric
shock or injury.

- 49 -

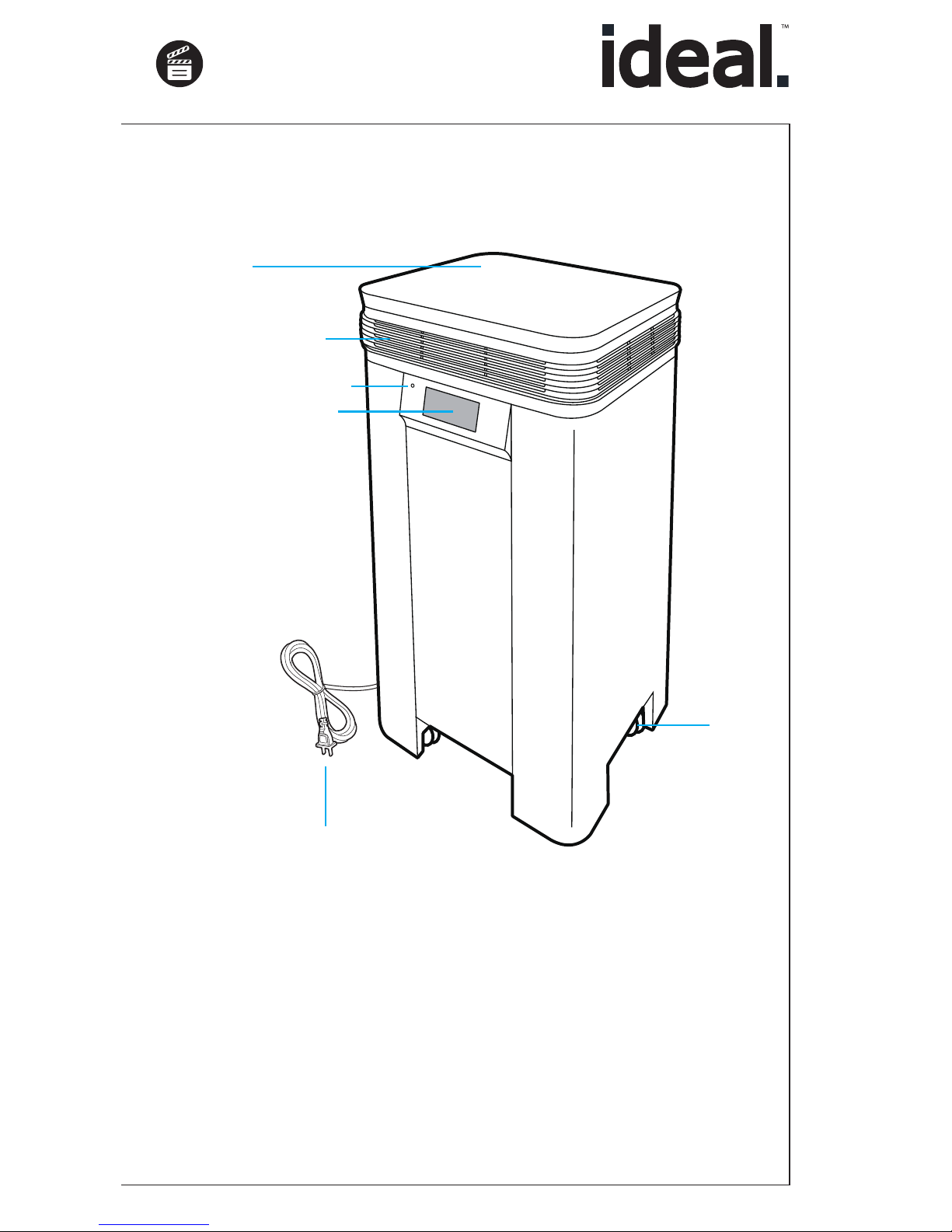

| Front |
Name of Each Part
Power plug
(120V)
Full Color LCD Touch
screen
Air vent (4 directions)
Light detecting sensor
Top cover
Castor
Set-up | Names of parts

- 50 -
AP 100
| Back |
3Active Carbon Filter
2Antimicrobial

PM2.5 Filter
1Fine Mesh Cleancel®
Pre-Filter
Filter cover
PlasmaWave ®
(interior)
4
True HEPA Filter
Top cover
release button
Top cover
Dust sensor
Detects dust density
Speaker
Smell sensor
Detects indoor smells
Names of parts | Set-up

- 51 -

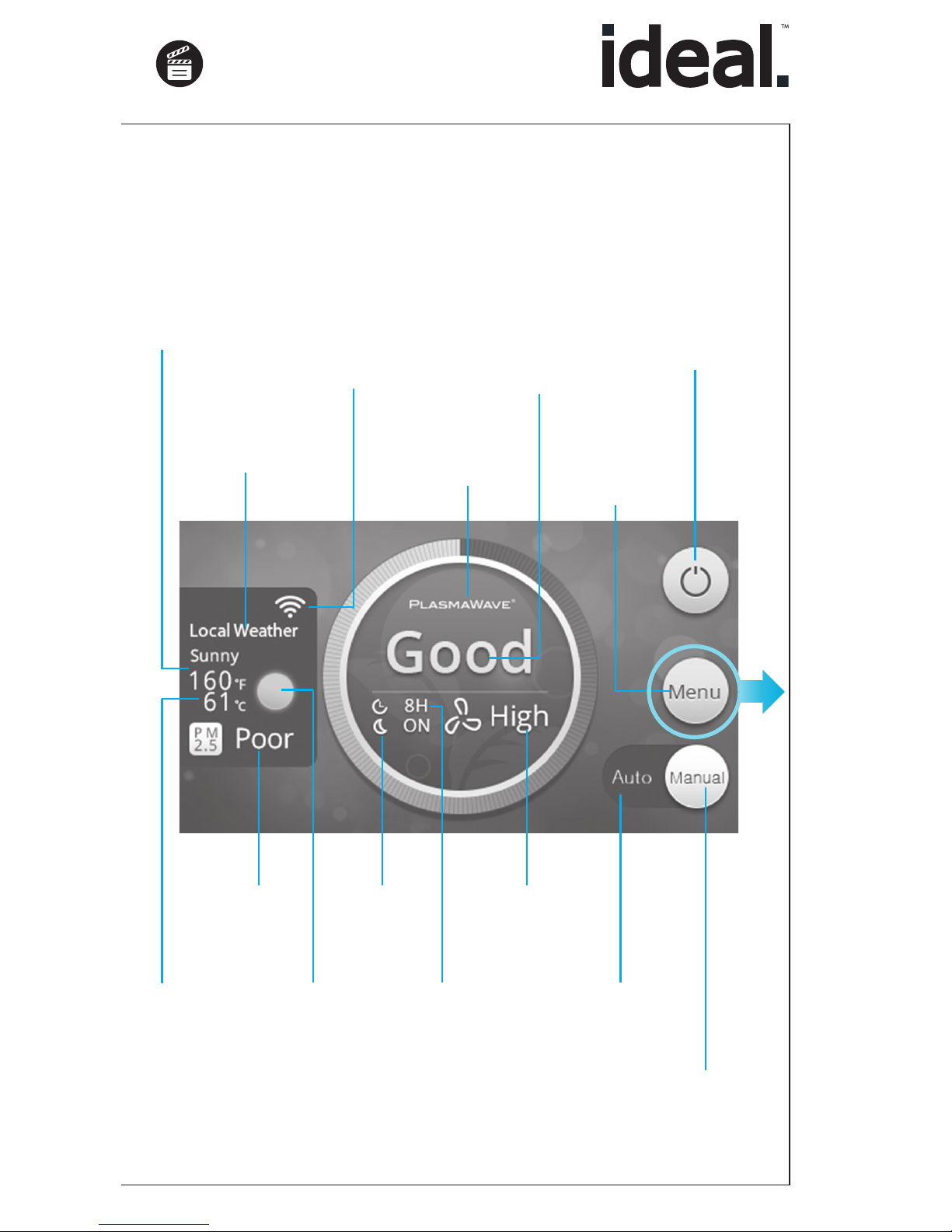

| Main (Home) Screen |
Screen Composition
Temperature
condition display
Current
temperature
Manual mode
The user can set the
desired mode.
Current fine
dust
Sleep mode
Sleep mode can
be setup.
Current
weather
Power off
reservation time
Auto mode
Automatically sets wind
speed depending on the
condition of indoor air.
Wi-Fi
Current exterior
environment
information
PlasmaWave®
Displays when
PlasmaWave is in
operation.
Contamination level
information
Displays indoor contamination level
along with the main screen color.
Power
The power to the
air purifier can be
turned off.
Menu
Selecting the menu
will display 6 menu
items at the bottom
of the screen.
Fan speed
condition
Displays wind speed
currently in operation.
The color of the main screen will change depending on the condition of the indoor
air.
Brown: poor / Green: fair / Blue: good
see
page 52
Set-up | Names of parts

- 52 -
AP 100
| Menu Screen |
Filter replacement
Can check the condition of
the filterindoor air quality.
Setup
Sets up the Wi-Fi,
brightness, volume,
and filter.
Set fan speed
4 fan speeds can be
set: <Low Mid 
High Turbo>
Sleep mode
Operates in sleep mode
and darkens display.
PlasmaWave®
Can be used as an air
purification function.
Set timer
Use when wishing to
operate only during a
specific time.
Home (Main Screen)
This is used to return to the
main screen.
Set Wi-Fi
The Wi-Fi function
can be turned on or
off.
Set volume
Set brightness
Set language
German, English,
French
Names of parts | Set-up

- 53 -

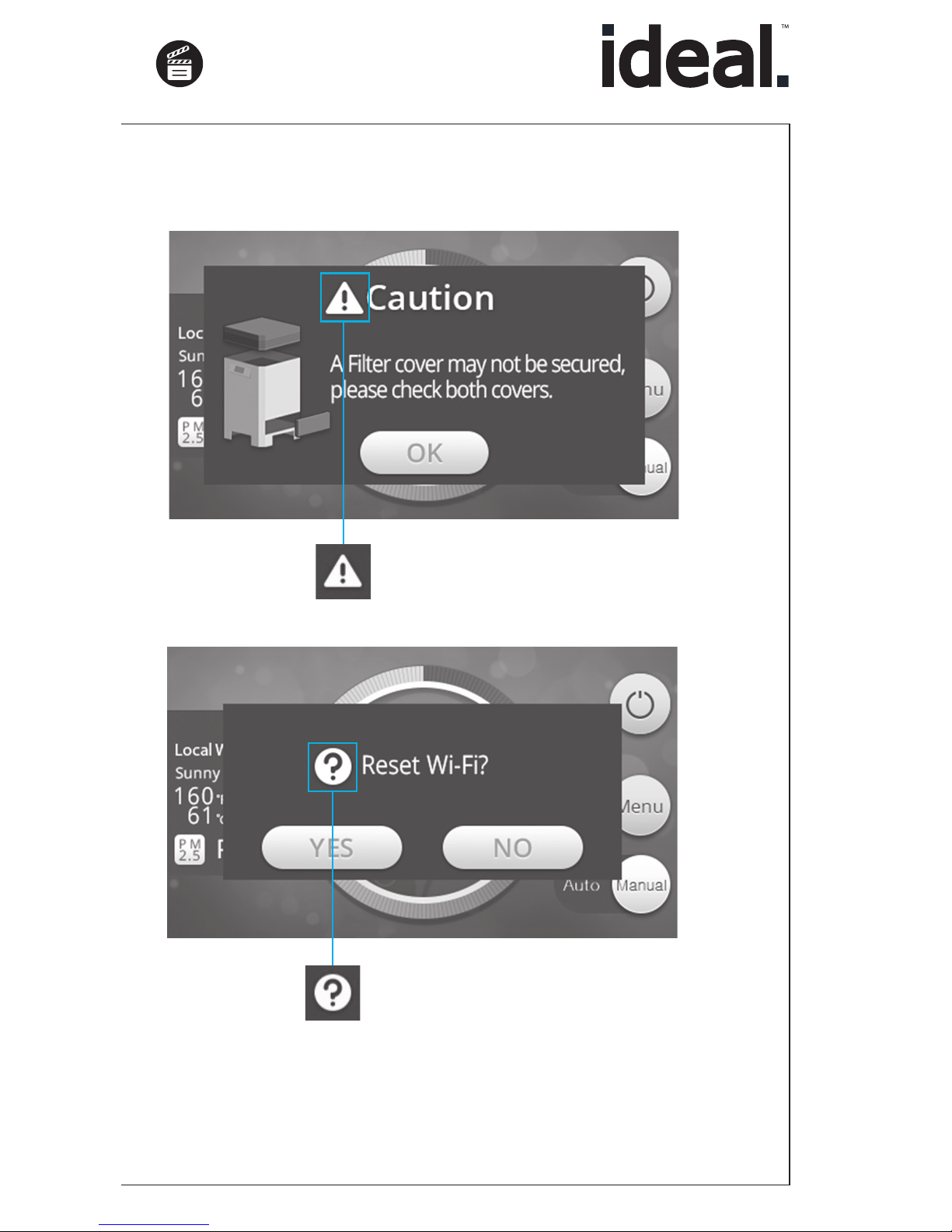

| Alert/Verification Window |
Verification pop-up window
Appears when a problem occurs with the product, when
asking for verification for Wi-Fi initialization, and when
power is turned off during operation.
Alert pop-up window
Appears when the filter replacement time is
notified, when the filter cover is opened, and when
the filter cover is closed
Set-up | Names of parts

- 54 -
AP 100
Installation and set-up
1. Choosing a location
A location that has low
humidity and is well
ventilated
There may be a risk of electric
shock or product malfunction
due to rust.
Place it in an indoor location
away from direct sun.
Direct sun may cause product
malfunction or failure.
Choose a location an
adequate distance from TVs, radios,
and other electronic products.
Electromagnetic interference from certain
electronics may cause product
malfunction.
Place at least 4 inch
from any wall.
Allow at least 12-18 inch of
space around the unit.
Place on a hard, flat surface
Placement on flimsy or slanted
surfaces may result in abnormal
noise and vibrations.
Installation and set-up | Set-up
12~18 inch 4 inch

- 55 -
2. Filter Installation
All filters are assembled and packaged before being shipped out of the factory.
The packaging of filters must be removed before use.
Failure to remove the packaging before operating the product may result in
malfunction.
Filters must be replaced only while the power is turned off.
1Fine Mesh Cleancel® Pre-Filter, 2 Antimicrobial PM2.5 Filter ,
3 Activated Carbon Filter installation

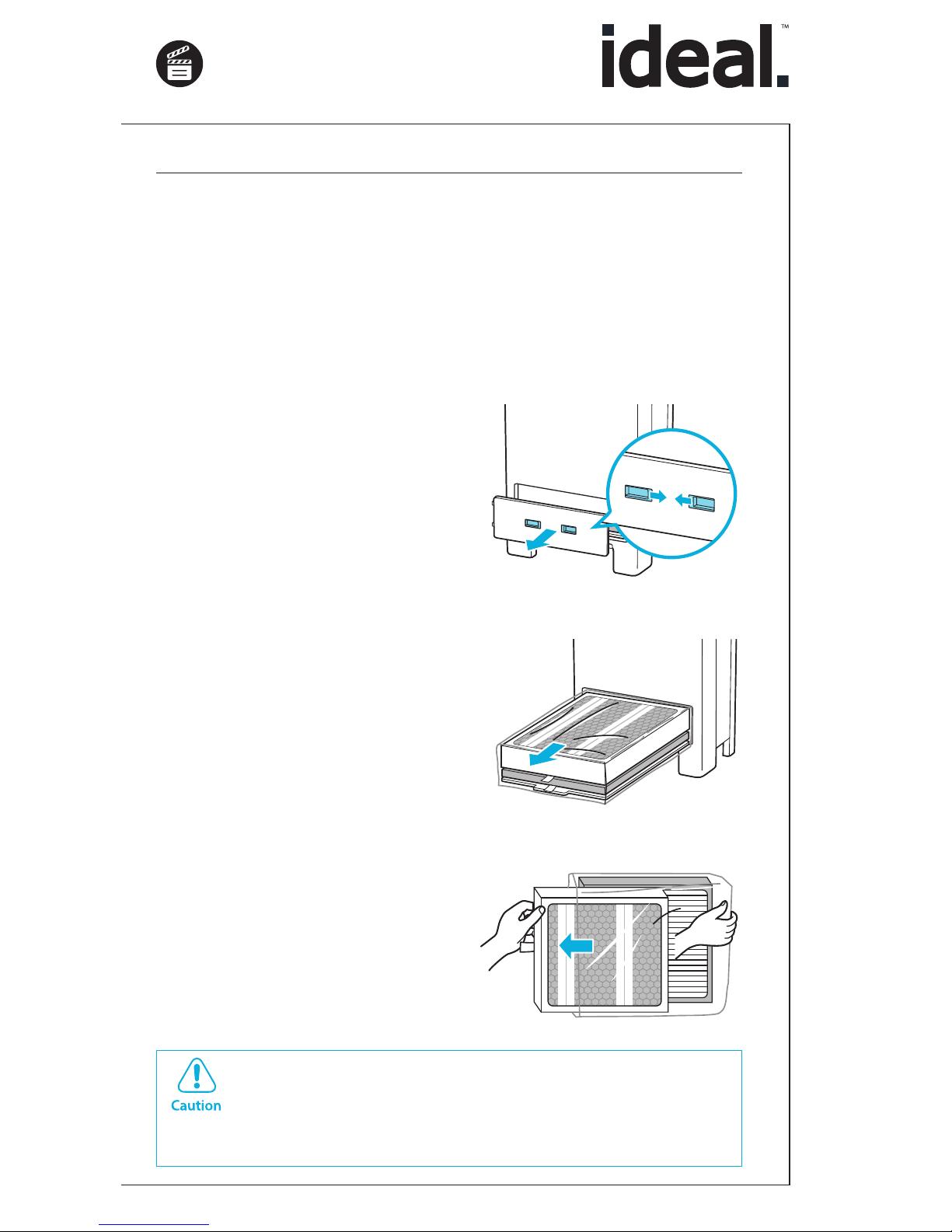

① Push the two buttons on the filter
cover at the bottom of the product
towards the middle and take the
cover off by pulling it towards you.
② Pull the new filter from the vinyl
packaging.
③ Remove the vinyl packaging from
the new filters.
XFailure to remove the vinyl packaging before use may result in
abnormal noise, product deformation or fire caused by
overheating of the motor.
Set-up | Installation and set-up

- 56 -
AP 100

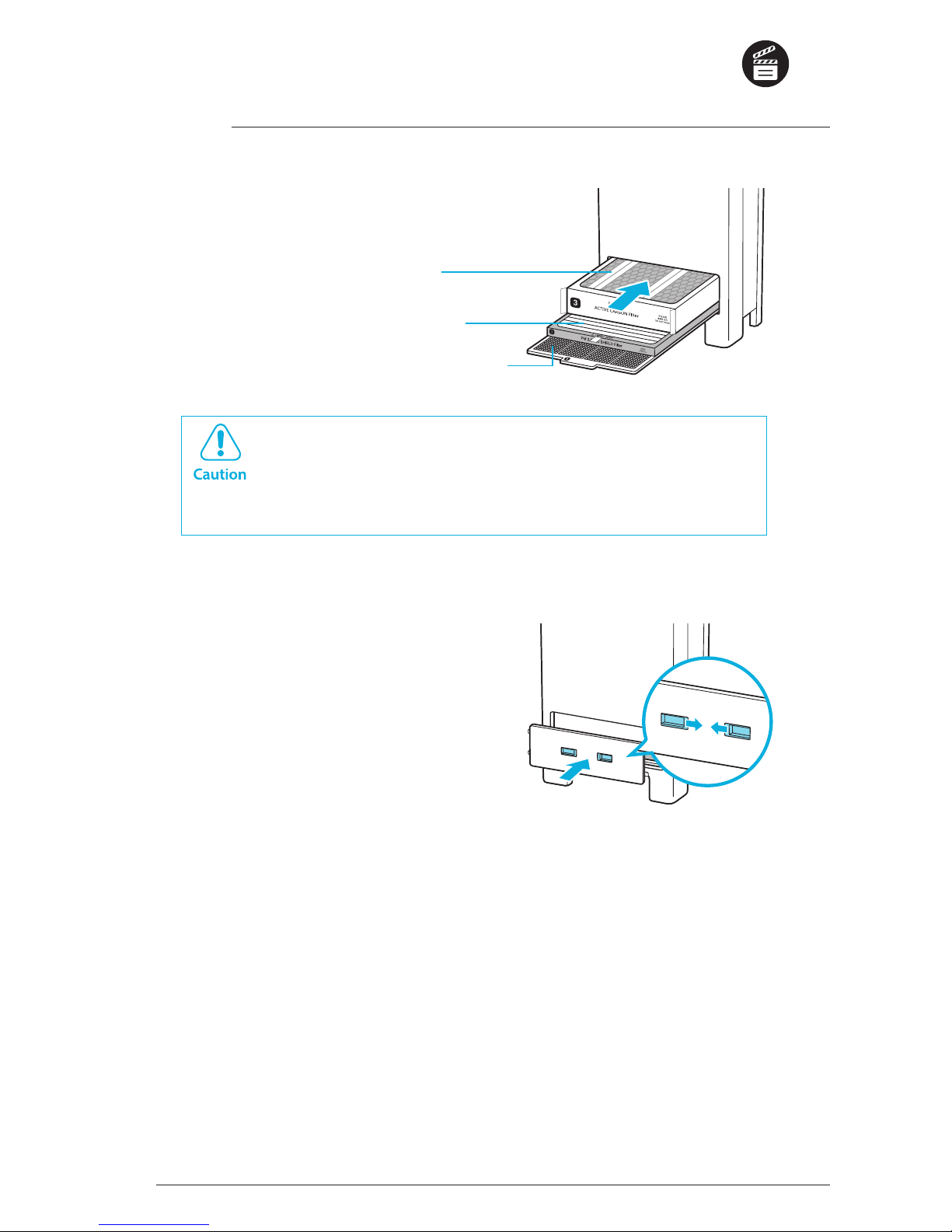

① 1Fine Mesh Cleancel® Pre-Filter
2 Antimicrobial PM2.5 Filter
3
Active
Carbon Filter
. Push the lters in this order
to the very back of the product.
x
XPlease make sure that the pre-filter is not flipped upside down
before inserting. Dust filtered during operation will fall to the
bottom of the air purifier during filter changes if the pre-filter is
flipped upside down.
②Push the two buttons on the lter
cover towards the middle to attach it
to the product.
3 Active Carbon Filter
2 Antimicrobial PM2.5 Filter
1Fine Mesh Cleancel® Pre-Filter
D
E
Installation and set-up | Set-up

- 57 -

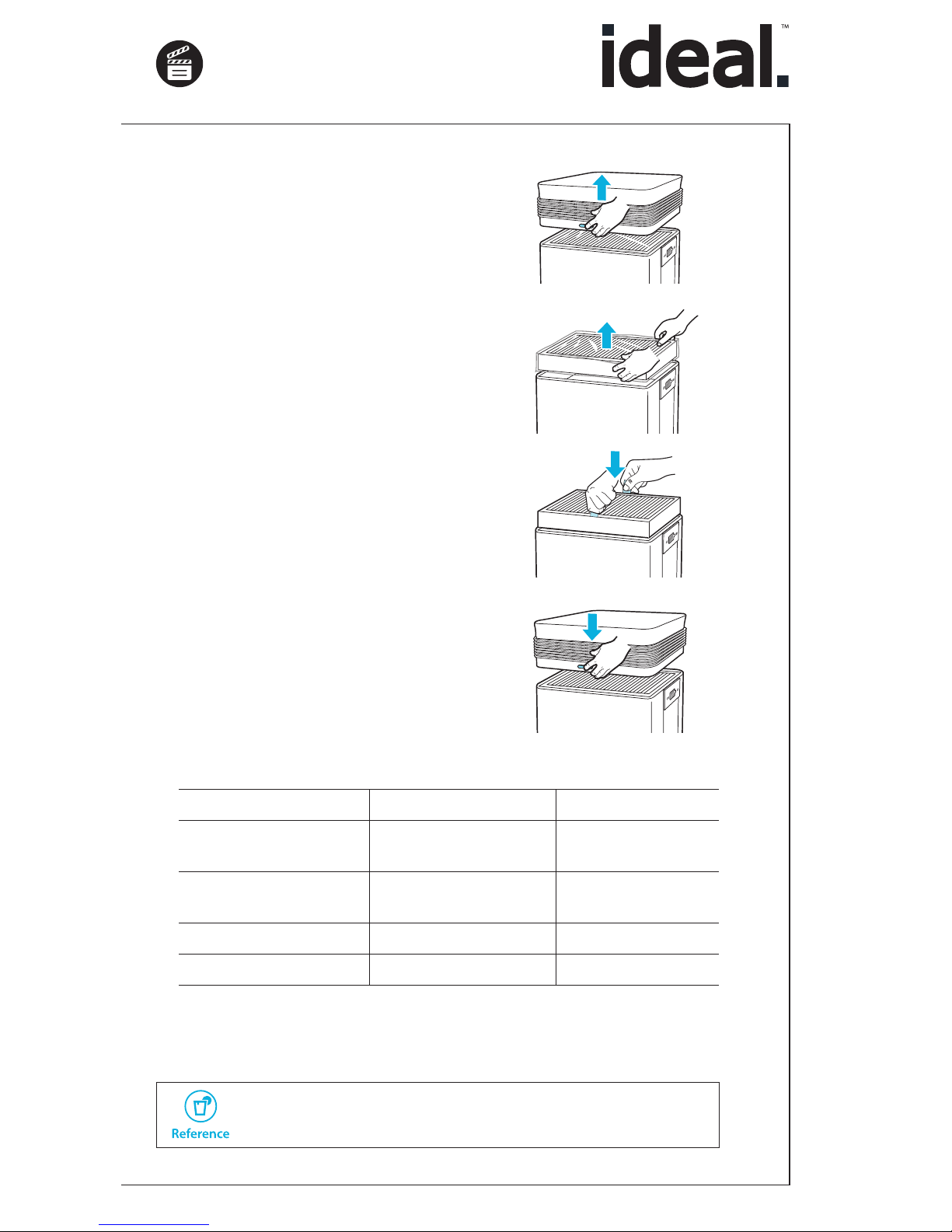

4 True HEPA Filter installation
①Press the release buttons on either
side of the top cover and lift the
cover off.
②Pull the new filter out and remove
its vinyl packaging.
xFailure to remove the vinyl packaging
before use may result in abnormal
noise, product deformation or re
caused by overheating of the motor.
③Insert the new 4
True HEPA Filter .
④Press the release buttons on either
side of the top cover and attach it to
the product.
⑤Filter cleaning and replacement
cycle.
Filter type Cleaning cycle Replacement cycle
1Fine Mesh Cleancel®
Pre-Filter 2 times per month Semi-permanent
2
Antimicrobial
PM2.5 Filter
-12 months
3
Active Carbon Filter
-12 months
4True
HEPA Filter
-12 months
There may be a difference in the filter replacement cycle depending on usage
environment.
Filter purchase inquiries: www.ideal-health.de
▶Please refer to pages 68~69 for details on how to replace filters
Set-up | Installation and set-up

- 58 -
AP 100

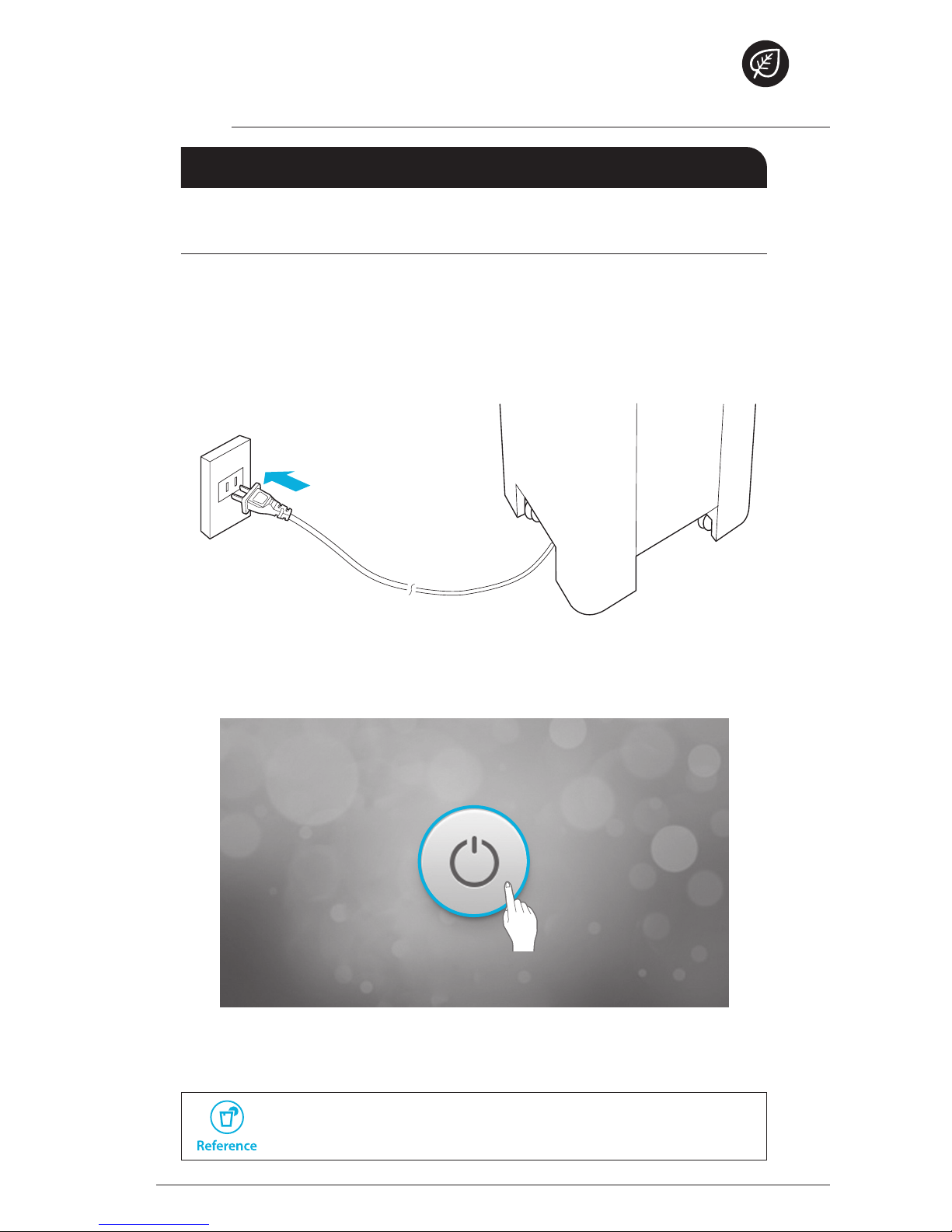

② Press the "Power"button.
xA start video will play along with music as the power is turned on.
① Insert the power plug into a power outlet.
power plug into a power outlet (❷).
xThe Display Panel lights will turn on and then o.
How to Use
1. Initial action
▶For the first 4 minutes, the product’s smart sensor will measure
the surrounding air cleanliness level.
How to Use | Operation
