INSTALLATION INSTRUCTIONS
95-7298B
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.

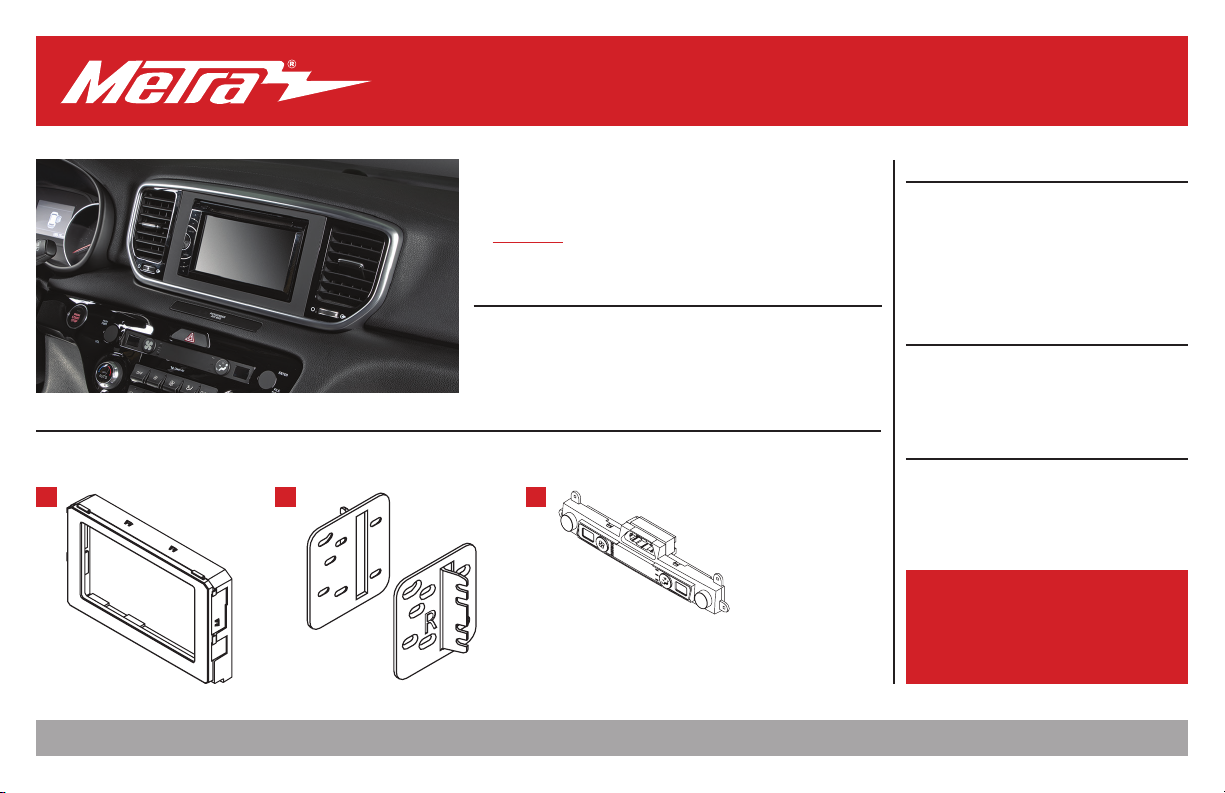

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Climate display • D) Wiring harness (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Pick tool
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-6
Kit Assembly ..........................................................7
Axxess Interface Installation ............................8-15
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
A CB
Kia Sportage (with auto climate control w/o factory amplifier)
2020-2021
KIT FEATURES
• ISO DDIN radio provision
• Integrated electronics with laser
etched graphics retain the factory
climate control display features.
• Retains factory steering wheel
controls and back up camera.
• Painted scratch resistant matte black.
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications

386.257.1187
|
MetraOnline.com
2
DASH DISASSEMBLY

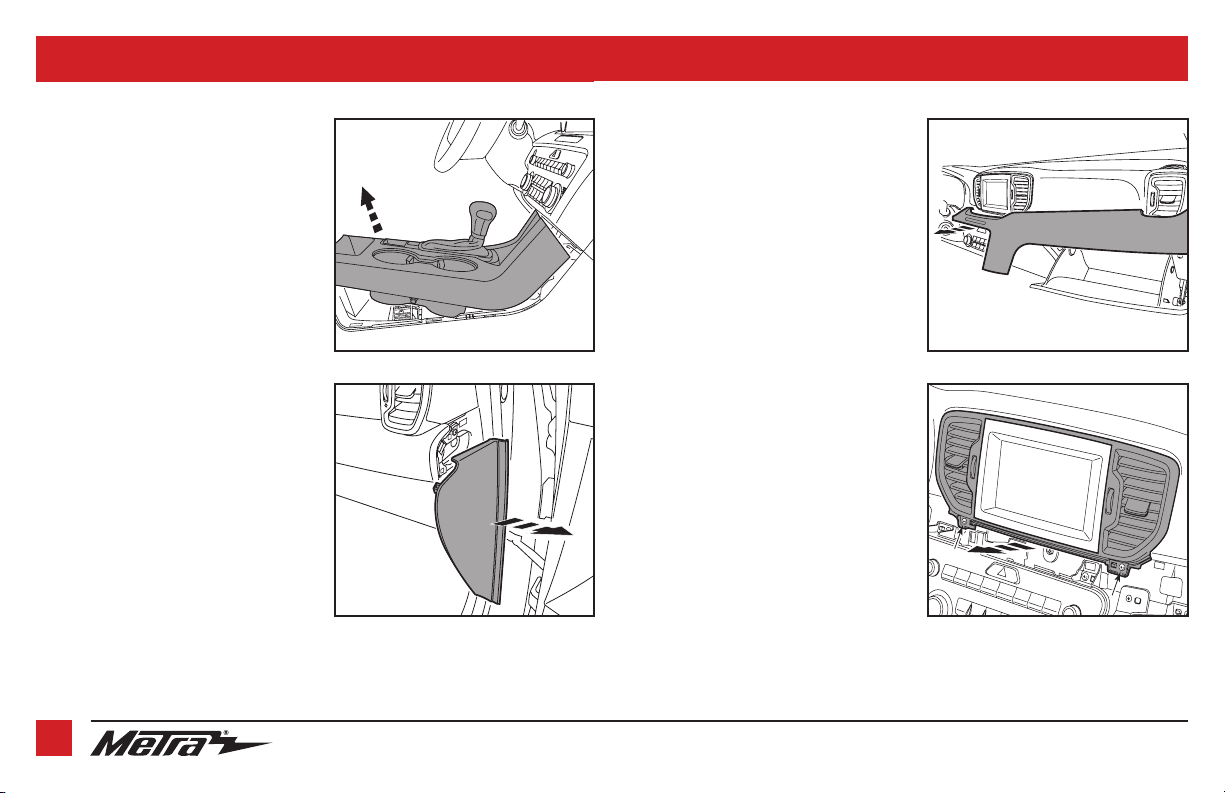

1. Unclip and slide the top of the center
console back slightly. (Figure A)
2. Unclip and remove the panel on the
end of the passenger side of the dash,
then remove (1) Phillips screw exposed.
(Figure B)
3. Unclip the panel above the glove box.
Unplug the passenger airbag light, then
remove the panel. (Figure C)
4. Remove (2) Phillips screws securing the
radio display and a/c vent panel, then
unclip and remove the panel. (Figure D)
Continued on the next page
(Figure A) (Figure C)
(Figure B) (Figure D)

REV. 9/14/2022 INST95-7298B 3
(Figure E) (Figure G)
(Figure F) (Figure H)
DASH DISASSEMBLY (CONT.)

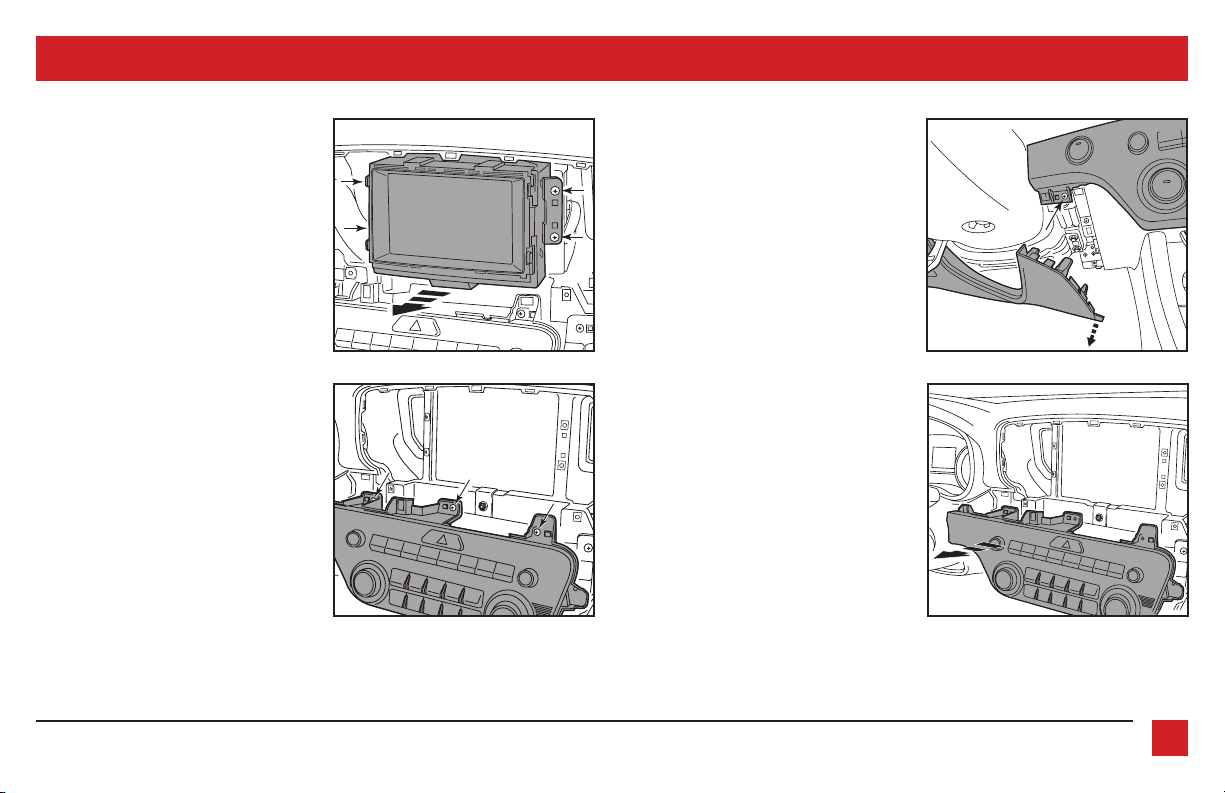

5. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure E)
6. Remove (3) Phillips screw securing the
climate control panel. (Figure F)
7. Remove (1) Phillips screw securing the
lower right side drivers knee bolster.
Unsnap the bolster just enough to
access the (1) Phillips screw securing the
climate control panel, then remove the
screw. (Figure G)
8. Unclip the climate/radio control panel
from the dash, unplug the connectors,
then remove the panel. (Figure H)
Continue to Kit Preparation

386.257.1187
|
MetraOnline.com
4
KIT PREPARATION
Radio Trim Panel Installation
To the factory radio trim panel:
2. Snap in the 95-7298B radio trim panel to
the factory panel. (Figure A)
Continued on the next page
(Figure A)

REV. 9/14/2022 INST95-7298B 5
KIT PREPARATION (CONT.)
Climate Display Installation

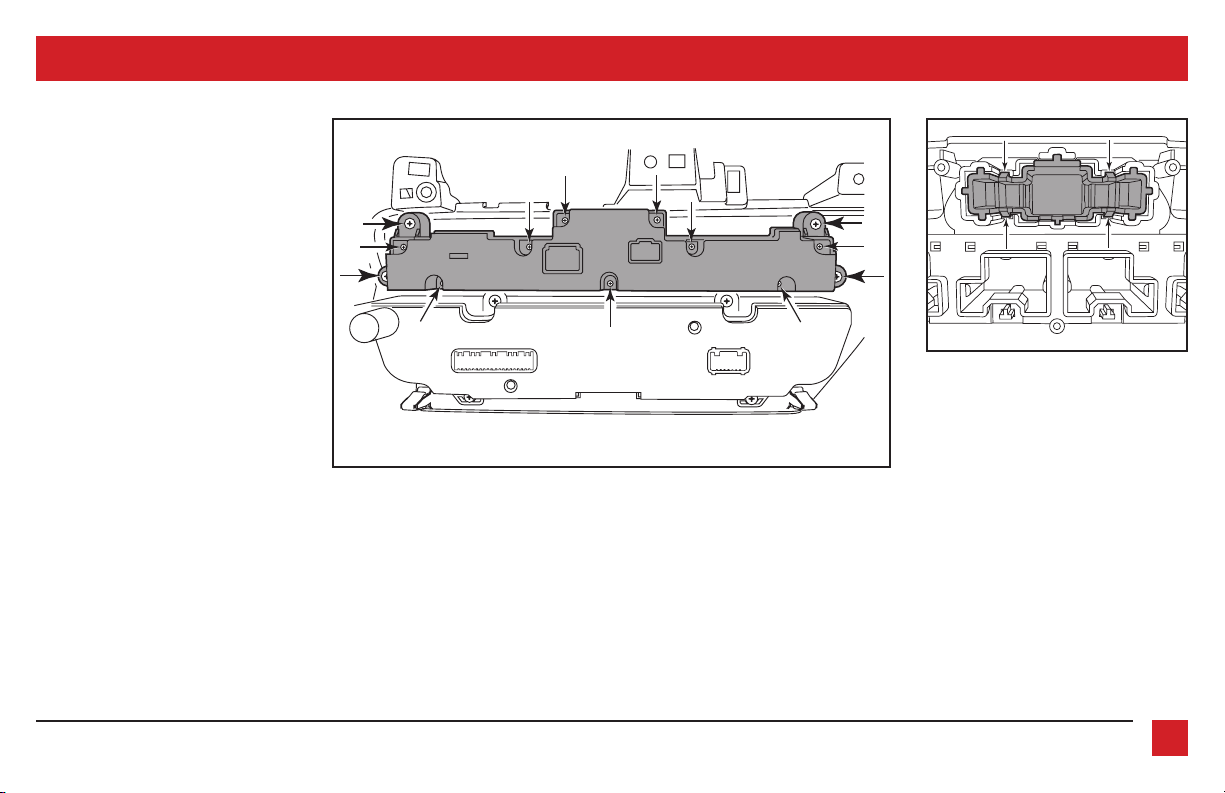

1. Remove (4) Phillips screws securing the
radio/hazard assembly to the climate/
radio control panel, then unclip and
remove the assembly.
(Figure C, heavier arrows)
2. Remove (9) Phillips screws securing
the back cover to the radio/hazard
assembly, then remove the cover.
(Figure C)
3. Using a pick tool, gently release (4)
clips holding the hazard switch to the
assembly, then remove the switch.
(Figure D)
Continued on the next page
(Figure D)
(Figure C)

386.257.1187
|
MetraOnline.com
6
KIT PREPARATION (CONT.)
(Figure E)
(Figure F)
4. Clip the hazard switch into the climate
display. (Figure E)
5. Secure the climate-display/hazard-
switch assembly to the climate control
panel using the factory screws.
(Figure F)
Continue to Kit Assembly

REV. 9/14/2022 INST95-7298B 7
KIT ASSEMBLY
ISO DDIN radio provision

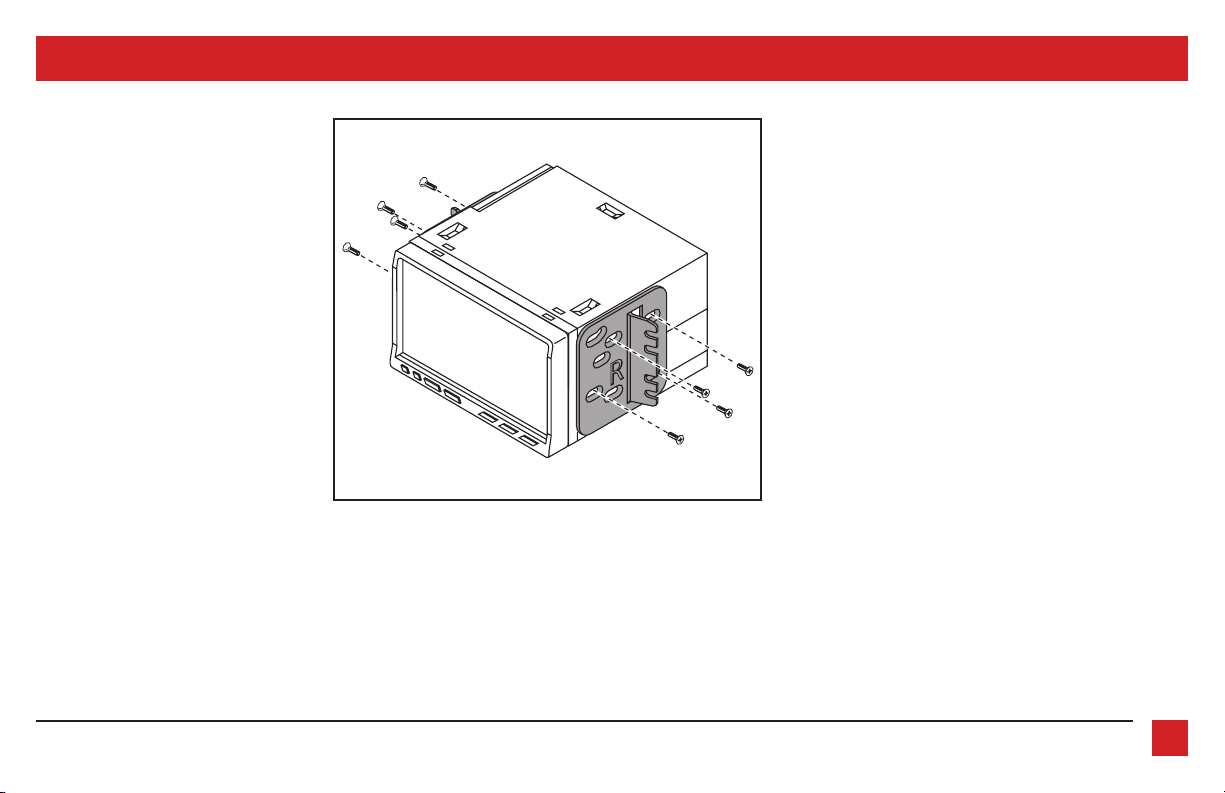

1. Secure the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
Continue to Axxess Interface
Installation
(Figure A)

8386.257.1187
|
MetraOnline.com
FEATURES
COMPONENTS
• Female 3.5mm connector with stripped leads
• ASWC-1
• AX-CAM6V
• Wiring harness
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections ..............................................................................................................................9-10
Installation ...................................................................................................................................10
Final Assembly ..............................................................................................................................11
Programming the ASWC-1 and climate display ..........................................................................11
(ASWC-1) Steering wheel control settings .............................................................................12-15
- L.E.D. feedback
- Changing radio type
- Remapping the steering wheel control buttons
- Dual assignment instructions (long button press)
• Retains audio controls on the steering wheel via an ASWC-1
• Provides NAV outputs (speed sense)
• Retains the factory AUX-IN jack
• Retains the factory backup camera
• Includes an AX-CAM6V 12-to-6V step-down for the factory camera
• Retains balance and fade
AXXESS INTERFACE INSTALLATION

9
REV. 9/14/2022 INST95-7298B
CONNECTIONS
The following (1) wire is only for a multimedia/navigation radio that requires this wire.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Blue/White wire from the AX-CAM6V to a wire that has power while the vehicle
is in reverse. This wire will have to be located in the vehicle.
• If retaining the factory AUX-In jack, connect the Red and White RCA jacks to the audio
AUX-IN jacks from the aftermarket radio.
• Connect the Yellow RCA jack to the backup camera input.
Continued on the next page
From the wiring harness included with the kit to the aftermarket radio:
• Connect the (2) Black wires, the Black wire labeled “CAMERA GROUND”, and also the
Black wire from the AX-CAM6V, to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Red wire to the accessory wire.
• Connect the Red wire labeled “CAMERA POWER 6V” to the Blue/Red wire from the AX-CAM6V.
• Connect the Blue wire to the power antenna wire.
• If the aftermarket radio has an illumination wire, connect the Orange wire to it.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.

10 386.257.1187
|
MetraOnline.com
CONNECTIONS (CONT.)
3.5mm jack steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel.
• For the radios listed below, connect the
female 3.5mm connector with stripped leads , to the male
3.5mm SWC jack from the wiring harness included with the kit. Any remaining wires tape off
and disregard:
•
Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White wire
of the connector. Then connect the remaining steering wheel control wire, normally Brown/
White, to the Brown wire of the connector
.
• Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the Brown wire.
• Kenwood or select JVC with a steering wheel control wire: Connect the Blue/Yellow wire to
the
Brown wire.
Note: If your Kenwood radio auto detects as a JVC, manually set the radio type to Kenwood.
See the instructions under changing radio type.
• XITE: Connect the steering wheel control SWC-2 wire from the radio to the Brown wire.
• Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AX-SWC-PARROT (sold
separately), and then connect the 4-pin connector from the AX-SWC-PARROT into the radio.
Note: The radio must be updated to rev. 2.1.4 or higher software.
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A
or SWC-1, to the
Brown wire of the connector. Then connect the remaining steering wheel
control wire, referred to as Key-B or SWC-2, to the
Brown/White wire of the connector. If the
radio comes with a third wire for ground, disregard this wire
. Note: After the interface has
been programmed to the vehicle, refer to the manual provided with the radio for assigning
the SWC buttons. Contact the radio manufacturer for more information
.
• For all other radios: Connect the 3.5mm jack from the wiring harness included with the kit into
the jack on the aftermarket radio designated for an external steering wheel control interface.
Please refer to the aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
INSTALL ATION
With the key in the off position:
1. Connect the wiring harness included with the kit to the climate-display/hazard-switch
assembly, and then to the wiring harness in the vehicle.
2. Locate the factory antenna connector in the dash and complete all necessary connections
to the radio. Use the antenna adapter provided to adapt the factory antenna connector to
the aftermarket radio.
3. Connect the wiring harness included with the kit to the ASWC-1.
Attention! If retaining steering wheel controls, ensure that the SWC jack/wire is connected to the
radio before proceeding. If this step is skipped, the ASWC-1 will need to be reset for the steering
wheel controls to function.

11
REV. 9/14/2022 INST95-7298B
PROGRAMMING THE ASWC-1 AND CLIMATE DISPLAY
Programming the ASWC-1:
1. Press and hold the “Volume-Up” button on the steering wheel, then turn the ignition on.
The L.E.D. will start flashing rapidly, which means the ASWC-1 is looking for the vehicle
and the radio.
Note: If the L.E.D. didn’t start flashing rapidly, press the reset button for 3 seconds, while still
holding the “Volume-Up” button.
2. After a few seconds the L.E.D. should stop flashing rapidly, then go out for approximately
2 seconds.
3. After approximately 2 seconds there will be a series of 7 Green flashes, some short, and
some long. The long flashes represent the wires that are connected to the ASWC-1.
Tip: Knowing this will help to troubleshoot, if need be.
4. The L.E.D. will pause for another 2 seconds, then flash Red up to 18 times depending on
which radio is connected to the ASWC-1. Refer to the L.E.D. feedback section for information.
5. This is the end of the auto detection stage. If the ASWC-1 detected the vehicle and the radio
successfully, the L.E.D. will light up solid. Release from holding the “Volume-Up” button.
6. Test the steering wheel controls for proper operation. Refer to “(ASWC-1) Steering wheel
control settings” for customizing the buttons, if so desired.
1. Secure the climate control assembly to the dash in reverse order of disassembly using the
factory screws.
2. Secure the radio assembly to the dash using the factory screws.
3. Reassemble the dash in reverse order of disassembly to complete the installation.
FINAL ASSEMBLY
Programming the climate display:
7. Turn the parking lights on.
8. Turn the vehicles light dimmer all the way down, then all the way up.
9. Turn the lights off.
10. Test all functions of the installation for proper operation, before reassembling the dash.

12 386.257.1187
|
MetraOnline.com
ASWC-1 STEERING WHEEL CONTROL SETTINGS
L.E.D. feedback
The (18) Red L.E.D. flashes represent what brand radio the ASWC-1 believes it is connected to.
Each flash represents a different radio Manufacturer. For example, if you are installing a JVC
radio, the ASWC-1 will flash Red (5) times, and then stop. Following is a legend that dictates
which radio Manufacturer corresponds to which flash.
* Note: If the Axxess interface flashes Red (7) times, and you do not have an Alpine radio
connected to it, that means the Axxess interface does not detect a radio connected to it. Verify
that the 3.5mm jack is connected to the correct steering wheel jack/wire in the radio.
** Note: The AX-SWC-PARROT is required (sold separately). Also, the Parrot radio must be
updated to rev. 2.1.4 or higher through www.parrot.com.
† Note: If you have a Clarion radio and the steering wheel controls do not work, change the radio
type to the other Clarion radio type; same for Eclipse. The following section explains how to do
this.
‡ Note: If you have a Kenwood radio and the L.E.D. feedback comes back showing as a JVC radio,
change the radio type to Kenwood. The following section explains how to do this.
Attention: The Axxess Updater App can also be used to program the following (3)
sub-sections as well, pending that the Axxess interface has been programmed.
Continued on the next page
Flash Count Radio
1 Eclipse (type 1) †
2 Kenwood ‡
3 Clarion (type 1) †
4 Sony / Dual
5 JVC
6 Pioneer / Jensen
7 Alpine *
8 Visteon
9 Valor
Flash Count Radio
10 Clarion (type 2) †
11 Metra OE
12 Eclipse (type 2) †
13 LG
14 Parrot **
15 XITE
16 Philips
17 TBA
18 JBL
L.E.D. Feedback Legend

13
REV. 9/14/2022 INST95-7298B
Changing radio type
If the L.E.D. flashes do not match the radio you have connected, you must manually program the
Axxess interface to tell it what radio it is connected to.
1. After (3) seconds of turning the key on, press and hold the “Volume-Down” button on the
steering wheel until the L.E.D. in the Axxess interface goes solid.
2. Release the “Volume-Down” button; the L.E.D. will go out indicating the Axxess interface is
in “Changing Radio Type” mode.
3. Refer to the Radio Legend to know which radio number you would like to have programmed.
4. Press and hold the “Volume-Up” button until the L.E.D. goes solid, and then release. Repeat
this step for the desired radio number you have selected.
5. Once the desired radio number has been selected, press and hold the “Volume-Down”
button on the steering wheel until the L.E.D. goes solid. The L.E.D. will remain on for about
(3) seconds while it stores the new radio information.
6. Once the L.E.D. goes out, the “Changing Radio Type” mode will then end. You can now test
the steering control wheel controls.
Note: If at any time the user fails to press any button for a period longer than (10) seconds, this
process will abort.
Continued on the next page
Radio Number Radio
1 Eclipse (type 1)
2 Kenwood
3 Clarion (type 1)
4 Sony / Dual
5 JVC
6 Pioneer / Jensen
7 Alpine
8 Visteon
9 Valor
Radio Number Radio
10 Clarion (type 2)
11 Metra OE
12 Eclipse (type 2)
13 LG
14 Parrot
15 XITE
16 Philips
17 TBA
18 JBL
Radio Legend
ASWC-1 STEERING WHEEL CONTROL SETTINGS (CONT.)

14 386.257.1187
|
MetraOnline.com
Remapping the steering wheel control buttons
Once the ASWC-1 has been programmed, the button assignment for the steering wheel controls
may be reassigned if so desired. For example, if the “Seek-Up” button is preferred to be the
“Mute” button instead. Follow the steps below to remap the steering wheel control buttons.
1. Ensure the Axxess interface is visible so you can see the L.E.D. flashes to confirm
button recognition.
Tip: Turning the radio off is recommended.
2. Within the first twenty seconds of turning the ignition on, press and hold the “Volume-Up”
button on the steering wheel until the L.E.D. goes solid.
3. Release the “Volume-Up” button, the L.E.D. will then go out; The “Volume-Up” button has
now been programmed.
4. Follow the list in the Button Function Legend to reference the order in which the steering
wheel control buttons need to be programmed.
Note: If the next function on the list is not on the steering wheel, press the “Volume-Up”
button for (1) second until the L.E.D. comes on to skip that function, and then release the
“Volume-Up” button. This will tell the Axxess interface that this function is not available,
and it will move on to the next function.
5. To complete the remapping process, press and hold the “Volume-Up” button until the L.E.D.
in the Axxess interface goes out.
Continued on the next page
Button Function Legend
* Not applicable in this application
Note: Some radios may not have these commands. Please refer to the manual provided
with the radio, or contact the radio manufacturer for specific commands recognized by
that particular radio.
Function # Function
1 Volume-Up
2 Volume-Down
3 Seek-Up/Next
4 Seek-Down/Prev
5 Source/Mode
6 Mute
7 Preset-Up
8 Preset-Down
9 Power
Function # Function
10 Band
11 Play/Enter
12 PTT (Push to Talk)
13 On-Hook
14 Off-Hook
15 Fan-Up *
16 Fan-Down *
17 Temp-Up *
18 Temp-Down *
ASWC-1 STEERING WHEEL CONTROL SETTINGS (CONT.)

15
REV. 9/14/2022 INST95-7298B
Dual assignment instructions (long button press)
The ASWC-1 has the capability to assign (2) functions to a single button, except “Volume-Up” and
“Volume-Down”. Follow the steps below to program the button(s) to the desired setting.
Note: “Seek-Up” and “Seek-Down” come pre-programmed as “Preset-Up” and “Preset-Down”
for a long button press.
1. Turn the key to ignition but do not start the vehicle.
2. Press and hold the desired steering wheel control button for (10) seconds, or until the L.E.D.
flashes rapidly. At this point release the button; the L.E.D. will then go solid.
3. Press and release the “Volume-Up” button the number of times corresponding to the new
button number selected. Refer to the Dual Assignment Legend. The L.E.D. will flash rapidly
while the “Volume-Up” button is being pressed, and then go back to a solid L.E.D. once
released. Proceed to the next step once the “Volume-Up” button has been pressed the
desired number of times.
Caution: If more than (10) seconds elapses between pressing the “Volume-Up” button, this
procedure will abort, and the L.E.D. will go out.
4. Press the desired button to store it to memory. The L.E.D. will now go out indicating the new
information has been stored to memory.
Note: These steps must be repeated for each button desired to assign a dual assignment feature
to. To reset a button back to its default state, repeat Step 1, then press the “Volume-Down”
button. The L.E.D. will go out, and the dual assignment feature for that button will be erased.
Dual Assignment Legend
* Not applicable in this application
Function # Function
1 Not allowed
2 Not allowed
3 Seek-Up/Next
4 Seek-Down/Prev
5 Mode/Source
6 ATT/Mute
7 Preset-Up
8 Preset-Down
9 Power
Function # Function
10 Band
11 Play/Enter
12 PTT (Push to Talk)
13 On-Hook
14 Off-Hook
15 Fan-Up *
16 Fan-Down *
17 Temp-Up *
18 Temp-Down *
ASWC-1 STEERING WHEEL CONTROL SETTINGS (CONT.)

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 9/14/22 INST95-7298B
INSTALLATION INSTRUCTIONS
95-7298B
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.edu or call
386-672-5771 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
Having difficulties? We’re here to help.
Contact our Tech Support line at:
386-257-1187
Or via email at:
[e-mail]
Tech Support Hours (Eastern Standard Time)
Monday - Friday: 9:00 AM - 7:00 PM
Saturday: 10:00 AM - 7:00 PM
Sunday: 10:00 AM - 4:00 PM

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 9/14/22 INST95-7299B
INSTRUCCIONES DE INSTALACIÓN
95-7299B
¡Atención! Con la llave fuera del encendido,
desconecte el terminal negativo de la batería antes
de instalar este producto. Asegúrese de que todas
las conexiones de la instalación estén seguras antes
de encender y apagar el encendido para probar
este producto.
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
• A) Panel de moldura para radio • B) Soportes del radio • C) Pantalla de clima • D) Arnés de cableado (no se muestra) HERRAMIENTAS NECESARIAS
• Herramienta para remoción de paneles
• Destornillador Phillips • Herramienta en punta
Visite MetraOnline.com para más información acerca del producto y las aplicaciones específicas más
actualizadas del vehículo
INDICE
Desmontaje del tablero .....................................2-3
Preparación del kit .............................................4-6
Ensamble del kit ....................................................7
Instalación de la interfaz Axxess ..................... 8-15
Kia Sportage
(con climatizador automático y amplificador de fábrica) 2020-2021
CABLEADO Y CONEXIONES DE ANTENA
• Arnés de cableado: Incluye interfaz y arnés
• Adaptador de antena: Se incluye con el kit
• Interfaz de control al volante: Se incluye con el kit
• Reductor de 12 a 6 v para la cámara: incluido con el kit
• Provisión de radio ISO DDIN
• Los componentes electrónicos
integrados con gráficos grabados con
láser conservan las características de la
pantalla de control de clima de fábrica.
• Conserva los controles del volante de
fábrica y la cámara de respaldo
• Pintado negro mate resistente a los
arañazos.
A CB

386.257.1187
|
MetraOnline.com
2
DESMONTAJE DEL TABLERO
1. Desenganche la parte superior de la
consola central y deslícela ligeramente
hacia atrás. (Figura A)
2. Desenganche el panel en el extremo del
tablero del lado del copiloto y quítelo.
Después, quite (1) tornillo Phillips
expuesto. (Figura B)
3. Desenganche el panel que está encima
de la guantera. Desconecte la luz de la
bolsa de aire del copiloto y después, el
panel. (Figura C)
4. Quite (2) tornillos Phillips que fijan
la pantalla del radio y el panel de
rejillas de aire acondicionado. Después,
desenganche el panel y quítelo.
(Figura D)
Continúa en la siguiente página
(Figura A) (Figura C)
(Figura B) (Figura D)

REV. 9/14/2022 INST95-7299B 3
DESMONTAJE DEL TABLERO (CONT.)
(Figura E) (Figura G)
(Figura F) (Figura H)
5. Quite los (4) tornillos Phillips que sujetan
el radio. Deslice el radio hacia afuera.
Después, desconecte el radio y quítelo.
(Figura E)
6. Quite (3) tornillos Phillips que fijan el
panel de control de clima. (Figura F)
7. Quite (1) tornillo Phillips que fija la
bolsa de aire de rodillas del lado inferior
derecho del lado del conductor. Quite
a presión al bolsa de aire lo suficiente
para llegar al (1) tornillo Phillips que fija
el panel de control de clima. Después,
quite el tornillo. (Figura G)
8. Desenganche el panel de radio/clima
del tablero, desconecte los conectores y
después, quite el panel. (Figura H)
Continúe con la preparación del kit

386.257.1187
|
MetraOnline.com
4
PREPARACIÓN DEL KIT
Instalación del panel de moldura
de radio
Al panel de moldura de radio de fábrica:
2. Meta a presión el panel de moldura de
radio 95-7299B en el panel de fábrica.
(Figura A)
Continúa en la siguiente página
(Figura A)
