InFocus SP-CEIL-UNIV Guide

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 1 of 11
Read instruction sheet before you start installation and assembly.
Maximum Load Capacity: 25 lb (11 kg)
Installation andAssembly-All-in-one ProjectorAdapter Plate for
InFocus®Projectors Model: SP-CEIL-UNIV
R
IMPORTANT! Turn to the appropriate page for your ceiling installation.
This product is intended for use with UL
Listed products and must be installed
by a qualified professional installer.
Applications:
FlushMount................................................................................................................................................. page 5
ExtensionColumn........................................................................................................................................ page 6
Lightweight Suspended Ceiling Plate ....................................................................................................... page 7
Installations:
To Wood Joist Finished Ceilings,
Exposed Wood Joists, or Wood Beam Ceilings........................................................................................ page 3
To Concrete Ceilings.................................................................................................................................... page 4
• Makesurethatthesupportingsurfacewillsafelysupportthecombinedloadoftheequipmentandallattachedhard-
wareandcomponents.
WARNING

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 2 of 11
Parts List
Before you start check the parts list to insure all of the parts shown are included.
A
Q
Description Qty. Part Number
Aprojectormountassembly 1 055-0420
B4 mm security allen wrench 1 560-9646
C#10-32 x 3/8" serrated socket pin screw 2 520-1151
D#10-32 x 1/4" socket pin screw 1 520-1196
E1/4"flatwasher 2 540-9440
F#14 x 2.5 phillips hex head wood screw 2 5S1-015-C03
Gconcreteanchor 2 590-0097
HM4 x 16 mm serrated socket pin screw 3 510-1087
IM4 x 12 mm serrated socket pin screw 1 510-1079
J.198 x .313 x .375 retaining spacer 3 590-2020
K.198 x .313 x .187 retaining spacer 1 590-1030
L.25" ID x .56" OD x .26" spacer 6 590-1050
MM5 x 10 mm socket pin screw 1 520-1164
N#10-32 x 3/16" slotted set screw 1 520-1187
OM6 x 12 mm serrated socket pin screw 4 510-1050
PM4 x 6 mm serrated socket pin screw 2 510-1059
Qceilingplate 1 580-1042
Radapterplate 1 055-1539
Sextensionbracket 2 055-1540
Note: Actual parts may appear slightly different than illustrated. FASTENERS
R
OP
S
BC
F
L
J K
MN
DE
GI
H

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 3 of 11
F
F
Q
WOOD
JOIST
CEILING
Drill two 5/32" (4 mm) dia. holes to a minimum depth
of 2.5" (64 mm). Attach ceiling plate (Q) with two
#14 x 2.5" (6 mm x 65 mm) wood screws (F) as
shown using 3/8" (10 mm) socket wrench. Tighten
wood screws (F) so ceiling plate (Q) is firmly
attached.
Skip to step 7.
Installation To Wood Joist Finished Ceilings, Exposed
Wood Joists, or Wood Beam Ceilings
For optional Cord Management,
install two spacers (L) between ceiling
plate(Q)andceiling.
WOOD
JOIST
CEILING
F
F
Q
LL
• Tighten wood screws so that ceiling plate is firmly
attached,but do notovertighten.Overtightening can
damagethescrews, greatly reducing theirholding
power.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the
center of the joist. The use of an "edge to edge" stud
finderis highly recommended.
WARNING
Disengageconnectionblock from projector mountassembly(A) by unscrewing captivescrewand sliding out
connection block as shown.
CONNECTIONBLOCK
CAPTIVESCREW
A

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 4 of 11
Drill two 1/4" (6 mm) dia. holes to a minimum depth of
2.5" (64 mm). Attach ceiling plate (Q) using two
concrete anchors (G) and #14 x 2.5" wood screws (F)
as shown in Illustration A and 1, 2, and 3. Tighten all
fasteners.
Skip to step 7.
F
Illustration A
Installation to Concrete Ceilings

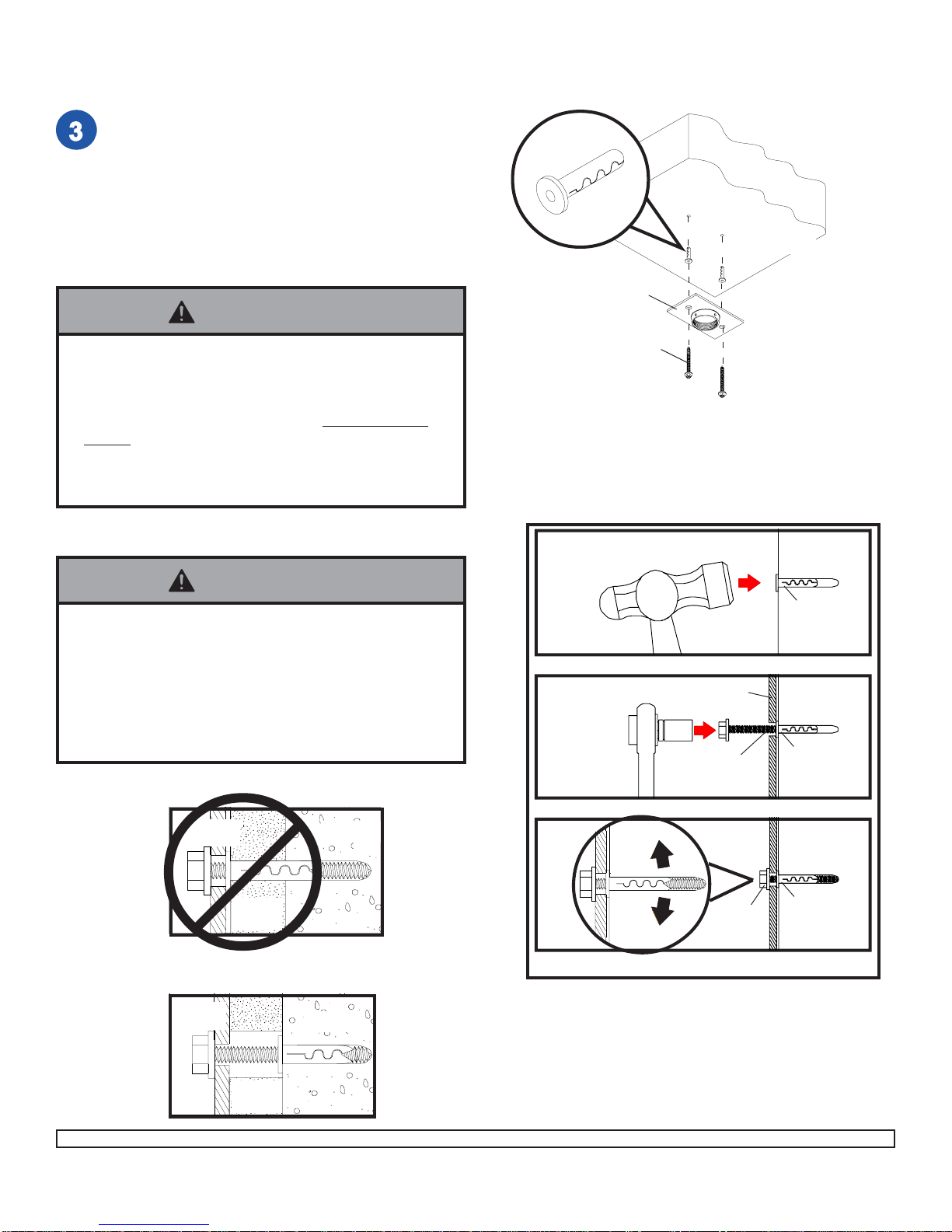

Alligator® concrete anchors are recommended.
Q
1
3
Drill hole and insert anchor.
concrete
ceiling
F
F
2Q
CUTAWAYVIEW
CONCRETECEILING
• Concrete anchors are notintendedforattachmentto
concretewallcovered with a layer ofplaster,drywall,
orotherfinishing material. If mounting to concretewall
coveredwith plaster/drywall isunavoidable, plaster/
drywall (up to 5/8" thick) must be counterbored as
shown below. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer.
WARNING
G
• Make sure that the supporting surface will safely
supportthecombinedload of the equipment andall
attachedhardware andcomponents.
• Tightenconcreteanchorbolt firmly,but donotover-
tighten.Overtighteningcan damage thebolt,greatly
reducingits holdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
G
G
G
Place ceiling plate over anchor and secure with screw.
After repeating step one tighten all fasteners.
INCORRECT
concrete
metal
bracket
plaster/
drywall
CORRECT
concrete
metal
bracket
plaster/
drywall

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 5 of 11
Flush Mount Installation
Drill two 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach projector mount assembly (A) with two
#14 x 2.5" (6 mm x 65 mm) wood screws (F) and two flat washers (E) as shown in figure 1 or figure 2 depending
on joist orientation. Tighten wood screws (F) using 3/8" (10 mm) socket wrench until projector mount assembly (A)
is firmly attached.
Skip to step 7.
F
F
A
WOODJOIST
FRONTOF
MOUNT
E
E
FRONTOF
MOUNT
WOODJOIST
A
figure 1 figure 2
• Tightenwoodscrewsso that projector mount assem-
blyisfirmlyattached, but do not overtighten.Overtight-
eningcandamagethe screws, greatly reducing their
holdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the
center of the joist. The use of an "edge to edge" stud
finderis highly recommended.
WARNING

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 6 of 11
Screwextensioncolumn(soldseparately)to
ceiling plate (Q). Align the notch with one of the
four holes in the ceiling plate (Q) and secure
extension column with a M5 x 10 mm socket pin
screw (M) using security allen wrench (B). See
detail 3.
Screwprojectormountassembly (A) onto the
extension column as shown in detail 4.
Note: For3/4"extensioncolumns,reducer
ACC 913 will be required as shown in detail 5.
Tightenswivelstopscrewagainstextension
columnor reducer usingsecurityallen wrench(B).
Note: Swivel stop screw is used to jam against
threadsofextensioncolumnorreducertoprevent
anyexcessmovement ofprojectormount
assembly(A).Donotovertightenscrew;
overtighteningscrewwilldamagethreadsmaking
it difficult to separate products.
Note: Slotted set screws (N) are used to jam
against the threads of each connecting joint to
preventanyexcessmovement.Donotovertighten
screws;overtighteningscrewswilldamage
threads making it difficult to separate the
products.
Skip to step 7.
Installation to Extension Column (SP-EXTARM-01, SP-
EXTARM-02, SP-EXTARM-03, SP-EXTARM-04)
A
SWIVELSTOPSCREW
BACKOF
MOUNT
3/4"EXTENSIONCOLUMN
ACC 913
(NOTULLISTED)
DETAIL 3
EXTENSION
COLUMN
M
Q
N
Q
A
SWIVELSTOPSCREW BACK OF
MOUNT
DETAIL 4
DETAIL 5
EXTENSIONCOLUMN
(SOLDSEPARATELY)
(ULLISTED)

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 7 of 11
Installation to
Lightweight Suspended
Ceiling Plate
(EXT-LTMT-PLTB)
DETAIL 7
EXTENSION
COLUMN
(ULLISTED)
Refertoinstructionsheetforlightweight
suspendedceilingplate(sold
separately)forattachmentofceiling
plate to ceiling.
Screwextensioncolumn (sold
separately) to retaining collar in ceiling
tray. Align the notch with one of the
fourholes inretaining collarand secure
extension column with a M5 x 10 mm
socket pin screw (M) using security
allen wrench (B). See detail 6.
Screwprojectormount assembly(A)
onto the extension column as shown in
detail 7.
Note: For 3/4" extension columns,
reducerACC913willberequiredas
shown in detail 8.
Tightenswivelstopscrewagainst
extensioncolumnorreducerusing
securityallenwrench(B).
Note: Swivel stop screw is used to jam
againstthreadsof extension columnor
reducertopreventanyexcess
movementofprojectormountassembly
(A).Donotovertightenscrew;
overtighteningscrewwilldamage
threads making it difficult to separate
products.
Note: Slotted set screws (N) are used
to jam against the threads of each
connecting joint to prevent any excess
movement.Donotovertightenscrews;
overtighteningscrewswilldamage
threads making it difficult to separate
theproducts.
Skip to step 7.
M
DETAIL 6
RETAININGCOLLAR
LIGHTWEIGHT
SUSPENDEDCEILING
PLATE (SOLD
SEPARATELY)
N
SWIVELSTOPSCREW
A
A
SWIVELSTOPSCREW
BACKOF
MOUNT
3/4"EXTENSION
COLUMN
ACC 913
(NOTUL
LISTED)
DETAIL 8
PLTB

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 8 of 11

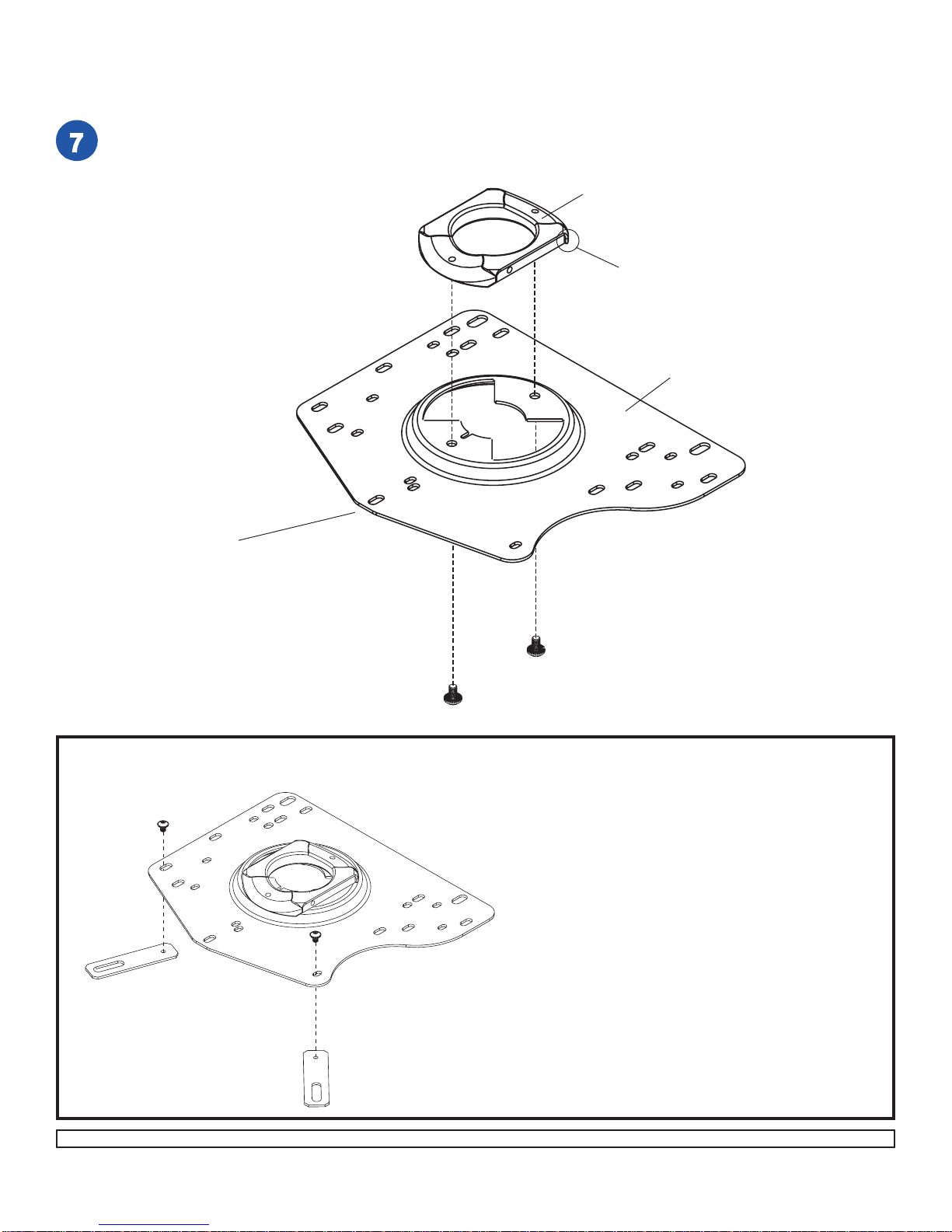

Note:The projector adapter plateandprojector you are installingmaydifferin appearance from thesampleillustrated
below.
Align shoulder on connection block opposite of front of projector. Attach adapter plate (R) to connection block from
projector mount assembly (A) using two #10-32 x 3/8" serrated socket pin screws (C) as shown.
CONNECTION BLOCK
ADAPTER PLATE
C
SHOULDER
P
S
R
RAttach extension brackets (S) to adapter plate (R)
using two M4 x 6 mm serrated socket pin screws (P).
For specific models, see step 8H.
FRONTOF
PROJECTOR

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 9 of 11

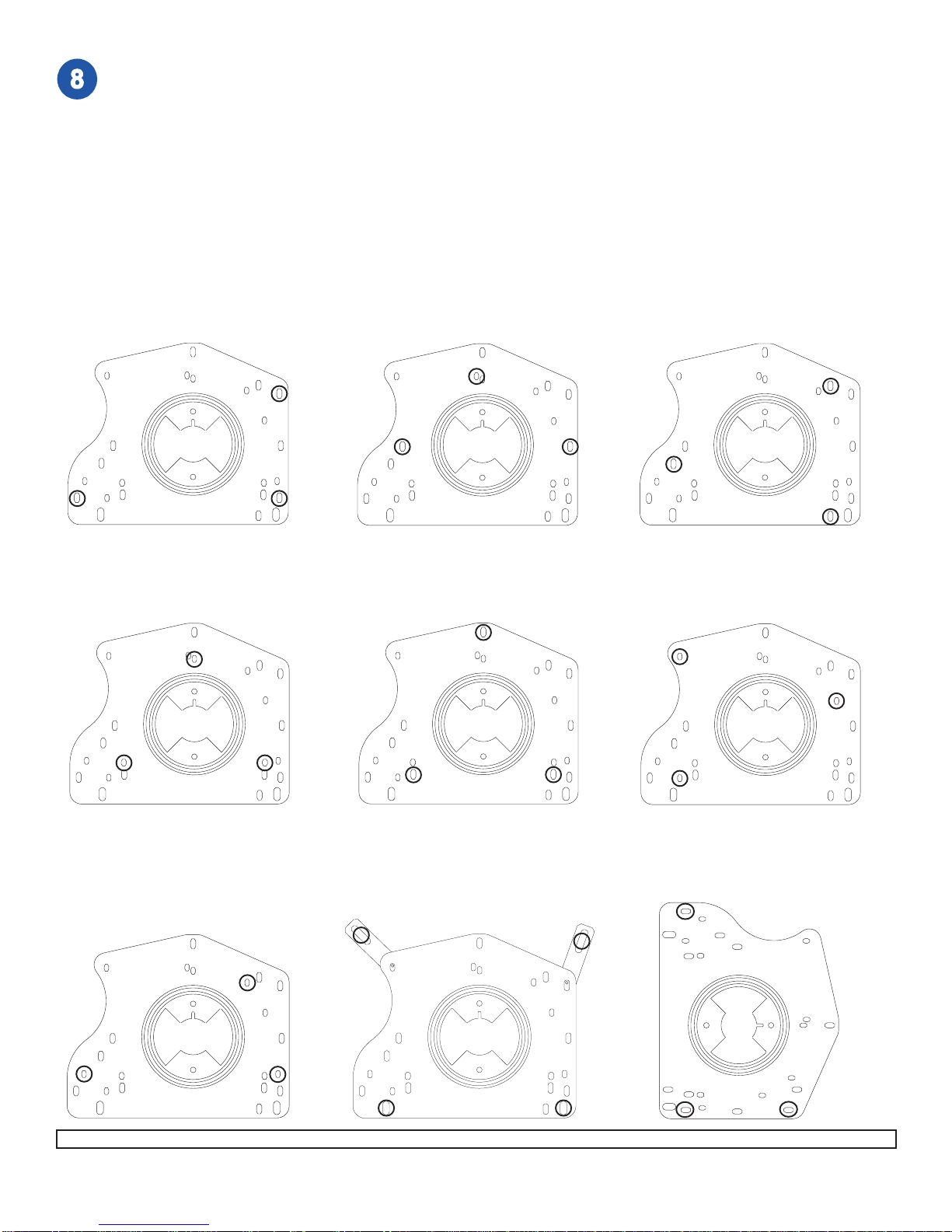

Flip projector upside down. Find your projector from the models listed below. Using the holes indicated on the corre-
sponding hole pattern diagram, attach adapter plate (R) to projector using three M4 x 16 mm serrated socket pin
screws (H) and three .198 x .313 x .375 retaining spacers (J).
Notes:
Retainingspacersgo betweenadapterplate and projector.
* Frontof projector.
** Projectors using hole pattern Guse one M4 x 12 mm screw (I) and one .198 x .313 x .187 retaining spacer (K)
whereindicated.
*** Using holes indicated in hole pattern H, attach adapter plate (R) to projector using four M6 x 12 mm serrated
socket pin screws (O) and four spacers (L)
B. C40,C50, DP2000S,DP2000X,
LP240,LP250
D. C100,C105, DP6150,DP6155,
LP690 E. C109,C110, DP8000,LP790, SP4800,SP4805, X1,X1a, X2,X3 F. C170, LP600
C. LP340,LP350,LP500, LP530,
SP110
G. C160,C180, LP540, LP640,
SP5000 H. C440,C450,C460,DP8400X,
DP8500X,LP840, LP850,LP860
***
*
*
*
****
**
RRR
RRR
RR
*
SS
*** ***
***
R
A. C200,DP6500X, LP650,SP5700,
SP7200,SP7205,SP7210
I. C410,C420, LP815, LP820,
DP8200X
*

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 10 of 11
Slideconnectionblock with projector into projector mount
assembly (A) as shown. Tighten captive screw to secure
projectortoprojectormount assembly (A).
IMPORTANT: For security installations, insert
one #10-32 x 1/4" socket pin screw (D) through
projectormountassembly(A)and intoconnection
block as shown.
ACONNECTIONBLOCK
D
CONNECTIONBLOCK
A
CAPTIVESCREW
FRONTOFMOUNT
• Always use an assistant or mechanical lifting equipment to safely lift and position the projector.
WARNING
J. IN72,IN74,IN76 K. IN24,IN26
*
R
*
R

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com 11 of 11
To adjust yaw (swivel) for wood stud, concrete ceiling, and threaded rod mounting applications:Loosen
wood screws (F), or locknuts for threaded rods, until projector mount can be rotated. Rotate mount to desired
position and retighten screws or locknuts.
To adjust yaw (swivel) for extension column applications: Loosen screw on projector mount assembly (A)
indicated below until projector mount can be rotated. Rotate mount to desired position and retighten screw.
To adjust pitch (forward and backward tilt): Loosen two screws on projector mount assembly (A) indicated
below. Tilt mount to desired position and retighten screws.
To adjust roll (side to side tilt): Loosen two screws on projector mount assembly (A) indicated below. Tilt mount
todesiredpositionandretighten screws.
Projector AlignmentProjector Alignment
Projector AlignmentProjector Alignment
Projector Alignment
SCREW FOR SWIVEL STOP
A
SCREWS FOR ROLL
ADJUSTMENT
SCREWS FOR PITCH
ADJUSTMENT
BACKOFMOUNT
