InGateway974 Quick Start Manual
This document contains the introduction, installation, and basic configuration of InGateway974 (IG974) such as
networking, software version update, etc., so that users can easily master the basic configuration of the IG974
and the use of common functions.
1. Introduction of IG974
1.1 Overview
1.2 Accessories List
1.3 Panel & Dimensions
•Panel
•Dimensions
1.4 Panel Indicators
•LED Indicators
•Signal Status Indicators
2. Installation
2.1 Install Notice
2.2 Rail Mounted and Dismounted
•Rail mounted equipment
•Rail dismounted equipment
2.3 Wall Mounted and Dismounted
•Wall mounted
•Wall dismounted
2.4 SIM Card Installation
2.5 Antenna Installation
2.6 Power Supply Installation
2.7 Protective Ground Installation
2.8 Network Cable Connection
2.9 Terminal Connection
3. IG974 Network Parameters Configuration
3.1 Access IG974
3.2 Connect to the Internet
4. Software Version Upgrade
4.1 IG974 firmware version upgrade
4.2 IG974 Python SDK version upgrade
4.3 IG974 Docker SDK version upgrade
5. Python Edge Computing
5.1 Install and operate Python App
5.2 Python App running configuration upgrade

5.3 Python App version upgrade
5.4 Enable Developer mode
6. Remote Monitoring Platform
7. Appendix
7.1 Restore Factory Settings
1. Introduction of IG974
1.1 Overview
The InGateway974 (IG974) series is the new generation industrial-grade 5G edge computing gateway
launched by InHand for the industrial IoT. The product provides high-speed, uninterrupted Internet
access base on 5G network and multiple broadband services. The IG974 supports a variety of
mainstream industrial protocols including Modbus TCP/RTU and can be connected to mainstream IIoT
cloud platforms including AWS and Azure, ensuring on-site devices can easily log into the cloud. With
strong edge computing capabilities, the IG974 provides an open edge computing platform to support
data optimization, real-time response, agile connection, and intelligent analysis at the edge nodes of the
IoT. Therefore, the IG974 significantly reduces the data traffic on-site and at the center, minimizes
operating expenses for users, and improves cloud performance.

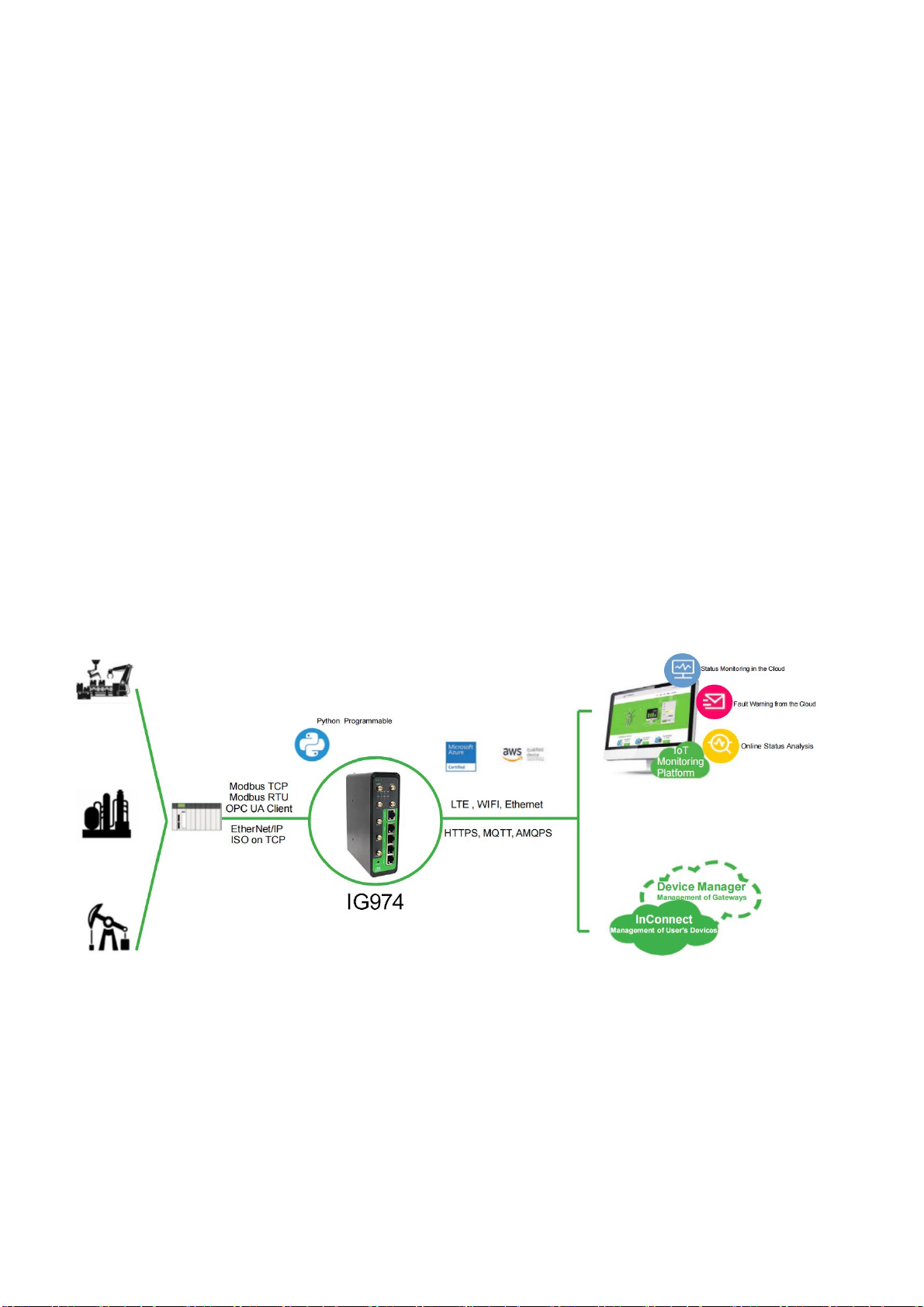

The Common application scenarios of IG974：
1.2 Accessories List
Each IG974 product shipped from the factory includes common accessories for customer sites (e.g.
standard accessories list), after you receive our products, please check them carefully, and if you find
any missing or damaged, please contact INHANTONE sales staff in time.
In addition, we can provide customers with optional accessories according to different site characteristics,
please refer to the optional accessories list for details.
◼Standard Accessories

Item
Quality
Description
Gateway
1
InGateway974
Resources
1
QR code quick installation manual, user manual
Rail-mounted Installation
Accessory
1
Fixed gateway metal clips
Terminal
2
2-pin power terminal and 6-pin serial port
terminal
Network Cable
1
1.5m
Antenna
4
5G Antenna
Product Warranty Card
1
The warranty period is 1 year
Certificate of Conformity
1
Edge Computing Gateway Certificate of
Conformity
◼Optional Accessories
Item
Quality
Description
AC Power Cord
1
AC Power Cord-China Standard
Power adapter
1
12VDC Power adapter
Antenna
1
Wi-Fi Antenna
1
GNSS Antenna
Serial Cable
4
Gateway serial debug cable

1.3 Panel & Dimensions
1.3.1 Panel Introduction
IG974 panel introduction is shown below (IG974 series products have a variety of panel appearance
form, but the installation method is the same, the specific panel condition please subject to the physical).
1.3.2 Dimensions
The dimensions of IG974:

1.4 Panel Indicators
1.4.1 LED Indicators

IG974-Quick-Start-Manual-EN.md
2023/2/7
6 / 22
PWR
(Power Indicator-
Red)
SYS
(Status Indicator-
Green)
WARN
(Warning
Indicator-Yellow)
ERR
(Error Indicator-
Red)
NET
(Network
Indicator-Green)
Description
Light on
Light off
Light off
Light off
Light off
Start-up
Light on
Slow Blink
Light off
Light off
Light off
Start-up
successful
Light on
Slow Blink
Light off
Light off
Quick Blink
Dialing
Light on
Slow Blink
Light off
Light off
Light on
Dialing
successfully
Light on
Slow Blink
Slow Blink
Slow Blink
Light off
Reset
successfully
Light on
Slow Blink
Quick Blink
Quick Blink
Light off
Upgrading

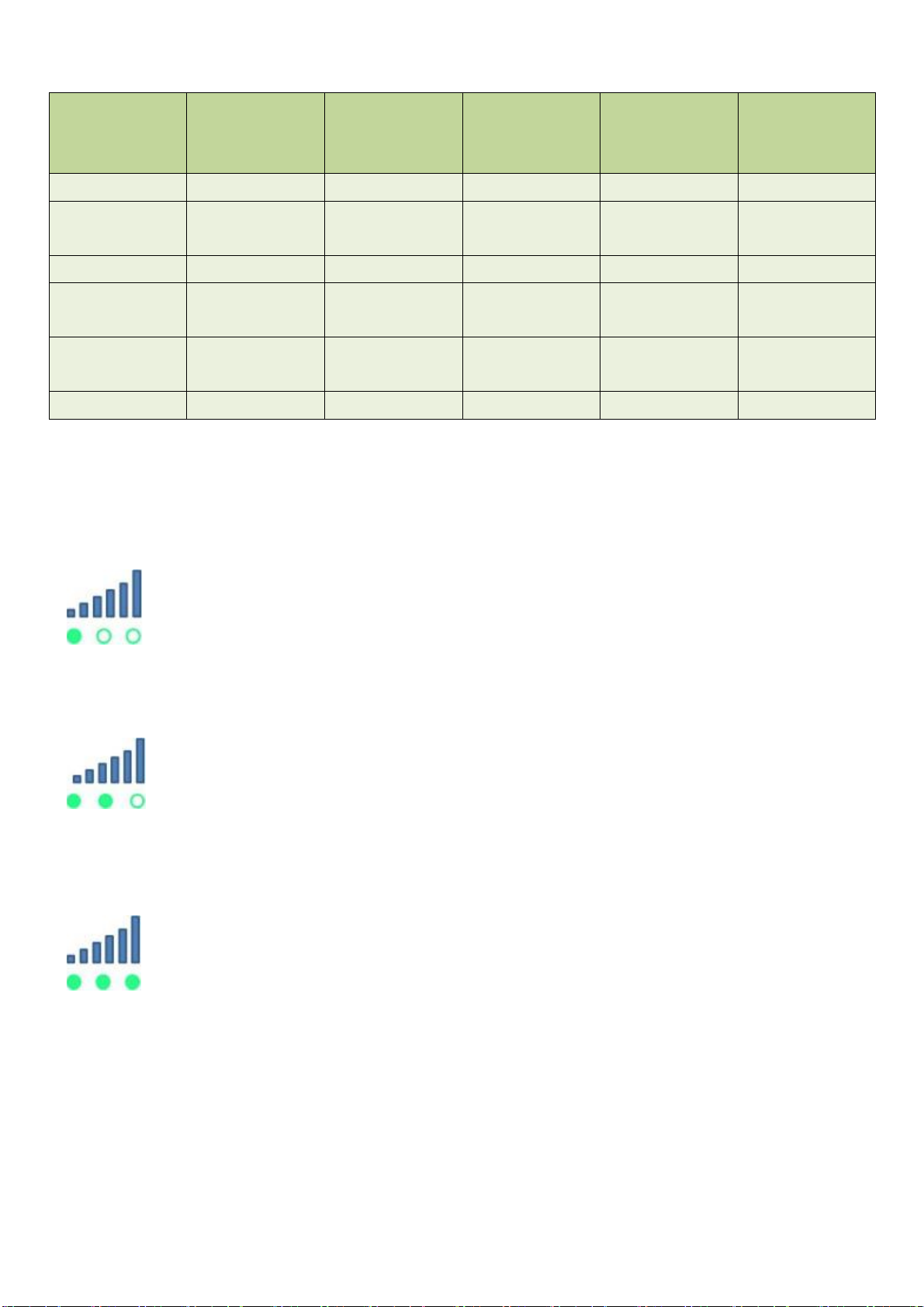

1.4.2 Signal Status Indicators
Signal: 1-9 (The signal condition is problematic, please check whether the antenna is well installed and
whether the signal condition in the area is good)
Signal: 10-19 (The signal status is normal and the device can maintain normal operation)
Signal: 20-31（The signal is very good）
2. Installation
2.1 Install Notice
⚫Power requirements: 24VDC (12 to 48VDC), please note the power supply voltage level; rated current
is 0.6A (1.2 to 0.3A).
⚫Environmental requirements: working temperature -25℃～75℃, storage temperature -40℃～85℃,
relative humidity 5%～95% (no condensation). The surface of the equipment may be high temperature,

IG974-Quick-Start-Manual-EN.md
2023/2/7
7 / 22
the installation needs to consider the surrounding environment and should be installed in a restricted
area.
⚫Avoid direct sunlight and stay away from heat generating sources or areas with strong electromagnetic
interference.
⚫Gateway products need to be mounted on industrial rails.
⚫Check the availability of cables and connectors required for installation.
2.2 Rail Mounted and Dismounted
2.2.1 Rail mounted equipment
The specific steps for installing the IG902 are as follows.
1. Select the installation position of the device, ensuring that there is sufficient space.
2. Snap the upper part of the DIN rail holder onto the DIN rail and rotate the device with slight force
at the lower end of the device upwards as shown by arrow 2 to snap the DIN rail holder onto the
DIN rail and confirm that the device is reliably mounted onto the DIN rail as shown in the right
figure below.
2.2.2 Rail dismounted equipment
To diamount the IG902, do the following:
1. Press down the device as shown by arrow 1 in the figure below, so that the lower end of the device
is free from the DIN rail.
2. Turn the device in the direction of arrow 2 and move the lower end of the device outward at the
same time, then lift the device upward after the lower end is free from the DIN rail to remove the
device from the DIN rail.

IG974-Quick-Start-Manual-EN.md
2023/2/7
8 / 22
2.3 Wall Mounted and Dismounted
2.3.1 Wall mounted
The specific steps for installing the IG902 are as follows.
1. Select the installation location of the device and make sure there is enough space.
2. Mount the wall mounting plate on the back of the device with a screwdriver, as shown in the figure
below：
3. Remove the screws (packaged with the wall mounting plate), fix the screws in the mounting position
with a screwdriver, and then pull down the device to make the device in a stable state, as shown in the
figure below.
4.
2.3.2 Wall dismounted
To dismount the IG902, hold the device with one hand and remove the screw at the top end of the
device with the other hand to remove the device from the installation position.
2.4 SIM Card installation

IG974-Quick-Start-Manual-EN.md
2023/2/7
9 / 22
IG902 supports dual SIM cards, use a screwdriver to twist off the fixing screw on the card holder cover
and then install the SIM card, as shown below.
2.5 Antenna Installation
Gently turn the movable part of the metal SMAJ interface by hand until it can't be turned (at this time you
can't see the external thread of the antenna connection), don't hold the black rubber sleeve and screw
the antenna. As shown in the picture below.
Description:
IG902 supports dual antennas, which are ANT antenna and AUX antenna. The ANT antenna is the
antenna for sending and receiving data, while the AUX antenna can only enhance the signal strength of
the antenna, and cannot send and receive data independently, so it cannot be used alone.

IG974-Quick-Start-Manual-EN.md
2023/2/7
10 /
22
In general, only the ANT antenna can be used, when the signal is not good enough to enhance the signal,
only when using the ANT antenna at the same time use the AUX antenna.
2.6 Power Supply Installation
The specific steps for installing the IG902 power supply are as follows.
1. remove the terminal from the gateway.
2. loosen the locking screw on the terminal.
3. Insert the power cable into the terminal and lock the screw tightly.
2.7 Protective Ground Installation
The specific steps for installing the IG902 protective earth ground are as follows.
1. unscrew the grounding nut.
2. set the grounding ring of the cabinet ground into the grounding stud.
3. tighten the grounding nut.
Note: To improve the overall anti-interference ability of the gateway, the gateway must be grounded when
in use, according to the use of the environment will be grounded to the gateway grounding studs.
2.8 Network Cable Connection
Connect the gateway directly to the PC using a network cable as shown in the following figure.

IG974-Quick-Start-Manual-EN.md
2023/2/7
11 /
22

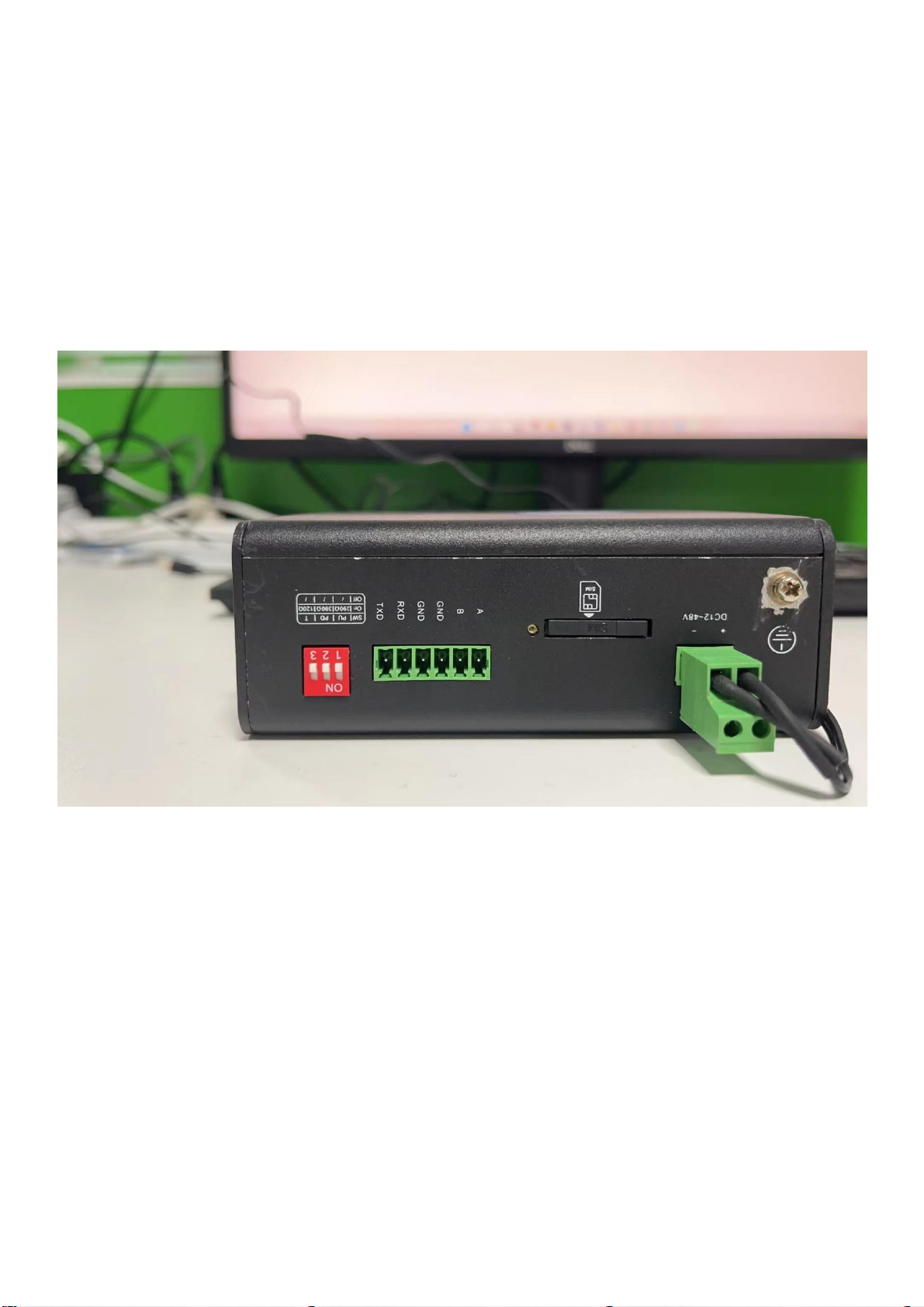

2.9 Terminal Connection
The terminal provides RS232/RS485 two interface modes, you need to connect the corresponding
cable to the terminal before use. When installing, remove the terminal from the device, loosen the
locking screw on the terminal, insert the corresponding cable into the terminal and then lock the screw
tightly. The individual line sequencing is shown in the following figure.
Note: This terminal description only applies to IG902 devices with industrial interfaces.
3. IG974 Network Parameters Configuration
3.1 Access IG974

IG974-Quick-Start-Manual-EN.md
2023/2/7
12 /
22
⚫Step 1: The default of IG974 WAN port is DHCP; the default IP address of LANX port is 192.168.2.1.
This document takes accessing IG974 through LANX port as an example and sets the IP address
of PC and LANX port in the same network segment.

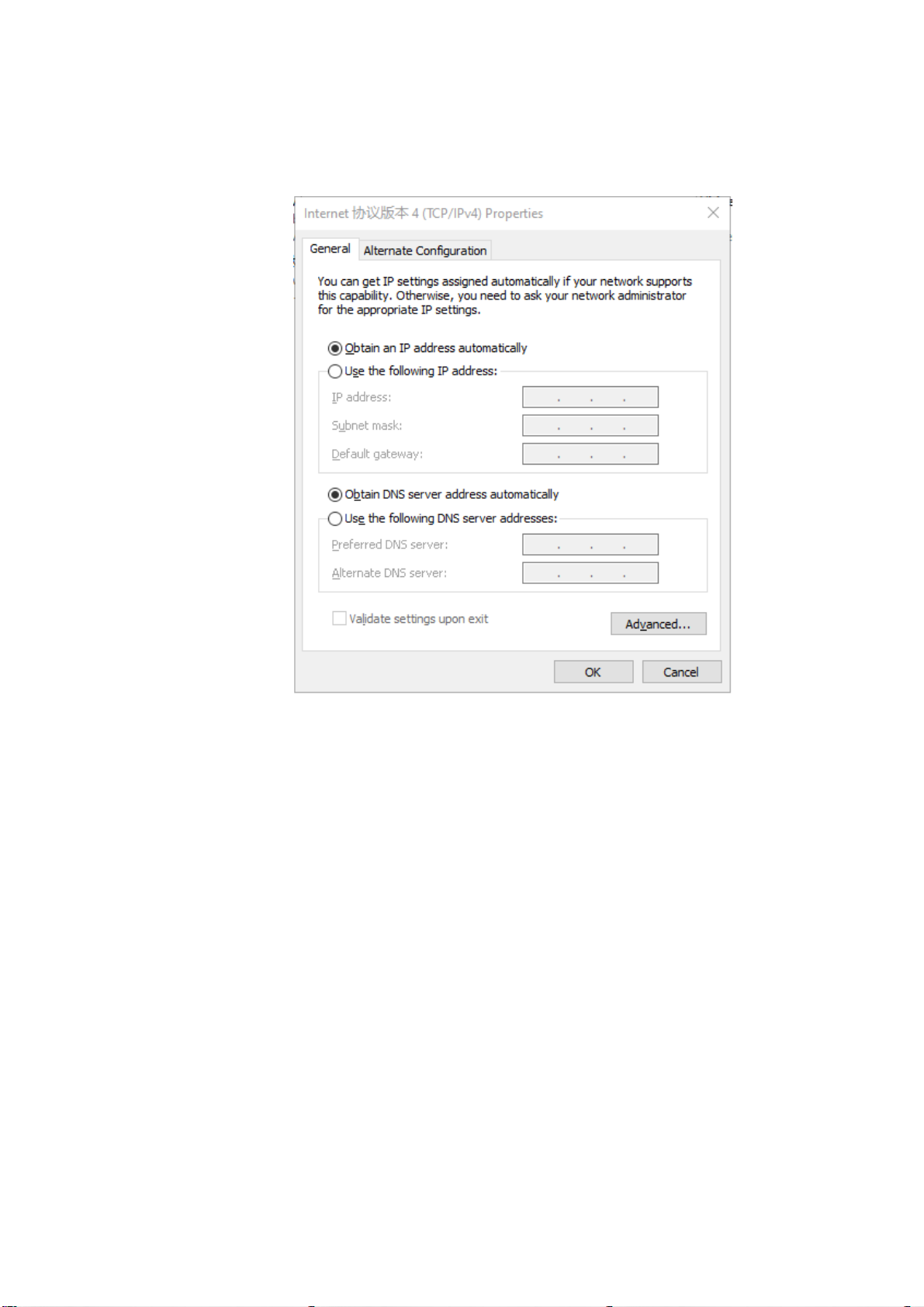

◼Method 1: Obtain IP address automatically (recommended)
◼Method 2: Use a fixed IP address
Select "Use the following IP address", enter the IP address (default is
192.168.2.2~192.168.2.254); subnet mask (default 255.255.255.0); default gateway (default
192.168.2.1) and DNS server address, click OK.

IG974-Quick-Start-Manual-EN.md
2023/2/7
13 /
22
⚫Step 2: Open a browser and access the IG974's LAN port IP address and enter the login username
and password. The default user name/password shipped with the device is adm/123456.

IG974-Quick-Start-Manual-EN.md
2023/2/7
14 /
22
⚫Step 3: After successful login, you can see the webpage as shown below.
⚫Step 4: To change the user name and password of WEB management interface, please visit
"System>>User Management" page to set a new user name and password.

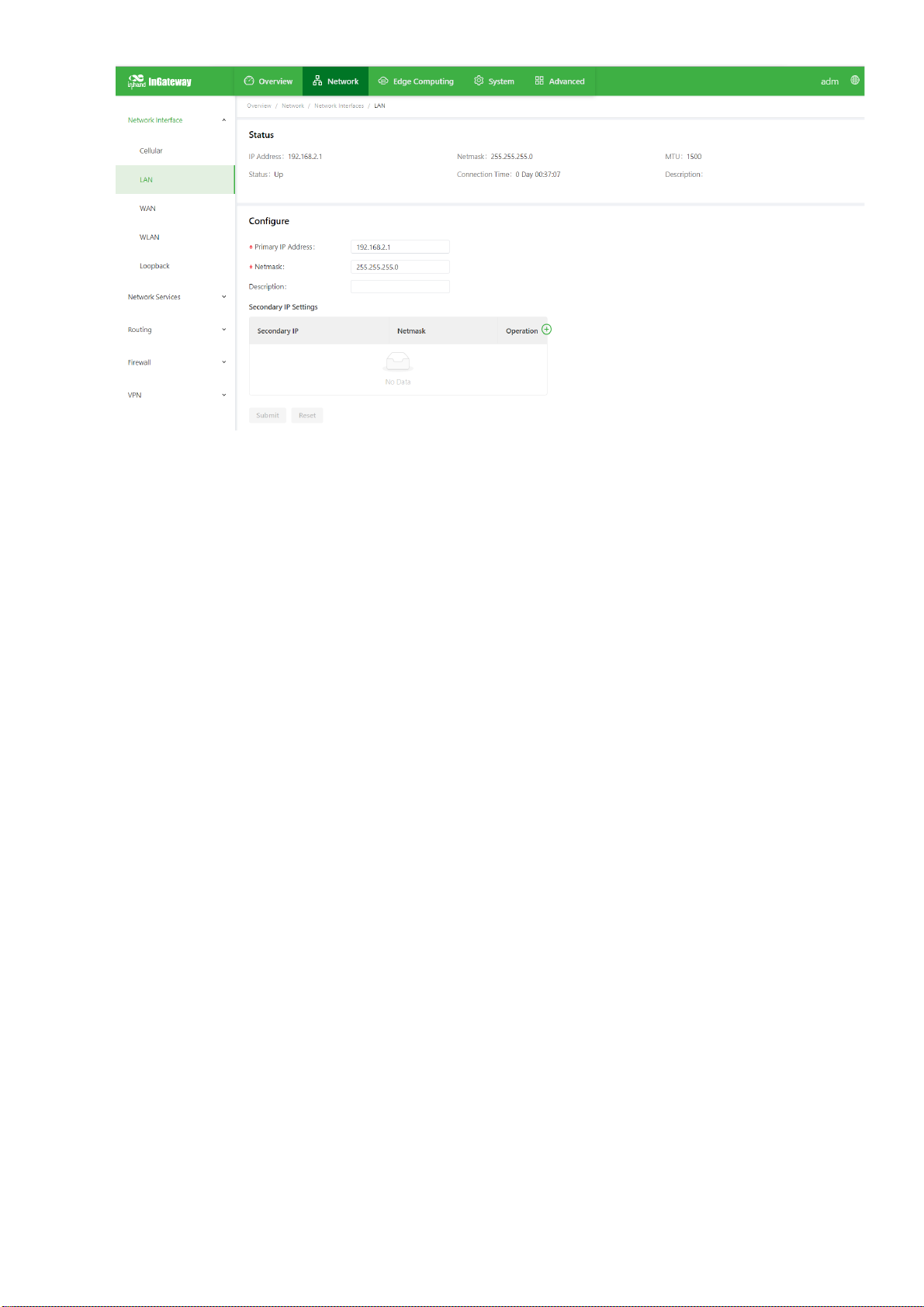

⚫Step 5: To modify the IP address of the LANX port, please visit the "Network>>Network
Interface>>LAN" page.

IG974-Quick-Start-Manual-EN.md
2023/2/7
15 /
22
3.2 Connect to the Internet

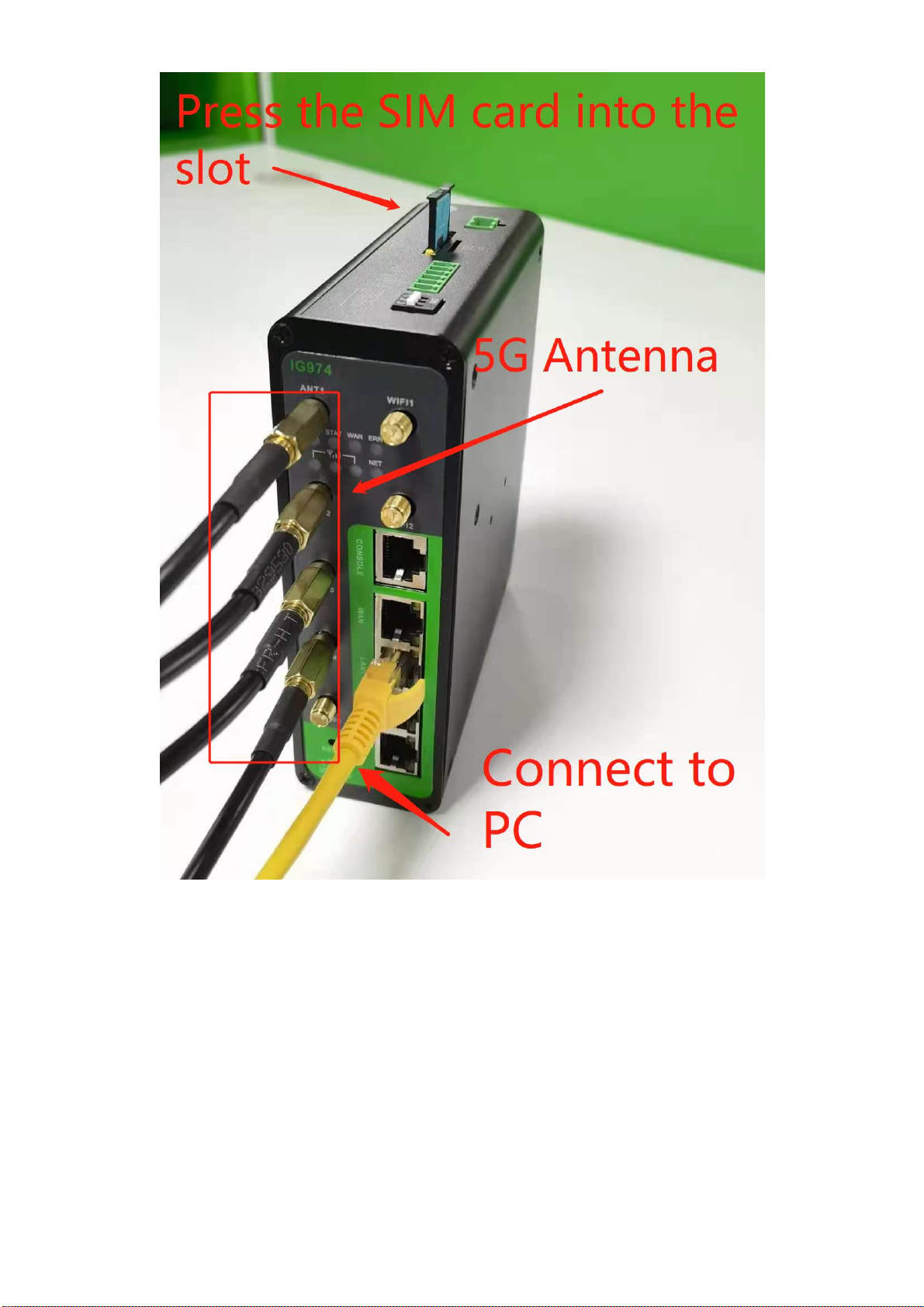

⚫Method 1：Internet connection using SIM card dial-up (to be changed)
◼Step 2：Insert the SIM card into the card slot (Note: When inserting or removing the SIM
card operation, the power must be unplugged to avoid data loss or device damage). Insert
the SIM card and connect the 5G antenna to the ANTX port and power on the IG974.

IG974-Quick-Start-Manual-EN.md
2023/2/7
16 /
22
◼Step 2: Go to "Network>>Network Interface>>Cellular" page of IG974, check
"Enable Cellular Network" and click Submit.

IG974-Quick-Start-Manual-EN.md
2023/2/7
17 /
22
When the network connection status shows "Connected" and the corresponding IP address is
assigned, the IG974 is connected to the network via SIM card.
⚫Method 2: Connect to the Internet via Ethernet
◼Step 1: Connect the WAN and LAN ports of the IG974 using an Ethernet cable, as follows.

IG974-Quick-Start-Manual-EN.md
2023/2/7
18 /
22

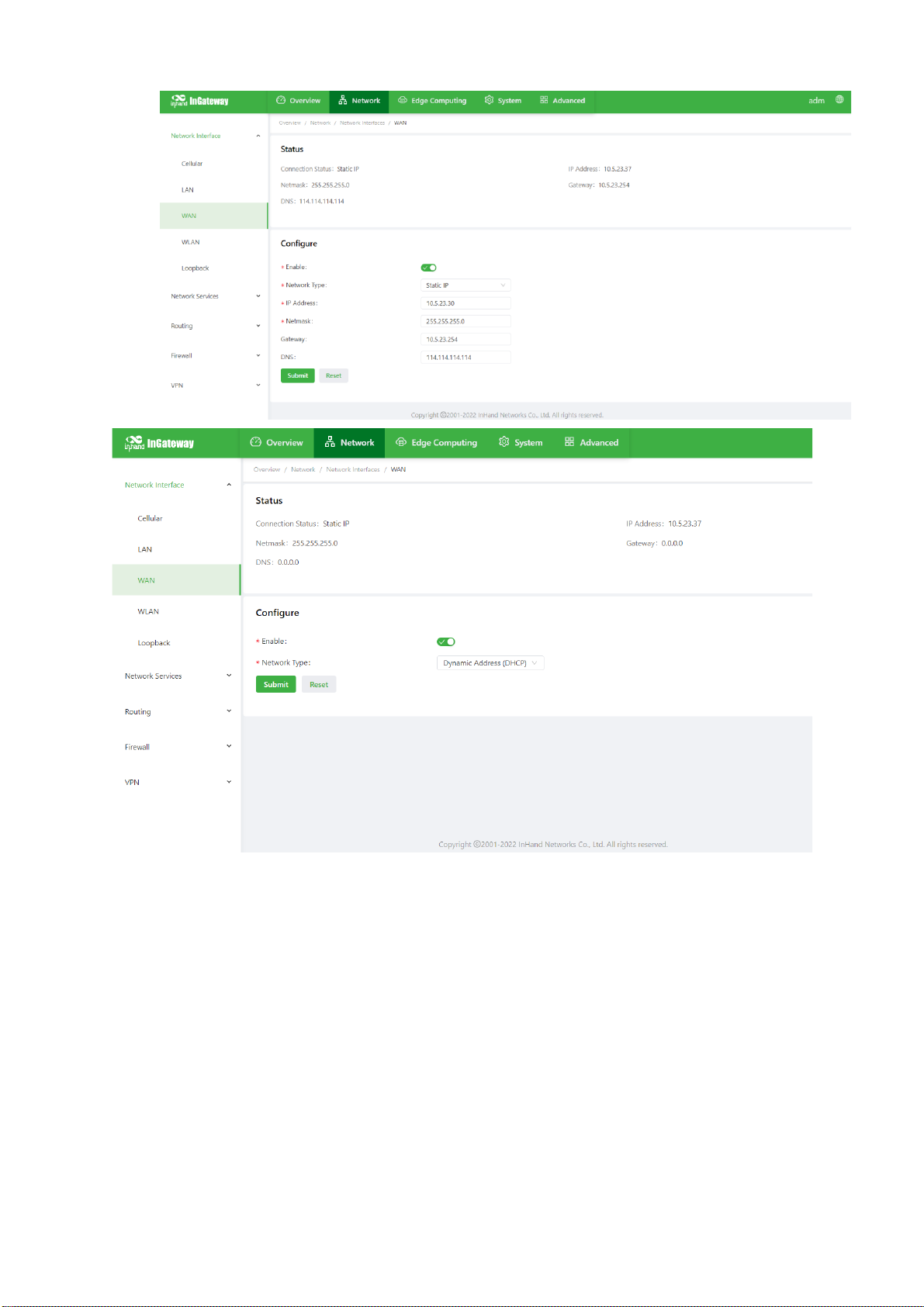

◼Step 2: Enter the "Network>>Network Interface>>WAN" page, configure the IP address of
WAN port (if the network type is static IP address, you need to configure the IP, subnet
mask and other information according to the site network condition) and click Submit.

IG974-Quick-Start-Manual-EN.md
2023/2/7
19 /
22
◼Step 3: Go to the "System >>Network Tools" page of the IG974 and use the Ping command
to check whether the IG974 is successfully connected to the Internet.

IG974-Quick-Start-Manual-EN.md
2023/2/7
20 /
22
4. Software Version Upgrade
For the latest software version of the IG974 product and information on its functional features, please
visit the Resource Center. To update the software version of IG974, please refer to the following
method.
4.1 IG974 Firmware Version Upgrade
Click "System >>Firmware Upgrade", select the appropriate firmware file and click "Start Upgrade" and
"Confirm". Apply the new firmware.
