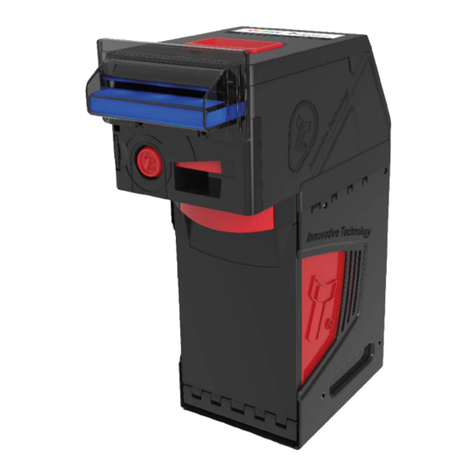

Innovative Technology NV200 Spectral User manual

Doc: GA02031
Version: 1.0

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 1 of 119
Document Name:
NV200 Family User Manual
Document Version:
1.0
Date of Release:
01/09/2017
TABLE OF CONTENTS
1DOCUMENT INTRODUCTION ..................................................................................................................5
1.1 RELATED DOCUMENTS ................................................................................................................................... 5
1.2 MANUAL AMENDMENTS................................................................................................................................. 5
1.3 COPYRIGHT .................................................................................................................................................. 5
1.4 LIMITED WARRANTY ...................................................................................................................................... 5
1.5 PRODUCT SAFETY INFORMATION ...................................................................................................................... 6
2PRODUCT INTRODUCTION ......................................................................................................................8
2.1 GENERAL DESCRIPTION................................................................................................................................... 8
2.2 KEY FEATURES .............................................................................................................................................. 8
2.3 TYPICAL APPLICATIONS ................................................................................................................................... 8
2.4 COMPONENT OVERVIEW ................................................................................................................................ 9
2.4.1 Interface connectors ..................................................................................................................... 10
2.4.2 User Interfaces .............................................................................................................................. 11
2.4.2.1 Dip Switches on the NV200.................................................................................................................11
2.4.2.2 Dip Switches on the Payout module ...................................................................................................11
2.4.2.3 Smart Ticket Button ............................................................................................................................11
2.4.2.4 Smart Ticket Dip Switches...................................................................................................................12
2.4.3 Bezel Options ................................................................................................................................ 14
2.4.4 Cashbox Options ........................................................................................................................... 14
2.4.5 Module Options ............................................................................................................................ 14
2.4.6 Consumables................................................................................................................................. 14
3TECHNICAL DATA ..................................................................................................................................15
3.1 DIMENSIONS .............................................................................................................................................. 15
3.2 WEIGHT .................................................................................................................................................... 15
3.3 ENVIRONMENTAL REQUIREMENTS .................................................................................................................. 15
3.4 POWER REQUIREMENTS ............................................................................................................................... 16
3.4.1 Supply Voltages............................................................................................................................. 16
3.4.2 Supply Currents ............................................................................................................................. 16
3.4.3 Power Supply Guidance ................................................................................................................ 16
3.5 INTERFACE LOGIC LEVELS .............................................................................................................................. 17
3.5.1 Opto-Isolated Inputs ..................................................................................................................... 17
3.6RELIABILITY DATA........................................................................................................................................ 17
3.7 MEDIA REQUIREMENTS ................................................................................................................................ 17
3.8 COMPLIANCES AND APPROVALS ..................................................................................................................... 18
3.8.1 EC Declaration of Conformity........................................................................................................ 18
3.8.2 Central Bank Approval .................................................................................................................. 18
4MECHANICAL INSTALLATION ................................................................................................................19
4.1 COMPATIBILITY ........................................................................................................................................... 19
4.1.1 Hardware Compatibility................................................................................................................ 19
4.1.1.1 Machine Mounting .............................................................................................................................19
4.1.1.2 Machine Interfacing ............................................................................................................................19
4.1.1.3 Power Supply ......................................................................................................................................19
4.1.2 Software Compatibility ................................................................................................................. 19
4.1.2.1 Interface Protocols..............................................................................................................................19
4.1.2.2 Re-programming .................................................................................................................................19
4.2 BEZEL MOUNTING....................................................................................................................................... 20

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 2 of 119
4.2.1 Bezel Fitting .................................................................................................................................. 20
4.3 CASHBOX REMOVAL..................................................................................................................................... 21
4.3.1 Standard Cashbox Removal .......................................................................................................... 21
4.3.2 TEBS Cash Bag Removal & Replacement ...................................................................................... 21
4.4 LOADING PAPER INTO THE SMART TICKET......................................................................................................... 22
4.4.1 Roll ................................................................................................................................................ 22
4.4.1.1 Top......................................................................................................................................................22
4.4.1.2 Rear.....................................................................................................................................................23
4.4.1.3 Top......................................................................................................................................................23
4.4.1.4 Rear.....................................................................................................................................................24
4.5 LOCK MOUNTING........................................................................................................................................ 25
4.5.1 Lock Fitting –NV200 ..................................................................................................................... 25
4.5.2 Lock fitting –Standard Cashbox ................................................................................................... 27
4.5.3 Lock Fitting - TEBS Cashbox .......................................................................................................... 28
4.5.4 Lock Specifications ........................................................................................................................ 28
4.5.5 Lock Cam....................................................................................................................................... 28
4.6 MACHINE MOUNTING.................................................................................................................................. 28
4.6.1 Machine Mounting - Standard Cashbox ....................................................................................... 29
4.6.2 Machine Mounting –TEBS............................................................................................................ 29
4.6.3 Things to consider ......................................................................................................................... 29
4.6.4 Earth Bonding ............................................................................................................................... 29
4.6.5 Screw Specifications...................................................................................................................... 30
5PROTOCOLS AND INTERFACING............................................................................................................31
5.1 INTRODUCTION ........................................................................................................................................... 31
5.2 SSP .......................................................................................................................................................... 31
5.2.1 General Description ...................................................................................................................... 31
5.2.2 Pin Assignments ............................................................................................................................ 31
5.2.3 Setup Examples ............................................................................................................................. 32
5.2.3.1 NV200 .................................................................................................................................................32
5.2.3.2 NV200 –TEBS Cashbox .......................................................................................................................32
5.2.3.3 NV200 with Payout Module (SPO) ......................................................................................................33
5.2.3.4 NV200 TEBS with Payout Module (TEBS SPO).....................................................................................34
5.2.3.5 NV200 with Ticket Module (SMART Ticket) ........................................................................................34
5.2.3.6 NV200 TEBS with Ticket Module (TEBS SMART Ticket).......................................................................35
5.3 CCTALK®.................................................................................................................................................... 36
5.3.1 General Description ...................................................................................................................... 36
5.3.2 Pin Assignments ............................................................................................................................ 36
5.3.3 ccTalk®DES Encryption.................................................................................................................. 36
5.3.4 ITL Specific Implementations ........................................................................................................ 36
5.3.4.1 CC1......................................................................................................................................................36
5.3.4.2 CC2......................................................................................................................................................36
5.3.5 Setup Example Drawing/s ............................................................................................................. 37
5.3.5.1 NV200 .................................................................................................................................................37
5.3.5.2 NV200 with Payout Module (SPO) ......................................................................................................37
5.4 SIO AND SI2 .............................................................................................................................................. 38
5.4.1 General Description ...................................................................................................................... 38
5.4.2 Pinout............................................................................................................................................ 39
5.5 MDB........................................................................................................................................................ 40
5.5.1 General Description ...................................................................................................................... 40
5.5.2 Pinout............................................................................................................................................ 40
5.5.3 IF5 Interface .................................................................................................................................. 40
5.6 PULSE ....................................................................................................................................................... 41
5.6.1 General Description ...................................................................................................................... 41
5.6.2 Pinout............................................................................................................................................ 41
5.6.3 Inhibit Control ............................................................................................................................... 41
5.6.4 Escrow Control .............................................................................................................................. 41
5.6.5 Busy Control .................................................................................................................................. 42
5.6.6 Low Power Mode .......................................................................................................................... 42
5.6.7 Credit Hold Function ..................................................................................................................... 42

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 3 of 119
5.6.8 IF15 Interface ................................................................................................................................ 43
6SOFTWARE INSTALLATION AND CONFIGURATION................................................................................44
6.1 INTRODUCTION ........................................................................................................................................... 44
6.2 SOFTWARE DOWNLOADS .............................................................................................................................. 44
6.2.1 Drivers........................................................................................................................................... 44
6.3 DATASET/FIRMWARE PROGRAMMING ............................................................................................................ 44
6.3.1 Validator Manager........................................................................................................................ 44
6.3.1.1 General Description ............................................................................................................................44
6.3.1.2 System Requirements .........................................................................................................................45
6.3.1.3 Hardware Setup ..................................................................................................................................45
6.3.1.4 Switching to Programming Mode (SSP) ..............................................................................................45
6.3.1.5 Programming the device.....................................................................................................................45
6.3.2 DA3 ............................................................................................................................................... 46
6.3.2.1 General Description ............................................................................................................................46
6.3.2.2 System Requirements .........................................................................................................................46
6.3.2.3 Re-programming the DA3 ...................................................................................................................47
6.3.3 SD Card ......................................................................................................................................... 48
6.3.3.1 General Description ............................................................................................................................48
6.3.3.2 System Requirements .........................................................................................................................48
6.3.3.3 Re-programming via SD Card ..............................................................................................................48
6.3.4 Remote Updates ........................................................................................................................... 48
6.3.5 SMART Update.............................................................................................................................. 49
7ROUTINE MAINTENANCE ......................................................................................................................50
7.1 INTRODUCTION ........................................................................................................................................... 50
7.2 CLEANING THE NV200................................................................................................................................. 50
7.2.1 Recommended Cleaning Intervals................................................................................................. 50
7.2.2 Cleaning the Validator .................................................................................................................. 50
7.2.3 Cleaning the TEBS Cashbox........................................................................................................... 51
7.2.4 Cleaning the Ticket Module .......................................................................................................... 53
8FIRST LEVEL SUPPORT ...........................................................................................................................57
8.1 BEZEL LED FLASH CODES.............................................................................................................................. 57
8.2 NV200 MODULE FLASH CODES..................................................................................................................... 59
8.2.1 TEBS Lock Flash Codes................................................................................................................... 59
8.2.2 Payout Module Flash Codes.......................................................................................................... 59
8.2.3 Ticket Module Flash Codes............................................................................................................ 60
8.3 CHECKING POWER CONNECTIONS TO THE UNIT .................................................................................................. 60
8.3.1 NV200 Connections....................................................................................................................... 61
8.3.2 TEBS Connections:......................................................................................................................... 61
8.3.3 Smart Payout Connection: ............................................................................................................ 62
8.3.4 Smart Ticket Connection: .............................................................................................................. 62
8.3.5 Checking the Supply Voltage......................................................................................................... 62
8.4 COMMUNICATION WITH THE HOST ................................................................................................................. 62
9SECOND LEVEL SUPPORT ......................................................................................................................64
9.1 CLEARING A JAM WITHIN THE NV200 ............................................................................................................. 64
9.1.1 Note is in the note path ................................................................................................................ 64
9.1.2 Note is visible once the NV200 has been removed ....................................................................... 64
9.1.3 Note isn’t visible once the NV200 has been removed ................................................................... 65
9.1.3.1 Clearing a Jam from the Standard Cashbox ........................................................................................65
9.1.3.2 Clearing a Jam from the TEBS Cashbox ...............................................................................................66
9.2 CLEARING A JAM FROM THE PAYOUT MODULE.................................................................................................. 67
9.3 DIVERTER AND TAPE POSITIONS IN THE PAYOUT MODULE ................................................................................... 70
9.4 CLEARING A JAM FROM THE TICKET MODULE.................................................................................................... 70
9.5 DIAGNOSTIC TOOLS ..................................................................................................................................... 70
9.5.1 Running unit diagnostics............................................................................................................... 71
9.5.2 Testing the mechanical operation ................................................................................................ 71
9.5.3 Re-initialisation of the sensors ...................................................................................................... 72

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 4 of 119
9.6 TESTING AFTER AN ERROR HAS BEEN CLEARED ................................................................................................... 73
10 APPENDIX .............................................................................................................................................74
10.1 2D DRAWINGS....................................................................................................................................... 74
10.1.1 NV200....................................................................................................................................... 74
10.1.2 NV200 with Payout module ..................................................................................................... 75
10.1.3 NV200 with Ticket module ....................................................................................................... 76
10.1.3.1 Fan-fold Rear.......................................................................................................................................76
10.1.3.2 Fan-fold Top........................................................................................................................................77
10.1.3.3 Roll Rear..............................................................................................................................................78
10.1.3.4 Roll Top ...............................................................................................................................................79
10.1.4 NV200 with TEBS Cashbox ....................................................................................................... 80
10.2 ENERGY PROFILES................................................................................................................................... 82
10.2.1 NV200 Standard Cashbox......................................................................................................... 82
10.2.1.1 12 Volts ...............................................................................................................................................82
10.2.2 NV200 with Payout Module ..................................................................................................... 83
10.2.2.1 12 Volts ...............................................................................................................................................83
10.2.2.2 24 Volts ...............................................................................................................................................88
10.2.3 NV200 with Ticket module ....................................................................................................... 92
10.2.4 NV200 with TEBS Cashbox ....................................................................................................... 96
10.3 LOCK SPECIFICATIONS............................................................................................................................ 104
10.3.1 NV200 Locking CAM............................................................................................................... 104
10.3.2 TEBS Locking CAM.................................................................................................................. 105
10.4 CABLE DRAWINGS ................................................................................................................................106
10.4.1 CN214.....................................................................................................................................106
10.4.2 CN292.....................................................................................................................................107
10.4.3 CN345.....................................................................................................................................108
10.4.4 CN389.....................................................................................................................................109
10.4.5 CN398.....................................................................................................................................110
10.4.6 CN414.....................................................................................................................................111
10.4.7 CN487.....................................................................................................................................112
10.4.8 WR147.................................................................................................................................... 113
10.5 SWITCHING TO PROGRAMMING MODE (SSP) ............................................................................................114
10.6 CHANGING THE CASHBOX FLAG IN THE NV200...........................................................................................114
10.7 FREE FALL CASHBOX ADVICE................................................................................................................... 114
10.8 CCTALK DES ENCRYPTION –TRUSTED MODE............................................................................................. 114
10.9 ESCROW ............................................................................................................................................. 114
10.9.1 Multi-Escrow .......................................................................................................................... 114
10.10 ST PROCESSOR PCN .............................................................................................................................115
10.10.1 NV200..................................................................................................................................... 115
10.10.2 Smart Payout..........................................................................................................................117
10.11 FILE NAMING CONVENTION.................................................................................................................... 119

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 5 of 119
1DOCUMENT INTRODUCTION
1.1 Related Documents
This document should be read together with the following documents:
For SSP/eSSP:
Protocol Manual –SSP (GA138): SSP Interface Protocol Specification for integration
eSSP Implementation Guide (GA973): Information for programmers and integrators
CC2 Manual (GA00863): CC2 Interface Protocol Specification for integration
For Software:
Software Manual –GA02037 Software Guide
1.2 Manual Amendments
Rev.
Date
Amendment Details
Issued by
1.0
01/09/2017
First Issue
JB
1.3 Copyright
This manual set is Copyright © Innovative Technology Ltd. 2016. No part of this
publication may be reproduced in any form or by any means used to make any
derivative such as translation, transformation or adaptation without permission from
Innovative Technology Ltd. The contents of this manual set may be subject to
change without prior notice.
1.4 Limited Warranty
Innovative Technology Ltd warrants each of its hardware products to be free from
defects in workmanship and materials under normal use and service for a period
commencing on the date of purchase from Innovative Technology Ltd or its
Authorized Reseller, and extending for the length of time stipulated by Innovative
Technology Ltd.
A list of Innovative Technology Ltd offices can be found in every section of this
manual set. If the product proves defective within the applicable warranty period,
Innovative Technology Ltd will repair or replace the product. Innovative Technology
Ltd shall have the sole discretion whether to repair or replace, and any replacement
product supplied may be new or reconditioned.
The foregoing warranties and remedies are exclusive and are in lieu of all other
warranties, expressed or implied, either in fact or by operation of law, statutory or
otherwise, including warranties of merchantability and fitness for a particular
purpose.
Innovative Technology Ltd shall not be liable under this warranty if it’s testing and
examination disclose that the alleged defect in the product does not exist or was
caused by the customer's or any third person's misuse, neglect, improper installation
or testing, unauthorized attempts to repair, or any other cause beyond the range of
the intended use. In no event, will Innovative Technology Ltd be liable for any
damages, including loss of profits, cost of cover or other incidental, consequential or

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 6 of 119
indirect damages arising out the installation, maintenance, use, performance, failure
or interruption of an Innovative Technology Ltd product, however caused.
1.5 Product Safety Information
Throughout this user manual, key safety points to be aware of when using or
maintaining the product will be highlighted in a box, like this:
Caution!
This is an example text.
This user manual and the information it contains is only applicable to the model
stated on the front cover, and must not be used with any other make or model.
1.6 Disclaimer
Innovative Technology Ltd is not responsible for any loss, harm, or damage caused
by the installation and use of this product. This does not affect your local statutory
rights. If in doubt please contact Innovative Technology for details of any changes.
Innovative Technology Ltd has a policy of continual product improvement. As a
result the products supplied may vary from the specification described here.
Innovative Technology Ltd does not accept liability for any errors or omissions
contained within this document. Innovative Technology Ltd shall not incur any
penalties arising out of the adherence to, interpretation of, or reliance on, this
standard.

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 7 of 119
Safety Notice! Read before using this product!
Safety Notice - Warning. Ensure power is removed before allowing access to the inside of this product.
Ensure any static build up is discharged before allowing access to any part of this product or media
contained. Always earth this product/base plate in accordance with the manual.
For use only in or with complete equipment where the acceptability of the combination is determined by
UL LLC. When installed in an end-product, consideration must be given to the following:
•The power supply terminals and/or connectors are: Not investigated for field wiring
•The investigated Pollution Degree is: 2
•The following end-product enclosures are required: Mechanical, Fire
Sicherheitshinweis –Warnung: Es muss sichergestellt werden, dass das Gerät von der
Versorgungsspannung getrennt wird, bevor ein Eingriff in das Innere des Gerätes erfolgt. Es muss
sichergestellt werden, dass jegliche statische Aufladung des Gerätes entladen wird, bevor auf das Gerät
oder auf innerhalb des Gerätes befindliche Objekte zugegriffen wird. Die Erdung des Gerätes muss immer
gemäß Handbuch erfolgen.
Nur für die Verwendung in oder mit kompletter Ausstattung, dessen Eignung und Kombination von der UL
LLC ermittelt wurde. Bei der Installation in einem Endproduckt, muss folgendes berücksichtigt werden:
•Die Spannungsversorgungsklemmen und/oder Verbinder sind: Feldverkabelung wurde nicht
untersucht
•Der untersuchte Verschmutzungsgrad ist: 2
•Folgende Anforderungen an die Gehäuse des Endproduktes sind gefordert: Mechanisch, Feuer
Aviso de seguridad: Asegúrese de que la alimentación está desconectada y de que toda la energía
estática es descargada antes de manipular este producto. Conecte a tierra la chapa base de la manera que
se indica en el manual.
Solo para uso con dispositivos con los cuales la compatibilidad ha sido certificada por UL LLC. Tras su
instalación en producto acabado, tener en cuenta lo siguiente:
•Los conectores y terminales de alimentación son: No se ha investigado/especificado cableado
externo.
•El grado de contaminación determinado es: 2
•Los siguientes manuales/certificados de producto final son requeridos: Mecánico, Fuego
Avis de sécurité : Assurez-vous que l'alimentation est coupée et que toute l'énergie statique est
déchargé avant de manipuler ce produit. Connecter à la terre, la plaque de base à la manière indiquée
dans le manuel.
A utiliser Seulement avec les dispositifs dont la compatibilité a été certifiée par UL LLC. Après son
installation dans le produit fini, prendre en considération ce qui suit:-
•Les connecteurs et les bornes d'alimentation sont : cela n’a pas été étudié/spécifié câblage
externe.
•Le degré de contamination déterminé est: 2
•Les manuels suivants / les certificats du produit final sont nécessaires : mécanique, incendie
Bezpečnostní upozornění. Před manipulací uvnitř tohoto produktu se ujistěte, že je produkt odpojen od
zdroje elektrického napětí. Ujistěte se, že jakýkoliv elektrostatický náboj byl vybit před manipulací s
jakoukoliv částí tohoto produktu nebo obsaženým médiem. Vždy uzemněte tento produkt/základovou
desku v souladu s návodem.
Pouze pro použití v nebo s kompletním vybavením, kde je přijatelnost kombinace určena UL LLC. Při
instalaci v konečném produktu je třeba zvážit nasledující:
•Napájecí svorky a/nebo konektory: Nejsou sledované pro externí kabeláž
•Sledovaný stupeň znečištění je: 2
•Následující krytí konečného produktu jsou požadované: Mechanické, Protipožární

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 8 of 119
2PRODUCT INTRODUCTION
2.1 General Description
The NV200 is a high volume, high security banknote validator capable of accepting
banknotes up to 85mm wide and 170mm long as well as industry standard bar
coded tickets.
With a lockable, removable cashbox or a Tamper Evident cashbox (TEBS) that can
hold up to 1000 notes the unit is ideal for global high volume applications.
The modular approach enables additional cash handling capabilities to be added with
ease. The SMART Payout allows mixed denomination note recycling while the SMART
Ticket enables ticket in /ticket out functionality.
2.2 Key Features
•Exceptional note handling
•Suitable for global applications
•Add on recycler available
•Secure tamper evident cashbag (TEBS System)
•Secure closed loop accounting (TEBS System)
•Eliminates cash shrinkage (TEBS System)
•Unrivalled mixed denomination note recycler (Recycler Module)
•Eliminates coin starvation (Recycler Module)
•Maximises cash efficiency (Recycler & Ticket Module)
•Revolutionary note in / ticket out design (SMART Ticket)
•Fan fold or continuous roll tickets (SMART Ticket)
2.3 Typical Applications
•Gaming
•Amusement
•Vending
•Retail & Kiosk

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 9 of 119
2.4 Component Overview

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 10 of 119
2.4.1 Interface connectors
The NV200 validator has two connectors for interfacing and programming; these
connectors are easily accessible at the back of the validator.
Information
Power is required
regardless of connection
type.
Regardless of the connector type being used
power is required on pins 15(+V) and 16(0V) of
the 16 way connector.
The first connector is a 16-pin Molex 9733272, used to interface the NV200 to the
host machine. The pin numbering of the socket is shown below:
When a Payout or Ticket Module is connected a 16-pin Molex 0039012165 connector will replace the
16-pin Molex 9733272, the Pinout is below:
There is also a standard Type ‘B’ USB socket which can be used for programming
the NV200 –a USB 2.0 compliant Type ‘A’ to ‘B’ lead can be used to do this.
Caution!
The USB connection is not recommended for continuous use
only for re-programming or troubleshooting.
The TEBS & Smart Ticket require an additional 4-pin Tyco 794954-4 power connector (CN389).

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 11 of 119
2.4.2 User Interfaces
2.4.2.1 Dip Switches on the NV200
The NV200 has a Dual Inline Package (DIP) switch bank that is used to set the
various options for the unit. A summary of the switch options are shown below:
2.4.2.2 Dip Switches on the Payout module
The SMART Payout unit has a Dual Inline Package (DIP) switch bank that is used to
set the various options for the unit. A summary of the switch options are below:
Switch
Option
Default Setting
1-6
Not Used
OFF
7
Prevents the NV200 from updating the payout module
OFF
8
Forces the diverter to close (unit must be powered)
OFF
2.4.2.3 Smart Ticket Button
The SMART Ticket Has a button on the rear of the unit.
Switch
Option
Switch OFF ()
Switch ON ()
Default
Setting
1
Disable Barcode
Read enabled
Read disabled
OFF
2
Channel 1 Inhibit
Channel enabled
Channel disabled
OFF
3
Channel 2 Inhibit
Channel enabled
Channel disabled
OFF
4
Channel 3 Inhibit
Channel enabled
Channel disabled
OFF
5
Channel 4 Inhibit
Channel enabled
Channel disabled
OFF
6
Channel 5 Inhibit
Channel enabled
Channel disabled
OFF
7
Channel 6 Inhibit
Channel enabled
Channel disabled
OFF
8
Protocol Select
*Switches between the primary
(selected) protocol and SSP (used for
Programming). The switch needs to be
toggled ON and OFF to alternate
between the two. This will cause the
unit to reset.
OFF

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 12 of 119
Pressing and holding this button will lead to a test ticket being printed, this ticket will
show information on Firmware and the current printer settings.
2.4.2.4 Smart Ticket Dip Switches
The SMART Ticket has 4 Dipswitches in the unit, these switches can be found by
opening the Ticket path.
To open the ticket path, squeeze the clips on the top of the SMART Ticket and lift
the lid.
Once there is a dock of 4 dipswitches at the hinge of the SMART Ticket on the Right
Side.

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 13 of 119
Switch
Option
Default Setting
1-3
Not used
OFF
4
“Safe Mode” – stops the Printer from Printing any more
tickets if the Paper Low Sensor is Triggered.
OFF

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 14 of 119
2.4.3 Bezel Options
ITL Part Number
Description
Details
PA00610
Standard Bezel
http://innovative-technology.com/shop/bezels/NV200-standard-
bezel-detail
PA00634
82mm Bezel
http://innovative-technology.com/shop/bezels/NV200-82mm-width-
bezel-detail
PA00639
Metal Bezel
http://innovative-technology.com/shop/bezels/NV200-metal-bezel-
detail
PA01038
Self-Aligning Bezel
http://innovative-technology.com/shop/bezels/NV200-self-aligning-
bezel-white-detail
2.4.4 Cashbox Options
ITL Part Number
Description
Details
PA00640
NV200 Outer Cashbox Chassis
http://innovative-technology.com/shop/bezels/NV200-outer-
cashbox-chassis-detail
PA00629
500n Inner cashbox
http://innovative-technology.com/shop/bezels/NV200-inner-
cashbox-detail
PA00635
1000n Inner cashbox
http://innovative-technology.com/shop/bezels/NV200-1000-
note-inner-cashbox-detail
PA02198
Tamper Evident Bag System (TEBS)
http://innovative-technology.com/products/products-
main/356-tebs
2.4.5 Module Options
ITL Part Number
Description
Details
PA02783
Payout Module
http://www.innovative-technology.com/it/shop-it/bank-
note-validators/payout-module-only-detail
PA1062
Ticket Roll Top
http://innovative-technology.com/shop/bank-note-
validators/roll-top-ticket-module-detail
PA02060
Ticket Roll Bottom
http://innovative-technology.com/shop/bank-note-
validators/rolll-rear-ticket-module-detail
PA02074
Ticket Fan Fold Top
http://innovative-technology.com/shop/bank-note-
validators/fan-fold-top-ticket-module-only-detail
PA01063
Ticket Fan Fold Bottom
http://innovative-technology.com/shop/bank-note-
validators/fan-fold-rear-ticket-module-only-detail
2.4.6 Consumables
ITL Part Number
Description
Details
PA02196
TEBS Safe Bag Box of 140
http://innovative-technology.com/products/products-
main/356-tebs
LB02012
Roll Tickets Box of 12
http://innovative-technology.com/shop/printer-
spares/smart-ticket-roll-paper-single-box-detail
LB02013
Fan Fold Tickets Box of 20
http://innovative-technology.com/shop/printer-spares/fan-
fold-tickets-single-box-detail

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 15 of 119
3TECHNICAL DATA
3.1 Dimensions
Drawings of all configurations for the NV200 can be found in Appendix 10.1.
3D drawings in .stp form are also available upon request from our support team.
3.2 Weight
NV200 with Standard Bezel
1.1 kg
Cashbox Options
500n with Chassis
Empty: 1.76kg
Full: 2.21kg
1000n with Chassis
Empty: 1.94kg
Full: 2.84kg
TEBS Cashbox
Empty: 6.7kg
Full: 7.5kg
Modules
Payout Module
Empty: 2.54kg
Full: 2.6kg
Ticket Module:
Empty: 1.34kg
Full: 2.64kg
The ‘full weight’was taken with a random sample of street grade GBP notes
3.3 Environmental Requirements
Environment
Minimum
Maximum
Maximum Change
per Hour
Temperature
+5°C / 37.4°F
+50°C / 122°F
1° per hour
Humidity
5%
95% Non-condensing
2% per hour

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 16 of 119
3.4 Power Requirements
3.4.1 Supply Voltages
Supply Voltage
Minimum
Nominal
Maximum
Supply Voltage (V DC)
+10.8vDC / +22.6vDC
+ 12vDC / +24vDC*
+14.2 vDC / +26.4vDC
Supply Ripple Voltage
0 V
0 V
0.25 V @ 100 Hz
The TEBS cashbox and Ticket module require the unit is run at 24v (±10%).
3.4.2 Supply Currents
The supply current required to run the NV200 will vary during the phases of
operation. Below is a table detailing the required current information.
Phase of operation
Current Draw (A)
Standby
400mA
Running
1.5A
Peak
3A
To use the extra modules such as the payout or ticket module additional power is
required. The table below explains the additional current draw required.
Phase of operation
Additional Current
Draw TEBS (A)
Additional Current
Draw Payout (A)
Additional Current
Draw Ticket (A)
Standby
200mA
-
-
Running
-
1.5A
1A
Peak
2.6A
2A
5A*
*Maximum current required to print a solid black ticket
For a NV200 with a TEBS cashbox and payout module, the peak current draw would
be:
3A + 2.6A + 2A = 7.6A
For more detailed power information energy profiles for the various stages of
operation can be found in Appendix 10.2.
3.4.3 Power Supply Guidance
Please check the power requirements of your host machine and other peripherals to
dimension a suitable power environment for your machine setup.
TDK Lambda manufactures suitable power supplies for the NV200. Please see table
below for further details.
Power Supply Unit
Specification
RS Stock
Code
Farnell
Stock Code
Suitable for use
with
TDK Lambda SWS50-12
+12 V DC / 4.3 A
466-5869
1184645
NV200 standalone
TDK Lambda SWS75-12
+12 V DC / 6.3 A
466-5904
1184648
NV200 with Payout module
TDK Lambda SWS150-24
+24 V DC / 6.3 A
466-5982
1184653
NV200 with TEBS or Payout
Module
TDK Lambda SWS300-24
+24 V DC / 13.0 A
494-4651
1085928
NV200 with TEBS and
Payout/Ticket Module

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 17 of 119
3.5 Interface Logic Levels
Interface Logic Levels
Logic Low
Logic High
Inputs
0V to +0.5V
+3.7V to +12V
Outputs with 2K2Ω pull-up resistor
+0.6V
Pull-up voltage of host interface
Maximum Current Sink
50mA per Output
3.5.1 Opto-Isolated Inputs
The NV200 natively supports Opto-isolated communication, the connection requires
a reciprocal circuit to be established on the host side. The pin outs for the opto-
isolated inputs can be found in section 5.2.2.
3.6 Reliability Data
Below is an explanation outlining the Mean Cycles Between Failure (MCBF) & Mean
Cycles Between Interruption (MCBI) for the NV200 family of products. Where a cycle
is defined as a note/ticket either stacked, stored or paid-out. An example is if £20 is
accepted and a £10 paid out that would be classed as 2 cycles.
The difference between MCBF and MCBI is that a failure is classed as an event which
will require a service call –e.g. unit is seeing poor acceptance. Whereas an
interruption is an event which store/site staff could rectify without a trained engineer
present –e.g. clearing a note path jam.
As explained in section 2.4 the NV200 is a modular solution and these modules
increase the complexity of the system. As such each time, one of these additional
modules are attached the current MCBF and MCBI is halved.
MCBF data is available upon request from ITL.
3.7 Media Requirements
The NV200 is capable of handling multiple denominations simultaneously, the media
that can be accepted includes but is not limited to:
-Polymer notes
-Windowed notes
-Barcoded tickets
The minimum and maximum dimension for media IN is as follows:
Min
Max
Length:
110mm
170mm
Width:
56mm
85mm
When using the optional smart payout module the media dimensions are as follows:
Min
Max
Length:
110mm
170mm
Width:
56mm
82mm
When using the optional smart ticket module, the paper requirements are as follows:
Min
Max

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 18 of 119
Fan Fold
Length:
160mm
Width:
62mm
65mm
Roll
Width:
80mm
General
Thickness:
100µm
120µm
Perforation Strength:
0.7kg
1.3kg
3.8 Compliances and Approvals
3.8.1 EC Declaration of Conformity
The NV200 family is fully compliant with major standards including but not limited
to:
-UL
-RoHS
-CE
-Weee
-REACH
3.8.2 Central Bank Approval
As part of continual product improvement central banks are regularly visited to gain
product certification. This includes but is not limited to the following ECB, BoE &
FED.
Any change in approval status is outlined in our tech bulletins a link to which can be
found below:
http://innovative-technology.com/support/technical-bulletins

NV200 Family User Manual
<< Back to Contents
Copyright © Innovative Technology Ltd 2016 Doc: NV200 Family Manual
Version: 1.0
Page 19 of 119
4MECHANICAL INSTALLATION
4.1 Compatibility
4.1.1 Hardware Compatibility
4.1.1.1 Machine Mounting
The NV200 is not retro-fittable in place of any older Innovative Technology validator
however it’s footprint is comparable to other high end casino validators, some re-
work may still be required to use the NV200 in place of a different validator.
4.1.1.2 Machine Interfacing
By design the NV200 family is pin to pin across the range, should there be any
questions regarding the pin-outs see section 2.4.1. If integrating different modules,
a change in the harnessing may be required, details of recommended harness
configurations can be found in section 5.2.3.
4.1.1.3 Power Supply
As outlined above in Section 3.4 it is vital that the NV200 is connected to a power
supply capable of meeting the current requirements as an underpowered PSU can
cause events such as note rejects or missing credits. If the NV200 is used as a fitting
replacement for an older product its recommended to test the power supply
ensuring it meets the requirements of the NV200; please bear in mind the aging of
the capacitors in the power supply could affect it’s ability to supply peak current
loads. Refer to Section 7.4 for full power requirement details.
Caution!
An insufficient power supply can cause erratic performance!
4.1.2 Software Compatibility
4.1.2.1 Interface Protocols
When using the NV200 as a fitting replacement for an older model or product some
events such like credits may be given at a different time, due to modified firmware
routines. This may cause missing events such like credits in certain host machines
where timeouts are tightly defined for the older model or product. Please contact the
machine manufacturer for full compatibility.
Caution!
Timing issues may cause missing events!
4.1.2.2 Re-programming
For re-programming the NV200 always use the latest version of Validator Manager
which is available for download on our website. Older versions may not fully support
the NV200. For further details on Re-programming the NV200 refer to 6.3.
Caution!
Older versions of Validator Manager may not completely support the NV200!
