Innovative Technology NV11 User manual

NV11
MANUAL SET

NV11
MANUAL SET
INTRODUCTION

NV11 Manual Set - Introduction 1
Copyright © Innovative Technology Ltd 2012 GA963-2
MANUAL AMENDMENTS
Document Base Details
Spec. Used
Issue
Date
Receipt
Date
Comments
GA963-1
09/09/10
29/07/11
GA138
01/11/10
22/01/11
GA959
29/03/11
29/07/11
Amendment Details
Rev.
Date
Amendment Details
Issued by
--
19/04/12
First Issue
EAM

NV11 Manual Set - Introduction 2
Copyright © Innovative Technology Ltd 2012 GA963-2
NV11 MANUAL SET - INTRODUCTION
COPYRIGHT 3
LIMITED WARRANTY 3
PRODUCT SAFETY INFORMATION 3
INTRODUCTION 4
FEATURES 5
TYPICAL APPLICATIONS 5
STRUCTURE OF THIS MANUAL SET 6
WHICH SECTION IS RELEVANT TO ME? 6
MAIN HEADQUARTERS
Innovative Technology Ltd
Derker Street –Oldham –England - OL1 4EQ
Tel: [phone] Fax: [phone]
E-mail: [email protected].uk
Web site: www.innovative-technology.co.uk
BRAZIL
[email protected]
CHINA
[email protected]
GERMANY
[email protected]
SPAIN
[email protected]
UNITED KINGDOM
[email protected]
UNITED STATES OF AMERICA
[e-mail]
REST OF THE WORLD
[email protected]

NV11 Manual Set - Introduction 3
Copyright © Innovative Technology Ltd 2012 GA963-2
COPYRIGHT
This manual set is Copyright © Innovative Technology Ltd. 2012. No part of this
publication may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from
Innovative Technology Ltd. The contents of this manual set may be subject to change
without prior notice.
LIMITED WARRANTY
Innovative Technology Ltd warrants each of its hardware products to be free from
defects in workmanship and materials under normal use and service for a period
commencing on the date of purchase from Innovative Technology Ltd or its
Authorized Reseller, and extending for the length of time stipulated by Innovative
Technology Ltd.
A list of Innovative Technology Ltd offices can be found in every section of this
manual set. If the product proves defective within the applicable warranty period,
Innovative Technology Ltd will repair or replace the product. Innovative Technology
Ltd shall have the sole discretion whether to repair or replace, and any replacement
product supplied may be new or reconditioned.
The foregoing warranties and remedies are exclusive and are in lieu of all other
warranties, expressed or implied, either in fact or by operation of law, statutory or
otherwise, including warranties of merchantability and fitness for a particular purpose.
Innovative Technology Ltd shall not be liable under this warranty if it’s testing and
examination disclose that the alleged defect in the product does not exist or was
caused by the customer's or any third person's misuse, neglect, improper installation
or testing, unauthorized attempts to repair, or any other cause beyond the range of
the intended use. In no event will Innovative Technology Ltd be liable for any
damages, including loss of profits, cost of cover or other incidental, consequential or
indirect damages arising out the installation, maintenance, use, performance, failure
or interruption of a Innovative Technology Ltd product, however caused.
PRODUCT SAFETY INFORMATION
Throughout this manual set, we may draw your attention to key safety points that you
should be aware of when using or maintaining the product.
These safety points will be highlighted in
a box, like this:
Caution!
Mains voltage is present on
these terminals
This manual set and the information it contains is only applicable to the model stated
on the front cover, and must not be used with any other make or model.

NV11 Manual Set - Introduction 4
Copyright © Innovative Technology Ltd 2012 GA963-2
INTRODUCTION

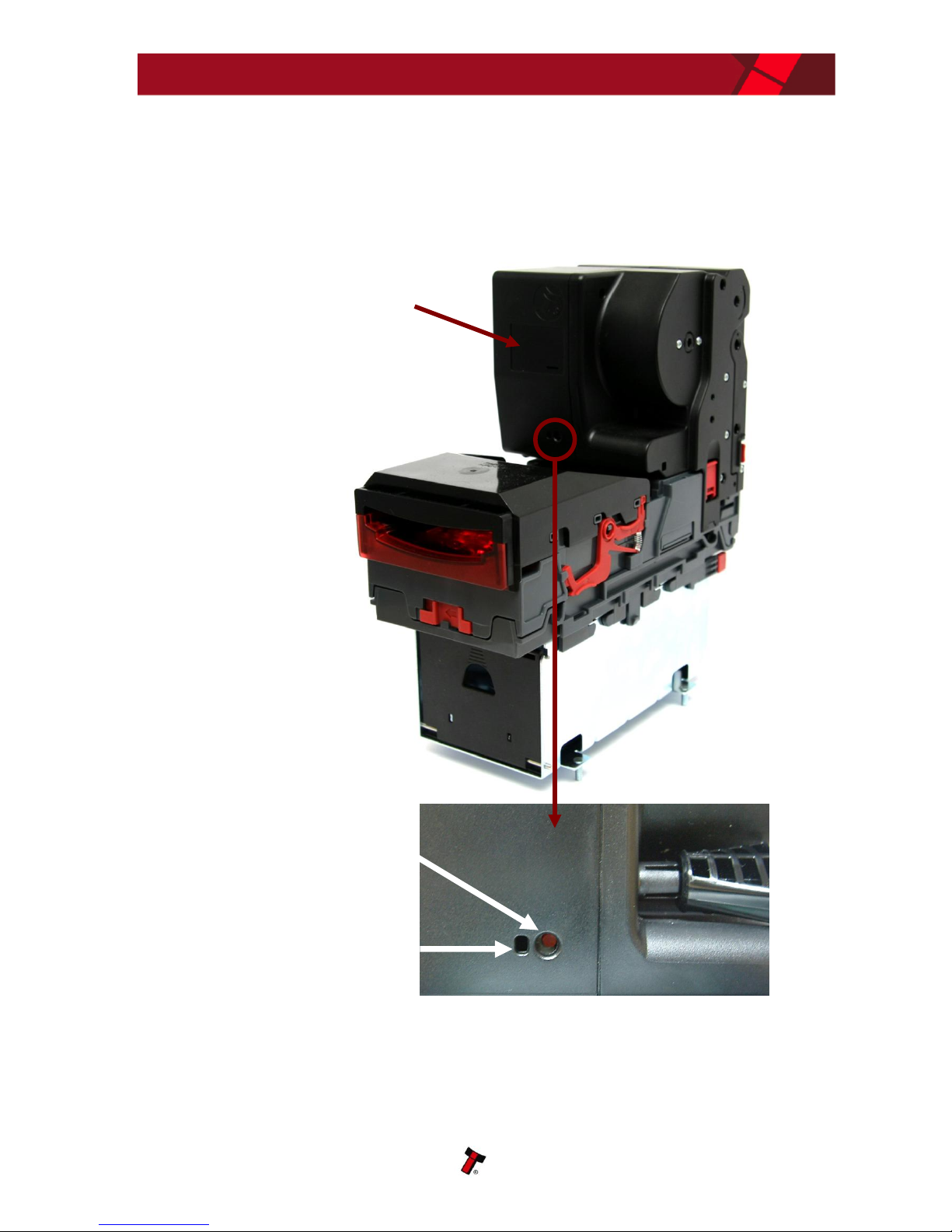

The NV11 validator is made up of four basic components: an NV9USB validator head,
Note Float module, removable bezel and a cashbox (as shown below):
The NV11 is a device that can accept, validate and store 300 or 600 bank notes of
mixed denominations, and also has the capability of storing a further 30 notes in the
Note Float module for future payout.
NV11
Rear View
NV11
Side View
NV11
Front View
Cashbox
NV9USB
validator
head
Removable
bezel
Note Float
module

NV11 Manual Set - Introduction 5
Copyright © Innovative Technology Ltd 2012 GA963-2
Up to 16 different denominations of bank note can be accepted and stacked, and the
Note Float module can be programmed to store and dispense 30 single denomination
notes.
The NV11 validator leaves the factory preset to at least one currency and one
firmware interface so that it is ready for immediate installation. The NV11 validator
works with any NV9USB currency dataset created by Innovative Technology Ltd -
datasets can be downloaded from the Support section of the ITL website.
FEATURES
The NV11 validator has many innovative features, including:
300 or 600 note storage capacity
Note Float module has 30 note capacity (single denomination)
Accepts, validates and stores bank notes in less than 3 seconds
Uses a secure encrypted protocol for data transfer
TYPICAL APPLICATIONS
The NV11 validator can be used in a variety of situations where high security and high
volume bank note acceptance, validation and payout are needed. Some typical
applications are:
AWP and SWP applications
Self-Serve and Retail
Kiosks
Casinos
Parking and Ticketing
Vending

NV11 Manual Set - Introduction 6
Copyright © Innovative Technology Ltd 2012 GA963-2
STRUCTURE OF THIS MANUAL SET
This manual set is made up of seven sections, each is supplied in a separate Portable
Document Format (PDF) file, so you only need to download or print the section
relevant to your requirements:
Introduction
Section 1 –Quick Start and Configuration Guide
Section 2 –Field Service Manual
Section 3 –ITL Software Support Guide
Section 4 –Mechanical and Electrical Manual
Section 5 –Software Implementation Guide
Section 6 –Technical Appendices
WHICH SECTION IS RELEVANT TO ME?
Quick Start and Configuration Guide:
–Most users should use this section; typical users are software engineers
looking at how to make it work, project engineers evaluating their first
unit, or installation engineers installing the unit into a host machine.
–This section contains the essential information that a user needs to
quickly assemble and configure the NV11 validator ready for installation
into the host machine.
Field Service Manual:
–Typically used by a field service engineer who is maintaining the
product.
–This section contains the essential information that the field service
engineer needs to clean, maintain and fault find an NV11 validator that
is installed in a host machine.
ITL Software Support Guide:
–Any user who wants to test the functionality of the unit, reprogram the
firmware or dataset, or set up the encryption key, address or routing for
the unit.
–This section contains the information needed for a user to configure and
program the NV11 validator, using a range of software tools.

NV11 Manual Set - Introduction 7
Copyright © Innovative Technology Ltd 2012 GA963-2
Mechanical and Electrical Manual:
–Design engineers who are designing a host machine cabinet, or looking
to integrate the NV11 validator into an existing cabinet.
–This section contains the all the mechanical and electrical information a
designer needs to effectively integrate the NV11 validator into a host
machine.
Software Implementation Guide:
–Software engineers looking at how to implement the NV11 validator in
their host machine, or design engineers looking at including the unit in
their host machine.
–The information in this section details the communications protocols,
specific commands and interfaces used (eSSP and ccTalk).
Technical Appendices:
–These appendices have no specific audience, but users can find relevant
and useful information here.
–This section includes information on product approvals, technical
specifications and ordering information.

NV11
MANUAL SET
QUICK START
AND
CONFIGURATION
GUIDE
SECTION 1

NV11 Manual Set –Section 1 2
Copyright © Innovative Technology Ltd 2012 GA963-2
NV11 MANUAL SET –SECTION 1
1. QUICK START AND CONFIGURATION GUIDE 3
1.1 Assembly 3
1.2 Bezel Removal and Refitting 6
1.3 Interfacing 7
1.4 Connector and Pinouts 8
1.5 Configuration 9
1.6 Status Indicators 10
1.7 Programming 10
1.8 Technical Specifications 11
1.9 NV11 Flash Codes 12
1.10 Fault Finding 14
1.11 Frequently Asked Questions 16

NV11 Manual Set –Section 1 3
Copyright © Innovative Technology Ltd 2012 GA963-2
1. QUICK START AND CONFIGURATION GUIDE
This section is one part of a complete manual set: most users should use this section
of the manual - typical users are software engineers looking at how to make it work,
project engineers evaluating their first unit, or installation engineers installing the unit
into a host machine.
This section contains the essential information that a user needs to quickly assemble
and configure the NV11 validator ready for installation into the host machine.
Information
Validator compatibility.
The NV11 validator is pin for pin compatible with
the NV7 / NV8 / NV9 / NV10 series of validators,
but NOT with earlier versions of the product
(NV2 –NV5).
1.1 Assembly
Installing the NV11 is a simple operation, but note that the validator can only be
installed horizontally:
1. If the validator head
has a blanking plate
fitted, you will need
to remove this
BEFORE attempting to
fit the Note Float
module. If the Note
Float module is
already fitted, please
go to step 6

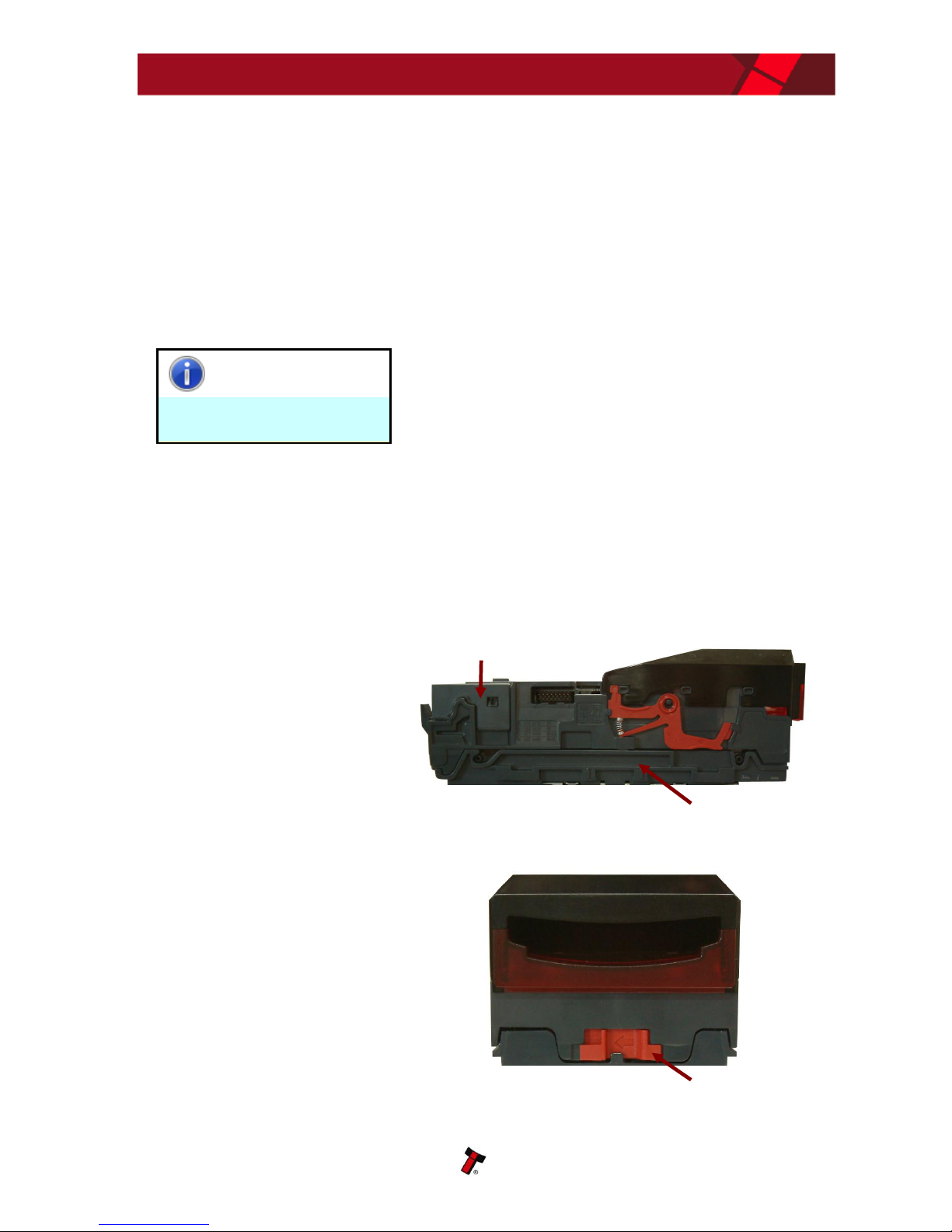

2. Open the validator
head by sliding the
red release catch on
the front of the
validator to the left
(as indicated in the
picture)
Blanking plate
Validator head
Release catch

NV11 Manual Set –Section 1 4
Copyright © Innovative Technology Ltd 2012 GA963-2
Caution!
Validator head MUST be
opened.
Always make sure the validator head has been
opened BEFORE trying to remove the blanking
plate –trying to remove the blanking plate with
the validator head closed will cause unit
damage.

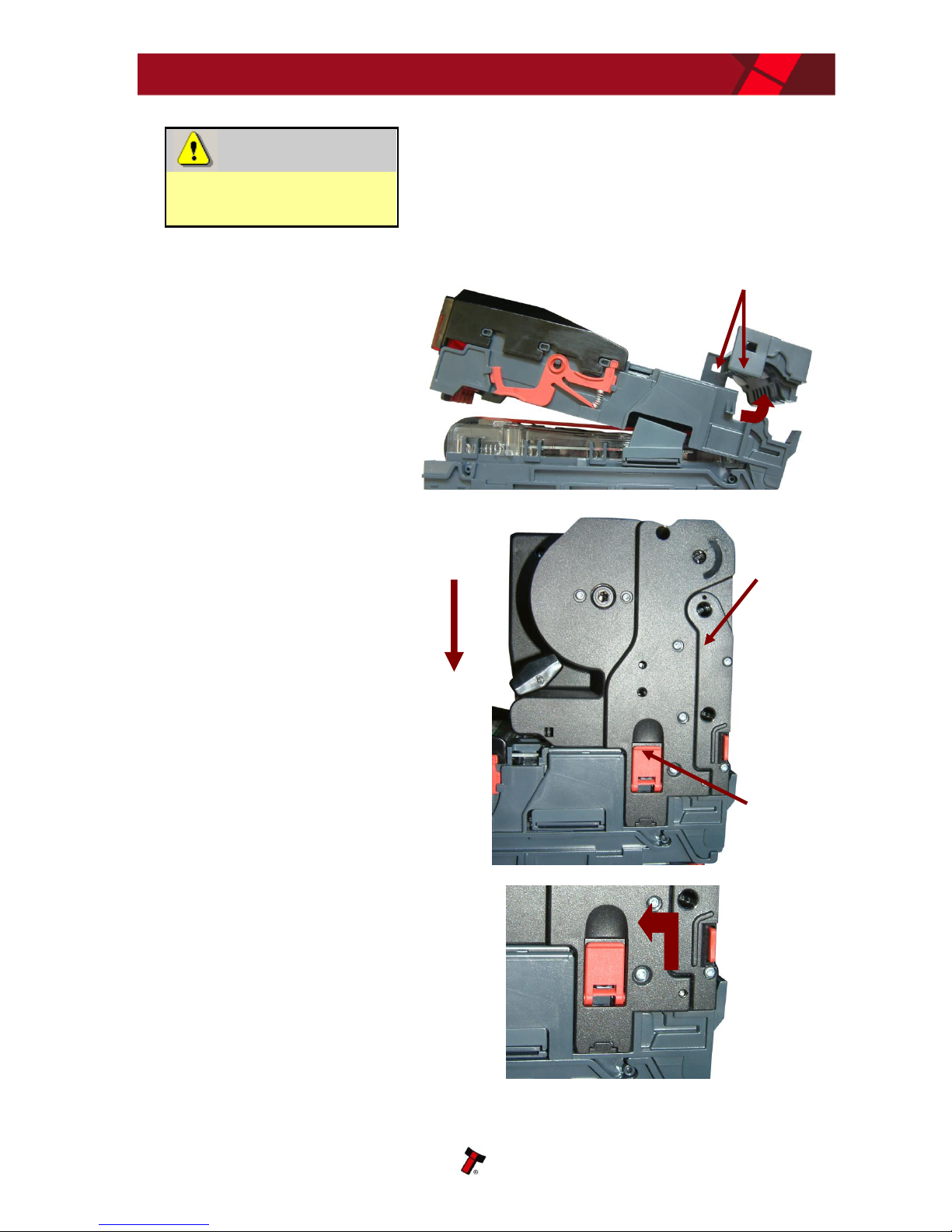

3. Remove the blanking
plate by disengaging
the two side clips and
lifting the blanking
plate upwards
4. Close the validator
head and then
carefully fit the Note
Float module onto the
validator head,
making sure the rear
cover is securely
closed and that both
latches are lined up
correctly
5. Make sure both
latches are engaged
and closed
Side clips
Rear cover
Latch

NV11 Manual Set –Section 1 5
Copyright © Innovative Technology Ltd 2012 GA963-2
6. The validator can be
fitted with a standard
or slide-on cashbox of
300 or 600 note
capacity
7. If not already
attached, the
validator can be fitted
with a horizontal
bezel of your choice.
8. The cashbox is
attached to the
validator by locating
and sliding until the
cashbox is clipped
securely and secured
in the host machine
using the studs on the
bottom of the
cashbox
Note Float module
Mounting
studs
Cashbox
Validator
head
Bezel

NV11 Manual Set –Section 1 6
Copyright © Innovative Technology Ltd 2012 GA963-2
Information
Check website for options.
There are many variants of bezel and cashbox type
available for the NV11 validator. Please check the ITL
website (www.innovative-technology.co.uk) for up to
date information on the options available.
1.2 Bezel Removal and Refitting
The bezel is
removed by pushing
the red locking arms
on both sides of the
validator upwards,
and sliding the bezel
away from the
locking arms
Lift the bezel off
once the bezel has
been slid fully
across and is clear
of the locating pins
The bezel is refitted by pushing the bezel back onto the locating pins and sliding
backwards until all six pins are engaged in the slots. The locking arms will then spring
back and locate into the bezel.
Caution!
Check locking arms.
Always make sure that BOTH locking arms are
fully located in the bezel –trying to operate the
validator if they are not correctly located can
cause unit damage.
a. Push locking arms upwards
b. Slide bezel away from
locking arms
Locating pins
Lift upwards to remove

NV11 Manual Set –Section 1 7
Copyright © Innovative Technology Ltd 2012 GA963-2
1.3 Interfacing
The connector needed to set up and interface with the NV11 validator is easily
accessible on the side of the unit:
Interface
Connector

NV11 Manual Set –Section 1 8
Copyright © Innovative Technology Ltd 2012 GA963-2
1.4 Connector and Pinouts
The NV11 validator has a single connector that is used to allow interfacing and
programming.
Information
Power always required
regardless of connection
type.
Power is always required on pins 15 and 16 of the
16 way connector.
The connector is a 16 pin socket used to interface the NV11 to the host machine. The
pin numbering of the socket is shown below, as well as an overview of the socket
connections:
To use a USB connection with the NV11, a USB cable fitted with a 16 way connector
on one end (ITL Part Number CN392) should be used. The CN392 cable fits into the
16 way connector and allows high speed programming and serial communications
when used in SSP and ccTalk modes.
When using the USB connection, power must be supplied to the NV11 using the
CN392 cable.
Pin
Description
1
Serial Data Out (Tx)
5
Serial Data In (Rx)
11
USB Data +
12
USB Data -
13
USB Power (+5V)
15
+ V
16
0V / Ground Connection

NV11 Manual Set –Section 1 9
Copyright © Innovative Technology Ltd 2012 GA963-2
1.5 Configuration
The NV11 does not use DIP switches to configure the unit –configuration and setting
is carried out by using a Configuration Button mounted on the front of the Note Float
module:
Configuration Button
Status LED
There are several functions available when using the Configuration Button, and these
are listed in this table:
Note Float module

NV11 Manual Set –Section 1 10
Copyright © Innovative Technology Ltd 2012 GA963-2
The NV11 Validator leaves the factory preset
to at least one currency and one interface so
that it is ready for immediate installation. The
dataset and interface used are shown on the
label fixed to the front of the Note Float unit.
1.6 Status Indicators
The NV11 validator has two separate coloured Light Emitting Diode (LED) indicators
that are used to show the status of the unit –these are located next to the
configuration button on the front of the Note Float module, and behind the front bezel
of the NV9USB validator head.
If there is a fault or other issue with the unit, the LEDs will flash as described in
subsection 1.9.
1.7 Programming
Full details on programming the NV11 validator can be found in Section 3 of this
manual set (ITL Software Support Guide).
Action
Power Status
Function
Press and hold (more than
2 seconds) until the bezel
illuminates, then release
Powered ON
Sets validator to Programming
mode (SSP)
Press twice (within half a
second)
Powered ON
Shows current interface type (see
flash count table below)
Press once when Note
Float module status LED is
flashing (transport error)
Powered ON
Acknowledges that a note
blockage has been cleared
Flash Count
Interface
1
SSP
6
ccTalk
6 , 1
ccTalk plain (16 bit)
6 , 1 , 2
ccTalk (8 bit)

NV11 Manual Set –Section 1 11
Copyright © Innovative Technology Ltd 2012 GA963-2
1.8 Technical Specifications
The full technical specifications for the NV11 validator can be found in Section 6,
Appendix B of this manual set. A brief summary is given here:
DC Voltage
Minimum
Nominal
Maximum
Absolute limits
10.8 V
12 V
13.2 V
Supply ripple voltage
0 V
0V
0.25 V @ 100 Hz
Supply Current
Standby
350 mA
Running
3 A
Peak (motor stall)
3.5 A
Interface Logic Levels
Logic Low
Logic High
Inputs
0 V to +0.5 V
+3.7 V to +12 V
Outputs (2.2 kΩ pull-up)
+0.6 V
Pull-up voltage of host
interface
Maximum current sink
50 mA per output
WARNING!
Use suitable power supply
Ensure that the supply voltage to the NV11 is not
lower than 10.8 V and that the power supply can
provide sufficient current to avoid incorrect
operation and excessive note rejects.
We recommend that your power supply is capable of supplying 12V DC at 4 A.
For 12V operation, use TDK Lambda model SWS50-12. This power supply is
available from a variety of suppliers including Farnell (stock code 1184645) and
RS (stock code 466-5869).
