INSTALLATION MANUAL
INS9001
ATTENTION INSTALLERS:
These instrucons must be
le with the customer
30 Day Technical Support: 01908 226545
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier’s details and your postcode to hand before calling)
Replacements Parts: inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts: outside of your warranty
contact 0844 800 3069
www.insigniarange.co.uk
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this me period.
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

www.insigniarange.com Last Modied: 13/09/2017
02
Contents
Introduction
Electrical Requirements
What’s In The Boxes?
Screw Pack Contents
Plumbing Requirements
Schematics
Starting The Installation
Electric Box Connections
Steam Generator Connections
Sealing and Water Testing
Control Panel Instructions
Help Book Information
Parts lists
3
5
6
7
9
10
11
23
25
26
27
30
31

www.insigniarange.com Last Modied: 13/09/2017
03
Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that
will last for many years to come!
Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of
your finish.
OUR BADGE RATING IN TERMS OF DIFFICULTY OF ASSEMBLY IS BASED ON CLIENT FEEDBACK
1 Badge = Very easy
2 Badges = Easy
3 Badges = Moderate
4 Badges = Harder than average
5 Badges = Professional skills required
This shower is rated 3 Badges

www.insigniarange.com Last Modied: 13/09/2017
04
ASSEMBLY AND PLUMBING
THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILL AND FEELS CONFIDENT IN
THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLE, READ THROUGH THE FOLLOWING
PAGES IN DETAIL THEN DECIDE. IF YOU HAVE ANY DOUBT USE THE SERVICES OF A PROFESSIONAL. IN PICKING SUCH, ALLOW THEM TO DECIDE IF
THEY ARE CAPABLE OF BUILD BY FIRST SHOWING THESE INSTRUCTIONS TO THEM. ALWAYS GET THREE QUOTES.
REMEMBER THE BEST IS NOT ALWAYS THE CHEAPEST!
REMEMBER PLUMBERS PLUMB! 90% OF THIS JOB IS NOT PLUMBING!
DUE TO THE NATURE OF THIS PRODUCT WE HIGHLY ADVISE THE PURCHASE AND FITTING OF A WATER SOFTENER
(PLEASE NOTE LIMESCALE BUILD UP MAY CAUSE DAMAGE TO YOUR SHOWER AND WILL NOT BE COVERED UNDER WARRANTY)
ELECTRICAL CONNECTION TO HOUSE MAINS
WHEN YOUR ITEM IS ASSEMBLED ALWAYS USE THE SERVICES OF A FULLY QUALIFIED ELECTRICAN COMPANY TO COMPLETE THE CONNECTION FROM
SHOWER TO THE HOUSE SUPPLY. LAWS DEMAND IN MANY CASES YOU DO THIS AND YOUR WARRANTY IS VOID IN REGARDS TO THE ELECTRICAL
ITEMS IF THIS IS NOT UNDERTAKEN.
YOURS AND OTHERS SAFETY IS PARAMOUNT. NEVER ATTEMPT THIS YOURSELF!
REMEMBER:
These showers are designed to be free standing and movable from their location should you have the need to replace anything. ALWAYS USE Flexible braided water
inlet pipes (not supplied) at least a metre long (not central heating plastic type!)
Always use a flexible waste pipe from your house supply to the shower .
NEVER FIX with rigid pipes, NEVER FIX the unit to the wall.
DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE.
If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the
RubberGum to fail and will not adhere as intended.
ATTENTION
ALWAYS FIT EASY TO GET TO ISOLATION TAPS ON BOTH THE HOT AND COLD WATER SUPPLY (NOT SUPPLIED). JUST LIKE A
DISHWASHER OR WASHING MACHINE, THIS PRODUCT MUST BE ISOLATED WHEN NOT IN USE.
FLEXIBLE SUPPLY HOSES (NOT SUPPLIED) COUPLE HERE AS ORIGIN OF SUPPLY

www.insigniarange.com Last Modied: 13/09/2017
05
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!!
Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way
due to continued additions to current regulations. As at October 2010 we offered two methods.
1) Connect within current laws and IP directives using plug and RCD provided with steam version or supply one for non steam version
2) (Preferred) Wire into isolated fused feed connecting directly to the house consumer/service box. Remove the fitted plug and ensure the
Consumer unit has capabilities to replace RCD feature if RCD is removed.
Always use protection against electrical surge. Your shower should be treated the same as a home computer. A surge protector should
eradicate the possibility of either the transformer or computer control being burnt out. Please note earth is required and found on chassis of
shower tray. A further earth is required from Steam Generator unit. Each earth must ground through power supply line.
TOTAL ELECTRICAL REQUIREMENTS
Voltage Rating 220 -240AC
Frequency Rating 50HZ
Power Rating 2.8KW
Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation.

www.insigniarange.com Last Modied: 13/09/2017
06
Tool Requirements
None Supplied
Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill
Adhesive Requirements
Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints)
Not Supplied Supplied Not Supplied
Hardware Requirements
A Steam Shower requires 3 x 1 Metre Braided Hose
Not Supplied
Safety Gloves Safety Glasses
PREVENT INJURIES!
This product may contain sharp edges. Assemble using gloves.
Use safety glasses when handling glass or drilling.

www.insigniarange.com Last Modied: 13/09/2017
07
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice
is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word
“DRY RUN” this means you do not silicone anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the
unit apart and carry out the final fix.
Tray Box
1x Tray
1x Roof
2x Curved Rails
2x Fitting boxes
Glass Room
2x Door seals
2x Glass doors
2x fixed glass
Column
1x Complete Column
Uprights
Backwalls
1x Left Panel Backwall
1x Right Panel Backwall
In addition to above you will have all the required internal accessories to complete the shower
What’s in the Boxes
VERY IMPORTANT
Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been
checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48
hours after delivery) and always BEFORE build.

www.insigniarange.com Last Modied: 13/09/2017
08
Insignia Screw Pack
Product Code Descripon Quanty
SP097 Door Handle 1
SP137
SP137A
Twin Door Wheels Push Buon
Twin Door Wheels
2
2
ST10 10mm Screws 10
ST12 12mm Screws 10
ST16 16mm Screws 16
ST18 18mm Screws 2
ST20 20mm Screws 12
ST35 (3.5) 35mm Screws (with a 3.5mm thread) 8
SW9 Small Washers 34
DB9 Drill Piece 1
Note: In some cases you may have more screws than needed, this is done so you have spares!

www.insigniarange.com Last Modied: 13/09/2017
09
Pressure Requirements from your house supply
We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type
installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because
all house plumbing layouts vary. This is a job for your installer/plumber. The end delivery however must fall within the scope above.
Important Note Do not exceed 3.4 BAR pressure under any circumstances. Warranty is void if so as damage will occur. If you have a combi supply, please use a pressure
reducing valve if required to lower the BAR pressure to the shower.
Please Remember that this product is free standing and is designed to be pulled away from the wall.
The waste hose must be of a flexible type (1m flexible waste supplied).
The water supply pipes need to be at least 1 metre in length and must be that of a flexible braided type (not supplied).
DO NOT OVERTIGHTEN THE BRAIDED HOSES AS IT CAN CAUSE THE CONNECTION TO POP AFTER A FEW WEEKS OF USE

www.insigniarange.com Last Modied: 13/09/2017
10

www.insigniarange.com Last Modied: 13/09/2017
11
TO START
Make sure you have a clear space, remember when finished and in place you need access to check your build and able to pull the shower out for servicing or should you
have the need to replace anything!

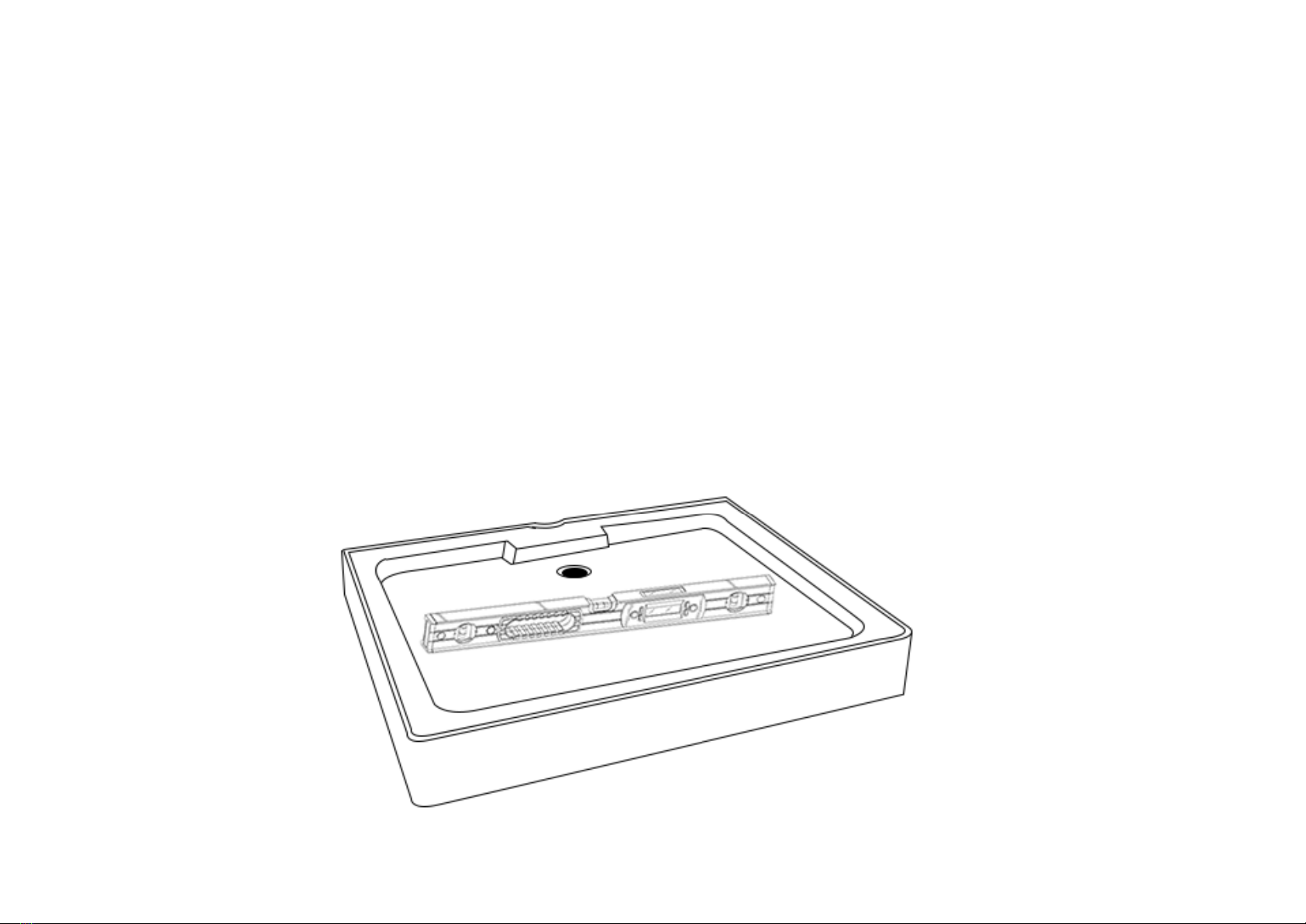

Take the shower tub and remove all the protective wrapping and fit the waste. In the side of the waste supplied in the optional fitting kit you will notice a spigot not seen on
an ordinary waste. In most cases this is blanked yet should you have a steam version you need to gently drill this out as this item is for the steam generator drainage and will
be connected in the instructions later.
Now please level the tray by firstly placing the tray in its final location and then using a spirit level, adjust the tray feet accordingly. Once you are happy with the levelling of
the tray, you can pull it out to begin the main construction.

www.insigniarange.com Last Modied: 13/09/2017
12
Step 1
Apply Rubbergum under the left hand glass panel and place in position on the tray and whilst
holding in this position silicone the bottom and align the back left glass panel in the position
numbered 1 on the adjacent picture and walk around into position 2 to click the panel in it’s final
position. Use the SW9 washers and ST12 screws to connect the backwalls to the side glass panels.
1
2
Step 2
Repeat step 1 on the right hand side of the tray

www.insigniarange.com Last Modied: 13/09/2017
13

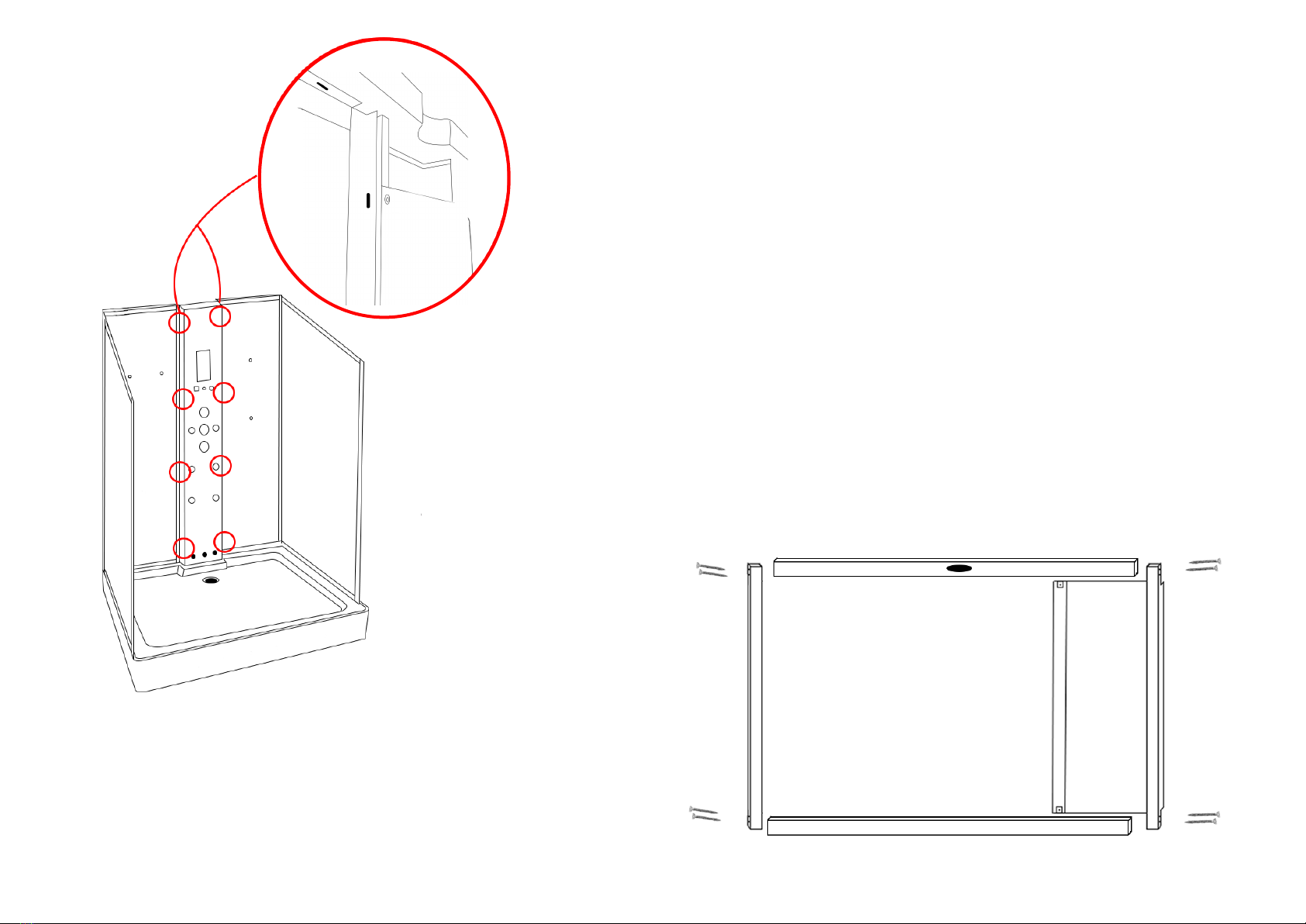

Step 3
Now silicone the column either side and at the bottom and place the column in
between the two rear glass panels and screw in position using the ST20 screws
(please note, if your column has a rubber seal at the bottom , take the rubber off
and apply silicone inside the rubber and replace)
Step 4
Attach both uprights to your top and bottom
rails using the ST35 screws

www.insigniarange.com Last Modied: 13/09/2017
14

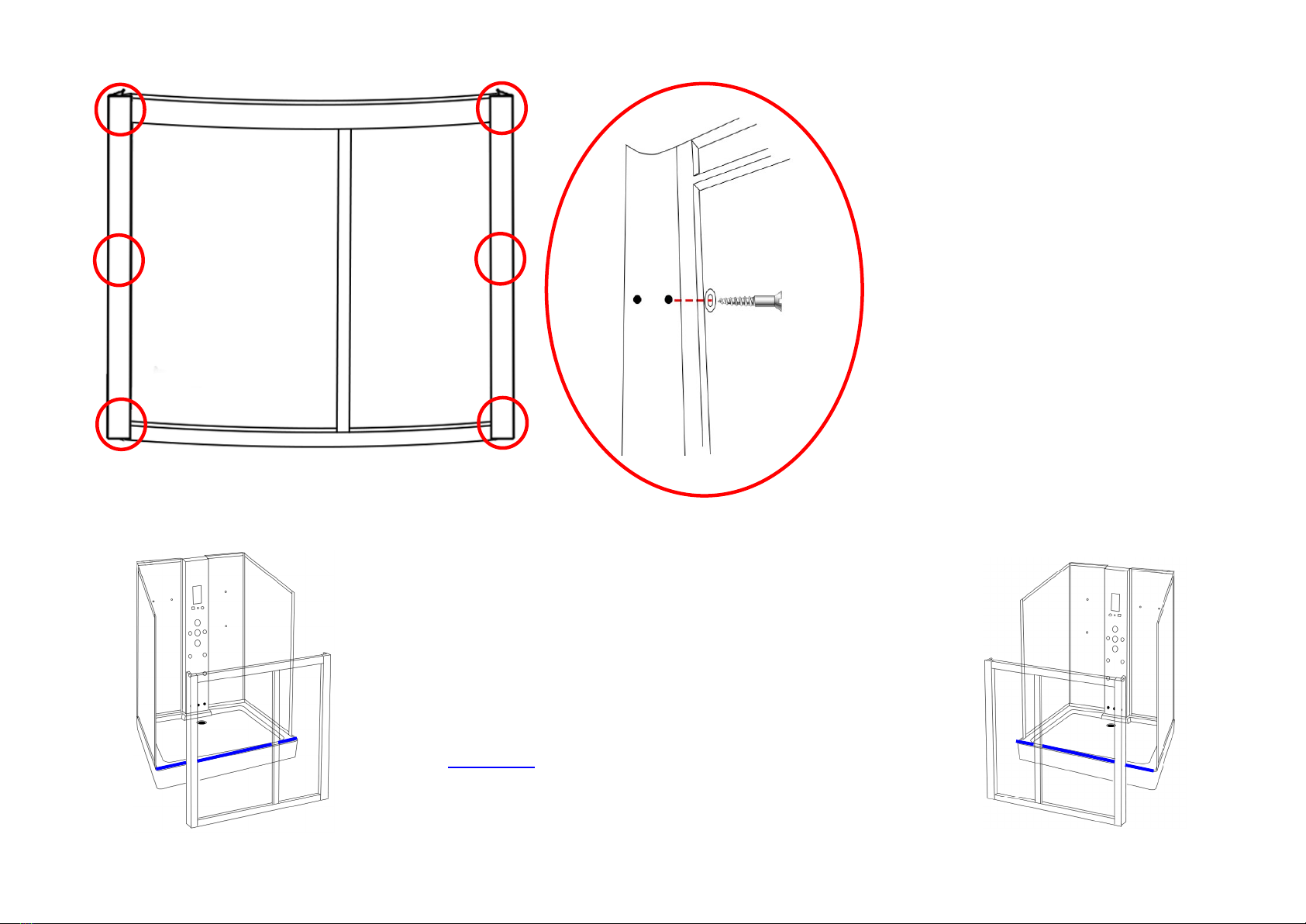

Step 5
Now using the ST16 screws, screw in position as indicated by the image
Step 6
Now use the corner uprights and place into position on either side of the frame as
indicated by the image on the right

www.insigniarange.com Last Modied: 13/09/2017
15
Step 7
Now using the ST16 screws and screw in
position as indicated by the image
AB
Step 8
Meet the frame to the side panels as per the hand opening of your
choice ( Note: If the insignia logo is at the bottom simply peel it off and
place on the top rail)
Rubbergum under the frame before securing into position

www.insigniarange.com Last Modied: 13/09/2017
16
Step10
Now using the ST16 screws and screw in position as indicated by the image.

www.insigniarange.com Last Modied: 13/09/2017
17

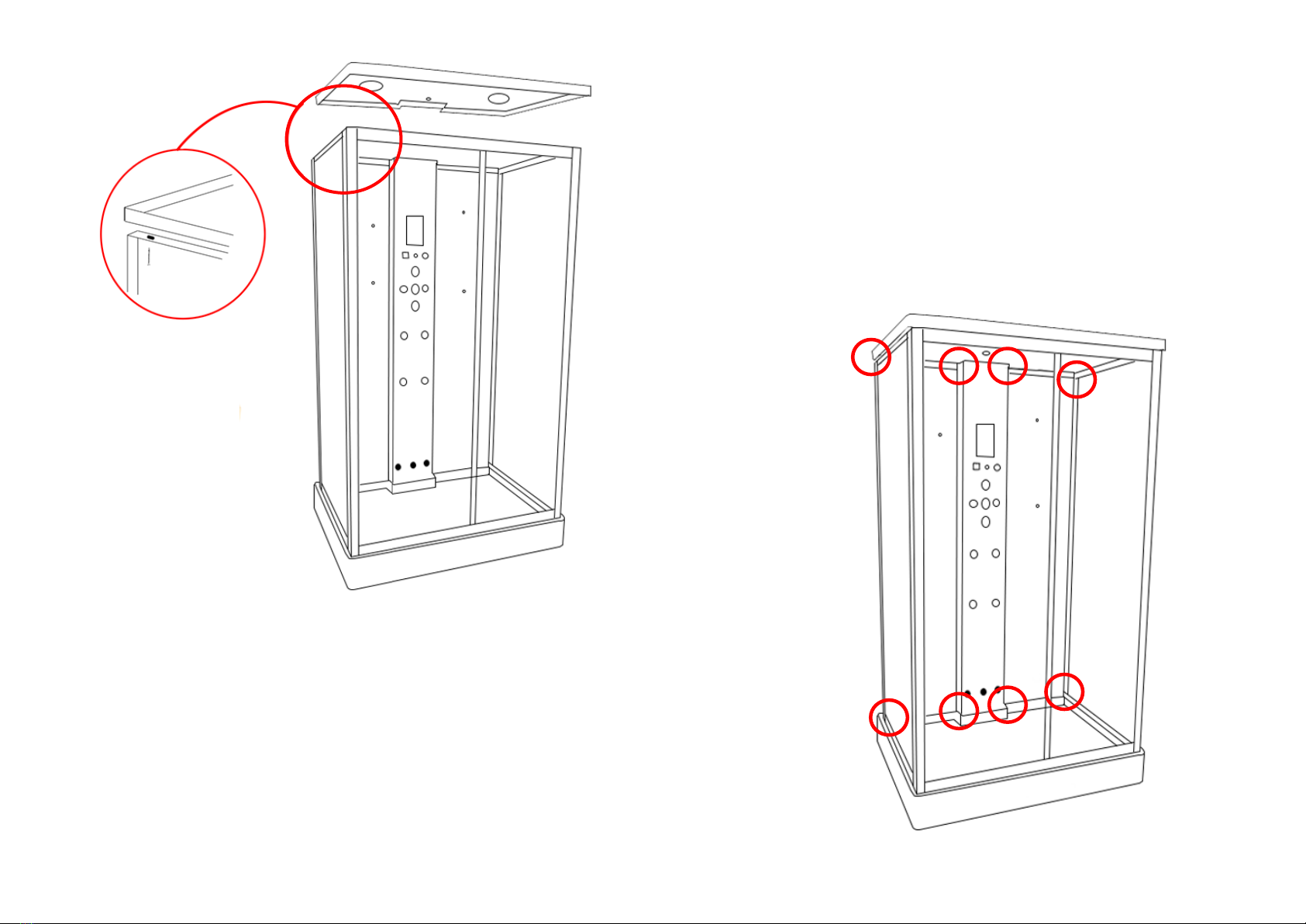

Step 11
Screw down the roof to the back and side panels as well as the back walls to the shower tray
using ST25 screws from the rear of the shower.

www.insigniarange.com Last Modied: 13/09/2017
18
Roof Lights
The roof lights come packed in with your accessories and need to be inserted on site. On
top of the roof there are 24 nuts, which simply need tightening by hand. Once this is done,
the lights simply push onto the fitting. Start on one side with the light closest to the middle as
shown below. Follow the lights around and finish back where you started so you can
compete the circuit.
Please Note: When connecting the roof LED lights to the electric box, only the male
connection is needed, leaving the female connection hidden away under the roof cover.
2.Tighten Nuts
1.Insert Lights

www.insigniarange.com Last Modied: 13/09/2017
19

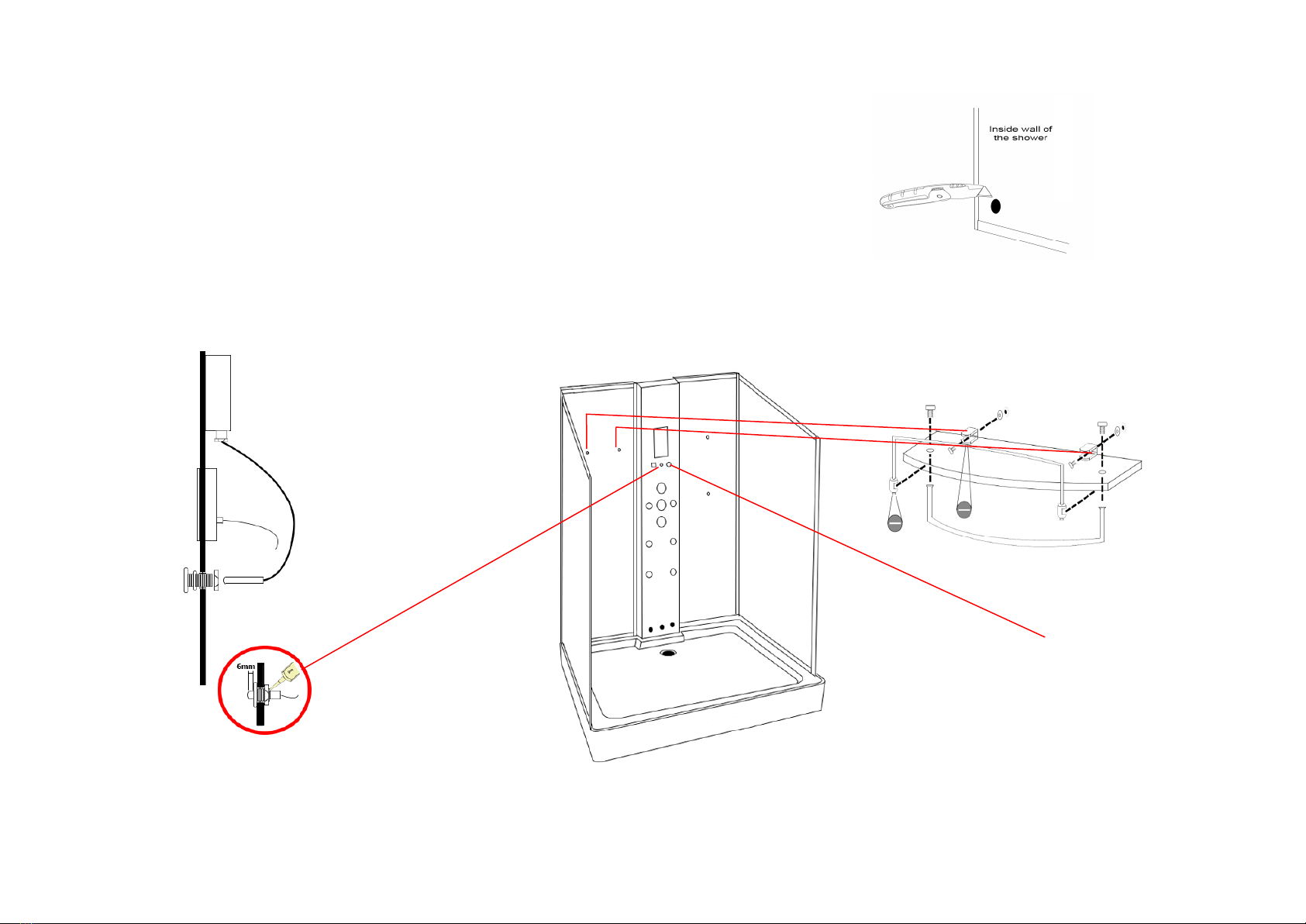

Shelf
Fix the chrome floating shelf brackets to your glass back panel by using the provided screws. Now attach the chrome tubed bars to your glass shelf as illustrated in the
below image. Next slide the shelf into your shelf brackets and secure by tightening the grub screw situated on the bottom of the bracket.
Accessory Installation
Please Note
Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes
with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using
a screwdriver on the smaller holes.
Thermostatic Probe
Insert the chrome sleeve into the hole situated below the control panel and secure in
place with the retaining nut. Insert the rubber grommet into the sleeve and push the
probe through from the rear of the cabin ensuring the probe protrudes no more than
6mm. Place a small amount of silicone behind to fully secure in to place.
Please see your AMI system installaon guide for further details

www.insigniarange.com Last Modied: 13/09/2017
20
Ozone (o3)
Unscrew the chrome pepper pot end and drop the white box
upside down into the rear hole as shown in the image. Now
from the inside of the shower re-attach the chrome pepper
pot end and tighten.
Monsoon Head
Attach the grey hose from your valve to the inner black tube
using PTFE tape (please note this only needs to be hand
tight. Over tightening will snap/damage the inner black
tube)
Hand Shower
Attach the chrome riser bar to the
glass wall ensuring the water inlet is
inserted through the lower large hole
and hand tightened from the rear
side.
Now tighten the chrome shower
holder ensuring that this will take the
hand shower itself without falling
(please note over tightening will pre-
vent the holder from sliding up and
down)
