Insignia GT8720 User manual

www.insigniarange.com Last Modied: 07/10/2015
INSTALLATION MANUAL
GT8720
ATTENTION INSTALLERS:
These instrucons must be
le with the customer
30 Day Technical Support: 01908 226545
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier’s details and your postcode to hand before calling)
Replacements Parts: inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts: outside of your warranty
contact 0844 800 3069
www.insigniarange.co.uk
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this me period.

www.insigniarange.com Last Modied: 07/10/2015
02
Contents
Introduction
Electrical Requirements
What’s In The Boxes?
Screw Pack Contents
Plumbing Requirements
Starting The Installation
Electric Box Connections
Sealing and Water Testing

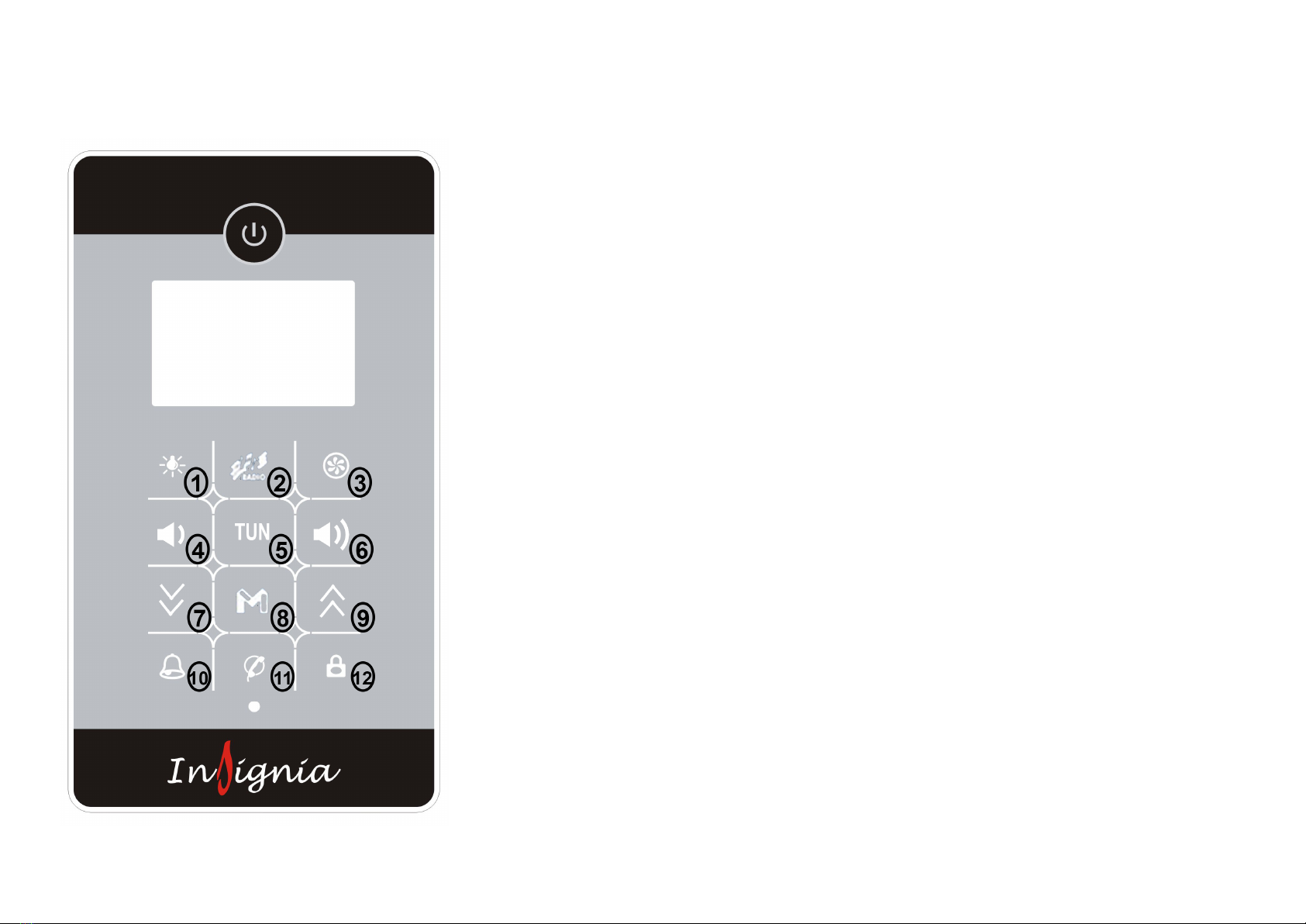

MK117 Control Panel Instructions
Help Book Information
Parts List
3
5
6
7
8
9
16
18
19
20
21

www.insigniarange.com Last Modied: 07/10/2015
03
Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that
will last for many years to come!
Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of
your finish.
OUR BADGE RATING IN TERMS OF DIFFICULTY OF ASSEMBLY IS BASED ON CLIENT FEEDBACK
1 Badge = Very easy
2 Badges = Easy
3 Badges = Moderate
4 Badges = Harder than average
5 Badges = Professional skills required
This shower is rated 3 Badges

www.insigniarange.com Last Modied: 07/10/2015
04
ASSEMBLY AND SIMPLE PLUMBING
THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILLS AND FEELS CONFIDENT IN
THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLY READ THROUGH THE FOLLOWING
PAGES IN DETAIL THEN DECIDE. IF YOU HAVE ANY DOUBT USE THE SERVICES OF A PROFESSIONAL. IN PICKING SUCH, ALLOW THEM TO DECIDE IF
THEY ARE CAPABLE OF BUILD BY FIRST SHOWING THESE INSTRUCTIONS TO THEM. ALWAYS GET THREE QUOTES.
REMEMBER THE BEST IS NOT ALWAYS THE CHEAPEST!
REMEMBER PLUMBERS PLUMB! 90% OF THIS JOB IS NOT PLUMBING!
DUE TO THE NATURE OF THIS PRODUCT WE HIGHLY ADVISE THE PURCHASE AND FITTING OF A WATER SOFTENER
ELECTRICAL CONNECTION TO HOUSE MAINS
WHEN YOUR ITEM IS ASSEMBLED ALWAYS USE THE SERVICES OF A FULLY QUALIFIED ELECTRICAL COMPANY TO COMPLETE CONNECTION FROM
SHOWER TO HOUSE SUPPLY. LAWS DEMAND IN MANY CASES YOU DO THIS AND YOUR WARRANTY IS VOID REGARDS ELECTRICAL ITEMS IF THIS IS NOT
UNDERTAKEN.
YOURS AND OTHERS SAFETY IS PARAMOUNT. NEVER ATTEMPT THIS YOURSELF.
REMEMBER:
These showers are designed to be free standing and movable from their location should you have need to replace anything. ALWAYS USE Flexible braided water inlet
pipes at least a metre long (not central heating plastic type! )
from house supply to the shower and again flexible waste pipe to join to your house waste. NEVER fix with rigid pipes, never fix the unit to the wall.
DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE.
ATTENTION
ALWAYS FIT EASY TO GET TO TAPS ON BOTH HOT AND COLD WATER SUPPLY. AS A DISHWASHER OR WASHING MACHINE, THIS
PRODUCT MUST BE ISOLATED WHEN NOT IN USE. FLEXI SUPPLY HOSES (SUPPLIED) COUPLE HERE AS ORIGIN OF SUPPLY

www.insigniarange.com Last Modied: 07/10/2015
05
YOU WILL NEED
TOTAL ELECTRICAL REQUIREMENTS
Voltage Rating 220 -240AC
Frequency Rating 50HZ
Power Rating 12V AC-DC
Internal Circuit Voltage is 12V
Internal Current Rating 0.17A
Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation.
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!!
Note for electrician. This product comes with 13 amp fitted plug. We leave it this way for you to connect this your own way due to continued additions to current regula-
tions. As at October 2010 we offered two methods.
1) Connect within current laws and IP directives using plug.
2) (Preferred) Wire into isolated fused feed connecting directly to the house consumer/service box.
Always use protection against electrical surge. Your shower should be treated the same as a home computer. A surge protector should eradicate the possibility of either
the transformer or computer control being burnt out. Please note: earth is required and found on chassis of shower tray. Each earth must ground through power supply line.
Requirements
Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill

www.insigniarange.com Last Modied: 07/10/2015
06
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice
is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word
“DRY RUN” this means you do not silicone anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the
unit apart and carry out the final fix.
What’s In The Boxes?
Tray Box
1x Tray
1x Roof
2x Curved Rails
1 x AC-DC 12V Adapter
Glass Room
2x Door seals
2x Glass doors
2x fixed glass
Column
1x Complete Column
Backwalls
1x Left Panel Backwall
1x Right Panel Backwall
In addition to above you will have all the required internal accessories to complete the shower

www.insigniarange.com Last Modied: 07/10/2015
07
Insignia Screw Pack
VERY IMPORTANT
Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been
checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48
hours after delivery) and always BEFORE build.
Product Code Descripon Quanty
SP097 Door Handles 2
SP043 Chrome Door Wheels 8
ST20 20mm Screws 20
ST35 35mm Screws 10
ST14 14mm Screws 6
ST25 25mm Screws 10
SW9 Small Washers 20
DB9 Drill Piece 1
Note: In some cases you may have more screws than needed, this is done so you have spares!

www.insigniarange.com Last Modied: 07/10/2015
08
Pressure Requirements from your house supply
We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type
installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because
all house plumbing layouts vary. This is a job for your installer/plumber. The end delivery however must fall within the scope above.
Debit Requirements
You will need the debit capabilities of at least 10 litres per minute. Again an average combi boiler will supply this but please check if you have a gravity feed system.
Important Note Do not exceed 3.4 BAR pressure under any circumstances. Warranty is void if so as damage will occur. If you have a combi supply, please use a pressure
reducing valve if required to lower the BAR pressure to the shower.
Please Remember that this product is free standing and is designed to be pulled away from the wall. The water supply and waste require flexible pipes. If you purchased the
fitting kit with this shower you will have the required fittings. The water supply pipes need to be at least 1 metre in length and must be that of a flexi braided type..
DO NOT OVERTIGHTEN IT CAN CAUSE THE CONNECTION TO POP AFTER A FEW WEEKS OF USE
Please note if a shower pump is used via gravity system we recommend a separate cold feed bypassing pump direct to generator to avoid damage to the
generator.
Further to this as you would with a washing machine or dishwasher, it is highly recommended that accessible water valve taps are installed to turn off the shower when not
In use. This will avoid any possible flooding due to a burst pipe or connection failure in the future.

www.insigniarange.com Last Modied: 07/10/2015
09
TO START
Make sure you have a clear space, remember when finished and in place you need access to check your build and
able to pull the shower out for servicing or should you have the need to replace anything!
Take the shower tray and remove all the protective wrapping and fit the waste. If you purchased the fitting kit it is
possible this may have already been fitted in the tray hole yet please note this is only for transportation reasons
therefore you will still need to ensure the correct sealing and alignment is carried out. In the side of the waste
supplied in the optional fitting kit you will notice a spigot not seen on an ordinary waste. In most cases this is blanked
yet should you have a steam version you need to gently drill this out as this item is for the steam generator drainage
and will be connected in the instructions later.
Now please level the tray by firstly placing the tray in its final location and then using a spirit level, adjust the tray feet
accordingly. Once you are happy with the levelling of the tray, you can pull it out to begin the main construction.
Step 1

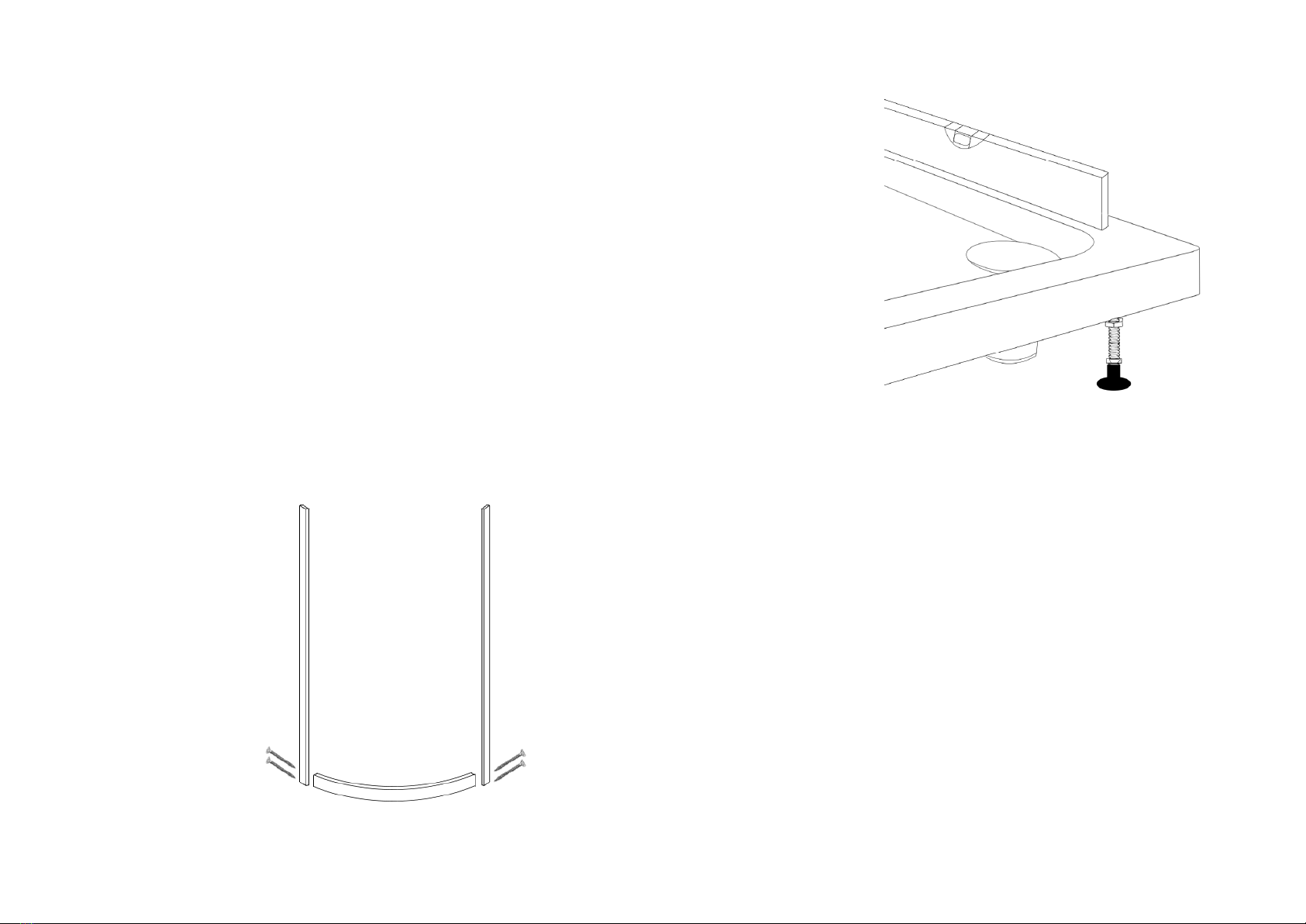

Attach the uprights to the bottom curved rail using the ST35 screws
(Thinner rail without Insignia logo on)

www.insigniarange.com Last Modied: 07/10/2015
10
Step 2

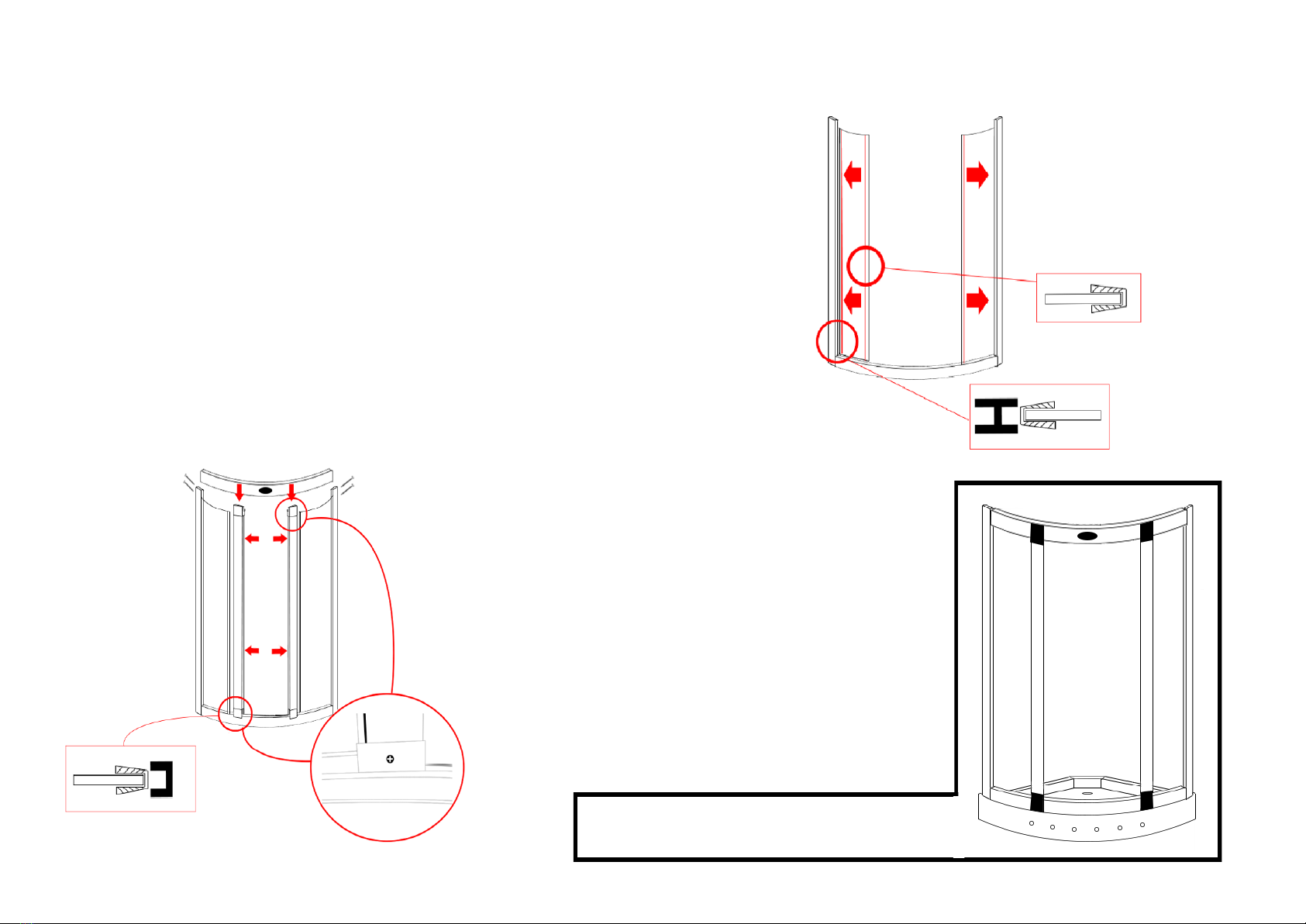

Push the “U Shape” glass seal onto the glass panel prior to insertion into the frames.
Please ensure the thin seal is on the entrance side of the panels with the thicker to
the rear side.
The next step is to attach both front fixed glass panels. In order to do this take the
glass panel and offer it up to the upright as shown by the arrows.
Step 3
The next step is to attach both front uprights and the top rail. In order to
do this insert the front uprights over the glass seal as push on tightly as
directed by the arrows in the image. Now attach the top rail (wide rail
with logo) and then screw into place using the ST35 screws
Now place your completed front frame on the front of
the shower tray as per the image on the right
Once the top rail is in place, secure the front uprights to the top
and bottom rails (from inside the cabin) using ST14 screws
Run a bead of silicone under the bottom curved

www.insigniarange.com Last Modied: 07/10/2015
11
Step 4
Apply silicone to the bottom of the remaining back panel and position the panel to the
completed front frame in the position shown in the image marked “1”
Once you have met the back panel inside the front upright as per the close up image
walk the panel around to the position shown in the image marked “2”
Now repeat for the other side
12
1
Step 5

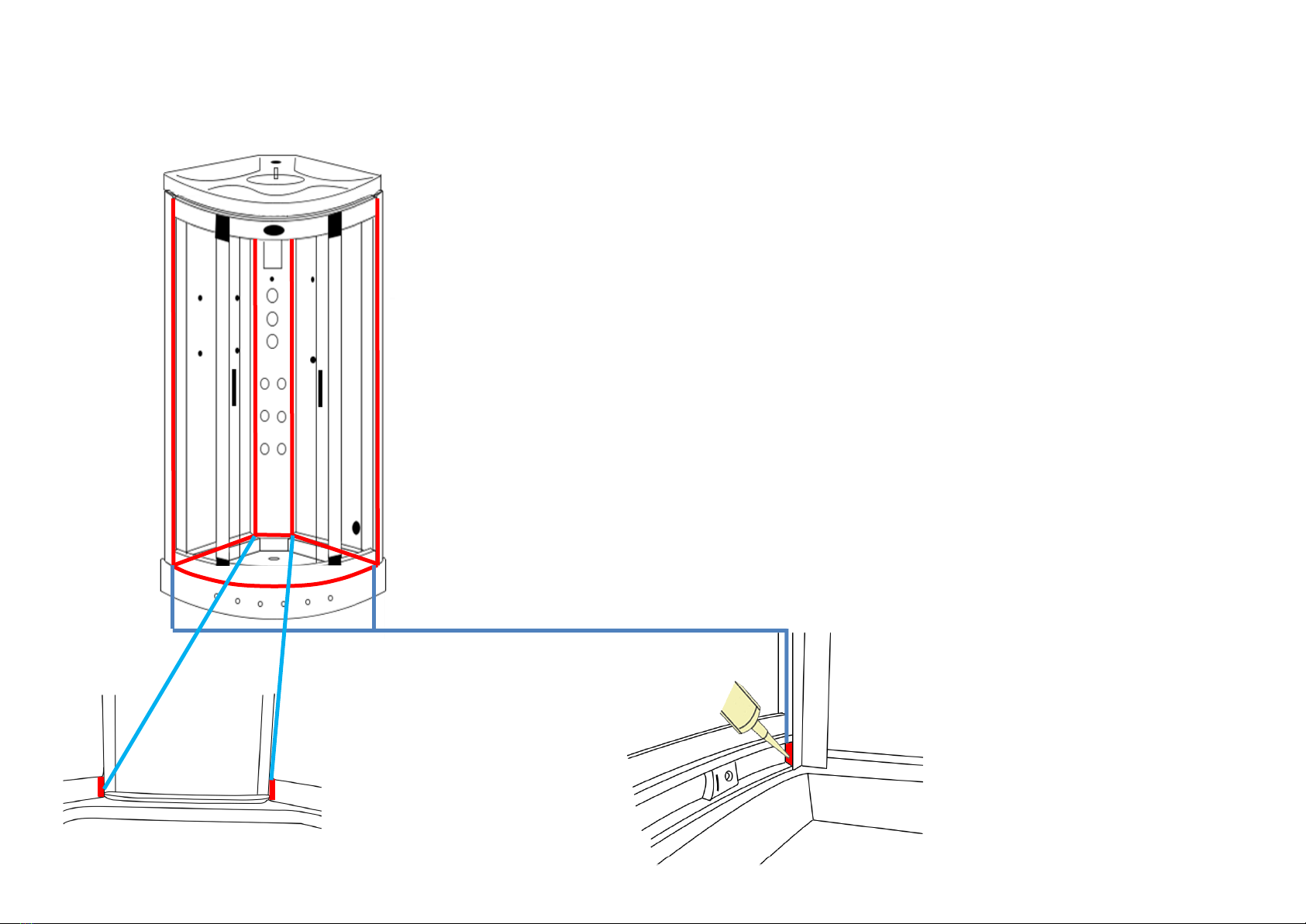

Now you have locked the two back panels in position, silicone the bottom
of the column and align the back panels to the central column. Once you
are happy with the alignment, run a bead of silicone up the edge of the
column and fix together using the ST20 screws and SW9 Washers as
per the image.
(please note, if your column has a rubber seal at the bottom , take the
rubber off and apply silicone inside the rubber and replace)

www.insigniarange.com Last Modied: 07/10/2015
12
Step 6

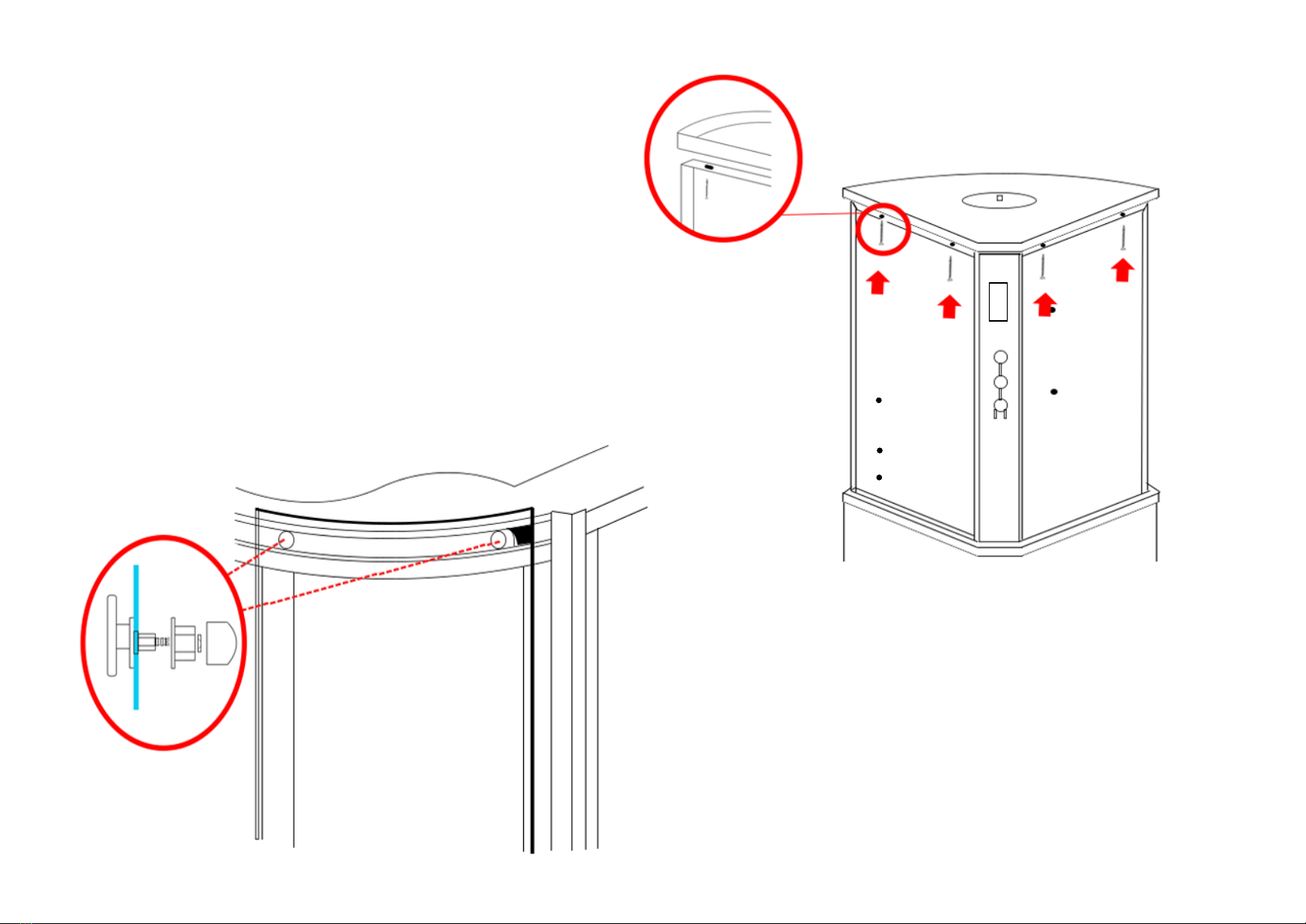

Align the roof with your shower walls and using the ST25 screws fix the back walls to
the roof by screwing upwards from the rear of the shower.
NOTE: If a small gap exists silicone seal later
Step 7
Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels
are at their lowest position and hang on the inner curved rails with the wheels facing the
outside of the glass.
Once all wheels are fitted and on the rails you can adjust the wheels by turning the plastic
bolt clockwise in which in turn will pull the wheels towards the track ensuring a secure a
tight fit.
Now grease the track to ensure a smooth and long lasting operation
(not supplied)

www.insigniarange.com Last Modied: 07/10/2015
13
x2
Shelf

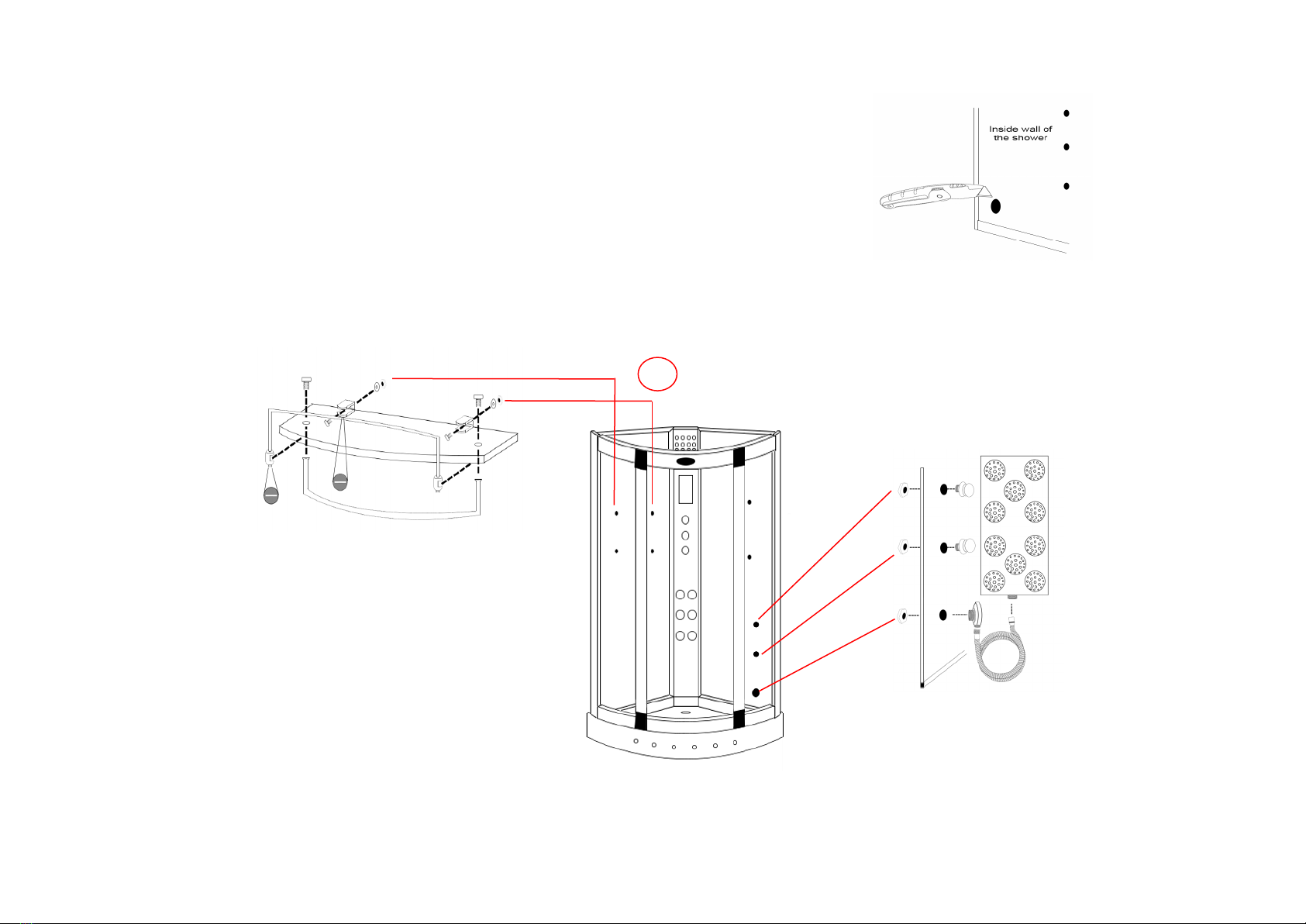

Fix the chrome floating shelf brackets to your glass back panel by using the provided screws. Now attach the chrome tubed bars to your glass shelf as illustrated in the
below image. Next slide the shelf into your shelf brackets and secure by tightening the grub screw situated on the bottom of the bracket.
Accessory Installation
Foot Massager
Fix the provided white plastic foot massage retaining knobs to your glass back panel along with your chrome water outlet as shown in the above image. To hang the foot
massager itself to the wall, push the massager onto the retaining knobs ensuring the holes on the underside of the foot massager are aligned.
Please Note
Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes
with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using
a screwdriver on the smaller holes.

www.insigniarange.com Last Modied: 07/10/2015
14
Hand Shower
Attach the chrome riser bar to the glass wall ensuring the water inlet is inserted
through the lower large hole and hand tightened from the rear side.
Now tighten the chrome shower holder ensuring that this will take the hand shower
itself without falling (please note over tightening will prevent the holder from sliding up
and down)
Thermostatic Probe
Insert the probe into the hole situated below the control panel roughly 6mm into the
cabin and run clear silicone around the rear side of the probe
Ozone (o3)
Unscrew the chrome pepper pot end and drop the white box upside down into the
rear hole as shown in the image. Now from the inside of the shower re-attach the
chrome pepper pot end and tighten.
Monsoon Head
Attach the grey hose from your valve to the inner black tube using PTFE tape
(please note this only needs to be hand tight. Over tightening will snap/damage the
inner black tube)
Handle
Ensuring that the inner thread is protruding out from the handle far enough, place
the handle on the outside of the door and secure by tightening the inner chrome
knob to the protruding inner thread.

www.insigniarange.com Last Modied: 07/10/2015
15
Door Seals
Magnetic Seal: Push the magnetic door seal on the handle side of the glass door ensuring this is
tightly fitted.
Rear Door Seal: Place the rear door seal on the opposite side to the magnetic strip ensuring the
Hot Water InletCold Water Inlet
This should be capped with a
brass cap.
Foot Massager
Body Jets
Hand Shower
Monsoon Shower
Shower Valve

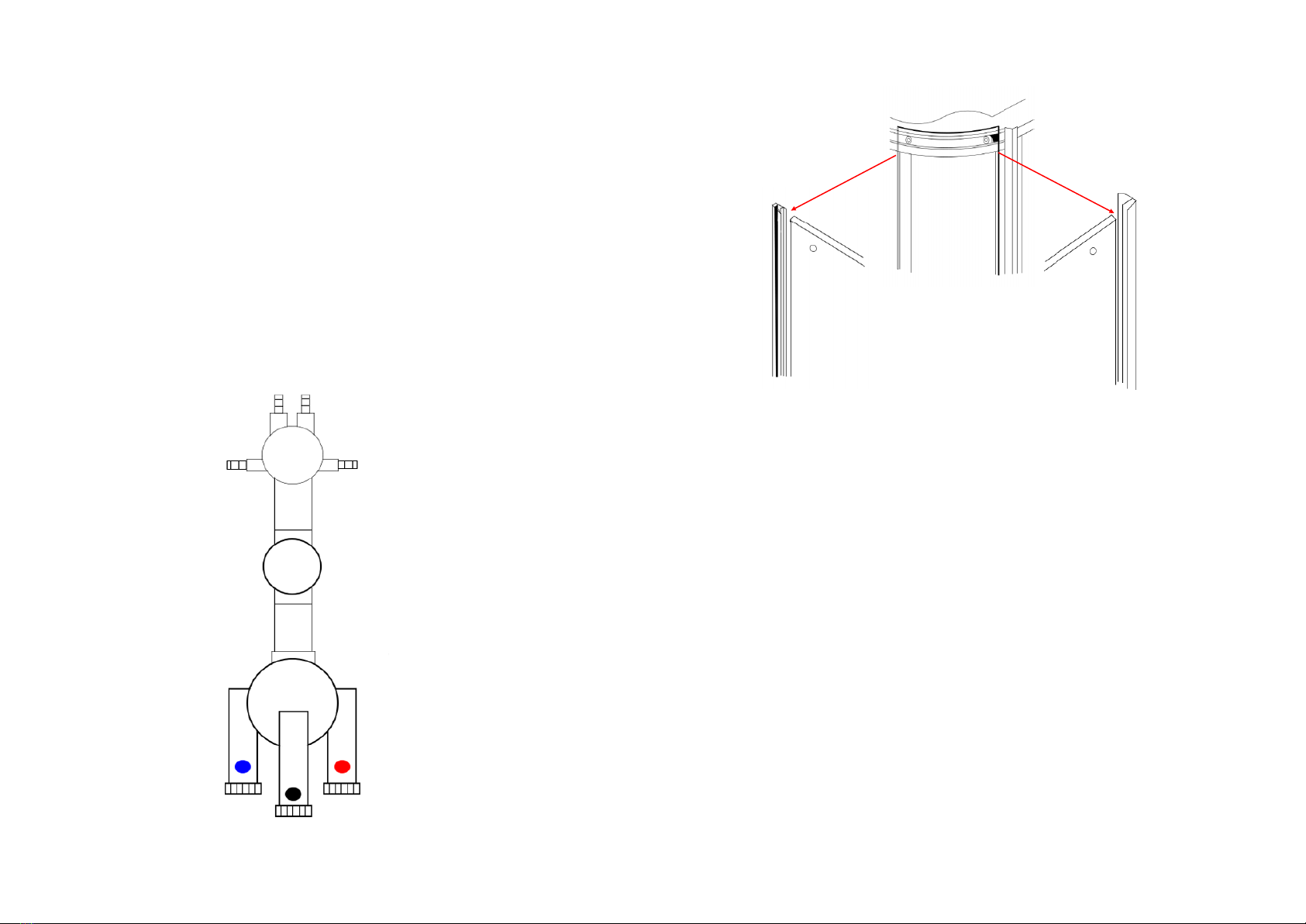

Connect the corresponding hoses to the rear of the valve as shown.
Device output may differ from the image. Please refer to your outer chrome faceplate in-
side your Insignia shower as a reference point.
IF YOUR DIAL DOES NOT CORROSPOND TO THE APPROPRIATE DEVICE:
Turn on your water to the shower and note which output the water exits from then turn off
the water and swap over the relevant hose.
Alternatively remove the outer chrome knob by removing the chrome cap and loosening
the grub screw (please ensure not to unscrew fully as this will drop within the chrome
knob) this is found on the opposite side to the chrome pillar. Once you have succeeded in
loosening this you can now slide your faceplate to correspond to the device.

www.insigniarange.com Last Modied: 07/10/2015
16
Electric Box Connections
Roof Light
Fan
Speaker
Antenna
Back Lights
RJ11 Phone Connection
12V power Supply
Connect the cables below to the corresponding devices on the shower

www.insigniarange.com Last Modied: 07/10/2015
17
Safety precautions
Never leave children unattended in the shower or bath.
Never bath children (under 12) using whirlpool function if fitted.
Regulate the temperature of water before showering
Never allow children to use the steam function. This function is for
ADULTS ONLY.
Always be aware of the steam outlet pod position. Never use in close proximity to
the person using it.
Never use this shower if you have been drinking alcohol.
Never use with more than one person unless the shower is designed for this.
This product is not to be used for washing/bathing animals
Connection For Tray & Column Lights
Using the supplied extension lead, please connect the end with the single connection to
your tray lights. Next bring the extension lead up the back of the shower and connect
one of the plugs to the column lights (essentially bridging the two sets of lights together)
Now with the remaining connection, connect this into the wire coming from the electric
box with the column light sticker on (as shown in the image)

www.insigniarange.com Last Modied: 07/10/2015
18
Silicone Seal where shown in red on the inside of the shower
TESTING FOR WATER LEAKS
LEAVING SHOWER 24 HOURS AFTER BUILD ALLOWING SEALENT TO CURE
With all connections tight, the waste and hoses checked, jets fully sealed, your shower still around 18 inches
from its designated final resting point and the silicone fully cured (hence leaving for 24 hours minimum)
Switch on the overhead shower NOT the massage jets, remember these will fire water out at you and are
not suitable for checking leaks as they would normally only operate when a person is in front of them. Just
use COLD water setting as hot will make cabin misty and condensate thus the inspection becomes very
difficult. Now on the OUTSIDE of the shower inspect each joint, factory seal, hose, clip and jet by walking
from one side and going around to the back and then to the other side finishing at the front. If you have a
small leak (normally caused through insufficient sealer or air bubble on assembly, dry the area thoroughly
and reseal on the OUTSIDE. Please remember where you see the water this may not be exactly where the
leak is as it could have run around to a low point. Never seal your inner fittings (accessories) inside unless
you feel it necessary and make sure it is thin and neat, remember you will see this for the life of the shower!
Again leave to cure and check. If all good now check shower functions i.e. jets for back massage,
foot massage, (if you have one) and finally hand shower, check your joints to these functions at the rear
again. Never use the shower until all checks have been made and the installer is 100% happy in the
knowledge no leaks are present.
All good?
Now push your shower FROM THE BASE NEVER GLASS OR FRAME into its final resting position.
Now you can shower in the knowledge that you have no leaks a job done well and long product life.
Happy showering!
Silicone the area highlighted in red
where the glass panel frame meets at
the bottom (next to the column)
Silicone fill the area highlighted in red at
the end of the bottom runner as
indicated in the image on the left.

www.insigniarange.com Last Modied: 07/10/2015
19
MK117L Control Panel Instructions
Buon 1 (Light Bulb)
Press 1x For Top Light
Press 2x For Column Light
Press 3x For All Lights
Press 4x To Switch O Lights
Buon 2 (Radio)
On/O
Buon 3 (Fan)
On/O
Buon 4 (Speaker)
Volume Down
Buon 5 (Radio)
Press once to acvate manual tune
Press and hold to acvate auto scan
Buon 6 (Speaker)
Volume Up
Buon 7 (Down Arrow)
Channel select down/manual search down
Buon 8 (M)
Access saved channels
Buon 9 (Up Arrow)
Channel select up/manual search up
Buon 10 (Alarm)
Acvate Alarm
Buon 11 (Telephone)
Answer telephone
Buon 12 (Lock)
The control panel will automacally lock when not in use for a
short me, hold this buon down for 3 seconds unl a beep is
heard and this will unlock and reacvate the control panel for
use
PLEASE NOTE:
(when in lock mode the display will have 2 ashing lines on the
display and the only buon that will work is the alarm)

www.insigniarange.com Last Modied: 07/10/2015
20
Need Help?
If so then simply download Insignia’s free comprehensive help and troubleshooting brochure now!
Simply visit: www.insigniarange.co.uk/help.aspx
