INSTALLATION MANUAL
INS9002R
ATTENTION INSTALLERS:
These instrucons must be
le with the customer
30 Day Technical Support: 01908 226545
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier’s details and your postcode to hand before calling)
Replacements Parts: inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts: outside of your warranty
contact 0844 800 3069
www.insigniarange.co.uk
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this me period.
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

www.insigniarange.com Last Modied: 25/07/2019
02
Contents
Introduction
Electrical Requirements
What’s In The Boxes?
Screw Pack Contents
Plumbing Requirements
Schematics
Starting The Installation
Electric Box Connections
Sealing and Water Testing
Control Panel Instructions
Help Book Information
Parts list
3
5
7
8
9
10
11
20
21
22
23
24

www.insigniarange.com Last Modied: 25/07/2019
03
Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that
will last for many years to come!
Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of
your finish.
OUR BADGE RATING IN TERMS OF DIFFICULTY OF ASSEMBLY IS BASED ON CLIENT FEEDBACK
1 Badge = Very easy
2 Badges = Easy
3 Badges = Moderate
4 Badges = Harder than average
5 Badges = Professional skills required
This shower is rated 3 Badges

www.insigniarange.com Last Modied: 25/07/2019
04
ASSEMBLY AND PLUMBING
THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILL AND FEELS CONFIDENT IN
THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLE, READ THROUGH THE FOLLOWING
PAGES IN DETAIL THEN DECIDE. IF YOU HAVE ANY DOUBT USE THE SERVICES OF A PROFESSIONAL. IN PICKING SUCH, ALLOW THEM TO DECIDE IF
THEY ARE CAPABLE OF BUILD BY FIRST SHOWING THESE INSTRUCTIONS TO THEM. ALWAYS GET THREE QUOTES.
REMEMBER THE BEST IS NOT ALWAYS THE CHEAPEST!
REMEMBER PLUMBERS PLUMB! 90% OF THIS JOB IS NOT PLUMBING!
DUE TO THE NATURE OF THIS PRODUCT WE HIGHLY ADVISE THE PURCHASE AND FITTING OF A WATER SOFTENER
(PLEASE NOTE LIMESCALE BUILD UP MAY CAUSE DAMAGE TO YOUR SHOWER AND WILL NOT BE COVERED UNDER WARRANTY)
ELECTRICAL CONNECTION TO HOUSE MAINS
WHEN YOUR ITEM IS ASSEMBLED ALWAYS USE THE SERVICES OF A FULLY QUALIFIED ELECTRICAN COMPANY TO COMPLETE THE CONNECTION FROM
SHOWER TO THE HOUSE SUPPLY. LAWS DEMAND IN MANY CASES YOU DO THIS AND YOUR WARRANTY IS VOID IN REGARDS TO THE ELECTRICAL
ITEMS IF THIS IS NOT UNDERTAKEN.
YOURS AND OTHERS SAFETY IS PARAMOUNT. NEVER ATTEMPT THIS YOURSELF!
REMEMBER:
These showers are designed to be free standing and movable from their location should you have the need to replace anything. ALWAYS USE Flexible braided water
inlet pipes (not supplied) at least a metre long (not central heating plastic type!)
Always use a flexible waste pipe from your house supply to the shower .
NEVER FIX with rigid pipes, NEVER FIX the unit to the wall.
DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE.
If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and
will not adhere as intended.
ATTENTION
ALWAYS FIT EASY TO GET TO ISOLATION TAPS ON BOTH THE HOT AND COLD WATER SUPPLY (NOT SUPPLIED). JUST LIKE A
DISHWASHER OR WASHING MACHINE, THIS PRODUCT MUST BE ISOLATED WHEN NOT IN USE.
FLEXIBLE SUPPLY HOSES (NOT SUPPLIED) COUPLE HERE AS ORIGIN OF SUPPLY

www.insigniarange.com Last Modied: 25/07/2019
05
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!!
Note for electrician. This product comes with 3 amp plug. We leave it this way for you to connect this your own way due to continued additions
to current regulations.
1) Connect within current laws and IP directives.
2) (Preferred) Wire into isolated fused feed connecting directly to the house consumer/service box.
Always use protection against electrical surge. Your shower should be treated the same as a home computer. A surge protector should
eradicate the possibility of either the transformer or control panel being burnt out.
TOTAL ELECTRICAL REQUIREMENTS
Voltage Rating 220 -240AC
Frequency Rating 50HZ
Power Rating 25W
Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation.

www.insigniarange.com Last Modied: 25/07/2019
06
Tool Requirements
None Supplied
Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill
Adhesive Requirements
Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints)
Not Supplied Supplied Not Supplied
Hardware Requirements
A Shower Cabin requires 2 x 1 Metre Braided Hose
Not Supplied
Safety Gloves Safety Glasses
PREVENT INJURIES!
This product may contain sharp edges. Assemble using gloves.
Use safety glasses when handling glass or drilling.

www.insigniarange.com Last Modied: 25/07/2019
07
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice
is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word
“DRY RUN” this means you do not silicone anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the
unit apart and carry out the final fix.
What’s In The Boxes?
Tray Box
1x Tray
1x Roof
2x Curved Rails
1 x AC-DC 12V Adapter
1 x Riser Bar
Glass Room
2x Door seals
2x Glass doors
2x fixed glass
Column
1x Complete Column
Backwalls
1x Left Panel Backwall
1x Right Panel Backwall
In addition to above you will have all the required internal accessories to complete the shower

www.insigniarange.com Last Modied: 25/07/2019
08
Insignia Screw Pack
VERY IMPORTANT
Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been
checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48
hours after delivery) and always BEFORE build.
Product Code Descripon Quanty
SP097 Door Handles 2
SP129 Door Wheels 8
ST20 20mm Screws 20
ST13 13mm Screws 6
ST35 35mm Screws 10
ST14 14mm Screws 6
ST25 25mm Screws 10
SW9 Small Washers 20
DB9 Drill Piece 1
PRC20 Glass Retaining clips 4
Note: In some cases you may have more screws than needed, this is done so you have spares!

www.insigniarange.com Last Modied: 25/07/2019
09
Pressure Requirements from your house supply
We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type
installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because
all house plumbing layouts vary. This is a job for your installer/plumber. The end delivery however must fall within the scope above.
Important Note Do not exceed 3.4 BAR pressure under any circumstances. Warranty is void if so as damage will occur. If you have a combi supply, please use a pressure
reducing valve if required to lower the BAR pressure to the shower.
Please Remember that this product is free standing and is designed to be pulled away from the wall.
The waste hose must be of a flexible type (1m flexible waste supplied).
The water supply pipes need to be at least 1 metre in length and must be that of a flexible braided type (not supplied).
DO NOT OVERTIGHTEN THE BRAIDED HOSES AS IT CAN CAUSE THE CONNECTION TO POP AFTER A FEW WEEKS OF USE

www.insigniarange.com Last Modied: 25/07/2019
10

www.insigniarange.com Last Modied: 25/07/2019
11

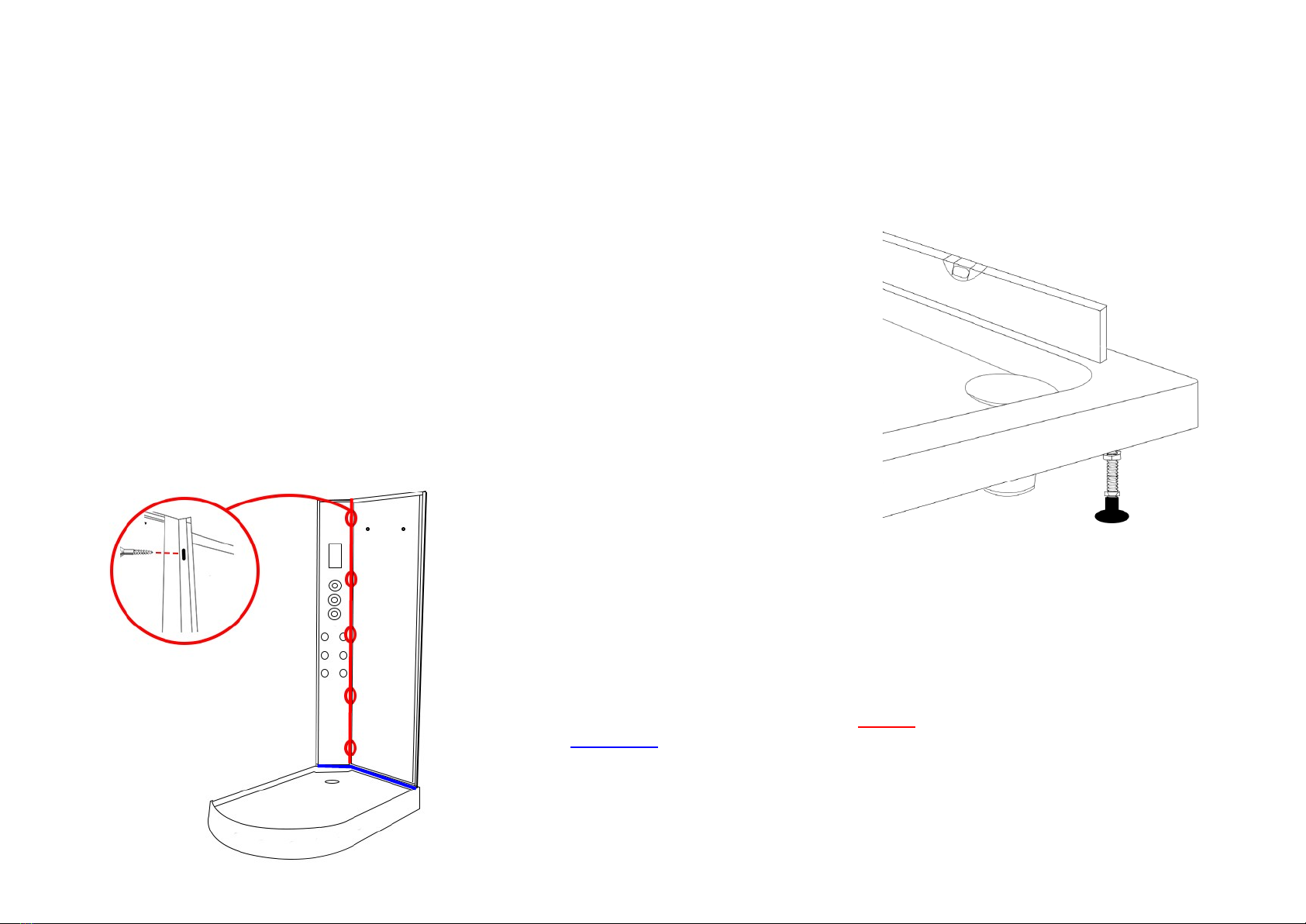

TO START
Make sure you have a clear space, remember when finished and in place you need access to check your
build and able to pull the shower out for servicing or should you have the need to replace anything!
Take the shower tub and remove all the protective wrapping and fit the waste. In the side of the waste
supplied in the optional fitting kit you will notice a spigot not seen on an ordinary waste. In most cases this
is blanked yet should you have a steam version you need to gently drill this out as this item is for the
steam generator drainage and will be connected in the instructions later.
Step 1
Attach the small hand back panel to the back column.
Once you are happy with the alignment, run a bead of silicone up
the edge and Rubbergum along the bottom of the panels and screw
together using the ST20
(please note, if your column has a rubber seal at the bottom , take the rubber
off and apply silicone inside the rubber and replace)
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a
trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the
build and you understand fully how the unit is assembled. When we use the word “DRY RUN” this means you do not silicone
anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the unit
apart and carry out the final fix.

www.insigniarange.com Last Modied: 25/07/2019
12
Step 2
Now attach the large back panel to the column.
Once you are happy with the alignment, run a bead of silicone
up the edge and Rubbergum along the bottom of the panels and
screw together using the ST20
Step 3
Front Fixed Uprights.
PLEASE NOTE:
The uprights have small grooves cut out, please see diagram. These
are designed to go at the bottom, connecting to the tray.
Please see next page for positioning on the tray!

www.insigniarange.com Last Modied: 25/07/2019
13
Step 3 (Continued)
The next step is to attach both front uprights to the curved rails using
the ST35 screws as shown in the picture to the left
PLEASE NOTE
The screw head needs to bypass the OUTER hole. If this does not
occur please bore out the outer hole only by about 2-4mm
Your front metal work should now look like this
Step 3 (Continued)
Please Note:
With the groove sitting on the tray, you need to
have the “U” shaped channel facing inwards to
allow the glass to be inserted correctly.

www.insigniarange.com Last Modied: 25/07/2019
14
Step 5
Next attach the “U shape” rubber glass seal to the outer edge of the
curved and the straight fixed glass panels and cut any excess of if
required.
Step 4
Now attach your front metal work to the fitted back panels.
Once you are happy with the alignment, run a bead of silicone
up the edge and Rubbergum along the bottom of the panels and
frame and screw together using the ST20

www.insigniarange.com Last Modied: 25/07/2019
15

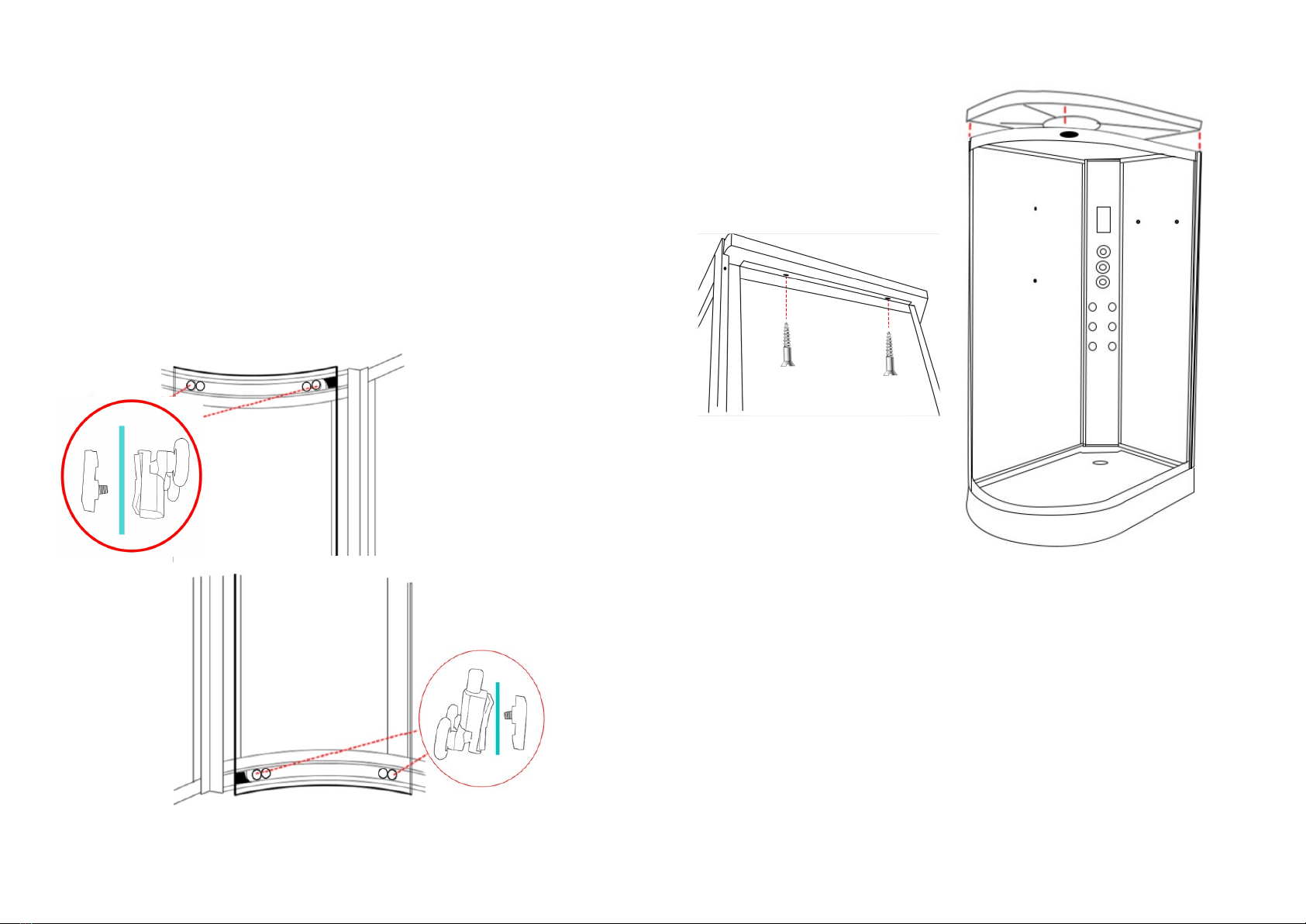

Step 7
Using the ST25 screws, ensure the back panels are square and you
are happy with the position of the panels then screw into place.
Step 6
With the frame now attached to the back panels, locate and fix the glass panels into
place by pushing them as per the arrows in the adjacent image Making
sure the edge of the glass with the rubber seal fits into the groove tightly.
Now screw the glass retaining clips into place using the ST14 screws
making sure the glass has a tight fit

www.insigniarange.com Last Modied: 25/07/2019
16

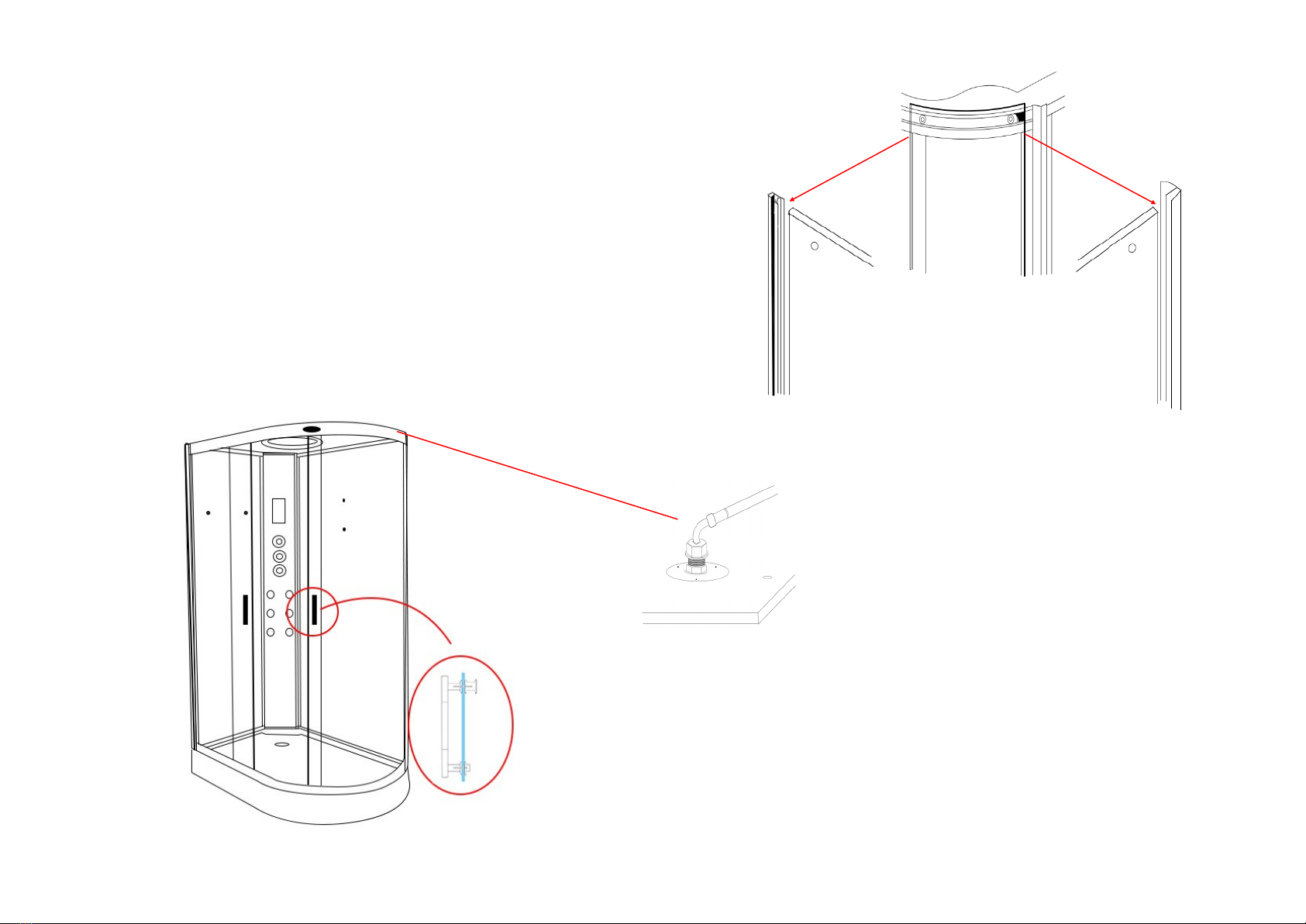

Step 8
Next locate the roof into position. Once you are happy with the positioning of
this, screw into place using the ST25 screws.
Step 9
Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels
are at their lowest position and hang on the inner curved rails with the wheels facing the
outside of the glass. Please note the push button wheels are for the bottom.
Once all wheels are fitted and on the rails, the wheels are adjusted by the metal screw
located on the underside of the TOP door wheels, which will pull the wheels towards the
track ensuring a secure tight fit.
Now grease the track to ensure a smooth and long lasting operation
(not supplied)

www.insigniarange.com Last Modied: 25/07/2019
17

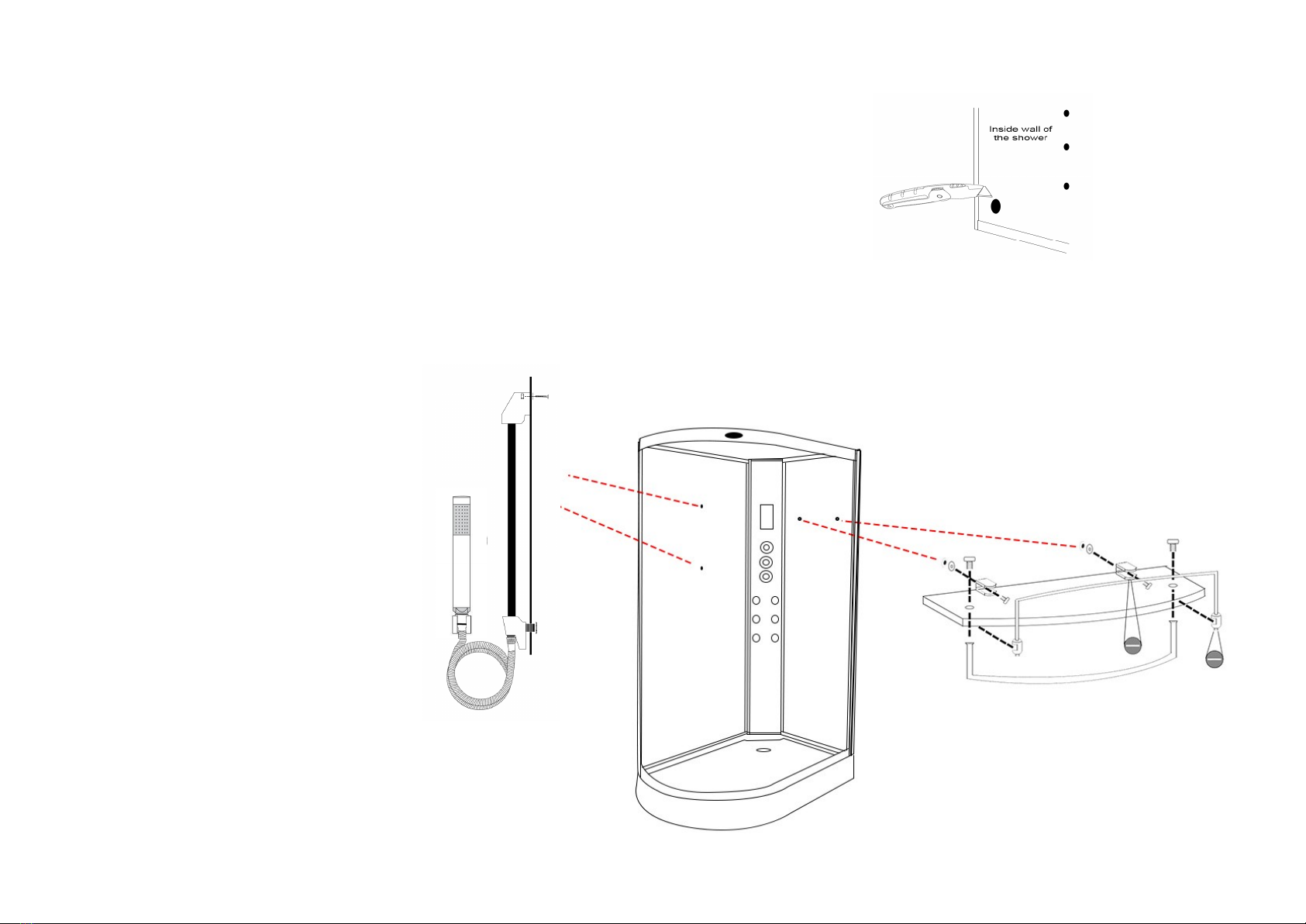

Shelf
Fix the chrome floating shelf brackets to your glass back panel by using the provided screws. Now attach the chrome tubed bars to your glass shelf as illustrated in the
below image. Next slide the shelf into your shelf brackets and secure by tightening the grub screw situated on the bottom of the bracket.
Accessory Installation
Please Note
Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes
with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using
a screwdriver on the smaller holes.
Riser Bar
1. Attach the chrome holder to the
back wall via the screw provided in
the pack.
2. Attach the chrome water outlet to
the back of the centre column, fixing
it from the rear with the plastic hex
nut.
3. Attach the chrome flexible hose to
the water outlet with via small
coupling end
4. Attach the other end (sleeved) to
the hand shower and place in to the
holder.
NOTE: If you attach the wrong end of the
hose to the hand shower it will not sit in
the holder.

www.insigniarange.com Last Modied: 25/07/2019
18
Door Seals
Magnetic Seal: Push the magnetic door seal on the handle side of the glass door ensuring
this is tightly fitted.
Rear Door Seal: Place the rear door seal on the opposite side to the magnetic strip ensuring
the flap is facing the fixed glass panel
Handle
Ensuring that the inner thread is protruding out from the handle far enough, place the handle
on the outside of the door and secure by tightening the inner chrome knob to the protruding
inner thread.
Monsoon Head
Attach the grey hose from your valve to the inner black tube using PTFE tape
(please note this only needs to be hand tight. Over tightening will snap/damage
the inner black tube)

www.insigniarange.com Last Modied: 25/07/2019
19
Shower Valve
Connect the corresponding hoses to the rear of the valve as shown.
Device output may differ from the image. Please refer to your outer chrome faceplate in-
side your Insignia shower as a reference point.
IF YOUR DIAL DOES NOT CORRESPOND TO THE APPROPRIATE DEVICE:
Turn on your water to the shower and note which output the water exits from then turn off
the water and swap over the relevant hose.
Alternatively remove the outer chrome knob by removing the chrome cap and loosening
the grub screw (please ensure not to unscrew fully as this will drop within the chrome
knob) this is found on the opposite side to the chrome pillar. Once you have succeeded in
loosening this you can now slide your faceplate to correspond to the device.
This should be capped with a
brass cap.
Monsoon Head
Body Jets Hand Shower
Cold Water Inlet Hot Water Inlet

www.insigniarange.com Last Modied: 25/07/2019
20
Electric Box Connections
Connect the cables below to the corresponding devices on the shower
Antenna
Speaker
Speaker
Roof Light
