INSTALLATION MANUAL
GT8721
ATTENTION INSTALLERS:
These instrucons must be
le with the customer
30 Day Technical Support: 01908 226545
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier’s details and your postcode to hand before calling)
Replacements Parts: inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts: outside of your warranty
contact 0844 800 3069
www.insigniarange.co.uk
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this me period.
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

www.insigniarange.com Last Modied: 13/06/2017
02
Contents
Introduction
Electrical Requirements
What’s In The Boxes?
Screw Pack Contents
Plumbing Requirements

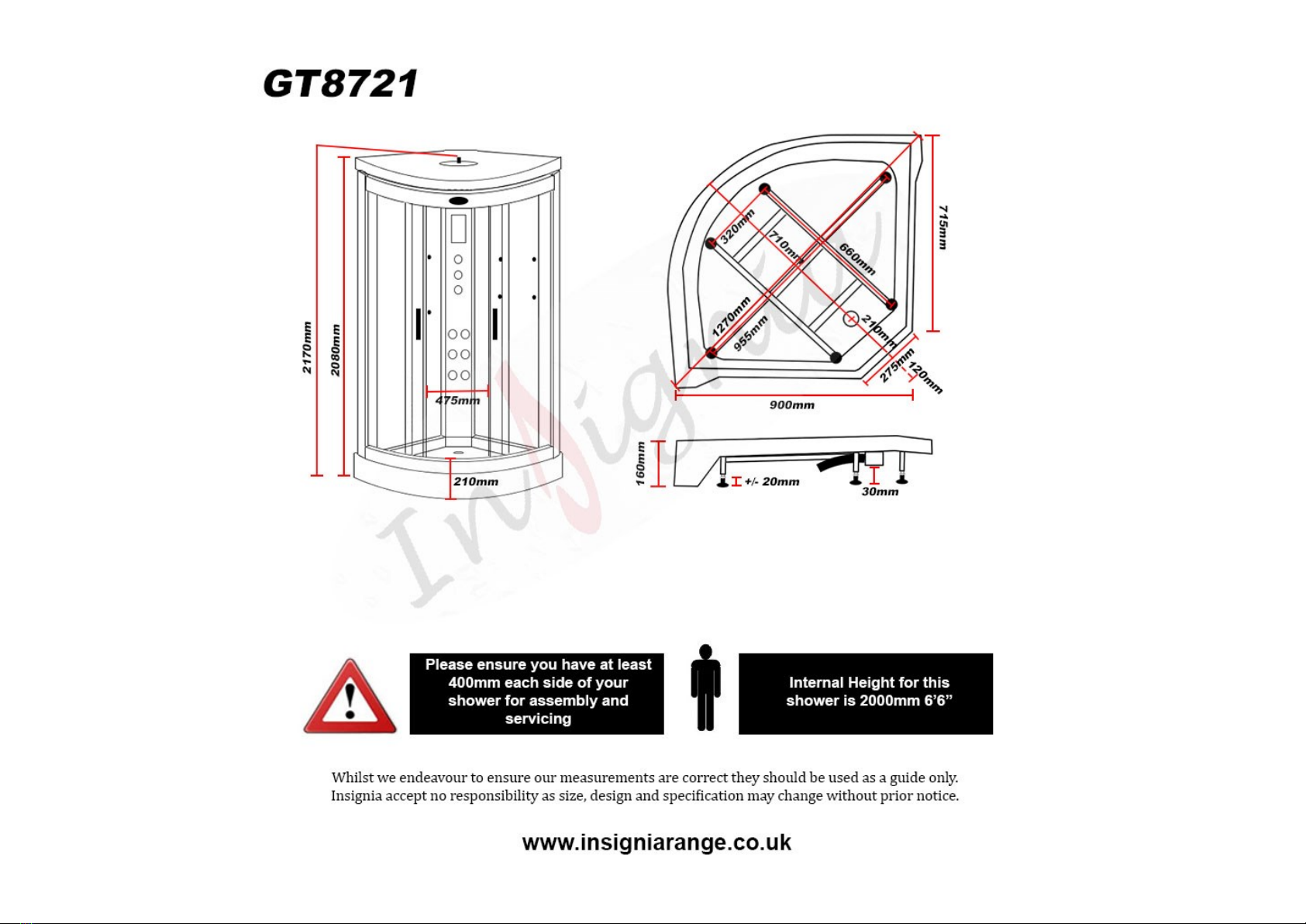

Schematics
Starting The Installation
Electric Box Connections
Sealing and Water Testing
TL-2070GS Control Panel Instructions
Help Book Information
Part list
3
5
7
8
9
10
11
18
19
20
21
22

www.insigniarange.com Last Modied: 13/06/2017
03
Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that
will last for many years to come!
Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of
your finish.
OUR BADGE RATING IN TERMS OF DIFFICULTY OF ASSEMBLY IS BASED ON CLIENT FEEDBACK
1 Badge = Very easy
2 Badges = Easy
3 Badges = Moderate
4 Badges = Harder than average
5 Badges = Professional skills required
This shower is rated 3 Badges

www.insigniarange.com Last Modied: 13/06/2017
04
ASSEMBLY AND PLUMBING
THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILL AND FEELS CONFIDENT IN
THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLE, READ THROUGH THE FOLLOWING
PAGES IN DETAIL THEN DECIDE. IF YOU HAVE ANY DOUBT USE THE SERVICES OF A PROFESSIONAL. IN PICKING SUCH, ALLOW THEM TO DECIDE IF
THEY ARE CAPABLE OF BUILD BY FIRST SHOWING THESE INSTRUCTIONS TO THEM. ALWAYS GET THREE QUOTES.
REMEMBER THE BEST IS NOT ALWAYS THE CHEAPEST!
REMEMBER PLUMBERS PLUMB! 90% OF THIS JOB IS NOT PLUMBING!
DUE TO THE NATURE OF THIS PRODUCT WE HIGHLY ADVISE THE PURCHASE AND FITTING OF A WATER SOFTENER
(PLEASE NOTE LIMESCALE BUILD UP MAY CAUSE DAMAGE TO YOUR SHOWER AND WILL NOT BE COVERED UNDER WARRANTY)
ELECTRICAL CONNECTION TO HOUSE MAINS
WHEN YOUR ITEM IS ASSEMBLED ALWAYS USE THE SERVICES OF A FULLY QUALIFIED ELECTRICAN COMPANY TO COMPLETE THE CONNECTION FROM
SHOWER TO THE HOUSE SUPPLY. LAWS DEMAND IN MANY CASES YOU DO THIS AND YOUR WARRANTY IS VOID IN REGARDS TO THE ELECTRICAL
ITEMS IF THIS IS NOT UNDERTAKEN.
YOURS AND OTHERS SAFETY IS PARAMOUNT. NEVER ATTEMPT THIS YOURSELF!
REMEMBER:
These showers are designed to be free standing and movable from their location should you have the need to replace anything. ALWAYS USE Flexible braided water
inlet pipes (not supplied) at least a metre long (not central heating plastic type!)
Always use a flexible waste pipe from your house supply to the shower .
NEVER FIX with rigid pipes, NEVER FIX the unit to the wall.
DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE.
If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and
will not adhere as intended.
ATTENTION
ALWAYS FIT EASY TO GET TO ISOLATION TAPS ON BOTH THE HOT AND COLD WATER SUPPLY (NOT SUPPLIED). JUST LIKE A
DISHWASHER OR WASHING MACHINE, THIS PRODUCT MUST BE ISOLATED WHEN NOT IN USE.
FLEXIBLE SUPPLY HOSES (NOT SUPPLIED) COUPLE HERE AS ORIGIN OF SUPPLY

www.insigniarange.com Last Modied: 13/06/2017
05
TOTAL ELECTRICAL REQUIREMENTS
Voltage Rating 220 -240AC
Frequency Rating 50HZ
Power Rating 25W
Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation.
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!!
Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way
due to continued additions to current regulations. As at October 2010 we offered two methods.
1) Connect within current laws and IP directives using plug and RCD provided with steam version or supply one for non steam version
2) (Preferred) Wire into isolated fused feed connecting directly to the house consumer/service box. Remove the fitted plug and ensure the
Consumer unit has capabilities to replace RCD feature if RCD is removed.
Always use protection against electrical surge. Your shower should be treated the same as a home computer. A surge protector should
eradicate the possibility of either the transformer or computer control being burnt out. Please note earth is required and found on chassis of
shower tray. A further earth is required from Steam Generator unit. Each earth must ground through power supply line.

www.insigniarange.com Last Modied: 13/06/2017
06
Tool Requirements
None Supplied
Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill
Adhesive Requirements
Hardware Requirements
Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints)
A Hydro-Massage Shower requires 2 x 1 Metre Braided Hose
Not Supplied
Not Supplied Not Supplied
Supplied

www.insigniarange.com Last Modied: 13/06/2017
07
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice
is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word
“DRY RUN” this means you do not silicone anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the
unit apart and carry out the final fix.
What’s In The Boxes?
Tray Box
1x Tray
1x Roof
2x Curved Rails
1 x AC-DC 12V Adapter
Glass Room
2x Door seals
2x Glass doors
2x fixed glass
Column
1x Complete Column
Backwalls
1x Left Panel Backwall
1x Right Panel Backwall
In addition to above you will have all the required internal accessories to complete the shower.

www.insigniarange.com Last Modied: 13/06/2017
08
Insignia Screw Pack
VERY IMPORTANT
Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been
checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48
hours after delivery) and always BEFORE build.
Product Code Descripon Quanty
SP097 Door Handles 2
SP008 Door Wheels 8
ST20 20mm Screws 20
ST55 55mm Screws 10
ST10 10m Screws (Not Used)6
ST25 25mm Screws 10
SW9 Small Washers 20
DB9 Drill Piece 1
Note: In some cases you may have more screws than needed, this is done so you have spares!

www.insigniarange.com Last Modied: 13/06/2017
09
Pressure Requirements from your house supply
We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type
installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because
all house plumbing layouts vary. This is a job for your installer/plumber. The end delivery however must fall within the scope above.
Important Note Do not exceed 3.4 BAR pressure under any circumstances. Warranty is void if so as damage will occur. If you have a combi supply, please use a pressure
reducing valve if required to lower the BAR pressure to the shower.
Please Remember that this product is free standing and is designed to be pulled away from the wall.
The waste hose must be of a flexible type (1m flexible waste supplied).
The water supply pipes need to be at least 1 metre in length and must be that of a flexible braided type (not supplied).
DO NOT OVERTIGHTEN THE BRAIDED HOSES AS IT CAN CAUSE THE CONNECTION TO POP AFTER A FEW WEEKS OF USE

www.insigniarange.com Last Modied: 13/06/2017
10

www.insigniarange.com Last Modied: 13/06/2017
11
Step 1

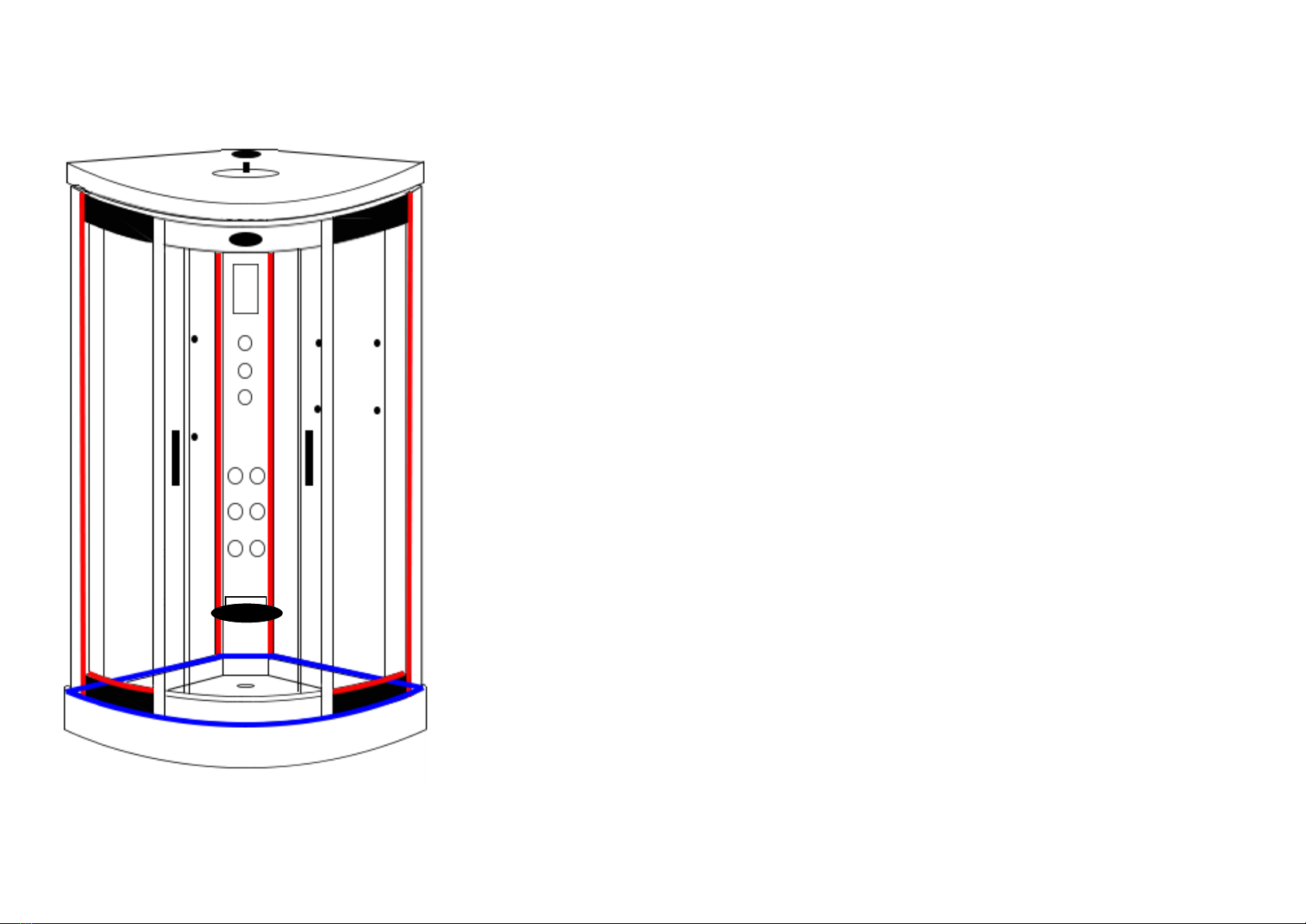

Align the 2 back panels with the central column and fix together using the
ST20 screws and SW9 washers . Once you are happy with the alignment,
remove the panels and run a bead of silicone up the sides and Rubbergum
along the bottom of the column and the back panels yet DO NOT fix them to
the tray until STEP 5
(please note, if your column has a rubber seal at the bottom , take the
rubber off and apply silicone inside the rubber and replace)
TO START
Make sure you have a clear space, remember when finished and in place you need access to check your
build and able to pull the shower out for servicing or should you have the need to replace anything!
Take the shower tub and remove all the protective wrapping and fit the waste. In the side of the waste
supplied in the optional fitting kit you will notice a spigot not seen on an ordinary waste. In most cases this
is blanked yet should you have a steam version you need to gently drill this out as this item is for the
steam generator drainage and will be connected in the instructions later.
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a
trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the
build and you understand fully how the unit is assembled. When we use the word “DRY RUN” this means you do not silicone
anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the unit
apart and carry out the final fix.

www.insigniarange.com Last Modied: 13/06/2017
12
Step 2

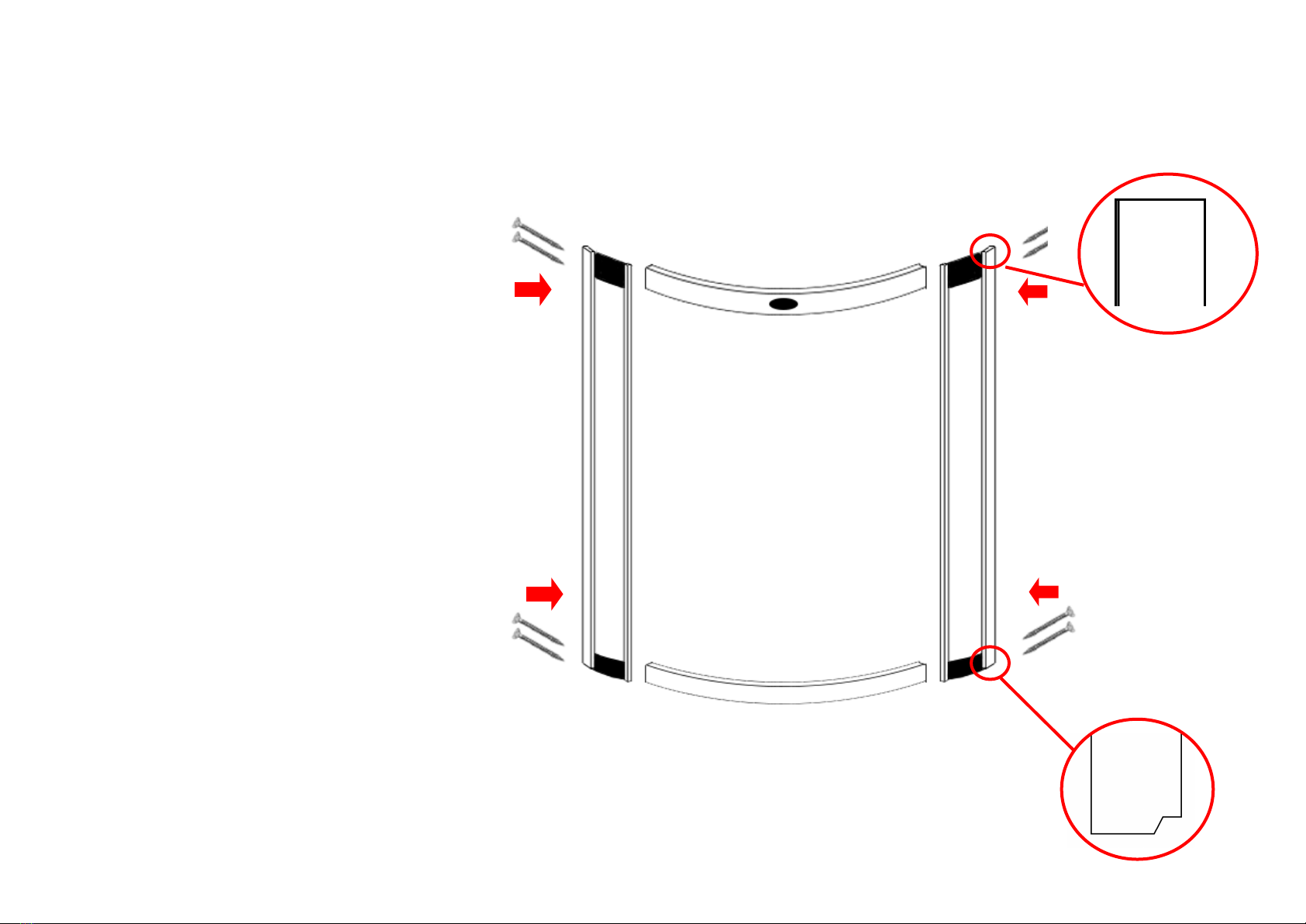

The next step is to attach the uprights to the curved rails using the ST55
screws. The end with the groove is designed to sit on the tray, with the
flat end connecting to the roof. Please note the ‘U’ shaped channel is
meant to face inwards to allow the glass to fit correctly.
(wider rail with Insignia logo at the top)

www.insigniarange.com Last Modied: 13/06/2017
13
Step 3

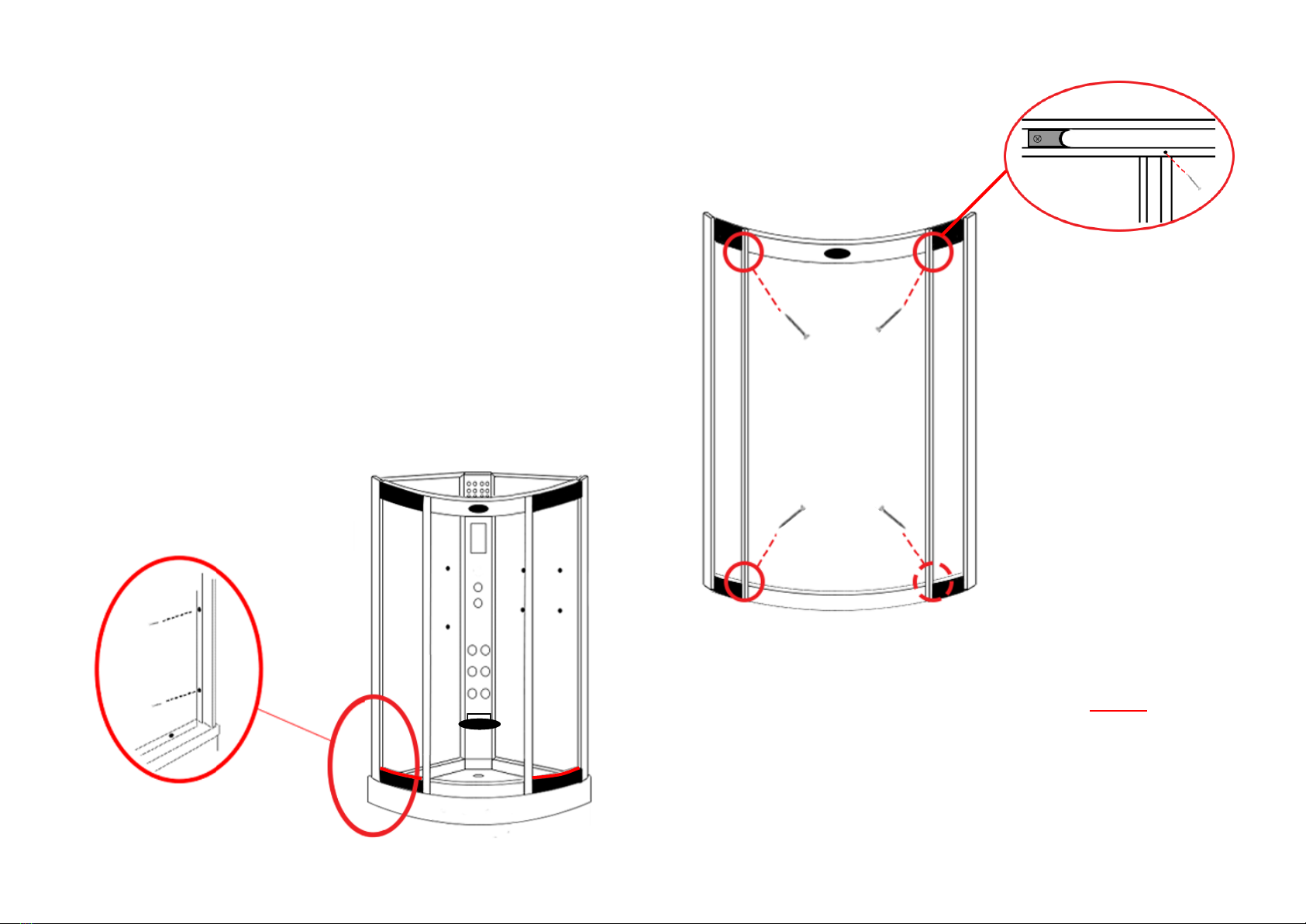

Now attach your inner uprights to your front fixed glass panels by inserting these over
the thin rubber seals as shown by the arrows in the image.
Next screw the inner uprights to your curved rails using the ST25 screws.
(please note that the front uprights will need a pilot hole drilled before screwing)
Step 4
Now meet the front of the shower with the back panels and screw together using the
ST20 and SW9 washers screws, then continue to run a bead of silicone along the -
inside of the front fixed glass

www.insigniarange.com Last Modied: 13/06/2017
14
Step 6
Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels
are at their lowest position and hang on the inner curved rails with the wheels facing the
outside of the glass.
Once all wheels are fitted and on the rails you can adjust the wheels by turning the plastic
bolt clockwise in which in turn will pull the wheels towards the track ensuring a secure a
tight fit.
Now grease the track to ensure a smooth and long lasting operation
(not supplied)
Step 5
Align the roof with your shower walls and using the ST25 screws and SW9 washers
fix the back walls to the roof by screwing upwards from the rear of the shower and
repeat this process to fix to the tray as indicated in the images

www.insigniarange.com Last Modied: 13/06/2017
15

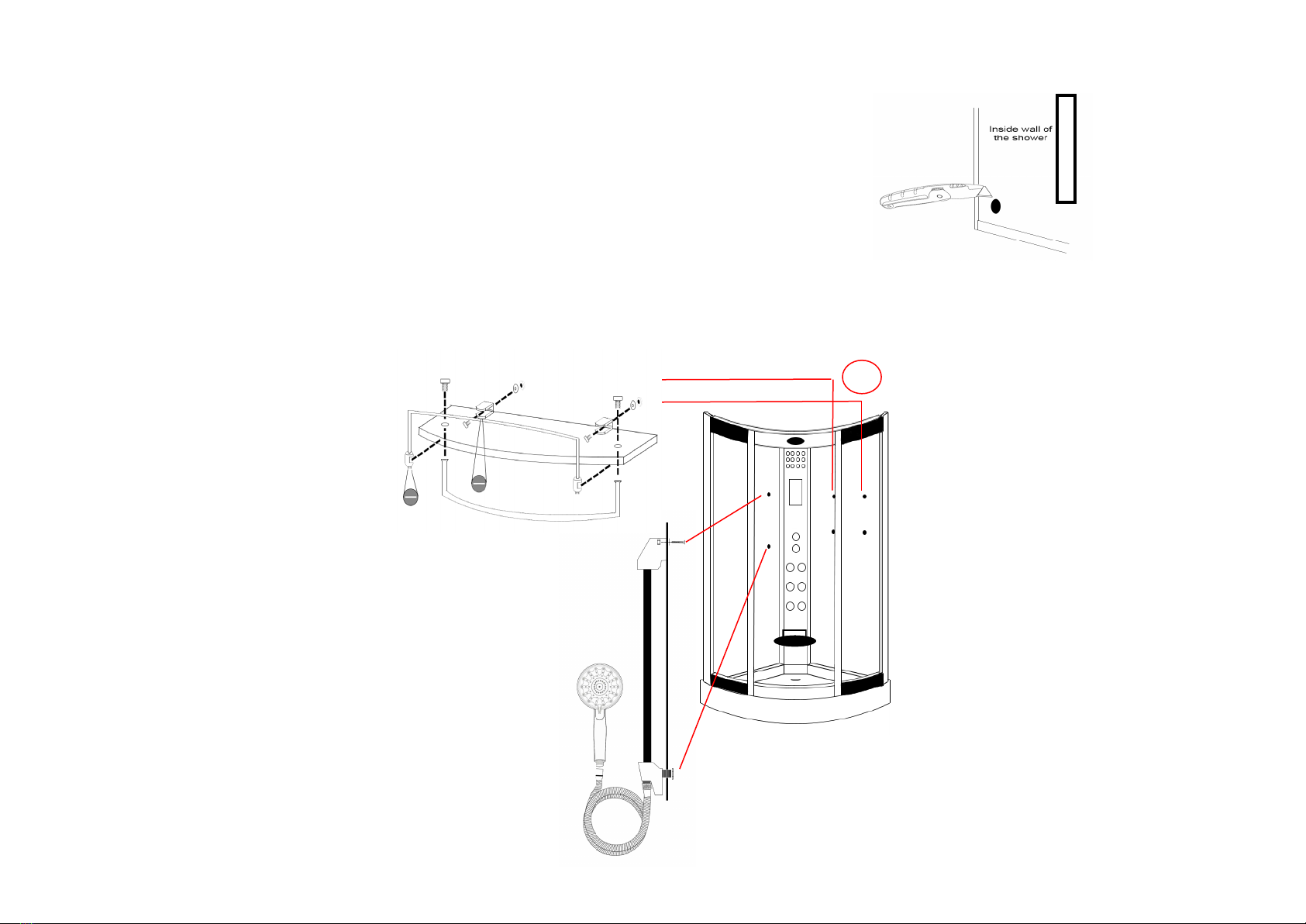

x2
Shelf
Fix the chrome floating shelf brackets to your glass back panel by using the provided screws. Now attach the chrome tubed bars to your glass shelf as illustrated in the
below image. Next slide the shelf into your shelf brackets and secure by tightening the grub screw situated on the bottom of the bracket.
Accessory Installation
Please Note
Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes
with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using
a screwdriver on the smaller holes.
Hand Shower
Attach the chrome riser bar to the glass
wall ensuring the water inlet is inserted
through the lower large hole and hand
tightened from the rear side.
Now tighten the chrome shower holder
ensuring that this will take the hand
shower itself without falling (please
note over tightening will prevent the
holder from sliding up and down)

www.insigniarange.com Last Modied: 13/06/2017
16
Monsoon Head
Attach the grey hose from your valve to the inner black tube using PTFE tape (please note this only needs to be hand tight. Over tightening will snap/damage the inner
black tube)
Handle
Ensuring that the inner thread is protruding out from the handle far enough, place the handle on the outside of the door and secure by tightening the inner chrome knob to
the protruding inner thread.
.

www.insigniarange.com Last Modied: 13/06/2017
17
Door Seals
Magnetic Seal: Push the magnetic door seal on the handle side of the glass door ensuring this is
tightly fitted.
Rear Door Seal: Place the rear door seal on the opposite side to the magnetic strip ensuring the
Hot Water InletCold Water Inlet
Hand Shower Body Jets
Monsoon Shower
Shower Valve
Connect the corresponding hoses to the rear of the valve as shown.
Device output may differ from the image. Please refer to your outer chrome faceplate
inside your Insignia shower as a reference point.
IF YOUR DIAL DOES NOT CORROSPOND TO THE APPROPRIATE DEVICE:
Turn on your water to the shower and note which output the water exits from then turn off
the water and swap over the relevant hose.
Alternatively remove the outer chrome knob by removing the chrome cap and loosening
the grub screw (please ensure not to unscrew fully as this will drop within the chrome
knob) this is found on the opposite side to the chrome pillar. Once you have succeeded in
loosening this you can now slide your faceplate to correspond to the device.

www.insigniarange.com Last Modied: 13/06/2017
18
Electric Box Connections
Connect the cables below to the corresponding devices on the shower
Roof Light
Fan
Speaker
Antenna
Back Lights
RJ11 Phone Connection
12V power Supply

www.insigniarange.com Last Modied: 13/06/2017
19
Silicone Seal (vertical joints) - RubberGum (horizontal joints)
TESTING FOR WATER LEAKS
LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE
SHOWER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING
Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model
dependent) on your shower.
Switch on the overhead shower NOT the massage jets, remember these will fire water out at you and are
not suitable for checking leaks as they would normally only operate when a person is in front of them. DO
NOT AIM THE HAND SHOWER AT THE JOINTS OF YOUR SHOWER AS THIS DOES NOT FALL
UNDER “NORMAL EVERYDAY USE”. Adjust the feet to ensure the direction of the water flows towards to
the waste to prevent puddling.
Just use COLD water setting as hot will make cabin misty and condensate thus the inspection becomes
very difficult. Now on the OUTSIDE of the shower inspect each joint, factory seal, hose, clip and jet by
walking from one side and going around to the back and then to the other side finishing at the front. If you
have a small leak (normally caused through insufficient sealer or air bubble on assembly, dry the area
thoroughly and reseal.
Please remember the location of the water may not be exactly where the leak is as it could have run
around to a low point. Never seal your inner fittings unless necessary, remember you will see this for the
life of the shower! Again leave to cure and check. Once you are happy check the shower functions i.e. jets
for back massage, foot massage and finally hand shower (model dependent) check your joints to these
functions at the rear again. Never use the shower until all checks have been made and the installer is
100% happy in the knowledge no leaks are present.
Important Note: It is not uncommon due to temperature changes, glass seals fitted into the frame lower
horizontal and sides can and do shrink leaving a small gap. This is normal to prevent rubbers perishing or
opening later in your showers life. Check yours now, any slight gaps simply seal neatly with a thin bead of
silicone. This will prevent chances of leakage both now or later in life.
All good?
Now push your shower FROM THE BASE and NEVER THE GLASS OR FRAME into its final resting
position.
Happy Showering!

www.insigniarange.com Last Modied: 13/06/2017
20
TL-2070GS Control Panel Instructions
Buon 1 (+ VOL)
Volume Up
Buon 2 (Down Arrow)
Radio Search Down
Buon 3 (Up Arrow)
Radio Search Up
Buon 4 (- VOL)
Volume Down
Buon 5 (Power)
On/O
Buon 6 (Telephone)
Answer telephone
Buon 7 (FM)
Radio On/O
Buon 8 (LIGHT)
On/O
Buon 9 (FAN)
On/O
1
23
4
5
67
89
