Insportline IN 12433 User manual

USER MANUAL –EN
IN 12433 Power Tower inSPORTline X150

2
CONTENTS
CAUTIONS.............................................................................................................................................. 3
SAFETY............................................................................................................................................... 3
STORAGE AND USE .......................................................................................................................... 3
BEFORE YOU START ............................................................................................................................ 3
CONTENTS OF PACKAGE .................................................................................................................... 4
PARTS................................................................................................................................................. 4
HARDWARE........................................................................................................................................ 5
ASSEMBLY ............................................................................................................................................. 6
PARTS LIST.......................................................................................................................................... 10
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 11
Warning: Please ensure that you read this manual carefully before attempting to assemble or
use your new product and retain this manual for future use.

3
CAUTIONS
SAFETY
Before you undertake any program of exercise that will increase cardiovascular activity please
be sure to consult with your doctor. Frequent strenuous exercise should be approved by your
doctor and proper use of your product is essential. Please read this manual carefully before
commencing assembly of your product or starting to exercise.
•Please keep all children away from exercise products when in use. Do not allow children to
climb or play on them when they are not in use.
•Keep fingers clear of moving parts.
•For your own safety, always ensure that there is at least 0.6 meter of free space in all
directions around your product while you are exercising.
•Regularly check to see that all nuts, bolts and fittings are securely tightened. Periodically
check all moving parts for obvious signs of wear or damage.
•Clean only with a damp cloth, do not use solvent cleaners.
•Before use, always ensure that your product is positioned on a solid, flat surface. If necessary,
use a rubber mat underneath to reduce the possibility of slipping in use.
•Always wear appropriate clothing and footwear such as training shoes when exercising. Do
not wear loose-fitting clothing or jewellery that could become an entanglement hazard.
•Use only under competent supervision.
•Max. user weight: 110kg
STORAGE AND USE
Your product is intended for use in clean dry conditions. You should avoid storage in excessively cold
or damp places as this may lead to corrosion and other related problems that are outside our control.
BEFORE YOU START

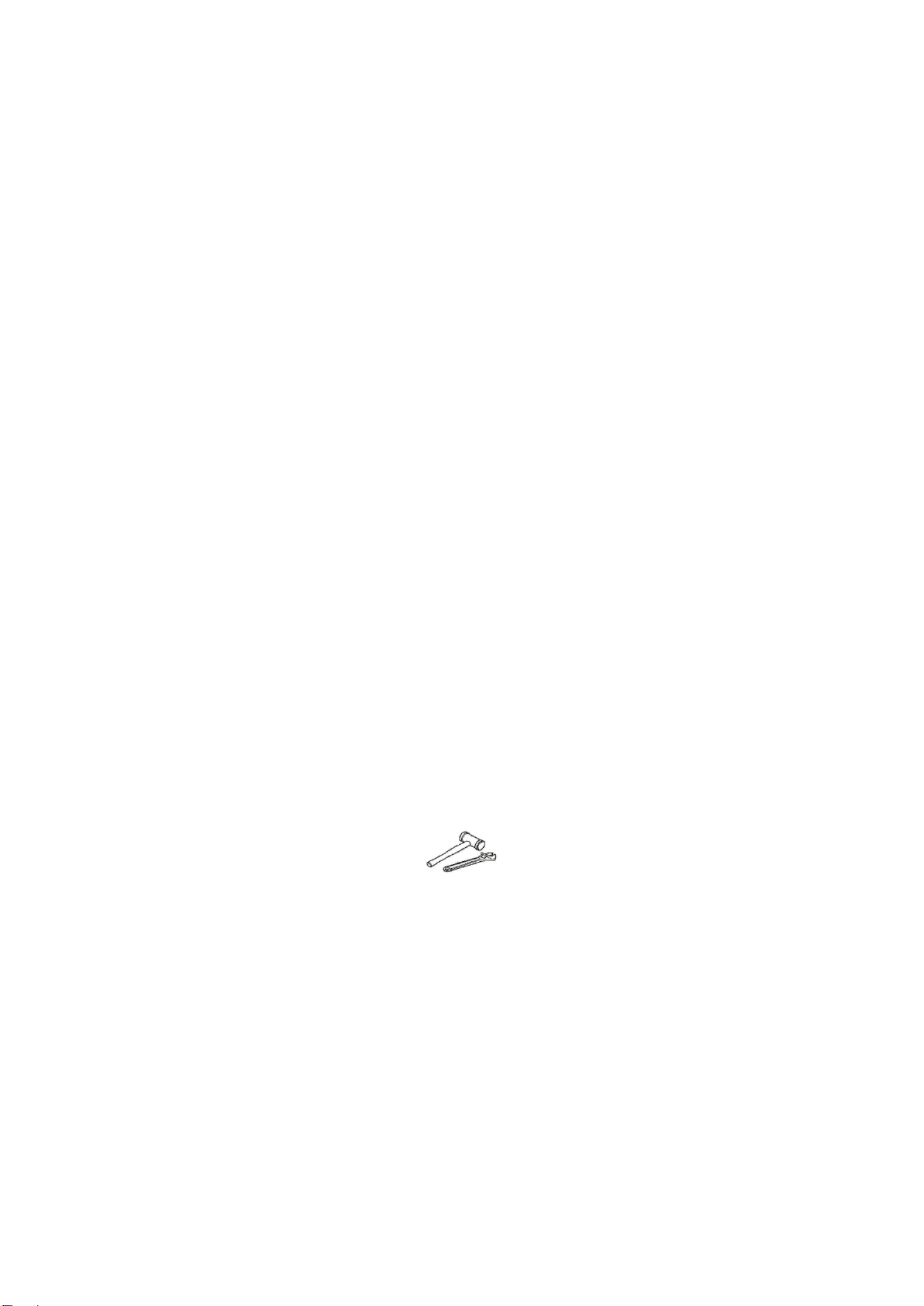

Tools required
•Spanner (14/17mm)
Prepare the Work Area
It is important that you assemble your product in a clean, clear, uncluttered area. This will enable you
to move around the product while you are fitting components and will reduce the possibility of injury
during assembly.
Work with a friend
You may find it quicker, safer and easier to assemble this product with the help of a friend as some of
the components may be large, heavy or awkward to handle alone.
Open the Carton
Carefully open the carton that contains your product, taking note of the warnings printed on the carton
to ensure that the risk of injury is reduced. Be aware of sharp staples that may be used to fasten the
flaps as these may cause injury. Be sure to open the carton the right way up, as this will be the easiest
and safest way to remove all the components.
Unpack the Components

4
Carefully unpack each component, checking against the parts list that you have all the necessary parts
to complete the assembly of your product. Please note that some of the parts may be pre-fitted to
major components, so please check carefully before contacting our customer service team.

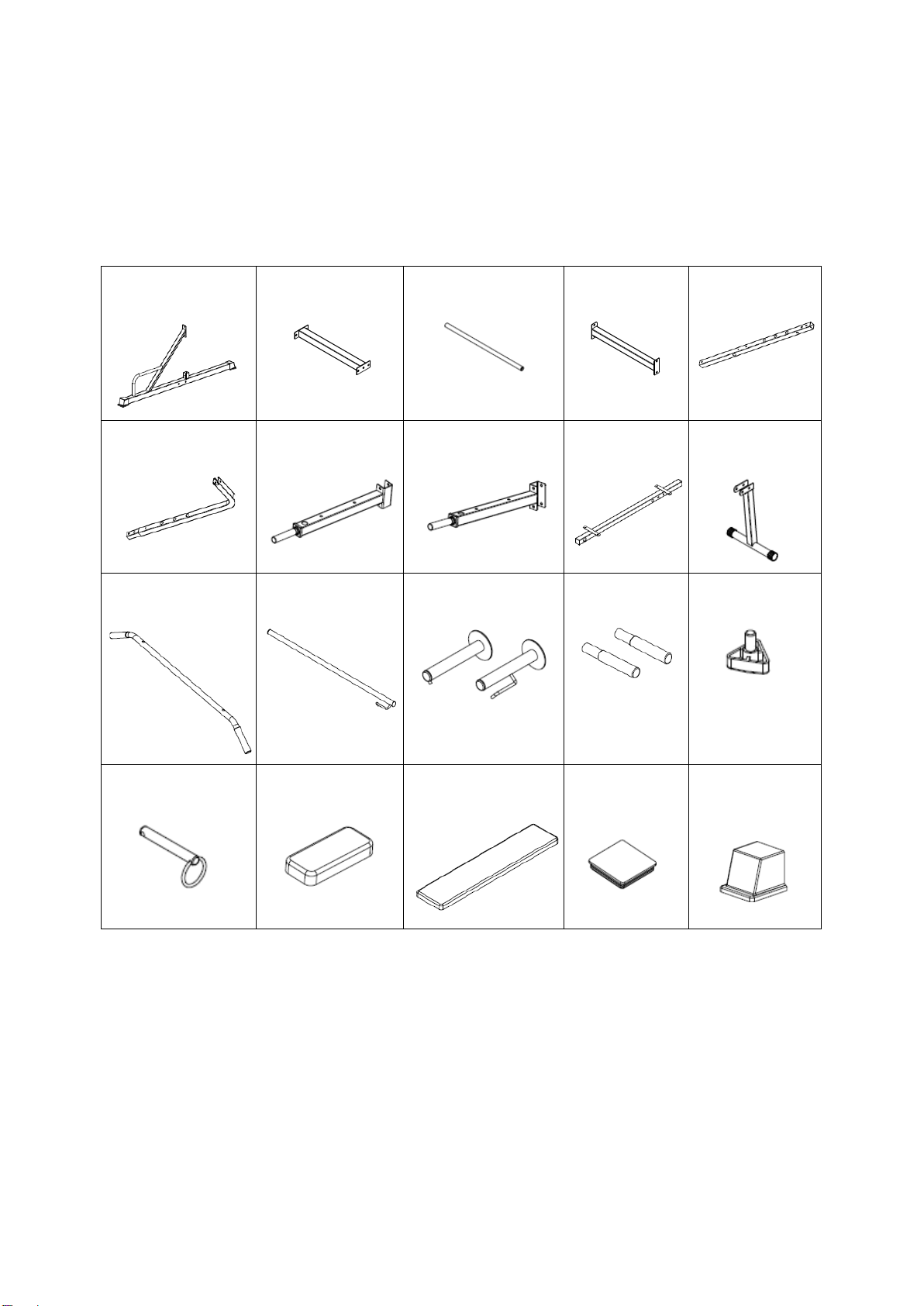

CONTENTS OF PACKAGE
PARTS
Item 1. Qty 2
Base
Item 2. Qty 1
Cross bar A
Item 3. Qty 1
Shaft
Item 4. Qty 1
Cross bar B
Item 5. Qty 2
Upright
Item 6. Qty 2
Upper upright
Item 7. Qty 1
Arm (right)
Item 8. Qty 1
Arm (left)
Item 9. Qty 1
Bench
Item 10. Qty 1
Bench support
Item 11. Qty 1
Chin up bar
Item 12. Qty 1
Stabilizer bracket
Item 13. Qty 2
Bar Catches
Item 14. Qty 2
Handle
Item 15. Qty 1
Knob (M10*20)
Item 16. Qty 1
Lockpin (10*60)
Item 17. Qty 2
Arm cushion
Item 18. Qty 1
Backrest
Item 19. Qty 2
End cap
(45*45)
Item 20. Qty 4
End cover
(50*50)

5

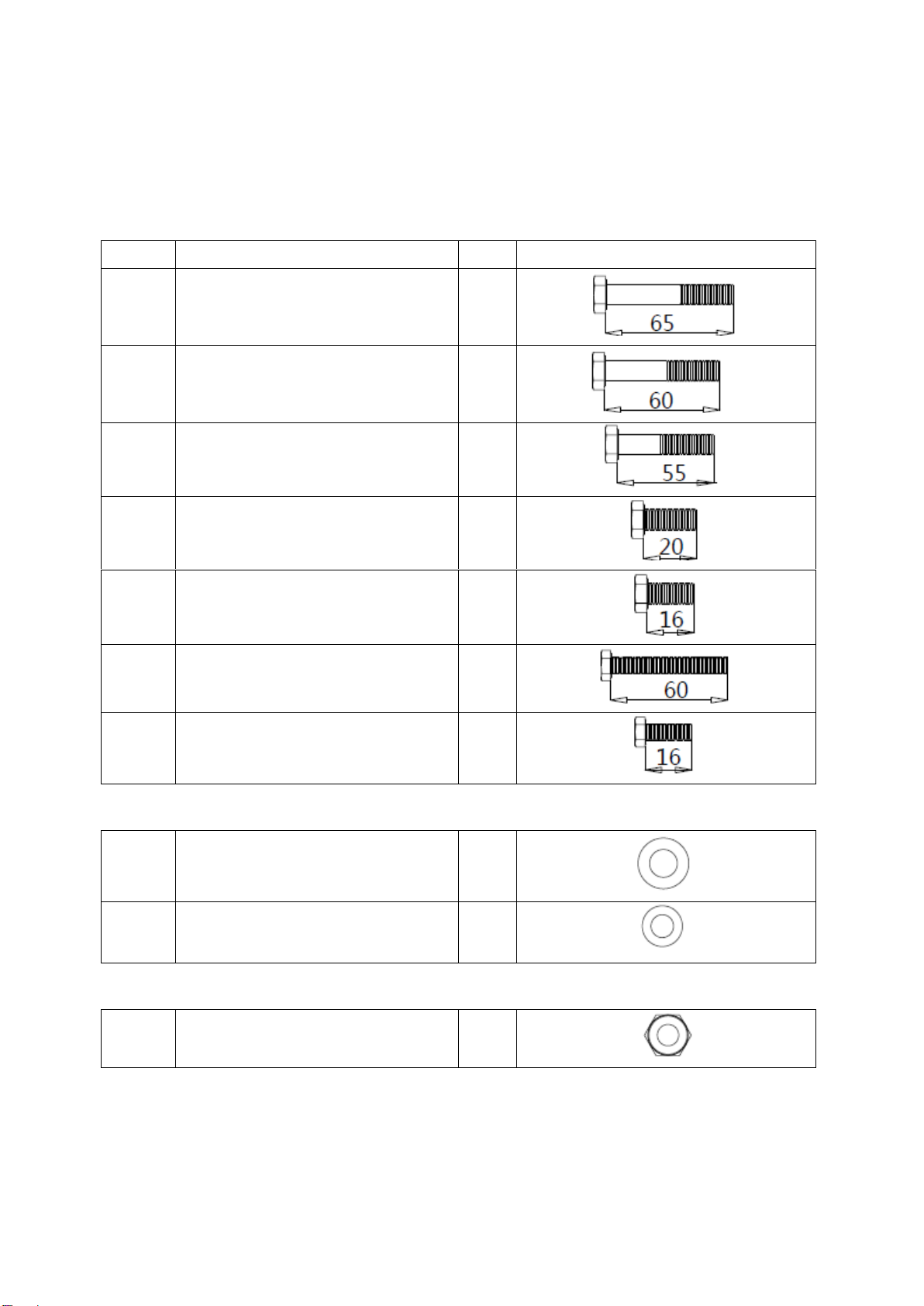

HARDWARE
These are all the accessories you will need to complete the assembly of your product.
The following accessories are supplied in a pack and should be checked before attempting assembly.
BOLTS
Item
Description
Qty
Drawing
21
M10*65mm bolt
6
22
M10*60mm bolt
9
23
M10*55mm bolt
4
24
M10*20mm bolt
4
25
M10*16mm bolt
8
26
M8*60mm bolt
4
27
M8*16mm bolt
4
WASHERS
28
M10 washer
50
29
M8 washer
8
NUTS
30
M10 nylon locknut
19

6
ASSEMBLY
Carefully unpack each component, checking against the parts list that you have all the necessary parts
to complete the assembly of your product. PLEASE NOTE that some of the parts may be pre-fitted to
major components, so please check carefully before contacting our CUSTOMER SUPPORT team.
STEP 1
1. Push the end covers (20) onto ends of the bases (1).
2. Connect bases (1) to the cross bar A (2) using M10 x 65mm bolts (21), M10 washers (28) and
M10 nylon locknuts (30).

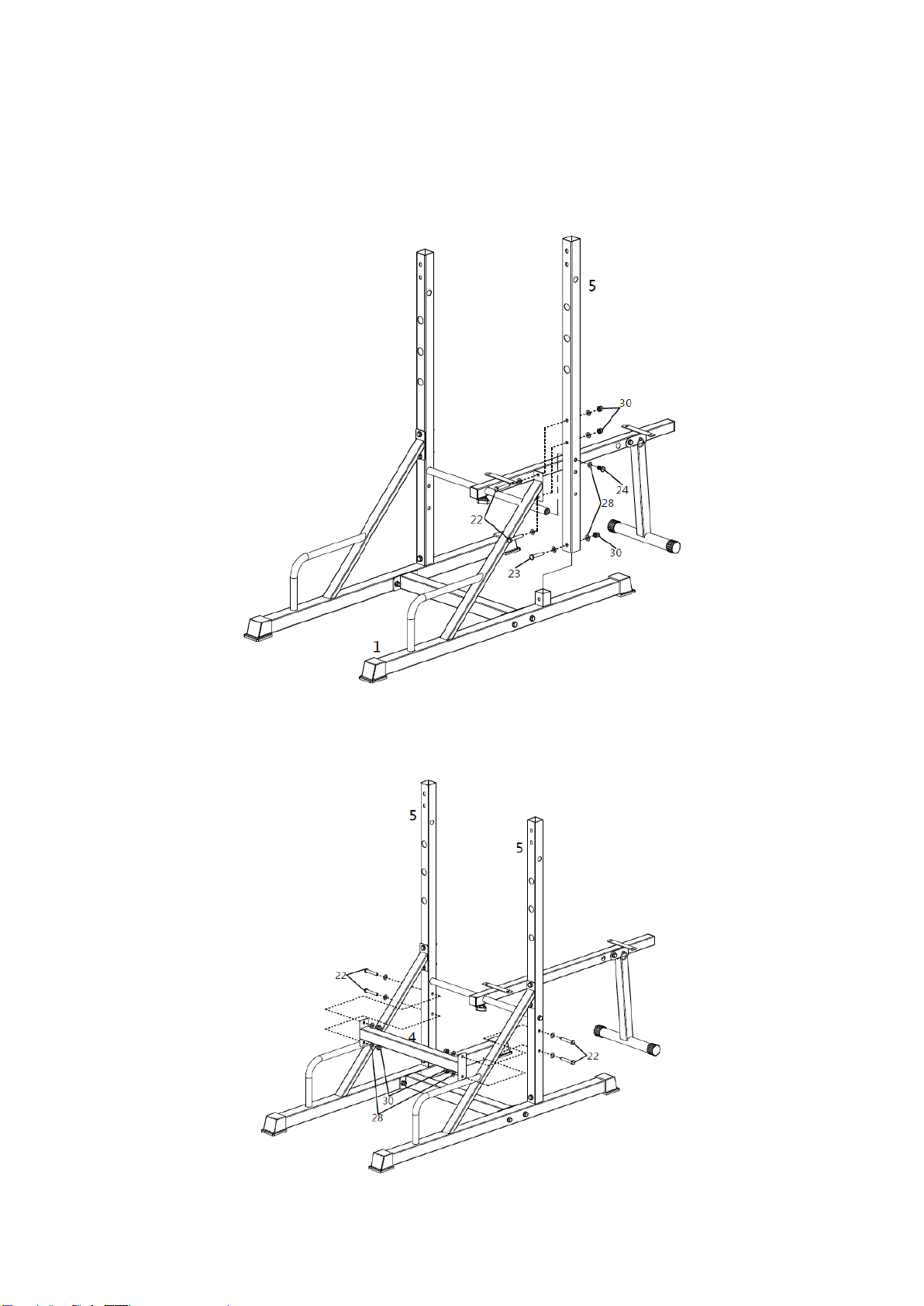

STEP 2
1. Attach one upright (5) to the base (1) using M10 x 55mm bolt (23), M10 x 60mm bolts (22),
M10 washers (28) and M10 nylon locknuts (30).
2. Insert one end of the shaft (3) to the upright (5) using M10 x 20mm bolt (24) and M10 washer
(28) and push the other end into hole (Ø26) of the backrest frame (9) using knob (15) to
locked them.
3. Attach the bench support (10) to bench (9) using M10 x 60mm bolt (22), M10 washers (28),
M10 nylon locknut (30) and insert lock pin (16) into the hole (Ø11) of the bench (9) to locked
them.

7
STEP 3
1. Attach the other upright (5) to the base (1) using M10 x 55mm bolt (23), M10 x 60mm bolts
(22) M10 washers (28) and M10 nylon locknuts (30).
2. Insert the other end of the shaft (3) to the upright (5) using M10 x 20mm bolt (24) and M10
washer (28).
STEP 4
Attach the cross bar B (4) to the uprights (5) using M10 x 60mm bolts (22), M10 washers (28) and M10
nylon locknuts (30).

8

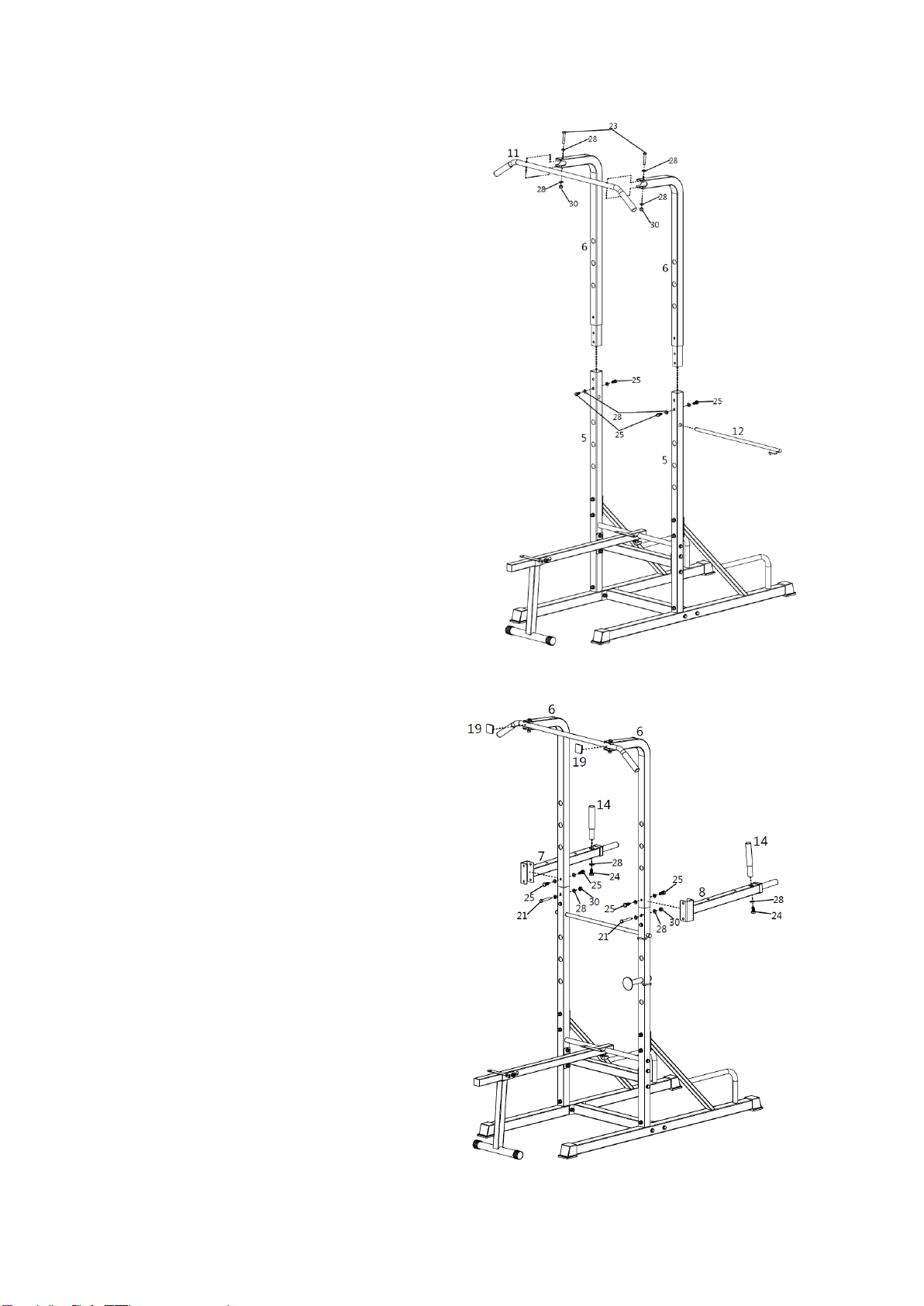

STEP 5
1. Insert the upper uprights (6) into uprights (5)
using M10 x 16mm bolts (25) and M10
washers (28).
2. Attach the chin up bar (11) to the upper
uprights (6) using M10 x 55mm bolts (23),
M10 washers (28) and M10 nylon locknuts
(30).
3. Insert the stabilizer bracket (12) into hole of
the uprights (5).
STEP 6
1. Attach the arms (7, 8) to the uprights (5, 6)
using M10 x 65mm bolts (21), M10 x 16mm
bolts (25), M10 washers (28) and M10 nylon
locknuts (30).
2. Insert the handles (14) into arms (7, 8) using
M10 x 20mm bolts (24) and M10 washers
(28).
3. Put the end caps (19) onto upper uprights (6).

9
STEP 7
1. Attach the arm cushions (17) to the arms (7,
8) using M8 x 60mm bolts (26) and M8
washers (29).
2. Attach the backrest (18) to the bench (9)
using M8 x 15mm bolts (27) and M8 washers
(29).
3. Attach the bar catches (13) to the uprights (5).
STEP 8
Pull out the lock pin (16) from bench (9) and fold them using stabilizer bracket (12) to lock.

10
PARTS LIST
Part
Description
QTY
1
Base
2
2
Cross bar A
1
3
Shaft
1
4
Cross bar B
1
5
Upright
2
6
Upper upright
2
7
Arm (right)
1
8
Arm (left)
1
9
Bench
1
10
Bench support
1
11
Chin up bar
1
12
Stabilizer bracket
1
13
Bar catches
2
14
Handle
2
15
Knob
1
16
Lock pin
1
17
Arm cushion
2
18
Backrest
1
19
Endcap
2
20
End cover
4
21
M10 x 65mm bolt
6
22
M10 x 60mm bolt
9
23
M10 x 55mm bolt
4
24
M10 x 20mm bolt
4
25
M10 x 16mm bolt
8
26
M8 x 60mm bolt
4
27
M8 x 16mm bolt
4
28
M10 washer
50
29
M8 washer
8

11
30
M10 nylon locknut
19
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS
General Conditions of Warranty and Definition of Terms
All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim
Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil
Code, Act No. 513/1991 Coll., Commercial Code, and Act No. 634/1992 Coll., Consumer Protection
Act, as amended, also in cases that are not specified by these Warranty rules.
The seller is SEVEN SPORT s.r.o. with its registered office in Borivojova Street 35/878, Prague
13000, Company Registration Number: 26847264, registered in the Trade Register at Regional Court
in Prague, Section C, Insert No. 116888.
According to valid legal regulations it depends whether the Buyer is the End Customer or not.
“The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not
conclude and execute the Contract in order to run or promote his own trade or business activities.
“The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the
purpose of using the Goods or services for his own business activities. The Buyer conforms to the
General Purchase Agreement and business conditions to the extent specified in the Commercial
Code.
These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement
made between the Seller and the Buyer. All Warranty Conditions are valid and binding, unless
otherwise specified in the Purchase Agreement, in the Amendment to this Contract or in another
written agreement.
Warranty Conditions
Warranty Period
The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in
the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal
warranty period provided to the Consumer is not affected.
By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a
certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its
regular or contracted features.
The Warranty does not cover defects resulting from (if applicable):
User’s fault, i.e. product damage caused by unqualified repair work, improper assembly, insufficient
insertion of seat post into frame, insufficient tightening of pedals and cranks
Improper maintenance
Mechanical damages
Regular use (e.g. wearing out of rubber and plastic parts, joints etc.)
Unavoidable event, natural disaster
Adjustments made by unqualified person
Improper maintenance, improper placement, damages caused by low or high temperature, water,
inappropriate pressure, shocks, intentional changes in design or construction etc.
Warranty Claim Procedure
The Buyer is obliged to check the Goods delivered by the Seller immediately after taking the
responsibility for the Goods and its damages, i.e. immediately after its delivery. The Buyer must check
the Goods so that he discovers all the defects that can be discovered by such check.
When making a Warranty Claim the Buyer is obliged, on request of the Seller, to prove the purchase
and validity of the claim by the Invoice or Bill of Delivery that includes the product’s serial number, or

12
eventually by the documents without the serial number. If the Buyer does not prove the validity of the
Warranty Claim by these documents, the Seller has the right to reject the Warranty Claim.
If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the
Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller
is eligible to require a compensation for all the costs arising from the repair. The cost shall be
calculated according to the valid price list of services and transport costs.
If the Seller finds out (by testing) that the product is not damaged, the Warranty Claim is not accepted.
The Seller reserves the right to claim a compensation for costs arising from the false Warranty Claim.
In case the Buyer makes a claim about the Goods that is legally covered by the Warranty provided by
the Seller, the Seller shall fix the reported defects by means of repair or by the exchange of the
damaged part or product for a new one. Based on the agreement of the Buyer, the Seller has the right
to exchange the defected Goods for a fully compatible Goods of the same or better technical
characteristics. The Seller is entitled to choose the form of the Warranty Claim Procedures described
in this paragraph.
The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods,
unless a longer period has been agreed upon. The day when the repaired or exchanged Goods is
handed over to the Buyer is considered to be the day of the Warranty Claim settlement. When the
Seller is not able to settle the Warranty Claim within the agreed period due to the specific nature of the
Goods defect, he and the Buyer shall make an agreement about an alternative solution. In case such
agreement is not made, the Seller is obliged to provide the Buyer with a financial compensation in the
form of a refund.
SEVEN SPORT s.r.o.
Registered Office: Borivojova 35/878, 130 00 Praha 3, Czech Republic
Headquarters: Delnicka 957, 749 01 Vitkov, Czech Republic
Warranty & Service Centre: Cermenska 486, 749 01 Vitkov, Czech Republic
CRN: 26847264
VAT ID: CZ26847264
Phone: [phone]
E-mail: [email protected]z
[e-mail]
[email protected]z
Web: www.insportline.cz
SK
INSPORTLINE s.r.o.
Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia
CRN: 36311723
VAT ID: SK2020177082
Phone: [phone]
E-mail: objednavk[email protected]
[e-mail]
[email protected]
Web: www.insportline.sk
Date of Sale: Stamp and Signature of Seller:
