Inter-m PX-6216 User manual

Operation Manual
Audio Matrix Controller
PX-6216
* Rack mount products in the Western Hemisphere(North America, South America,
and the Caribbean) do not have handles installed due to customer preference.
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 2

AUDIO MATRIX CONTROLLER
Welcome
Welcome
A personal welcome to you from the mana ement and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
ISK OF ELECT IC SHOCK
DO NOT OPEN
CAutION
CAUTION: TO EDUCE THE ISK OF ELECT IC SHOCK.
DO NOT EMOVE COVE (O BACK).
NO USE -SE VICEABLE PA TS INSIDE.
EFE SE VICING TO QUALIFIED SE VICE PE SONNEL.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WA NING FO YOU P OTECTION PLEASE EAD THE FOLLOWING-WATE AND MOISTU E: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. To disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
* The socket-outlet shall be installed near the equipment and shall be easily accessible.
CAutION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOtE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC ules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 3

AUDIO MATRIX CONTROLLER
1
PX-6216
Contents
Contents
Unpackin .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features............................................................................................................................................3
Front Panel ......................................................................................................................................4
Rear Panel .......................................................................................................................................5
Equipment Settin and Caution ...................................................................................................8
Applications ....................................................................................................................................9

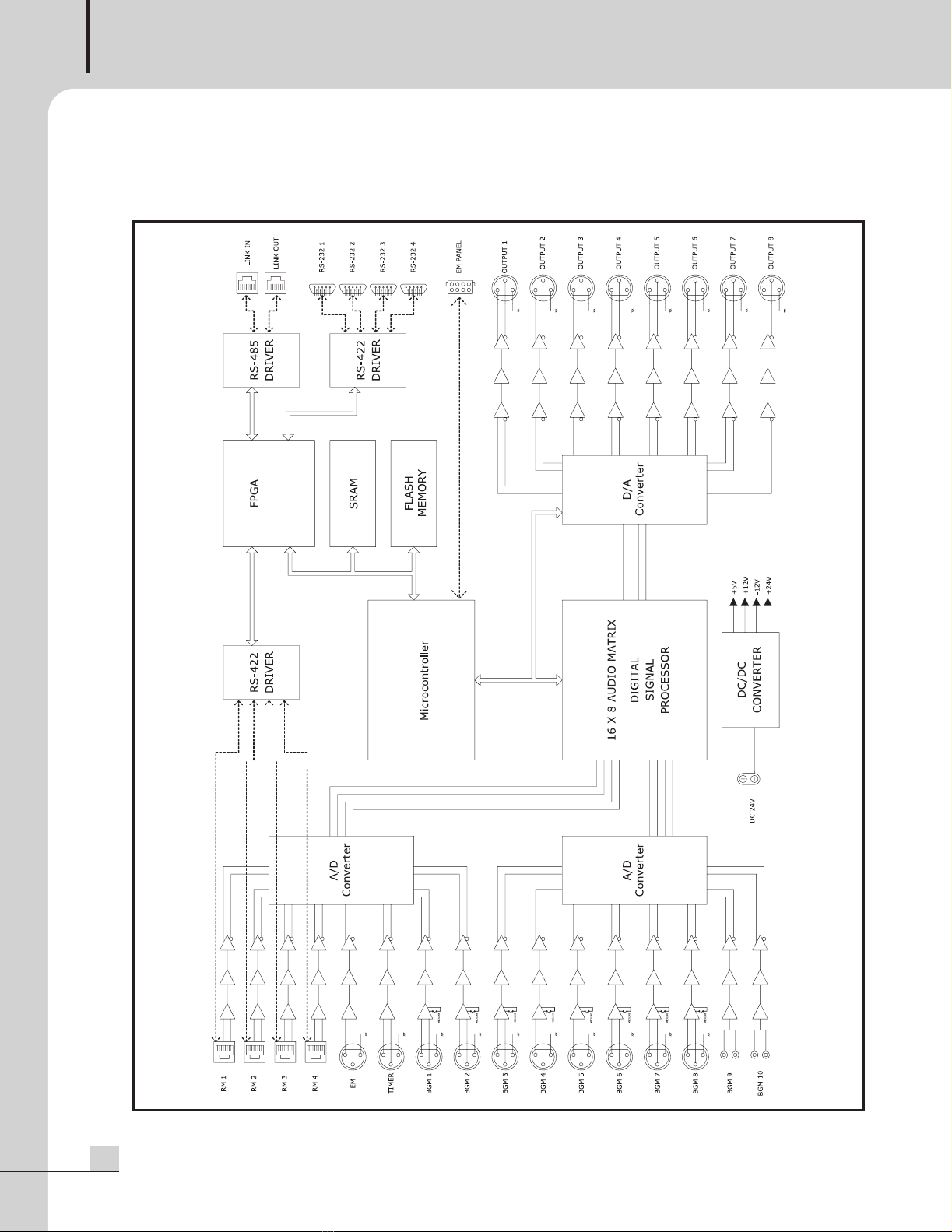

Block Dia ram ..............................................................................................................................10
Specifications ................................................................................................................................11
Service
Procedures....................................................................................................................................13
Schematic.....................................................................................................................................13
Parts List .......................................................................................................................................13
Variations and Options ...............................................................................................................13
Warranty .......................................................................................................................................13
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 4

AUDIO MATRIX CONTROLLER
2PX-6216
Installation
Unpackin
Unpackin
Although your PX-6216 is neither complicated nor difficult to operate, we recommend you take a few minutes to
read this brief manual and familiarize yourself with the important information regarding product features, setup
and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A
S3125A
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 5

AUDIO MATRIX CONTROLLER
3
PX-6216
Features
Features
Features
- 16 X 8 AUDIO MATRIXES
Digital audio matrix, 16 inputs x 8 outputs. Computer controlled, this unit is the main component of the 6000
system 8 bus. (EM, Timer, RM x4, BGM x10).
- PC CONTROL
System Control and configuration is possible via our windows based system software. Remote operation and
connectivity is made possible using the DIB-6000.
-PRIORITY BROADCASTING CONTROL
Connected to the EP-6216, emergency panel, timer and 4 remote microphone (RM-6024). The PX-6216 will
controls priority broadcastings. Emergency Panel, timer, and remote microphone will have priority and override
of BGM broadcasting.
- REMOTE CONTROL OF PERIPHERALS
The PX-6216 will control source peripherals such as CD, Tuner, and Voice File through the four RS-232
terminals.
- VARIOUS BGM INPUTS
1. TYPE A
Connection of BGM sources is possible via the 2 XLR combo jack channels, the 6 XLR channels, and 2 RCA
jacks.
Condenser microphones with 24V PHANTOM POWER can be connected on channel 1 and 2. These inputs
can select between MIC/Line inputs through setting of operation programs.
2. TYPE B
Connection of BGM sources is possible via the 8 detachable Euroblock terminals and 2 RCA jacks.
Condenser microphones with 24V PHANTOM POWER can be connected on channel 1 and 2. These inputs
can select between MIC/Line inputs through setting of operation programs
- DSP AUDIO MATRIX
DSP (Digital Signal Processor) controls signal routing, channel mixing, gains, volume, priority and the 7 band
EQ.
- FILE AND PRESET-SETTING
System settings are stored in internal memory. Stored file can be restored should setup file of operation program
is deleted or changed. The PX-6216 with the stored file can operate be operated even if the control PC is offline
using memory presets.
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 6

AUDIO MATRIX CONTROLLER
4PX-6216
Front Panel
Front Panel
1. PRESET MEMORY BUTTON AND INDICATOR
6 front panel preset buttons can be programmed and operated even when the control PC is offline. LED
indicators identify the active present.
2. POWER INDICATOR
This LED will be on when Power the PX-6216 is on. It will blink if communication error with the PC occurs.
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 7

AUDIO MATRIX CONTROLLER
5
PX-6216
Rear Panel
Rear Panel
1. BGM INPUT TERMINAL
INPUT 1 and 2 Connection of BGM sources is possible via the XLR combo jack / detachable Euroblock
terminals. Condenser microphones with 24V PHANTOM POWER can be connected on channel 1 and 2.
These inputs can select between MIC/Line inputs through setting of operation programs.
- INPUT 3~8 6 XLR Jacks / 6 Euroblock connectors
- INPUT 9~10 2 RCA stereo input jacks.
2. EMERGENCY AUDIO INPUT TERMINAL
Audio input terminal connecting the emergency panel unit (EP-9216, 9216V, 616, 6216) and allow a
priority broadcast from EP via contact connection terminal.
3. TIMER AUDIO INPUT TERMINAL
Audio input terminal connecting the TIMER (PW-9246,642,6242) allows priority broadcasting via timer
contact triggers.
PHANTOM
OFF ON
PHANTOM
OFF ON
SOURCE 1 (RS-232) SOURCE 3 (RS-232)
VOICE FILE (RS-232) SOURCE 2 (RS-232)
3
4
1
2
CH8
CH9
CH10
CH7CH6CH5CH4CH3
CH1CH2CH3CH4CH5CH6CH7CH8
CH2CH1EP
TO EP
TIMER
DATA
INPUT
OUTPUT
RM
DC 24V1A
IN
OUT
1234
56789
- A TYPE
- B TYPE
1234
56789
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 8

AUDIO MATRIX CONTROLLER
6PX-6216
4. REMOTE MIC COMMUNICATION TERMINAL
This terminal is used to directly connect RM-6024 remote paging microphones.
This port can be expanded to connect up to 8 paging microphones when connected to the RME-6108
Remote microphone extender.
5. AUDIO OUTPUT TERMINAL
8 bus balanced audio output terminal.
6. EMERGENCY PANEL (EP) CONNECTION TERMINAL
This terminal allows for connecting emergency panel unit (EP-9216,9216V,616,6216, etc.) with priority
broadcasting.
7. RS-232 SOURCE UNIT CONTROL TERMINAL
RS-232 communication terminal allows control inter-M source units (CDP, TUNER, VOICE FILE, etc.) via the
PC operation program.

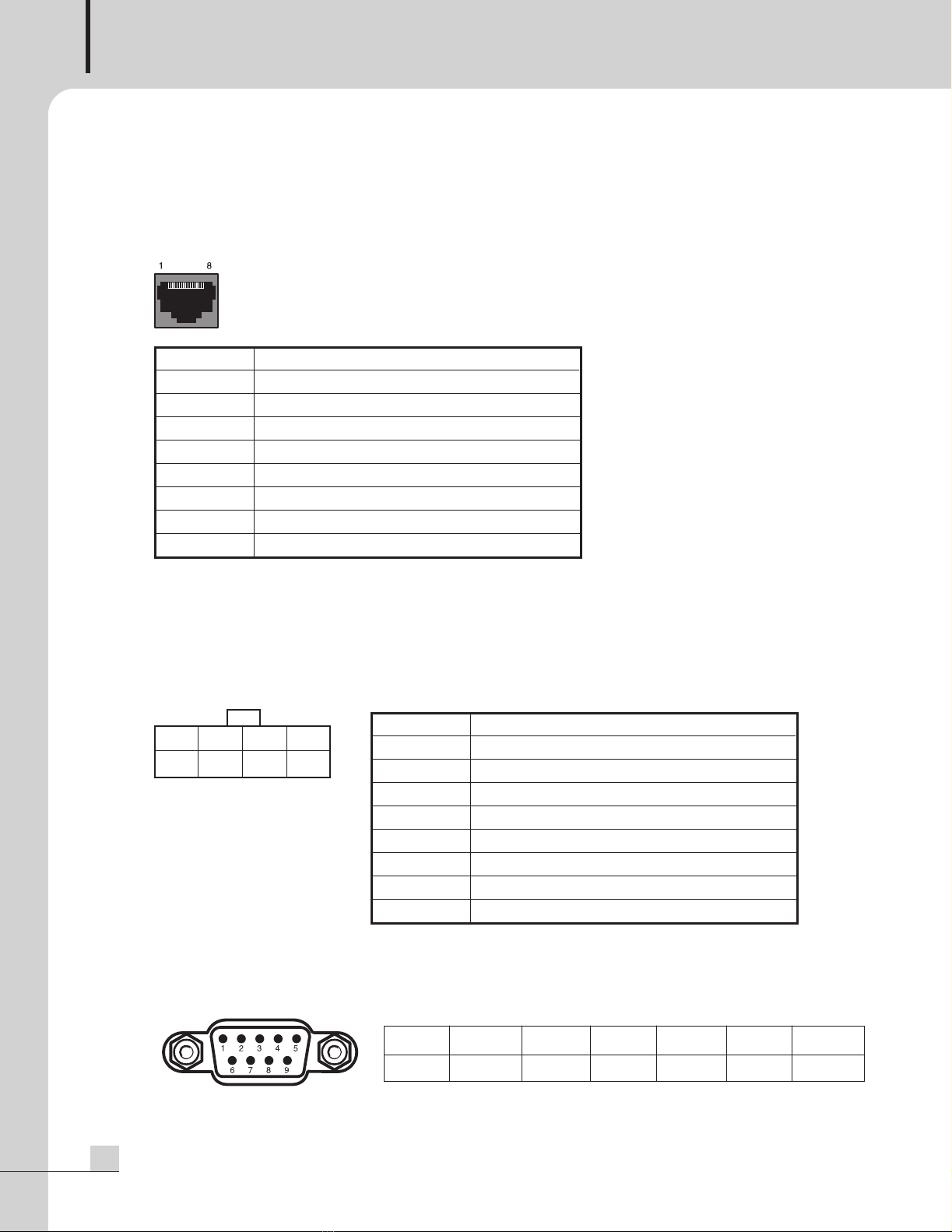

PIN NO. Function
1 RS-422 DATA - RX+
2 RS-422 DATA - RX-
3 RS-422 DATA - TX-
4 Live Data Input
5 GND
6 RS-422 DATA - TX+
7 Balanced Audio Input - HOT
8 Balanced Audio Input - COLD
PIN NO. Function
1 COM
2 DC +24V
3 DC +24V
4 EM SUM
5 TIMER SUM
6 RM1 SUM
7 RM2 SUM
8 FIRE SUM
87 65
43 21
Pin 123 456-9
Purpose Not Used Receive Transmit Not Used Ground Not Used
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 9

AUDIO MATRIX CONTROLLER
7
PX-6216
8. DATA LINK IN/OUT TERMINAL
Communication terminal for Windows PC system control.
LINK IN terminal is connected with DIB-6000 and LINK OUT terminal is connected with following equipment.
9. POWER INPUT TERMINAL
DC Power input terminal. Caution please observe polarity when connecting DC 24V.
Connect to an external power supply or inter-M power distributor. Connect to un-switched power supply.
PIN NO. Function
1 RS-485 Data - A
2 RS-485 Data - B
3 RS-485 Data - Z
4 NA
5 GND
6 RS-485 Data - Y
7 NA
8 NA
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 10

AUDIO MATRIX CONTROLLER
8PX-6216
Equipment Settin and Caution
Equipment Settin and Caution
1. EP CONNECTION
1) When connecting with EP equipment, please connect the matrix terminal of EP and emergency panel
connection terminal by using the EP connector supplied as an accessory of the PX-6216.
2) Connect the audio signal of PRE OUT of EP to EP audio input terminal on the top of PX-6216. Volume
control of EP input can be set in the equipment setting of operation program.
2. TIMER CONNECTION
1) When connecting with TIMER, connect the Timer contact point input terminal of ECS-6216MS and remote
output terminal of Timer.
2) Connect the audio signal of channel out terminal of Timer to the Timer audio input terminal on the top of
PX-6216. Volume control of Timer input can be set in the equipment setting of operation program.
3. DATA LINK IN/OUT CONNECTION
1) Connect the LINK IN terminal of PX-6216 and LINK OUT terminal of DIB-6000 with UTP cable wired strait
or direct method. Connect the DIB-6000 to PC by using USB cable.
2) Set the termination switch terminal of DIB-6000 to LOAD.
※Communication error may occur if setup is incorrect.
3) Connect the other equipment including ECS-6216MS to each other through LINK IN/OUT terminal.
4) Set the TERMINATION switch of the last equipment in the data link to LOAD. Set the other equipment to
OPEN.
※Keep the equipment orders when connecting it. Communication error may occur if setup is incorrect.
Equipment 1
S/W: LOAD
IN OUT
PCEquipment 2
S/W: OPEN
IN OUT
Equipment 3
S/W: OPEN
IN OUT
Equipment 4
S/W: OPEN
IN OUT
Equipment 5
S/W: LOAD
IN OUT
▲▼
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 11

AUDIO MATRIX CONTROLLER
9
PX-6216
Applications
Applications
LINK IN LINK OUT UPGRADE SOURCE 1
RS 232
ADDRESS
1 2 3 4 5 6 7 8 910
1234 5678
9 10 11 12 13 14 15 16
1234 5678
9 10 11 12 13 14 15 16
TERM.
LOAD OPEN
12345678
910111213141516
FIRE
SENSOR
SPEAKER
OUTPUT
AMP
INPUT
HEHCECEHCEHC EEHCEHCEHC HC HCHCHCHC HCHCHCHC
PD TIMER
EXTCOM
DC 24V
LINK IN LINK OUT UPGRADE SOURCE1
RS 232
ADDRESS
1 2 3 4 5 6 7 8 910
1234 5678
9 10 11 12 13 14 15 16
1234 5678
9 10 11 12 13 14 15 16
TERM.
LOAD OPEN
12345678
910111213141516
FIRE
SENSOR
SPEAKER
OUTPUT
AMP
INPUT
HEHCECEHCEHC EEHCEHCEHC HC HCHCHCHC HCHCHCHC
PD TIMER
EXTCOM
DC 24V
DC OUT
24V
MATRIX
12 0
SIREN/VOLUME
PRE IN REMOTE IN 2 REMOTE IN 1 TIMERIN AUTO ANN IN PRE OUT
CONTROL OUT (TO AUTO ANN)
EXTINT
AUTO. ANN
REMOTE MIC
MIC SW
EXTINT
HPF
ON OFF
~ AC INPUT
FUSE
DC INPUT
24V
BALANCED
INPUT
1V/10K
LINK
INPUT(ADJ)
12dB 0dB
100V(20.8 )
43.8V(4 )
OUTPUT
COM
A
B
70V(10.2 )
FRAMEFLOAT
GROUND
LIFT
INPUT OUTPUT
INPUT OUTPUT
LINE
LINK
TERM.
OPEN
LOAD
GND.
FLOAT
FRAME
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT
OUTPUT
DC 24V
SPEAKER
SPEAKER
RME-6108
PROGRAM
TIMER
(PW-6242)
(PW-6242A)
EMERGENCY
PANEL
(EP-6216)
ECS-6216MS
PX-6216
SOURCE
(CD, TUNER
DECK, MIC, ETC.)
ECS-6216MS
POWER
AMPLIFIER
HPF
ON OFF
~ AC INPUT
FUSE
DC INPUT
24V
BALANCED
INPUT
1V/10K
LINK
INPUT(ADJ)
12dB 0dB
100V(20.8 )
43.8V(4 )
OUTPUT
COM
A
B
70V(10.2 )
FRAMEFLOAT
GROUND
LIFT
POWER
AMPLIFIER
DIB-6000
RM-6024+RM-6012KP
RM #1
RM #1
RM #8
RM #2
RM #3
DIRECT BOX
DIB6000
+
VOL INPUT OUTPUT
POWER
TO PC
MUTE
LEVEL
INPUT
VOL
+
MIC
PRI.
OFF
ON MAXMIN
LINE
RM-01 PC(GUI)
VOICE FILE
(PV-6232)
PHANTOM
OFF ON
PHANTOM
OFF ON
SOURCE 1 (RS-232) SOURCE 3 (RS-232)
VOICE FILE (RS-232) SOURCE 2 (RS-232)
3
4
1
2
CH 8
CH 9
CH 10
CH 7 CH 6 CH 5 CH 4 CH 3
CH 1CH 2CH 3CH4CH 5CH 6CH 7CH 8
CH 2 CH 1 EP
TO EP
TIMER
DATA
INPUT
OUTPUT
RM
DC 24V
IN
OUT
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 12

AUDIO MATRIX CONTROLLER
10 PX-6216
Block Dia ram
Block Dia ram
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 13

AUDIO MATRIX CONTROLLER
11
PX-6216
Specifications
Specifications
PX-6216
Rated Output 0dBV (Balanced)
Input Sensitivity EM, TIMER, RM -10dBV/20kΩ (Balanced)
BGM 1~8 LINE -10dBV/3kΩ (Balanced)
BGM 1~8 MIC -50dBV/3kΩ (Balanced)
BGM 9,10 LINE -10dBV/20kΩ (Unbalanced)
Frequency Response ±3dB 20Hz~20kHz
Total Harmonic LINE Less than 0.01%
Distortion MIC Less than 0.1%
Signal to Noise Ratio LINE Better than 85dB
(A-weight Filter)
Maximum S/N LINE Better than 100dB (+8dBV Input)
Phantom MIC Power BGM 1,2 DC 24V
Priority EM>TIMER>RM1>RM2>RM3>RM4>BGM
Communication Interface LINK IN/OUT RS-485 (Max. Distance 1km)
Standard RM RS-422 (Max. Distance 1km)
SOURCE RS-232 (Max. Distance 12m)
Operation Temperature -10°C ~ +40°C
Power Source DC 24V, 1A
Weight (SET) 4.3kg/9.5lbs
Dimensions (SET) 482(W) x 88(H) x 280(D)mm//19(W)x3.5(H)x11(D)in
* Design and specification are subject to be changed for the improvement of product quality without pre notice.
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 14

AUDIO MATRIX CONTROLLER
12 PX-6216
※ DIMENSIONS
440
482
88 280
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 15

AUDIO MATRIX CONTROLLER
13
PX-6216 13
PX-6216
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:10 페이지 16

MADE IN KOREA
September 2014 131676
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
13875 ARTESIA BLVD. CERRITOS, CA 90703 USA
TEL [phone], FAX [phone]
Home Page http //www.inter-m.net, E-mail [email protected]
Inter-M Corporation
SEOUL OFFICE 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL [phone]~8, FAX [phone]
Home Page http //www.inter-m.com, E-mail [email protected]
PX-6216_E_131676_PX-6216_E_131676 14. 9. 4. 오후 3:09 페이지 1
