Inter-m Z-500 User manual

Operation Manual
Zone Output Selector
Z-500
* Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean)
do not have handles installed due to customer preference.

ZONE OUTPUT SELECTOR
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*CLASS 2 WIRING (Adjacent to speaker terminal): The speaker output of this apparatus can exceed 10 Watts and could be a shock injury.
Connection to speakers should be performed by a skilled person.
*Do not install this equipment in a confined space such as a book case or similar unit.
*This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. To disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so."
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.

ZONE OUTPUT SELECTOR
1
Z-500
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Outline of System...........................................................................................................................3
Front Panel ......................................................................................................................................4
Rear Panel .......................................................................................................................................6
Operating Method .........................................................................................................................9

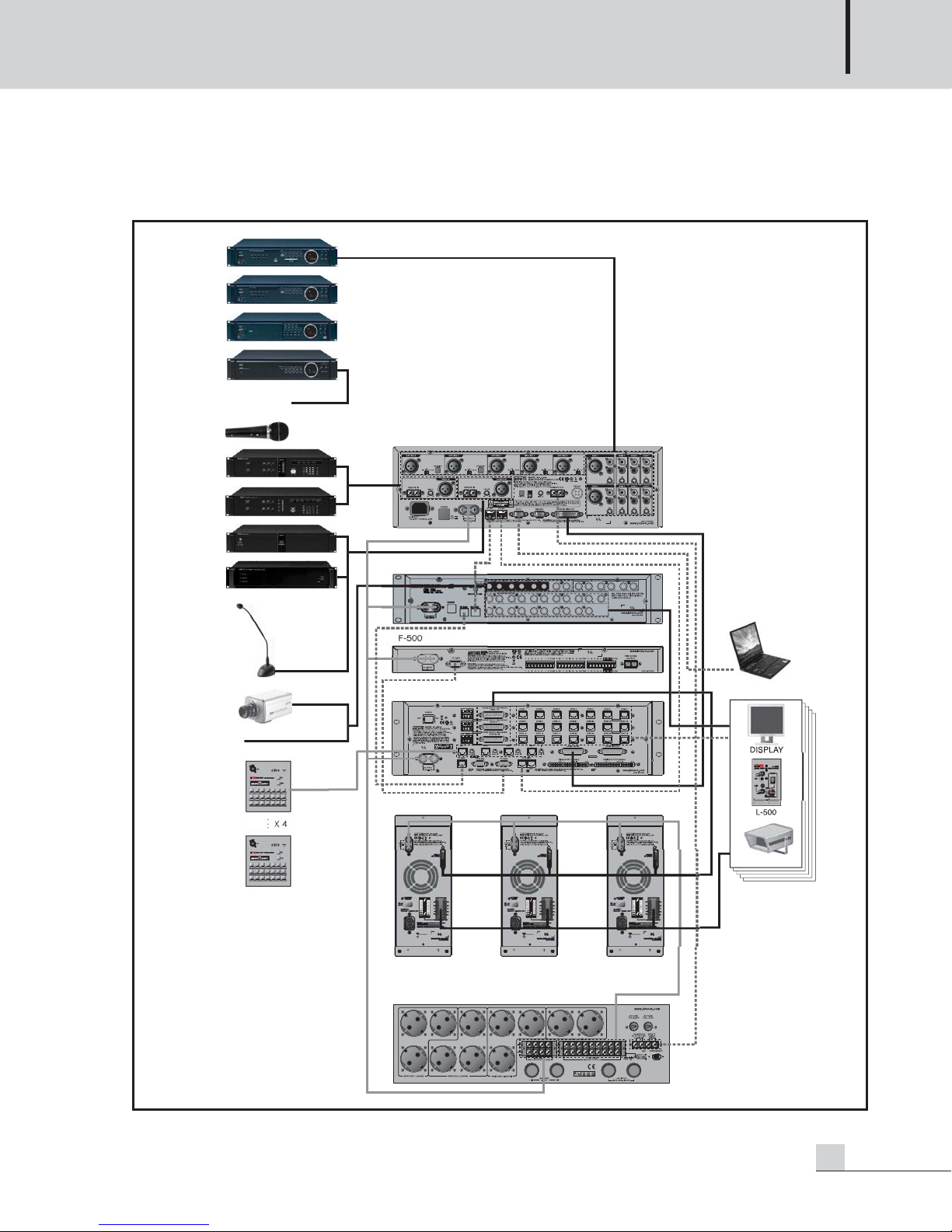

Applications ..................................................................................................................................11

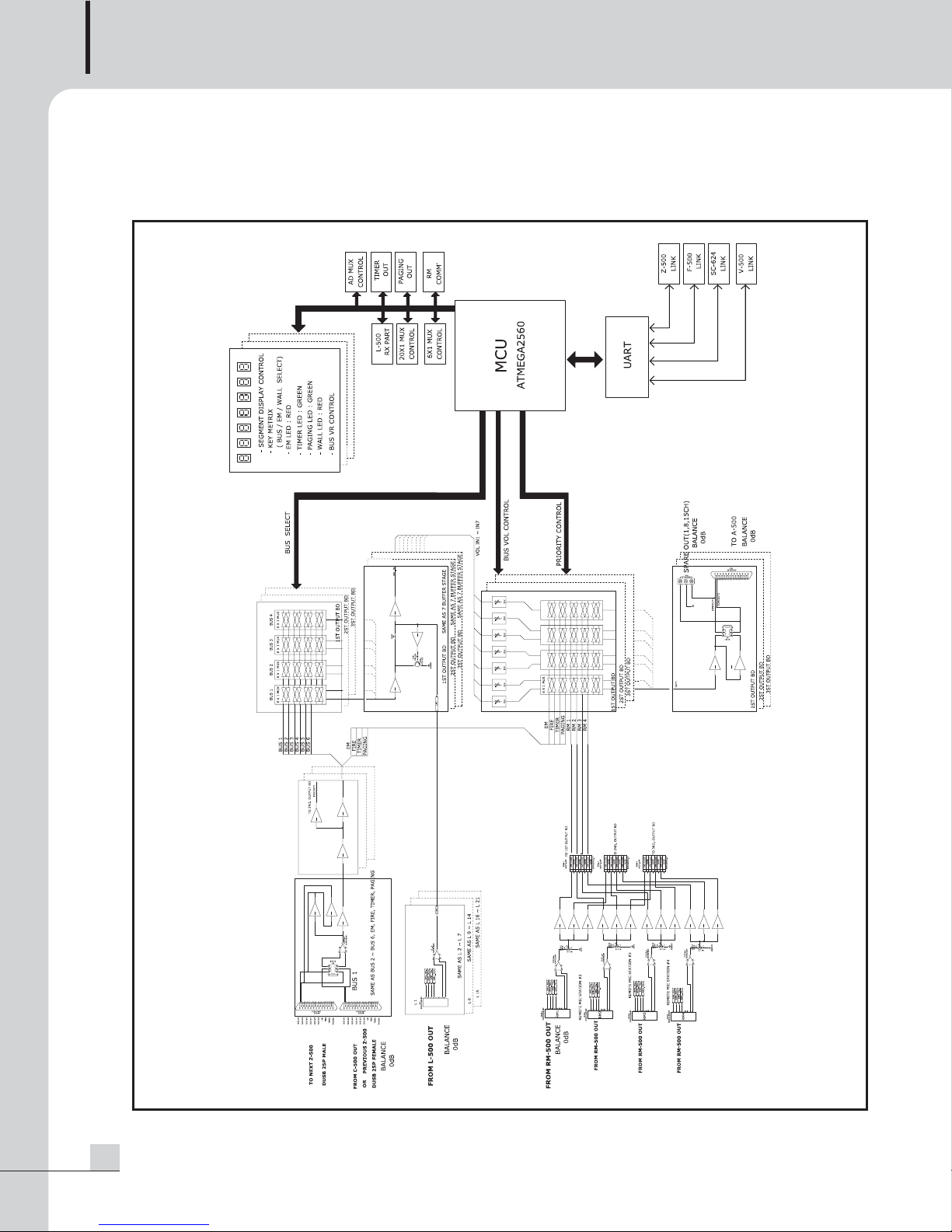

Block Diagram ..............................................................................................................................12
Specifications ................................................................................................................................13
Service
Procedures....................................................................................................................................14
Schematic.....................................................................................................................................14
Parts List .......................................................................................................................................14
Variations and Options ...............................................................................................................14
Warranty .......................................................................................................................................14

ZONE OUTPUT SELECTOR
Unpacking
2Z-500
Unpacking
Although your Z-500 is neither complicated nor difficult to operate, we recommend you take a few minutes to
read this brief manual and familiarize yourself with the important information regarding product features, setup
and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A
S3125A

ZONE OUTPUT SELECTOR
3
Z-500
Outline of System
Outline of System
Audio matrix system on new concept for Public Address Broadcasting and emergency broadcasting
- Priority Broadcasting Source and variety Input source. (EM, FIRE, TIMER, PAGING, etc.)
- Independent BGM broadcasting and networked broadcasting system in each output zones
- It is possible to expand output area up to maximum 10 and total 210 zones when expanding Z-500.
- Convenient 10 level priority broadcasting function
(EM > FIRE > TIMER > PAGING > RM1~4 > LOCAL INPUT > BGM BUS)
- Displays broadcasting status by output zone (7-segment)
- Implementation of A/V matrix system in link with image matrix system
- Provide 21-Ch balance audio output and spare output channel
- It is possible to remote control(BUS SELECT and OUTPUT SOUND CONTROL) using local controller(L-500)
- Local self-broadcasting using local controller.
- Adoption of RS-422 / RS-232 communication method supporting long distance
- Convenient connection with 7-Ch power AMP with adoption of lump-sum output terminal

ZONE OUTPUT SELECTOR
4Z-500
Front Panel
Front Panel
1. PAGING BROADCASTING OUTPUT DISPLAY LAMP
Determine using dip switch on the rear side whether PAGING broadcasting is output.
Display lamp turns on at the zone where switch is set to ON.
2. ZONE BROADCASTING STATUS INDICATOR
Display broadcasting status of each zone.
If all Zone’s status connected with system is ‘-’, display [OFF] on the display window of C-500.
3. EM MIC BROADCASTING OUTPUT DISPLAY LAMP
This lamp turns on if pressing the EM MIC Broadcasting Selection button of the zone to execute EM
broadcasting.
4. TIMER ALARM BROADCASTING OUTPUT DISPLAY LAMP
Determine using dip switch on the rear side whether TIMER (PW-9242, PW-642) broadcasting is output.
Display lamp turns on at the zone where switch is set to ON.
5. BUS SELECT AND BUS GROUP SELECT BUTTON
One of total 6 BUS sound sources can be selected.
BUS is selected to the order of 1, 2, 3, 4, 5, 6, 1, 2, 3.....6 whenever pressing the button. If the last of the left
BUS GROUP BUTTON among 7 channel is pushed long time, right 6 channels change together similarly.
(EXAMPLE : If NO.3 is appointed, right 6 channels are changed into NO.3.)
One more pressing the last of the left button for a long time, then 7 channels are changed into next BUS
altogether.
1 2 3 4
76 85
EM FIRE TIMER PAGING RM BUS
EFt PR1~6

ZONE OUTPUT SELECTOR
5
Z-500
6. EM BROADCASTING SELECT AND EM GROUP BROADCASTING SELECT BUTTON
Select the output zone to execute EM (EMERGENCY) broadcasting. If the zone is selected, the display lamp
turns on to display whether EM broadcasting of the relevant output is done.
EM Group button is a button to select EM broadcasting zone by unit of 7-zone. If pressing the last of the left
button, 7 display lamps turn on.
7. ZONE BUS VOLUME CONTROLLER
Volume to control bus sound volume of the relevant output.
8. L-500 CONTROL RIGHT BUTTON AND INDICATOR
Authority to select BUS of the Local (wall mount) controller connected to each zone and authority to control
BUS sound volume is endowed.

ZONE OUTPUT SELECTOR
6Z-500
Rear Panel
Rear Panel
1. POWER SWITCH
Power switch to supply power of this unit.
2. ZONE 1, 8, 15 INDIVIDUAL OUTPUT TERMINAL
Pre-AMP output terminal of 1,8,15 Zone can be broadcasted by using separate power AMP.

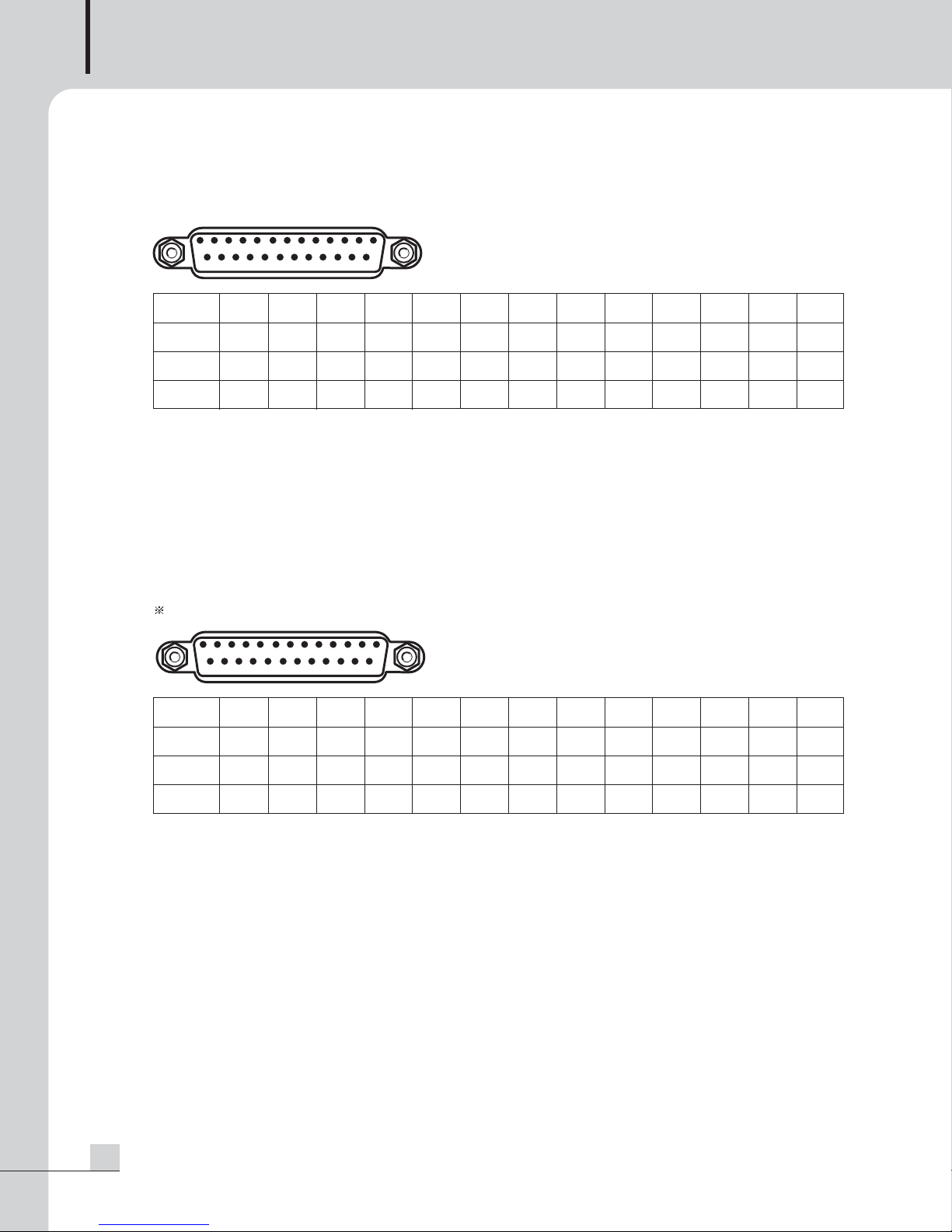

3. Z-500 AUDIO OUTPUT TERMINAL
This is an output terminal equivalent to each output zone and is connected to A-500.
4. L-500 CONNECTING TERMINAL
A terminal to connect with a local controller
4 123
11121413105 6 8 7 9
123456789101112
14 15 16 17 18 19 20 21 22 23 24 25
13
Pin 12345678910111213
Purpose Blank Blank GND OUT7+ OUT6- GND OUT5+ OUT4- GND OUT3+ OUT2- GND OUT1+
Pin
14 15 16 17 18 19 20 21 22 23 24 25
Purpose
GND Fault OUT7- GND OUT6+ OUT5- GND OUT4+ OUT3- GND OUT2+ OUT1-
Pin SIGNAL COLOR Pin SIGNAL COLOR
1Tx- Orange/White 5 GND Blue/White
2Tx+ Orange 6 VCC Green
3Rx- Green/White 7 Audio+ Brown/White
4Rx+ Blue 8 Audio- Brown

ZONE OUTPUT SELECTOR
7
Z-500
5. DC 24V POWER INPUT TERMINAL
A terminal to input DC power
6. RM1~RM4 INPUT TERMINAL AND INPUT VOLUME CONTROLLER
A terminal to connect RM-500 and a volume to control input sound volume.
“R” is displayed on the front display window during RM broadcasting.
7. VIDEO MATRIX SYSTEM(V-500) COMMUNICATION TERMINAL
A terminal to transmit zone information of each output channel to V-500
8. SPEAKER LINE CHECK COMMUNICATION TERMINAL
A terminal to receive defect information of the speaker connection status from SC-624.
Received information is transferred to C-500 to give line failure information.
RS-232C PIN SPECIFICATION
Display [FLT] on display window of C-500 in case of line default. No display on the order of priority
broadcasting.
9. FIRE SENSOR COMMUNICATION TERMINAL
A terminal to receive channel information to execute fire broadcasting from F-500.
When fire generates, automatic fire broadcasting is transmitted and ‘F’ is displayed on the relevant display
window.
PIN NUMBER is the same as NO.8.
10. DATA LINK TERMINAL
IN: A terminal to communicate with C-500 equipment and connect with Z-500 DATA LINK OUT Terminal
when Z-500 expand.
OUT: A terminal for control signal communication when linking Z-500 for expanding the output area with
communication terminal for Z-500 link.
Expanding output zone can be connected up to total 10 sets (210 ZONE)
11. TIME ALARM OUTPUT SELECT SWITCH
A switch to select a channel to output time alarm broadcasting (PW-9242, PV-632 etc).
The display lamp turns on to inform whether the time alarm broadcasting output is done in the front side of
the zone where switch is set to ‘ON’. Broadcasting is done only to the output channel where the switch is set
to ‘ON’ during time alarm broadcasting.
Pin 1 2 3 4 5 6-9
Purpose Not Used Receive Transmit Not Used Ground Not Used

ZONE OUTPUT SELECTOR
8Z-500
12. AUDIO LINK IN (C-500 SOUND SOURCE OUTPUT CONNECTING TERMINAL)
A terminal for connecting sound source output audio of C-500.
13. PAGING BROADCASTING OUTPUT SELECT SWITCH
A switch to select a channel to paging broadcasting (TP-9231, TP-631 etc)
The display lamp turns on to inform whether the paging broadcasting output is done in the front side of the
zone where switch is set to ‘ON’. Broadcasting is done only to the output channel where the switch is set to
‘ON’ during time alarm broadcasting. ‘P’ is displayed on the front display window.
14. AUDIO LINK OUT (SOUND SOURCE CONNECTING TERMINAL FOR Z-500 LINK)
Audio connection terminal using when linking Z-500 for expanding the output zone.
Expanding the output zone can be connected up to total 10 sets (210 ZONE).
Pin 13 12 11 10 9 8 7 6 5 4 3 2 1
Purpose BUS1+ GND BUS2- BUS3+ GND BUS4- BUS5+ GND BUS6- EM FIRE- TIME- PAGE-
Pin
25 24 23 22 21 20 19 18 17 16 15 14
Purpose BUS1- BUS2+ GND BUS3- BUS4+ GND BUS5- BUS6+ EM+ FIRE+ TIME+ PAGE+
13 12 11 10 9 8 7 6 5 4 3 2
25 24 23 22 21 20 19 18 17 16 15 14
1
123456789101112
14 15 16 17 18 19 20 21 22 23 24 25
13
Pin 1 2 3 4 5 6 7 8 9 10 11 12 13
Purpose BUS1+ GND BUS2- BUS3+ GND BUS4- BUS5+ GND BUS6- EM FIRE- TIME- PAGE-
Pin 14 15 16 17 18 19 20 21 22 23 24 25
Purpose BUS1- BUS2+ GND BUS3- BUS4+ GND BUS5- BUS6+ EM+ FIRE+ TIME+ PAGE+

ZONE OUTPUT SELECTOR
9
Z-500
Operating Method
Operating Method
1. A BASIC BROADCASTING SETTING UP
1) Select a desired BUS among BUS of 6 channels to broadcast by pressing BUS select switch of each
zone. Bus is sequentially selected to the order of 1,2,3,4,5,6,-,1,2,3,4,5,6,-
2) Institute sound volume of desired lever by controlling a relevant output volume of each zone.
3) In case of controlling BUS and VOLUME of each zone by using local controller L-500, setting in local
area by pressing the WALL Button of relevant zone.
4) In case of broadcasting timer Alarm or paging, timer Alarm or paging broadcasting can be done
to desired zone by controlling output selection switch of timer Alarm/paging broadcasting on the
rear side.
2. CONNECTING L-500
1) Connect with L-500 connection terminal on the rear side of Z-500 using Category5(UTP) material.
2) Connection hole number of the connected Z-500 represents output zone and assure connection up to
Maximum 300m.
3) Connection of total 21 sets of L-500 is permitted to a piece of Z-500.
4) Without need of setting separate ID, automatic recognition is done together with Z-500 and immediate
use is permitted.
5) Selected BGM number is displayed in the relevant zone after 0, 1, 2, 3, 4, 5, 6, 7, 8, A, B, C, D, E, F is
orderly displayed on the BGM display window of L-500 if power is supplied.
6) BUS selection and BUS output sound volume of Z-500 can be controlled by using L-500 if dot (.) is
displayed on the BUS display window of L-500.
7) Control power of L-500 is endowed or released by using the Wall ENABLE button on the front side of
Z-500. If Wall ENABLE is endowed to L-500, the Enable button of Z-500 turns on, and dot (.) is
displayed on the BGM display window of L-500.
8) If ‘E’ flicker continually on the display window, check connection status and unit.
Since sound volume is set to minimum in initial use, turn volume of encoder clockwise until change of
sound volume is confirmed.
3. CHANGE OF BUS AND CONTROL OF OUTPUT ZONE SOUND USING L-500
1) Endow control power of L-500 by pressing the Wall Enable button of Z-500.
2) Check that BUS number is changed by operating the BUS Select Button of L-500.
3) Same BUS number is displayed on the front BUS display window of Z_500 and the display window
of L-500.
4) Control a sound volume of output zone by using a sound volume control encoder.
The volume control encoder of L-500 and volume on the front side of Z-500 unit are used to control
sound volume of the BUS broadcasting in the output zone. Paging MIC broadcasting and the output
zone sound volume of RM-500 are not controlled with encoder and volume.
4. SELF-LOCAL BGM AND MIC BROADCASTING USING L-500
Zone self-broadcasting is permitted with L-500. You can perform desired MIC broadcasting in respective
zone or listen to BGM music as well as main BGM connected to Z-500.
LOCAL BGM&MIC broadcasting of L-500 has higher priority than main BGM of Z-500 and thus main
BGM automatically becomes mute during self-broadcasting of L-500.
1) Connect desired MIC or sound source unit to MIC or line input.
2) Control sound volume by using each input sound volume control volumes.
3) Immediate broadcasting is possible and the zone output sound volume can be controlled by using
encoder of L-500 or a volume of Z-500.

ZONE OUTPUT SELECTOR
10 Z-500
4) Main BGM on the BUS display window becomes mute during self-broadcasting of L-500. If no local
broadcasting, Mute is released and main BGM is broadcast.
A condenser MIC cannot be used during L-500 LOCAL MIC broadcasting.
A Display status of the BUS display window of L-500 is as follow:
During Z-500 EM MIC broadcasting E
During Z-500 paging broadcasting P
During Z-500 Fire Alarm broadcasting F
During Z-500 Timer Alarm broadcasting T
During RM-500 broadcasting R
5. CONNECTING RM-500
1) Connect with RM-500 connection hole on the rear side of Z-500 unit by using CAT5(UTP) material.
Same connection method of L-500
2) Immediate broadcasting is permitted without separate ID setting.
3) Total 4 sets of RM-500 can be connected.
4) If power is supplied, buttons sequentially turns on or off at the same time as power LED turns on.
5) Check connection status and unit since flickering of buttons means defective unit or connection status.
6. RM-500 MIC BROADCASTING
1) Connect MIC to a MIC input jack. Both dynamic MIC and condenser MIC are available.
2) Set chime mode switch on the rear side of RM-500.
A. Switch 1 ON: Upper 2 tone chime is transmitted when pressing TALK button for starting
broadcasting.
B. Switch 2 ON: Upper 4 tone chime is transmitted when pressing TALK button for starting
broadcasting.
C. Switch 3 ON: Lower 4 tone chime is transmitted when pressing TALK button for ending
broadcasting.
D. Switch 1, 2 ON: Same as function as Switch 1 ON.
3) Pressing the relevant button of the zone to broadcast enables to turn on the button. If pressing ‘All’
button, all zones of Z-500 where the relevant RM-500 is connected to are selected.
4) MIC broadcasting is performed with the ‘TALK’ button pressed. In this case, broadcasting is performed
after checking start of chime broadcasting by using a built-in monitor speaker.
5) Control MIC input volume of RM-500 and input volume of Z-500 while checking a level meter or
listening to broadcasting volume.
6) ‘R’ is displayed on the BUS display window of Z-500 and the BUS display window of L-500, which is
relevant to broadcasting zone.
7) Release MIC broadcasting status by pressing the talk button to end broadcasting.
8) Check ending of chime broadcasting by using a built-in monitor speaker.
7. BROADCASTING OF RM-500 PRIORITY
1) Broadcasting to any RM-500 is permitted for the non-broadcasting zone.
2) The broadcasting zone has priority to the order of RM1 > RM2 > RM3 > RM4.
3) If the relevant zone button turns off when pressing ‘TALK’ button after pressing the broadcasting zone
button, it means that other RM is already broadcast in the same zone and it is noted which RM-500 is
broadcast with the turned ‘IN USE LED’.
4) If other IN USE turns on after the zone button selected during broadcasting turns off, other RM-500 with
high priority is broadcast in the same zone.
8. OPERATION IN RM-500 LINK MODE
In case of using the unit through link with Z-500, MIC broadcasting of RM-500 is impossible to the output
zone of other Z-500, Broadcasting is permitted only to the output zone of the Z-500 where RM-500 is
connected.

ZONE OUTPUT SELECTOR
11
Z-500
Applications
Applications
A-500
X 21
SPEAKER
Z-500
PW-642
MIC
PW-9642
TP-631
TP-9231
RM-01
C
AMERA
DVD PL
A
YE
A
A
R
RM-500
PD-9359A
SOURCE SELECTABLE
PC
TU-610
CD-660
CD-610
CD-611

ZONE OUTPUT SELECTOR
12 Z-500
Block Diagram
Block Diagram

ZONE OUTPUT SELECTOR
13
Z-500
Z-500
AUDIO INPUT / OUTPUT
AUDIO INPUT
AUDIO LINK IN (10CH, Balanced) 0dBV
RM-500 (RM1~4, Balanced) 0dBV
L-500 (ZONE1~21, Balanced) 0dBV
AUDIO LINK OUT (10CH, Balanced) 0dBV
ZONE OUTPUT (1~21CH, Balanced) 0dBV
Frequency Response ( 3dB) 60Hz~15kHz
Signal to Noise ratio Better than 70dB
Total Harmonic distortion Less than 0.1%
Priority Control EM MIC>FIRE ALARM>TIMER>PAGING>
RM1>RM2>RM3>RM4>LOCAL>BGM BUS
Serial Interface
Z-500 TO C-500 RS-422
Z-500 TO Z-500 RS-422
Z-500 TO RM-500 RS-422
Z-500 TO L-500 RS-422
Z-500 TO V-500 RS-232C
Z-500 TO F-500 RS-232C
Z-500 TO SC-624 RS-232C
Power source DC24V
Power consumption 3.8A
Operation temperature -10°C ~ +40°C
Weight(SET) 7.6kg/16.75lb
Dimension(SET) 482(W)x132(H)x380(D)mm/19(W)x5.2(H)x15(D)in
* Specifications and design are subject to change without notice.
Specifications
Specifications

ZONE OUTPUT SELECTOR
14 Z-500
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
Variations and Options
Variations and Options
Variations
Variations of this product exist to reflect the variations in AC power requirements throughout the world. Product
supplied through local sources are compatible with local AC power requirements.
Options
No optional items are available for this product.

NOTE

NOTE

NOTE

MADE IN KOREA
February 2009 122763
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, Inc.
13875 Artesia Blvd. Cerritos, CA 90703 USA
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
Seoul OFFICE:653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
