Inter-m SEG-1404 User manual

Operation Manual
Sound Exchanger
SEG-1404

SOUND EXCHANGER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ATTENTION : RISQUE DE CHOC ELECTRIQUE
NE PAS QUVRIR
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases,
should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
*
The mains plug of the power supply cord shall remain readily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.
Pour deconnecter completement l’appareil du reseau
d’alimentation. deconnecter le cordon d’alimentation de la
prise murale.
La prise du reseau d’alimentation doit demeurer aisement
accessible.

SOUND EXCHANGER
1
SEG-1404
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features ...........................................................................................................................................3
Contents and Accessories .............................................................................................................3
Front Panel ......................................................................................................................................4
Rear Panel .......................................................................................................................................5
How to operate...............................................................................................................................7
Applications ....................................................................................................................................8
Block Diagram ................................................................................................................................9
Specifications ................................................................................................................................10
Service
Procedures....................................................................................................................................12
Schematic.....................................................................................................................................12
Parts List .......................................................................................................................................12
Variations and Options...............................................................................................................12
Warranty .......................................................................................................................................12

SOUND EXCHANGER
2SEG-1404
Installation
Unpacking
Unpacking
Although your SEG-1404 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A

SOUND EXCHANGER
3
SEG-1404
Features
Contents and Accessories
Contents and Accessories
1. AC Power Cord × 1EA
2. 5P Euro Terminal Block x 1EA
3. Wall-Mount Screw x 4EA
4. Washer x 4EA
5. User manual x 1EA
Features
- Automatic switching of programs (broadcasting)
Switches the audio signal automatically when there is an Emergency broadcasting.
- Supports 4-Bus
SEG-1404 provides 4 inputs and 4 outputs for more flexible installation.
- Indicators
SEG-1404 has LED indicators for each channel. These indicators enable easy monitoring of each channel.

SOUND EXCHANGER
4SEG-1404

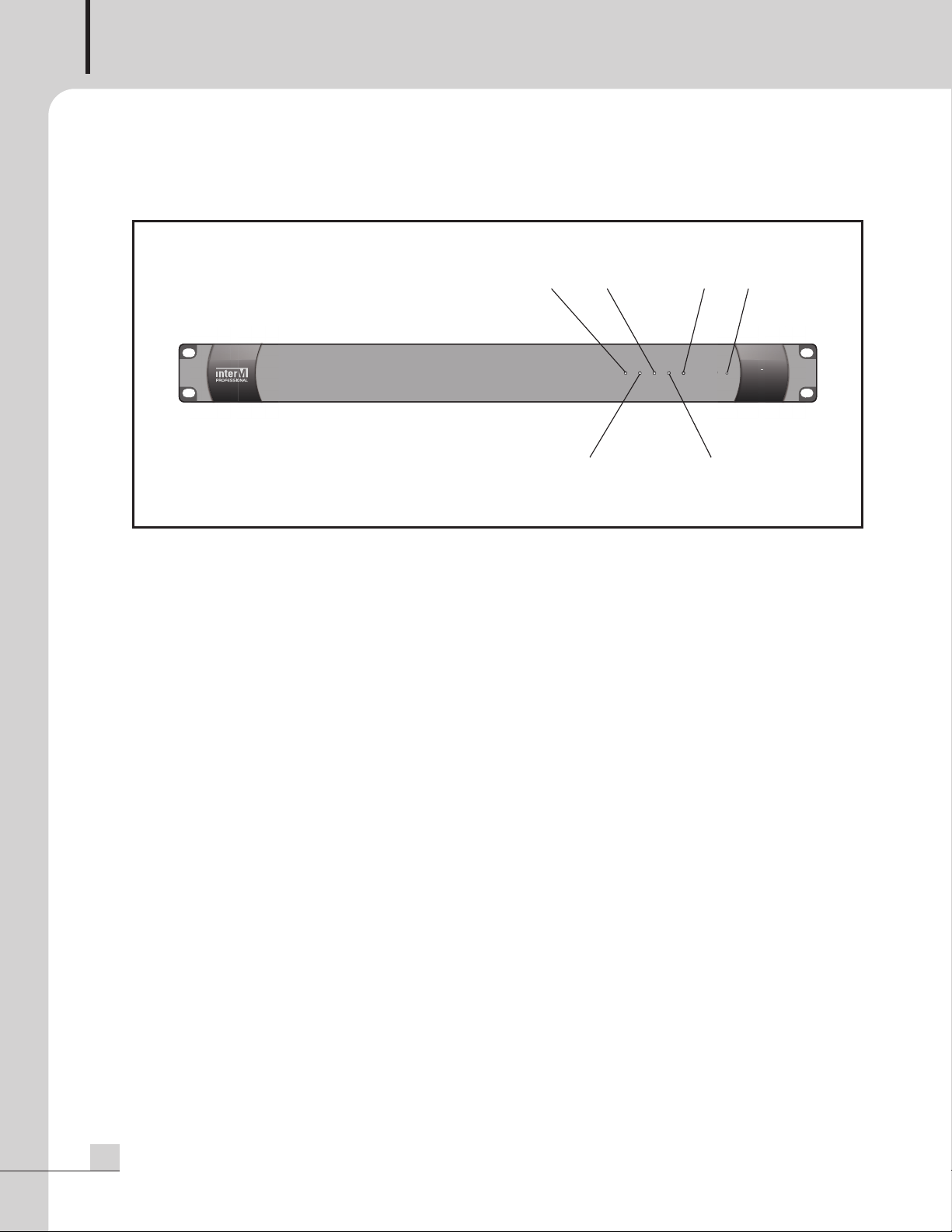

Front Panel
Front Panel
1. EM LED
This LED lights up when an emergency broadcasting is active.
2. INPUT INDICATOR (LINE 1)
This LED lights up when there is an audio signal in the INPUT 1
3. INPUT INDICATOR (LINE 2)
This LED lights up when there is an audio signal in the INPUT 2
4. INPUT INDICATOR (LINE 3)
This LED lights up when there is an audio signal in the INPUT 3
5. INPUT INDICATOR (LINE 4)
This LED lights up when there is an audio signal in the INPUT 4
6. POWER INDICATOR
This LED lights up when the device is connected to an AC mains
POWER
1EM 2 3 4
R
R
SOUND
EXCHANGER
SEG
1404
1 3 5 6
24

SOUND EXCHANGER
5
SEG-1404
Rear Panel
Rear Panel
1. AC POWER INPUT
This port supplies the AC power to the device. Do not bend, twist, heat, cut, or pull the cord. This would
damage the AC cord and cause fire or electrocution.
2. EMERGENCY
Connect an audio input (Balanced) and a contact closure for Emergency broadcasting
- Connect balanced audio to +, -, G respectively.
- Connect a contact closure to CONTACT
(When the contact closure input is shorted, all broadcastings from LINE INPUT 1~4
are switched to the audio signal of the Emergency audio input.
3. LINE OUTPUT
In normal conditions, SEG-1404 passes through the audio signals from the LINE INPUT 1~4 to LINE
OUTPUT 1~4 respectively. A balanced connection is recommended, but using an unbalanced connection is
possible. Short the – and G to connect as unbalanced.
CONTACT
AC INPUT CH4 CH3 CH2 CH1
1 3
24
CONTACT

SOUND EXCHANGER
6SEG-1404

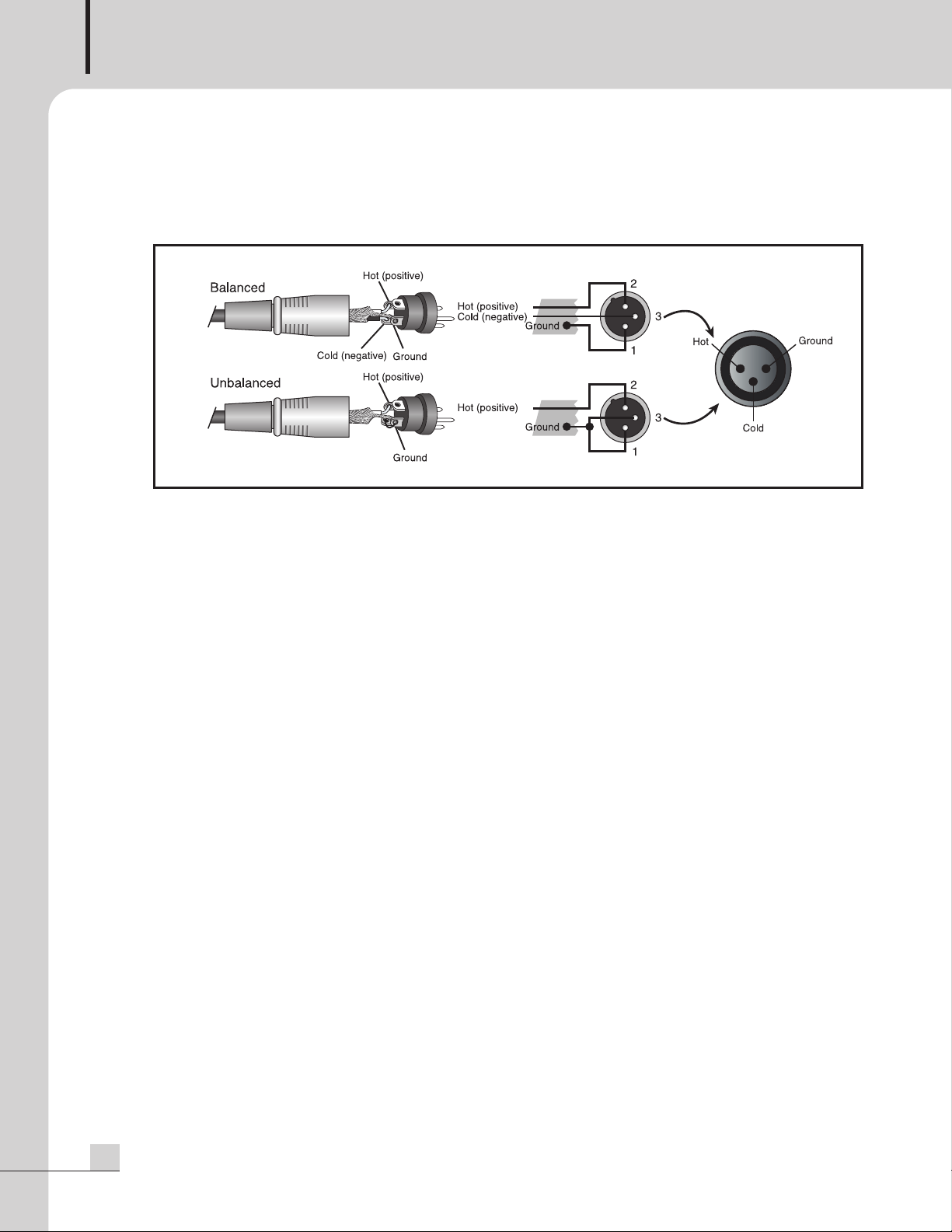

4. LINE INPUT
SEG-1404 can receive 4 different audio inputs. A balanced connection is recommended, but using an
unbalanced connection is possible. Short the – and G to connect as unbalanced.
Locate Phantom switch to OFF when using unbalanced cable.
XLR
1
2
3

SOUND EXCHANGER
7
SEG-1404
How to operate
How to operate
1. Supply AC power to SEG-1404. When SEG-1404 is connected to a power distributor (PD-6359A), turn the
power of the power distributor on. When AC power is supplied, the POWER LED lights up.
2. Turn the source device on and check the broadcasting output is normal.
3. After checking the normal broadcasting, test the emergency broadcasting to check if the SEG-1404 switches
the broadcasting correctly. (The emergency audio signal is forwarded to all outputs 1~4.)
4. When the test is finished, make sure that the AC power voltage and pins of the EMERGENCY contact closure
are in operable condition.

SOUND EXCHANGER
8SEG-1404
Applications
Applications
PROFESSIONAL POWER AMPLIFIER
DSA-500Q
PROFESSIONAL POWER AMPLIFIER
DSA-500Q
SOUND EXCHANGER
SEG-1404
Line 4in x 4out EM
Audio in
Contact
Contact
Audio(Low/High-Z)
Audio(Mic/Line)
Data(RS-232)
MULTI SOURCE PLAYER #1
CDR-01
MULTI SOURCE PLAYER #2
CD-6208
MULTI SOURCE PLAYER #3
CD-610U
DIGITAL TUNER
TU-6200
DIGITAL MIXER
DX2042
Fire Alarm System
Emergency
Sound Source
* When the contact closure input is shorted, all
broadcastings from LINE INPUT 1~4 are switched to
the audio signal of the Emergency audio input.

SOUND EXCHANGER
9
SEG-1404

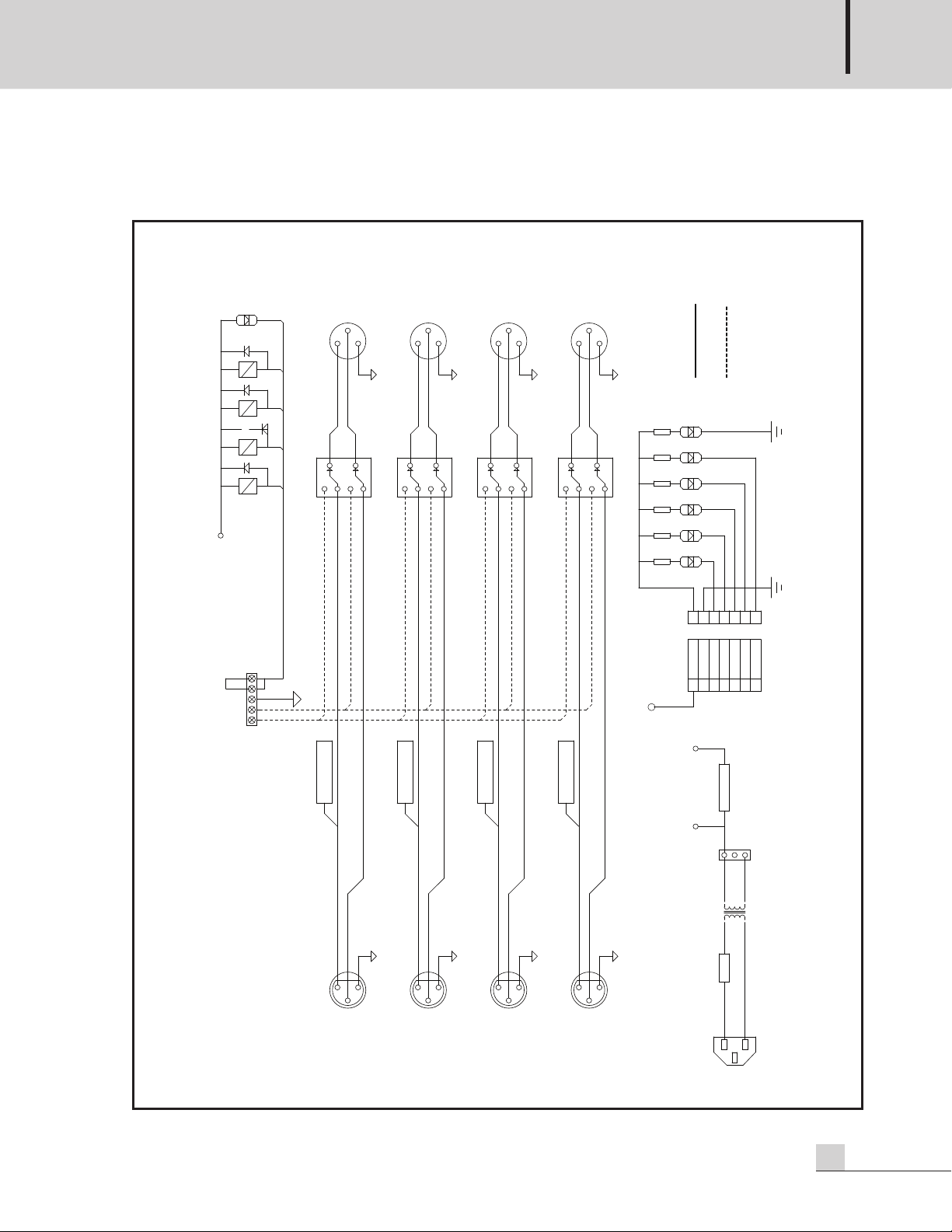

Block Diagram
Block Diagram
CONTACTEM AUDIO IN
+-G
DC +24V
EM LED (RED)
FUSE REGULATOR
+15V+24V
AC 220V
LINE 1 LED (BLUE)
LINE INPUT 2
LINE INPUT 1
LINE INPUT 3
LINE INPUT 4
AUDIO OUT 1
AUDIO OUT 2
AUDIO OUT 3
AUDIO OUT 4
AUDIO +
AUDIO -
AUDIO +
AUDIO -
AUDIO +
AUDIO -
AUDIO +
AUDIO -
EM AUDIO +
EM AUDIO -
EM AUDIO +
EM AUDIO -
EM AUDIO +
EM AUDIO -
EM AUDIO +
EM AUDIO -
LINE 2 LED (BLUE)
LINE 3 LED (BLUE)
LINE 4 LED (BLUE)
LINE
EM AUDIO
+15V
GND
EM_LED
CH1_LED
CH2_LED
CH3_LED
CH4_LED
1
2
3
4
5
6
7
1
2
3
4
5
6
7
+15V
PWR LED
1
2
3
XLR1
XLR/M
1
2
3
XLR5
XLR/F
1
2
3
XLR2
XLR/M
1
2
3
XLR3
XLR/F
1
2
3
XLR4
XLR/M
1
2
3
XLR6
XLR/F
1
2
3
XLR7
XLR/M
1
2
3
XLR8
XLR/F
1
2
3
4
5
1
34
7

SOUND EXCHANGER
10 SEG-1404
Specifications
Specifications
* Design and specification are subject to be changed for the improvement of product quality without pre notice.
SEG-1404
Switching Automatic
Program audio channels 4
Indicators
POWER LED
LINE INPUT 1 LED
LINE INPUT 2 LED
LINE INPUT 3 LED
LINE INPUT 4 LED
EM LED
Operating temperature -10℃~+40℃
Operating power AC 230-240V~/60Hz
Power Consumption 5W
Weight(set) 2.9kg/6.39lb
Dimensions(set) 482(W) x 44(H) x 283(D)mm/18.97(W) x 1.73(H) x 11.14(D)in

SOUND EXCHANGER
11
SEG-1404

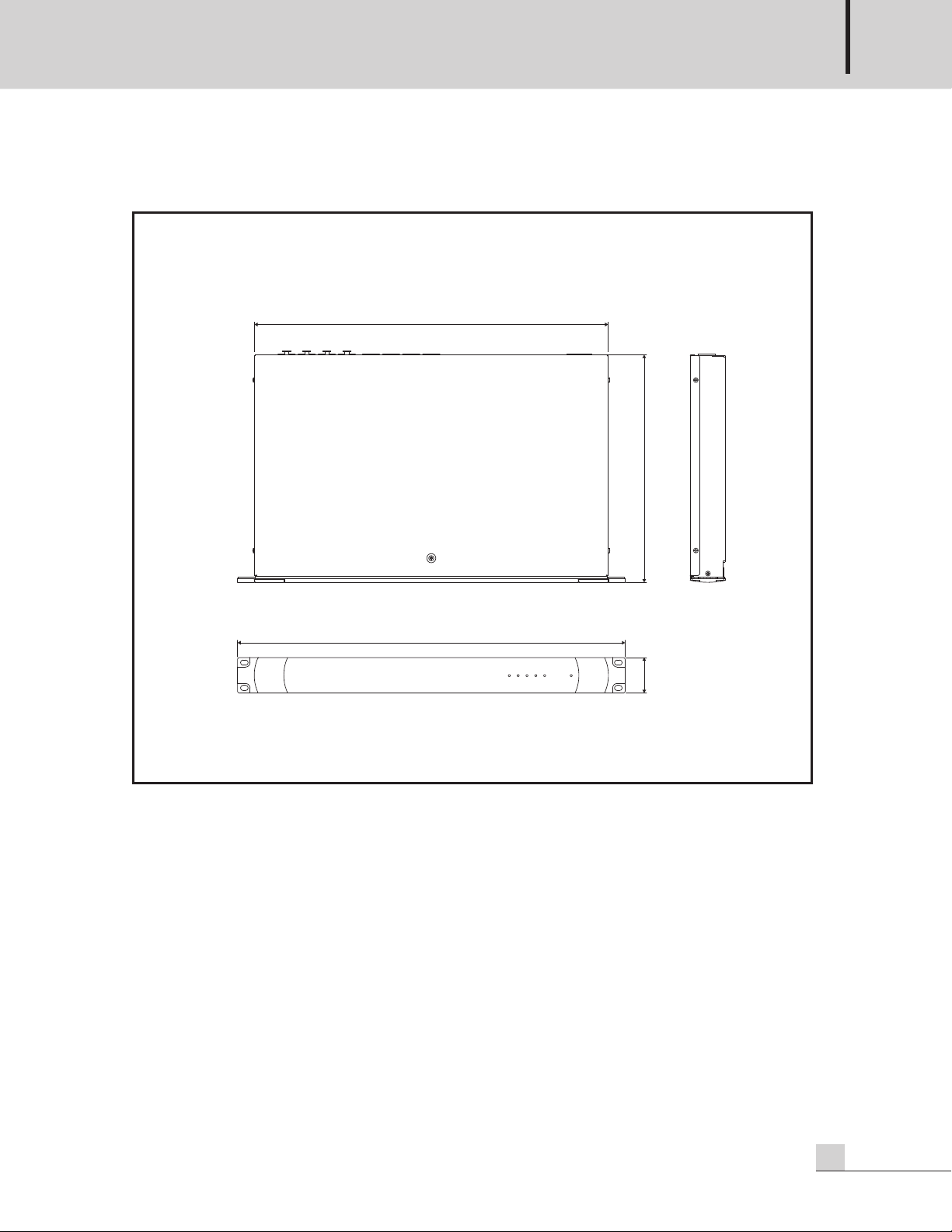

44 283
482
440
※ DIMENSIONS

SOUND EXCHANGER
12 SEG-1404
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.


MADE IN KOREA
October 2020
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : +1-714-828-2200, FAX : +1-714-828-2210
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : +82-2-2289-8140~8, FAX : +82-2-2289-8149
Table of contents
Other Inter-m Recording Equipment manuals

Inter-m
Inter-m PG-6104 User manual

Inter-m
Inter-m PS-9116 User manual

Inter-m
Inter-m PS-616 User manual

Inter-m
Inter-m MVF-2132 User manual

Inter-m
Inter-m MATRIX RX-8000 User manual

Inter-m
Inter-m RG-6116 User manual

Inter-m
Inter-m EQ-2131 User manual

Inter-m
Inter-m DAC-122 User manual

Inter-m
Inter-m NPX-8000 User manual

Inter-m
Inter-m PS-6116I User manual
