Inter-m RG-6116 User manual

Operation Manual
Relay Group
RG-6116
* Rack mount products in the Western Hemisphere
(North America, South America, and the Caribbean)
do not have handles installed due to customer preference.

RELAY GROUP
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently
good value, and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your
complete satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION : RISQUE DE CHOC ELECTRIQUE
NE PAS QUVRIR
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used
near water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should
be taken so than objects do not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids,
such as vases,
should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
* To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
* The mains plug of the power supply cord shall remain readily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operation and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Caution: To prevent electric shock do not use this (polarized) plug
with an extension cord, receptacle or other outlet unless
the blades can be fully inserted to prevent blade
exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser
cette fiche polarisée avec un prolongateur, une prise
de courant on une autre sortie de courant, sauf si les
lames peuvent étre insérées à fond sans en laisser
aucune partie à découvert.
Pour deconnecter completement l’appareil du reseau
d’alimentation. deconnecter le cordon d’alimentation
de la prise murale.
La prise du reseau d’alimentation doit demeurer
aisement accessible.

RELAY GROUP
1
RG-6116
Contents
Contents
Unpacking .........................................................................................................................2
Installation
Environment ......................................................................................................................2
Important Safety Instructions ...............................................................................................2
Features .............................................................................................................................3
Front Panel ........................................................................................................................4
Rear Panel .........................................................................................................................5
System Connections .........................................................................................................6
Applications ......................................................................................................................7
Block Diagram ..................................................................................................................8
Specifications ....................................................................................................................9
Service..............................................................................................................................10
Procedures ......................................................................................................................10
Schematic .......................................................................................................................10
Parts List..........................................................................................................................10
Warranty .........................................................................................................................10

RELAY GROUP
Unpacking
2RG-6116
Unpacking
Although your RG-6116 is neither complicated nor difficult to operate, we recommend you take a few
minutes to read this brief manual and familiarize yourself with the important information regarding
product features, setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the
unlikely event the product must be returned for servicing, the original packaging (or reasonable
equivalent) is required.
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life.
Such environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
S3125A

RELAY GROUP
3
RG-6116
Features
Features
- SPEAKER LINE SWITCHING
Controls speaker relay via standard two-wire system or via three-wire emergency system.
- BROADCAST STATUS INDICATORS
Front-panel LED indicators display current operating status.
- INTEGRATES WITH OTHER INTER-M PRODUCTS
Rear-panel terminals provided for remote selection of ALL, Group 1 or Group 2.
- CONVENIENT LED INDICATORS
Designed to work exclusively with the Inter-M PX-6116 Matrix Switcher, Inter-M EP-6216 Emergency
Panel, Inter-M PX-6116 Matrix, Inter-M PW-6242A Timer, and Inter-M ES-6116 Emergency Switcher.

RELAY GROUP
4RG-6116
Front Panel
Front Panel

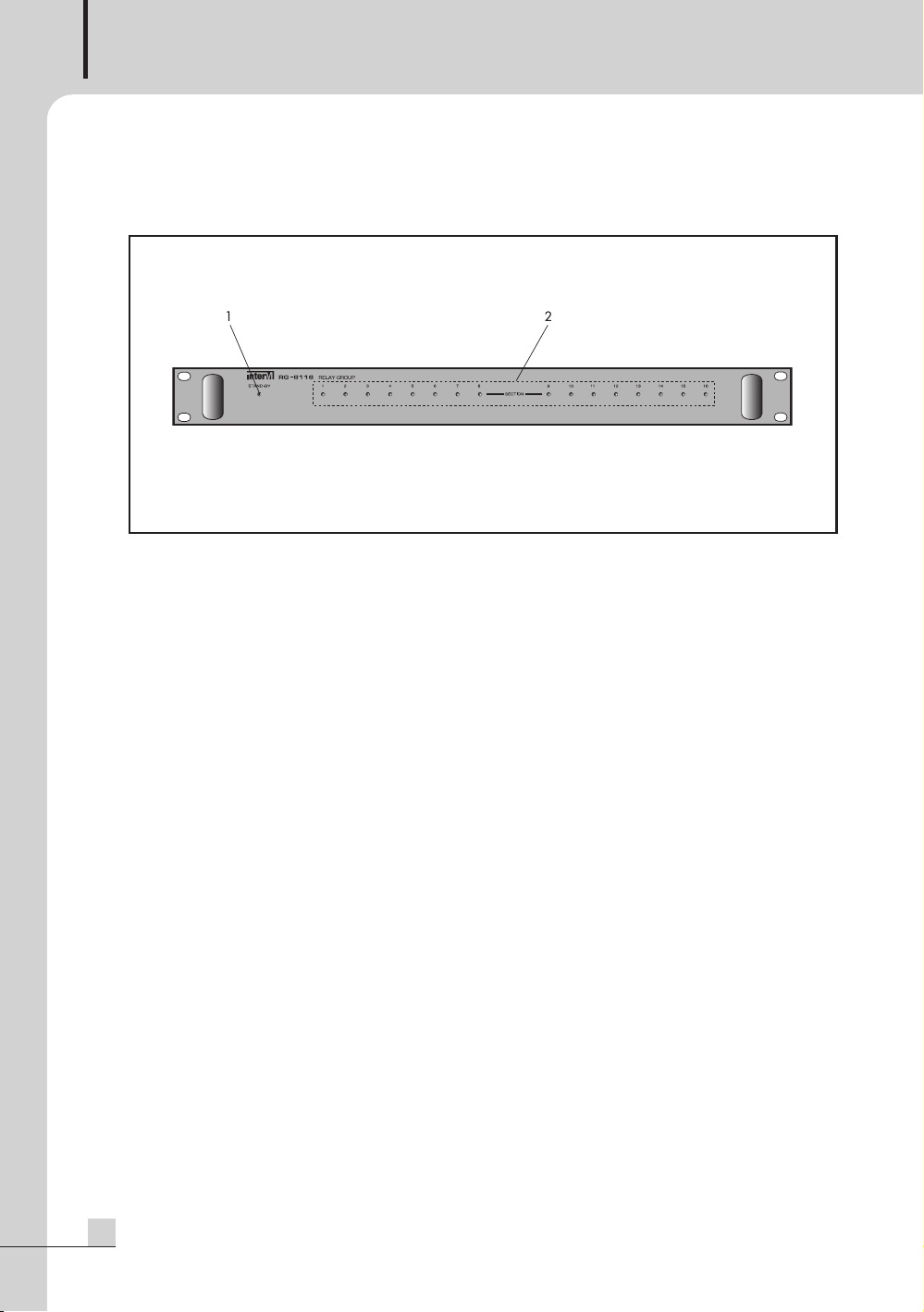

1. POWER LED
Lights when the unit is powered on.
2. BROADCASTING STATUS INDICATORS
The active broadcasting status is indicated by these LEDs.

RELAY GROUP
5
RG-6116
Rear Panel
Rear Panel
1. EMERGENCY RELAY CONNECTOR
Multipin connection to Emergency Relay Connector on the Inter-M PX-6116 Matrix.
2. NORMAL RELAY CONNECTOR
Multi-pin connection to Normal Relay Connector on the Inter-M PX-6116 Matrix.
3. SPEAKER OUTPUT CONNECTOR
Mulit-pin connectors for connecting to the HOT, COM and EMG speaker terminals.
4. AMP IN (HOT) TERMINAL
Terminal for connecting to the HOT terminal of the main amplifier output.
5. DC 24V OUTPUT CONNECTOR
Terminals for supplying 24V DC power to other connected devices.
6. AMP IN (COM) TERMINAL
Terminal for connecting to the COM terminal of the main amplifier output.
7. DC 24V INPUT CONNECTOR
Terminals for connection of 24V DC emergency power.

RELAY GROUP
6RG-6116
System Connections
System Connections
- Disconnect AC Mains power before installation.
- Connect the emergency relay and the normal relay connectors to the emergency relay and the
normal relay
connectors of the Inter-M PX-6116 Matrix.
- Connect the Amp In (HOT) and the Amp In (COM) connectors to the amplifier output. Be certain to
verify
thecorrect polarity before connecting.
- Connect the Output A and Output B connectors with the speakers, as indicated by the illustrations
below.
OUTPUT A(CH1~CH8) CONNECTOR OUTPUT B(CH9~CH16) CONNECTOR
TABLE 1 TABLE 2
TABLE 3
SPEAKER OUTPUT LINES
CH1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
HOT 1 4 7 10 13 16 19 22 1 4 7 10 13 16 19 22
COM 2 5 8 11 14 17 20 23 2 5 8 11 14 17 20 23
EMG 3 6 9 12 15 18 21 24 3 6 9 12 15 18 21 24

RELAY GROUP
7
RG-6116

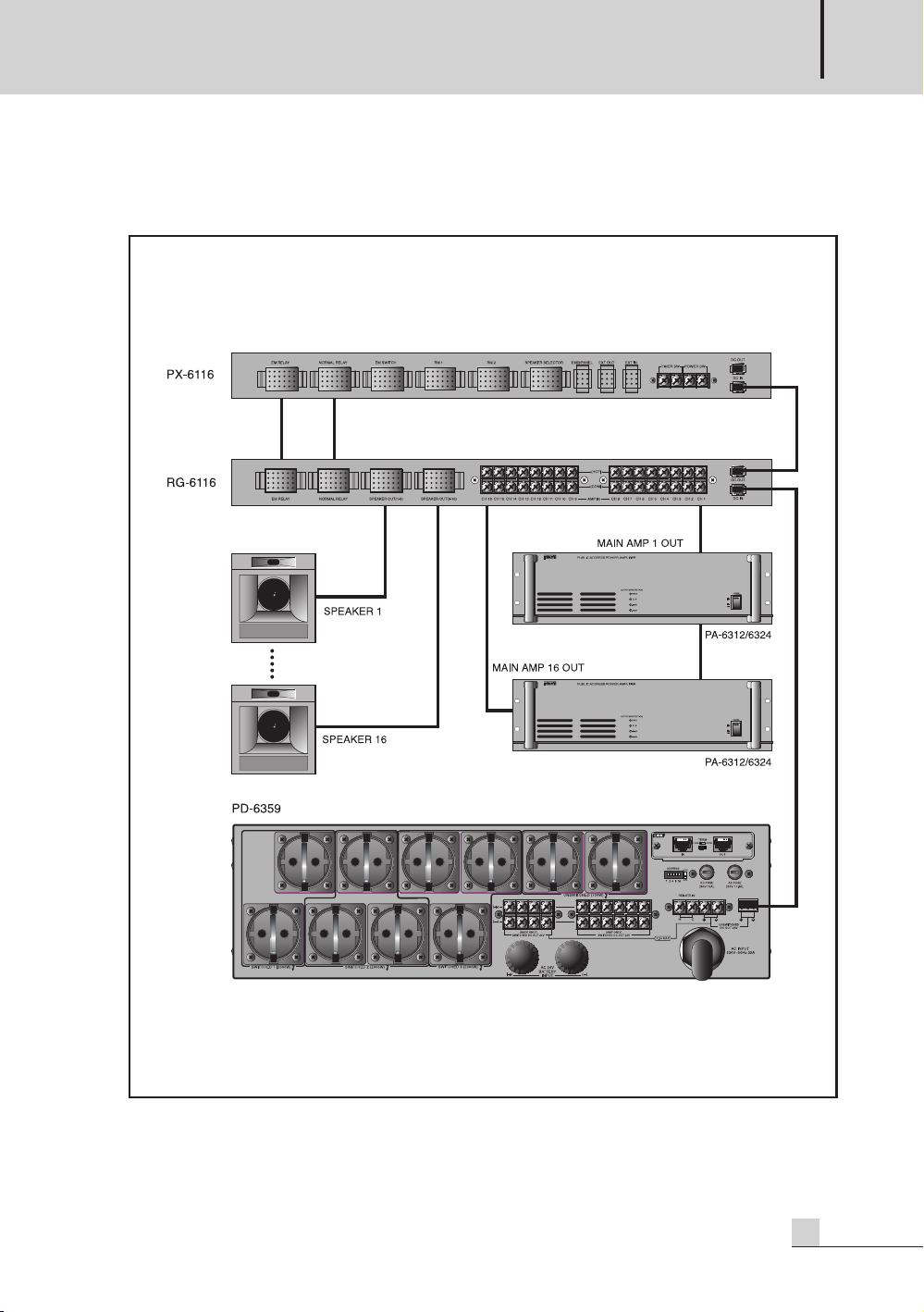

Applications
Applications

RELAY GROUP
8RG-6116

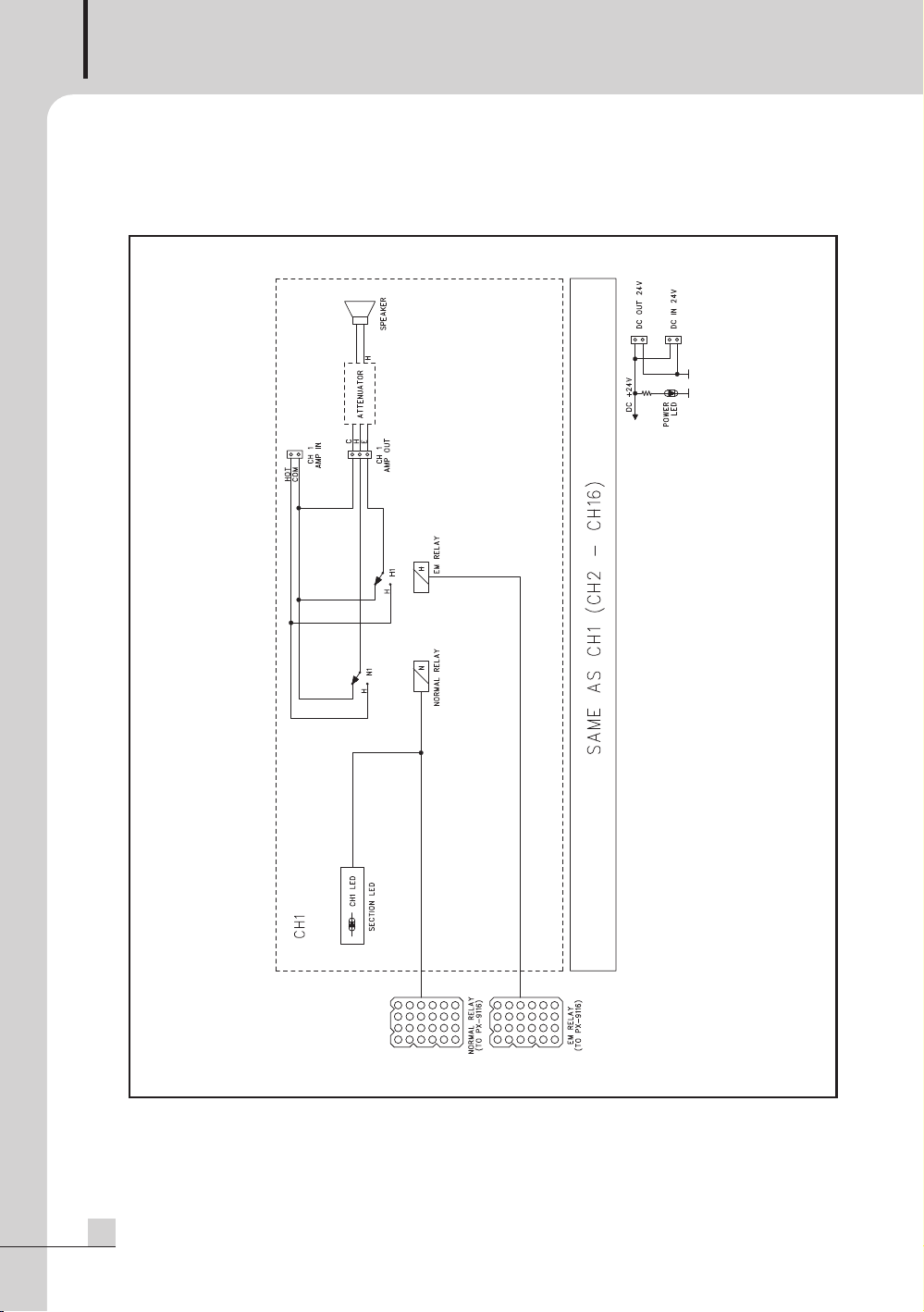

Block Diagram
Block Diagram

RELAY GROUP
9
RG-6116
Specifications
Specifications
* Design and specification are subject to be changed for the improvement of product quality without pre notice.




※ DIMENSIONS
RG-6116
ELECTRICAL
Speaker Selection 16 Line
Normal Relay Line 16 Line
Emergency Relay Line 16 Line
GENERAL
Power Source 24V DC
Weight 3.3kg/7.3lb
Dimensions 482(W)x44(H)x280(D)mm/19(W)x1.7(H)x11(D)in

RELAY GROUP
10 RG-6116
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system.
Information provided in the troubleshooting portion of this manual may help with this process. Once it
is certain that the problem is related to the product contact your warranty provider as described in the
warranty section of this manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and
conditions of warranty for a given product may be determined first by locating the appropriate
country which the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
