Interlogix TruVision TVA-1101 User manual

TruVision Covert IP
Camera Installation
Manual
P/N 1072912-EN • REV C • ISS 13OCT15

Copyright © 2015 United Technologies Corporation
Interlogix is part of UTC Building & Industrial Systems, a unit of United
Technologies Corporation. All rights reserved.
Trademarks and
patents
T
rade names used in this document may be trademarks or registered trademarks
of the manufacturers or vendors of the respective products.
Manufacturer Interlogix
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
N4131
FCC compliance Class A: This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This Device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
ACMA compliance Notice! This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Canada This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-0330 du
Canada.
European Union
directives
12004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this
device is in compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
2006/66/EC (Battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info.
Contact information
For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.

Installation Manual 3
Content
Product overview 4
Installation 4
Installation environment 4
Package contents 5
Cable requirements 5
Camera description 6
Set up camera unit 9
Prepare covert holes with adhesive tape 11
Install lens 12
Complete the installation 18
Configuration 19
Access the SD card 19
Use the camera with an Interlogix NVR and TruVision Navigator 19
Specifications 19
TruVision covert IP cameras 19
Pin definitions 20

4 Installation Manual
Product overview
This is the installation manual for the following TruVision Covert IP camera models:
TVA-1101 (1.3MPX IP ATM/covert camera, WDR, PAL)
TVA-3101 (1.3MPX IP ATM/covert camera, WDR, NTSC)
TVL-0101 (TruVision Covert Lens, 1.3MPx, Pinhole, 3.7mm@ F2.3, 2m cable)
TVL-0102 (TruVision Covert Lens, 1.3MPx, L-shape, 3.7mm@ F2.3, 2m cable)
TVL-0103 (TruVision Covert Lens, 1.3MPx, Cylinder, 4mm@ F2.0, 2m cable)
TVL-0104 (TruVision Covert Lens, 1.3MPx, Pinhole, 3.7mm@ F2.3, 8m cable)
TVL-0105 (TruVision Covert Lens, 1.3MPx, L-shape, 3.7mm@ F2.3, 8m cable)
TVL-0106 (TruVision Covert Lens, 1.3MPx, Cylinder, 4mm@ F2.0, 8m cable)
TVL-0107 (TruVision Covert Lens, 1.3MPx, L-shape, 2mm@ F2.0, 2m cable)
TVL-0108(TruVision Covert Lens, 1.3MPx, Cylinder, 2mm@ F2.0, 2m cable)
TVL-0109 (TruVision Covert Lens, 1.3MPx, L-shape, 2mm@ F2.0, 8m cable)
TVL-0110 (TruVision Covert Lens, 1.3MPx, Cylinder, 2mm@ F2.0, 8m cable)
Installation
This chapter provides information on how to install the cameras.
Installation environment
When installing your product, consider these factors:
•Electrical: Install electrical wiring carefully. It should be done by qualified service
personnel. Always use a proper PoE switch or a 12 VDC UL listed Class 2 or CE
certified power supply to power the camera. Do not overload the power cord or
adapter.
•Ventilation: Ensure that the location planned for the installation of the camera is
well ventilated.
•Temperature: Do not operate the camera beyond the specified temperature,
humidity or power source ratings. The operating temperature of the camera is
between -30 to +60°C (-22 to 140°F). Humidity is below 90%.
•Moisture: Do not expose the camera to rain or moisture, or try to operate it in wet
areas. Turn the power off immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the camera and also create the
danger of electric shock.

Installation Manual 5
•Servicing: Do not attempt to service this camera yourself. Any attempt to
dismantle or remove the covers from this product will invalidate the warranty and
may also result in serious injury. Refer all servicing to qualified service personnel.
•Cleaning: Do not touch the sensor modules with fingers. If cleaning is necessary,
use a clean cloth with some ethanol and wipe the camera gently. If the camera will
not be used for an extended period of time, put on the lens cap to protect the
sensors from dirt.
Package contents
Check the package and contents for visible damage. If any components are damaged
or missing, do not attempt to use the unit; contact the supplier immediately. If the unit
is returned, it must be shipped back in its original packaging.
Package contents:
•Camera or lens
•Mounting accessories
•Installation manual
•CD with Configuration Manual and TruVision Device Manager
Note:
The ATM/covert camera has no lens in the product package. The lens needs to be
purchased separately according to the application needs. Please notice that there are
different cable length and form factor options.
CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE certified or
LPS (limited power source) of the required output rating as listed on the unit.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Cable requirements
For proper operation, adhere to the following cable and power requirements for the
cameras. Category 5 cabling or better is recommended. All network cabling must be
installed according to applicable codes and regulations.
Recommended power cable requirements to connect the camera:
12 VDC power jack or PoE (802.3-af)

6Installation Manual
Camera description
Figure 1: Covert IP camera description
Covert camera unit:
1. Main unit
2. Mounting rack
3. Mounting plate
4. Power indicator
5. Status indicator
6. Link indicator
7. Audio In/Out
8. RJ-12 port
9. Micro SD card slot
10. Reset button
11. 12V DC Power port
12. PoE and network port
13. RS-232 and alarm port
3
1
2
ALARM
RS232
RXD TXD GND IN1 1B 1A
LAN(PoE)
DC 12V
RESET
SD
VIN1
AUDIO
OUT
AUDIO
IN
456
789
10
11 12
13

Installation Manual 7
Accessories
Mounting plate
12 VDC connector: DC jack
socket to terminal connectors
with positive and negative indicators.
Mounting rack
Drywall anchor, Ø7.5 x 24.5 mm (3
pcs)
Screw A, Ø4 x 25 mm (3 pcs) Screw B, Ø2 x 6mm (4 pcs)
Table 1: LED Indicators
LED Color and Status Indication
POWER Solid red Normal operation
Unlit Power Off
STATUS Solid green Camera works properly
Unlit Camera does not work properly.
LINK Flashing amber Network connection is functioning
properly
Unlit No network connection

8Installation Manual
Figure 2: Covert IP camera Lens and bracket description
Lens and brackets: (purchased separately)
1. L-shape lens
2. L-shape lens cover
3. L-shape lens mounting bracket
4. Pinhole lens
5. Pinhole lens mounting bracket
6. Cylinder lens
7. Cylinder lens mounting
bracket
8. L-shape 2mm lens
9. L-shape 2mm lens surface
mount cover
Accessories
L-shape lens:
Cover
Mounting bracket
Adhesive tape (2 pcs, 1 mm and 4 mm)
Screw A Ø4 x 25 mm (3 pcs)
Drywall anchor Ø7.5 x 24.5 mm (3
pcs)
Pinhole lens:
Mounting bracket
Drywall anchor Ø7.5 x 24.5 mm (3
pcs)
Screw A Ø4 x 25 mm (3 pcs)
89
1
2
3
4
5
67

Installation Manual 9
Cylinder lens:
Mounting bracket
Drywall anchor Ø7.5 x 24.5 mm (3
pcs)
Screw A Ø4 x 25 mm (3 pcs)
L-shape lens (2 mm):
Cover
Adhesive tape
Drywall anchor Ø7.5 x 24.5 mm (3 pcs)
Screw A Ø4 x 25mm (3 pcs)
Set up camera unit
Note: If the light source where the camera is installed experiences rapid, wide-
variations in lighting, the camera may not operate as intended.
Install a camera block:
1. Prepare the mounting surface. The surface should be smooth and clean.
2. Fix the mounting rack on the mounting surface using the enclosed screws A.

10 Installation Manual
3. Fix the mounting bracket on the rear panel of the camera block with the four
enclosed screws B.
4. Hook the top catch of the camera mounting bracket on the prepared rack. Then
gently press the lower part of the camera block against the rack so that it snaps
into position on the rack.
Note:If there is a standard rail installed, you can directly snap the camera block with
mounting bracket on the prepared rail.

Installation Manual 11
Prepare covert holes with adhesive tape
Note: Before installing a covert lens, please ensure that the mounting surface is
suitable for adhesive mounting.
L-shape lens
There are two types of adhesive tape (1 mm and 4 mm) included in the package. Drill
the covert hole to an appropriate diameter depending on the thickness of the mounting
surface. Refer to Figure 3 below for details.
Figure 3: Covert hole for L-shape lens
Pinhole lens
Adhesive tape is provided with the mounting bracket for pinhole lens. Drill the covert
hole to an appropriate diameter depending on the mounting surface thickness. Refer to
Figure 4 on page 12 for details.
4 mm thick wall 1 mm thin wall
When the mounting surface is around
4 mm thick, drill a covert lens hole that is
10.5 mm in diameter.
Use the enclosed 1 mm adhesive tape to
adhere the bracket in place.
When the mounting surface is around
1 mm thick, drill a covert lens hole that
is 4.5 mm in diameter.
Use the enclosed 4 mm adhesive tape
to adhere the bracket in place.

12 Installation Manual
Figure 4: Covert hole for pinhole lens
Install lens
L-shape lens for covert mounting:
1. See section “Prepare covert holes with adhesive tape” on page 11 on preparing
the covert hole. Keep the mounting surface clean and dry for the adhesive
mounting.
2. Remove the protective film from the adhesive tape and firmly adhere the tape on
the L-shaped mounting bracket. Align the bracket with the prepared covert hole
and firmly adhere the bracket on the mounting surface.
6 mm thick wall 1 mm thin wall
When the mounting surface is around
6mm thick, drill a covert lens hole that
that is 12 mm in diameter.
When the mounting surface is around
1 mm thick, drill a covert lens hole
that is 4.5 mm in diameter.

Installation Manual 13
3. Insert the L-shape lens into the mounting bracket and fasten the locking screw to
finish the installation.
L-shape lens for surface mounting:
1. Fix the L-shape lens on the mounting surface with screws A.
2. Drill a cable hole in the mounting surface and pull the lens cable through the hole
(optional).

14 Installation Manual

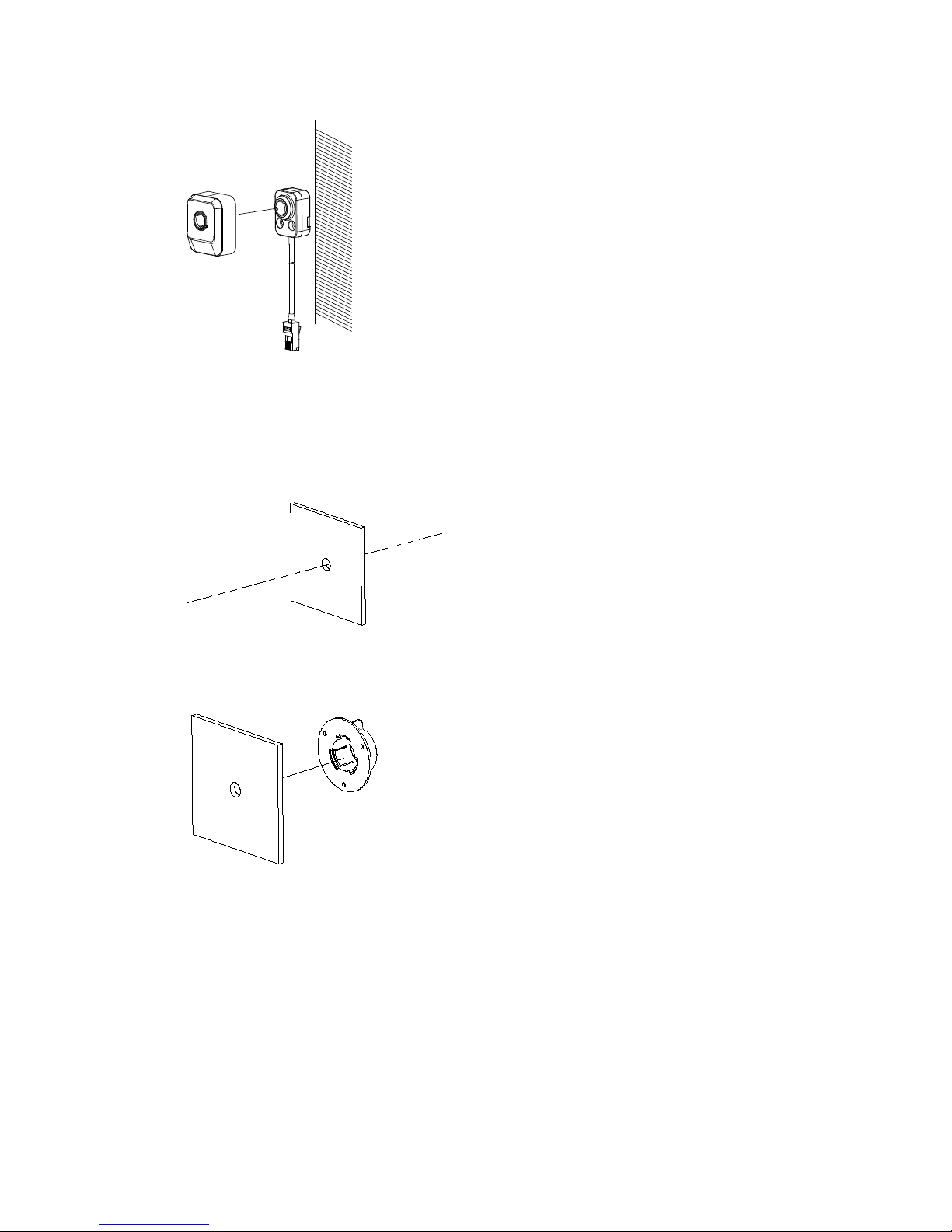

3. Cover the installed L-shape lens unit with the enclosed cover to finish the
installation.
Pinhole lens for covert mounting:
1. See section “Prepare covert holes with adhesive tape” on page 11 on preparing
the covert hole. Keep the mounting surface clean and dry for the adhesive
mounting.
2. Remove the protective film from the adhesive tape and firmly adhere the tape on
the pinhole lens mounting bracket. Align the bracket with the prepared covert hole
and firmly adhere it on mounting surface.
3. Insert the pinhole lens into the mounted bracket and adjust the lens position fitting
with the mounting surface.

Installation Manual 15
4. Twist the locking sleeve to lock lens in place.
L-shape 2mm lens for surface mounting with a cover:
1. Remove the protective film from the served adhesive tape and firmly adhere the
tape on the back of the lens.
2. Drill a cable hole close to the lens mounting position and pull the lens cable
through the hole. Then adhere the lens to the mounting surface.
3. Fix the lens on the mounting surface with screws A.

16 Installation Manual
4. Cover the installed lens and cable with served round shape cover to finish
installation.
Cylinder lens for bracket mounting:
1. Fix the cylinder bracket mounting base to the ceiling with the two supplied screws.
2. Hook the bracket cover to the mounting base.
3. Screw the bracket to the installed mounting base.

Installation Manual 17
4. Insert the cylinder lens into the bracket holding circle and fasten the locking screw.
5. Attach the assembled cylinder lens with the holding circle to the installed bracket.
Continue twisting until it is securely fastened.
6. Loosen the knob to adjust the surveillance angle and then tighten the lock nut to
complete the installation.

18 Installation Manual
Knob
Lock nut
Complete the installation
1. Connect the RJ-12 connector of lens cable to the camera block.
2. Connect an audio device.
Connect a 3.5 mm microphone and an audio output device to the AUDIO IN and
AUDIO OUT interfaces.
3. Connect an ATM transition capture device or other device via the RS-232 port.
4. Connect alarm input/output devices.

Installation Manual 19
Configuration
Set up the camera’s network and streaming parameters so that the camera can be
controlled over the network. For further information, please refer to the “TruVision
Covert IP Camera Configuration Manual”.
Access the SD card
Insert a SD card up to 128GB for local storage as a backup in case the network fails.
The card is not supplied with the camera.
Video and log files stored on the Micro SD card can only be accessed via the Web
browser. You cannot access the card using TruVision Navigator or a recording device.
Use the camera with an Interlogix NVR and TruVision
Navigator
The camera can be connected to an Interlogix NVR or hybrid DVR or directly to
TruVision Navigator. Please refer to the user manual of TruVision Navigator and/or
NVR or hybrid DVR for instructions.
Specifications
TruVision covert IP cameras
Electrical
Voltage input
12 VDC ±10%, PoE (IEEE 802.3af)
Power consumption
Max. 6.5 W
Miscellaneous
Connectors
DC jack flying lead, RJ45 flying lead
Operating temperature
-30 to 60°C (-22°F to 140°F)
Dimensions
78 × 105 × 32 mm (3.07 × 4.13 × 1.25 in.)
Weight
210 g (0.46 lb.)

20 Installation Manual
Pin definitions
There are eight wires on a standard UTP/STP cable and each wire is color-coded. The
following shows the pin allocation and color of straight and crossover cable connection:
Figure 5: Straight-through cable
1 White/Orange White/Orange 1
2 Orange Orange 2
3 White-Green White-Green 3
4 Blue Blue 4
5 White/Blue White/Blue 5
6Green Green 6
7 White/Brown White/Brown 7
8Brown Brown 8
Figure 6: Cross-over cable
1 White/Orange
White/Orange 1
2 Orange Orange 2
3 White-Green White-Green 3
4 Blue Blue 4
5 White/Blue White/Blue 5
6Green Green 6
7 White/Brown White/Brown 7
8Brown Brown 8
Please make sure your connected cables have the same pin assignment and color as
above before deploying the cables in your network.
