Intex Krystal Clear 638G User manual

106
GS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
OWNER’S MANUAL
IMPORTANT
SAFETY RULES
Read, understand, and follow
all instructions carefully before
installing and using this product.
Don’t forget to try these other fine Intex products: pools, pool
accessories, inflatable pools and in-home toys, airbeds and boats
available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves the
right to change specifications and appearance, which may result in
updates to the instruction manual without notice.
© 2014 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O
Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European
Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union
durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
Krystal Clear™
Model 638G Filter Pump
12 V~, 50 Hz, 8 A
Hmax 1.0 m, H min 0.19 m, IPX7
Max. Water Temperature 35 °C
106-*GS-R0-1506
For illustrative purposes only.

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 2
TABLE OF CONTENTS
Warnings.......................................................................... 3
Parts Reference.............................................................. 4
Setup Instructions.......................................................... 5-7
Maintenance.................................................................... 8-9
Pool Care and Chemicals............................................... 8
Long Term Storage......................................................... 9
Troubleshooting Guide................................................... 10
Common Pool Problems................................................ 11
General Aquatic Safety................................................... 11
Limited Warranty............................................................. 12

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
READ AND FOLLOW ALL INSTRUCTIONS
WARNING
These product warnings, instructions and safety rules provided with the product
represent some common risks of water recreation devices and do not cover all
instances of risk and danger. Please use common sense and good judgement
when enjoying any water activity.
• To reduce the risk of injury, do not permit children to use this product. Always
supervise children and those with disabilities.
• Children must stay away from this product and electrical cord(s).
• Children shall not play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Assembly and disassembly by adults only.
• Risk of electric shock. Connect transformer only to a grounding type receptacle
protected by a ground-fault circuit interrupter (GFCI) or residual current device
(RCD). Contact a qualified electrician if you cannot verify that the receptacle is
protected by a GFCI/RCD. Use a qualified electrician to install the GFCI/RCD, which
has a maximum rate of 30mA. Do not use a portable residual current device (PRCD).
• Always unplug the transformer from the electrical outlet before removing, cleaning,
servicing or making any adjustment to the product.
• The plug must be accessible after product is installed.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn
mowers, hedge trimmers and other equipment.
• The supply cord cannot be replaced. If the cord is damaged the appliance or
transformer should be scrapped.
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors
or converter plugs to connect unit to electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your
hands are wet.
• Keep the transformer more than 3.5m away from the product.
• Keep the plug of the transformer more than 4.0m away from the product.
• Position this product away from the pool, so as to prevent children from climbing on it
and accessing the pool.
• Do not operate this product when the pool is occupied.
• This product is for use with storable pools only. Do not use with permanently
installed pools. A storable pool is constructed so that it may be readily disassembled
for storage and reassembled to its original configuration.
• This product is intended to be used only for the purposes described in the manual!
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE,
ELECTRIC SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY OR DEATH.

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
1
2
3
4
5
6
7
8
9
10
11
12
13
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1
1
1
1
1
2
4
2
2
1
1
1
1
10460
10264
11868
10325
10134
10122
10116
11070
11071
11072
11648
11869
AIR RELEASE VALVE
VALVE O-RING
FILTER HOUSING COVER
COVER SEAL
FILTER CARTRIDGE (29000)
HOSE SEAL
HOSE CLAMP
HOSE
STRAINER CONNECTOR
POOL INLET NOZZLE
STRAINER GRID
TRANSFORMER
THREADED FILTER HOUSING COLLAR
678 9
9
12
1
2
3
4
5
11
10
13

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 5
SETUP INSTRUCTIONS
Be sure you have access to water to fill the pool and chemicals for the water. A small coin can be
used to tighten the hose clamps (7).
IMPORTANT: This filter pump is shipped with the air release valve (1) open (open the air
release valve if necessary). DO NOT replace the air release valve until you reach STEP #8.
Failure to follow these instructions will result in air trapped inside filter housing; the motor
will run dry, be noisy and malfunction.
1. Assemble above-ground-pool first. Carefully follow the pool’s installation instructions.
2. Place the filter pump the length of the hose away from the pool wall where the lower black
protruding hose connection is "sticking-out".
3. Insert the nozzle union (9 & 10) into the upper protruding hose connections. Then insert the
strainer union
(9 & 11) into the lower protruding hose connections. The hoses (8) fit over the
strainers inserted into the connections.
4. There are two hoses to be connected to the filter pump hose connections. With hose clamps
(7), fasten one of the hoses (8) to the lower protruding hose connection (marked "+" on the
pool liner) and to the upper pump connection (marked "+").
5. Connect the second hose to the remaining upper protruding hose connection and to the
lower pump connection. Make sure all the hose clamps (7) are tight.
6. In a counter-clockwise motion unscrew the threaded filter housing collar (13) from the filter
housing. Grasp and remove the threaded cover (3). Check to see if a cartridge is inside the
housing. If yes, replace the cover, finger tighten the housing collar (13) back onto the filter
housing.
7. Fill the pool to a level of at least 1-2 inches above the top connection. The water will
automatically flow down into the pump.
8. When water starts flowing out of the air release valve hole, screw in the air release valve
back into the filter housing cover. Do not over tighten the valve.
NOTE: Venting the system is necessary for air to escape as the filter housing fills with
water.
9. Connect the filter pump power cord end to the transformer output receptacle and screw in
the cover. Plug the transformer power cord into a properly installed electrical socket.
10. Operate the filter pump until the desired water clarity is obtained.
NOTE: Never put pool chemicals directly into the filter pump. This may damage the pump
and void the warranty.
WARNING
Risk of electric shock. Connect transformer only to a grounding type receptacle
protected by a ground-fault circuit interrupter (GFCI) or residual current device
(RCD). Contact a qualified electrician if you cannot verify that the receptacle is
protected by a GFCI/RCD. Use a qualified electrician to install the GFCI/RCD,
which has a maximum rate of 30mA. Do not use a portable residual current
device (PRCD).

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 6
SETUP INSTRUCTIONS (continued)
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
To inspect and change the filter cartridge, disconnect line cord, unscrew the pool inlet nozzle (10)
and strainer grid (11) from the strainer connectors and insert the hat-like plugs into the strainer
connectors before servicing the filter. After service, open the air release valve, remove the plugs,
allow any air to escape through the valve before tightening the valve again and replace the pool
inlet nozzle (10) and strainer grid (11). The pump is now primed with water again and may be
turned on.
The installation instruction shall provide information on requirements specified for the electrical
installation and shall include reference to national wiring rules.

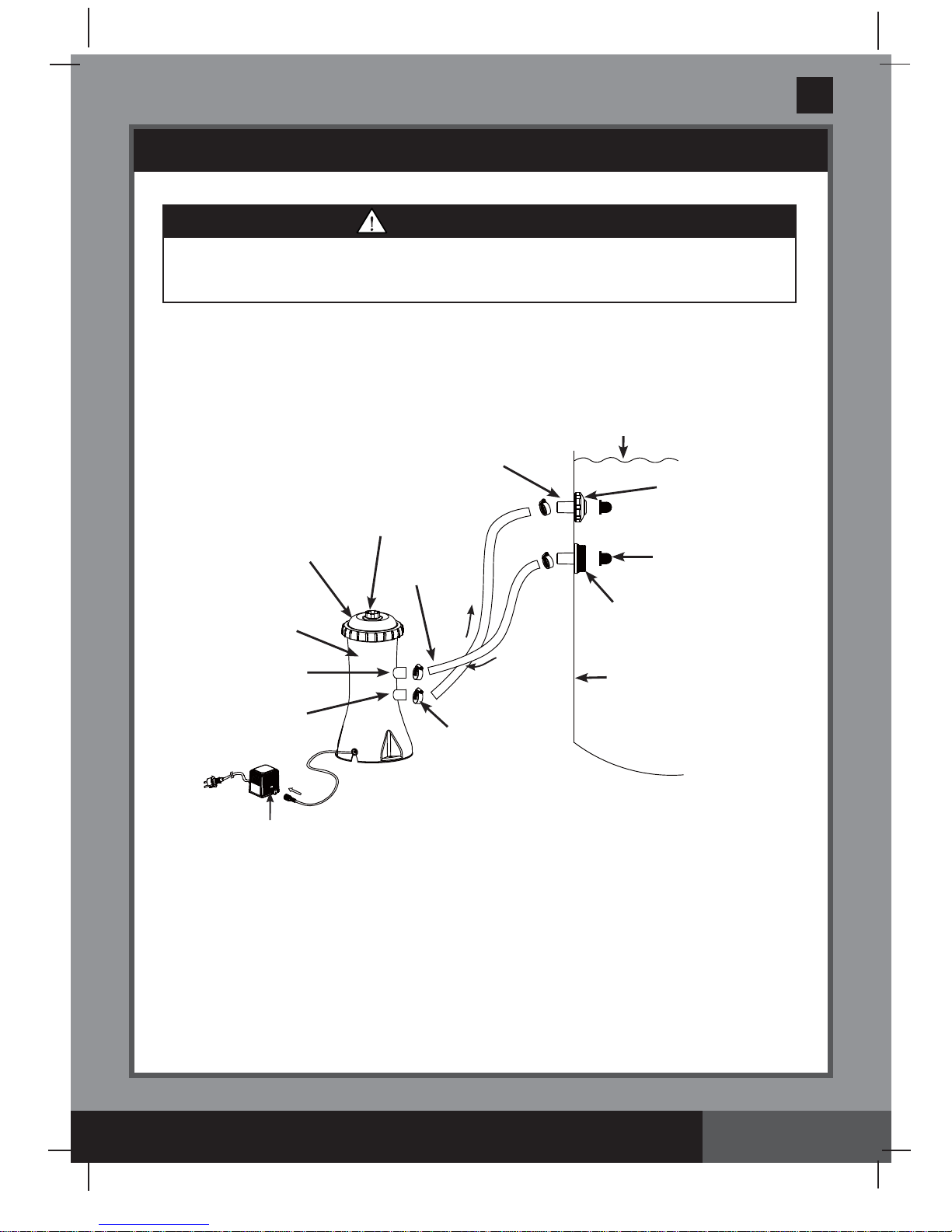

(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
POOL INLET
NOZZLE
(REMOVE)
HOSE CLAMP
INSIDE OF POOL
STRAINER GRID
(REMOVE)
PLUG
UPPER PROTRUDING
HOSE CONNECTION
W
A
T
E
R
D
I
R
E
C
T
I
O
N
W
A
T
E
R
D
I
R
E
C
T
I
O
N
UPPER PUMP
CONNECTION
LOWER PUMP
CONNECTION
THREADED
COVER
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
TRANSFORMER

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 7
There are three mounting holes located at the bottom of the filter pump base. These holes are
provided because various country’s regulations, especially in the European community, require
the filter pump to be secured to the ground or to a base in a permanent upright position.
These three holes form a triangle pattern and are 145mm from each other. The holes are slotted
with a 7mm width.
The filter pump can be mounted on a cement base or onto a wooden structure to prevent
accidental falling over. Total assembly must exceed 18kg. The drawings on the following show
two possible ways of upright mounting.
SETTING UP FILTER PUMP
For your own personal safety, it is very important that you place your transformer more than
3.5m away from your pump.
FILTER PUMP STATIONARY MOUNTING OPTION
145mm
145mm
145mm
145mm
145mm
145mm
3.5 m
-- (3) x M6 HEXAGON LOCK-NUTS
-- (3) x M6 HEXAGON HEAD BOLTS

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 8
POOL CARE AND CHEMICALS
• All pools require care to keep the water clear and hygienically clean. With proper chemical
control, your filter will help attain this objective. Consult your pool supply dealer for
instructions regarding the proper use of chlorine, algaecide and other chemical agents
required for sparkling clear water.
• Keep pool chemicals away from children.
• Do not replenish chemicals in pool while pool is occupied. Skin or eye irritations could occur.
• Daily pH checking and chemical treatment of the water is very important and can not be
overemphasized. Chlorine, algaecide and maintenance of proper pH levels are required
when filling the pool as well as during the season. Consult your local swimming pool supply
store for instructions.
• The season's first filling of the pool may have brackish water requiring extra water additives
and extra filter changes. Do not allow swimming in pool until the pH level is balanced.
Consult your local swimming pool supply store for instructions.
• Keep spare filter cartridges on hand. Replace cartridges every two weeks.
• Chlorinated water may damage lawns, gardens or shrubbery as children play in the pool and
splash water outside the pool. Lawn areas underneath the pool liner will be destroyed. Note
that some types of grass may grow through the liner.
• Filter run time depends on pool size, weather and usage level. Experiment with various run
times so as to produce clean clear water.
CAUTION
Concentrated chlorine solutions may damage the pool liner. Always follow
the chemical manufacturer’s directions, and the health and hazard
warnings.

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 9
1. Before emptying your pool for long term storage, or relocation, be sure the water is directed
towards an acceptable drain water receptacle away from the house. Check local regulations
for specific directions regarding disposal of swimming pool water.
2. Now, drain the pool.
3. When the pool is empty, disconnect all pool hoses (8) from the pool and filter pump, simply
reverse the set up instructions.
4. Remove the filter cartridge as shown in the Filter Cartridge Cleaning section, steps 2 thru 4.
5. Remove the nozzle and strainer unions from the pool wall. Place the wall plugs into the hose
connections. Loosen clamps (7) securing the strainer connectors (9) before removal.
6. Drain water from the filter pump housing.
7. Leave filter pump pieces and hoses outside to thoroughly air dry.
8. Depending on the cartridge (5) usage, a new cartridge may be needed for next season, keep
a spare available.
9. Cover the seal (4), air release valve O-ring (2) and hose seals (6) with
petroleum jelly to preserve its resilience during storage.
10. Store the unit and accessories in a dry place. The storage's temperature should be
controlled, between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit
(40 degrees Celsius) storage location.
11. The original packing can be used for storage.
CLEANING OR REPLACING FILTER CARTRIDGES
LONG TERM STORAGE
It is recommended that the filter cartridge be replaced at least every 2
weeks.
1. Make sure the transformer power cord is not plugged into the electrical socket.
2. To prevent water from escaping the pool, unscrew the pool inlet nozzle (10) and strainer grid
(11) from the strainer connectors and insert the hat-like plugs into the strainer connectors.
3. In a counter-clockwise motion, remove the filter housing collar (13) and threaded cover (3).
Be careful not to lose the cover seal (4).
4. Remove filter cartridge (5) to clean it. The filter may be cleaned from the spray from a water
hose.
5. Use judgement as to whether cartridge needs to be replaced.
6. Return cartridge to filtering position.
7. Return the seal (4) and threaded cover (3) to their original positions and in a clockwise
direction rescrew the housing collar (13) onto the filter housing.
8. After service, open the air release valve, remove the plugs, allow any air to escape through
the valve before tightening the valve again and replace the pool inlet nozzle (10) and
strainer grid
(11). The pump is now primed with water again and may be turned on.

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 10
TROUBLESHOOTING GUIDE
IMPORTANT
If you continue to experience difficulty, please contact our Consumer Service
Department for assistance. See separate “Authorized Service Centers” sheet.
FILTER MOTOR
FAILS TO START
FILTER DOESN’T
CLEAN POOL
FILTER DOESN’T PUMP
WATER OR FLOW IS
VERY SLOW
PUMP DOESN’T WORK
TOP COVER
LEAKING
HOSE LEAKING
AIR LOCK
• The motor is not plugged in.
• The GFCI/RCD circuit breaker
is tripped.
• Motor too hot and overload
protection shut motor off.
• Improper chlorine or pH
levels.
• Filter cartridge is dirty.
• Damaged cartridge.
• Excessively dirty pool.
• The strainer screen is
restricting the water flow.
• Clogged inlet or discharge.
• An air leak on the intake line.
• Scale or buildup on cartridge.
• Excessively dirty pool.
• Dirty filter cartridge.
• The nozzle and strainer
connection are reversed.
• Low water level.
• Strainer screen plugged up.
• An air leak on the intake hose.
• Faulty motor or the impeller
is jammed.
• An air lock inside the
cartridge chamber.
• O-ring missing.
• Cover or air release valve are not
tight.
• Hose clamps are not
well-fitted.
• Hose o-ring dislodged when
connecting the hose.
• Hose broken.
• There’s air trapped in the
pump housing and inlet hose.
TROUBLE CAUSE SOLUTION
• Filter cord must be plugged into a 3 wire
outlet that is protected by a Class A
Ground Fault Circuit Interrupter, or RCD.
• Reset circuit breaker. If circuit breaker
trips repeatedly, your electrical system
may have a defect. Turn off circuit
breaker and call an electrician to
correct the problem.
• Let motor cool down.
•
Adjust the chlorine and pH level. Consult
your local swimming pool supply stores.
• Clean or replace cartridge.
• Check the cartridge for holes. Replace
if damaged.
• Operate the filter for longer periods.
• Clean the strainer screen at the inlet.
• Clear any obstructions in the intake
hose by discharging it inside pool wall.
• Tighten hose clamps, check hoses for
damage, check pool water level.
• Replace cartridge.
• Clean cartridge more often.
• Install the nozzle at the upper position
of the pool inlet, and the strainer at the
lower position of the pool outlet.
• Fill pool to correct water level.
• Clean strainer screens at pool inlet.
• Tighten hose clamps, check hose for
damage.
• Clear any sticks or leaves in the
intake hose.
• Open the release valve at top of pump.
• Remove cover & check for O-ring.
• Tighten cover or valve (Manually).
• Tighten or change hose clamps.
• Put the o-ring back into the groove.
• Replace a new hose.
• Open air release valve, lift and lower
the inlet hose until water starts to flow
out of the air release valve, close air
release valve.

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 11
COMMON POOL PROBLEMS
PROBLEM DESCRIPTION CAUSE SOLUTION
ALGAE
COLORED
WATER
FLOATING
MATTER IN
WATER
CHRONIC LOW
WATER LEVEL
SEDIMENT
ON POOL
BOTTOM
SURFACE
DEBRIS
• Chlorine and pH levels
need adjustment.
• Copper, iron or maganese
in water being oxidized by
the added chlorine.
This is common.
• "Hard water" caused
by a too high pH level.
• Chlorine content is low.
• Foreign matter in water.
• Rip or hole in pool liner or
hoses.
• The drain valves are loose.
• Heavy use, getting in
and out of pool.
• Pool too close to trees.
• Super chlorinate with shock
treatment. Correct pH to your
pool store's recommended level.
• Vacuum pool bottom.
• Maintain proper chlorine level.
• Adjust pH level to the
recommended level.
• Run filter until water is clear.
• Clean cartridge frequently.
• Correct the pH level. Check
with your pool dealer for advice.
• Adjust the chlorine level.
• Clean or replace your filter.
• Repair with a patch kit.
• Finger tighten all caps.
• Use Intex pool vacuum to
clean bottom of pool.
• Use Intex pool skimmer.
• Greenish water.
• Green or black
spots on pool liner.
• Pool liner is slippery
and/or has a bad odor.
• Water turns blue,
brown, or black
when first treated
with chlorine.
• Water is cloudy or
milky.
• Level is lower than
on previous day.
• Dirt or sand on
pool floor.
• Leaves, insects
etc.
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks
of injury and death. To reduce your risk of injury, read and follow all product,
package and package insert warnings and instructions. Remember, however, that
product warnings, instructions and safety guidelines cover some common risks
of water recreation, but do not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following general
guidelines as well as guidelines provided by nationally recognized Safety
Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard”
or water watcher, especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about
the use of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.

106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 12
Your Krystal Clear™ Filter-Pump has been manufactured using the highest quality
materials and workmanship. All Intex products have been inspected and found free of
defects prior to leaving the factory. This Limited Warranty applies only to the Krystal
Clear™ Filter-Pump and accessories listed below.
The following provision is only valid within the European member states countries: The
legal regulation of Directive 1999/44/EC will not be effected by this Intex warranty.
The provisions of this Limited Warranty apply only to the original purchaser and is
not transferable. This Limited Warranty is valid for the period noted below from the
date of the initial retail purchase. Keep your original sales receipt with this manual, as
proof of purchase will be required and must accompany warranty claims or the Limited
Warranty is invalid.
Krystal Clear™ Filter-Pump Warranty – 1 Year
Hoses & Fittings Warranty – 180 days
If a manufacturing defect is found within the periods noted above, please contact the
appropriate Intex Service Center listed in the separate “Authorized Service Centers”
sheet. The Service Center will determine the validity of the claim.
IMPLIED WARRANTIES ARE LIMITED TO THE TERMS OF THIS WARRANTY AND
IN NO EVENT SHALL INTEX, THEIR AUTHORIZED AGENTS OR EMPLOYEES
BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR
CONSEQUENTIAL DAMAGES OR LIABILITIES. Some countries, or jurisdictions do
not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
This Limited Warranty does not apply if the products are subject to negligence,
abnormal use or operation, accident, improper operation, improper voltage or current
contrary to operating instructions, or to damage by circumstances beyond Intex’s
control, including but not limited to, ordinary wear and tear and damage caused by
exposure to fire, flood, freezing, rain, or other external environmental forces. This
Limited Warranty applies only to those parts and components sold by Intex. The
Limited Warranty does not cover unauthorized alterations, repairs or disassembly by
anyone other than Intex Service Center personnel.
The Limited Warranty is also not applicable if this product is used with another product
other than an Intex product, when setting up your pool.
The costs associated with the loss of pool water, chemicals or water damage are not
covered by this warranty. Injury or damage to any property or person is not covered by
this warranty.
LIMITED WARRANTY
