Intex 128376NP User manual

Zusammengeführte PDF Datei. Die Originale sind im folgenden Verzeichnis verlinkt. / Merged PDF File. Original files are linked in the following list. / Sloučený soubor PDF.
Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v
nasledujúcom adresári. / Združena datoteka PDF. Izvirniki so povezani v naslednjem imeniku. / Spojena PDF datoteka. Izvornici su povezani u sljedećem imeniku.
128376NP - Frame Pool Set Ultra Quadra 975 x 488 x
132 cm
Above Ground Pool 2
165IO 17
Overview Pool Size vs Pump Running Time 29
261IO 31
097IO 65
Air Valve For Water Revitalization Set 81
Skimmer/Vakkuumreinigungsset Montageanleitung 82
052IO 84
Mounting 86

119A
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
OWNER’S MANUAL
Rectangular Ultra Frame™ /
Prism Frame™ Pools
157-1/2”x78-3/4”x39-3/8” (400 cm x 200 cm x 100 cm)
118-1/8”x68-3/4”(300 cm x 175 cm), 15’ x 9’ (457 cm x 274 cm)
16’ x 8’ (488 cm x 244 cm), 18’ x 9’ (549 cm x 274 cm)
24’ x 12’ (732 cm x 366 cm), 32’ x 16’ (975 cm x 488 cm)
IMPORTANT
SAFETY RULES
Please read, understand, and follow
all instructions carefully before
installing and using this product.
keep for future reference.
Don’t forget to try these other fine Intex products: Pools, Pool
Accessories, Inflatable Pools and In-Home Toys, Airbeds and Boats
available at fine retailers or visit our website listed below.
Due to a policy of continuous product improvement, Intex
reserves the right to change specifications and appearance,
which may result in updates to the instruction manual without
notice.
For illustrative purposes only. Accessories may not be provided with pool.
©2016 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O
Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European
Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union
durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
119-*A*-R0-1706

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 2
Warnings / Important safety rules................................................ 3-4
Parts References............................................................................ 5-6
Setup Instructions.......................................................................... 7-11
Pool Maintenance and Chemicals................................................. 12-13
Common Pool Problems................................................................ 12
Pool Draining................................................................................... 13
Storage............................................................................................. 13-14
General Aquatic Safety................................................................... 14
Limited Warranty............................................................................. 15
Special Introductory note:
Thanks for buying an Intex pool. Please read this manual before setting up your pool. This
information will help extend the pool life and make the pool safer for your family's
enjoyment. View the video included before installation. A team of 2-4 people is
recommended for pool set up. Additional people will speed up the installation.
No tools are required for the assembly.
TABLE OF CONTENTS

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
•Continuous and competent adult supervision of children and the disabled is required at all times.
• Secure all doors, windows and safety barriers to prevent unauthorized, unintentional or unsupervised pool
entry.
• Install a safety barrier that will eliminate access to the pool for young children and pets.
• Pool and pool accessories are to be assembled and disassembled by adults only.
• Never dive, jump or slide into an above-ground pool or any shallow body of water.
• Failure to set up pool on flat, level, compact ground or over filling could result in the pool’s collapse and the
possibility that a person lounging in the pool could be swept out/ejected.
• Do not lean, straddle, or exert pressure on the inflatable ring or top rim as injury or flooding could occur. Do
not allow anyone to sit on, climb, or straddle the sides of the pool.
• Remove all toys and flotation devices from, in, and around the pool when it is not in use. Objects in the pool
attract young children.
• Keep toys, chairs, tables, or any objects that a child could climb on at least four feet (1.22 meters) away
from the pool.
• Keep rescue equipment by the pool and clearly post emergency numbers at the phone closest to the pool.
Examples of rescue equipment: coast guard approved ring buoy with attached rope, strong rigid pole not
less than twelve feet (12') [3.66m] long.
• Never swim alone or allow others to swim alone.
• Keep your pool clean and clear. The pool floor must be visible at all times from the outside barrier of the
pool.
• If swimming at night use properly installed artificial lighting to illuminate all safety signs, ladders, pool floor
and walkways.
• Stay away from the pool when using alcohol or drugs/medication.
• Keep children away from pool covers to avoid entanglement, drowning, or other serious injury.
• Pool covers must be completely removed before pool use. Children and adults cannot be seen under a pool
cover.
• Do not cover the pool while you or anyone else is in the pool.
• Keep the pool and pool area clean and clear to avoid slips and falls and objects that may cause injury.
• Protect all pool occupants from recreational water illnesses by keeping the pool water sanitized. Don’t
swallow the pool water. Practice good hygiene.
• All pools are subject to wear and deterioration. Certain types of excessive or accelerated deterioration can
lead to an operation failure, and can ultimately cause the loss of large quantities of water from your pool.
Therefore, it is very important that you properly maintain your pool on a regular basis.
• This pool is for outdoor use only.
• Empty pool completely when not in use for a longer period and safely store the empty pool in such a way
that it does not collect water from rain or any other source, and to prevent from being blown away by strong
wind. See storage instructions.
• While the swimming pool is in use, you will need to operate the filter pump to ensure that there is at least
one complete turnover of water a day. Consult your pump’s manual to calculate the necessary
operating hours.
POOL BARRIERS AND COVERS ARE NOT SUBSTITUTES FOR CONTINUOUS AND COMPETENT
ADULT SUPERVISION. POOL DOES NOT COME WITH A LIFEGUARD. ADULTS ARE THEREFORE
REQUIRED TO ACT AS LIFEGUARDS OR WATER WATCHERS AND PROTECT THE LIVES OF ALL
POOL USERS, ESPECIALLY CHILDREN, IN AND AROUND THE POOL.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY OR DEATH.
Advisory:
Pool owners may need to comply with local or state laws relating to childproof fencing, safety barriers, lighting,
and other safety requirements. Customers should contact their local building code enforcement office for
further details.
WARNING

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 4
IMPORTANT SAFETY RULES
Please read, understand, and follow all instructions carefully before installing and using this product. These
warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot
cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when
enjoying any water activity. Keep for future reference. Packaging must be read carefully and kept for future
reference. See product for additional warnings.
General
• Check pins, bolts and screws for rust; splinters or any sharp edges regularly, especially accessible surfaces,
to avoid injuries.
Non swimmers safety
• Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is
required at all times (remembering that children under five are at the highest risk of drowning).
• Designate a competent adult to supervise the pool each time it is being used.
• Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.
• When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to
avoid attracting children to the pool.
Safety devices
• It is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent
unauthorized access to the swimming pool.
• Barriers, pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for
continuous and competent adult supervision.
Safety equipment
• It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.
• Keep a working phone and a list of emergency phone numbers near the pool.
Safe use of the pool
• Encourage all users especially children to learn how to swim
• Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This
can make a life-saving difference in the event of an emergency.
• Instruct all pool users, including children, what to do in case of an emergency
• Never dive into any shallow body of water. This can lead to serious injury or death.
• Do not use the swimming pool when using alcohol or medication that may impair your ability to safely use
the pool.
• When pool covers are used, remove them completely from the water surface before entering the pool.
• Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good
hygiene. Consult the water treatment guidelines in the user’s manual.
• Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.
• Removable ladders shall be placed on a horizontal surface.
• Observe and follow the warnings and safety signs on the pool wall.

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 5

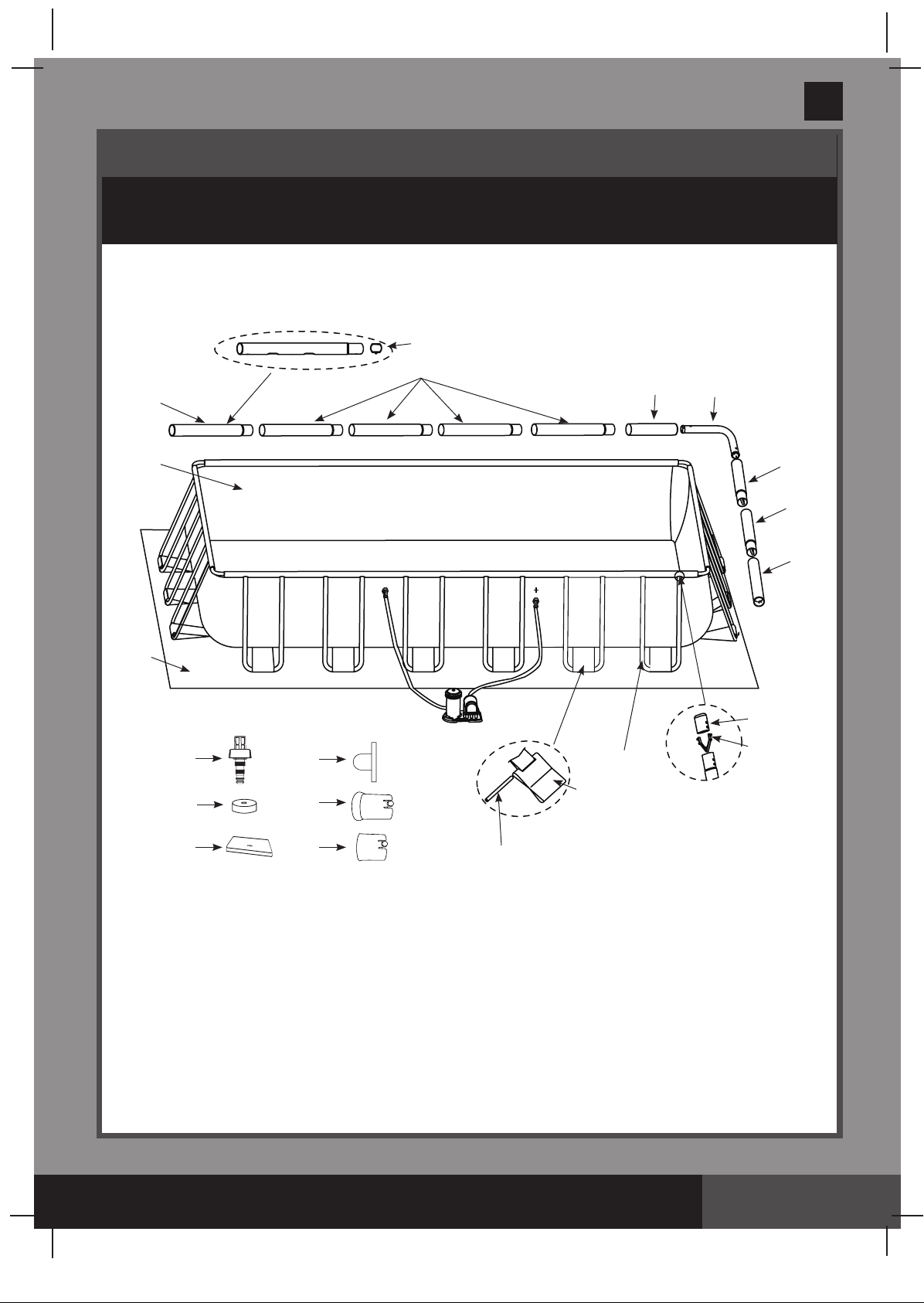

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
2

3
4
5
8
9
10
11
14
15
12
13
6
7
1
16 19
18
17
20
21

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 6
PARTS REFERENCE (CONTINUED)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF.
NO. DESCRIPTION
POOL SIZE & QUANTITIES
157-1/2”x78-3/4”
(400cm x 200cm)
118-1/8”x68-3/4”
(300cm x 175cm)
15’ x 9’
(457cmx274cm)
16’ x 8’
(488cm x 244cm)
18’ x 9’
(549cm x 274cm)
24’ x 12’
(732cm x 366cm)
32’ x 16’
(975cm x 488cm)
1 SINGLE BUTTON SPRING 8 8 8 8 8 14 20
2
HORIZONTAL BEAM (A) (SINGLE BUTTON SPRING INCLUDED) 2 2 2 2 2 2 2
3
HORIZONTAL BEAM (B) (SINGLE BUTTON SPRING INCLUDED) 424 4 4 8 12
4 HORIZONTAL BEAM (C) 2 2 2 2 2 2 2
5
HORIZONTAL BEAM (D) (SINGLE BUTTON SPRING INCLUDED) 2 2 2 2 2 2 2
6
HORIZONTAL BEAM (E) (SINGLE BUTTON SPRING INCLUDED) 0200024
7 HORIZONTAL BEAM (F) 2 2 2 2 2 2 2
8 CORNER JOINT 4 4 4 4 4 4 4
9 U-SUPPORT END CAP 24 16 24 24 24 36 48
10 DOUBLE BUTTON SPRING CLIP 24 16 24 24 24 36 48
11
U-SHAPED SIDE SUPPORT (U-SUPPORT END CAP & DOUBLE BUTTON SPRING CLIP INCLUDED) 12 812 12 12 18 24
12 CONNECTING ROD 12 812 12 12 18 24
13 RESTRAINER STRAP 12 812 12 12 18 24
14 GROUND CLOTH 0 0 1 1 1 1 1
15
POOL LINER (DRAIN VALVE CAP INCLUDED) 1 1 1 1 1 1 1
16 DRAIN CONNECTOR 1 1 1 1 1 1 1
17 DRAIN VALVE CAP 2 2 2 2 2 2 2
18 POOL COVER 0 0 1 1 1 1 1
19 STRAINER HOLE PLUG 3 3 3
20 PLASTIC INSERT FOR CORNER JOINT 8 8 8 8 8 8 8
21 PLASTIC INSERT FOR HORIZONTAL CORNER PIPE 8 8 8 8 8 8 8
REF.
NO. DESCRIPTION
157-1/2”x78-3/4”x39-3/8”
(400cm x 200cm x 100cm)
118-1/8”x68-3/4”x31-1/2”
(300cm x 175cm x 80cm)
15’ x 9’ x 48’’ (457cm
x 274cm x 122cm)
16’ x 8’ x 42’’ (488cm
x 244cm x 107cm)
18’ x 9’ x 52’’ (549cm
x 274cm x 132cm)
24’ x 12’ x 52’’ (732cm
x 366cm x 132cm)
32' x 16' x 52'' (975cm
x 488cm x 132cm)
SPARE PART NO.
1 SINGLE BUTTON SPRING 10381 10381 10381 10381 10381 10381 10381
2
HORIZONTAL BEAM (A) (SINGLE BUTTON SPRING INCLUDED) 12161 12209 11524D 12219 10919D 10920D 10921D
3
HORIZONTAL BEAM (B) (SINGLE BUTTON SPRING INCLUDED) 12162 12210 11525D 12220 10922D 10923D 10924D
4 HORIZONTAL BEAM (C) 12163 12211 11526D 12221 10925D 10926DD 10927D
5
HORIZONTAL BEAM (D) (SINGLE BUTTON SPRING INCLUDED) 12164 12212 10928D 12222 10928D 10929D 10928D
6
HORIZONTAL BEAM (E) (SINGLE BUTTON SPRING INCLUDED) 12281 10930D 10931D
7 HORIZONTAL BEAM (F) 12165 12212 10932D 12223 10932D 10933D 10932D
8 CORNER JOINT 12166 12166 10934D 12224 10934D 10934D 10934D
9 U-SUPPORT END CAP 10379 10379 10935 10379 10935 10935 10935
10 DOUBLE BUTTON SPRING CLIP 10382 10382 10936 10382 10936 10936 10936
11
U-SHAPED SIDE SUPPORT (U-SUPPORT END CAP &
DOUBLE BUTTON SPRING CLIP INCLUDED)
12167 12214 11523D 12225 10937D 10937D 10937D
12 CONNECTING ROD 10383 10383 10383 10383 10383 10383 10383
13 RESTRAINER STRAP 12226 12217 10938D 12226 10938D 10938D 10938D
14 GROUND CLOTH 11521 12227 10759 18941 10760
15
POOL LINER (DRAIN VALVE CAP INCLUDED) 12135 12216 12444 12228 12445 12446 12447
16 DRAIN CONNECTOR 10201 10201 10201 10201 10201 10201 10201
17 DRAIN VALVE CAP 11044 11044 11044 11044 11044 11044 11044
18 POOL COVER 11522 12229 10756 18936 10757
19 STRAINER HOLE PLUG 10127 10127 10127
20 PLASTIC INSERT FOR CORNER JOINT 11156 11156 11156 11156 11156 11156 11156
21 PLASTIC INSERT FOR HORIZONTAL CORNER PIPE 11157 11157 11157 11157 11157 11157 11157

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 7
POOL SETUP
WARNING
IMPORTANT SITE SELECTION AND GROUND
PREPARATION INFORMATION
• Thepoollocationmustallowyoutosecurealldoors,windows,andsafetybarrierstoprevent 
unauthorized, unintentional or unsupervised pool entry.
 • Installasafetybarrierthatwilleliminateaccesstothepoolforyoungchildrenandpets.
 • Failuretosetupthepoolonflat,level,compactgroundandtoassembleandfillwithwater
in accordance with the following instructions could result in the pool’s collapse or the
possibility that a person lounging in the pool could be swept out/ejected, resulting in serious
injury or property damage.
 • Riskofelectricshock:connectthefilterpumponlytoagroundingtypereceptacleprotected
by a ground-fault circuit interrupter (GFCI) or residual current device (RCD). To reduce the risk
of an electrical shock, do not use extension cords, timers, plug adapters or converter plugs
to connect the pump to an electrical supply. Always provide a properly located outlet. Locate
the cord where it cannot be damaged by lawn mowers, hedge trimmers, and other equipment.
See the filter pump manual for additional warnings and instructions.
 • Riskofseriousinjury:donotattempttoassemblepoolinhighwindconditions.
Select an outdoor location for the pool with the following requirements in mind:
1. The area where the pool is to be set up must be absolutely flat and level. Do not set up the pool on a
slope or inclined surface.
2. The ground surface must be compacted and firm enough to withstand the pressure and weight of a
fully set up pool. Do Not set up the pool on mud, sand, soft or loose soil conditions.
3. Do not set up the pool on a deck, balcony or platform, which may collapse under the weight of the
filled pool.
4. The pool requires at least 5 - 6 feet (1.5 - 2.0 m) of space all around pool from objects that a child
could climb on to gain access to the pool.
5. Grass under the pool will be damaged. Splash out chlorinated pool water could damage the
surrounding vegetation.
6. If the ground is not concrete (i.e., if it is asphalt, lawn or earth) you must place a piece of
pressure-treated wood, size 15” x 15” x 1.2” (38 x 38 x 3cm), under each U-shaped support and flush
with the ground. Alternatively you may use steel pads or reinforced tiles. Consult your local pool supply
retailer for advice on support pads.
7. Consult your local pool supply retailer for advice on support pads.
8. Eliminate all aggressive grasses first. Certain types of grass such as St. Augustine and Bermuda, may
grow through the liner. Grass growing through the liner it is not a manufacture defect and is not
covered under warranty.
9. The area shall facilitate drainage of the pool water after each use and/or for long term pool storage.

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 8
POOL SETUP (continued)
You may have purchased this pool with the Intex Krystal Clear™ filter pump. The pump has its
own separate set of installation instructions. First assemble your pool unit and then set up the
filter pump.
Estimated assembly time 60~90 minutes. (Note the assembly time is only approximate and
individual assembly experience may vary.)
1. • Find a flat, level location that is free and clear of stones, branches or other sharp objects that may
puncture the pool liner or cause injury.
• Open the carton containing the liner, joints, legs, etc., very carefully as this carton can be used to
store the pool during the winter months or when not in use.
• Remove the ground cloth (14) from carton. Spread
it out completely with its edges being at least
5 - 6’ (1.5 - 2.0 m) from any obstacle such as walls,
fences, trees, etc. Remove the liner (15) from carton
and spread it out over the ground cloth with the
drain valve towards the draining area. Place the
drain valve away from the house. Open it up to
warm it in the sun. This warming will make
installation easier. Make sure the liner is centered
atop the ground cloth. Be sure to face the end with
the 2 hose connectors towards the electrical
power source.
IMPORTANT: Do not drag the liner across the
ground as this can cause liner damage and pool
leakage (see drawing 1).
• During the set-up of this pool liner, point the hose
connections or openings in the direction of the
electric power source. The outer edge of the
assembled pool is to be within reach of the
electrical connection for the optional filter pump.
2. Remove all the parts from the carton(s) and place
them on the ground in the location where they are to
be assembled. Check the parts listing and be sure all
the pieces to be assembled are accounted for (see
drawings 2.1-2.4).
IMPORTANT: Do not start assembly if any pieces
are missing. For replacement pieces call the
Consumer Service telephone number in your area.
After all pieces are accounted for move the pieces
away from the liner for of installation.
1
ELECTRICAL SOURCE
5 - 6'
(1.5 - 2.0 m)
5 - 6' (1.5 - 2.0 m)
5 - 6'
(1.5 - 2.0 m)
LINER
2.1
157-1/2”x78-3/4”x39-3/8” /15’ X 9’ /16’ X 8’/ 18’ X 9’
(A)
CORNER JOINT
CORNER JOINT
CORNER JOINT
CORNER JOINT
(F)
(D)
(F)
(D)
(C)
(A)
(C)
LINER
(B) (B)
(B) (B)
2.3
(A)
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
(F)
(D)
(E)
(D)
(F)
(E)
(C)
LINER
(B) (B)
(B) (B)
(C) (A)
(B) (B)
(B) (B)
24’ X 12’
2.2
118-1/8”x68-3/4”
(A)
CORNER JOINT
CORNER JOINT
CORNER JOINT
CORNER JOINT
(F)
(D)
(F)
(D)
(C)
LINER (E)
(B)

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 9
POOL SETUP (continued)
2.4
32’ X 16’
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
CORNER
JOINT
(A)
(F)
(D)
(E)
(E)
(D)
(F)
(E)
(E)
(C)
LINER
(B) (B) (B) (B) (B) (B)
(C) (A)
(B) (B) (B) (B) (B) (B)
3. Be sure the liner is opened and spread out to its fullest
extent on top of the ground cloth. Starting with one side,
slide the “A” beams first into the sleeve openings located in
each corner. Continue with “B” beam snapping into the “A”
beam, and another “C” beam snapping into the “B” beam
(see drawing 3).
Keep the metal beam holes aligned with the white liner
sleeve holes.
Continue inserting all “A-B-C & D-E-F” beams into the sleeve
openings. Start the "D-E-F" combination for pool's short sides by inserting the "D" beam first into the
opening.
The combinations for beams are different for different sizes of pools, see the chart below for detail. (Be
sure all 4 sides end up with the metal beam holes aligned with the white liner sleeve holes.)
4. Slide the restrainer strap (13) onto the large U-shaped side
support
(11). Repeat for all restrainer straps and U-supports.
IMPORTANT: The liner is to remain flat on the ground
during the next step #5. This is why 5 - 6’ of clearance
space around the pool is necessary (see drawing 4).
4
13 9
10
11
3
(C) (B) (B) (A)
Size of Pool
157-1/2”x78-3/4” (400 cm x 200cm)
118-1/8”x68-3/4” (300cm x 175cm)
15’ x 9’ (457 cm x 274 cm)
16’ x 8’ (488 cm x 244 cm)
18’ x 9’ (549 cm x 274 cm)
24’ x 12’ (732 cm x 366 cm)
32’ x 16’ (975 cm x 488 cm)
No. of “U-shape” Leg
on longer side
4
3
4
4
4
6
8
No. of “U-shape” Leg
on shorter side
2
1
2
2
2
3
4
Horizontal Beam
Combinations on longer side
A-B-B-C
A-B-C
A-B-B-C
A-B-B-C
A-B-B-C
A-B-B-B-B-C
A-B-B-B-B-B-B-C
Horizontal Beam
Combinations on shorter side
D-F
D-E-F
D-F
D-F
D-F
D-E-F
D-E-E-F

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English

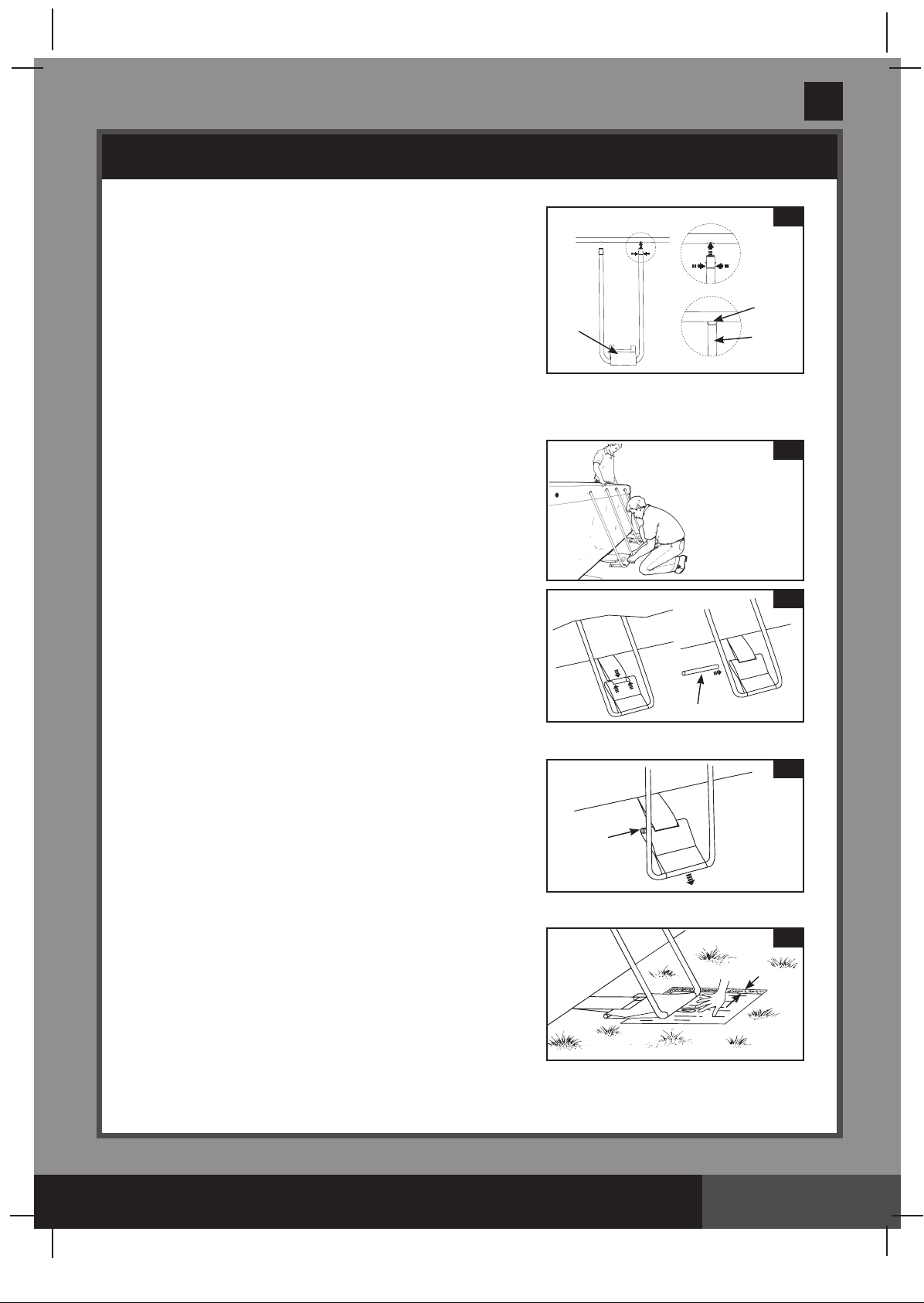

Page 10
POOL SETUP (continued)
5. The tops of the U-shaped side supports have a double
button spring loaded clip (10) that is factory pre-installed.
Insert the side supports into the “A-B-C & D-E-F” beam
holes by squeezing the bottom button inward with your
fingers.
Squeezing this bottom button will allow the support to enter
the beam. Once the U-support is inside the beam release
the finger pressure allowing the support to “SNAP” into
place. Repeat this procedure for all U-shaped side supports
(see drawing 5).
6. With one person standing inside the pool, raise one corner;
insert the connecting rod (12) into the overlapping
openings, to connect the liner straps to the restrainer
straps. Repeat the operation in the other corners and then
on the sides (see drawings 6.1 & 6.2).
7. Pull the bottoms of the side supports out away from the
liner to make the straps taut. Repeat for all locations (see
drawing 7).
8. If the ground is not concrete (asphalt, lawn or earth) you
must place a piece of pressure-treated wood, size
15” x 15” x 1.2”, under each leg and flush with the ground.
The U-shaped side supports must be placed in the center
of the pressure-treated wood and with the wood grain
perpendicular to the support leg (see drawing 8).
5
13
11
10
6.1
6.2
LINER
LINER
12
7
12
8
Level

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 11
POOL SETUP (continued)
9. Position the long wall top rails so they are leaning over the
short wall top rails. Installe the corner joints (8) at the 4
corners (see drawing 9).
IMPORTANT: The four corner joints are designed to be
moveable relative to the horizontal beams and not fixed
to the horizontal beams. This allows the pool side walls
to move inward or outward when the pool is in use.
10. Assemble the ladder. The ladder has separate assembly instructions in the ladder box.
11. Place the assembled ladder over one of the sides with one of the liner installation team members
entering the pool to smooth out all bottom liner wrinkles. While inside the pool this team member
should check the 2 drain valves (in corners) to be sure the inside drain plug is inserted into the valve.
This team member should push inside corner in an outward direction.
12. Before filling the pool with water, ensure that the drain plug inside the pool is closed and that the drain
cap on the outside is screwed on tightly. Fill the pool with no more than 1 inch (2.5 cm) of water. Check
to see whether the water is level.
IMPORTANT: If the water in the pool flows to one side, the pool is not completely level. Setting
up the pool on unleveled ground will cause the pool to tilt resulting in the sidewall material to
bulge. If the pool is not completely level, you must drain the pool, level the area and re-fill the
pool.
Smooth out the remaining wrinkles (from inside the pool) by pushing out where the pool floor and pool
sides meet. Or, (from outside pool) reach under the side of the pool, grasp the pool floor and pull it out.
If the ground cloth is causing the wrinkles, have 2 people pull from either side to remove all wrinkles.
13. Fill the pool with water up to just below the sleeve line. (see
drawing 10).
NOTE: The pool side walls and frame structure will lean
inward after having been filled with water to the
recommended level. Do not be concerned by the inward
leaning of the side walls, this is to accommodate the water
movement and pressure when the pool is in use.
9
8
IMPORTANT
Before allowing anyone to use the pool, hold a family meeting. Establish a set of rules that
include, at a minimum, the important safety rules and general aquatic safety information in
this manual. Review these rules on a regular basis and with all users of the pool, including
guests.
WATER LEVEL 10

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 12
TROUBLESHOOTING
PROBLEM DESCRIPTION CAUSE SOLUTION
ALGAE
COLORED
WATER
FLOATING
MATTER IN
WATER
CHRONIC LOW
WATER LEVEL
SEDIMENT ON
POOL BOTTOM
SURFACE
DEBRIS
• Greenish water.
• Green or black spots
on pool liner.
• Pool liner is slippery
and/or has a bad odor.
• Water turns blue,
brown, or black when
first treated with
chlorine.
• Water is cloudy or
milky.
• Level is lower than
on previous day.
• Dirt or sand on pool
floor.
• Leaves, insects etc.
• Chlorine and pH level
need adjustment.
• Copper, iron or
manganese in water
being oxidized by the
added chlorine.
• "Hard water" caused by a
too high pH level.
• Chlorine content is low.
• Foreign matter in water.
• Rip or hole in pool liner
or hoses.
• Heavy use, getting in
and out of pool.
• Pool too close to trees.
• Super chlorinate with shock
treatment. Correct pH to your
pool store's recommended level.
• Vacuum pool bottom.
• Maintain proper chlorine level.
• Adjust pH to recommended
level.
• Run filter until water is clear.
• Replace cartridge frequently.
• Correct the pH level. Check with
your pool dealer for advice.
• Check for proper chlorine level.
• Clean or replace your filter
cartridge.
• Repair with patch kit.
• Finger tighten all caps.
• Replace the hoses.
• Use Intex pool vacuum to
clean bottom of pool.
• Use Intex pool skimmer.
Water maintenance
The maintenance of a proper water balance through appropriate use of sanitizers is the single most
important factor in maximizing the life and appearance of the liner as well as ensuring clean, healthy
and safe water. Proper technique is important for testing and treating the pool water. See your pool
professional for chemical, test kits and testing procedures. Be sure to read and follow the written
instructions from the chemical manufacturer.
1. Never let chlorine come in contact with the liner if it is not completely dissolved. Dissolve granular or
tablet chlorine first in a bucket of water, then add it to the pool water. Likewise with liquid chlorine; mix it
immediately and thoroughly with the pool water.
2. Never mix chemicals together. Add the chemicals to the pool water separately. Thoroughly dissolve each
chemical before adding another one to the water.
3. An Intex pool skimmer and an Intex pool vacuum are available to assist in maintaining clean pool water.
See your pool dealer for these pool accessories.
4. Do not use a pressure washer to clean the pool.
POOL MAINTENANCE & CHEMICALS
REMEMBER TO
• Protect all pool occupants from possible water-related illnesses by keeping the pool water
clean and sanitized. Do not swallow the pool water. Always practice good hygiene.
• Keepyourpoolcleanandclear.Thepoolfloormustbevisibleatalltimesfromtheoutside
barrier of the pool.
• Keepchildrenawayfrompoolcoverstoavoidentanglement,drowning,orotherserious
injury.
WARNING

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 13
EXCESSIVE RAIN: To avoid damage to the pool and over filling, immediately drain rain water that
causes the water level to be higher than the maximum.
How to Drain Your Pool and Long Term Storage
NOTE: This pool has drain valves installed in 2 corners. Connect the garden hose to the corner valve that
directs the water to the appropriate location.
1. Check local regulations for specific directions regarding disposal of swimming pool water.
2. Check to make sure that the drain plug inside the pool is plugged in place.
3. Remove the cap from the drain valve on the outside pool wall.
4. Attach the female end of the garden hose to the drain connector (16).
5. Place the other end of the hose in an area where the water can be safely drained away from the house
and other nearby structures.
6. Attach the drain connector to the drain valve. NOTE: The drain connector will push the drain plug
open inside the pool and water will start to drain immediately.
7. When the water stops draining, start lifting the pool from the side opposite the drain, leading any
remaining water to the drain and emptying the pool completely.
8. Disconnect hose and adapter when finished.
9. Re-insert drain plug in drain valve on inside of pool for storage.
10. Replace drain cap on outside of pool.
11. Reverse the set-up instructions to disassemble the pool, and remove all connecting parts.
12. Be sure that the pool and all parts are completely dry before storage. Air dry the liner in the sun until
completely dry before folding (see drawing 11). Sprinkle some talcum powder to prevent vinyl from
sticking together and to absorb any residual moisture.
13. Create rectangular shape. Starting at one side, fold one-sixth of liner in on itself twice. Do the same on
the opposite side (see drawings 12.1 & 12.2).
14. Once you have created two opposing folded sides, simply fold one over the other like closing a book
(see drawings 13.1 & 13.2).
15. Fold the two long ends to the middle (see drawing 14).
16. Fold one over the other like closing a book and finally compact the liner (see drawing 15).
17. Store the liner and accessories in a dry, temperature controlled, between 32 degrees Fahrenheit
(0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius), storage location.
18. The original packing can be used for storage.
13.1
11
12.1 12.2
13.2 14 15
POOL MAINTENANCE & DRAINAGE
Do not add chemicals if the pool is occupied. This can cause skin or eye irritation. Concentrated
chlorine solutions can damage the pool liner. In no event is Intex Recreation Corp., Intex Development Co.
Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the
buyer or any other party for costs associated with the loss of pool water, chemicals or water damage. Keep
spare filter cartridges on hand. Replace cartridges every two weeks. We recommend the use of a
Krystal Clear™ Intex Filter Pump with all of our above-ground-pools.
CAUTION ALWAYS FOLLOW THE CHEMICAL MANUFACTURER'S
DIRECTIONS, AND THE HEALTH AND HAZARD WARNINGS.

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 14
WINTER PREPARATIONS
Winterizing your Above Ground Pool
After usage, you can easily empty and store away your pool in a safe place. You must
drain, disassemble and properly store the pool when the temperature drops below 41
degrees Fahrenheit (5 degrees Celsius) to prevent ice damage to the pool and related
components. Ice damage can result in sudden liner failure or pool collapse. Also see the
section ‘’How To Drain Your Pool’’.
Should temperatures in your area not drop below 41 degrees Fahrenheit (5 degrees
Celsius), and you choose to leave your pool out, prepare it as follows:
1. Clean the pool water thoroughly. If the type is an Easy Set Pool or an Oval Frame Pool,
make sure that the top ring is properly inflated.
2. Remove the skimmer (if applicable) or any accessories attached to the threaded strainer
connector. Replace strainer grid if necessary. Be sure all accessories parts are clean and
completely dry before storage.
3. Plug the Inlet and Outlet fitting from the inside of the pool with the plug provided (sizes 16'
and below). Close the Inlet and Outlet Plunger Valve (sizes 17' and above).
4. Remove the ladder (if applicable) and store in a safe place. Be sure the ladder is completely
dry before storage.
5. Remove the hoses that connect the pump and filter to the pool.
6. Add the appropriate chemicals for the winter period. Consult your local pool dealer as to
which chemicals you should use and how to use them. This can vary greatly by region.
7. Cover pool with Intex Pool Cover. IMPORTANT NOTE: INTEX POOL COVER IS NOT A
SAFETY COVER.
8. Clean and drain the pump, filter housing and hoses. Remove and discard the old filter
cartridge. Keep a spare cartridge for the next season.
9. Bring pump and filter parts indoors and store in a safe and dry area, preferably between 32
degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks of
injury and death. To reduce your risk of injury, read and follow all product, package and
package insert warnings and instructions. Remember, however, that product warnings,
instructions and safety guidelines cover some common risks of water recreation, but do
not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following general guidelines
as well as guidelines provided by nationally recognized Safety Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard” or
water watcher, especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about the use
of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.

119A
SAVE THESE INSTRUCTIONS
(119IO) RECTANGULAR ULTRA FRAME POOL ENGLISH 7.5” X 10.3” PANTONE 295U 06/17/2016
English
Page 15
LIMITED WARRANTY
Your Intex Pool has been manufactured using the highest quality materials and
workmanship. All Intex products have been inspected and found free of defects prior to
leaving the factory. This Limited Warranty applies to the Intex Pool only.
This limited warranty is in addition to, and not a substitute for, your legal rights and
remedies. To the extent that this warranty is inconsistent with any of your legal rights, they
take priority. For example, consumer laws across the European Union provide statutory
warranty rights in addition to the coverage you receive from this limited warranty: for
information on EU-wide consumer laws, please visit the European Consumer Center
website at http://ec.europa.eu/consumers/ecc/contact_en/htm.
The provisions of this Limited Warranty apply only to the original purchaser and are not
transferable. This Limited Warranty is valid for a period of 90 days from the date of the
initial retail purchase. Keep your original sales receipt with this document, as proof of
purchase will be required and must accompany warranty claims or the Limited Warranty
will be invalid.
If you find a manufacturing defect in the Intex Pool during the warranty period, please
contact the appropriate Intex Service Center listed in the separate “Authorized Service
Centers” sheet. If the item is returned as directed by the Intex Service Center, the Service
Center will inspect the item and determine the validity of the claim. If the item is covered by
the provisions of the warranty, the item will be repaired or replaced, with the same or
comparable item (at Intex’s choice) at no charge to you.
Other than this warranty, and other legal rights in your country, no further warranties are
implied. To the extent possibly in your country, in no event shall Intex be liable to you or
any third party for direct or consequential damages arising out of the use of your Intex Pool,
or Intex or its agents’ and employees’ actions (including the manufacture of the product).
If your country does not allow the exclusion or limitation of incidental or consequential
damages, this limitation or exclusion does not apply to you.
You should note that this limited warranty does not apply in the following circumstances:
• If the Intex Pool is subject to negligence, abnormal use or application, accident,
improper operation, improper maintenance or storage.
• If the Intex Pool is subject to damage by circumstances beyond Intex’s control, including
but not limited to, punctures, tears, abrasions, ordinary wear and tear and damage
caused by exposure to fire, flood, freezing, rain, or other external environmental forces;
• To parts and components not sold by Intex; and/or
• To unauthorized alterations, repairs or disassembly to the Intex Pool by anyone other
than Intex Service Center personnel.
The costs associated with the loss of pool water, chemicals or water damages are not
covered by this warranty. Injury or damage to any property or person is not covered by this
warranty.
Read the owner’s manual carefully and follow all instructions regarding proper operation
and maintenance of your Intex Pool. Always inspect your product prior to use. This limited
warranty will be void if use instructions are not followed.

165A
English
(165IO) 48”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 05/27/2016
OWNER’S MANUAL
Ladder with
Removable Steps
Owner’s Manual For:
48in (122 cm) & 52in (132 cm) models
IMPORTANT
SAFETY RULES
Read, Understand, and Follow
all Instructions Carefully before
Installing and using this Product.
Don’t forget to try these other fine Intex products: Pools, Pool
Accessories, Inflatable Pools and In-Home Toys, Airbeds and
Boats available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may
result in updates to the instruction manual, without notice.
For illustrative purposes only. 52 in (132cm) Shown
©2016 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte
vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/
Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in
Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex
Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne
par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR
Roosendaal – The Netherlands
www.intexcorp.com
165-*A*-R0-1706

165A
SAVE THESE INSTRUCTIONS
English
(165IO) 48”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 05/27/2016
Page 2
Warnings.......................................................................................... 3
Parts References............................................................................. 4
Setup Instructions........................................................................... 5-10
Long Term Storage.......................................................................... 11
General Aquatic Safety................................................................... 11
Limited Warranty............................................................................ 12
SAVE THE CARTON FOR STORAGE AND THE INSTRUCTIONS
FOR RE-ASSEMBLY
TABLE OF CONTENTS

165A
SAVE THESE INSTRUCTIONS
English
(165IO) 48”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 05/27/2016
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
• Supervise children and those with disabilities at all times.
• Always assist children when they use the ladder to avoid falls and/or serious
injury.
• Never dive or jump from this ladder.
• Locate the ladder on a level, solid base.
• One person on this ladder at a time.
• Maximum load: 300 lbs (136 kg). Complies with EN16582 strength
requirements.
• Face the ladder at all times for entry/exit of pool.
• Remove and secure ladder when pool is not occupied.
• Do not swim under, through or behind ladder.
• Check all nuts and bolts regularly to ensure ladder stays sturdy.
• If swimming at night use artificial lighting to illuminate all safety signs, ladders,
pool floor and walkways.
• Assembly and disassembly by adults only.
• This ladder is designed and manufactured for a specific pool wall height and/
or deck of the pool. Do not use with other pools.
• Failure to follow the maintenance instructions and warnings may result in
adverse health effects or injury, particularly to children.
• Only use this ladder for the purposes described in this manual.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN BROKEN
BONES, ENTRAPMENT, PARALYSIS, DROWNING OR OTHER SERIOUS
INJURY.
These product warnings, instructions and safety rules provided with the
product represent some common risks of water recreation devices and do not
cover all instances of risk and danger. Please use common sense and good
judgment when enjoying any water activity.
WARNING
IMPORTANT
IT IS VERY IMPORTANT TO LAY OUT THE PARTS CORRECTLY AND IDENTIFY WHICH
PARTS CONNECT TOGETHER BEFORE STARTING THE ASSEMBLY. ALTHOUGH
SOME PARTS LOOK ALIKE, THEY ARE NOT ALWAYS INTERCHANGEABLE. REFER
TO THE PARTS LIST.

165A
SAVE THESE INSTRUCTIONS
English
(165IO) 48”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 05/27/2016
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
52in (132 cm) model
48in (122 cm) model
REF.
NO.
DESCRIPTION
LADDER SIZE &
QUANTITIES
SPARE PART
NUMBER
48in 52in 48in 52in
1 U-SHAPED TOP RAIL
2 2 12512 12512
2
TOP PLATFORM
1 1 12182 12182
3
SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5 5 10810 10810
4
LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA)
5 5 10227 10227
5
STEP MOUNTING PIN (WITH 2 EXTRA)
26 34 10913 10913
6
STEP
6810914 10914
7
A SIDE - UPPER SIDE LEG (MARKED “A1”)
1 1 12513A 12497A
8
A SIDE - UPPER SIDE LEG (MARKED “B1”)
1 1 12513B 12497B
9
A SIDE - LOWER J- LEG (MARKED “A1” )
1 1 12514A 12498A
10
A SIDE - LOWER J- LEG (MARKED “B1” )
1 1 12514B 12498B
11
B SIDE - UPPER SIDE LEG (MARKED “A2 & B2”)
2 2 12516 12520
12
B SIDE - LOWER SIDE LEG (MARKED “A2)
1 1 12517A 12521A
13
B SIDE - LOWER SIDE LEG (MARKED “B2”) 1 1 12517B 12521B
14
C SIDE - UPPER SIDE LEG (MARKED “C”)
2 2 12518 12522
15
C SIDE - LOWER U-SHAPED SIDE LEG (MARKED “C”)
1 1 12519 12523
16
SUPPORT BASE
2 2 11356 11356
17
CLASP
2 2 12190 12190
This ladder is designed and manufactured for Intex pool wall height:
Item # Pool Wall Height
28073 48in (122cm)
28074 52in (132cm)
2
1
3
4
5
9
78
6
10
13
11
14
15
16
17
12
2
1
3
4
5
9
7
8
6
11
15
12
14
16
17
10 13
