Invacare 3G Storm Series Instruction Manual

Yes, you can. ™
Formula™CG Powered Seating
Front Riggings
For
3G Storm Series® &
TDX®SP/SP-GT/SR
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 07_077. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, Storm Series, TDX are registered trademarks and
Formula, Contoura, Personal Back 10, DualFlex, MKIV, MK6i, are trademarks of Invacare Corporation.
Otto Bock is a registered trademark owned by Otto Bock Orthopaedische Industrie GMBH & Co.. JAY Back is a registered trademark of Sunrise Medical
HHG, Inc. Corporation
Parts Catalog Usage Guide
1
Form No. 07_077
To order call toll free 1-800-333-6900, or www.invacare.com

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!) ...................................................... 5
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 6
Front Riggings - Adjustable Angle Footplate Assembly - AT5543 ........................................... 49
Front Riggings - Calf Pads and Attaching Hardware ................................................................ 40
Front Riggings - Center Mount Rigging (CTMT-F w/ CTMTFB One PC Footboard) TDX
SP/SP-GT/SR After 12/30/09
86
Front Riggings - Center Mount Rigging (CTMT-F w/ CTMTFB One PC Footboard) TDX
SP/SP-GT/SR Before 12/31/09
84
Front Riggings - Center Mount Rigging (CTMT-F) For TDX SP/SP-GT/SR (Before 12/10/08) 73
Front Riggings - Center Mount Rigging (CTMT-FJ) For TDX SP/SP-GT/SR (Before 12/10/08) 71
Front Riggings - Center Mount Rigging (CTMT-J/CTMT-FJ/CTMT/CTMT-F/CTMT-L/CTMT-FL)
(After 12/09/08)
76
Front Riggings - Center Mount Rigging Mtg Hdwr. (CGT) For TDX SP/SP-GT/SR (12"-16" W) 90
Front Riggings - Center Mount Rigging Mtg Hdwr. (CGT,CGTE, CGR, CGTR, CGTRE)
(16"-24" W) TDX SP/SP-GT/SR
92
Front Riggings - Center Mount Rigging Mtg. Hdwr. (CGE) (16"-22" Wide) For TDX
SP/SP-GT/SR
95
Front Riggings - Center Mount Rigging Mtg. Hdwr., (CTMT-F/CTMT-FJ) (CGE) w/ Van Seats -
TDX SP/SP-GT/SR
97
Front Riggings - Footrest & Legrest Accessories ..................................................................... 55
Front Riggings - Footrest Support Assemblies (Sector Style) .................................................. 29
Front Riggings - Footrest Supports - PHW93 - (Hemi) ............................................................. 44
Front Riggings - Footrest Supports - PW93 ............................................................................. 42
Front Riggings - Front Rigging Hanger Hardware - Van Seat .................................................. 27
Front Riggings - Front Rigging Hanger Hdwr., Pin & Sector Style (16"-22" W) (CGE) For TDX
SP/SP-GT/SR
25
Front Riggings - Front Rigging Hanger Hdwr., Pin, Sector & Hemi Style (12"-16" W) (CGT) .. 19
Front Riggings - Front Rigging Hanger Hdwr., Pin, Sector & Hemi Style (16"-24" W) (CGR,
CGTR, CGTRE)
23
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Front Riggings - Front Rigging Hanger Hdwr., Pin, Sector & Hemi Style (16"-24" W)
(CGT/CGTE)
21
Front Riggings - Legrest Release Handles and Ratchets ........................................................ 38
Front Riggings - Legrest Supports - AT5544 ............................................................................ 31
Front Riggings - Legrest Supports - P904A ............................................................................. 33
Front Riggings - Legrest Supports, Articulating (Hemi) - PHAL4A ........................................... 35
Front Riggings - Legrest, Articulating - PAL4A ......................................................................... 34
Front Riggings - Mounting Hardware - Adductors - Jr. Center Mount Front Riggings ............. 121
Front Riggings - Mounting Hardware - Adductors - Center Mount Front Riggings ................... 117
Front Riggings - Mounting Hardware - Adductors - Center Mount Front Riggings - Formula TRE 115
Front Riggings - Mounting Hardware - Adductors - Center Mount Front Riggings - Long ....... 119
Front Riggings - Mounting Hardware - Adductors - CG Tilt/Elevate - Sector Style .................. 113
Front Riggings - Mounting Hardware - Adductors - CG Tilt/Elevate For 3G Storm .................. 111
Front Riggings - Mounting Hardware - Adductors - CG Tilt/Elevate For TDXSP/SP-GT/SR ... 109
Front Riggings - Mounting Hardware - Adductors - Hemi Style - 3G Storm ............................. 101
Front Riggings - Mounting Hardware - Adductors - Hemi Style - TDX SP/SP-GT/SR ............. 99
Front Riggings - Mounting Hardware - Adductors - Jr. Center Mount Front Riggings - Tilt ...... 123
Front Riggings - Mounting Hardware - Adductors - LNX/LNX-L Front Riggings - TDX SP/SP-GT 127
Front Riggings - Mounting Hardware - Adductors - MPCTMT/MPCTMT-L Style ..................... 105
Front Riggings - Mounting Hardware - Adductors - Sector Style ............................................. 103
Front Riggings - Mounting Hardware - Adductors - Tilt/Recline - 3G Storm ............................ 125
Front Riggings - Mounting Hardware - Adductors - Tilt/Recline - Sector Style ........................ 107
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Front Riggings - Pivot/Slide Tube w/ Footplate Assembly - Aluminum - 1350, 1650 ............... 47
Front Riggings - Pivot/Slide Tube w/ Footplate Assembly - Composite - 1651 ........................ 46
Front Riggings - Power Articulating Legrest - ELRPW/ELRPW 22 .......................................... 52
Front Riggings - Power Center Mount Elevating Legrest - Articulating - Mtg. Hdwr. - LNX/LNX-L
- TDX SP/SP-GT
69
Front Riggings - Power Center Mount Elevating Legrest - Articulating - w/o Mtg. Hdwr. -
LNX/LNX-L - TDX SP/SP-GT
66
Front Riggings - Power Elevating Legrest - Articulating (MPCTMT/MPCTMT-L) (After 12/31/08)
- TDX SP/SP-GT/SR
62
Front Riggings - Power Elevating Legrest - Articulating (MPCTMT/MPCTMT-L) (Before
01/01/09) - TDX SP/SP-GT/SR
60
Front Riggings - Pwr. Articulating Legrest - Harness, Hdwr. & DLIAM (Dual Legs Integrated
Actuator Module)
58
Front Riggings - Reference Chart - 70ST TAPER .................................................................... 18
Front Riggings - Reference Chart - AT5544, 60HD, 70NHD, PW93, PHW93 ......................... 14
Front Riggings - Reference Chart - P904, PAL4A, PHAL4A .................................................... 16
Label Locations For TRBKTS Option ....................................................................................... 12
Packaging & Literature For 3G Storm Series ........................................................................... 8
Packaging & Literature For TDX SP/SP-GT/SR ....................................................................... 10
TRBKTS Option Clarification Reference .................................................................................. 13
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!)
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Frame Finishes, Touch-Up Paints & Upholstery Options
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Frame Finish
Deep Purple.6 oz.103145608P Cobalt Blue.6 oz.104631917P Anthracite.6 oz.103337622P Wet Black.6 oz.103145024P White/ White Snow.6 oz.103144729P Red.6 oz.103145533P Flat Black.6 oz.104632734P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P Electric Purple.6 oz.104632266P Teflon Black.6 oz.1101320-NLA69P Silver VeinN/AN/A71P Lavender.6 oz.107389684P Jeweled Green.6 oz.1101325101P Denim Blue.6 oz.1101327102P Electric Teal.6 oz.1101316104P MIdnight Blue.6 oz.1101326105P Black PrismN/AN/A115P Sunkissed Orange.6 oz.1133372116P Tangerine Red.6 oz.1133373117P Fruit FusionN/AN/A118P Bubblegum PinkN/AN/A119P Grape MadnessN/AN/A120P Lolly Pop BlueN/AN/A121P Cosmic BlueN/AN/A122P Celestial PurpleN/AN/A123P Vivid VioletN/AN/A124P Emerald GreenN/AN/A125P Shamrock GreenN/AN/A126P Grasshopper GreenN/AN/A127P
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Frame Finishes, Touch-Up Paints & Upholstery Options
Upholstery Options For ADJASBA Seating w/ Sling Back Upholstery
Nylon Color
U240 Black
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Packaging & Literature
For 3G Storm Series
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Packaging & Literature
For 3G Storm Series
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 A 1031682 Carton, Cover 1 11 B 1036028 Carton, Cover 1 11 C 1043198-NLA NLA - Tube, Paper 1 12 1015609-NLA NLA - Bag, Poly (28" W x 44" D x 80" H) 1 13 1030362 Carton, Tray 1 24 D 1036027 Carton, Tray 1 24 E See Note See Footnote 1 15 F 1021149 Bag, Poly Zip-Lip (13" L x 9" W) 1 16 1143155 Owner's Manual, Formula CG Seating 1 17 00077X031-NLA NLA - Warranty Card 1 18 50000X121 Strap, Battery Lift 1 19 1012001 Carton, Joystick 1 110 40131X161 Insert, Plain Pad 1 111 1115174 Carton, Corner Reinforcement 1 212 A 1129589 Carton, Corner Reinforcement 1 212 B 1129590 Carton, Corner Reinforcement 1 212 C
A - 12"- 20" wide systems with base
B - 16"- 20" wide systems medium/tall seat-to-floor heights with base
C - 21"- 24" wide systems with base
D - 12"- 20" wide systems with base
E - 21"- 24" wide systems with base
F - Skid not supplied
NOTE: Wh
en adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Packaging & Literature
For TDX SP/SP-GT/SR
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Packaging & Literature
For TDX SP/SP-GT/SR
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 A 1031682 Carton, Cover 1 11 B 1036028 Carton, Cover 1 11 C 40131X161 Insert, Plain Pad 1 22 40131X011 Carton, Front Riggings 1 13 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 14 1043198-NLA NLA - Tube, Paper 1 15 1012001 Carton, Joystick 1 16 1030362 Carton, Tray 1 27 D 1036027 Carton, Tray 1 27 E 1115174 Carton, Corner Reinforcement 1 48 D 1129589 Carton, Corner Reinforcement 1 48 B 1129590 Carton, Corner Reinforcement 1 48 E 00077X031-NLA NLA - Warranty Card 1 1
1143155 Owner's Manual, Formula CG Seating 1 1F
A - 12"-20" wide systems with base
B - 16"-20" wide systems medium/tall seat-to-floor heights with base
C - 21"-24" wide systems with base
D - 12"-20" wide systems with base
E - 21"-24" wide systems with base
F - Not Shown
When adj
usting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

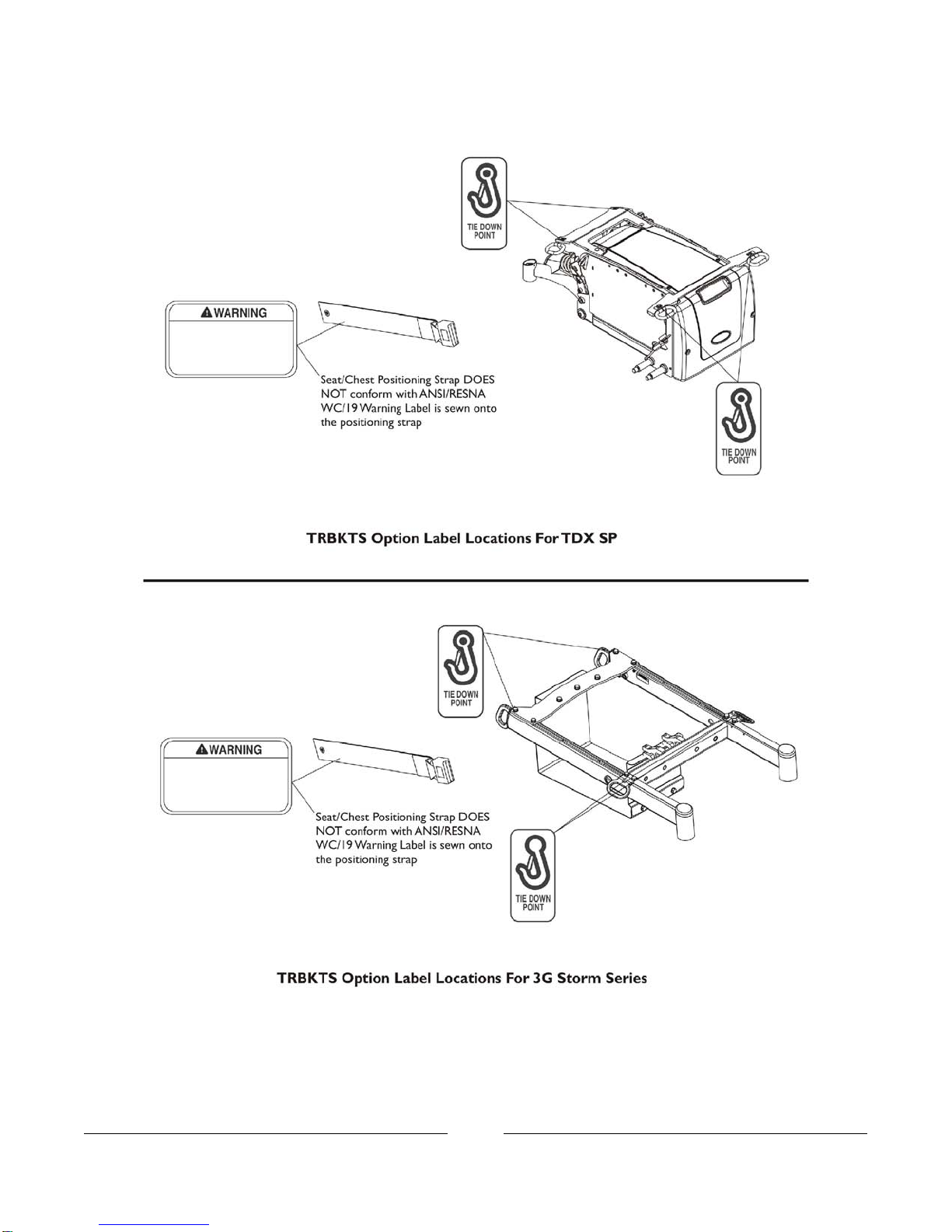

Label Locations For TRBKTS Option
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

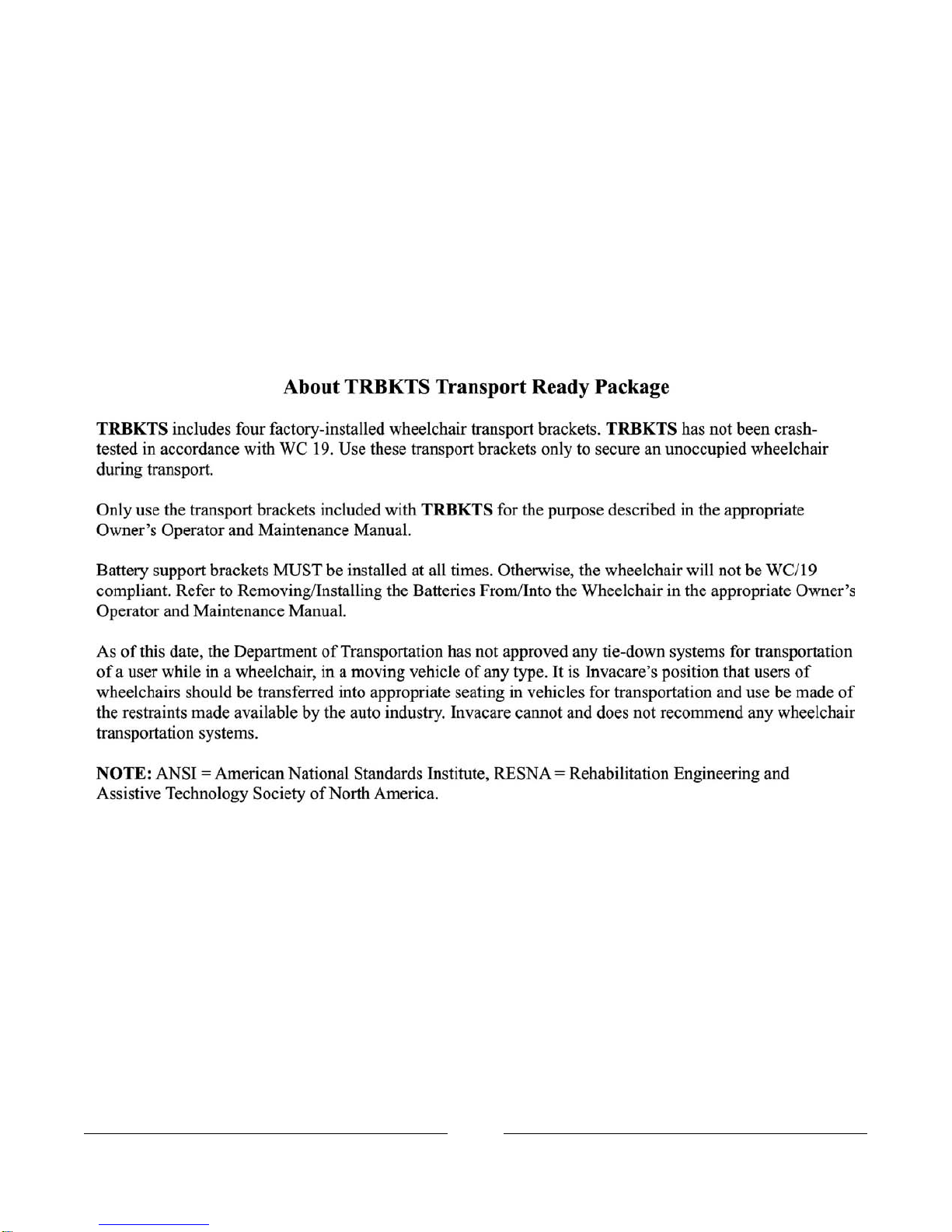

TRBKTS Option Clarification Reference
TRBKTS Option is an On-Chair option only.
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Front Riggings Reference Chart
For AT5544, 60HD, 70NHD, PW93, PHW93
NOTE: Calf pads with attaching hardware not included on legrest.
NOTE: Pivot/ Slide tube attaching hardware not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/ slide tube.
AT5543 = Adjustable angle footplate with 9-7/8" straight pivot/ slide tube.
1350 = Extra large footplate with "L" style pivot/ slide tube.
Support Assemblies
Pivot/Slide tube and footplates are interchangeable with the support assemblies listed.
Rigging
Type AT5544 60HD 70NHD PW93 PHW93
8881126089 8881070776 8881053149 8881053158 8881045291
Right
See Note(s) C See Note(s) B, A See Note(s) A, C See Note(s) B, A See Note(s) C, A See Note(s) D, A
8881126090 8881070777 8881053148 8881053157 8881045292
Left See Note(s) A, B See Note(s) A, C See Note(s) A, B See Note(s) C, A See Note(s) A, D
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
B - Offered on 3G Storm Series and TDX SP/SR models.
C - Offered on 3G Storm Series models.
D - Offered on TDX SP/SR models.
NOTE:
Pivot/ Slide Tube and Footplates
Footplate
Type AT5543 14-15" W AT5543 16-24" W
1651
13-14" W 1651 15-16" W 1651 17-24" W 1350 17-24" W AT5543 12-13" W 1062756106044410604421026395105787910578691057859Right 1062757106044510604431026396105788010578701057860Left
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Front Riggings Reference Chart
For AT5544, 60HD, 70NHD, PW93, PHW93
2" Longer Pivot/ Slide Tube and Footplates
Footplate
Type AT5543 14-15" W AT5543 16-24" W
1651
13-14" W 1651 15-16" W 1651 17-24" W 1350 17-24" W AT5543 12-13" W 10627601062758N/A1086515105788110578711057861Right 10627611062759N/A1086517105788210578721057862Left
4" Longer Pivot/ Slide Tube and Footplates
Footplate
Type AT5543 14-15" W AT5543 16-24" W
1651
13-14" W 1651 15-16" W 1651 17-24" W 1350 17-24" W AT5543 12-13" W 1121140112113811211361086516105842310584211058419Right 1121141112113911211371086518105842410584221058420Left
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Front Riggings Reference Chart
For P904, PAL4A, PHAL4A
NOTE: Calf pads with attaching hardware not included on legrest.
NOTE: Pivot/Slide tube attaching hardware not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1650 = Aluminum footplate with "L" style pivot/slide tube.
AT5543 = Adjustable angle footplate wtih 9-7/8" straight pivot/slide tube.
1350 = Extra large footplate with "L" style pivot/slide tube.
Support Assembly
Pivot/Slide tube and footplates are interchangeable with the support assemblies listed.
Rigging
Type P904
8881058646
Right See Note(s) B, A
8881058647
Left See Note(s) B, A
A - Specify Frame Color when ordering, see page titled "Frame Color and Touch-Up Paint".
B - Offered on 3G Storm Series models only
NOTE:
Pivot/Slide Tube and Footplates
Footplate
Type 1650 14-15" W 1650 16-24" W 1350 17-24" W AT5543 14-15" W AT5543 16-24" W
10627561060444105883010586041058612Right 10627571060445105883110586051058613Left
2" Longer Pivot/Slide Tube and Footplates
Footplate
Type 1650 14-15" W 1650 16-24" W 1350 17-24" W AT5543 14-15" W AT5543 16-24" W
1062760106275810865411086529N/ARight 1062761106275910865511086531N/ALeft
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Front Riggings Reference Chart
For P904, PAL4A, PHAL4A
4" Longer Pivot/Slide Tube and Footplates
Footplate
Type 1650 14-15" W 1650 16-24" W 1350 17-24" W AT5543 14-15" W AT5543 16-24" W
N/AN/A10865421086530N/ARight N/AN/A10865521086532N/ALeft
Support Assembly
Pivot/Slide tube and footplates are interchangeable with the support assemblies listed.
Rigging
Type PAL4A/PHAL4A (Chrome Only)
1058482
PAL4A - Right
See Note(s) A
1058483
PAL4A - Left
See Note(s) A
1031437
PHAL4A - Right
See Note(s) B
1031438
PHAL4A - Left
See Note(s) B
A - Offered on 3G Storm Series models only
B - Offered on TDX SP models only
NOTE:
Pivot/Slide Tube and Footplates
Footplate
Type 1650 14-15" W 1650 16-24" W 1350 17-24" W AT5543 14-15" W AT5543 16-24" W
10917771091775103545610239071023905Right 10917781091776103545710239081023906Left
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

NOTE: Pivot/Slide tube attaching hardware not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/slide tube.
Support Assemblies
Pivot/Slide tube and footplates are interchangeable with the support assemblies listed.
Rigging
Type 70ST TAPER
8881026996
Right See Note(s) A, B
8881026997
Left See Note(s) B, A
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
B - Offered on 3G Storm Series and TDX SP/SR models
NOTE:
Pivot/Slide Tube and Footplates
Footplate
Type 1651 15-17" W 1651 18-19" W 1651 20-24" W
105787910578691057859Right 105788010578701057860Left
2" Longer Pivot/Slide Tube and Footplates
Footplate
Type 1651 15-17" W 1651 18-19" W 1651 20-24" W
105788110578711057861Right 105788210578721057862Left
Front Riggings Reference Chart
For 70ST TAPER
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077

Front Rigging Hangers and Hardware
Pin, Sector and Hemi Style (12"-16" Wide) (CGT)
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07_077
