Invacare DELTA P429/2 User manual

Invacare®Delta™P429/2
Rollator
User Manual
Manuel d’utilisation
This user manual MUST be given to the user of this product.
before using this product, read this manual and save for future reference.
Ce manuel DOIT être remis à l’utilisateur du produit.
Lire ce manuel AVANT d’utiliser cet appareil, et le conserver en cas de besoin.
US
CA

2
User Manual
1 GENERAL 3
Symbols ..................................................................................................3
Service Life ............................................................................................3
Product Labeling...................................................................................3
User Height Specifications and Weight Limitation ......................4
2 SAFETY 4
Intended Use.........................................................................................4
General Warnings................................................................................5
3 USAGE 5
Assembling the Rollator .....................................................................5
Operating position...............................................................................5
Folding the Rollator.............................................................................5
Adjusting the Handle Height .............................................................6
Installing the Bag, Basket and Tray...................................................6
Adjustment of the Braking effect......................................................6
Using the Hand Brake.........................................................................7
Using the Parking Brake .....................................................................7
4 CARE AND MAINTENANCE 7
5 AFTER USE 7
Disposal..................................................................................................7
Reuse ......................................................................................................7
6 WARRANTY 8
Limited Warranty - North America................................................8
©2010 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from
Invacare. Trademarks are indetified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
User Manual US / CA.......................................................3
Manuel d’utilisation CA / FR ...........................................8

3
1 GENERAL
Signal words are used in this manual an apply to hazards or unsafe prac-
tices which could result in personal injury or property damage. See the
information below for definitions of the signal words.

WARNING
Warning indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
1.2 Service Life
The expected service life of this product is 5 years when used in ac-
cordance with safety instructions, maintenance intervals and correct
use, stated in this manual. The effective service life can vary according
to frequency and intensity of use.
NB. Only to be used as a walking support. User’s max. weight:
P429/2 - DELTA 295 lbs (135 kg). INVACARE will not accept respon-
sibility for adaptations, faulty repairs etc. that are outside its control.
1.1 Symbols
1: Article number
2: Product name
3: Lot number
4: Date of manufacture
5: Max. user weight
6: See operating instructions.
7: In- and outdoor rollator.
8: Max. width of rollator.
9: Manufacturer’s name

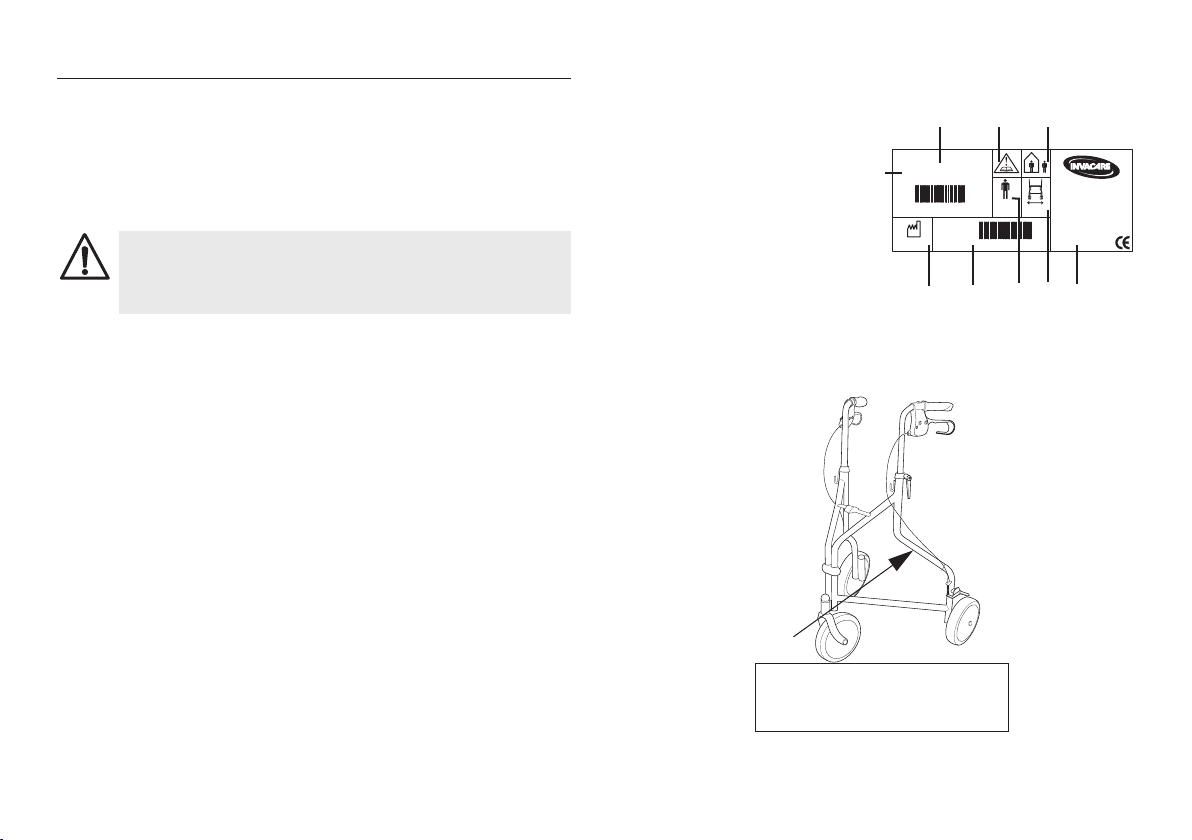

1.3 Product Labeling
Gives useful tips, recommendations and information for effi-
cient, trouble-free use.
XXX lb
XX cm
INVACARE XXXXXX
XXXXX - XX - XX
X XXXXXX XXXXXX
XXXXXX - XXXXXX
xxxx - xx
Invacare REA
Växjövägen 303
SE-343 75 Diö
SWEDEN
TEL [phone]
FAX [phone]
www.invacare.com
LN
XX “
XXX kg
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX
1
2 6
4359
8
7
WARNING
DO NOT use this product as a
wheelchair or transport device.

4
2.2 General Warnings
WARNING
DO NOT use this product or any available optional equip-
ment without first completely reading and understanding these
instructions and any additional instructional material such as
owner’s manuals, service manuals or instruction sheets sup-
plied with this product or optional equipment. If you are un-
able to understand the warnings, cautions or instructions,
contact a healthcare professional, dealer or technical person-
nel before attempting to use this equipment otherwise, injury
or damage may occur.
ACCESSORIES WARNING
Invacare products are specifically designed and manufactured
for use in conjunction with Invacare accessories. Accesso-
ries designed by other manufacturers have not been tested
by Invacare and are not recommended for use with Invacare
products.
WARNING
You should ALWAYS consult with your physician or therapist
to determine proper adjustment and usage. DO NOT use this
product as a wheelchair or transport device.
Use caution on sloping ground.
A physical/occupational therapist should assist in the height
adjustment for maximum support and correct brake activa-
tion.
Care should be taken to ensure that all hand and height adjust-
ments are secure, and that casters and moving objects are in
good working order before using this or any mobility aid.
When using the rollator in a stationary position, the parking
brakes MUST be locked.
2 SAFETY
Check ALL parts for shipping damage. If shipping damage is noted,
DO NOT use. Contact carrier/dealer for further instruction.
2.1 Intended Use
The rollator is intended to be used solely as a walking aid and all other
use can cause risk of injury. The rollator can be used inside and outside
the house.

WARNING
ALWAYS observe the weight limit on the labeling of your
product. Check that all labels are present and legible. Replace
if necessary.
1.4 User Height Specifications and Weight Limitation
Item User Height
Min. / Max
Weight
Limitations
Product
Specifications
Delta Rollator
Model P429/2
63” - 72”
(160-183 cm) 295 lbs (135 kg)*
Basket
n/a
11 lbs (5kg)
Tray
Bag 11 lbs (5 kg) 26.4”
(67 cm)
* The weight limitation includes the contents of the basket, tray or
bag and the weight of the user.
31.9-37”
(81-94 cm)

5
WARNING
If the push handles are exposed to extreme temperature
(above 106°F / 37°C) there might be risk for first degree
burns.
If push handles are exposed to extreme temperature (above
100°f or below 32°f), high humidity and/or become wet, prior
to use, ensure hand grips DO NOT twist on rollator handle
otherwise damage or injury may occur.
After installation and before use, ensure that all attaching
hardware is tightened securely.
Loads should be transported solely in the basket, bag or on
the tray.
DO NOT hang anything from the frame of the rollator. Items
placed in either the basket or the bag should not protrude
from the basket or bag.
The rollator MUST be fully unfolded when used as a walking
support.
DO NOT go up or down stairs with the rollator.
DO NOT use the rollator on an escalator.
Exercise caution when there is a heavy load in the basket.
The handlebars MUST not be angled outside the marked posi-
tion as this reduces the rollator’s lateral stability.

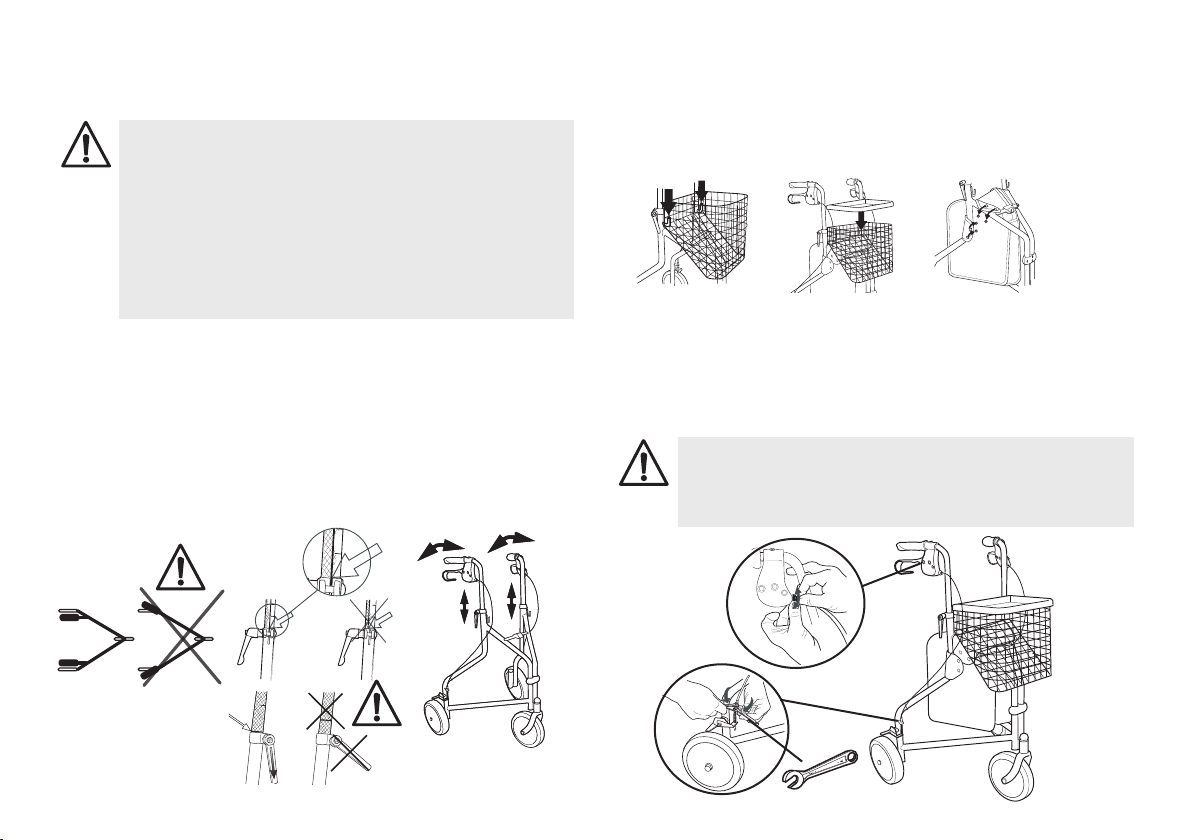

1. Before the rollator is assembled remove plastic caps in the side tubes.
2. Fit the locking lever (A) with the bolt (B). The locking lever with the
washer shall be installed on the outside. Ensure that the head of the
bolt slots into the recess on the fitting.
3. Insert the handle tubes into the side uprights and tighten the locking
levers. These must be pointing downwards during use.
WARNING:
ALWAYS check that the safety latch is in locked position.
1. Release the safety latch (A).
2. Fold the rollator. Be careful of the risk of pinching fingers between
the rear and front frame.
3.3 Folding the Rollator
3.2 Operating position
The locking lever and washer are installed on the outside of the
frame tubes.
Open the rollator into operating position (see below).
3.1 Assembling the Rollator
3 USAGE

2)
1) 2) 3)
A)
1)
A) B)
