User's Manual
UK

Table of Contents
1. General ...............................................6
2. Main parts of the hoist...................................8
3. Unpacking, assembly and disassembly of the hoist ..........9
4. Operating the hoist ....................................10
5. Emergency lowering, emergency lifting and emergency stop . 13
6. Accessories ..........................................14
7. Maintenance and cleaning ..............................14
8. Waste disposal........................................15
9. Trouble-shooting ......................................16
10. Technical specifications ................................17
11. Symbols .............................................19

6
7
BirdieTM, BirdieTM Plus and BirdieTM Compact
Thank you for choosing Invacare®’s BirdieTM mobile hoist. Invacare®’s BirdieTM are especially designed
to lift the patient to and from wheelchairs, beds, toilets and oors. BirdieTM hoists offer easy handling and
increased comfort within the nursing sector. The design of BirdieTM provides a longer reach, wider leg
span and a wider lifting range.
The choice of either electrical or manual leg span combined with the large range of spreader bars and
slings available from Invacare®makes it easy to adjust the hoist for optimum patient care.
Throughout the entire production process, our materials and components are quality controlled by the
operators. A nal test is made when the product is fully assembled. If the product does not correspond to
the quality demands of Invacare®, it will not pass quality control.
In the event of a problem in connection with the delivered product, please contact your local
Invacare®supplier.
Invacare®will take no responsibility if the product is used or assembled in any way other than stated in
this user manual. Only accessories mentioned in this user manual may be used on the BirdieTM mobile
hoists. This product must only be operated by qualied staff who has received the necessary instruction
and training.
Please read this user manual carefully before you are using the mobile hoist.
1. General
Birdie• TM, BirdieTM Plus and BirdieTM Compact are CE-marked in accordance with directive 93/42/
EEC
concerning medical devices.
Birdie• TM, BirdieTM Plus and BirdieTM Compact have been tested and approved according to EN/
ISO 10535.
Control unit and motors have been approved according to EN 60601.•
Birdie• TM, BirdieTM Plus and BirdieTM Compact have undergone a risk analysis according to EN/
ISO 14971.
Control unit, motors and hand control are IPX4 protected.•
Lifting capacity:• BirdieTM and BirdieTM Plus 170 kg, BirdieTM Compact 150 kg.
The hoist has an expected lifetime of 8 years.•
The hoist will not operate when in charge mode.•
Disconnect the charger from the hoist before moving or using the hoist. Make sure the mains cable is not
squeezed or damaged when assembly or disassembly of the hoist or when moving the hoist.
If the functions of the hoist change, please see the section “Maintenance and cleaning”.
This product must be serviced and maintained by qualied personnel.

6
7
Please be aware of the following possible risks when using the hoists:
The hoist must be carefully supervised if the patient is a child.
Please note that it is more difficult to manoevre the hoist on carpeted or uneven/textured
sur-
faces as opposed to wooden or flat surfaces; this is due to the starting forces required to
initiate the movement that may create additional friction exerted on the castors.
It is recommended not to move the user with the jib at maximum height. Take great care
when moving the hoist on carpeted, wet, slippery, rough or uneven surfaces. Never use on
slopes.
Caution! Never attempt to lift a patient outside the base area of the hoist. When lifting a
patient from the floor, the patient must always be located between the two hoist legs,
and never outside this area. To avoid injury, utmost care must be taken when raising and
lowering a patient.
Invacare®accepts no liability for any use, change or assembly of the BirdieTM, BirdieTM Plus
and BirdieTM Compact hoists other than as stated in this user manual.
There is a risk of squeezing and entrapment during operation and transport of the hoist.
Never exceed the maximum recommended lifting capacity.
It is important that the cables do not become entrapped or jammed in moving parts and
castors during operation and transport.
Important! Invacare®recommend that operation of any mobile lifting equipment is carried
out by personnel with prior professional training in moving and handling techniques.
Always choose the sling design and size according to the patient’s weight, size and physical
ability.
Always ensure, that the sling is applied correctly. Never leave a patient in the sling
unattended.
Please ensure that the hoist is not exposed to water, as this can cause damage.
Locking pin must be located into the base position when transporting the hoist.
Failure to do so may cause injury during handling.

8
9

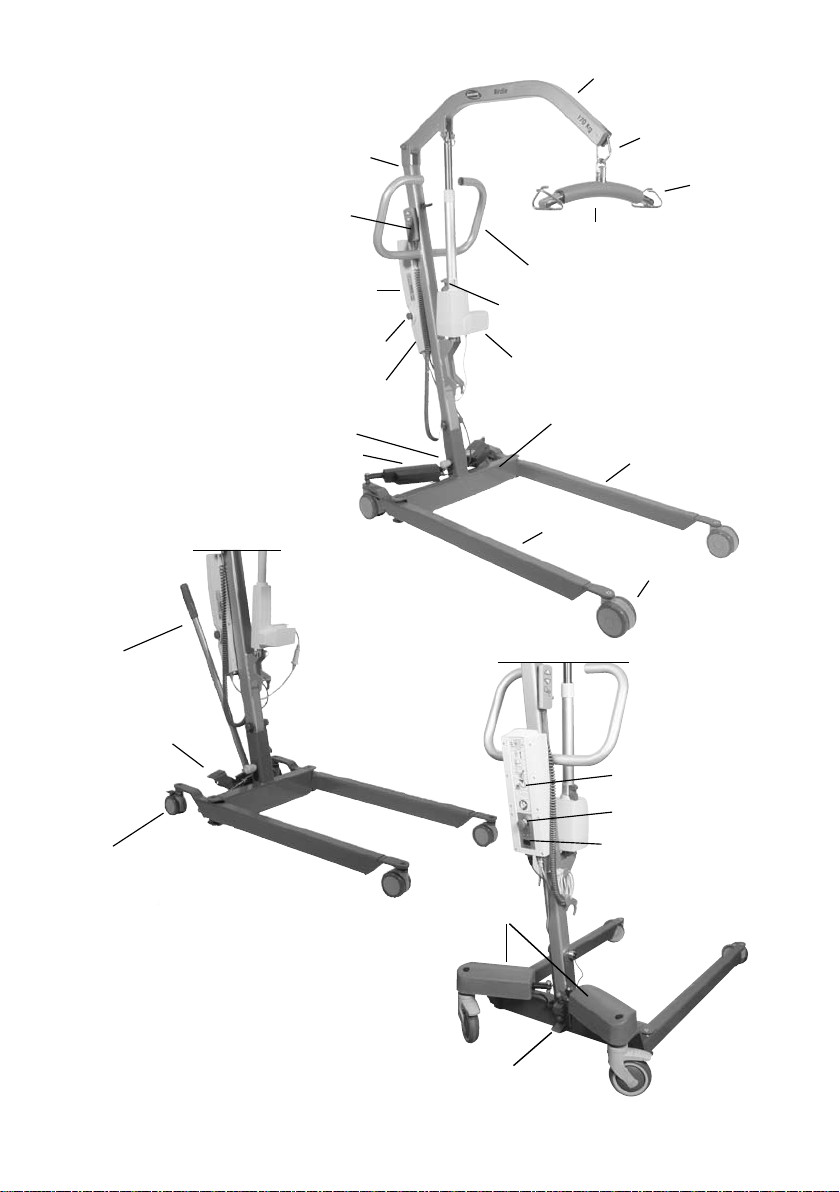

BirdieTM Plus
Castor with brake
Foot pedal
Leg spreader
handle
(optional)
Battery
Jib
Hook for sling
Mast
Hand control
Handle bar
Right leg
Locking pin
Emergency stop
Left leg
Castor
Motor for operation
of electric legs
Base
Motor
Manual emergency
lowering handle
Control unit
Carabiner
Spreader bar
Tilt pedal
Display
Control unit
Motor for operation
of electric legs
Battery
2. Main parts of the hoist

8
9
2.
3. 4.
6.
8.
10.
11.
12. 13.
1
7.
9.
3. Unpacking, assembly and disassembly of the hoist
The packaging is developed for optimal protection of the hoist.•
If you return the hoist• ,it must be packed as
delivered in the original box.
You can order replacement boxes from Invacare®.•
Unpacking
Should the packaging be damaged upon receipt,1.
each part of the hoist must be examined for visible defects.
In the event of any damage, please contact Invacare®.
Carefully take out and identify all the parts in the box.2.
The box contains the following parts:3.
• 1 hoist
• 1 mains cable
• 1 user’s manual
• 1 spreader bar
• 1 manual leg spreader handle (optional)
• 1 sling (optional)
To prevent self-discharging of the battery or accidental operation
of the hoist, the emergency stop is activated during shipping.
Please remember to deactivate the emergency stop and charge
the battery prior to rst use.
Assembling of the hoist
The hoists are easy to assemble without the use of tools.
Perform unpacking and assembly operation at oor level1.
Take out all the parts of the box (picture 1-4).2.
Apply castor brakes before assembling hoist.3.
Remove the locking pin and raise the mast of the hoist by4.
pullingthe handle bar (picture 5-6).5.
Insert the locking pin (picture 7 and 12-13 below). Ensure that the locking pin 6.
is correctly inserted as the picture 12.7.
Loosen the spreader bar by pulling it downwards (picture 8).8.
Remove the pipe pin. Assemble the motor and the jib by using the pipe pin9.
(picture 9-10).
Correctly assembled hoist10. (picture 11).
Activate the emergency stop before assembly or disassembly
to prevent entrapment/squeezing.
Remove optional leg spreader handle before disassembly.
There is a possible risk of squeezing of both limbs and wires during assembly and
disassemblyof the hoist. Take the utmost care when lifting components during assembly -
some parts areheavy. Always remember to adopt the correct lifting position.
Ensure that the locking pin is correctly inserted.
Locking pin correctly
inserted.
Locking pin
incorrectly
inserted.
5.

10
11
3
1
2
Disassembling of the hoist
Lower the jib and narrow both legs completely, and activate the emergency stop button.1.
Apply castor brakes before disassembling hoist.2.
Remove the pipe pin and the motor piston from the jib, reinstall the pipe pin in the piston end, and3.
lock the motor into the clips on the mast.
Attach the spreader bar into the welded fork on the mast.4.
Remove the locking pin from the base of the mast, release the safety latch, lower the mast, and5.
relocate the locking pin into the mast near the suspension axle of the mast.
The hoist can now be located in the packaging box, pulled on the rear wheels, or parked in an upright
position with the mast/jib assembly pointing upwards
4. Operating the hoist
Lifting capacity
BirdieTM and BirdieTM Plus: 170 kg.
BirdieTM Compact: 150 kg.
Operation of the manual leg spread
The manual leg span is operated by the 2 pedals on the leg section of the hoist.
The pedals are operated from one side to the other to adjust the distance
between the legs of the hoist.
The hand control has 2 buttons – one to raise and one to lower the jib.
Stand behind the hoist and take a rm hold of the handle bar using 1.
both ands.Using your foot, press the left pedal on the base to
increase the distance between the legs.
Using your foot, press the right pedal to decrease the distance2.
between the legs.
Operation of the electric legs
The distance between the legs is controlled by 2 electric motors
controlled by the hand control.
The hand control has 4 buttons: 2 for raising and lowering the jib and 2 for
operating the electric legs.
Using the hand control
1. Press “arrow up” on the hand control to raise the jib.
2. Press arrow down on the hand control to lower the jib.
3. Operation of electric legs.
Operating forces of buttons: Max. 5 N.
LED diodes on the control unit
BirdieTM and BirdieTM Compact - the upper yellow diode will blink during charging, and switch to
continuous light when fully charged. The lower green diode will light continuously when the control unit
is connected to the mains, and light up when any button on the remote control is pressed, or when the
electric emergency lowering is activated.
BirdieTM Plus - the left green diode will light continuously when the control unit is connected to the mains.
The yellow right diode will light continously during charging, and go out when the battery is fully charged.
There is no indication when hand control buttens are pressed, or when the emergency lowering/raising
system is activated.

10
11

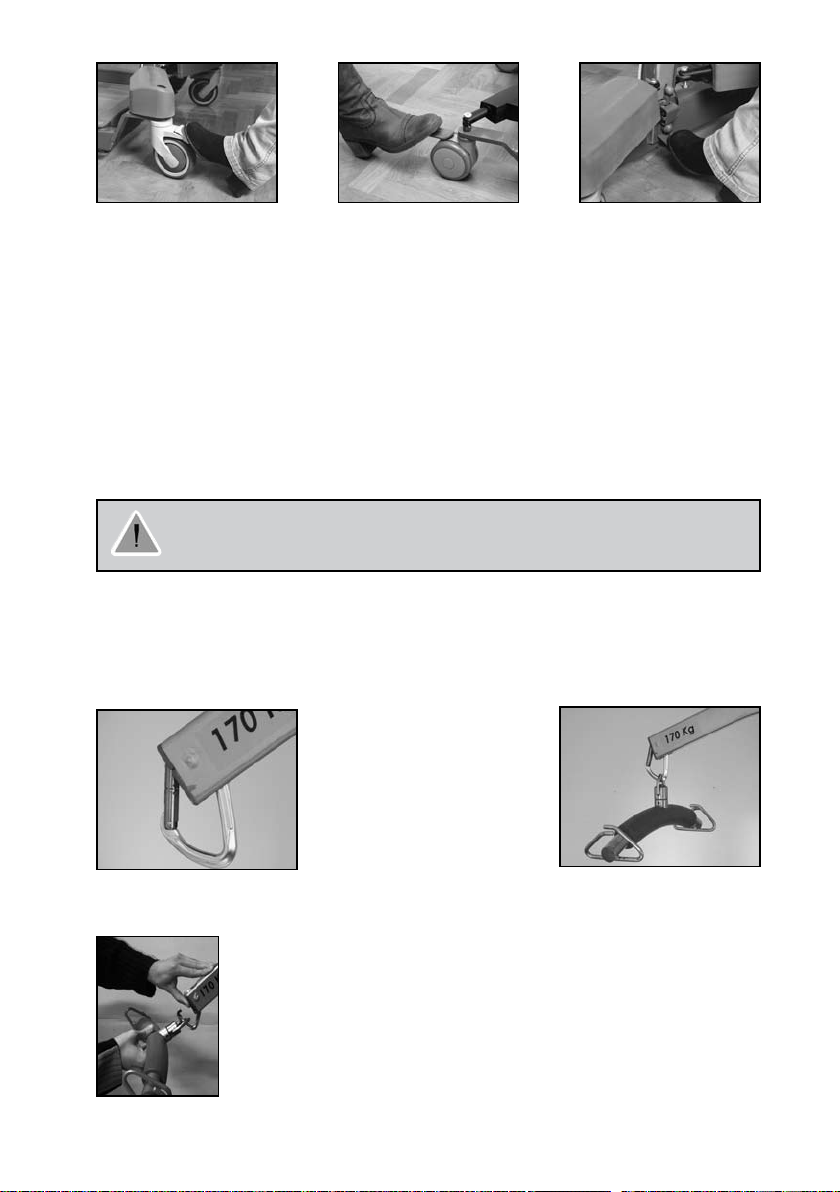

Brakes
Stand behind the hoist and take a good hold of the handle bar.1.
Press the pedals downwards by feet on the back castors to activate the brake.2.
Press the pedals upwards by feet to release the brake.3.
Moving the hoist
Stand behind the hoist and take a good hold of the handle bar.1.
Release the brakes of the back castors.2.
Now the hoist can be pushed or pulled to the desired location.3.
Note: To negotiate raised obstacles during movement of the unloaded hoist, it is recommended to
pull the hoist backwards. This operation should only be performed when the hoist is in the unloaded
condition.
Tilt pedal
The tilt pedal is used for tilting when the hoist must be moved from one room to another, to force a
footstep. Place one foot on the tilt pedal, and pull the empty hoist rearwards to a suitable angle.
WARNING! Never use the tilt pedal with a patient in the hoist.
Mounting the spreader bar
The spreader bar is easy mounted and dismounted on the carabineer hook:
Open the carabineer hook with one nger, and mount or dismount the spreader bar.
Use only spreader bars made for the BirdieTM mobile hoists.
Make sure the spreader bar is suitable for the patient and the actual lift or transfer required.
Carabineer correctly positioned on
the lifting arm, ready for use.
Easy opening of the carabineer by pushing the
safety catch backwards with one nger and
attachment of the spreader bar.
Correctly attached spreader
bar.

12
13
Fitting the sling
Slings designed for 2- or 4-point spreader bars can be used with this mobile hoist, please refer to
Invacare®’s sling brochure for details.
Note: The size of the sling and the width of the spreader bar should correspond.
Choose the most appropriate sling for the patient. The carer must be trained in the use of hoists1.
before performing any transfers.
Carefully inspect the hoist and the sling. If defective parts are found, the damaged parts must be2.
replaced.
Only use slings suited for the hoist and the patient.3.
Place the patient in the sling as described in the sling manual. Pay special attention to the fact that4.
the sling is correctly applied.
Lower the jib and mount the straps of the sling. If the patient is in a sitting position, the jib must be5.
lowered to chest height and the hoist must be moved as close as possible to the patient.
Make sure that there are no obstructions when raising the jib.6. Ensure that brakes are not engaged
before
lifting or lowering.
Caution! Do not lift or lower a patient with the brakes applied. Always let the hoist find the
correct centre of gravity. Make sure that the lifting area is between the legs of the hoist.
Never operate the hoist when the patient is outside the base and leg area. Always be careful
when lifting or lowering a patient. Never exceed the maximum recommended lifting capacity.
Charging the battery
The hoists are equipped with an internal charger. It is recommended to charge the batteries regularly to
ensure optimal use of the hoist and prolong the life of the batteries. Furthermore, it is recommended to
charge the batteries before rst use.
The control unit is equipped with a sound signal, which will beep when operating with low battery capacity.
It is recommended to charge the batteries as soon as the sound signal is heard. In addition, BirdieTM Plus
is equipped with a display, indicating the approximately remaining battery capacity.
How to charge the batteries:
Connect the mains cable to the control unit and plug it in. It takes about 4 hours to charge1.
the batteries. Charging must take place in a room with good air ventilation. The charger stops
automatically when the batteries are fully charged.
Remember to disconnect the charger cable before using the hoist again.2.
The emergency stop must not be activated - otherwise it will be impossible to charge
the batteries. While charging takes place the hoist cannot be used. Do not use or move the
hoist without unplugging from the socket outlet. Do not attempt to use the hoist if the battery
housing is damaged. Replace a damaged battery housing before further use.

12
13
Emergency lowering
Emergency
lifting
BirdieTM and BirdieTM Compact BirdieTM Plus Jumbo Care Control Unit
Maintenance Indicator
(Refer to page 14)
Emergency lowering
Emergency stop
Emergency lifting
Control Unit
Battery capacity
5. Emergency lowering, emergency lifting and emergency stop
Electric emergency lowering BirdieTM, BirdieTM Compact and BirdieTM Plus
If the hand control fails, the jib can be lowered by using the circular switch for emergency lowering. This
is located at the front of the control unit. The jib will be lowered as long as the button is pressed. On
BirdieTM Plus the button should be operated by means of a sharp object, such as a pencil.
Electric emergency lifting - BirdieTM Plus
If the hand control fails, the jib can be raised by using the button for emergency lifting. This is located at
the front of the control unit, and should be operated with a sharp object, such as a pencil. The jib will be
lifted as long as the button is pressed.
Manual emergency lowering - BirdieTM and BirdieTM Plus
In case of partial or total power failure, or if the battery runs down
while using
the hoist, BirdieTM and BirdieTM Plus is equipped with a manual
emergency lowering system located at the bottom of the motor.
The weight is preset for 75 kg. If the patient’s weight is more or
less than 75 kg, it might be necessary to adjust the manual emergency
lowering.
Adjustment of the manual emergency lowering
- BirdieTM and BirdieTM Plus
If the lowering speed has to be adjusted according to the patient’s weight,
then the screw in the red release handle must be adjusted. Loosen to
increase the speed and tighten to decrease the speed.
Note: Manual emergency lowering is only possible when a patient is
sitting in the hoist.
Emergency stop
In case of emergency:
Press the red button for
emergency stop.
The emergency stop can be
reset by turning the stop
button
Note!The mechanical emergency lowering system will only operate when there is a
patient in the hoist.The mechanical emergency lowering system has to be adjusted
according to the patient’s weight.

14
15
6. Accessories
It is compulsary to use original Invacare® spare parts which you can buy through any Invacare® dealer.
For repair, please contact your local Invacare®dealer.
Sling : See the sling brochure
7. Maintenance and cleaning
At normal daily operation, a service check-up should take place every year, according to the maintenance chart.
When performing annual or regular maintenance, all parts designed to carry load must be as a minimum tested
with maximum load. All safety features must be checked according to EN ISO 10535: 2006 Annex B.
LOLER statement.
The UK Health and Safety Executive's Lifting Operations and Lifting Equipment Regulations 1998, require any
equipment that is used in the workplace to lift a load be subject to safety inspection on a six monthly basis.
Please refer to the HSE web site for guidance www.hse.gov.uk
Jumbo care functions.
In add for a safe maintenance, the JUMBO Care offers ve (5) main functions:
1) Service intervals
2) Service information on PC
3) Actuator life time
4) Resetting of service interval
5) Actuator exchange
(For more information, see technical Jumbo care user manual or ask your local Invacare dealer)
It is the responsibility of the person responsible for the equipment to ensure that LOLER regulations are adhered
to.
The hoist must be stored at normal room temperature. If it is stored in a damp, cold or wet environment then
the motor and other mounting parts may be prone to corrosion.
The hoist• have been designed so that it requires a minimum amount of maintenance.
It is recommended that the batteries are charged frequently, if possible every night, as it will extend the•
lifetime of the batteries and will ensure high performance.
It is recommended that the hoist• is cleaned after use.
Please check that the spreader bar connections, control unit and motors are in good working order and•
not damaged in any way. If there is any damage to the hoist, refrain from using it, and contact your local
Invacare®dealer before further use.
Wear and damage of loading parts
It is necessary to maintain and check all parts that are exposed to static or dynamic strain, such as the sling, the
spreader bar and the turning points, do not have fractures, are fragile, askew or damaged.
Frequent use of the hoist will cause the carabiner to ware under the contact points of the spreader bar (b) and
the mast pin (a). Do not use the hoist if the thickness of the carabineer measures less than 6 mm at these points.
(See maintenance chart page 15)
Damaged parts must be replaced before further use.
Cleaning
To prevent cross-infection, the hoists must be cleaned after use.•
The hoist must be wiped with a moist rmly wrung cloth with ordinary household disinfectants.•
Only use ofcially approved disinfection detergents.•
Dry the hoist carefully after cleaning.•
Never use acids, alkaline or solvents for cleaning the hoist.•
Motors, control unit and mounting parts can be destroyed if the hoist is cleaned in any other way than stated
above.

14
15
Maintenance chart
Only personnel having received the necessary instruction or training by Invacare® must
perform service and maintenance on BirdieTM, BirdieTM Plus and BirdieTM Compact.
Serial number (located on the hoist base): _______________________
Date:
Initials:
/ / / / / / / / / / / / / / / / / / / /
Visual inspection of all hoist parts
Inspection of the spreader bar and
carabiner - welding and assemblies
Inspection of carabineer*
(the thickness "a" and "b"
mustn't measure less than 6 mm
"a" = "a" = "a" = "a" = "a" = "a" = "a" = "a" = "a" = "a" =
"b" = "b" = "b" = "b" = "b" = "b" = "b" = "b" = "b" = "b" =
Inspection of the motors - undamaged
Inspection of cables and plugs -
undamaged
Inspection of emergency stop, electrical
emergency lowering and -raising (only
BirdieTM Plus)
Inspection of the castors - attachment,
braking ability and free rolling
Invacare®offers courses in service and maintenance of the hoist.
For all servicing and maintenance requirements, please contact your local Invacare®dealer.
8. Waste disposal
This product has been supplied from an environmentally aware manufacturer that complies with the
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/CE.
This product may contain substances that could be harmful to the environment if disposed of in places
(landlls) that are not appropriate according to legislation.
The ‘crossed out wheelie bin’ symbol is placed on this product to encourage you to recycle wherever
possible.
Please be environmentally responsible and recycle this product through your recycling facility at the end
of it’s life.
Battery:
Pb Hg Cd

16
17
9. Trouble-shooting
Only personnel having received the necessary instruction or training by Invacare® must perform service
and maintenance on BirdieTM, BirdieTM Plus and BirdieTM Compact.
Symptom Possible cause Remedy
The mast seems loose The mast axis screw has
become loose
Insert the locking pin into the
mast axis screw, and tighten the
screw
Castors are noisy Dust or dirt in the castors Clean the castors
Hinge between jib and mast is
noisy during operation
Missing lubrication Lubricate the hinge
The motor is not running Hand control or motor
is not connected
Insert the plugs fully
No power on the battery Charge or replace the battery
The red emergency stop
is activated
Turn the red button clockwise to
deactivate
Motor noise, but no movement in
the piston rod
Motor is damaged Replace the motor
The piston rod only moves
in and not out
Motor is damaged Replace the motor
The control unit emits a beeping
sound during lifting, and the
jib motor stops (BirdieTM and
BirdieTM Compact).
The jib motor stops (BirdieTM
Plus)
Max. load is exceeded Reduce the load (and the hoist
will function normally)
Contact your dealer if the above does not solve your problems.
Lubricate with medically clean oil, e.g. Kemitura Kem Lub KEM-WO 50, order no. 813239.

16
17

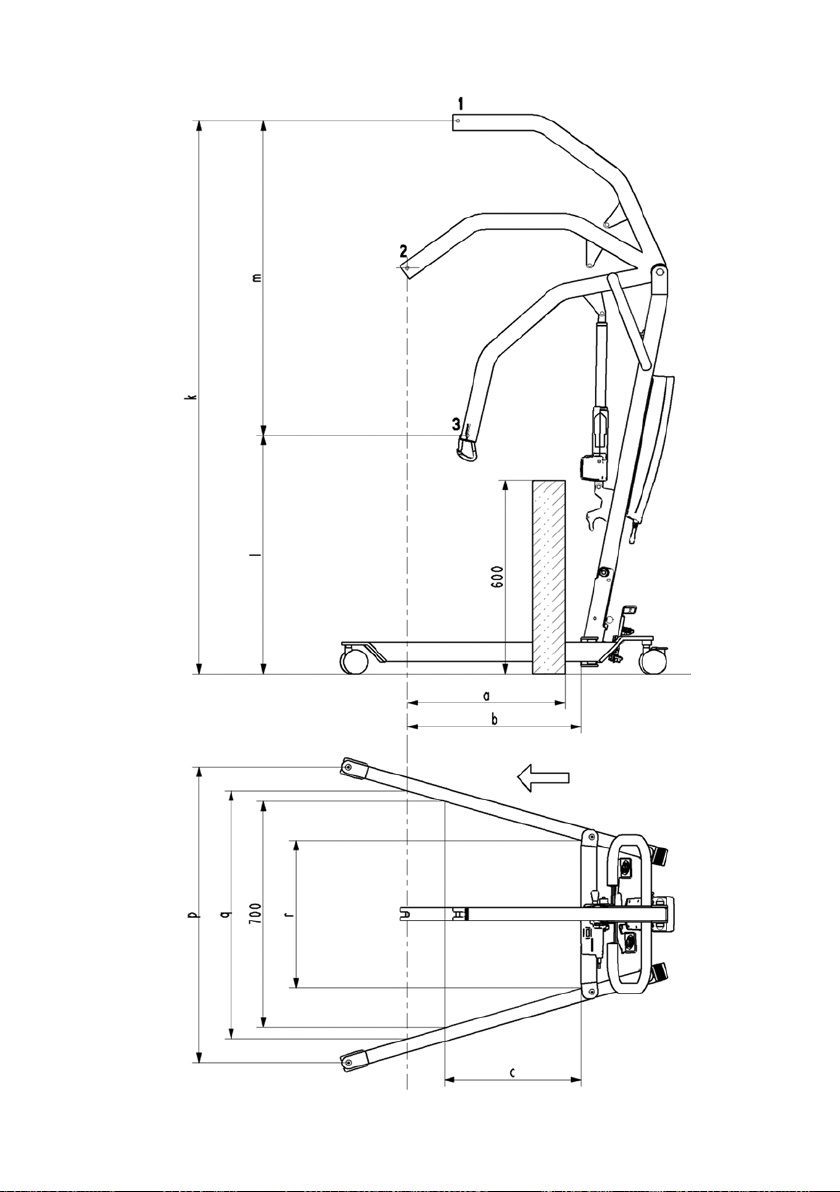

10. Technical specifications
Direction
of travel

18
19
General specifikations Manual and electric
BirdieTM BirdieTM Plus Manual BirdieTM Compact
Castor Ø 75 mm Ø 100 mm Ø 100 mm + Ø 125 mm Ø 75 mm Ø 100 mm
Maximum lifting capacity 170 kg 170 kg 150 kg
Lowest position (min.
height of CSP**) 3* 65,5 cm 67 cm 67 cm 73 cm 74,5 cm
Lifting area
(height range) 46,5 - 168,5
cm 47,5 - 170 cm 47,5 - 170 cm 51,5 - 158,5 cm 53 - 160 cm
Maximum height
of CSP** 189 cm 190,5 cm 190,5 cm 180 cm 181,5 cm
Leg length 115 cm 116,5 cm 100 cm
Minimum internal width 58 cm 58 cm 46 cm
Total width (closed),
external measure 65,5 cm 68 cm 68 cm 53 cm 55 cm
Interal width
at maximum reach 91 cm 91 cm 78 cm
Total width (open)
internal measure 104 cm 104 cm 89 cm
Total width (open) centre
to centre of castor 108,5 cm 108,5 cm 93 cm
Turning radius 140 cm 140 cm 107 cm
Weight, mast, incl. battery,
excl. spreader bar 21 kg 21,5 kg 17,5 kg
Total weight incl.
spreader bar
42 kg 44 kg 36 kg
Weight, leg section * 19 kg 21 kg 16,5 kg
Height to upper edge of legs 10 cm 11,5 cm 11,5 cm 10 cm 11,5 cm
Min. free height 2 cm 3,5 cm 3,5 cm 2 cm 3,5 cm
Min. space for patient (to
(motor) in top position
34 cm 34 cm 30 cm
Maximum reach at 60 cm 66,5 cm 66,5 cm 54,5 cm
Maximum reach from base 66,5 cm 66,5 cm 54,5 cm
Reach from base with
legs spread to 70 cm
24 cm 24 cm 41,5 cm
Hoisting range 123,5 cm 123,5 cm 107 cm
Voltage output 24 V max. 250 VA
Voltage supply 100 -240 V 50/60 Hz
Max. current input Max. 200 mA Max. 400 mA Max. 200 mA
Operating temperature. 5oto 40oC
Air humidity 20% to 90% @ 30oC - not condensing
Sound pressure 45-50 dB(A)
Atmospheric pressure 700 to 1060 hPa
Protection class,
control unit IPX4
Protection class,
hand control IPX4
Protection class, motor IPX4
Insulation class II - type B
Working ability 40 full lifts without battery charge with batteries at 50% of full capacity
Intermittens 10%, max. 2 minuttes/18 minuttes
Battery capacity 2,9 Ah 2,9 Ah + display 2,9 Ah
Manual emergency lowering Yes Yes No
Electric emergency lowering/
lifting Yes/No Yes/Yes Yes/No
l*
m*
k*
r*
q*
p*
a*
c*
b*

18
19
All measurements are given including a 45 cm 2 point spreader bar, except dimensions marked with *.
Invacare® reserves the right to change the measurements without warning.
** CSP: Central Suspension Point
1: Highest position, 2: Maximum reach position, 3: Lowest position
11. Symbols
The patient is not separated from the ground and the chassis:
Direct current:
Alternating current
Double insulated:
X kg max. load (SWL) = (Patient + sling + spreader bar).
X = 150 kg (BirdieTM Compact)
X = 170 kg (BirdieTM and Birdie PlusTM)
The product should be reused where possible:
Refer to user’s manual:

20
21
Cachet du Distributeur
Manuel d’utilisation
FR
