Invacare TDX SP User manual

INVACARE®
TDX®
Power Wheelchair Series
Invacare® TDX® SP Wheelchair
Invacare® TDX® SR Wheelchair
Invacare® TDX® SC Wheelchair
Invacare® TDX® SPREE Wheelchair
Powered Seating
Enhancements

Tradition. Innovation. Vision.
For the last two and a half decades, Invacare has been
the industry leader in power chair electronics and
bases. Every year, Invacare's engineers design chairs,
electronics, components and features that consistently
raise the bar for power wheelchair performance.
Invacare’s rich power chair history started with
the original Power Rolls IV Wheelchair in 1981, and
continued with innovations such as the original MKI
electronics in 1989, and the Invacare® Storm Series®
power chairs in 1995.
Invacare revolutionized the power chair industry once
again in 2003 with the introduction of the Invacare®
TDX®(Total Driving eXperience) power chair. With
innovative features such as True Center-Wheel Drive,
Invacare®SureStep®Suspension, Stability Lock,
Invacare®Traction Control Design TCD™Relative
Movement and the latest MK series electronics, this
chair set the standard for high end rehab power chairs.
2

INVACARE®
TDX®Family
02 History
03 Invacare®TDX®Family
04 Invacare®TDX®SP Wheelchair Led The Way
05 Traction Control Design/Invacare®SureStep®
Suspension
06 Invacare®MK6i™Electronics
07 Invacare® Stability Lock/True Center-Wheel Drive
08 Invacare® TDX®SP Wheelchair
09 Invacare® TDX®SP Elegant Design
10 Invacare® TDX®SP Seating Options
11 Invacare® TDX®SP Specifications
12 Invacare® TDX®SR Wheelchair
13 Invacare® Gearless Brushless GB™/TrueTrack Motors
14 Invacare® TDX®SR Seating Options
15 Invacare® TDX®SR Specifications
16 Invacare® TDX®SC Wheelchair
17 Invacare® TDX®SC Specifications
18 Invacare® TDX®SPREE Wheelchair
19 Invacare® TDX®SPREE Features/Options
20 Invacare® TDX®SPREE Seating Options
21 Invacare® TDX®SPREE Specifications
22 Powered Seating Enhancements
26 Transport Ready Option
27 Invacare® TDX®Family
28 ANSI/RESNA Information
INVACARE®
TDX®SP
Wheelchair
INVACARE®
TDX®SPREE
Wheelchair
INVACARE®
TDX®SC
Wheelchair
INVACARE®
TDX®SR
Wheelchair

Things Just Keep Getting Better…
The Invacare®TDX®SP wheelchair led the way.
Now Invacare has done it again. Invacare built upon a legacy of power chair knowledge
and design to develop the Invacare® TDX®SP wheelchair. The TDX SP wheelchair
improves upon all the features of the TDX Series with enhanced performance, superior
ride quality, overall quieter chassis and an elegantly simple design that is sure to turn
heads. Invacare is the only choice for a complete package of Custom Rehab Solutions.
4

Traction Control Design.
Enhanced Invacare®
SureStep® Suspension.
The Invacare®TDX®Family uses an
enhanced version of Invacare’s patented
Invacare®SureStep®technology that was
made famous on the first generation TDX
line and the Invacare ® Pronto®series of
wheelchairs.
With Enhanced Invacare® SureStep®
Suspension, the TDX SP and TDX SR
wheelchairs climb up to a 3" obstacle
going forward; the TDX SC and the TDX
SPREE wheelchairs climb up to a 2.5"
obstacle. As a new design feature, the
front casters also will drop a full 3", which
makes transitioning down an obstacle very
gentle and nearly silent. The integrated
Invacare® Traction Control Design TCD™
Relative Movement also makes climbing
over obstacles up to 1" high in reverse
nearly effortless.
SureStep
Suspension
transition up
an obstacle.
SureStep
Suspension
transition
down an
obstacle.
5
Traction
Control Design
TCD reverse
transition.

6
Electronics. Designed
with Benefits for All.
MK Series electronics are the
benchmark in power wheelchair
drive systems. This is the result of
years of experience in the design
and manufacture of electronics
specifically for the needs of
wheelchair consumers.
Invacare®MK6i™electronics take
the MK Series to the next level by
offering features that are easier to
use than any other MK Series system.
Advantages of MK6i electronics
include:
• Invacare®MK5™programming
logic, so operators do not need to
learn a new system
• Reduced set-up and programming
time with the memory card feature
• Improved simplicity with
universal connectors
• Better information for
programmers and technicians
INVACARE®SPJ™+ BASIC
JOYSTICK
INVACARE® MPJ™+ REHAB
JOYSTICK

True Center-Wheel Drive.
The tightest possible turning radius
comes from the True Center-Wheel Drive
chassis. The Invacare®TDX®Family
uses this type of wheelbase to provide
excellent maneuverability and an
intuitive driving experience. This
technology combined with Enhanced
Invacare®SureStep®Suspension,
Traction Control Design and Quiet
Stability Lock makes the TDX wheelchair
a great indoor and outdoor chair.
7
Quiet Stability Lock.
Quiet Stability Lock.
The Difference Maker in Rehab.
The original Invacare®TDX®
wheechair introduced quiet Stability
Lock, a feature that kept the power
chair stable whenever it felt that the
driver's weight was rocking forward.
The TDX Family takes that same
feature to the next level. The Stability
Lock feature is designed to operate
and keep the power chair stable
while it is in motion. It is not intended
to operate while the power chair is
at rest. This second generation
Stability Lock replaces the metal
gear set used on the first generation
TDX wheelchair with a gas locking
cylinder, making the feature whisper
quiet. It also provides a shock-
absorbing effect.

8
The Invacare®TDX®SP wheelchair is
the first model in the next generation
of TDX (Total Driving eXperience)
power wheelchairs. The TDX SP
wheelchair takes all the best features
of the TDX series and improves upon
them with enhanced performance,
superior ride quality, quieter chassis
and an elegantly simple design.
TDXSP (Group 3 Rehab Seat) K0848
TDXSP (Group 3 Captain’s Seat) K0849
TDXSP HD (Group 3 Rehab Seat Heavy-Duty) K0850
TDXSP HD (Group 3 Captain’s Seat Heavy-Duty) K0851
TDXSP-CG (Group 3 Single Power) K0856
TDXSP-CG HD (Group 3 Single Power Heavy-Duty) K0858
TDXSP-MCG (Group 3 Multiple Power) K0861
TDXSP-MCG HD (Group 3 Multiple Power Heavy-Duty) K0862
INVACARE®
TDX®SP
Wheelchair

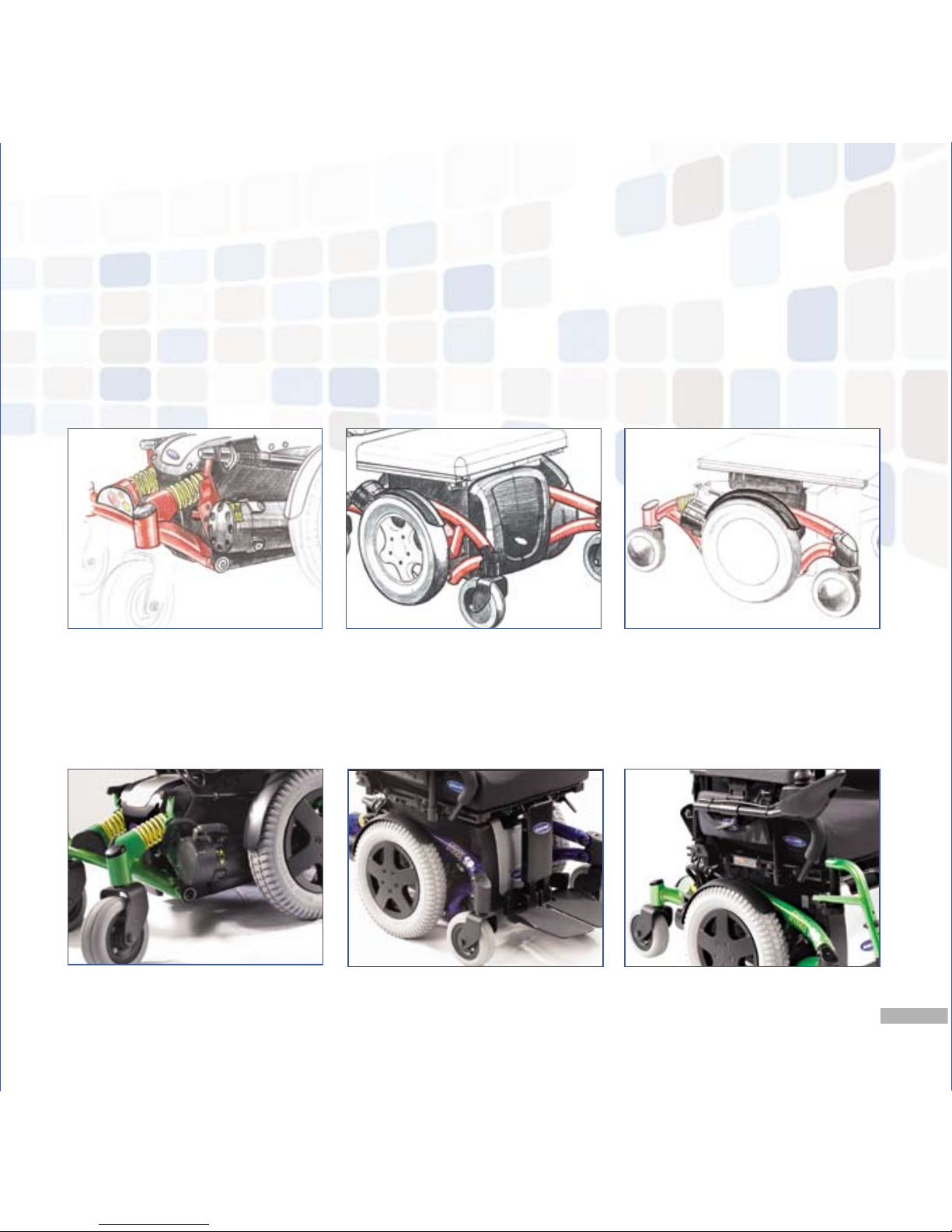

Elegant Simplicity. Inspiring Design.
Invacare's designers started with sketches and drove the design so that aesthetics were never sacrificed for functionality.
The end result is an elegant design with a focus on simplicity and detail.
9

10

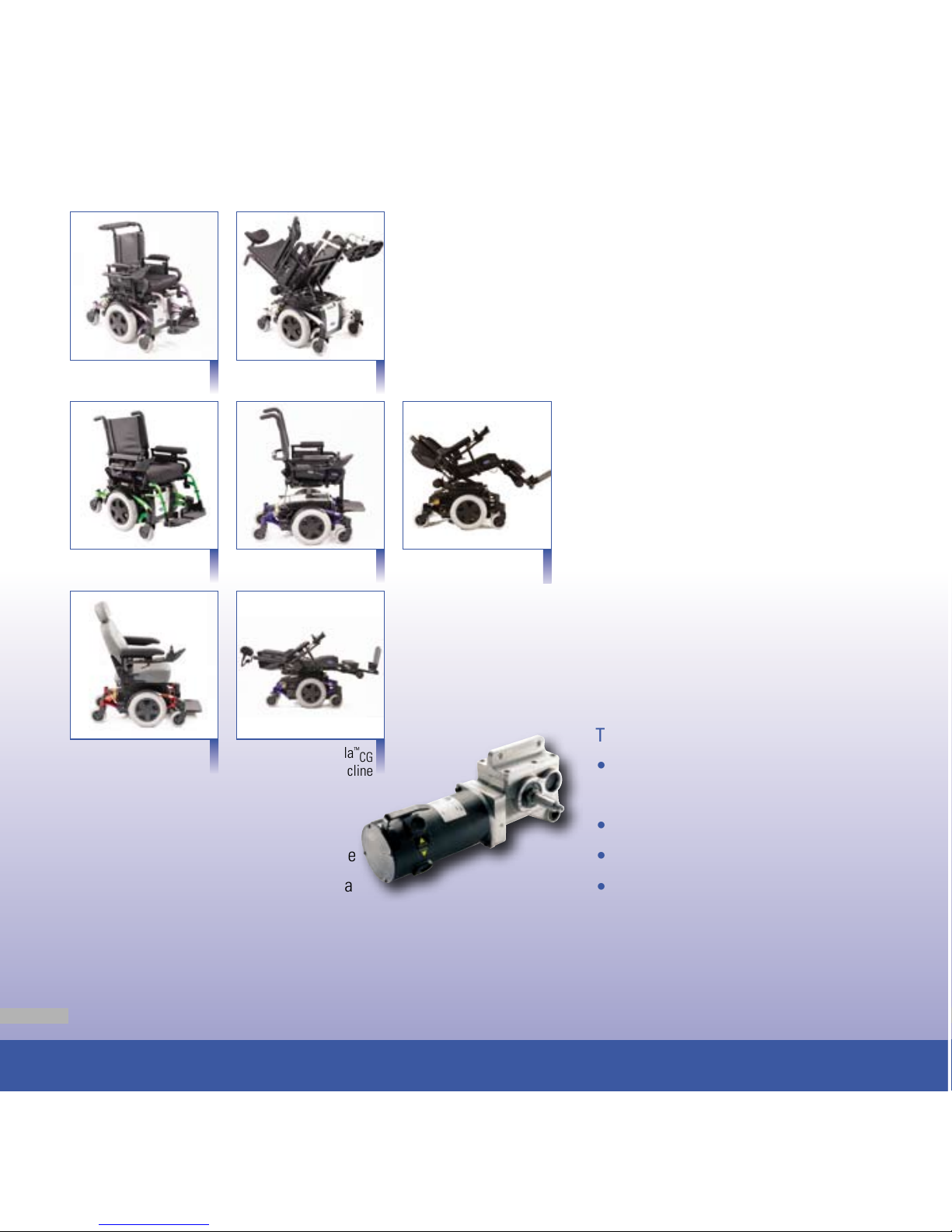

Invacare®TDX®SP Seating Options.
Versatility.
Invacare®Formula™CG Tilt
The Invacare®TDX®SP wheelchair offers a wide variety of
seating options that make it an extremely versatile power chair. The
standard TDX SP wheelchair offers a choice of an adjustable Rehab
(ASBA) seat that is growable in width and depth.
The ASBA seat starts in widths as low
as 12" wide for smaller applications, and
can grow as wide as 24" and as deep as
22". Another seating option on the TDX SP
wheelchair is a semi-recline captain’s seat.
Available in 16", 18", 20" and 22" widths, the
seat offers plush padding, generous contours
and a reclining back providing maximum comfort.
The TDX SP wheelchair also offers the Invacare®Formula™CG
Powered Seating System which features up to 7" of weight shift tilt.
The Invacare®Formula™CG System:
• Starting seat-to-floor height is as
low as 17.5"
• Up to 55˚ of tilt
• Up to 170˚ of recline
• Up to 7" of elevation
• All powered seating functions can be
operated either through or separate
from the driver control.
Pediatric Seat
By optimizing the Torque speed curve, the
motor/electronics combination provides a
5.8 mph top speed with ample torque. The
chair gets consumers where they need to
go quickly, while also providing the power
required to handle those tough obstacles.
Elevating Rehab SeatAdjustable Rehab Seat
Van Seat Invacare® Formula™CG
Recline
Invacare®Formula™CG
Tilt/Recline
Faster. More Powerful.

11
Invacare®TDX®SP Specifications.
Adj. ASBA Rehab Seat FormulaCG Tilt, Recline, FormulaCG Elevate, Tilt/Elevate Van Seat
Overall dimensions Tilt/Recline Tilt/Recline/Elevate
Base length (w/o front riggings) 35.25" 35.25" 35.25" 35.25"
Base width 24"/25.5" 24"/25.5" 24" 24"/25.5"
Height 35.5" - 39.5" 36.5" - 40.5" 35.5" - 41.5" 38" w/o headrest
45" w/headrest
Seat Dimensions
Width 12" - 24" 12" - 24" 16 - 22" 16" - 22"
Depth 12" - 22" 12" - 22" 16" - 22" 16" - 20"
Back height 12" - 24" 16" - 26" 20" - 26" 18"
with headrest - - - 25"
Back angle 85˚ - 105˚ 85˚ - 105˚ 85˚ - 105˚ 85˚ - 115˚
Seat-to-floor height
Low 16.5" @ 0˚ 17.5" @ 0˚ 18.5" @ 0˚ 21"
Medium 18.5" @ 0˚ 18.5" @ 0˚ - -
Tall 20.5" @ 0˚ 19.5" @ 0˚ - -
Seat-to-floor height at 5˚ add 0.5" to each add 1" to each --
Weight
with batteries 264 lb. 315 lb. 285 lb. 277 lb.
without batteries 166 lb. 217 lb. 187 lb. 179 lb.
Battery options 22NF/Group 24 22NF/Group 24/(3)22NF 22NF 22NF/Group 24
Wheel and caster size
Front/rear casters 6" x 2" 6" x 2" 6" x 2" 6" x 2"
Drive wheels 14" x 3" 14" x 3" 14" x 3" 14" x 3"
Maximum speed
5.8 mph / 5 mph (heavy duty) 5.8 mph / 5 mph (heavy duty) 5.8 mph 5.8 mph / 5 mph (heavy duty)
Incline capability 9˚ 9˚ 9˚ 9˚
Weight capacity 300 lb. / 400 lb. (option) 300 lb. / 400 lb. (option) 300 lb. 300 lb. / 400 lb. (option)
Turning radius
(including Center Mount Footboard) 22" 22" 22" 22"
Ground clearance 3" 3" 3" 3"
Standard Invacare®MK6i™Electronics MK690/SPJ+ MK690/ACC/SPJ+ or MPJ+ MK690/ACC/SPJ+ w/PSS MK690/SPJ+
Limited warranties
Base frame 60 months 60 months 60 months 60 months
Seat frame 36 months 36 months 36 months 36 months
Electronics 12 months 12 months 12 months 12 months
Motor/gearbox 12 months 12 months 12 months 12 months
n3
n4
n1
n2
n2
n5 n6
n1 24" width with (2) 22 NF batteries. Elevate systems require 22 NF batteries.
25.5" width with (2) Group 24 batteries or (3) 22 NF batteries.
n2 12" - 16" width available with Tilt only system, Recline and Tilt/Recline sizes range from
16" - 24" wide.
n3 Elevate 16" - 24" backheight, curved ABS or Adjustable ASBA.
n4 Elevate only is 16.8" or Tilt/Recline/Elevate 18.5".
n5 315 lb. for Tilt only system. 325 lb. Recline only and 370 lb. for Tilt/Recline.
n6 Elevate Seat only.

12

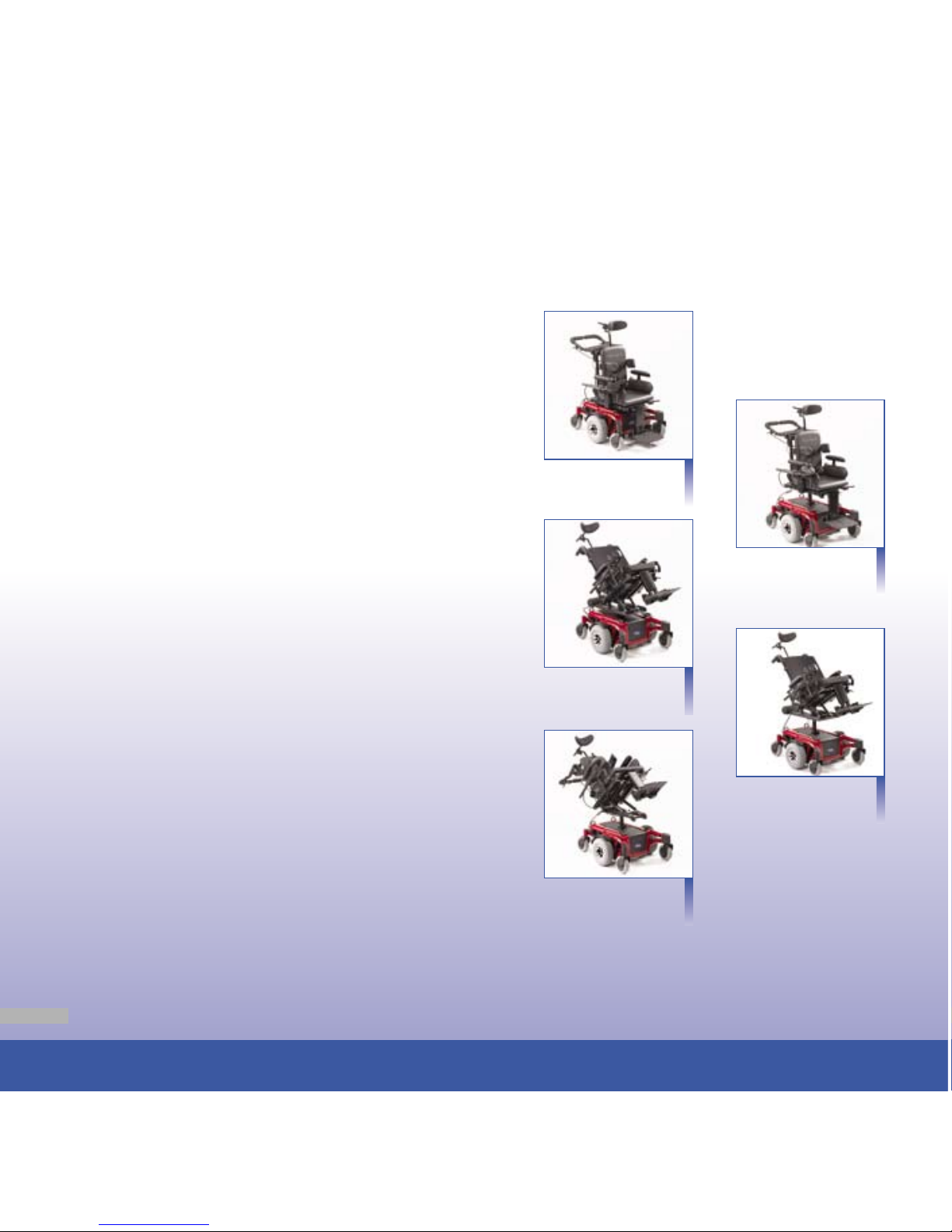

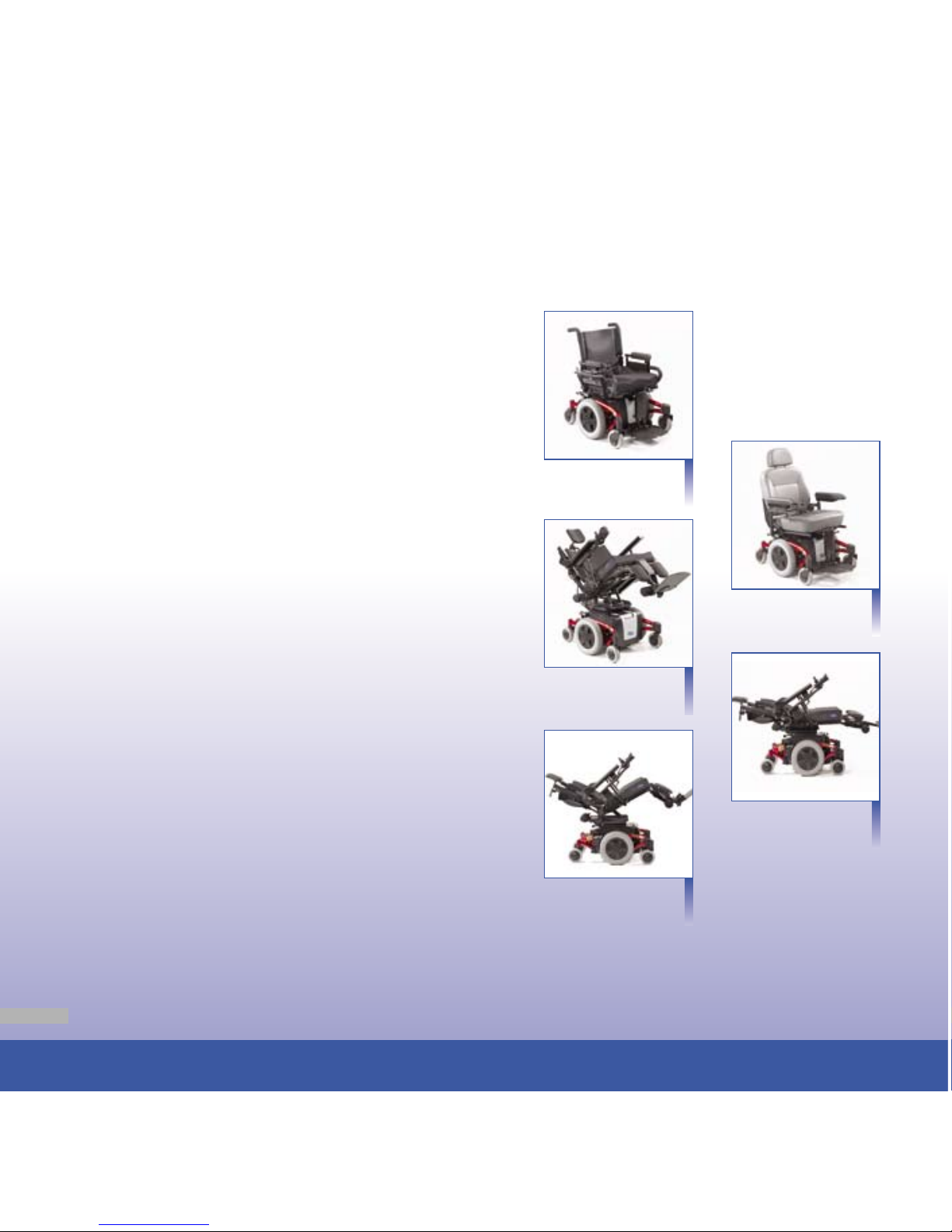

The Invacare®TDX®SR wheelchair
builds off of the proven Invacare®TDX®
SP platform and offers the benefits of
Invacare®Gearless Brushless GM™
TrueTrack motors. TrueTrack allows
the chair to maintain a more consistent
forward path with fewer veer corrections.
TrueTrack motors ultimately result in less
fatigue for those using alternative driver
controls, and those with impaired hand
function.
The TDX SR wheelchair offers the
same performance features of the
TDX SP wheelchair including:
• Enhanced Invacare®SureStep®
Suspension
• Quiet Stability Lock
• Contemporary Aesthetics
• Wider Rear Caster Spacing
TDXSR (Group 4 Rehab Seat) K0868
TDXSRV (Group 4 Captain’s Seat) K0869
TDXSR-HD (Group 4 Rehab Seat Heavy-Duty) K0870
TDXSR-CG (Group 4 Single Power) K0877
TDXSR-CG-HD (Group 4 Single Power Heavy-Duty) K0879
TDXSR-MCG (Group 4 Multiple Power) K0884
TDXSR-MCG HD (Group 4 Multiple Power Heavy-Duty) K0886
INVACARE®
TDX®SR
Wheelchair

13

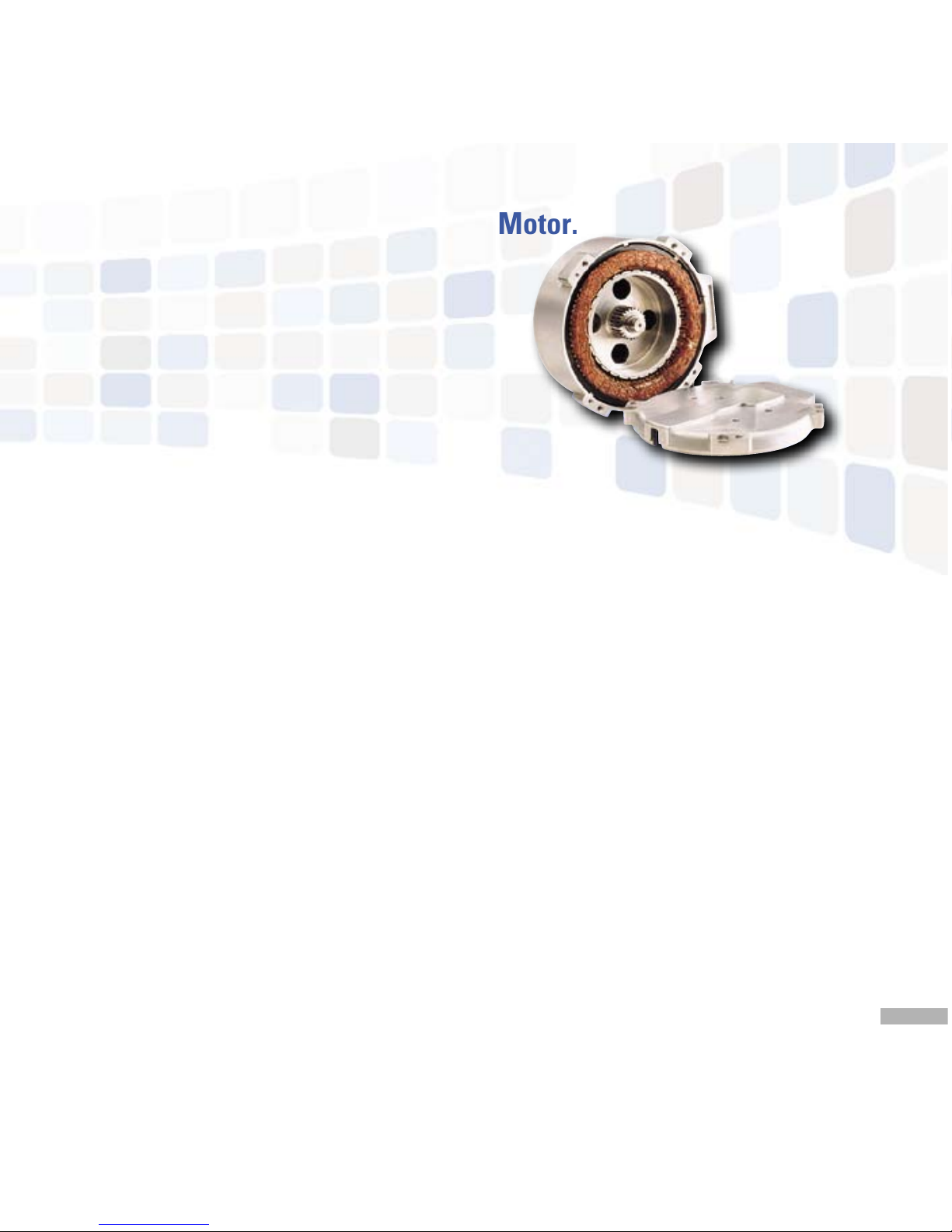

Invacare®Gearless Brushless GB™Motor.
Invacare®Gearless Brushless GB™motors are not only
a key component of TrueTrack technology, , but the design
is also 75% efficient, resulting in 17% more battery
range than Invacare’s 4-pole motors. Battery range is
an important feature for active users and users requiring
powered seating systems.
TrueTrack Technology.
The patented TrueTrack technology features GB motors
and motor controller. This feature helps keep the power
wheelchair on a truer forward path – even on many
slopes, thresholds and uneven terrains. TrueTrack
minimizes the need for veer correction, diminishing
fatigue for joystick and switch drivers.
TrueTrack Technology is beneficial for the client for
the following reasons:
•As the power wheelchair holds a truer course, the
driver needs to make fewer course corrections.
This makes driving more efficient by reducing the
necessary amount of movement. Reducing the required
movement can increase overall speed (i.e. the client
may be able to move down a hallway faster, as less
compensatory movements are required), decrease
fatigue, and promote independence while driving,
because the chair is not pulled off course. This is
true for drivers using a proportional control as well
as a digital or non-proportional system.
•This feature is critical for clients who fatigue easily,
as less compensatory movements are required.
•This feature also is critical for clients who use a
non-proportional or digital access method (i.e. a
head array with proximity switches or pneumatic
sip-n-puff controls). Driving with switches can be
very tedious and inefficient. Making frequent course
corrections significantly increases the effort, time and
energy required. Fewer course corrections translates
to a more efficient driver.

14
The TDX SR wheelchair is available with the
adjustable rehab seat, captain’s seating and the full
range of powered seating options. The Invacare®
Formula™CG Powered Seating system offers up to
7" of weight shift tilt, a low starting seat to floor
height of 17.5", numerous back type options and six
combinations of tilt, recline and elevate including:
•Tilt only
•Recline only
•Elevating seat
•Tilt/Recline combination
•Tilt/Elevate combination
•Tilt/Recline/Elevate combination
The TDX SR wheelchair offers Smart Actuators
standard at no additional upcharge. Smart Actuators
allow the client to achieve a pre-set tilt, recline and
power leg extension through use of the Power
Center-Mount front rigging. An audible alarm
sounds to let the client know that it is time to
weight shift.
Invacare®TDX®SR Seating Options.
TDX SR wheelchair
with Van Seating
TDX SR wheelchair
with Rehab Seating
TDX SR wheelchair with
Invacare® Formula™CG Recline
TDX SR wheelchair with
Invacare®Formula™CG Tilt
TDX SR wheelchair with Invacare®
Formula™CG Tilt/Recline

15
Invacare®TDX®SR Specifications.
Adj. ASBA Rehab Seat FormulaCG Tilt, Recline, FormulaCG Elevate, Tilt/Elevate Van Seat
Overall dimensions Tilt/Recline Tilt/Recline/Elevate
Base length (w/o front riggings) 35.25" 35.25" 35.25" 35.25"
Base length (w/front riggings) 43" 43" 43" 43"
Base width 25.5" (w/o joystick) 25.5" (w/o joystick) 25.5" (w/o joystick) 25.5" (w/o joystick)
Height 35.5" - 39.5" 36.5" - 40.5" 35.5" - 41.5" 38" w/o headrest
- - - 45" w/headrest
Motor package TrueTrack GB TrueTrack GB TrueTrack GB TrueTrack GB
Seat dimensions
Width 12" - 24" 12" - 24" 16" - 22" 16", 18", 20", 22"
Depth 12" - 22" 12" - 22" 16" - 22"
Back height 12" - 24" 16" - 26" 20" - 26" 18"
with headrest - - - 25"
Back angle 85˚ - 105˚ 85˚ - 105˚ 85˚ - 105˚ 85˚ - 115˚
Seat-to-Floor Height
Low 16.5" @ 0˚ 17.5" @ 0˚ 18.5" 21"
Medium 18.5" @ 0˚ 18.5" @ 0˚ - -
Tall 20.5" @ 0˚ 19.5" @ 0˚ - -
Seat-to-floor height at 5˚ add 0.5" to each add 1" to each - -
Weight
with batteries 350 lb. 425 lb. 425 lb. 340 lb.
without batteries 252 lb. 327 lb. 327 lb. 242 lb.
Battery options 22NF/Group 24 22NF/Group 24 22NF 22NF/Group 24
Wheel and caster size
Front/rear casters 6" x 2" 6" x 2" 6" x 2" 6" x 2"
Drive wheels 14" x 3" 14" x 3" 14" x 3" 14" x 3"
Maximum speed
7 mph 7 mph 7 mph 7 mph
Incline capability 9˚ 9˚ 9˚ 9˚
Weight capacity 300/400 lb. (option) 300/400 lb. (option) 300 lb. 300/400 lb. (option)
Turning radius 22" 22" 22" 22"
Ground clearance 3" 3" 3" 3"
Standard Invacare®MK6i™Electronics MKTT/MPJ+ MKTT/MPJ+ MKTT/MPJ+ MKTT/MPJ+
Limited warranties
Base frame 60 months 60 months 60 months 60 months
Seat frame 36 months 36 months 36 months 36 months
Electronics 12 months 12 months 12 months 12 months
Motor/gearbox 60 months 60 months 60 months 60 months
n1 90˚ front rigging.
n2 12"-16" width only available with tilt systems. All other powered seating systems start out at 16".
n3 16" and 18" wide set to 16", 17" or 18" depth. 20 " and 22"wide set to 18", 19" or 20" depth.
n4. Elevate 16" - 24" backheight, curved ABS or Adjustable ASBA.
n5. Elevate only is 16.8" or Tilt/Recline Elevate is 18.5".
n6. 6.8 mph top speed with maximum weight capacity of 400 lb., 7.1 mph top speed with
typical user weight of 200 lb.
n3
n4
n1
n2
n5
n6

16
The Invacare®TDX®SC wheelchair,
also built off of the successful
Invacare®TDX®SP platform, features
10" drive tires, U1 batteries and 2 pole
motors. The TDX SC wheelchair is an
extension of the TDX SP family and
continues to offer the distinguishing
features of Enhanced Invacare®
SureStep® Suspension, Quiet Stability
Lock, contemporary aesthetics and
wider rear caster spacing for easy
interfacing with aftermarket docking
devices. The TDX SC wheelchair offers
a variety of seating options including
an adjustable rehab seat, a van seat,
Invacare®Formula™CG Powered Tilt and
Powered Elevating Seat.
TDX SC wheelchair
with Rehab Seating
TDX SC wheelchair
with Van Seating
TDX SC wheelchair with
Invacare®Formula™CG Tilt
TDXSC (Group 3 Rehab Seat) K0848
TDXSCV (Group 2 Captain’s Seat) K0823
TDXSC2-CG (Group 2 Single Power) K0835
INVACARE®
TDX®SC
Wheelchair

17
Invacare®TDX®SC Specifications.
Adj. ASBA Rehab Seat FormulaCG Tilt FormulaCG Elevating Seat Van Seat
Overall dimensions
Base length (w/o front riggings) 34" 34" 34" 34"
Base length (w/front riggings*) 39" 39" 39" 39"
Base width (w/o joystick) 24" 24" 24" 24"
Height** 36.5" - 38.5" 37.75" - 39.25" 36.75" - 41.75" 38 " w/o headrest
- - - 45 " w/headrest
Motor package 2-pole 2-pole 2-pole 2-pole
Seat dimensions
Width 16" - 20" 16" - 20" 16" - 20" 16" - 22"
Depth 16" - 20" 16" - 20" 16" - 20" 16" - 20"
Back height 16" - 24" 16" - 24" 16" - 24" 18"
with headrest - - - 25"
Back angle 85˚ - 105˚ 85˚ - 105˚ 85˚ - 105˚ 85˚ - 115˚
Seat-to-floor height
Low 16.5" @ 0˚ 17.75" @ 0˚ 16.75" @ 0˚ 21"
Medium 17.5" @ 0˚ 18.5" @ 0˚ - -
Tall 18.5" @ 0˚ 19.25" @ 0˚ - -
Seat-to-floor height at 5˚ 18" Med., 19" Tall 19.5" Med., 20.5" Tall - -
Weight
with batteries 225 lb. 275 lb. 230 lb. 230 lb.
without batteries 178 lb. 228 lb. 183 lb. 183 lb.
Battery options U1 U1 U1 U1
Wheel and caster size
Front/rear casters 6" x 2" 6" x 2" 6" x 2" 6" x 2"
Drive wheels 10.5" x 3.5" 10.5" x 3.5" 10.5" x 3.5" 10.5" x 3.5"
Maximum speed
4.8 mph 4.8 mph 4.8 mph 4.8 mph
Incline capability 9˚ 9˚ 9˚ 9˚
Weight capacity 250 lb. 250 lb. 250 lb. 250 lb.
Turning radius 19" 19" 19" 19"
Standard Invacare®MK6i™MK660ACC/SPJ+ MK660ACC/SPJ+ w/PSS MK660ACC/SPJ+ w/PSS MK660ACC/SPJ+
Electronics
Limited warranties
Base frame 60 months 60 months 60 months 60 months
Seat frame 36 months 36 months 36 months 36 months
Electronics 12 months 12 months 12 months 12 months
Motor/gearbox 12 months 12 months 12 months 12 months
* Manual center-mount. ** With 20" back height and zero degree seat angle.

The Invacare®TDX® SPREE wheelchair is a distinctive
and fun power wheelchair designed for smaller clients.
• Gain access to areas not previously reachable
• Experience a smooth ride in everyday terrain
• Feel the intuitive maneuverability of center wheel
drive technology
• Admire the compact frame
Fall in love with the TDX SPREE wheelchair!
18
TDXSPREE (Group 3 Rehab Seat) K0848
TDXSPREE-CG (Group 3 Single Power) K0856
INVACARE®
TDX®SPREE
Wheelchair

19
Transport ready option.
The Invacare®TDX SPREE wheelchair offers a transport package
standard. Please refer to page 26 for more information on Invacare’s
Transport Ready Options.
Standard features of the TDX SPREE wheelchair:
•Adjustable rehab seat featuring 1" adjustment
within a width range of 12"-16" and a depth
range of 12"-18"
•165 lb. maximum weight capacity
•Powered height adjustment of 5"
•Starting seat-to-floor height of 14.5", Medium
and Tall of 16.5" and 18.5" respectively
•2 pole motors
•4.8 mph top speed
•U1 battery tray
•Transport tie-down options
•Enhanced Invacare®SureStep®Suspension curb
climbing capability of 2.5"
•Quiet Stability Lock
•3" ground clearance
•Wider rear caster spacing for interfacing
with aftermarket docking devices
•Invacare®MK6i™Single Drive Joystick
•Swingaway front riggings
•8 fun color selections
Optional features for the TDX SPREE wheelchair:
•45˚ manual tilt
•45˚ Invacare®Formula™CG power tilt
•Invacare®MK6i™Multiple Purpose Joystick
•Alternative driver controls
•Center-Mount front rigging
•One-sided fork package
Transport Ready Option.

20
The TDX SPREE wheelchair is designed to
meet a wide variety of rehab needs for smaller
clients. The powered seat height adjuster
allows the client to reach peer level and the
low seat-to-floor height allows for easy access
to the ground. The optional tilt feature can be
operated manually by a caregiver or powered
for the client to accomplish their own weight
shift positioning. The TDX SPREE wheelchair
allows the consumer to get to levels that may
not have been reachable before.
TDX Spree wheelchair
TDX Spree wheelchair
with Power Tilt
TDX Spree wheelchair
with Powered Seat
Height Adjustment
Manual Tilt
TDX Spree wheelchair
with Powered Seat
Height Adjustment
TDX Spree wheelchair
with Powered Seat
Height Adjustment
Power Tilt
Invacare®TDX®SPREE Seating Options.
