ION ARA Series User manual

ARA Single Gas Detector
Instrument User Manual V1.1
Unrivaled Gas Detection. ionscience.com/usa

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 2 of 28 ionscience.com/usa
Thank you for purchasing your ION Science product.
Standard warranty for the ARA is two years.
Hibernation models have a three-year warranty (if hibernation mode
is activated)

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 3 of 28 ionscience.com/usa
EU Declaration of Conformity
The EU Authorized Representative of the manufacturer Ion Science, Inc. has sole responsibility, on the date this
product accompanied by this declaration is placed on the market, the product conforms to all technical and
regulatory requirements of the listed directives
Authorized Representative:
ISM Deutschland GmbH ·Laubach 30 ·D-40822 Mettmann, Germany
PRODUCT:
ARA Single Gas Detector Series
MODEL:
Description:
ARA100, ARA200, ARA300, ARA400, ARA100H, ARA200H
Intrinsically safe, wearable single gas detectors.
Directive:
ATEX Directive (2014/34/EU)
EMC Directive (2014/30/EU)
Certificate:
CML 20ATEX2016
IECEx CML 20.0007
Notified Body:
SGS Fimko 0598
North American:
Certifying Authority
North American
File #:
QPS
ML 1621-1
Type of Protection
II 1G Ex ia IIC T4 Ga
ATEX TEMPERATURE
RANGES
H2S (ARA100, ARA100H) -40℃≤ Ta ≤ 60℃
CO (ARA200, ARA200H) -40℃≤ Ta ≤ 60℃
O2(ARA300) -30℃≤ Ta ≤ 60℃
SO2(ARA400) -40℃≤ Ta ≤ 60℃
APPLIED TECHNICAL
STANDARDS
EN ISO 60079-0-2018
EN ISO 60079-11-2012
EN ISO 61010-1-2010
EN 55032-2015
EN 55035-2017
EN ISO 61000-3-2-2014
EN ISO 61000-3-3-2013
ATEX Notified Body
SGS Fimko 0598
Name: Clemens A. Verley Position: Chief Executive Officer
Signature: Date: 31st December 2020

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 4 of 28 ionscience.com/usa
Contents
Declaration of Conformity........................................................................................................................3
Safety .......................................................................................................................................................5
Legal Notices Regarding the Safe Operation of Equipment ......................................................................5
Symbols....................................................................................................................................................5
Warnings, Cautions and Information Notifications...................................................................................5
Disposal....................................................................................................................................................7
Device Overview.......................................................................................................................................7
Activating ARA..........................................................................................................................................8
Display (LCD and Symbols)........................................................................................................................8
Self-Test..................................................................................................................................................10
Peak Reading Display..............................................................................................................................12
Bump Test Display..................................................................................................................................12
User Guidelines ......................................................................................................................................12
Alarms ....................................................................................................................................................13
Alarm Set Points.....................................................................................................................................13
Shut Down Alarm ...................................................................................................................................13
Event Log................................................................................................................................................14
Bump Test Procedure .............................................................................................................................15
Zeroing the O2ARA.................................................................................................................................16
Calibration Procedure.............................................................................................................................16
Hiberation Mode ....................................................................................................................................18
Using ARA Software................................................................................................................................19
Saving Event Logs ...................................................................................................................................20
Failures ..................................................................................................................................................21
Cleaning..................................................................................................................................................21
Different Models ....................................................................................................................................22
Technical Specification ..........................................................................................................................23
Limited Warranty ...................................................................................................................................24
Intended Use..........................................................................................................................................25
Certification and Approvals....................................................................................................................25
ION Science Contacts..............................................................................................................................26

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 5 of 28 ionscience.com/usa
Safety
Legal Notices Regarding the Safe Operation of Equipment
•While every attempt is made to ensure the accuracy of the information contained in this
manual, ION Science accepts no liability for errors or omissions in the manual, or any
consequences deriving from the use of information contained herein. It is provided “as is”
and without any representation, term, condition or warranty of any kind, either expressed
or implied.
•To the extent permitted by law, ION Science shall not be liable to any person or entity for
any loss or damage which may arise from the use of this manual.
•We reserve the right at any time and without any notice to remove, amend or vary any of
the content which appears in this manual.
Symbols
WARNING!
USED TO INDICATE DANGER WARNINGS WHERE THERE IS A RISK OF INJURY OR
DEATH.
Caution
Used to indicate a caution where there is a risk of damage to equipment.
Information
Important information or useful hints about usage.
Recycling
Recycle all packaging.
WEEE Regulations
Ensure that waste electrical equipment is disposed of correctly.
Warnings, Cautions and Information Notifications
The following Cautions apply to the product described in this manual.
If the ‘Activate Before Date’ marked on the package is expired, do not activate.
Do not attempt to replace the internal components. This could impair the intrinsic
safety rating and will void the warranty of the product.

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 6 of 28 ionscience.com/usa
Before daily use:
Make sure the sensor and audible port are clear of any obstruction such as debris
or blockages.
Perform the self-test to ensure the display, visual, audible and vibration alarms are
operating.
The sensor symbol stops blinking if the self-test is successful.
Ensure that the O2detector is zeroed at least every 30 days in a clear air
environment. See O2detector section for information on zeroing. The toxic gas
sensors (CO, H2S & SO2) may require calibration during the life of the product. ION
Science recommend bump testing frequently to ensure the sensor is functioning.
Perform a bump test at least every 30 days.
Please perform a bump test if the detector has been subject to physical impact,
liquid immersion, over limit alarm event, change of ownership or anytime the
detectors performance is in doubt.
Perform a bump test by exposing the detector to a concentration of gas that
exceeds the low alarm set points.
When selecting suitable bump test concentrations, please consider your local
health & safety exposure limits and ensure to take any necessary precautions when
handling these gases.
If the unit fails the bump test, attempt a calibration.
The accurate measurement of gas concentration depends upon the target gases
and the period.
The product is a gas detector, not a measuring device.
Do not attempt to replace the battery or sensor, the product is designed to be
maintenance free, changing these components will void the warranty.
If you suspect any malfunction or have any technical problems, please contact ION
Science.

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 7 of 28 ionscience.com/usa
The portable ARA has been designed and certified Intrinsically Safe.
Disposal
•The equipment does not include any toxic materials, but if it has been contaminated by toxic
materials, then exercise due care and follow the appropriate regulations when disposing.
•Always adhere to local regulations and procedures when disposing of the equipment.
•ION Science, Inc. offers a take back service. Please contact us for more information.
RECYCLING
The detector contains a lithium battery that must be disposed in a recycling bin.
WEEE REGULATIONS
Ensure that electrical equipment is disposed of correctly.
The portable ARA has been designed and certified Intrinsically Safe.
Device Overview
The ARA is a portable, single gas detector. These devices are disposable and will operate for 2 years without
any replacement of components, to detect the presence of specific toxic gases or depleted/enriched Oxygen.
There are 4 single gas detector options:
1. Hydrogen Sulfide (H2S)
2. Carbon Monoxide (CO)
3. Sulfur Dioxide (SO2)
4. Oxygen (O2)
For ease of use, the ARA is single button operation. Ensure the manual is fully understood before using the
ARA.

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 8 of 28 ionscience.com/usa
Device Overview

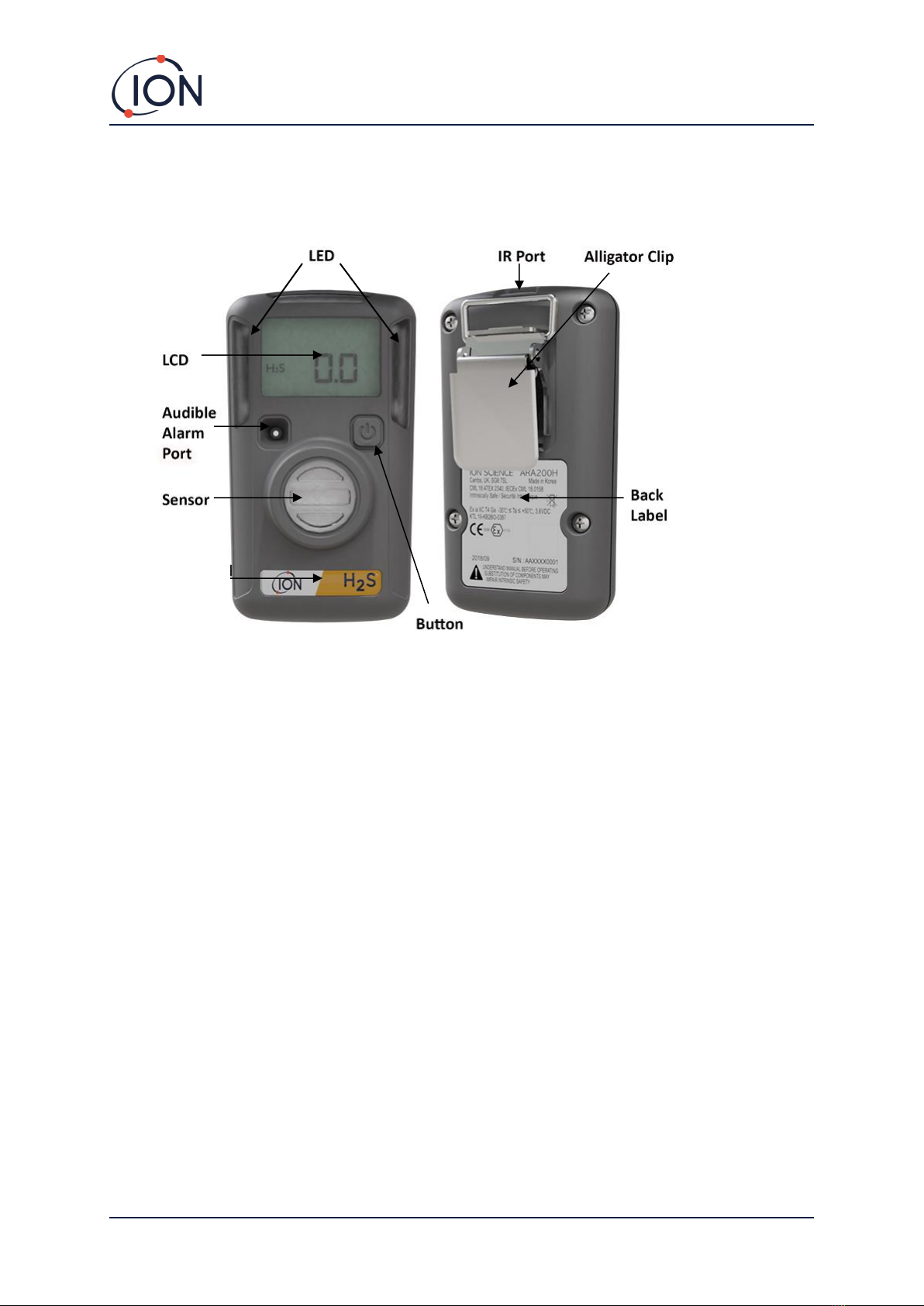

Diagram 1 below shows the key components of the product.
Activating ARA
To activate ARA within the validity period indicated on the packaging, press and hold down the button for
approximately 5 seconds.
On activation, ARA will sound an audible alarm, flash and vibrate in sequence.
A successful activation will display the life remaining (24 months) or the reading value.
Display (LCD and Symbols)
Ara uses an LCD display to show its status. In the absence of gas, it will display the life remaining. When gas is
present, the display will automatically shift to show what the gas concentration is.
NOTE: The display mode can be changed in the IR Link software with the "Life Remaining" and "Sensor
Reading" user options.
WARNING: If the display is missing icons or displayed figures can’t be read, please contact ION Science
promptly.
Bubble label
sensor type

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 9 of 28 ionscience.com/usa
The table below shows the symbols and their meanings.
Mode
Symbol
Description
Alarm
HIGH/LOW Alarms
LOW Alarms
HIGH Alarms
Sensor
H2S sensor
(Blinking: Self-Test required)
CO sensor
(Blinking: Self-Test required)
O2sensor
(Blinking: Self-Test required)
SO2sensor
(Blinking: Self-Test required)
Warning
Self-Test, Bump-Test, Calibration failed
Exposed to gas above Low alarm set points
Blinking: Bump-Test required
Unit
To display unit of O2sensor
To display unit of H2S/CO/SO2
Time
To display Life Remaining
To display time over 1 month
To display time over 24 hours
Image above shows all the icons on ARA.

ARA Instrument User Manual V1.1
Unrivaled Gas Detection. Page 10 of 28 ionscience.com/usa
Self-Test
Prior to daily use, it is recommended that users perform a self-test to ensure ARA awareness alarms (audio,
visual and vibration) and all segments of the display screen are functioning correctly.
Below is a step-by-step process for performing the test:
STEP 3
LOW and HIGH alarm set points will be displayed.
When LOW and HIGH alarm set points are displayed, the unit will perform STEP 2 if you press the button.
STEP 2
After pressing the button, the unit will perform the following sequence:
The right and left side LEDs light up after emitting audible beep and vibration.
All LCD display icons appear.
STEP 1
Sensor type icon will blink when a self-test is required. Press the button to perform the test.
