Ironmaster Spotting Stand User manual

Assembly & Operating Instructions
Ironmaster Spotting Stand for Super Bench
Congratulations on your purchase of this fine Ironmaster product. For any technical questions or support
please contact us at 1-800-533-3339. Be sure to read and understand the operating instructions.
Part
#Part Name Description Qty
1Base U shaped frame with
bench saddle 1
2Left Upright Round tube with angle
base support 1
3Right Upright Round tube with angle
base support 1
4Left Dumb-
bell Saddle
Dumbbell saddle with
round tube welded
below 1
5Right Dumb-
bell Saddle
Dumbbell saddle with
round tube welded
below 1
6Pull Knob Pull and screw lock
knob 2
7Bolts M10 x 20 mm bolts 6
8Washers M10 flat washers 6
Steps:
1. To assemble the stand, first unpack all components and locate the hardware kit.
2. Assemble the BASE to the LEFT UPRIGHT and RIGHT UPRIGHT frame components using the
M10 bolts and washers. Be sure to position the location of the pull pin toward the inside as shown in
the exploded view drawing.
3. Insert the LEFT and RIGHT DUMBBELL SADDLES into the round tubes of the UPRIGHTS so
the slotted holes alight with the pull pins as shown in the exploded view drawing.

Operation:

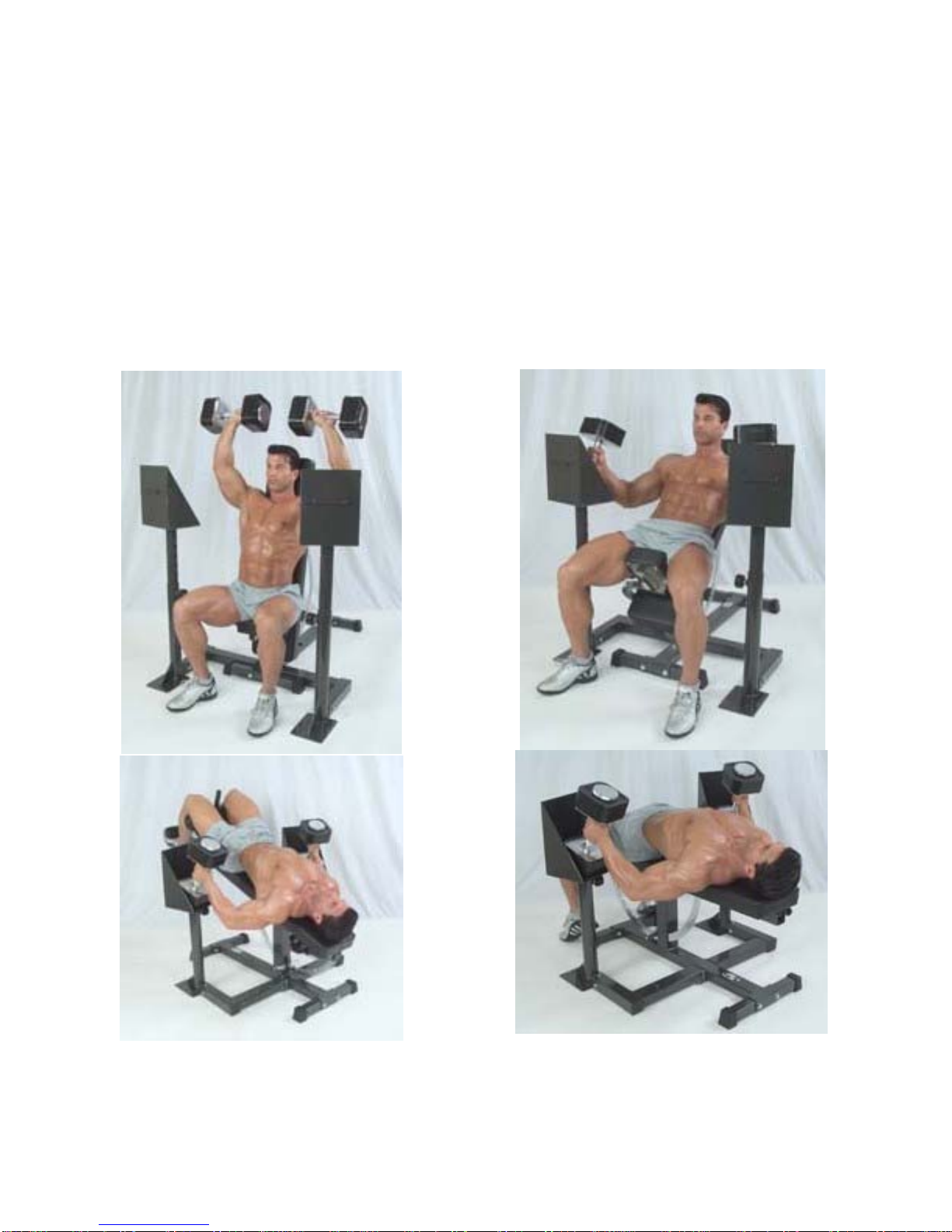

The spotting stand is designed to position dumbbells for the user to easily reach at the beginning and finishing of
dumbbell pressing moves. The primary exercises it is made to help with are: Flat dumbbell press, decline dumb-
bell press, incline dumbbell press and upright dumbbell press. The Super Bench simply is placed with its frame
inside the base so that the user can reach the dumbbell saddles easily. The dumbbell saddles may be raised or
lowered depending on the exercise being performed. The Super Bench can be placed in the frame in either di-
rection. Be sure to sit on the bench and check the position of everything before setting dumbbells in the saddles.
The saddles are angle adjustable and may be pivoted inwards toward the user if desired. The pull pins have a
locking feature to help strengthen and secure the dumbbell saddles in the desired height and angle.
IMPORTANT NOTES: This device should only be used with the Ironmaster Super Bench. The bench is needed
to help stabilize the stand and it may not be used standalone. The maximum dumbbell weight for each side is
130lbs. The Stand is designed for the Ironmaster Quick-Lock Dumbells, but other dumbbells may be used if they
can safely stand up on end. Do not leave dumbbells unattended. Ironmaster is not responsible for injuries that
may occur – use safely and at your own risk.
Warranty Information:
Your Ironmaster Super Bench attachment has a limited 10 year warranty to the original purchaser. Warranty cov-
ers repair or replacement for mechanical integrity when used according to the instructions for normal exercise use.
Warranty covers in home use only. Finish and wear items such as rubber and painted surfaces are not covered. If
you need warranty service, contact Ironmaster for return instructions and additional terms and conditions.
Ironmaster LLC, 21828 87th Ave SE, #E, Woodinville, WA 98072 800-533-3339, 425-408-9040
