ISDT NP2 User manual

OQ3杶镾擄翄鏍懲羮㛺暺霎
OQ3!Tnbsu!Dibshfs!Jotusvdujpo!Nbovbm

Thank you for purchasing the ISDT NP2 smart battery
charger which is compatible with the SONY NP-BX1,
NP-FZ100 and NP-FW50 battery types. The charger is
equipped with a wide viewing angle LCD screen which can
display the status of the charging process and battery
parameters in detail.
The two independent charging channels can charge batteries
of different types simultaneously. The ISDT NP2 can also
identify the battery model and automatically adapt to the
optimal charging parameters and algorithm.
Safety Precautions
Please read these instructions and warnings before using
this product:
1. Keep the charger away from sources of heat and damp
environments during use. Ventilation is necessary for heat
dissipation.
2. Please do not allow children to operate the charger.
3. Do not attempt to charge incompatible batteries with
this battery charger. Attempting to do so as can cause
damage to the charger or battery, or even result in
disastrous consequences;
1. Channel 1 operation key
2. Channel 2 operation key
3. Channel 1 battery slot
4. Channel 2 battery slot
5. LCD display screen
6. USB Type-C power supply input port
Charger Specification
Model type: NP2
Power supply input port: USB Type-C
Input voltage: 5~12V
Compatible USB adapter: 5V/1.0A，5V/2.0A，QC 2.0/3.0
Max charge current: 1.5A /Slot
Max input power: 18W
Charging mode: normal mode/quick mode
Compatible battery type: NP-FZ100,NP-FW50,NP-BX1
Display: 240 x 240 IPS LCD
Working temperature: 0℃- 40℃
Size: (L x W x H) 112 x 91 x 33.5mm
Weight:115g
Operation Instruction
In this charger, two batteries can be charged in different
modes in various combinations.
1. Connect the USB type-C cable and USB power adapter,
then the NP2 will be ready for charging. NP2 supports a
variety of USB power adapters and automatically identifies
and matches the input power.
English | 01
1
5
3
6
4
2

2. Insert batteries into the battery slot as shown below. The
NP2 supports mixed charging of different types of batteries
and can automatically identify and adjust charging
parameters.
3. After correctly inserting a battery, the charger will beep and
sound the prompt tone. Default charging mode will start
automatically without setup. To enter Fast Charging mode, press
the channel operate button for a few seconds and the selected
channel will switch into fast charging mode. Please note that the
actual charging current is limited by the output wattage of the
USB adaptor. The maximum input wattage is 18W when using a
standard adaptor which supports QC 2.0/3.0. It can automatically
allocate a maximum 75% wattage after the channel has been
activated in fast charging mode.

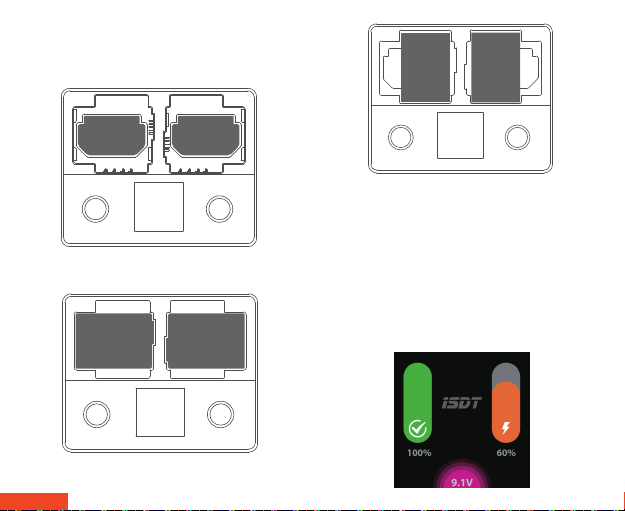

Insertion diagram for NP-FZ100
Insertion diagram for NP-FW50
Insertion diagram for NP-BX1
English | 02
NP-FZ100 NP-FZ100
NP-FW50 NP-FW50
NP-BX1 NP-BX1

NP-FZ100
01:26:23
750mAh
7.4V/500mA
35℃/64mΩ
9.1V
60%
English | 03
Display details
1. Battery type
2. Health rating of the battery
3. Charging elapsed time
4. Charge Capacity
5. Charging voltage and current
6. Temperature and electrical resistance
7. USB/Type C input voltage, the colour of this area will turn
purple when connecting with a QC adaptor.
8. Charge Status Bar, the bar is an orange colour in
standard charging mode and purple when in fast charging
mode. It turns green when charging is complete.
9. Battery charge percentage.
Battery Health Rating
During charging, the charger will rate the battery according to
the internal resistance of the battery, and the full score is five
stars in white.After the charging cycle is complete, the charger
will evaluate the health of the battery based on the electrical
resistance and the accumulated charge capacity. Five stars in
the top rating.
Standby Mode
When the charger is in standby mode or if the charge cycle has
finished and the inserted batteries are fully charged, the
brightness of the display backlight will drop to the lowest level
after five minutes of inactivity. Inserting or removing a battery
or pushing any button will wake up the charger from standby
mode.
Capacity Limiting
When the charger is not connected to USB power, if you want
to check the status of a battery, the battery can be inserted into
the battery slot and with a long press of either key, you can
look at the battery level. The screen will turn off after five
seconds to save battery consumption.
Note: for NP-BX1 batteries, it is necessary to load another
NP-FW50 or NP-FZ100 battery in another position to display
the power correctly.
Battery Level Checking
For the health of the battery and for general safety, the charger
will cut off the charge current automatically and display a
warning message when the applied charge exceeds that of the
capacity of the battery being charged.
4. To view detailed charging parameters for individual
batteries, press the corresponding operate button to
display the screen showing charging parameters and
battery status details as described below:
1
2
3
4
5
8
9
6
7

English | 04

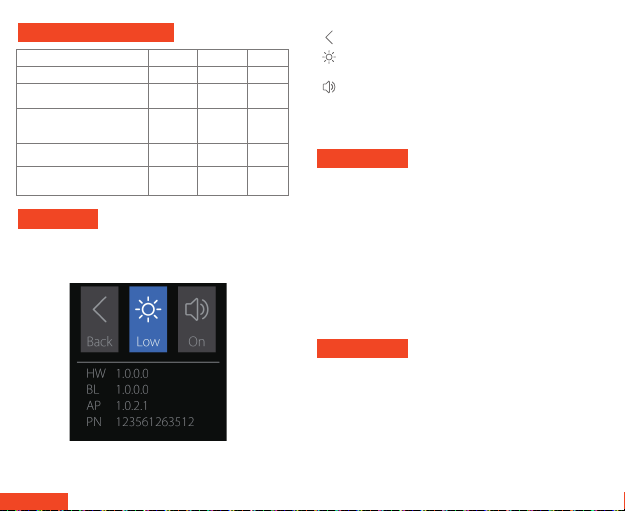

System Setting
When the charger does not have a battery inserted, long press
the two channel selection buttons to enter the system setting
interface.
In the system setting interface, press the first channel button to
switch the selected option, and press the second channel button
to set the selected option parameters.
Return to the previous
Display brightness Settings, there are
three options: low, medium, high
NP2 Battery Charger Charging
ISDT continually strive in the pursuit of perfection on all
products. Our R&D engineers concentrate their effort over days
and months on the enhancement of the functions and
algorithms, as well as the visual optimization. Continuous
improvement of the performance is shaped up in the firmware
upgrade program. Latest upgrade firmware can be downloaded
from the ISDT official website:
The upgrade steps of NP2 smart charger are as follows:
1. Connect PC and NP2 with USB type-C data cable;
2. Start the firmware update program and update the firmware
to NP2 according to the software guidelines;
Firmware Update
All pictures, statements and text information of this product are
for reference only. Please refer to the actual information on the
official website www.isdt.co. ISDT reserves the right for final
explanation and modification of the specification.
1. NP2 smart charger
2. USB type-C cable
Packaged Items
Beeper volume setting with both on and off options
Hardware version Boot version
App version PN code
HW BL
