ISDT Q8 Max User manual

Q8 Max
Function Buttons
Rated voltage
Full charge voltage
Storage voltage
Discharge voltage
Preset voltage
Balance charge
Unbalanced charge
Supported cell count
Max. charging current
NiCd/MH Pb LiFe Lilon LiPo LiHv
3.60V
4.10V
3.70V
3.20V
2.90V
1~8S
30.0A
3.20V
3.65V
3.30V
2.90V
2.60V
1~8S
30.0A
3.70V
4.20V
3.80V
3.30V
3.00V
1~8S
30.0A
3.80V
4.35V
3.85V
3.40V
3.10V
1~7S
30.0A
1.20V
1.40V
1.10V
0.90V
1~16S
30.0A
2.00V
2.40V
1.90V
1.80V
1~12S
30.0A
Never use the charger without supervision, please stop using the charger and refer to the
manual for reasons if any functional abnormity.
Keep the charger away from dust, humidity, rain and high temperature, as well as avoid
direct exposure to the sunlight and intense vibration.
Place the charger on a heat-resisting, non-flammable and insulating surface. Do not use it
on the car’s seats, carpet or other similar places. Keep inflammable and explosive objects
away from operation areas of the charger.
Read the instruction manual carefully to be familiar with the features of the charger, and
set proper charging parameters before operating. Setting the parameters incorrectly will
result in damage to the product, personal property and cause serious injury as well.
•
•
•
•
For your safety and a better user experience, please read this manual and follow the
instruction before using the new charger.
Please visit: www.isdt.co for more details on the functions of this smart charger, as well as
purchase various accessories. Functions of products will be kept on upgrading,
the manual in your hand may be different from the actual operation,
please refer to the actual functions.
Thanks for purchasing the ISDT Q8 Max Smart Charger.
Model No: Q8 Max
Input voltage: DC 10~34V
Output voltage: DC 1~34V
Max. input current: 33A
Charging current: 0.2~30.0A
Discharging current: 0.2~3.0A
Max. charging power: 1000W
Max. discharging power: 30W
Balance current: 1.5A/Cell Max
Supported battery types and cell count:
LiFe,LiIon,LiPo 1~8S; LiHv 1~7S; Pb 1~12S; NiMH/Cd 1~16S
Product Specifications
Input BattGo: Support
Output BattGo: Support
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Working temperature: 0℃~40℃
Storage temperature: -20℃~60℃
Dimension: 95×95×45mm
Weight: 290g
Power on Q8 Max smart charger, connect the battery, and short touch the middle key of
the touch board to enter the task setting menu as follows:
Operating the Charger
Task
Battery
Battery and
cell count
Current Setting
Charge，Discharge，Destroy，DC power supply，Storage
LiHv、LiPo、LiIon、LiFe、Pb、NiMh/Cd
LiFe,LiIon,LiPo (1~8S); LiHv (1~7S); Pb (1~12S);
NiMH/Cd (1~16S)
0.2~30.0A
Charge
Balancing port is strongly recommended to be connected when charging LiPo battery,
which can make sure the charger can accurately monitor voltage on each cell battery
and balance it when charging. Warning beeper will yell before start charging LiPo if in
non-balance mode(no connecting with balance port).
Current setting range: 0.2~30.0A
The battery type, cell count and charging current are auto set accordingly when connecting
with BattGo battery.
Discharge
Current setting range: 0.2~3.0A
The battery type, cell count and discharging current are auto set accordingly when
connecting with BattGo battery.
Under the standby interface, long touch the touch board to enter the system setting menu:
System Setting Menu
Min. input voltage protection 10~31V:
All tasks in operation will be stopped at once and hint warning of low voltage, when the
input voltage is lower than the input voltage as set up. It will protect the battery from being
discharged when using battery pack as power supply.
Max. input power setting 100~1100W:
If the input power is smaller than the max working power (1000W), please set up the
parameter as the actual output power as max input, to protect the input power and
enable the charger to work stably.
Buzzer volume:
The operation sound will be shielded when the volume is off, except the warning error beep.
Self-test:
Enter system setting. select self-test task
Calibration:
The input voltage, output voltage and balance voltage of the charger can be calibrated
with this task.

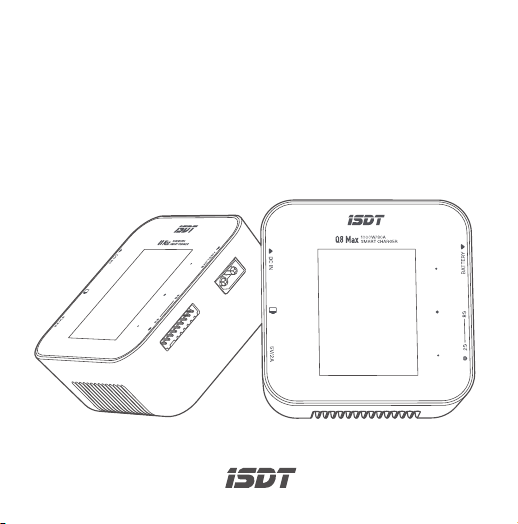

1000W SMART CHARGER
Instruction Manual
GJSF!IB[BSE"
XBSOJOH"!
NEVER USE CHARGER UNSUPERVISED
• Never attempt to charge primary (non-rechargeable) batteries.
• Batteries pose a severe risk of fire if not properly handled.
• Read entire operation manual before using charger.
• This unit may emit heat during use.
• Only operate this device in a cool ventilated area away from flammable objects.
• Failure to observe safety procedures may cause damages to property or injury.
Power
Input
Display
Screen
Touch
Board
Micro USB
Update Port
Power
Output
Balance
Port
Fan
Vent
USB Port
Preset Battery Type of Charger and Task Parameters
Make sure to know the maximum charging current of the battery before charging, never
use excessive current to charge to damage your battery, which will result in overheat even
explosion during the charging process.
The charging and discharging capacity of battery is usually marked with C value.
Multiplying the charging C value and battery capacity equals to the maximum charging
current supported by the battery. For example, for a 1000 mAh battery with a charging
capacity of 5C, the maximum charging current would be 1000*5=5000mA; therefore,
the maximum charging current is 5A.
For a lithium battery, if it is impossible to confirm the supported charging C value, please
set the charging current below 1C, for the sake of its (lithium battery) safety.
How to Confirm Charging Current
The reference relation between C value and charging time:
charging time ≥60 minutes/ charging C value (e.g. it needs around 60-70 minutes to
complete charging with 1C). Due to differences in battery conversion efficiency, the time to
complete the charging might be extended.
Destroy
Connect the battery to be scrapped, and select the scrap function in task options,
which is capable to discharge the battery to 0V.
Current setting range: 0.2~3.0A
The battery type and cell count are auto set accordingly when connecting with
BattGo battery.
DC Power supply
The charger can be used as a DC power supply when choosing this function,
with adjustable voltage 2~30V, and current 1.0~5.0A.
The battery type, parameter and current are not optional in this task.
Storage
Current setting range: 0.2~30.0A
The battery type, cell count and storage current are auto set accordingly when connecting
with BattGo battery.
Charging Screen
Touch the touch board to shift the charging information, as cell voltage, cell internal
resistance, BattGo information, working parameter.
The cell voltage and internal resistance are only on display in balancing charging mode.
The BattGo information will be displayed only when connected to the BattGo battery,
and the cell voltage is able to be displayed without connected to the balance port.
*All product photos, statements and literature are for reference only. For up-to-date information,
please visit our official web www.isdt.co
ISDT reserves the right of final explanation and revision for the terms.
