Iseki TG5330 User manual

TG5330
TG5390
TG5470
MODELS:
Operator’s Manual
ENGLISH
ISEKI TRACTORS

TO OUR CUSTOMER
1
Thank you for purchasing an ISEKI tractor.
This operator’s manual provides the information necessary for operating and maintaining
your tractor safely and properly.
The contents are mainly composed of the following 2 items:
Safety instructions: Essential items which you should observe while operating
the tractor.
Technical instructions: Items which are necessary to operate, adjust and service the
tractor properly.
Before starting to operate the machine for the first time, you should read this operator’s
manual thoroughly and carefully until you are sufficiently familiar with the operation of the
machine in order to do jobs safely and properly. The manual should be regarded as part of
the machine, and should be kept in a handy place so you can refer to it when required. You
are advised to refer to it from time to time to refresh your understanding of the machine.
Your dealer has performed the pre-delivery service on your new machine.
He or she will discuss with you the operating and maintenance instructions given in this manu-
al, and instruct you in the proper and varied applications of this machine. Call on him or her at
any time when you have a question, or need equipment related to the use of your machine.
Paragraphs in the manual and labels on the machine are particularly
important information about safe operation to avoid accidents. You
should always keep precautions in mind and follow them during
operation.
Be sure to wear
personal protective equipment
during operation
In some of the illustrations used in this operator’s manual, panels or
guards may have been removed to clarity. Never operate the tractor
with these panels and guards removed.
If the removal of a shield is necessary to make a repair, it must be re-
placed before operation.
If you use a trailer, use a proper one which suits your tractor. Using an
improper trailer may cause serious accidents.
Never attempt to haul beyond the tractor’s capacity.
Follow strictly the instructions outlined in the operator’s manual of the mount-
ed or trailed machinery or trailer, and do not operate the combination tractor –
machine or tractor – trailer unless all instructions have been followed.
All information, illustrations, and specifications contained in this manual are based on
the latest information available at the time of publication. The right is reserved to make
changes at any time without notice.
TO OUR CUSTOMER

2

TABLE OF CONTENTS
3
TABLE OF CONTENTS
TO OUR CUSTOMER ................................................1
TABLE OF CONTENTS.............................................3
SAFETY .....................................................................6
MACHINE PURPOSE ............................................6
PERSONAL SAFETY INSTRUCTIONS .................6
MAKING YOUR TRACTOR A SAFE VEHICLE......7
How to Maintain Safety ......................................7
FOR SAFE OPERATION ....................................... 8
How to be a Safe Operator ................................8
When Another Person Operates Your
Machine..............................................................8
Before Operation................................................9
Starting Engine and Operating Tractor.............10
When Traveling ................................................ 10
Loading onto or Unloading from a Truck ..........12
Specifications of the Ramps.............................12
During Operation..............................................13
Inspection and Maintenance ............................14
Storage.............................................................15
Dismantling and Disposal.................................15
MAINTENANCE OF THE ELECTRIC
SYSTEM............................................................... 16
To Maintain Electric Wiring...............................16

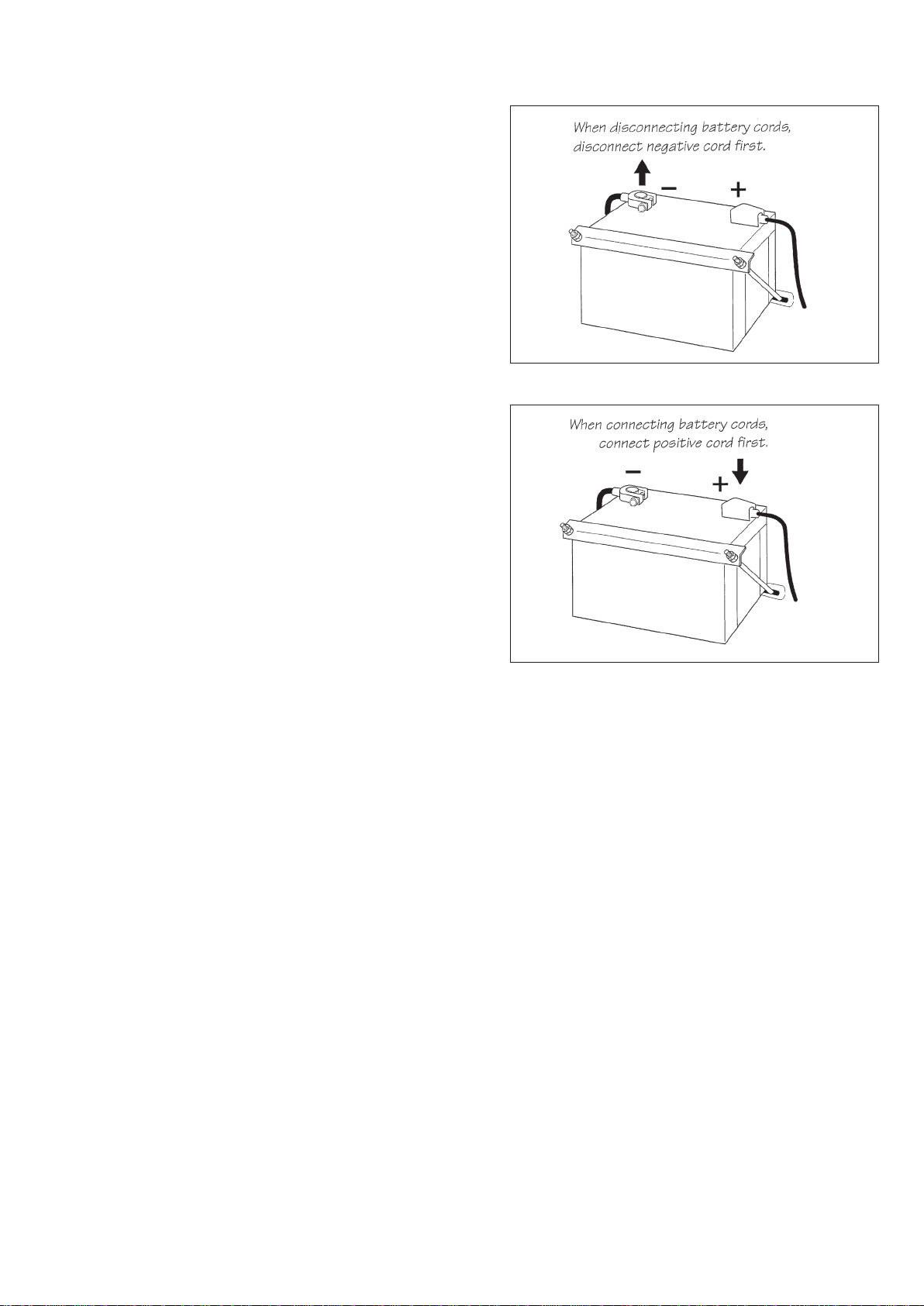

To Handle the Battery.......................................16
To Handle Booster Cables ...............................17
SAFETY DECALS ................................................18
Maintenance of Safety Decals .........................21
Location of Safety Decals ................................22
INTRODUCTION......................................................24
TRACTOR IDENTIFICATION ..................................25
STATUTORY PLATE ...........................................25
MODEL TYPE DESIGNATION.............................25
MODEL / SERIAL NUMBER ................................ 26
MAJOR COMPONENTS.......................................... 27
Rear ROPS Type..............................................27
CENTER ROPS Type.......................................28
CABIN Type......................................................29
INSTRUMENTS & CONTROLS............................... 30
INSTRUMENT PANEL .........................................32
Electric Fuel Shut-Off .......................................32
Main Switch......................................................32
Indicator Light Strip (Standard Type)................33
Indicator Light Strip (Power Shift Type)............33
Coolant Temperature Gauge ............................ 34
Tachometer (Standard Type)............................34
Tachometer (Power Shift Type)........................35
Fuel Gauge.......................................................35
Horn / Light Turn Switch ..................................36
Power Take-Off (PTO) Switch ..........................37
MAIN CLUTCH PEDAL ........................................ 38
BRAKES...............................................................38
Brake Pedals & Parking Brakes .......................38
Parking Brake Lever.........................................38
ENGINE SPEED CONTROLS ............................. 39
TRANSMISSION SHIFT LEVERS
(STANDARD TYPE) .............................................39
Forward / Reverse Lever..................................40
Range And Gear Shift Levers ..........................40
TRANSMISSION SHIFT LEVERS AND BUTTON
(POWER SHIFT TYPE)........................................40
Forward / Reverse Lever..................................41
Range Shift Lever and Gear Shift Button.........41
DIFFERENTIAL LOCK PEDAL ............................42
4-WHEEL DRIVE SHIFT LEVER ......................... 42
REAR PTO SELECTOR LEVER .......................... 43
MID PTO SELECTOR LEVER (OPTION) ............ 43
3-POINT HITCH ...................................................44
Control Lever....................................................44
Lowering Rate Control Knob ............................44
JOYSTICK CONTROL LEVER (OPTION) ........... 45
COMFORT ADJUSTMENTS ................................46
Steering Column Tilt.........................................46
Tool Box............................................................46
SEAT & SUSPENSION ADJUSTMENT ...............47
OPERATION ............................................................49
BREAK-IN PERIOD.............................................. 49
STARTING............................................................49
Pre-Start Inspection..........................................49
Normal Starting (Standard Type)......................50
Normal Starting (Power Shift Type)..................51
Restarting Warm Engine ..................................52

TG5330, 5390, 5470
4
Cold Weather Starting......................................52
Warm Up Period...............................................52
Operator Observations.....................................53
Starting Circuit Operation.................................53
GROUND SPEED SELECTION
(STANDARD TYPE) .............................................54
GROUND SPEED SELECTION
(POWER SHIFT TYPE)........................................56
STOPPING TRACTOR.........................................58
DIFFERENTIAL LOCK .........................................59
4-WHEEL DRIVE..................................................59
POWER TAKE-OFF (PTO)...................................60
Rear PTO Shaft................................................60
Mid PTO Shaft (Option)....................................61
PTO OPERATING CONTROL.............................. 62
PTO Operating Controls...................................63
3-POINT HITCH ...................................................63
Hitch Controls...................................................63
Rear Linkage....................................................64
Attaching Implements.......................................66
Using Position Control......................................67
Using Draft Control (Option).............................68
Detaching Implements .....................................69
JOYSTICK OPERATION......................................70
EXTERNAL AUXILIARY HYDRAULICS...............71
Except Center ROPS Type...............................71
Center ROPS Type...........................................71
DRAWBAR ...........................................................72
ROLL OVER PROTECTIVE STRUCTURE
(ROPS).................................................................72
Rear ROPS Type..............................................72
Center ROPS Type...........................................73
REAR HITCH .......................................................74
FRONT LOADER FIXATION POINT .................... 75
FALLING OBJECTS PROTECTIVE STRUCTURE
(FOPS) & OPERATORS PROTECTION
STRUCTURE (OPS) FIXATION POINT...............75
Work with Crop Sprayers
(Risk of Hazardous Substances)......................75
TOWING...............................................................76
JACKING..............................................................76
INSTRUMENTS & CONTROLS & OPERATION
- CABIN TYPE - .......................................................77
OPENING / CLOSING DOORS ........................... 78
LOCK / UNLOCK DOORS ................................... 78
REAR WINDOW...................................................79
CORNER WINDOWS...........................................80
ROOM LAMP .......................................................80
WORK LIGHTS ....................................................81
WIPER AND WASHER SWITCH .........................82
WASHER RESERVOIR........................................82
HEATER OPERATION (TG5330 / 5390)..............83
FRESH AIR VENT LEVER (TG5330 / 5390)........ 83
TEMPERATURE ADJUSTMENT LEVER
(TG5330 / 5390) ...................................................84
VENTILATION CONTROL LEVER.......................85
AIR VENTS ..........................................................85
HEATING..............................................................87
AIR CONDITIONER OPERATION (TG5470).......88
FRESH AIR VENT LEVER ...................................89
TEMPERATURE ADJUSTMENT LEVER.............90
VENTILATION CONTROL LEVER.......................91
AIR VENTS ..........................................................91
USING THE AIR CONDITIONER.........................93
Cooling .............................................................93
Heating.............................................................93
Defrosting.........................................................93
LUBRICATION & PERIODIC MAINTENANCE .......94
SPECIFICATIONS & CAPACITIES ...................... 94
LUBRICATION / FILL POINTS
(TG5330 / 5390) ...................................................95
LUBRICATION / FILL POINTS (TG5470)............. 96
PERIODIC INSPECTION AND MAINTENANCE
TABLE ..................................................................97
Opening / Closing Hood ...................................99
Removing / Reinstalling Side Cover.................99
LUBRICATION DETAILS....................................100
Grease Fittings...............................................100
Engine Oil & Filter ..........................................100
Transmission Oil & Filters ..............................101
Front Axle Oil..................................................102
Checking / Replenishing Coolant ...................102
Flushing Radiator / Replacing Coolant...........103
Use of Anti-Freeze..........................................103
Cleaning of Radiator ......................................103
Cleaning Air Cleaner / Vacuator Valve ..........105
FUEL SYSTEM...................................................107
Fuel Filter .......................................................107
Air-Bleeding Fuel System...............................108
Fuel Tank Filler Cap .......................................108
Throttle Lever .................................................108
ELECTRICAL SYSTEM......................................109
Battery............................................................109
Safety Switches.............................................. 111
Wiring / Fuse Arrangement............................. 111

TABLE OF CONTENTS
5
Fuse Location (Standard Type)...................... 112
Fuse Location (Power Shift Type) .................. 113
Fuse Location (Center ROPS Type)............... 114
Fuse Location (Cabin).................................... 115
CLUTCH FREE-PLAY ADJUSTMENT ............... 116
BRAKE ADJUSTMENT ...................................... 116
WHEELS & TIRES ............................................. 117
Tire Inflation Pressures .................................. 117
Wheel Bolt Torque .......................................... 117
Front Wheel Alignment ................................... 117
Front Wheel Spacing...................................... 118
Rear Wheel Spacing ...................................... 118
Steering Free-Play .........................................120
Front Axle End-Float (4WD) ...........................120
CLUTCH HOUSING PLUG ................................ 120
TORQUE CHART...............................................120
STORAGE..........................................................121
WASHING OF THE MACHINE...........................122
MAJOR CONSUMABLES LIST
(ROPS TYPE) ....................................................123
MAJOR CONSUMABLES LIST
(CABIN TYPE)....................................................125
TROUBLESHOOTING...........................................127
ENGINE.............................................................. 127
CLUTCH.............................................................128
BRAKES.............................................................128
HYDRAULIC SYSTEM.......................................129
STEERING SYSTEM .........................................129
ELECTRICAL SYSTEM......................................129
DIGITAL PANEL CONTENTS
- POWER SHIFT TYPE -........................................ 130
Normal Display...............................................130
Attention Display ............................................131
Service Interval...............................................131
Gear Shift Error .............................................131
SPECIFICATIONS..................................................132
ENGINE.............................................................. 132
TRANSMISSION-STANDARD TYPE ................. 132
TRANSMISSION-POWER SHIFT TYPE............ 132
POWER TAKE OFF (PTO).................................132
HYDRAULIC SYSTEM-STANDARD TYPE........ 133
HYDRAULIC SYSTEM-POWER SHIFT
TYPE ..................................................................133
ELECTRICAL SYSTEM......................................133
CAPACITIES ......................................................133
TREAD WIDTH SETTING..................................134
Rear ROPS Type & CABIN Type ...................134
Center ROPS Type.........................................134
GENERAL DIMENSIONS...................................135
Rear ROPS Type............................................135
Center ROPS Type.........................................136
CABIN Type....................................................137
AXLE LOADS & TIRE LOAD CARRYING
CAPACITY..........................................................138
FRONT WEIGHT................................................138
NOISE DECLARATION......................................138
VIBRATION DECLARATION (78 / 764 / EEC) ... 139
ATTACHMENT (OPTION) .................................. 139
INDEX.....................................................................142
WIRING DIAGRAM ...............................................145

TG5330, 5390, 5470
6
MACHINE PURPOSE
This machine is designed solely for use in customary agricultural and forestry use, for parks and grounds maintenance,
as well as for winter service. Use in any other way is considered as contrary to the intended use. Compliance with and
strict adherence to the conditions of operation, service, and repair as specified by the manufacturer, also constitute
essential elements of the intended use. This machine should be operated, serviced, and repaired only by persons who
are familiar with its particular characteristics and who are acquainted with the relevant safety procedures. Accident
prevention regulations, all other generally recognized regulations on safety and occupational medicine, and all road
traffic regulations must be observed at all times. Any arbitrary modifications carried out to this machine may relieve the
manufacturer of liability for any resulting damage or injury.
PERSONAL SAFETY INSTRUCTIONS
Whenever you see the words and symbols below, used in this operator’s manual and on decals, you MUST take note of
their instructions as they relate to personal safety.
SAFETY
DANGER: This symbol together with the
word DANGER indicates an imminently
hazardous situation that, if not avoided,
will result in DEATH OR VERY SERIOUS
INJURY.
WARNING: This symbol together with the
word WARNING indicates a potentially
hazardous situation that, if not avoided,
could result in DEATH OR VERY SERIOUS
INJURY.
CAUTION: This symbol together with
the word CAUTION is used to indicate a
potentially hazardous situation that, if not
avoided, may result in MINOR INJURY.
IMPORTANT: The word IMPORTANT is used to iden-
tify special instruction or procedures
which, if not strictly observed, could re-
sult in damage to, or destruction of the
machine, process or its surrounding.
NOTE: The word NOTE is used to indicate points of
particular interest for more efficient and con-
venient repair or operation.
Understand thoroughly the following precautions,
always keep them in mind before, during, and after
operation, and never take chances.

SAFETY
7
MAKING YOUR TRACTOR A SAFE VEHICLE
How to Maintain Safety
(1) Never attempt to do the following:
• Modification of the structure of the tractor
• Installation of other type of engine
• Installation of tires of other than the original tire
size.
Any malfunctions or failures of the tractor due
to unauthorized modification are not covered
by the warranty.
(2) This machine cannot be driven on a public road
without authorization by a local government
agency, etc.
When transporting an unauthorized machine on a
public road, load it on a truck.
When traveling with an implement wider than the
tractor, put red caution markers such as flags (red
lamps at night) in the most visible locations on
both sides of the implements, and place a “SLOW
MOVING VEHICLE” sign in a place where it is
easily seen by other drivers. Operate the machine
carefully keeping in mind that the implement is
wider and may roll easily. If the implement can
be folded, fold it beforehand. If there are road or
railway crossings where the visibility is poor, you
should install on the machine a mirror to give a
view ahead of you so that you do not need to
move your machine too far into the intersection.
(3) When you travel on a road, you must turn work
lights off if the law requires it.
FIG. 1

TG5330, 5390, 5470
8
FOR SAFE OPERATION
How to be a Safe Operator
(1) Familiarize yourself fully with machine controls by
studying the operator’s manual before using your
machine.
This operator’s manual should be regarded as
part of the machine. Suppliers of both new and
second-hand machines are advised to retain
documentary evidence that this manual was pro-
vided with the machine.
(2) Never allow persons listed below to operate the
machine.
If any work carried out by unauthorized persons as
below would cause accident of the machine.
• Persons with mental disease
• Persons who cannot operate the machine prop-
erly because of fatigue, illness, or drowsiness
from medication, etc.
• Pregnant women
• Young persons or children too young to legally
operate the machine.
Always be careful of your health by taking suit-
able rest breaks.
(3) Wear appropriate clothing and other protective
devices during operation.
• Protection of your head
Wear protective headgear such as a helmet,
especially when traveling on roads or handling
material above your head.
• Protection to avoid being caught in the machine.
Wear tight fitting clothing and headgear, be-
cause loose clothing or hair can get caught in
the moving parts of the machine.
• Protection from poisonous dust or gases
Be sure to wear a protective device to protect
the respiratory system, eyes, and skin when
handling poisonous chemicals on work with
such a crop sprayer, mounted or trailed.
• Protection of the ears
Wear ear plugs or take suitable countermeasures
to protect your ears when you must operate the
machine under extremely noisy conditions.
• Maintenance of protective devices
Periodically inspect protective devices to as-
sure that they are functioning properly. Use
them at all times.
When Another Person Operates Your Machine
When another person operates your machine, you
must explain how to operate and instruct him or her to
read this manual fully to avoid unexpected accident.
FIG. 2
FIG. 3
FIG. 4
FIG. 5

SAFETY
9
Before Operation
(1) Set up an operation plan with sufficient time al-
lowance. A tight plan may result in unexpected
accidents when work has to be rushed.
(2) Inspect and service the machine periodically in ac-
cordance with the instructions given in the opera-
tor’s manual to maintain the machine in the best
condition.
Pay special attention to the controls, especially to
the brakes and clutch, and safety measures for the
machine when servicing it. If the machine functions
properly and performs normally, the chance of an
accident will be reduced greatly.
If safety devices are damaged or do not work,
please consult your ISEKI dealer.
(3) Before removing a safety devices, such as a
safety cover, be sure that the machine has
stopped completely. Never forget to replace the
removed part after servicing.
(4) Never refill fuel while the engine is running or it
is still hot. Keep away from open fires and never
smoke around a fuel tank or while fueling into the
machine. Never use open flames for illumination
when fueling the machine at night.
FIG. 6
FIG. 7
FIG. 8

TG5330, 5390, 5470
10
Starting Engine and Operating Tractor
(1) Before starting the engine indoors, make sure
that there is proper ventilation because exhaust
fumes contain poisonous carbon monoxide, which
cause lethal poisoning.
(2) Before starting the machine, confirm that the
transmission gear has been shifted to the ap-
propriate speed, that there is no one near the ma-
chine, and that the implement is securely installed
on the machine.
Always operate the machine from the operator’s
seat. Never leave the seat except in an emer-
gency when operating the machine.
(3) Before starting to move, pay attention to safety
conditions around the machine to avoid injury to
bystanders or damage to property. Never move
abruptly.
When Traveling
(1) Below are cases where the tractor may overturn.
This list is not exhaustive.
• When you travel on roads, latch the brake ped-
als, 1, together by using interlocking plate, 2, or
the tractor may overturn by 1 wheel locking.
• When you travel on roads, ensure the differen-
tial lock is off.
• Do not make sharp turns when operating at
high speed or for transportation.
• Do not make sharp turns on a slope.
FIG. 9
FIG. 10
FIG. 11
2
1
FIG. 12

SAFETY
11
(2) When traveling in a hill, drive the tractor carefully.
• When climbing up a hill, shift the speed change
lever to the most suitable speed. Start moving
the tractor as slowly as possible.
• While climbing up a hill, never shift speeds
along the way.
• When starting to move the tractor on an up-hill
slope, be sure that the front wheels do not lift
up.
• When going down a hill, drive the tractor at
slower speed than used to climb up the hill.
• While going down a hill, never shift into neutral,
and never try to control the speed only with the
brakes; use the engine brake effectively.
(3) When operating on poor footing such as a rough
road, a slope, a road along a ditch or river, or
undeveloped land, drive the tractor at low speeds
and operate it carefully.
(4) When traveling on a road where one or both
shoulders are slanted and which run along a
ditch, look out for softened shoulders especially
when the ditch is full of water and be careful not
to let the machine slip sideway.
(5) Never allow other persons to get on the machine
or the implement except when the machine or the
implement is provided with a seat or a platform
for persons to sit or stand on, and only within the
capacity specified.
Never allow persons to get on the implement
while traveling on roads.
(6) When parking the tractor, you have to park it on
hard, level ground and provide sufficient safety
measures by grounding the implement, removing
the key, applying the parking brakes, and chock-
ing the wheels securely.
(7) Keep inflammable away from the engine during
operation. Especially during stationary operation
do not operate the engine at high speeds so as
not to set fire to grass or straw with a heated ex-
haust pipe or exhaust fumes.
(8) When you have to operate the tractor at night,
make sure of the location of the controls. If not,
the tractor might work unexpectedly by mistake.
FIG. 13
FIG. 14
FIG. 15

TG5330, 5390, 5470
12
Loading onto or Unloading from a Truck
(1) When loading the tractor onto a truck or a trailer,
turn off the truck’s engine and apply the parking
brakes to the truck or the trailer.
Otherwise, the truck could move and the tractor
falls to the ground.
(2) Pay sufficient attention to the safety conditions
around the tractor and have it guided by someone
to assist the operation. Never allow other persons
to approach the tractor, especially in front of or
behind it.
(3) When loading or unloading the machine on / off
a truck, set slip-proof ramps at the same angles
and drive the tractor straight at sufficiently slow
speeds.
Loading the tractor in reverse travel and unload-
ing it in forward travel.
(4) Never depress the brake pedal during loading or
unloading operation, or the tractor may shift side-
ways, which may cause it to fall of the ramps.
(5) If the engine stalls unexpectedly on the ramps,
depress the brake pedal immediately and roll the
tractor to the ground by manipulating the brake
pedal. Start the engine on the ground and try
again.
(6) When the machine is loaded on the truck, stop
the engine, apply parking brakes, and withdraw
the starter key, chock the wheels, and rope it se-
curely to the truck. During transportation, do not
make sharp turns needlessly so as not to shift the
loaded tractor.
(7) Use ramps with the same or better specifications
mentioned below. When the machine is equipped
with attachments, consult your ISEKI dealer for
advice.
Specifications of the Ramps
• Length.....more than 4 times the height of the plat-
form of the truck
• Width (effective width).....more than 35 cm
• Capacity (1 ramp).....more than 1700 kg
• Ramps should have anti-skid surfaces
(8) Hook the ramps securely on the platform of
the truck with the top of the ramp level with the
platform.
(9) Always prepare for even the worst, by never al-
lowing other persons near the tractor.
(10) Drive the tractor carefully at the moment the trac-
tor moves from the ramps onto the platform, for it
changes angle abruptly.
FIG. 16
FIG. 17

SAFETY
13
During Operation
(1) During operation, never allow other persons in
the vicinity of the tractor, because the tractor itself
or flung pieces may cause injury.
(2) Pay attention to safety around the tractor to avoid
injury to bystanders or damage to property. Espe-
cially when operating with other persons, use the
horn to warn them.
(3) When crossing a ditch or a levee or when pass-
ing through soft land, drive the tractor slowly and
straight so that it does not slip or overturn.
(4) Do not touch dangerous parts such as rotating
parts, moving parts, hot parts (muffler, radiator,
or engine, etc.), or electric parts (battery termi-
nals and other live parts), or you may be injured
seriously.
(5) If you use a trailer, use a proper one which suits
your tractor. Using an improper trailer may cause
serious accidents. Never attempt to haul beyond
the tractor’s capacity. If you have a question,
please consult your ISEKI dealer. Follow strictly
the instructions outlined in the operator’s manual
of the mounted or trailed machinery or trailer,
and do not operate the combination tractor
- machine or tractor - trailer unless all instructions
have been followed.
(6) When moving the machine toward an implement
for the purpose of installing the implement, never
allow anyone to stand in between. When installing
the implement on the machine, prepared to move
away promptly in the event of an emergency.
The brakes should be applied securely during
installation.
(7) When front loader is attached, be aware of the
risk of falling object from the loader bucket. Wear
protective headgear such as a helmet. You are
advised to use Falling Objects Protective Struc-
ture (FOPS).
(8) Though tractor is primarily used in agriculture, it
may be used occasionally in a forestry applica-
tion. Pay special attention to the identified below
hazards:
• Toppling trees, primarily in case a rear mounted
tree grab-crane is mounted at the rear of tractor.
• Penetrating objects in the operator’s enclosure,
primarily in case a winch is mounted at the rear
of tractor (e.g. snapping of winch cable).
Falling Objects Protective Structure (FOPS) and
Operators Protection Structure (OPS) are not
standard equipments.
When using FOPS or OPS, consult your ISEKI
dealer concerning the fixation points on tractor for
the FOPS or OPS.
FIG. 18
FIG. 19
FIG. 20
FIG. 21

TG5330, 5390, 5470
14
Inspection and Maintenance
(1) Never allow persons listed below to inspect and
maintain the machine.
If any work carried out by unauthorized per-
sons as below would affect the warranty on the
machinery.
• Persons with mental disease
• Persons who cannot inspect and maintain the
machine properly because of fatigue, illness, or
drowsiness from medication, etc.
• Young persons or children too young
(2) When servicing the tractor or mounting or dis-
mounting an implement, place the tractor on level,
hard ground which is sufficiently illuminated, or
unexpected accidents may occur.
(3) When servicing the tractor, follow the instructions
listed below:
• Stop the engine.
• Apply parking brakes.
• Disengage all PTO.
• Place all gear shift levers in neutral.
• Remove the starter key.
• Lower the implement fully, if equipped.
If not, your hands or clothes may be caught or
sandwiched between.
(4) When servicing the tractor, use proper tools. Us-
ing makeshift tools may lead to injuries or poor
servicing, which may result in unexpected acci-
dents during operation.
(5) The engine, muffler, radiator, etc. are very hot just
after operation, so wait until they cool down suf-
ficiently to avoid burns.
(6) Never remove the radiator cap while the engine is
hot or running. Wait until the engine cools down
and then relieve the radiator pressure by releas-
ing the radiator cap. Carelessly pouring cooling
water into the heated radiator can cause serious
damage to the radiator and the engine. Careless
removal of the radiator cap can cause serious
injury because of overheated water vapor.
(7) Never fit unauthorized implements or attempt
unauthorized modification.
(8) Be sure to reinstall the removed safety covers in
place as exposed dangerous parts may cause
serious injury.
(9) Avoid high-pressure fluids. Escaping fluid under
pressure can penetrate the skin and cause seri-
ous injury, so keep hands and body away from pin
holes and nozzles ejecting such fluids. Be sure to
consult your ISEKI dealer about the hydraulic and
fuel injection system trouble.
When checking for leaks, use a piece of card-
board or wood without fail. If any hydraulic fluid
is injected accidentally into the skin, it must be
removed within a few hours by a doctor familiar
with this type of injury. FIG. 22

SAFETY
15
(10) When servicing wheels and tires, the tractor and /
or implement must be supported on suitable
blocks or stands. Not a hydraulic jack.
Do not attempt to service a tire unless you have
the proper equipment and experience to perform
the job. Have the work carried out by your ISEKI
dealer or a qualified repair service.
When seating tire beads onto rims, never exceed
the maximum inflation specifications specified on
the tire. Inflation beyond this maximum pressure
may break the bead, or even the rim, with dan-
gerous, explosive force.
If tire have deep scratches, cuts or punctures,
replace it by qualified personnel as soon as pos-
sible. Wear suitable protective clothing, gloves,
eye / face protection.
Storage
(1) Never cover a hot machine just after operation
with a tarpaulin or the like, or the heated engine
and related parts may cause a fire.
(2) Before storing the tractor for a long period of time,
disconnect the battery cables to prevent them,
in case they are gnawed by a rat, from causing
a short circuit, which may lead to a fire. When
disconnecting the cables, disconnect the negative
(-) cable first.
(3) Safe storage of dangerous objects
• When storing dangerous implements, take ap-
propriate safety measures to prevent accidents
by covering with tarpaulin.
• Store fuel in a safe place with caution signs
such as “PREVENT FIRE” or “INFLAMMABLE”.
• All inflammables must also be stored in a safe,
fire-resistant location.
Dismantling and Disposal
When the machine or its parts completes their useful
life, consult your ISEKI dealer for dismantling and
disposal. If you try to dismantle and dispose by your-
self, be aware of the necessity of hazards and safety
precautions.
FIG. 23

TG5330, 5390, 5470
16
MAINTENANCE OF THE ELECTRIC SYSTEM
To Maintain Electric Wiring
(1) When servicing the electric wiring, stop the engine
without fail. Otherwise your hands or clothes may
be caught in or sandwiched between rotating parts.
(2) Before manipulating electric parts, be sure to
disconnect the earth battery cable (-), or you may
get an electric shock or be injured by sparks.
(3) Loose electric terminals or connectors may not only
lower electrical performance but also cause short
circuit or leakage of electricity, which may lead to
a fire. Promptly repair or replace damaged wiring.
(4) Remove chaff or dust from the battery, wiring,
muffler, or engine. Otherwise it could result a fire.
To Handle the Battery
(1) When working around the battery, avoid smoking.
The battery generates explosive hydrogen and
oxygen gases when it is being charged. Keep the
battery away from sparks or open flames.
(2) The battery should be inspected before starting
the engine. Be careful not to touch the electrolyte
when removing the vent plugs. If the battery
electrolyte makes contact with the skin or cloth-
ing, wash it off immediately with water and then
consult a doctor.
(3) When replacing or inspecting the battery, stop the
engine and turn the main switch off, or electrical
parts may be damaged or unexpected accident
may occur. FIG. 24

SAFETY
17
(4) When disconnecting the battery cables, discon-
nect the earth cable (-) first without fail. When
connecting the battery cables, connect the posi-
tive cable (+) first. Disconnecting or connecting in
wrong order may lead to a short circuit or sparks.
To Handle Booster Cables
When using booster cables, pay attention to the fol-
lowing items for safe operation:
(1) Before connecting cables, remove the vent plugs.
This will lower the force in case of explosion.
(2) Before connecting cables, be sure to stop the en-
gine. Otherwise unexpected accidents may occur.
(3) Use booster cables with sufficient electrical capacity.
A cable of inadequate capacity will cause genera-
tion of heat, which may lead to a fire.
FIG. 25
FIG. 26

TG5330, 5390, 5470
18
SAFETY DECALS
(1) Fan warning label
(Code No. 1705-902-006-0)
WARNING: RISK OF ENTANGLEMENT
Stay clear of the fan while it is running.
(2) Battery disconnecting label
(Code No.1636-901-022-0)
WARNING: RISK OF ELECTRIC SHOCK
When disconnecting the battery, detach the nega-
tive terminal first and attach the positive terminal
first when connecting the battery.
(3) Belt warning label
(Code No.1674-904-008-0)
WARNING: RISK OF ENTANGLEMENT
Stay clear of the belt while it is running.
(4) Hot part warning label
(Code No.8595-901-007-0)
WARNING: HOT SURFACES, RISK OF BURNS
ON HANDS AND FINGERS
Stay clear of the heated parts until they cool
down sufficiently.
(5) Ether label
(Code No.1674-904-002-1)
WARNING: RISK OF EXPLOSION
Ether or other starting fluid should never be used
to start engines equipped with glow plugs.
(6) PTO label
(Code No.8654-901-002-0)
WARNING: RISK OF ENTANGLEMENT
Stay clear of the PTO shaft while the engine is
running.
(7) Trailer label
(Code No.1674-904-004-0)
WARNING: RISK OF OVERTURN
The rear implement should be installed on the
tractor with an approved drawbar or by using the
lower links of the 3-point hitch. Use only weight
not exceeding the designed capability of the
tractor.

SAFETY
19
(8) Radiator label
(Code No.1705-902-008-0)
WARNING: HIGH PRESSURE STEAM AND HOT
WATER
Never remove the radiator cap during or just after
operation. The water in the radiator is very hot
and highly pressurized, which could cause burns.
(9) Battery label
(Code No.1705-904-002-1)
ABCD
EF
A. WARNING: RISK OF EXPLOSION
Keep away from sparks or flames, which could
cause explosion.
B. WARNING: WEAR AN EYE PROTECTION DEVICE
Battery electrolyte (euphoric acid) may cause
blindness. Wear an eye protector to prevent con-
tact with the eyes.
C. WARNING: KEEP OUT OF REACH OF CHILDREN
D. WARNING: RISK OF BURNS
Battery electrolyte (sulphuric acid) may cause
burns. Avoid contact with skin or clothing. In case
of an accident, flush affected part immediately
with plenty of water.
E. WARNING: RISK OF EXPLOSION
Never use the battery with the electrolyte surface
below the “LOWER” limit, or it may explode.
Never replenish exceeding “UPPER” limit or elec-
trolyte may leak out.
Maintenance free battery does not need to re-
plenish distilled water.
F. WARNING: READ OPERATOR’S MANUAL
Read the safety and operating instructions in the
operator’s manual before operating the tractor.
Take care of handling the battery.
Improper handling may lead to explosion.
Never short the poles.
Charge the battery in a well ventilated place.
(10) Starter warning label
(Code No.1705-902-007-0)
DANGER: RISK OF ELECTRIC SHOCK
Start the engine only from the seat using the key.
(11) Operation caution label
(Code No.1674-904-001-0)
A. WARNING: BEFORE OPERATION
Read the safety and operating instructions in the
operator’s manual before operating the tractor.
B. WARNING: MAINTENANCE
Do not service the tractor while the engine is run-
ning or hot, or while the tractor is in motion.
C. WARNING: RISK OF ABRUPT MOVING
Before leaving the tractor unattached, apply the
parking brake, lower the implement, turn off the
engine and remove the starter key to avoid unex-
pected moving of the tractor.
D. WARNING: RISK OF INJURY OR DAMAGE
Pay attention to safety around the machine to
avoid injury to bystanders or damage to property.
E. WARNING: RISK OF OVERTURNING
Never operate the tractor on a slope of over 10
degrees, or it could overturn.
F. WARNING: RISK OF INJURY OR DAMAGE
Never allow other persons to get on the tractor or
the implement.
