Ispring CRO1000 Parts list manual

CRO1000 Commercial Grade 1000 GPD
Reverse Osmosis System
INSTALLATION INSTRUCTIONS
& OPERATING MANUAL Ver. 06/2020
Copyright ©2005-2019 ISPRING WATER SYSTEMS, LLC. All rights reserved.

Page 1www.123filter.com | [phone] | [email protected]
We stand behind our products
iSpring has been dedicated to providing high-quality drinking water to families across the United
States since 2005.
From various residential water filtration systems that purify your water in everyday life, to drinking
water faucets that deliver pure, healthy, and tasty water to you and your family, iSpring strives for
high standard products and aims to make excellent drinking water accessible for all households.
At iSpring, we strive for high standard products and aim to make excellent drinking water
accessible for all households.
With affordable pricing, reliable quality, prompt delivery, and top-notch customer service, we hope
to assist in bringing you great water for years to come.

www.123filter.com | [phone] | [email protected] Page 2
Prior to Installation
Read this instruction manual carefully prior to installation.
Keep this manual readily available for future reference.
Table of Contents
Important User Information....................................................................................... 3
Packing List and Components.................................................................................... 4
Product Features
Scope and Intended Use................................................................................................. 7
Water Treatment Process............................................................................................... 7
Product Dimensions....................................................................................................... 7
Product Assembling and Installations
Prior to installation......................................................................................................... 8
Assembling the Machine Head...................................................................................... 8
Assembling the System Body........................................................................................ 9
Using the System
Initial Setup...................................................................................................................13
Daily Maintenance and Filter Replacement Schedule.................................................14
Recommendations and Tips......................................................................................... 15
Warranty
Warranty and Registration........................................................................................... 16

Page 3www.123filter.com | [phone] | [email protected]
Important User Information
Users must adhere to the installation specifications described in this Product Installation and
Operation Manual (hereinafter referred to as the “instruction manual”). iSpring Water Systems
LLC (Hereinafter referred to as “iSpring) is not responsible for damage, loss, or injury resulting
from neglect, improper maintenance, or unauthorized modification of the unit.
This product is designed for residential and light commercial use ONLY. Contact iSpring
customer service to inquire about use in any other environment or setting.
The operating temperature range is 41°F - 100°F. When the water temperature or ambient
temperature falls below 41°F, shut off the inline water supply, turn off the inline water adapter,
and drain the remaining water from the system. Failure of the water supply line or water
purifier may result in malfunction, damage, and possible injury to the enclosure or water
supply line.
If leaking occurs, immediately shut off the inline water supply by turning off the adapter. Then
unplug the system and contact iSpring customer service at 678-261-7611 from 9:00 a.m. to
5:00 p.m., Monday – Friday, or open an online ticket 24/7 at support.123filter.com.
Only use authorized iSpring parts and filters. Using unauthorized or aftermarket components
will void the product warranty.
iSpring recommends that users check external fittings and connections regularly to ensure all
components are secure and there are no leaks.
Unauthorized modification or disassembly is strictly prohibited and will void the warranty.

www.123filter.com | [phone] | [email protected] Page 4
Packing List and Components
N.O.
Name
Quantity
1
Machine Head
1
2
Machine Head Assembly
(with O-ring x4, 3/8" PE
tubing – 32mm pre-
assembled.)
1
Shown in Figure. 1-3
3
1000 GPD Reverse
Osmosis Membrane
1
4
Automatic Shutoff
Components
1
5
Housing Wrench
1
Shown in Figure. 1-3
6
PP Sediment Filter with
Clear Housing
1
Shown in Figure. 1-3
7
Carbon Block Filter with
Blue Housing
1
Shown in Figure. 1-3
8
Carbon Block Filter with
Blue Housing
1
Shown in Figure. 1-3
9
Omni Wheels
4
Shown in Figure. 1-3
10
Frame - Base Assembly
1
Shown in Figure. 1-3
11
Frame - Pillar Assembly
3
Shown in Figure. 1-3
12
User Manual
1
13
Water inline fitting: ¾''
MNPT to ¾'' push to
connect fitting
1
14
Lubrication Pack
1
15
Plumber's tape
1

Page 5www.123filter.com | [phone] | [email protected]

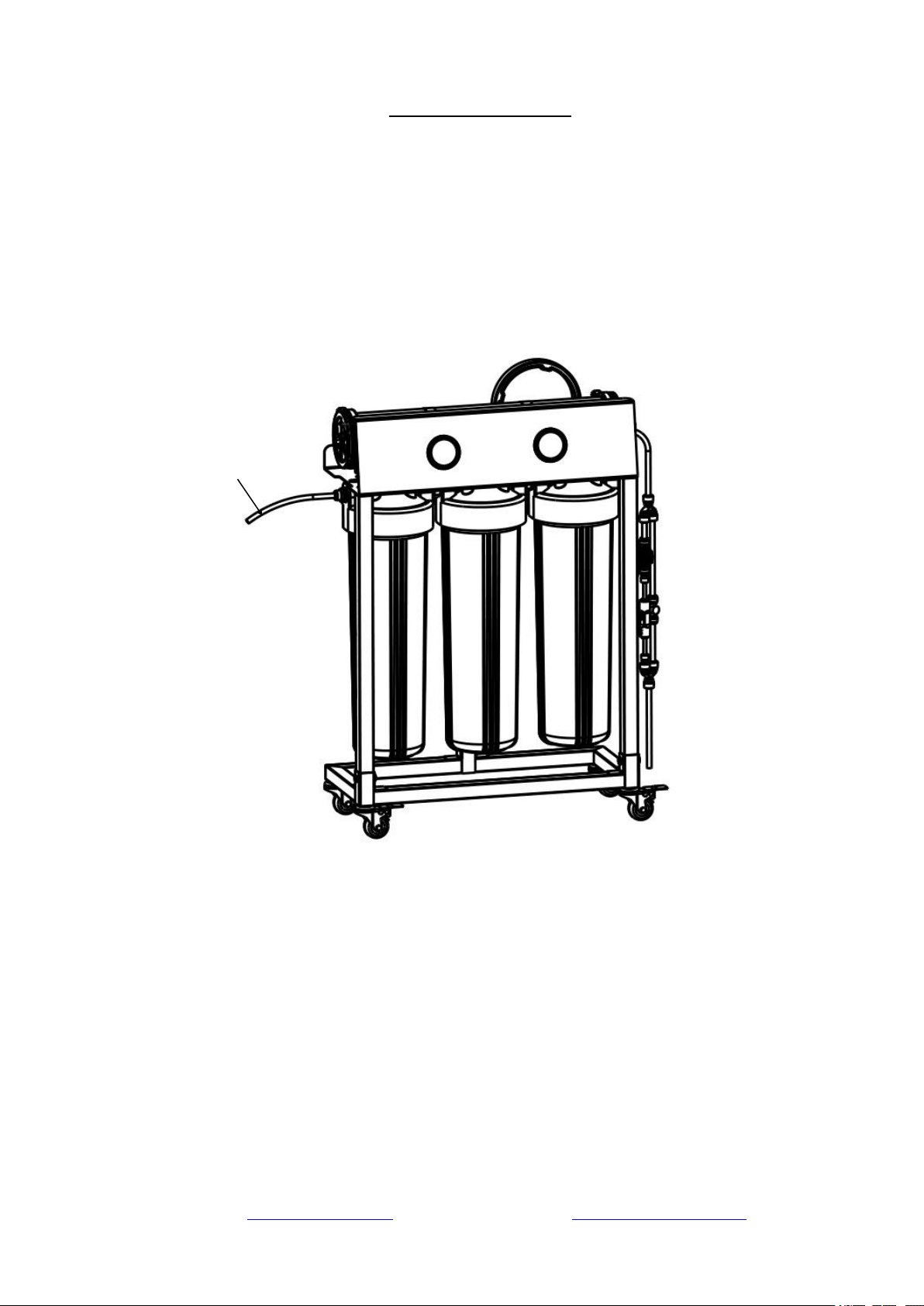

Figure 1. Product Components
16
M8 x45 Screw sets
3
17
M6 x14 Screw sets
3
18
Zip tie
19
1/4" Quick-Fitting Lock
Clip
9
20
3/8" Quick-Fitting Lock
Clip
15
21
Spare parts pack
1

www.123filter.com | [phone] | [email protected] Page 6
Figure 2. Machine Head
Figure 3. Machine Head

Page 7www.123filter.com | [phone] | [email protected]
Product Features
1). Scope and Intended Use
This system is designed for use with municipal water in residential and light commercial applications.
2). Water Treatment Process
Municipal Tap Water → PP Sediment Filter → Carbon Block Filter → Carbon Block Filter → Reverse
Osmosis Membrane → Pure Water
Specifications
Model No.
CRO1000
Inlet Water Pressure Range*
80 -130 psi
Optimal Inlet Water Pressure
100 psi
Inlet Water Temperature
41–100°F
Maximum Pure Water Flow**
Up to 1000 GPD （0.7GPM）
*Booster pump recommended if inlet water pressure is less than 80 psi for optimal performance.
** Tested with water of 150ppm TDS, at 100 Psi and 73°F. The actual flow rate differs based on specific conditions.
Filter Changing Schedule***
Filter
Changing Frequency
PP Sediment Filter
3-6 months
CTO Filter
6-12 months
RO Membrane
2-3 years
***Actual filter life may vary based on specific water conditions.
3). Product Dimensions

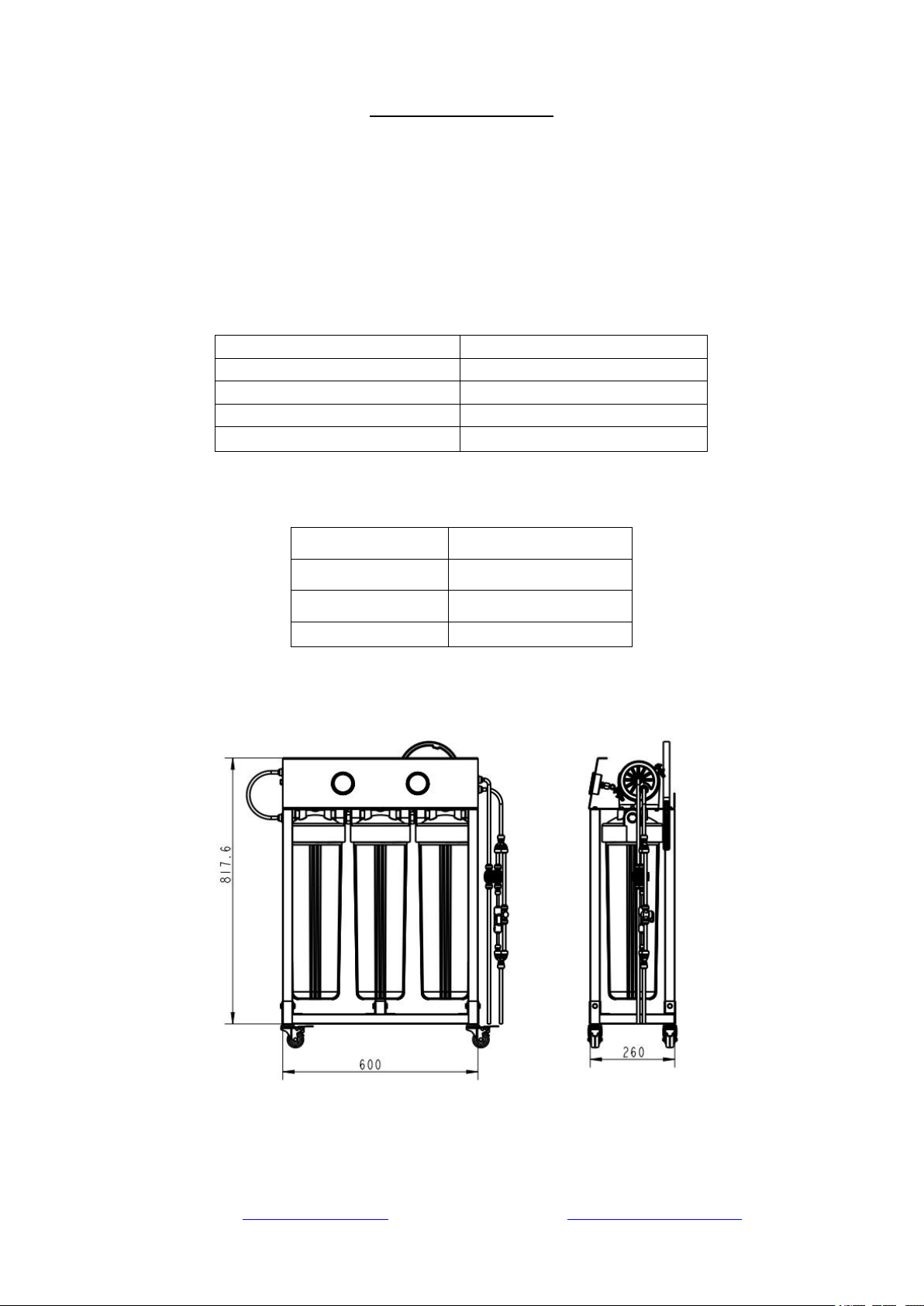

Figure 4. Overall Dimensions (measurements are in mm)

www.123filter.com | [phone] | [email protected] Page 8
Product Assembling and Installations
1). Before Installation
Ensure there is enough space at the desired location for the system and to change filters
safely. Contaminated water will run out of the drain line, so be sure to consider this.
Verify no parts are missing from the package. Contact iSpring if any part is missing or
defective.
Tools required for assembly:

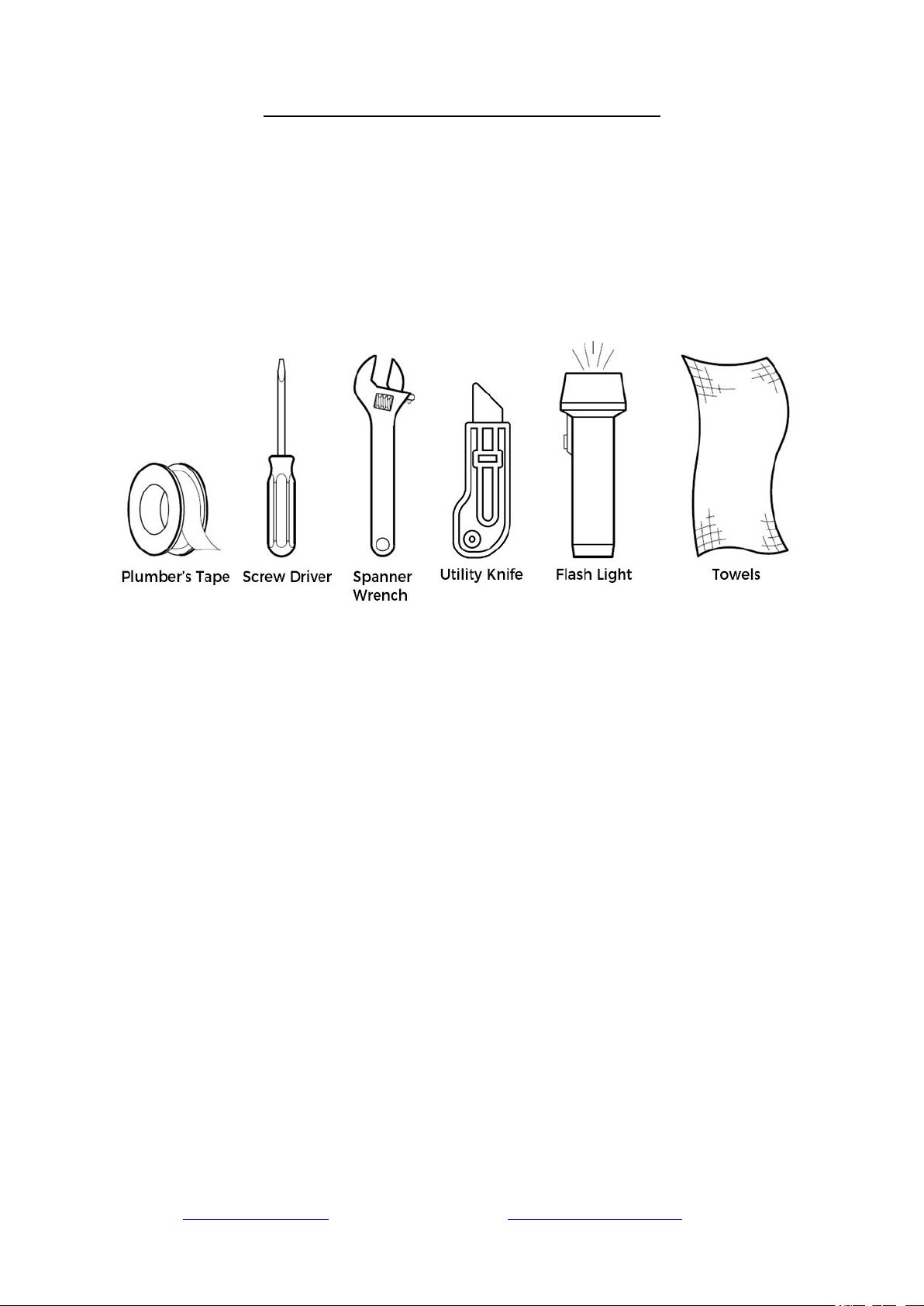

Figure 5. Recommended Tools
2). Assembling the Machine Head
Remove the screws on the clamps located on both ends of the stainless-steel membrane
housing. Also, remove the caps on both ends.
Verify the O-rings on both caps (4 in total) are correctly in place.
Take the RO 1000G out of its package and place it in the stainless-steel membrane housing.
Pay careful attention to the direction of the arrow on the RO membrane; it must be the
same as the direction of the stainless-steel membrane housing.
Replace the caps on the stainless-steel membrane housing and screw the clamps in place.
Pay attention to the ends of the caps.
Insert the PE tube into the quick connector on the lower left side. You do not need to insert
the upper quick connector on the left side at this point. After the first three-stage filter is
flushed with water, install the quick connector on the upper side. Then rinse for 3-5
minutes before connecting the PE tube to the water inlet of the RO membrane. This serves
to prevent damage to the RO membrane from the activated carbon particles washed out
from the first rinse.

Page 9www.123filter.com | [phone] | [email protected]

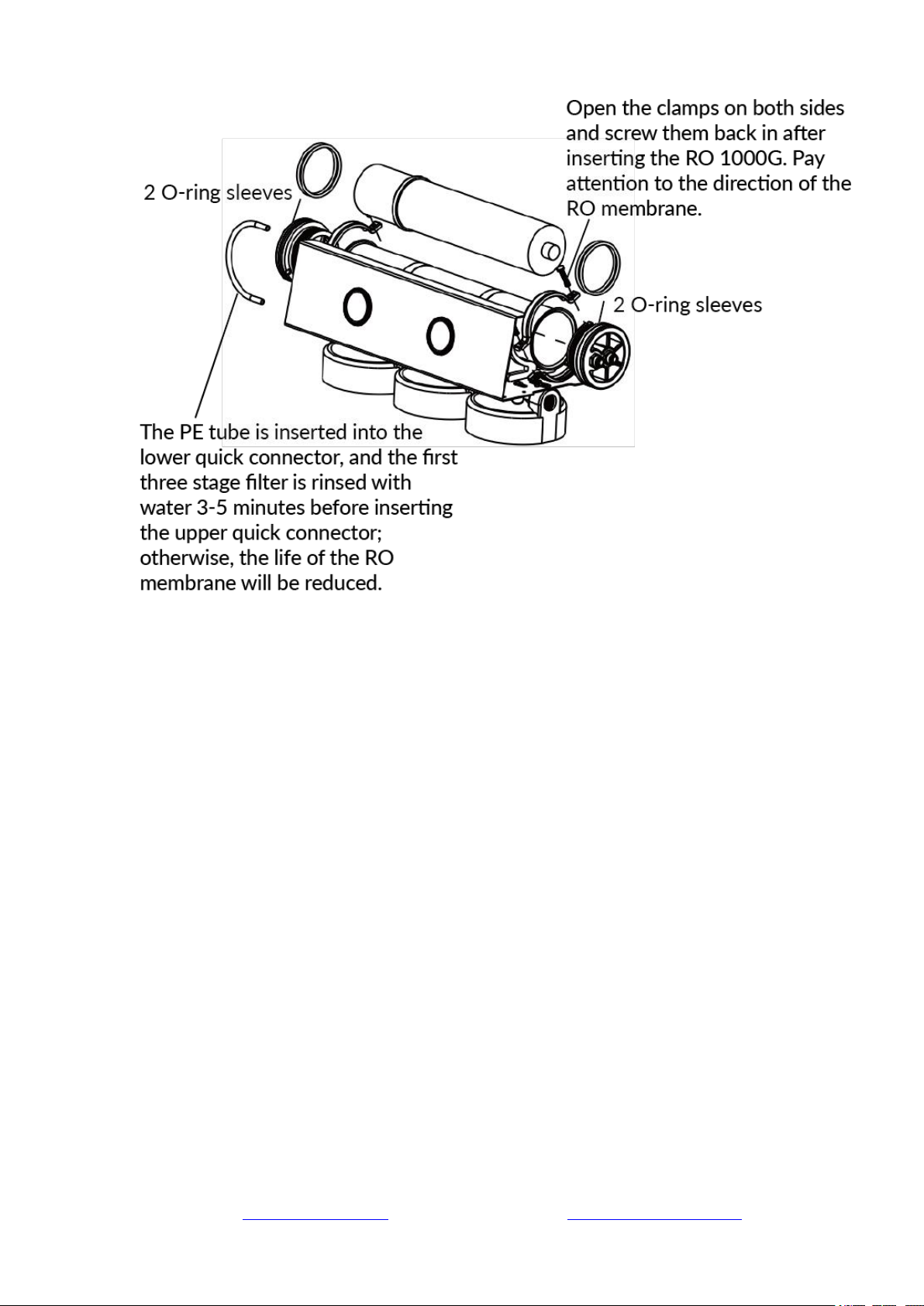

Figure 6. Machine Head Assembling
3). Assembling the System Body
The 4 Omni wheels are locked onto the frame base, and the foot brake can be pressed down
into the locked position for subsequent installation.
Insert three frame pillars into the three square slots of the frame base. Pay careful attention
to the opening direction of the frame pillars, as it is the same as the opening direction of the
frame base. Then screw on the M8 bolts and use a wrench to lock the bolts and fix the
frame pillars.
Place the machine head on the three fixed frame pillars, then determine the orientation and
lock the three M6 screws. Next, fix the machine head and confirm that the entire steel
frame is stable as assembled.
Take out 3 filters and remove their PE protective film. Install the 3 filters: the PP sediment
filter, and 2 CTO filter in order from right to left, and use the housing wrench to tighten the
housing.
Install the water outlet into the outlet of the RO membrane housing. Pay attention to the
interface between pure water and waste water. The water outlet tube is white and blue: the
blue tube runs pure water, and the white tube runs waste water:

www.123filter.com | [phone] | [email protected] Page 10
The pure water inlet is connected to the quick connector in the middle of the membrane
housing cap, and the outlet is connected to water-using equipment such as a pure water
faucet.
The wastewater inlet is connected to the quick connector on the outside of the membrane
housing cap, and the outlet discharges sewage through the sewage pipe.
Connect the system’s water inlet to the water supply pipe. The system comes with a 3/4"
NPT female connection. A 3/4" NPT to 3/4" quick-connect brass fitting connector is also
included. Different types of connections can be used based on the user’s actual setup.

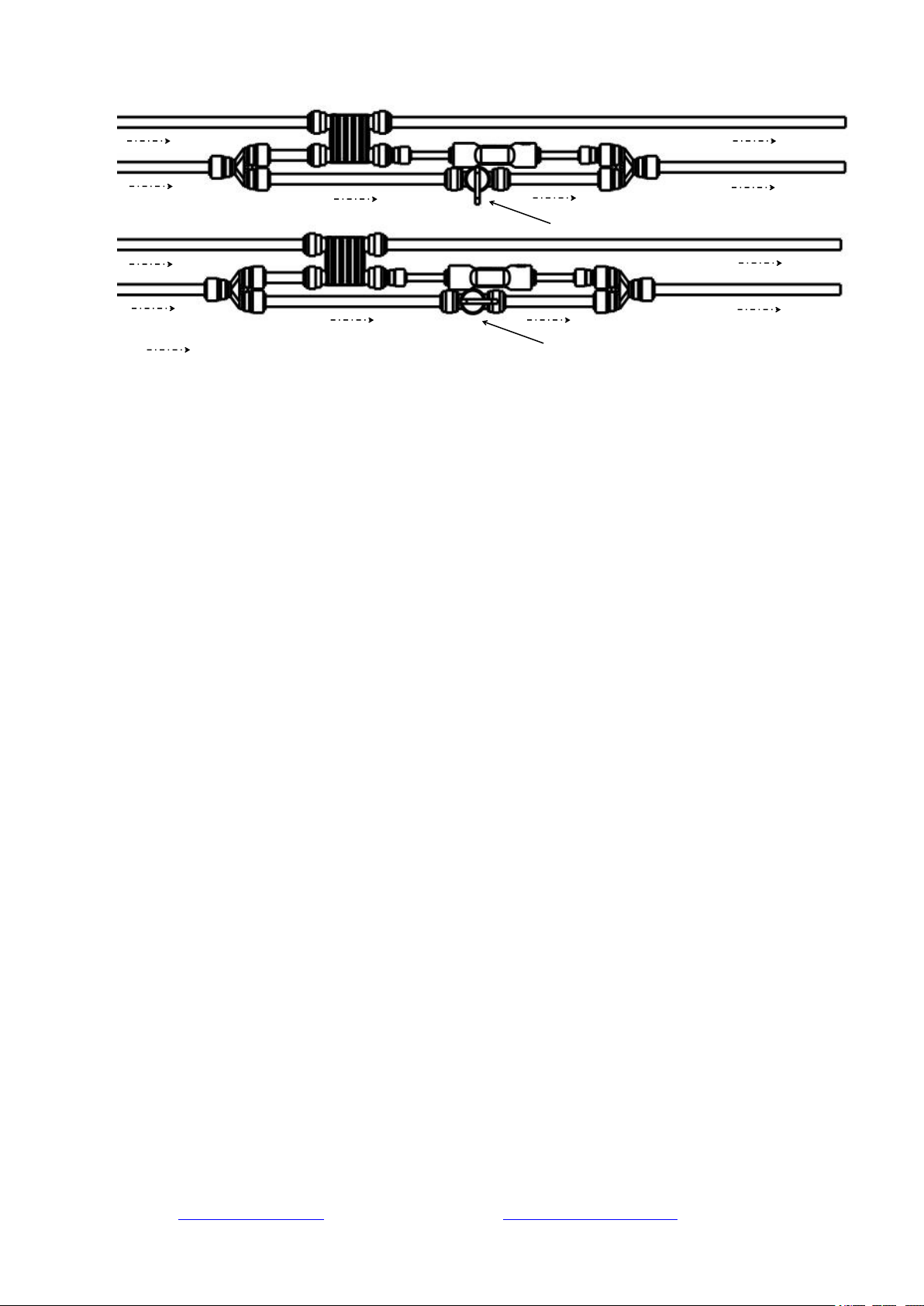

Figure 7. How to Install and Disconnect 1/4" and 3/8" Quick Fitting

Page 11 www.123filter.com | [phone] | [email protected]
Figure 8. How to Use the Push to Connect Fittings

www.123filter.com | [phone] | [email protected] Page 12
Figure 9. Installation
2. Three frame pillars
are respectively
inserted into the three
square slots of the
frame base. Screw in
the M8 bolts.
3. Put the machine
head on the three
frame pillars and
screw in the M6
screws.
1. Four Omni wheels
4. Install PP and
CTO in order from
right to left.
Wrench for tightening the
housing
5. Install the water
outlet component on
the water outlet of the
RO membrane.
Blue pure water tube,
connect to the 3/8'' quick
connect fitting.
White drain line
Pure water outlet,
connect to water-
using equipment such
as a pure water faucet.
Wastewater outlet,
connect to the sewage
drain.
6. Connect the water
inlet to the water supply
pipe.

Page 13 www.123filter.com | [phone] | [email protected]
Using the System
1). Initial Setup
It is essential to flush the system to avoid damage to the reverse osmosis membrane. Flushes
should be performed each time the filters are changed as well. Disconnect the PE tubing
between the 3rd stage and the membrane housing. Place the end of the tubing in a drain or
container, then turn on the water supply and flush the first 3 stage pre-filter for at least 5
minutes. Turn off the water after the flush is complete and connect the tubing to the reverse
osmosis membrane housing.
Figure 10. Flushing the System
After all the tubing is connected, turn on the water supply and make sure the system is not
leaking. Verify the ball valve on the automatic shutoff components is in the “on” position
(shown in Figure 10.). Then keep the water running and rinse the membrane for at least 30
minutes. This process serves to kick start the membrane by rinsing off the protective
solutions on the membrane’s surface. It is recommended that users manually rinse the
membrane for 5 minutes at least every 3-6 months to ensure the maximum performance of
the membrane.
Disconnect this tubing
for initial flush.

www.123filter.com | [phone] | [email protected] Page 14
Figure 11. Valve Position
The system is now ready to use. Make sure the drain line is in position for proper
wastewater dispense.
2). Daily Maintenance and Filter Replacement Schedule
The first stage should be replaced every 3 – 6 months depending on source water quality.
This stage comes with a transparent housing that enables simple, periodic visual checks of
the filter. Replace the filter as soon as you see any buildup on the surface of the filter, or if
you see a significant change in the filter’s color.
The 2nd and 3rd Stage should be replaced every 6-12 months, depending on source water
quality. Replace the filters immediately anytime you observe a significant pressure drop.
The reverse osmosis membrane should be replaced every 2 – 3 years if it is regularly rinsed
(5 minutes every 3-6 months).
To replace the first 3 stages filter, turn off the inline water supply, drain the remaining water
in the system, use the included housing wrench, turn clock wise to unscrew the housing.
Dispose the old filters and instert the new ones. Place the housing back to attach to the
housing cap, make sure the orings are in place, apply luberication if required. Hand tight the
housing then use the housing wrench, turn counter-clock wise for another 1 to 1 ½ rounds.
Water Flow
Ball Valve Off (during normal use)
Ball Valve On (rinse)

Page 15 www.123filter.com | [phone] | [email protected]
Figure 12. How to Use the Housing Wrench
To replace the RO membrane, turn off the inline water supply, drain the remaining water in
the system. The membrane housing comes with 1 cap on each end, and membrane can be
replaced from either end thus only one cap is needed to be removed. Remove the tubing on
the quick fittings of the side to be taken off, loosen the M8 screw that locks the cap then
pull the membrane cap out. Pull out the old membrnae with a pair of pliers, insert new
membrane. Replace the cap, make sure the orings are in place and fasten the M8 screw.
Instert the tubing back to the quick connecting fittings.
Please be advised that the system needs to be running for at least 30 minutes after any filter
is changed before the water can be consumed.
3). Recommendations and Tips
All 4 Omni wheels come with a brake and leveling system. Simply press the brake down to
apply the brake and lift the brake to release and move the system with ease. The height of
the Omni wheels can be adjusted by a wrench to keep the system level.
Pressure gauges are connected to the outlet of the 1st and 3rd stages. If the difference
between the 2 gauges is greater than 5 psi, there are contaminates blocking the filters. The
first 3 filters should be replaced as soon as possible to ensure maximum performance.
If the inline water pressure is less than 70 psi, or the ambient temperature is below 60°F, use
the optional booster pump (Model number PMP1000) to ensure optimal performance.

www.123filter.com | [phone] | [email protected] Page 16
Warranty Registration
To register your product for the warranty, visit our website at 123filter.com and go to the
“Warranty” tab.
We provide a 30-day money-back guarantee, a 1-year manufacturer warranty, and lifetime tech
support for all of our products. However, we do not have the order information from websites other
than 123Filter.com (Amazon, Home Depot, etc.), so please be sure to fill in that information upon
registration of your system. If you have any questions or concerns about your product, please do
not hesitate to call or email us, or put it in the notes/comments upon your warranty registration.
Your satisfaction is our business!
If you are happy with our products and service, please show your support by
writing a product review on Amazon, even just a single line. It takes you just a
minute but means a lot to us. Thank you!

3020 Trotters Parkway
Alpharetta, GA 30004, USA
iSpringFilter.com
For questions, comments, or technical support, please contact us at:
[email protected]
[phone]
Monday-Friday 8:30 a.m. - 5:30 p.m. EST
