Electric scooter
User manual
Thank you for choosing this product.
For information, technical support and assistance,
contact your reseller or visit www.vr46e-mobility.com
English

02
Index
1. Safety instructions
2. Quick guide
3. Contents of the package
4. Product overview
5. Command information / Control panel
6. Assembly and set-up
7. Folding and carrying
8. Removingandttingthebattery
9. Battery charging
10. Autonomy
11. Storage and cleaning
12. General warnings
13. Learning to ride the scooter
14. Battery (Warnings)
15. Responsibility
16. Daily maintenance and care
17. Technical data sheet
18. Troubleshooting
19. Error code table

03
1. Safety instructions
Please read the following instructions carefully before using the scooter. Keep this manual for future
reference or new users.
• The company will not assume any liability arising from misuse of the product or non-compliance both
with regard to road regulations and the instructions in this manual.
• This electric scooter is not a toy. Use it responsibly, with care and respect for others.
• Check local current regulations on the use of these products before riding it, and comply with local
 trafcregulations.Rideresponsiblyandpayattentiontopersonsandobstaclestoavoidaccidents.
• Always use the recommended clothing: non-slip gloves, knee and elbow pads and wear a helmet.
• When holding the handlebars at the correct height, the person riding this scooter must be able to place
both feet on the ground easily.
•Whenstoppingorparkingyourvehicle,besuretodosoonaatandsafesurface
• The maximum load capacity for the scooter is 100 kg.
• This scooter may not be used by more than one person at a time.
• Misuse of the scooter or non-compliance with the instructions provided in this manual may cause
serious injury.
• Should technical problems occur, contact the Technical Support Service at your dealer.
• Do not attempt to disassemble or repair the scooter yourself.
•Donotleavethebatterynearreorheatsources.
• Avoid using used, defective and/or non-original batteries.
• Do not sit on the scooter both while riding it or when it is parked.
• If the user who is going to use the scooter is not familiar with this type of vehicle, they should be
 instructedonthebasicsofridingbyanadultbeforeusingitforthersttime.Trainingshouldcoverthe
following topics:
• Acceleration
• Deceleration
• Braking
• Basic riding principles

04
2. Quick guide
• Beforeusingthescooterforthersttime,fullychargethebattery.
• Press the power button for a few seconds to start it.
• Check the tyre pressure (50PSI); if the scooter does not reach at least 60% of the declared Km or does
 notreachthemaximumspeedwithintherst3monthsofuse,itislikelythatthewheelshavedeated
again. In this case, restore the pressure as indicated.
• Placethescooteronaatsurface
• Place your hands on the handlebars. Step onto the footrest with one foot and use the other to give
yourself a gentle push and accelerate.
• After use, check the battery indicator. If the battery is out of power, recharge it before use. The electric
scooter is a device that requires periodic recharging.
• When the scooter begins to move, place both feet on the footrest and press the accelerator.
• To steer the scooter, tilt your body in the direction of travel when turning and slowly turn the handlebar.
• To stop the scooter, release the accelerator and press the electronic brake or lever on the left side of the
handlebar.
• Togetoff,stopthescootercompletelyrst.Tryingtogetoffamovingscootermayresultininjuries.
• To change the speed mode, press the function button (chapter 5).
• When riding at night or in dark places, press the power button once to turn on the lights, wear a
 reectivevest.
For your own safety, wear a helmet and knee pads to protect yourself against falls and injuries
while learning to ride the electric scooter.
The rider assumes all responsibility for any injury suffered when not wearing a helmet or other
protective gear.
The accelerator is activated once the speed of travel exceeds 3 km/h.
For safety reasons, the scooter is initially set up to avoid standing starts.
IMPORTANT

05
3. Contents of the package
No.1 battery pack
No.1 right handlebar grip
No.1 left handlebar grip
No.1tubefortyreination
Scooter assembled, only the grips will need to be installed.

06

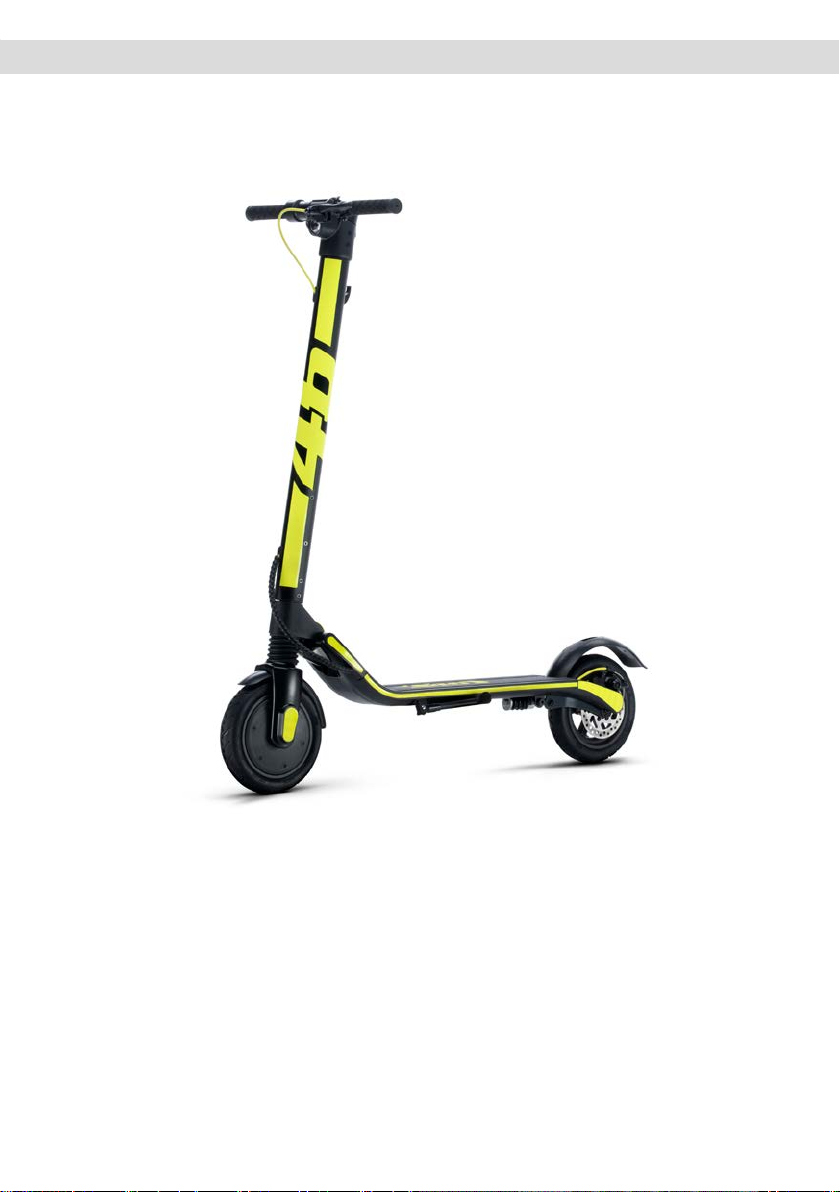

4. Product overview
handlebar stem
rear light
mudguard and
foot brake
handlebar stem
locking clip
footrest
rear suspension
fork
disc brake
kickstand
charging port
motor rear wheel
folding system
brake lever
hook
display
accelerator lever
front light
front
suspension

07
5. Command information / Control panel
1. Switch: long press the power button to turn the power on/off. Press once to switch between ODO/TRIP display.
2. Acceleration: Press the right acceleration button to start and accelerate.
3. Brake: pull the brake lever to brake. Place one foot lightly on the rear mudguard to assist with braking.
4. Brieypressthefunctionkeytodirectlyadjustthespeed:Beginnermode:6Km/hNormalmode:20Km/h 
Sport mode: 25Km/h.
5. Headlights: Long press the function button to turn the front and rear headlight on and off.
6. Cruise Control Mode: Maintain current speed for 6 seconds to enter Cruise Control Mode. To exit cruise speed
mode, press the accelerator or brake again.
ON/OFF key
failure
instantaneous speed
speed mode
speed unit
battery
functions key
accelerator lever
display
lights
distance travelled
cruise control
temperature
brake lever

08

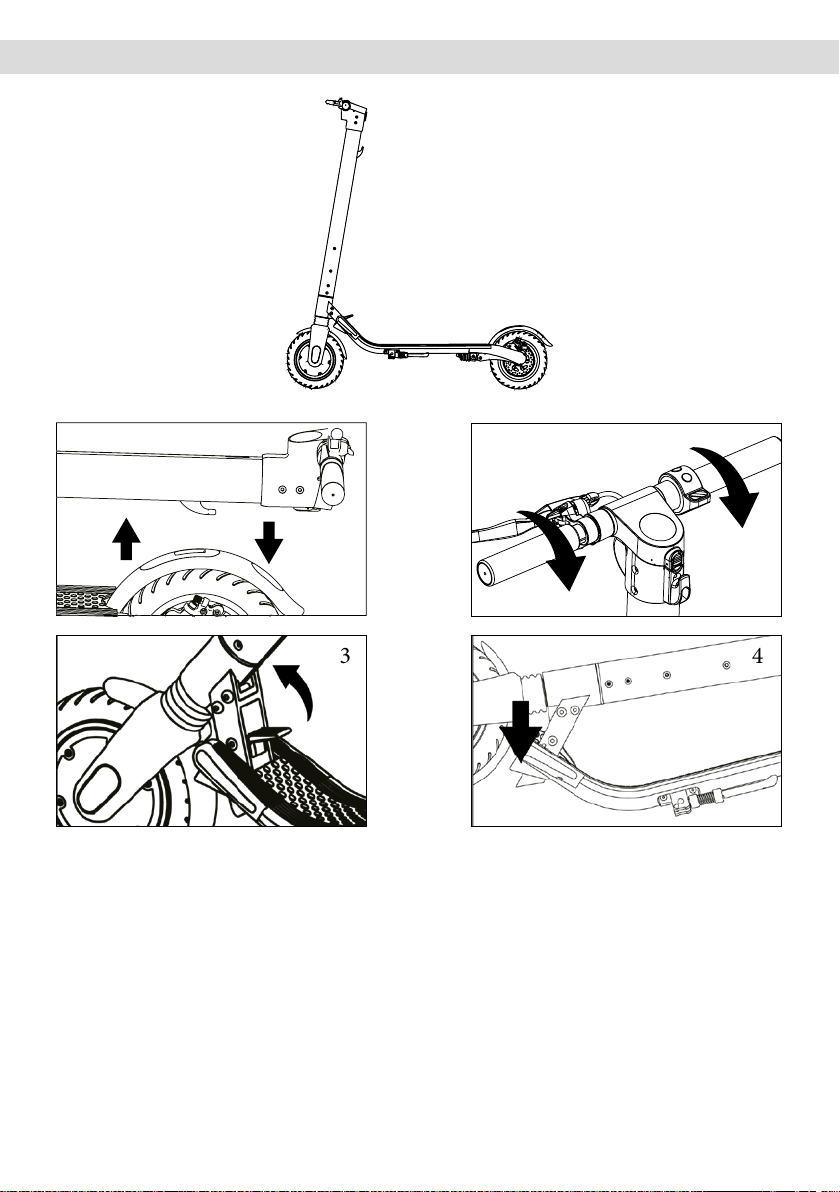

6. Assembly and set-up
1. Lift the handlebar stem while simultaneously pressing down on the rear mudguard (pic. 1).
2. Fit the grips on the handlebar and tighten them correctly, paying attention to the direction of
rotation (pic. 2).
3. To lock the handlebar rod correctly, push the handlebar forward while keeping one foot on the
footplate (pic. 3).
4. Make sure that the handlebar is locked correctly, if the handlebar tends to come back down repeat
the operation in point 3 (pic.4).
12
3 4

09
1 2
1. Stand behind the handlebar and hold it.
2. Operate the lever with your foot (pic. 1).
3. While keeping your foot on the lever, push the handlebar forward to unlock it, quickly pull the
handlebar towards your chest.
4. Stand beside the e-scooter and guide the handlebar downwards with one hand.
5. Align the hook of the handlebar with the hole on the rear fender.
6. Push the hook down on the rear fender (pic. 2).
7. Secure the hook to the rear fender by pulling up the handlebar.
After folding, hold the handlebar stem with one or both hands.
7. Folding and carrying
Transportation position

10
1. Press the button
located on the display
cover lock to open it.
1. Open the display
cover and the battery
compartment cover.
Removal
Assembly
2. Unscrew the battery
compartment cover.
2. Align the groove
of the battery with
the groove in the
upright and slowly
insert the battery
inside (pay attention
to the direction of the
groove).
3. Pull the battery
upwards to remove it.
3. Tighten the battery
compartment cover,
push the display
cover lock down
and complete the
installation.
8. Removing and tting the battery

11
• Open the charging port cover, make sure the charging port is clean and dry.
• Connect one end of the charger to the battery and the other end to the power outlet (100 V-240 V;
50/60 Hz); make sure that the charging indicator is on.
• The light on the charger indicates red when charging and green when charging is complete.
Charging method 1
9. Battery charging

12
• Remove the battery to open the silicone charging port, connect the charger DC plug to the battery
charging port; connect the power cable to the charger, then connect the other port to the outlet (100
V-240 V; 50/60 Hz) and check that the charger indicator is switched on normally.
• Cover the charging port with the dust cap in case metal is likely to come into contact with the charging
port and cause a short circuit at the end of the charging port.
The device is usually delivered partially charged. However, we recommend
chargingitfor6to8hoursbeforeusingitforthersttime.
We also recommend charging it after each use and before storing it.
Do not allow the scooter to discharge completely as this may damage the
battery.
Charging method 2
IMPORTANT
porta di ricarica interfaccia della
batteria

13
The maximum autonomy depends on several variables:
Terrain: riding on a smooth surface promotes a longer autonomy than riding on rough roads and slopes.
User weight: the heavier the user, the shorter the autonomy.
Temperature: riding the scooter in a very cold or hot environment affects its autonomy. Speed and riding
style: riding smoothly and at constant speed extends the autonomy. Acceleration and manoeuvring
aggressively reduce range. A lower speed extends the autonomy.
Maintenance: timely recharging and correct maintenance increase the autonomy.
Charge the scooter to 50% - 60% before storing it for extended periods of time. Recharge it to 50% -
60% every 2-3 months. If not used daily, the scooter should be stored at a temperature of 15-25°C. Do
not expose the scooter to extreme temperatures (below 0°C or above 45°C). Avoid leaving it outdoors, as
it is not water-resistant.
When the scooter gets dirty, clean it with a damp cloth. Before cleaning it, make sure that it is turned off
and cover the charging port to prevent damage to the electronic components. Do not use alcohol, petrol,
kerosene or other corrosive and volatile chemical solvents. This may damage both the appearance and the
internal structure of the electric scooter. Do not use pressurized water jets or running water to clean the
scooter. The electric scooter is not waterproof.
Do not expose it to rain or water or immerse it in water to wash it.
10. Autonomy
11. Storage and cleaning

14
12. General warnings
• Check the brakes, the pressure (50 PSI), the condition of the wheels and the accelerator before each
use. If you notice any unusual noises or anomalies, do not use the scooter, and contact your dealer’s
Technical Support Service.
• Itisforbiddentomodifythescooterinanywayasthiscouldalteritsefciencyordamageitsstructure
and cause damage.
• Make sure the scooter is off before parking it.
• Do not ride the vehicle in the rain, snow or fog.
• Make sure the electrical components of the vehicle do not come into contact with water or other liquids.
• Avoid riding near rivers or lakes.
• Supervise children to make sure they do not play with the product. Strict supervision is required if the
product is being used by or near children.
• For information, technical support and help, contact your dealer.
Instructions on riding behaviour
• Do not use the phone or listen to music while riding the scooter.
• Only ride if there is enough light to ride safely. When riding in unfavourable light conditions, remember
 toturnonthescooterlightsandtowearareectivejacket.
• Always hold the handlebar with both hands when riding.
• Always ride with both feet on the footrest in a safe and comfortable position.
• Do not become distracted while riding and always look ahead.
• Always ride at a speed that allows braking safely.
• Start braking early enough to avoid obstacles, bends and areas that differ in terms of road type.
Remember to release the accelerator before braking.
• Do not race with other riders.
• Keep a minimum safety distance of 5 m from other vehicles.

15

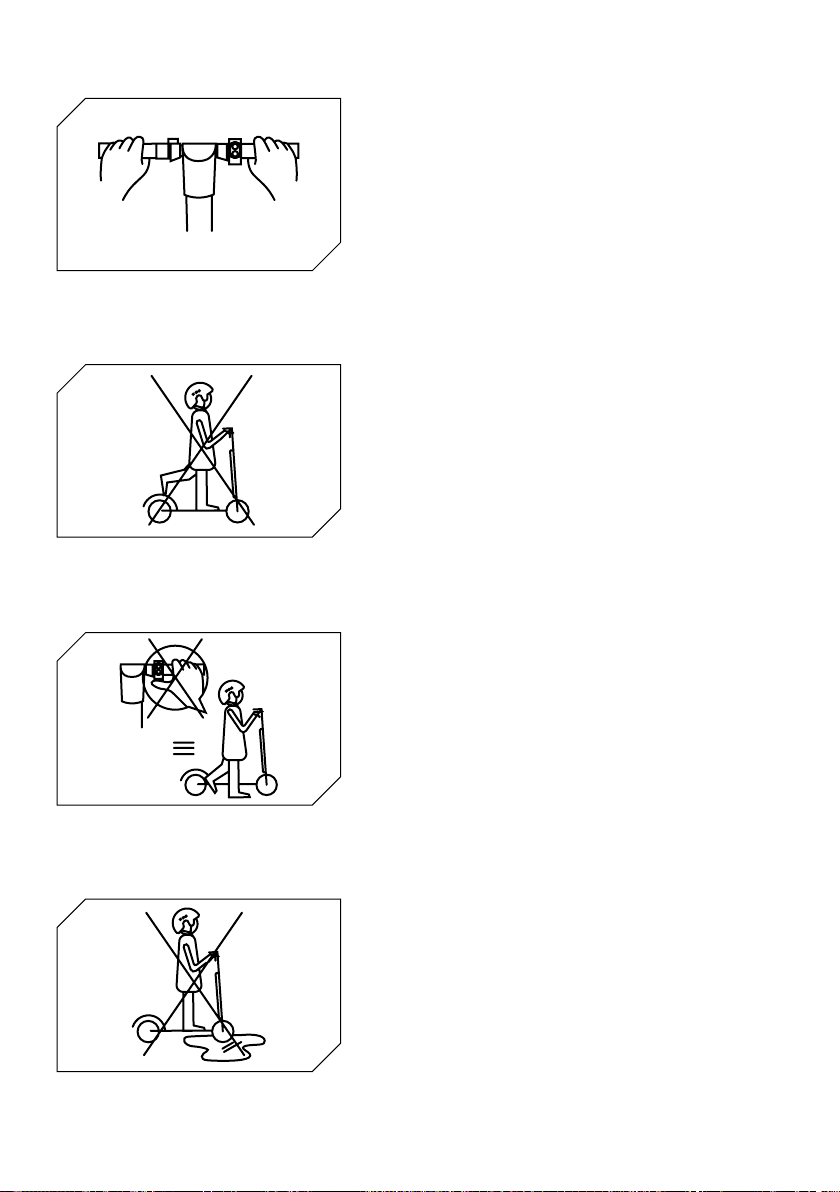

Follow the safety instructions before riding the
scooter.
Use approved equipment such as helmets and knee
pads.
Do not use the electric scooter in the rain.
The electric scooter may not be used by more than
one person at a time.
13. Learning to ride the scooter
14 Before using the product check the local legislation
in force in relation to the use of this type of product
and be sure to follow local regulations.

16
Minimum weight permitted on the electric scooter:
20 kg.
Maximum weight permitted on the electric scooter:
100 kg.
Do not ride the electric scooter if you have been
drinking alcohol or if you are on medication.
Do not use the phone or listen to music while riding
the electric scooter.
Take extra care if you are riding where there are
bumps, sand, puddles, frost, snow, or steps, or in
dark places, at night, or in wet conditions.
10020

17
Do not use the electric scooter in dangerous areas,
nearammableand/orexplosivesubstances,liquids
and/or dirt.
This electric scooter is not designed to be ridden on
roads and motorways.
Consult the laws in force in your municipality on
where the use of electric scooters is permitted.
Do not hang heavy objects on the handlebar.
Do not use the electric scooter to go up or down
steps or stairs.

18
Always hold the handlebar with both hands.
Do not ride the electric scooter with just one foot on
the footrest.
Do not press the accelerator when walking with the
electric scooter.
Do not ride the electric scooter through puddles and
over wet surfaces.
