iWantit IBTLI14 User manual

(iPod, iPhone and iPad are not included)
IBTLI14
instruction manual
wireless speaker dock
for iPod, iPhone and iPad
with a Lightning connector
IBTLI14_IB_160303_will.indd 1 3/3/2016 2:52 PM

IBTLI14_IB_160303_will.indd 2 3/3/2016 2:52 PM

Contents
safety warnings................................................................................................................................. 4
unpacking .......................................................................................................................................... 6
product overview ............................................................................................................................ 7
main unit ....................................................................................................................................................................... 7
top view......................................................................................................................................................................... 7
front view...................................................................................................................................................................... 7
rear view........................................................................................................................................................................ 7
remote control ............................................................................................................................................................ 8
remove the insulating strip from the remote control ............................................................... 9
battery replacement for the remote control............................................................................... 9
remote control operation range.................................................................................................. 10
power source................................................................................................................................... 11
general operation........................................................................................................................... 11
Bluetooth® audio. ........................................................................................................................... 12
aux in operation.............................................................................................................................. 12
iPod / iPhone / iPad operation ..................................................................................................... 13
charging your iPod / iPhone / iPad.............................................................................................. 14
usb charging.................................................................................................................................... 14
maintenance.................................................................................................................................... 15
hints and tips................................................................................................................................... 15
specications................................................................................................................................... 15
IBTLI14_IB_160303_will.indd 3 3/3/2016 2:52 PM

4
safety
• Always disconnect the unit from the mains
supply before connecting/disconnecting other
devices or moving the unit.
• Unplug the unit from the mains socket during
a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption, never leave
the unit switched on while unattended for
long periods of time, e.g. overnight, while on
holiday or while out of the house. Switch it o
and disconnect the mains adapter from the
mains socket.
mains adapter cable
• Make sure the unit is not resting on top of the
mains adapter cable, as the weight of the unit
may damage the mains adapter cable and
create a safety hazard.
mains adapter
• The mains adapter will continue to draw
electricity from the mains supply when
plugged in the mains socket. In the
interests of safety and to avoid unnecessary
energy consumption, never leave the
adapter plugged in the mains socket
while unattended for long periods of time.
Disconnect the adapter from the power
supply.
interference
• Do not place the unit on or near appliances
which may cause electromagnetic interference.
If you do, it may adversely aect the operating
performance of the unit, and cause a distorted
picture or sound.
Batteries
• Batteries used in the remote control for this
unit are easily swallowed by young children
and this is dangerous.
• Keep loose batteries away from young children
and make sure that the battery holder tray is
secure in the remote control. Seek medical
advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by
following the guidance in this manual.
• Do not expose the battery to direct sunlight or
sources of excessive heat.
• Do not ingest the battery, Chemical Burn
Hazard.
• The remote control supplied with this product
contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can
lead to death.
safety warnings
• Read all the instructions carefully before using
the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a
third party make sure to include this manual.
• Check that the voltage marked on the rating
label matches your mains voltage.
damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you are
in any doubt about it working normally, or if it
is damaged in any way - switch o, withdraw
the mains plug and consult your dealer.
location of unit
• The unit must be placed on a at stable surface
and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall o or tip over.
• The mains socket must be located near the unit
and should be easily accessible.
• This unit is designed for indoor domestic use
only.
temperature
• Avoid extreme degrees of temperature, either
hot or cold. Place the unit well away from heat
sources such as radiators or gas/electric res.
• Avoid exposure to direct sunlight and other
sources of heat.
naked ames
• Never place any type of candle or naked ame
on the top of or near the unit.
moisture
• To reduce the risk of re, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing. No
objects lled with liquids, such as vases, should
be placed on the unit. Do not operate the unit
with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause
serious damage. Switch it o at the mains
immediately. Withdraw the mains plug and
consult your dealer.
ventilation
• To prevent the risk of electric shock or re
hazard due to overheating, ensure that
curtains and other materials do not obstruct
the ventilation vents.
• Do not install or place this unit in a bookcase,
built-in cabinet or in another conned space.
Ensure the unit is well ventilated.
IBTLI14_IB_160303_will.indd 4 3/3/2016 2:52 PM

5
• Keep new and used battery away from
children.
• If the battery compartment does not close
securely, stop using the product and keep it
away from children.
• If you think batteries might have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
supervision
• Children should be supervised to ensure that
they do not play with the unit and the remote
control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a fatal
electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated“dangerous
voltage” within the unit’s enclosure that
may be of sucient magnitude to
constitute a risk of electric shock.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the manual
accompanying the unit.
service
• To reduce the risk of electric shock, do not
remove screws. The unit does not contain
any user-serviceable parts. Please leave all
maintenance work to qualied personnel.
• Do not open any xed covers as this may
expose dangerous voltages.
maintenance
• Ensure to unplug the unit from the mains
socket before cleaning.
• Do not use any type of abrasive pad or abrasive
cleaning solutions as these may damage the
unit’s surface.
• Do not use liquids to clean the unit.
IBTLI14_IB_160303_will.indd 5 3/3/2016 2:52 PM

6
The Main Unit Remote control
AUX IN CableInstruction Manual
If items are missing or damaged, please contact Partmaster (UK only).
Tel: [phone] for assistance.
unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it, please do so
according to local regulations.
The following items are included:
Thank you for purchasing your new iWantit wireless speaker dock for iPod, iPhone and
iPad.
We recommend that you spend some time reading this instruction manual in order that you fully
understand all the operational features oered. You will also nd some hints and tips to help you
resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future
reference.
Instruction
Manual
IBTLI14_IB_160303_will.indd 6 3/3/2016 2:52 PM

7
product overview
main unit
front view
top view
rear view
1. Bluetooth®/ Standby Indicator
2. iPad/iPhone/iPod mode Indicator
3. AUX IN mode Indicator
4. STANDBY/SOURCE Button
5. /PLAY/PAUSE Button
6. VOLUME +/– Buttons
Increase/decrease the volume
7. Release button
Slide to lift up the docking station
door or before closing the door.
8. Docking connector
9. Remote control sensor
10. Speakers
11. Docking station door
12. OUTPUT 5V 1A USB Charging
Socket
13. AUX IN Socket
14. AC 100-240V ~50/60Hz Mains Cable
15. ON/OFF MAINS POWER Switch
1 2 3 4 5 6 7 8
9 10 1110
12 13 14 15
IBTLI14_IB_160303_will.indd 7 3/3/2016 2:52 PM

8

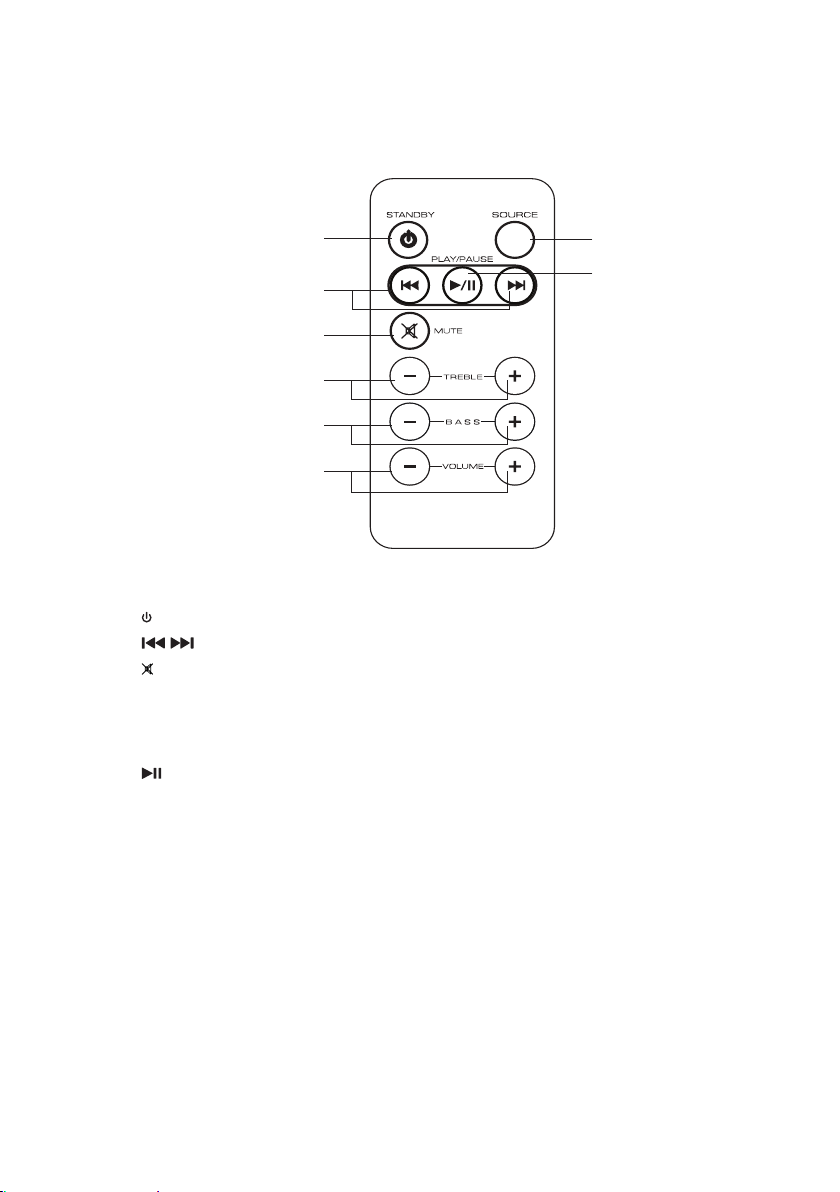

remote control
1. STANDBY Button
2. / Buttons
3. MUTE Button
4. TREBLE –/+ Buttons
5. BASS –/+ Buttons
6. VOLUME –/ + Buttons
7. /PLAY/PAUSE Buttons
8. SOURCE Button
1
2
3
4
5
6
8
7
IBTLI14_IB_160303_will.indd 8 3/3/2016 2:52 PM

9
remove the insulating strip from the remote control
Remove the insulating mylar strip from the battery if the
battery is being used for the rst time. It is located at the
bottom back side of the remote control.
2. Pull out the battery holder and remove the old
battery.
battery replacement for the remote control
The remote control requires a CR2025, 3V Lithium battery.
1. Slide and hold the battery release tab in the direction
of the arrow.
3. Replace with a new battery.
4. Insert the battery holder back into the remote control.
handling the battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause
re, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and –) indications in the battery
compartment.
• When the battery is exhausted, the remote control will not function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the local
regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by
young children and this is dangerous. Keep loose button cells away from young children and
make sure that the battery holder tray is secure in the remote control. Seek medical advice if you
believe a cell has been swallowed.
IBTLI14_IB_160303_will.indd 9 3/3/2016 2:52 PM

10
remote control operation range
Point the remote control at the unit no more than 5 metres
from the remote control sensor and within 40° of the front
of the unit. The operating distance may vary depending on
the brightness of the room.
handling the remote control
• Take care of your ngernails when you press and hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as it could
cause corrosion or battery leakage and may result in physical injury and/or property damage
including re.
20° 20°
Within about 5m
IBTLI14_IB_160303_will.indd 10 3/3/2016 2:52 PM

11
power source
connecting to the mains supply
• This unit was designed to operate
with an AC 100-240V power supply.
• Connecting the unit to any other
power source may cause damage to
the unit. Unwind the mains adapter
to its full length. Connect the mains
plug to the mains socket. Make sure
the mains plug is fully inserted into
the mains socket. The unit is now
connected and ready to use.
• To switch the unit o completely,
unplug the mains adapter from the
mains socket.
general operation
switching the unit On/O
• Switch the ON/OFF Switch at the rear of the unit to the ON position. The unit will be in
STANDBY mode.
• Press and hold the STANDBY/SOURCE Button to turn the unit in STANDBY mode.
• To completely turn the unit o, switch the ON/OFF Switch at the rear of the unit to the
OFF position and then disconnect the unit from the mains socket.
If the unit is idle for more than 20 minutes, it will automatically switch to STANDBY mode.
Press the STANDBY/SOURCE Button to switch on the unit again.
selecting a mode
Press the STANDBY/SOURCE Button on the main unit or the SOURCE Button on the
remote control repeatedly to switch between Bluetooth® mode (The Bluetooth® Indicator
will light up blue), iPad/iPhone/iPod mode (The iPad/iPhone/iPod mode Indicator will light
up white) and AUX IN mode ( AUX IN mode Indicator will light up white).
adjusting the volume
• Press the VOLUME +/– button to adjust the volume.
• If you wish to switch the sound o, press the MUTE button on the remote control.
Press the MUTE button again or the VOLUME +/– button to resume normal listening.
adjusting the sound eect
• Press the BASS +/– button repeatedly on the remote control to adjust the bass level.
• Press the TREBLE +/– button repeatedly on the remote control to adjust the treble level
To the mains socket
IBTLI14_IB_160303_will.indd 11 3/3/2016 2:52 PM

12
Bluetooth® audio.
1. When the unit is in on mode, press the STANDBY/SOURCE Button on the unit or the
SOURCE Button on the remote control to switch to Bluetooth® mode. The Bluetooth®/
Standby Indicator will ash in red and blue. The system is now in pairing mode.
2. Switch on the Bluetooth® function of your device. Search for the name“IBTLI14” in the
Bluetooth® device list on your device.
3. Select “IBTLI14” and enter “0000” for the password if necessary.
4. When connection is successful, the unit will beep once and the Bluetooth®/ Standby
Indicator light up blue. Your unit is now ready for use.
• When the unit has found the last paired Bluetooth® device, it will connect automatically.
• Press and hold /PL AY/PAUSE Button to cancel the current Bluetooth® connection. The
unit will beep twice. Repeat steps 1 to 3 to connect a new Bluetooth® device.
• If the media controls (Play/Pause, Skip/Search or Volume) on the unit do not work during
Bluetooth playback, please ensure the app on your device is up to date or try the default
audio playback app for your device (i.e. iTunes, Google Play Music).
• If the unit is not paired in approximate 20 minutes, it will exit pairing mode and return to standby
mode.
• The operating range of the Bluetooth® audio for this unit is 10 metres, without obstruction. Walls,
structures and other objects may aect the Bluetooth® range.
aux in operation
1. Before connecting to the mains socket, use a 3.5mm LINE IN cable to connect your
audio device to the AUX IN socket at the rear of the unit.
2. Connect the mains cable to the mains socket.
3. Switch the ON/OFF Switch at the rear of the unit to the ON position.
4. Press STANDBY/SOURCE Button on the unit or STANDBY/SOURCE Button on
the remote control to select AUX IN mode. The AUX IN mode Indicator will light up
white.
5. In AUX IN mode, the unit will automatically start playback. You may operate your audio
device directly for playback features.
IBTLI14_IB_160303_will.indd 12 3/3/2016 2:52 PM

13
iPod / iPhone / iPad operation
This unit can support the following iPhone/iPod/iPad models.
Type Support Model
iPhone • iPhone 5
• iPhone 5s
• iPhone 5c
• iPhone 6
• iPhone 6Plus
iPod • iPod touch (5th generation)
• iPod nano (7th generation)
iPad • iPad Air
• iPad mini with Retina display
• iPad mini
• iPad (4th generation)
1. When the unit is in on mode, press the STANDBY/SOURCE Button on the unit or the
the SOURCE Button on the remote control to switch to iPad/iPhone/iPod mode. The
iPad/iPhone/iPod mode Indicator will light up white.
2. Slide the release button and lift up the docking station door. Insert your iPod/iPhone/
iPad into the dock.
3. If the iPhone/iPod/iPad is
connected, the unit will start
playback, it will take around
10 seconds to allow the unit to
identify the iPod/iPhone/iPad.
The iPod/iPhone/iPad battery will
start to charge automatically and
will continue charging.
4. Select your desired music, or videos, etc., and play the connected iPod/iPhone/iPad as
usual.
You can use either the iPod/iPhone/iPad or the remote control.
• Press the /PLAY/PAUSE Button to start/pause playback.
• Press the / Button on the remote control to select the previous/next track.
• Press the VOL +/– Button on the unit or the remote control to adjust the volume.
• Press the BASS +/– Button or the TREBLE +/–Button on the remote control to
adjust the sound eect bass and treble sound levels.
• To control the menu operation of iPad series, iPhone series, iPod touch series and iPod nano 7th
generation, you need to enter the music menu on your iPod/iPhone/iPad rst.
• This manual provides the basic instructions of menu navigation on iPod/iPhone/iPad. For advance
operations, please refer to your iPod/iPhone/iPad instructions.
• The unit cannot show any music information of your iPod/iPhone/iPad. Please view the music
information from your iPod/iPhone/iPad display.
• To avoid damaging your iPod/iPhone/iPad or the unit please take care when inserting and
removing your iPod/iPhone/iPad from the dock.
IBTLI14_IB_160303_will.indd 13 3/3/2016 2:52 PM

14
charging your iPod / iPhone / iPad
1. Your iPod/iPhone/iPad has an internal non-removable battery. The battery may need to
be charged if it has not been used for a while.
2. You can automatically charge the iPod/iPhone/iPad through the unit when it is docked.
• If you charge the iPod/iPhone/iPad while playing music, it may take a longer time.
• In any time, you can control the iPod/iPhone/iPad player on the unit or iPod/iPhone/iPad player
itself while the unit in the iPod/iPhone/iPad mode.
• 1st, 2nd & 3rd generation iPods cannot be charged.
usb charging
Make sure that the unit is switched on. Connect your USB device (e.g. smartphone) with a
USB cable (not included) to the OUTPUT 5V 1A USB Charging Socket to charge your USB
device.
The maximum charging voltage and current of the unit provided is 5V/1000mA,
any device with charging current requirement more than 1000mA will not be
supported. Please check your device charging requirement before connecting your
device to the unit.
IBTLI14_IB_160303_will.indd 14 3/3/2016 2:52 PM

15
hints and tips
If a problem does occur, it may often be due to something very minor. The following table
contains various tips.
problem cause / solution
power
System does not
turn on or does
not respond to the
remote control.
• Make sure mains plug is connected to the mains socket and the unit
properly and that it has power.
• Turn on the unit using the ON/OFF Switch at the rear of the unit.
• Check that the remote control has a battery. The battery may need to
be replaced.
iPad/iPhone/iPad
The unit doesn’t play
iPod/iPhone/iPad les
or doesn’t function as
expected.
• Make sure the function is set to iPod/iPhone/iPad mode.
• Vibrations may have caused the iPod/iPhone/iPad to come loose from
the docking station. Make sure the iPod/iPhone/iPad is connected
properly.
• Make sure the iPod/iPhone/iPad is switched on.
• If the unit is in pause mode, press the /PLAY/PAUSE Button to
resume playback.
Bluetooth®
I cannot nd “IBTLI14”
on my Bluetooth®
device
• Ensure the Bluetooth® function is activated on your Bluetooth® device.
• Ensure the unit is in pairing mode.
• Re-pair the unit to the device.
maintenance
Ensure the unit is fully unplugged from the mains socket before cleaning.
To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.
specications
model IBTLI14
power supply AC 100 -240V ~50/60Hz
rate power 60 W
output power 2 x 15 Watts
DC output voltage USB Charging: 5V 1A
iPod connector: 5V 2.1A
Specications and features are subject to change without prior notice.
IBTLI14_IB_160303_will.indd 15 3/3/2016 2:52 PM

IB-IBTLI14-160303V3
The symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is
your responsibility to dispose of your waste equipment by handing it over
to a designated collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help conserve natural resources and
ensure that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop o your waste for
recycling, please contact your local authority, or where you purchased your
product.
Visit Partmaster.co.uk today for the easiest way to buy
electrical spares and accessories. With over 1 million spares
and accessories available we can deliver direct to your door
the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only)
Calls charged at National Rate.
All trademarks are the property of their respective owners and all rights are acknowledged.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by DSG Retail Limited is under license. Other trademarks and
trade names are those of their respective owners and all rights are acknowledged.
For general information about this appliance
and handy hints and tips, please visit
www.knowhow.com/knowledgebank or call 0344 5611234.
“Made for iPod,”“Made for iPhone,”and “Made
for iPad,”mean that an electronic accessory
has been designed to connect specically to
iPod, iPhone, or iPad, respectively, and has
been certied by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone
or iPad may aect wireless performance.
iPad, iPhone, iPod, iPod classic, iPod nano, iPod shue, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.
iPod, iPhone and iPad not included
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
IBTLI14_IB_160303_will.indd 16 3/3/2016 2:52 PM
