iWantit iPHUDK11 User manual

universal dock for iPhone
iPHUDK11
instruction manual
(iPhone not included)
iPHUDK11_IB_111018.indd 1 10/18/11 12:38 PM

iPHUDK11_IB_111018.indd 2 10/18/11 12:38 PM

contents
unpacking .............................................................................................4
product overview .................................................................................5
docking station.....................................................................................................5
remote control......................................................................................................6
remove the insulating strip from the remote control .......................8
replace the remote control battery.....................................................8
dock adapter.......................................................................................10
charging and sync ..............................................................................11
operations...........................................................................................12
hints and tips ......................................................................................13
specications ......................................................................................15
safety warnings ..................................................................................16
iPHUDK11_IB_111018.indd 3 10/18/11 12:38 PM

4
Thank you for purchasing your new iWantit universal dock
for iPhone.
We recommend that you spend some time reading this instruction
manual in order that you fully understand all the operational features
it oers. You will also nd some hints and tips to help you resolve any
issues.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
unpacking
Remove all packaging from the unit. Retain the packaging. If
you dispose of it please do so according to local regulations.
The following items are included:
If items are missing or damaged, please contact Partmaster
(UK only). Tel: [phone] for assistance.
Docking Station x 1 Remote Control x 1
PN: iPHUDK11RC
Power Adapter x 1
PN: iPHUDK11PA
iPhone 3GS Dock Adapter x 1
PN: iPHUDK113GSDA
iPhone 4 Dock Adapter x 1
PN: iPHUDK114DA
Mini USB Cable x 1
PN: iPHUDK11MUSBC
Mini HDMI to RCA Cable x 1
PN: iPHUDK11MHDMIC
Instruction Manual
PN: iPHUDK11-002
VOL+
MENU
OK
VOL-
universal dock for iPhone
iPHUDK11
instruction manual
(iPhonenot included)
iPHUDK11_IB_111018.indd 4 10/18/11 12:38 PM

5
product overview
iPhone Slot
Remote Control
Sensor
Mini HDMI Socket
Mini USB Socket
docking station
iPHUDK11_IB_111018.indd 5 10/18/11 12:38 PM

6
remote control
VOL+
MENU
OK
VOL-
5
4
3
2
1
1. OK (Conrm / Enter) Button
2. VOL+ (Volume Up) Button
Press to turn docking
station volume up (iPhone
volume is not controlled).
3. (Previous / Rewind)
Button
Press to skip to the previous
song or video. Press and
hold to rewind song.
4. VOL- (Volume Down)
Button
Press to turn docking
station volume down
(iPhone volume is not
controlled).
5. (Menu Up) Button
iPhone menu, press the
button to navigate
upwards.
iPHUDK11_IB_111018.indd 6 10/18/11 12:38 PM

7
VOL+
MENU
OK
VOL-
9
8
7
6
6. MENU (Menu) Button
Press to go back to the
Previous Menu.
7. (Play / Pause) Button
Press to play; press again to
pause.
8. (Next / Fast-forward)
Button
Press to skip to the next
song or video. Press and
hold to fast-forward song.
9. (Menu Down)
iPhone menu, press the
button to navigate
downwards.
iPHUDK11_IB_111018.indd 7 10/18/11 12:38 PM

8
3
remove the insulating strip from the
remote control
Remove the insulating mylar
strip from the battery if the
battery is being used for
the rst time. It is located at
the bottom back side of the
remote control.
replace the remote control battery
Replace the remote control battery when it stops (normally
every two years). Only use a CR2025 lithium cell battery. Keep
in mind that lighting and other room conditions, in addition
to battery age, can aect the operating range of the remote
control.
21Remote
Control
Battery
Case
Battery
1. Remove the battery case
from the remote control.
2. Put the battery into the
case.
3. Insert the battery case
back into the remote
control.
iPHUDK11_IB_111018.indd 8 10/18/11 12:38 PM

9
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion
or battery leakage, which could cause re, personal injury or
damage to property.
• Install the battery correctly by following the polarity (+ and
-) indications in the battery compartment.
• When the battery is exhausted, the remote control will not
function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste.
Dispose of it in accordance with local regulations.
• Small button cell batteries such as the one used in the
remote control are easily swallowed by young children and
this is dangerous. Keep loose button cells away from young
children and make sure that the battery holder tray is secure
in the remote control. Seek medical advice if you believe a
cell has been swallowed.
Handling the Remote Control
• Take care of your ngernails when you press and hold the
battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or
near sources of excessive heat.
• Remove the battery from the remote control when not in
use for a long period of time, as it could cause corrosion
or battery leakage and may result in physical injury and/or
property damage including re.
iPHUDK11_IB_111018.indd 9 10/18/11 12:38 PM

10
dock adapter
Insert the dock adapter that ts your iPhone model, then plug
in your iPhone. The adapter number is marked at the back of
each dock adapter. The below adapters are provided with the
product. For other iPhone models, please contact the store
where you purchased your iPhone.
iPhone 3GS
iPhone 4
Choose the dock adapter which
is suitable for your iPhone.
Plug the dock adapter into the
iPhone slot.
Please use a at-edged tool to remove the dock adapter if you
encounter any diculties.
iPHUDK11_IB_111018.indd 10 10/18/11 12:38 PM

11

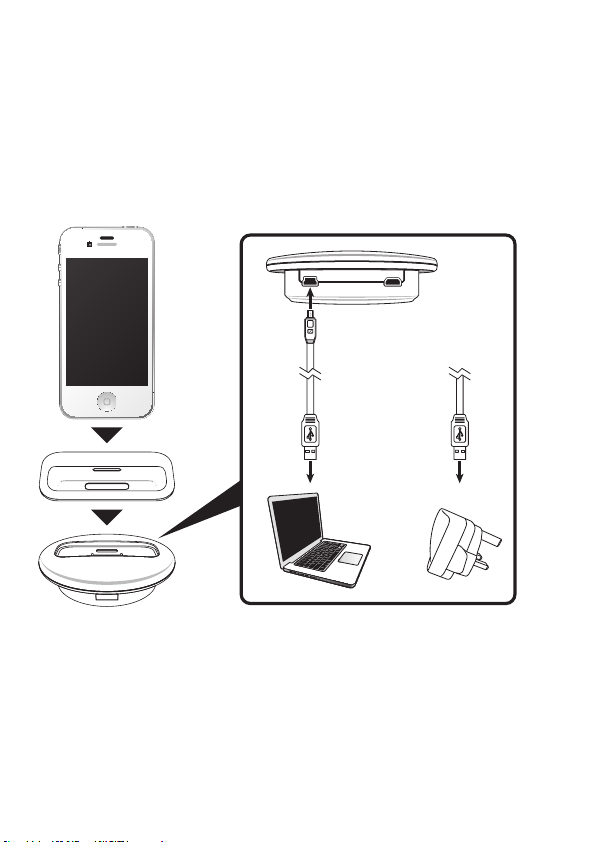

charging and sync
To charge your iPhone with power adapter:
1. Connect the dock station to USB power adapter and plug
Apple device into the dock for charging.
2. Connect the dock station to computer for charging and sync
via the mini USB cable.
OR
iPHUDK11_IB_111018.indd 11 10/18/11 12:38 PM

12
operations
1. Plug the yellow video connector into the composite video
input port on your TV or receiver. Plug the write and red
audio connections into the left and right analog audio input
ports respectively, on your TV or receiver. Plug the mini
HDMI connectors of component AV cable into the Dock
Station.
2. Put the dock adapter suitable for iPhone into the iPhone
slot of the dock station, and insert the iPhone into the dock
station to ensure that the Apple 30 pin connector of the
dock station is duly connected to iPhone connector.
3. Then you can enjoy the relaxing time with the remote
control.
Docking only support video playback. No output with
audio only le.
iPHUDK11_IB_111018.indd 12 10/18/11 12:38 PM

13
hints and tips
1. I cannot start a slideshow with my remote control.
• You cannot start a slideshow remotely. You must use the
iPhone’s controls to start a slideshow. After you start the
slideshow, you can control it with your remote control. For
more information about your iPhone photo capabilities,
refer to your iPhone documentation.
2. Why is my remote control not responding?
• For the remote control to work as intended with your
iPhone, it must be running the most updated Apple
software. If your need to upgrade, simply visit the Apple
iPhone website and follow the instructions there for a free
download.
• If it still does not work, please unplug the power adapter for
1 minute, then plug it back in. This resets the system.
3. Why is there no sound?
• Check if your iPhone is correctly docked in the docking
station.
• Check if your iPhone is playing.
• Check if your speaker is turned on, and the right input
source is selected, and the volume is turned up.
• Check if the cable and power adapter are rmly and
correctly connected and plugged in.
iPHUDK11_IB_111018.indd 13 10/18/11 12:38 PM

14
4. Why doesn’t the docking station charge my iPhone’s
battery?
• Check if your iPhone is correctly docked in the docking
station.
• Check if your power adapter is rmly plugged in the
docking station and the mains socket.
5. Why doesn’t my remote control function?
• Check if your iPhone is correctly docked in the docking
station.
• Try the remote control from dierent locations. Strong
lighting or other room conditions can aect the remote
control.
• Make sure nothing is blocking the infrared (IR) signal path
between the remote control and the docking station.
6. Why doesn’t the iPhone video output function?
• Video cable is not connected properly. Connect the video
cable to the TV, and make sure the cable is inserted rmly
into the correct socket and fully connected to the video
output socket.
• iPhone software compatibility problem, make sure your
iPhone is running with the most updated Apple software.
iPHUDK11_IB_111018.indd 14 10/18/11 12:38 PM

15
specications
Model iPHUDK11
Input DC 5V 1A
Output DC 5V 500mA
Remote control battery 3V, CR2025 or equivalent
Features and specications are subject to change without prior
notice.
iPHUDK11_IB_111018.indd 15 10/18/11 12:38 PM

16
safety warnings
• Read all the instructions carefully before using the unit and
keep them for future reference.
• Retain the manual. If you pass the unit onto a third party
make sure to include this manual.
• Check that the voltage marked on the rating label matches
your mains voltage.
Damage
• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt
about it working normally, or if it is damaged in any way -
switch o, withdraw the mains plug and consult your dealer.
Location of Unit
• The unit must be placed on a at stable surface and should
not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the
unit may fall o or tip over.
• The mains socket must be located near the unit and should
be easily accessible.
• This unit is designed for indoor use only.
Temperature
• Avoid extreme degrees of temperature, either hot or cold.
Place the unit well away from heat sources such as radiators
or gas/electric res.
• Avoid exposure to direct sunlight and other sources of heat.
Naked Flames
• Never place any type of candle or naked ame on the top of
or near the unit.
iPHUDK11_IB_111018.indd 16 10/18/11 12:38 PM

17
Moisture
• To reduce the risk of re, electric shock or product damage,
do not expose this unit to rain, moisture, dripping or
splashing. No objects lled with liquids, such as vases,
should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious
damage. Switch it o at the mains immediately. Withdraw
the mains plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or re hazard due to
overheating, ensure that curtains and other materials do not
obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in
cabinet or in another conned space. Ensure the unit is well
ventilated.
Safety
• Always disconnect the unit from the mains supply before
connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning
storm.
Mains Cable
• Make sure the unit is not resting on top of the mains cable,
as the weight of the unit may damage the mains cable and
create a safety hazard.
• If the mains cable is damaged it must be replaced by
the manufacturer, its service agent, or similarly qualied
persons in order to avoid a hazard.
Interference
• Do not place the unit on or near appliances which may
cause electromagnetic interference. If you do, it may
adversely aect the operating performance of the unit, and
cause a distorted picture or sound.
iPHUDK11_IB_111018.indd 17 10/18/11 12:38 PM

18
Standby
• The unit will continue to draw electricity from the mains
supply while in standby. In the interests of safety and to
avoid unnecessary energy consumption, never leave the
unit in standby while unattended for long periods of time,
e.g. overnight, while on holiday or while out of the house.
Disconnect the mains plug from the mains socket.
Batteries
• Batteries used in the remote control for this unit are easily
swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make
sure that the battery holder tray is secure in the remote
control. Seek medical advice if you believe a cell has been
swallowed.
• Please dispose of batteries correctly by following the
guidance in this manual.
Supervision
• Children should be supervised to ensure that they do not
play with the unit and the remote control.
• Never let anyone especially children push anything into the
holes, slots or any other openings in the case - this could
result in a fatal electric shock.
Service
• To reduce the risk of electric shock, do not remove screws.
The unit does not contain any user-serviceable parts. Please
leave all maintenance work to qualied personnel.
• Do not open any xed covers as this may expose dangerous
voltages.
Maintenance
• Ensure to unplug the unit from the mains socket before
cleaning.
• Do not use any type of abrasive pad or abrasive cleaning
solutions as these may damage the unit’s surface.
• Do not use liquids to clean the unit.
iPHUDK11_IB_111018.indd 18 10/18/11 12:38 PM

iPHUDK11_IB_111018.indd 19 10/18/11 12:38 PM

This symbol on the product or in the instructions means that your electrical and electronic
equipment should be disposed at the end of its life separately from your household waste.
There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you
purchased the product.
DSGRetailLtd.•MaylandsAvenueHemelHempsteadHerts•HP27TG•England
(P.N.: iPHUDK11-002)
Visit Partmaster.co.uk today for the easiest way to buy electrical spares and
accessories. With over 1 million spares and accessories available we can
deliver direct to your door the very next day. Visit www.partmaster.co.uk or
call 0844 800 3456 (UK customers only) Calls charged at National Rate.
Notes for battery disposal
The batteries used with this product contain chemicals that are harmful to the environment. To preserve
our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of
batteries with normal household waste.
For more information, please contact the local authority or your retailer where you purchased the
product.
All trademarks are the property of their respective owners and all rights are acknowledged.
iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
“Made for iPhone”mean that an electronic accessory has been designed to connect specically to
iPhone, respectively, and has been certied by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with iPhone may aect wireless performance.
iPhone is trademark of Apple Inc., registered in the U.S. and other countries.
If you require a replacement for any of the items listed below, please quote their
corresponding part numbers:
Replacement Part Part Number
Remote Control iPHUDK11RC
Power Adapter iPHUDK11PA
Mni HDMI to RCA Cable iPHUDK11MHDMIC
Mini USB Cable iPHUDK11MUSBC
iPhone 3GS Dock Adapter iPHUDK113GSDA
iPhone 4 Dock Adapter iPHUDK114DA
iPHUDK11_IB_111018.indd 20 10/18/11 12:38 PM
