unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank you for purchasing your new iWantit Dock for iPhone and iPod.
We recommend that you spend some time reading this instruction manual in order that you fully
understand all the operational features it oers. You will also nd some hints and tips to help you
resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future
reference.
VOL – VOL +
REPEAT
MENU
SELECT
iPH1212_IB_121029_Michelle.indd 3 29/10/2012 12:18 PM

4
product overview
top view
front view
rear view
1. iPod / iPhone Dock
2. VOL - Button
Decreases the volume
3. STANDBY Button
Switches the unit between the ON and
STANDBY modes.
4. VOL + Button
Increases the volume
1 432
6 7
5
DC AUX ON OFF
8 9 10
5. Speakers
6. LED Indicator
7. IR Sensor
Receives signal from the remote
control.
8. DC Mains Socket
Connects the mains adapter to the
mains socket
9. AUX IN Socket
10. ON/OFF Button
iPH1212_IB_121029_Michelle.indd 4 29/10/2012 12:18 PM

5

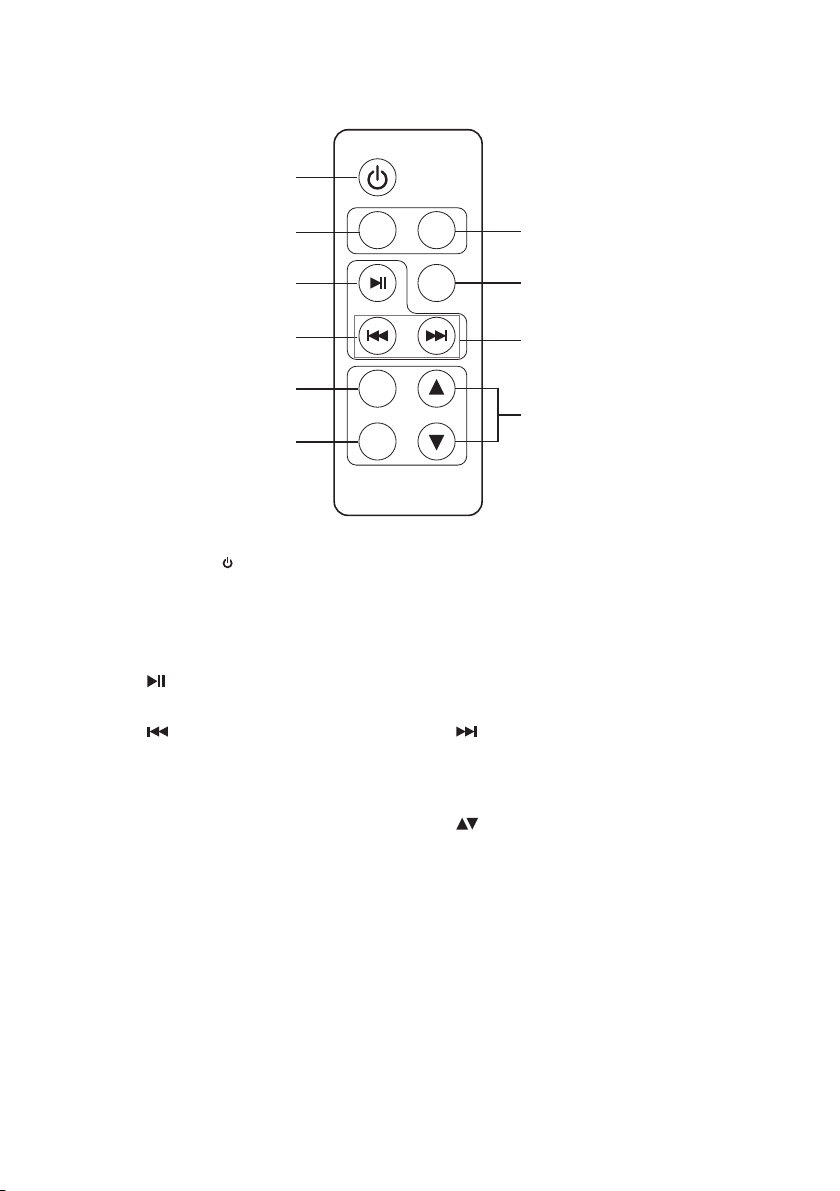

remote control
1. STANDBY Button
Switches the unit between the ON
and STANDBY modes.
2. VOL – Button
Decreases the volume
3. PLAY/PAUSE Button
Plays/pauses/resumes playback.
4. PREVIOUS Button
• Skips backwards to the previous
track.
• Allows fast reversing of the
current track.
5. MENU Button
Displays the iPod / iPhone menu
on the iPod / iPhone menu screen.
6. SELECT Button
Conrms the selection on a menu
screen from iPod / iPhone.
7. VOL + Button
Increases the volume
8. REPEAT Button
Repeats a single track or entire tracks.
9. NEXT Button
• Skips forwards to the next track.
• Allows fast forwarding of the current
track.
10. UP/DOWN Button
Navigates up/down to select an item
on a menu screen.
VOL – VOL +
REPEAT
MENU
SELECT
1
2
3
4
5
6
8
7
9
10
iPH1212_IB_121029_Michelle.indd 5 29/10/2012 12:18 PM

6
remove the insulating strip from the remote control
Remove the insulating mylar strip from the battery
if the battery is being used for the rst time. It is located at
the bottom rear side of the remote control.
handling the battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which
could cause re, personal injury or damage to property.
• Install the battery correctly in the battery compartment. Normally the battery’s positive
polarity (+) will face up.
• When the battery is exhausted, the remote control will not function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with
local regulations.
• Small button cell batteries such as the one used in the remote control are easily
swallowed by young children and this is dangerous. Keep loose button cells away from
young children and make sure that the battery is secure in the remote control. Seek
medical advice if you believe a battery cell has been swallowed.
2. Pull out the battery holder and remove the old battery.
battery replacement for the remote control
The remote control requires a CR2025, 3V Lithium battery.
1. Using a paperclip, carefully pry open the battery release
tab in the direction of the arrow.
3. Replace with a new battery.
4. Insert the battery holder back into the remote control.
iPH1212_IB_121029_Michelle.indd 6 29/10/2012 12:18 PM

7
remote control operation range
Point the remote control at the unit no more than 5
metres from the remote control sensor and within
60° of the front of the unit. The operating distance
may vary depending on the brightness of the
room.
VOL – VOL +
REPEAT
MENU
SELECT
Within about 5m
30° 30°
handling the remote control
• If you are nding it dicult to remove the battery, use a paperclip to slide the battery tab.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time,
as corrosion or battery leakage may occur and result in physical injury, and/or property
damage, and/or re.
iPH1212_IB_121029_Michelle.indd 7 29/10/2012 12:18 PM

8
power source
mains power
• This unit operates with a DC 9V 1.5A mains adapter (included).
DC AUX ON OFF
To the
mains socket
• Connecting the unit to any other power source may cause damage to the unit. Unwind
the mains adapter to its full length. Connect the mains adapter to the DC socket on the
rear of the unit and a mains socket. Make sure the mains adapter is fully inserted into the
mains socket. The unit is now connected and ready to use.
• To switch the unit o completely, withdraw the mains adapter from the mains socket.
• If the unit is idle for more than 10 minutes, it will automatically switch o.
general operation
switching the unit On / O and selecting a function
• Switch the ON/OFF switch at the rear of the unit to the ON position. The unit will switch
on and the LED indicator illuminates green.
• Press the STANDBY button on the unit or on the remote control to turn the unit into
standby mode. The LED indicator will turn o.
• To completely turn the unit o, switch the ON/OFF switch at the rear of the unit to the
OFF position and then disconnect the unit from the mains socket.
adjusting the volume
Press the VOL +/– button on the unit or on the remote control to adjust the volume.
iPH1212_IB_121029_Michelle.indd 8 29/10/2012 12:18 PM

9
• If you charge the iPod / iPhone while playing music, it may take longer than usual.
• At any time, you can control the iPod / iPhone player on the unit or iPod / iPhone player
itself whilst the unit is in the iPod mode.
• 1st, 2nd & 3rd generation iPods cannot be charged.
• Charging function will only work when the mains adapter is plugged in.
iPod / iPhone operation
inserting the iPod / iPhone
1. Insert the Universal iPod dock adapter (not included) into the iPod dock until it sits
rmly in place.
2. Carefully slot your iPod / iPhone onto the iPod / iPhone dock.
3. If the iPod / iPhone is connected, the unit will start playback (it will take around 10
seconds for the unit to identify the iPod / iPhone). The iPod / iPhone battery will be
charged automatically until it is fully charged.
4. Select your desired music and play the connected iPod / iPhone as usual.
5. Press the button on the remote control to start / pause playback.
6. Press the buttons on the remote control to select the previous or next song.
7. Press and hold the buttons on the remote control to fast backward / forward
through a song.
8. Press the MENU button on the remote control to access the iPod / iPhone menu. Press
the buttons on the remote control to select the iPod / iPhone menu and then
press the SELECT button on the remote control to enter the selected menu.
9. Press the REPEAT button on the remote control to repeat the single track or entire
disc.
charging your iPod / iPhone
1. Your iPod / iPhone has an internal non-removable battery. The battery may need to be
charged if it has not been used for a while.
2. You can automatically charge the iPod / iPhone through the unit when it is docked.
iPH1212_IB_121029_Michelle.indd 9 29/10/2012 12:18 PM

10
AUX operation
1. Before connecting to the mains socket, use a 3.5mm LINE IN cable (not included) to
connect your audio device through the AUX IN socket at the rear of the unit.
2. Connect the mains adapter to the mains socket and the unit.
3. Switch the ON/OFF switch at the rear of the unit to the ON position.
4. Press the STANDBY button on the unit or on the remote control to switch the unit
on.
5. In AUX mode, the unit will automatically start playback. You may operate your audio
device directly for playback features.
When connecting your audio device through the AUX IN socket, the sound from your iPod
/ iPhone will cut o and be replaced by the sound from your audio device. The sound from
your iPod / iPhone will return when the 3.5mm LINE IN cable is disconnected.
iPH1212_IB_121029_Michelle.indd 10 29/10/2012 12:18 PM

11
hints and tips
If a problem does occur, it may often be due to something very minor. The following table
contains various tips.
problem cause / solution
power
System does not turn
on or does not respond
to the remote control.
• Make sure mains adapter is connected to the mains socket and the unit
correctly.
• Check that the remote control has a battery. The battery may need to
be replaced.
iPod/iPhone
The unit doesn’t play
iPod/iPhone les or
doesn’t function as
expected.
• Make sure the iPod/iPhone is connected properly.
• Make sure the correct cradle for your iPod/iPhone is tted to the unit.
• Standby mode may be activated; press the STANDBY button on the
unit or on the remote control again.
• Make sure the iPod/iPhone is switched on.
• Vibrations may have caused the iPod/iPhone to come loose from the
docking station.
• Check no audio cable is plugged in the AUX IN socket.
remote control
No functions or short
range.
• Insert new batteries.
• Aim the remote control directly towards the remote sensor.
maintenance
• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.
Ensure the unit is fully unplugged from the mains socket before cleaning.
iPH1212_IB_121029_Michelle.indd 11 29/10/2012 12:18 PM

12
specications
model iPH1212
AC power AC 100 -240V ~50/60Hz
unit output power 2 x 4 Watts
DC output voltage 9V, 1.5A
Specications and features are subject to change without prior notice.
iPH1212_IB_121029_Michelle.indd 12 29/10/2012 12:18 PM

13
safety
• Always disconnect the unit from the mains
supply before connecting/disconnecting other
devices or moving the unit.
• Unplug the unit from the mains socket during
a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption, never leave
the unit switched on while unattended for
long periods of time, e.g. overnight, while on
holiday or while out of the house. Switch it o
and disconnect the mains adapter from the
mains socket.
mains adapter cable
• Make sure the unit is not resting on top of the
mains adapter cable, as the weight of the unit
may damage the mains adapter cable and
create a safety hazard.
mains adapter
• The mains adapter will continue to draw
electricity from the mains supply when
plugged in the mains socket. In the
interests of safety and to avoid unnecessary
energy consumption, never leave the
adapter plugged in the mains socket
while unattended for long periods of time.
Disconnect the adapter from the power
supply.
interference
• Do not place the unit on or near appliances
which may cause electromagnetic interference.
If you do, it may adversely aect the operating
performance of the unit, and cause a distorted
picture or sound.
batteries
• Batteries used in the unit are easily swallowed
by young children and this is dangerous.
• Keep loose batteries away from young children
and make sure that the battery holder tray is
secure in the unit. Seek medical advice if you
believe a cell has been swallowed.
• Please dispose of batteries correctly by
following the guidance in this manual.
safety warnings
• Read all the instructions carefully before using
the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a
third party make sure to include this manual.
• Check that the voltage marked on the rating
label matches your mains voltage.
damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you are
in any doubt about it working normally, or if it
is damaged in any way - switch o, withdraw
the mains plug and consult your dealer.
location of unit
• The unit must be placed on a at stable surface
and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall o or tip over.
• The mains socket must be located near the unit
and should be easily accessible.
• This unit is designed for indoor use only.
temperature
• Avoid extreme degrees of temperature, either
hot or cold. Place the unit well away from heat
sources such as radiators or gas/electric res.
• Avoid exposure to direct sunlight and other
sources of heat.
naked ames
• Never place any type of candle or naked ame
on the top of or near the unit.
moisture
• To reduce the risk of re, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing. No
objects lled with liquids, such as vases, should
be placed on the unit.
• If you spill any liquid into the unit, it can cause
serious damage. Switch it o at the mains
immediately. Withdraw the mains plug and
consult your dealer.
ventilation
• To prevent the risk of electric shock or re
hazard due to overheating, ensure that
curtains and other materials do not obstruct
the ventilation vents.
• Do not install or place this unit in a bookcase,
built-in cabinet or in another conned space.
Ensure the unit is well ventilated.
iPH1212_IB_121029_Michelle.indd 13 29/10/2012 12:18 PM

supervision
• Children should be supervised to ensure that
they do not play with the unit and the remote
control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a fatal
electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated“dangerous
voltage” within the unit’s enclosure that
may be of sucient magnitude to
constitute a risk of electric shock.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the manual
accompanying the unit.
service
• To reduce the risk of electric shock, do not
remove screws. The unit does not contain
any user-serviceable parts. Please leave all
maintenance work to qualied personnel.
• Do not open any xed covers as this may
expose dangerous voltages.
maintenance
• Ensure to unplug the unit from the mains
socket before cleaning.
• Do not use any type of abrasive pad or abrasive
cleaning solutions as these may damage the
unit’s surface.
• Do not use liquids to clean the unit.
iPH1212_IB_121029_Michelle.indd 14 29/10/2012 12:18 PM

15
iPH1212_IB_121029_Michelle.indd 15 29/10/2012 12:18 PM

Notes for battery disposal
The batteries used with this product contain chemicals that are harmful to the
environment. To preserve our environment, dispose of used batteries according to your
local laws or regulations. Do not dispose of batteries with normal household waste.
For more information, please contact the local authority or your retailer where you
purchased the product.
IB-iPH1212-121029V2
DSGRetailLtd•MaylandsAvenue•HemelHempstead
Herts•HP27TG•England
This symbol on the product or in the instructions means that your
electrical and electronic equipment should be disposed at the end of its
life separately from your household waste. There are separate collection
systems for recycling in the EU.
For more information, please contact the local authority or your retailer
where you purchased the product.
Visit Partmaster.co.uk today for the easiest way to buy
electrical spares and accessories. With over 1 million spares
and accessories available we can deliver direct to your door
the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only)
Calls charged at National Rate.
All trademarks are the property of their respective owners and all rights are acknowledged.
iPhone and iPod are trademarks of Apple Inc.,
registered in the U.S. and other countries.
“Made for iPod” and “Made for iPhone”mean that an electronic accessory has been designed to connect
specically to iPod or iPhone respectively, and has been certied by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards.
iPH1212_IB_121029_Michelle.indd 16 29/10/2012 12:18 PM
