iWantit ISDK13 User manual

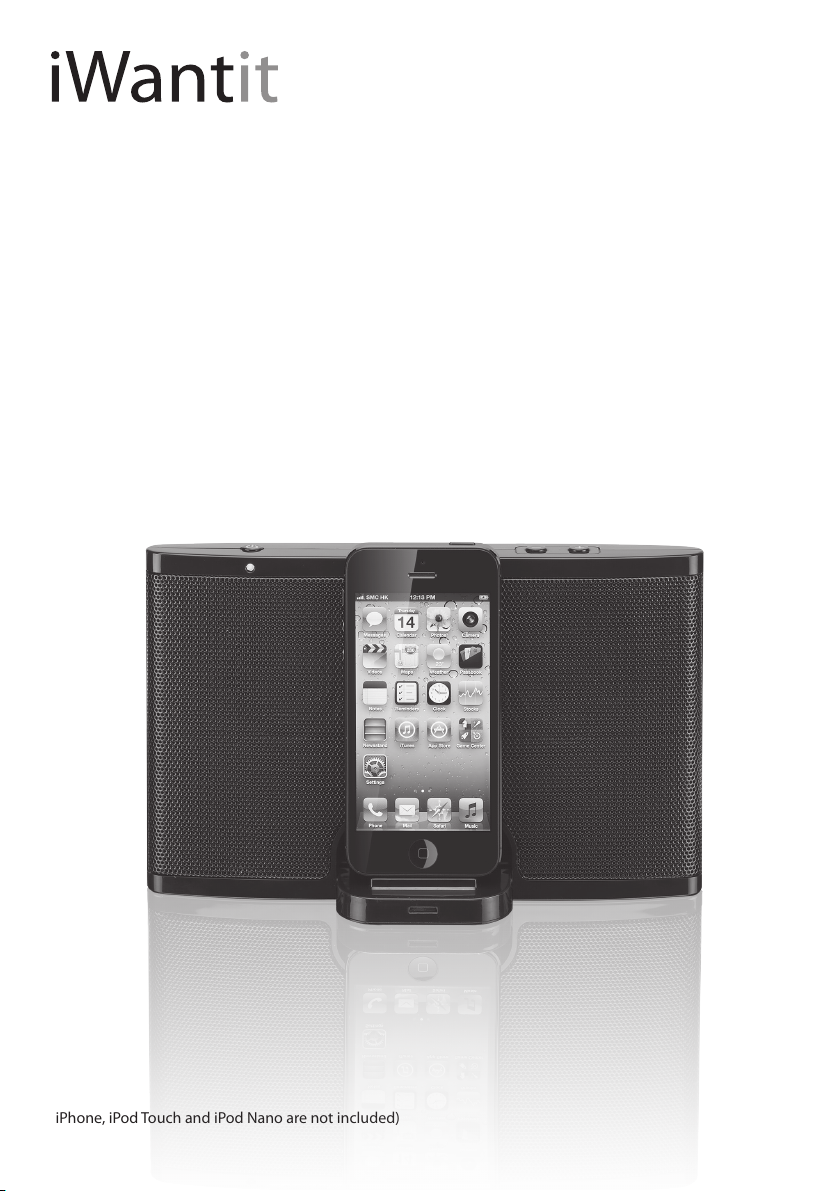

portable dock for iPhone and iPod
with a lightning connector
ISDK13
instruction manual
(iPhone, iPod Touch and iPod Nano are not included)
ISDK13_IB_V2.indd 1 15/07/2013 11:08

ISDK13_IB_V2.indd 2 15/07/2013 11:08

3
safety warnings
• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.
• The rating label is at located on the back of the unit.
Damage
• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is
damaged in any way - switch o, withdraw the mains plug and consult your dealer.
Location of Unit
• The unit must be placed on a at stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall o or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor use only.
Temperature
• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources
such as radiators or gas/electric res.
• Avoid exposure to direct sunlight and other sources of heat.
Naked Flames
• Never place any type of candle or naked ame on the top of or near the unit.
Moisture
• To reduce the risk of re, electric shock or product damage, do not expose this unit to rain, moisture,
dripping or splashing. No objects lled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it o at the mains
immediately. Withdraw the mains plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or re hazard due to overheating, ensure that curtains and other
materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another conned space. Ensure
the unit is well ventilated.
Safety
• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or
moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
Mains Adapter
• The mains adapter will continue to draw electricity from the mains supply when plugged in the mains
socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the
mains adapter plugged in the mains socket while unattended for long periods of time. Disconnect
the mains adapter from the power supply.
Batteries
• Batteries used in this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder compartments
are secure. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
ISDK13_IB_V2.indd 3 15/07/2013 11:08

4
Interference
• Do not place the unit on or near appliances which may cause electromagnetic interference. If you do,
it may adversely aect the operating performance of the unit, and cause a distorted picture or sound.
Supervision
• Children should be supervised to ensure that they do not play with the unit and the remote control.
• Never let anyone especially children push anything into the holes, slots or any other openings in the
case - this could result in a fatal electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
• The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated“dangerous voltage”within the unit’s enclosure that
may be of sucient magnitude to constitute a risk of electric shock.
• The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the manual
accompanying the unit.
Service
• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-
serviceable parts. Please leave all maintenance work to qualied personnel.
• Do not open any xed covers as this may expose dangerous voltages.
Maintenance
• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit’s
surface.
• Do not use liquids to clean the unit.
ISDK13_IB_V2.indd 4 15/07/2013 11:08

5
Thank you for purchasing your new iWantit portable dock for iPhone and iPod with
a lightning connector.
We recommend that you spend some time reading this instruction manual in order that you fully
understand all the operational features it oers. You will also nd some hints and tips to help you
resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future
reference.
unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
The Main Unit Mains Cable
If items are missing or damaged, please contact Partmaster (UK only).
Tel: [phone] for assistance.
ISDK13_IB_V2.indd 5 15/07/2013 11:08

6
product overview
5
4
6
1 2 3

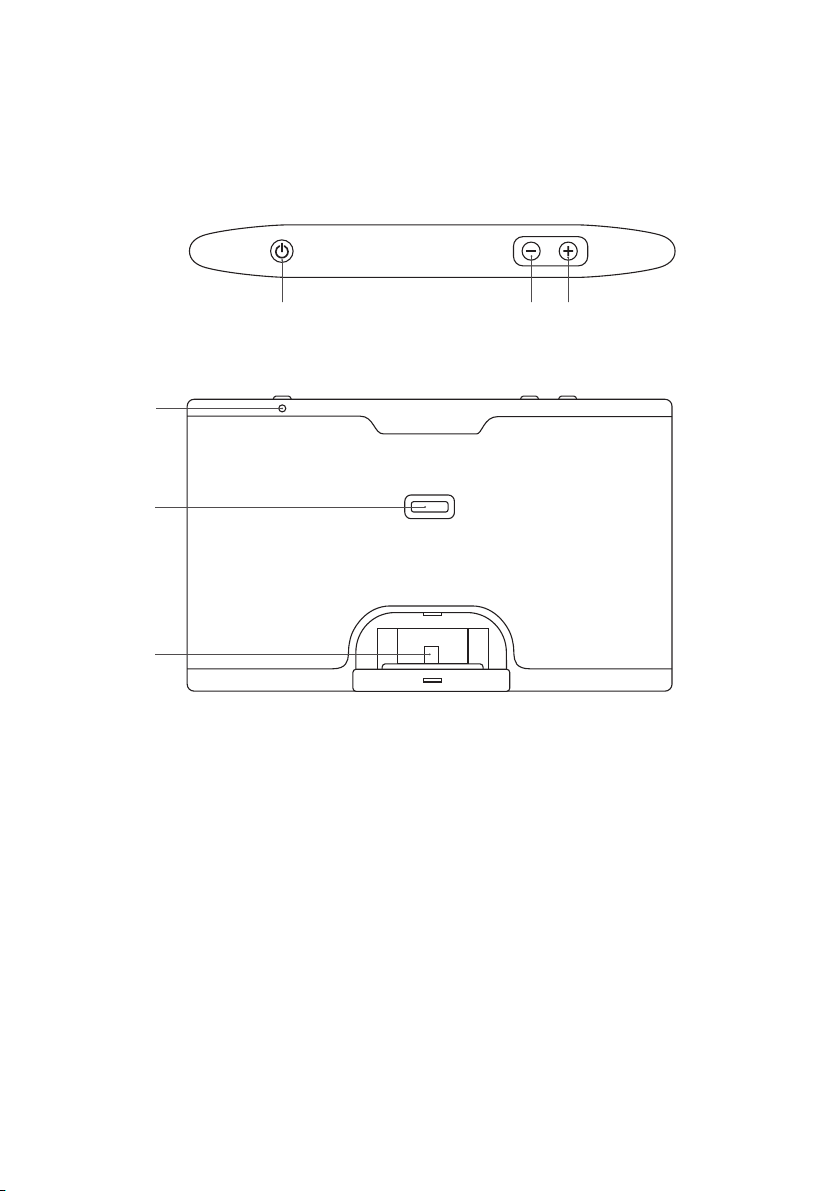

1. STANDBY Button
Switches the unit between ON and
STANDBY modes.
2. VOLUME – Button
Decreases the volume.
3. VOLUME +Button
Increases the volume.
4. Power Indicator Light
5. Dock Release Button
Releases dock and stand support.
6. Dock with Lightning Connector
(in open position).
ISDK13_IB_V2.indd 6 15/07/2013 11:08

7
1 1
2 3
4
1. Battery Compartments
2. AUX IN Socket
To connect auxciliary devices.
3. DC IN Socket
Connects to mains socket .
4. Rear Stand (in open position).
ISDK13_IB_V2.indd 7 15/07/2013 11:08

8
getting started
This Portable Dock for iPhone and iPod can be used with either batteries or mains power.
using with mains power
This unit is designed only to operate with the supplied DC 5.9V/2A mains adapter.
Connecting the unit to any other power source may damage it.
1. Press the docking station release button to release the docking station at the front and
the stand at the back (which reveals the power and AUX in sockets).
2. Unwind the mains adapter cable to its full length.
3. Connect the plug at the end of the cable to the DC IN Socket on the back of the unit.
4. Plug the mains adapter into a mains socket and switch the socket on.
5. The unit is now connected and ready to use.
using with batteries
You can t 4 x AAA batteries (not supplied) into
your Portable Dock for portable operation.
1. Place unit face down on a soft, non scratching
surface.
2. Press the battery cover catch and lift o the
battery cover.
3. Fit 2 x AAA batteries to the battery
compartment, observing polarity as shown.
4. Re-t the battery cover.
5. Repeat procedure with other battery
compartment.
6. Press the docking station release button to
release the docking station at the front and
the stand at the back (which reveals the power
and AUX IN sockets).
• Dispose of used batteries with regard to the recycling regulations in your area. Do NOT
short circuit batteries or throw them into water, the general rubbish or in a re.
7. The unit is now ready to use.
ISDK13_IB_V2.indd 8 15/07/2013 11:08

9
switching on/o
When you rst connect the unit to the mains socket, the unit will be in STANDBY mode,
press the STANDBY button on the top of the unit to turn it on. The power indicator will
light up green.
Press the STANDBY button again to turn the unit to STANDBY mode.
To switch the unit o completely, unplug the mains adapter from the mains socket.
opening/closing the dock and stand
Press the docking station release button on the front of the unit to release the dock at the
front and the stand at the back.
To close the dock
Press the dock‘foot’ up and back into the unit.
To close the stand
Do not try to press the stand back without
releasing the locking tab as this could damage
the unit.

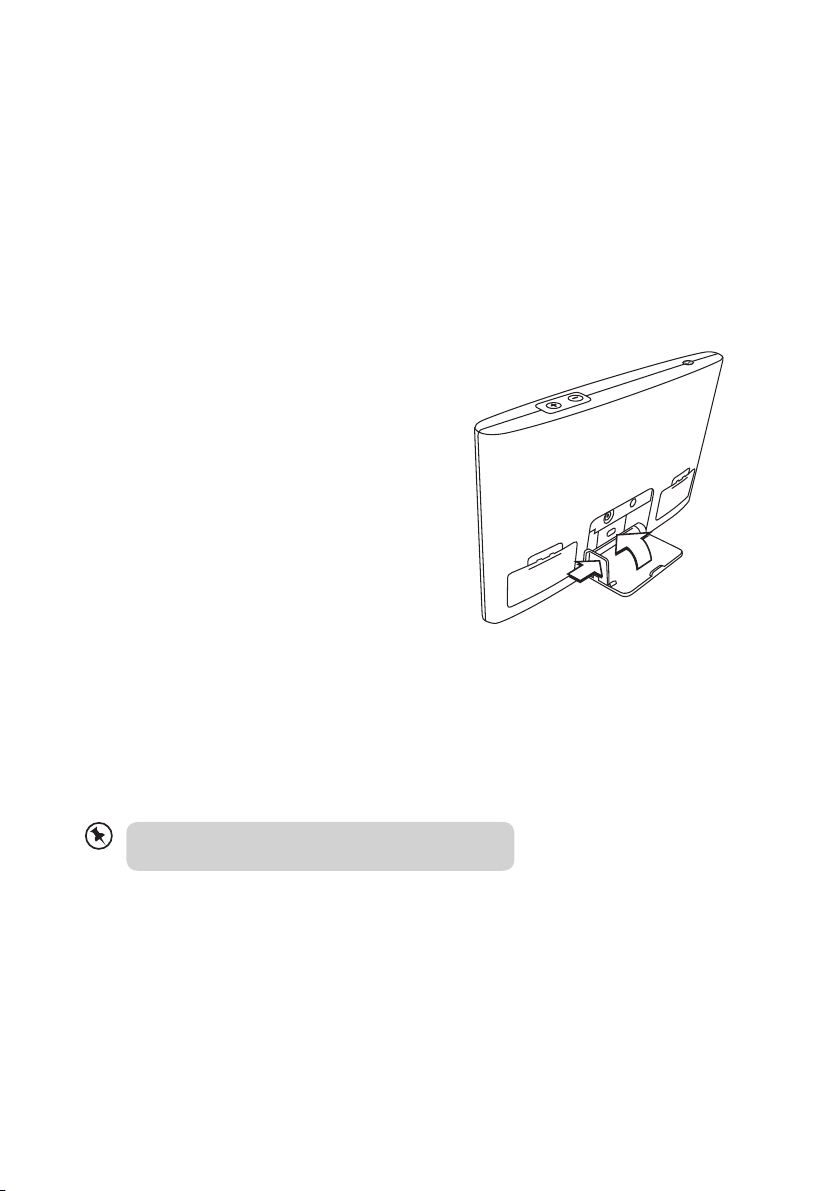

1. Press in the locking tab on the left
of the stand.
2. Push the stand back up into the unit.
using with iPhone 5/
iPod touch 5/iPod nano 7
Press the STANDBY button on the unit to turn it on.
Place the device on the dock lightning connector.
Press the play button on the device and adjust the sound level as desired. Sound level
controls on the connected device are disabled once it is connected to the dock.
charging your iPhone/iPod
1. Your iPhone/iPod has an internal, non-removable battery. The battery may need to be
charged if it has not been used for a while.
2. You can automatically charge the iPhone/iPod through the unit when it is docked.
The device will not charge if the unit is in STANDBY mode.
1
2
Ensure that the case is removed from your device before
placing it on the dock lightning connector.
ISDK13_IB_V2.indd 9 15/07/2013 11:08

10
using the AUX IN connection
The AUX IN connection on the back can be used to connect your MP3 player, CD player or
computer using a 3.5 mm audio cable (not supplied).
1. Connect one end of the 3.5mm audio cable to the AUX IN socket on the unit and the
other to your device.
2. Use the controls on the device to select and play. Using the AUX IN connection you can
also control sound levels through the connected device.
maintenance
cleaning the unit
Ensure to unplug the unit from the mains socket before cleaning.
• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the radio.
ISDK13_IB_V2.indd 10 15/07/2013 11:08

11
specications
Model ISDK13
Power Supply AC 100-240V ~50/60Hz
Output Power 2 x 1.2W
Dimensions Approx. 210(L) x 25/85 with stand open(W) x 130(H) mm
DC Output Voltage 5.9V 2A
Features and specications are subject to change without prior notice.
hints and tips
If a problem does occur, it may often be due to something very minor.
The following table contains various tips.
Problem Cause / Solution
Unit does not
turn on or does
not respond
• Make sure the mains adapter is connected to the mains socket
and the unit properly and that it has power.
• If using with battery power, check that the batteries are inserted
correctly and are not discharged.
• Check that the unit is not in standby mode.
• Make sure that the iPhone/iPod is connected properly.
Vibrations may have caused the iPhone/iPod to come loose
from the docking station.
• Make sure the iPhone/iPod is switched on.
ISDK13_IB_V2.indd 11 15/07/2013 11:08

Notes for battery disposal
The batteries used with this product contain chemicals that are harmful to the
environment. To preserve our environment, dispose of used batteries according to your
local laws or regulations. Do not dispose of batteries with normal household waste.
For more information, please contact the local authority or your retailer where you
purchased the product.
This symbol on the product or in the instructions means that your
electrical and electronic equipment should be disposed at the end of its
life separately from your household waste. There are separate collection
systems for recycling in the EU.
For more information, please contact the local authority or your retailer
where you purchased the product.
All trademarks are the property of their respective owners and all rights are acknowledged.
(ISDK13-130715V2)
