iWave iW-RainboW-G21D User manual

R0.1
iW-RainboW-G21D
Quick Start Guide
RZ/G1H Qseven SOM Development Platform

Disclaimer
iWave Systems reserves the right to change details in this publication including but not limited to any
Product specification without notice.
No warranty of accuracy is given concerning the contents of the information contained in this
publication. To the extent permitted by law no liability (including liability to any person by reason of
negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect
loss or damage caused by omissions from or inaccuracies in this document.
Trademarks
All registered trademarks, product names mentioned in this publication are the property of their
respective owners and used for identification purposes only.
iWave Systems Technologies Pvt. Ltd. is an ISO 9001:2015 Certified Company.
Warranty & RMA
For Return Merchandise Authorization (RMA), go through the below web link,
http://www.iwavesystems.com/support/rma.html
Warranty support for Hardware: 1 Year from iWave or iWave's EMS partner.
For warranty terms, go through the below web link,
http://www.iwavesystems.com/support/warranty.html
Technical Support
iWave Systems technical support team is committed to provide the best possible support for our
customers so that our Hardware and Software can be easily migrated and used.
For assistance, contact our Technical Support team at,
Email
Website
Address
: [email protected]
: www.iwavesystems.com
: iWave Systems Technologies Pvt. Ltd.
th nd
# 7/B, 29 Main, BTM Layout 2 Stage,
Bangalore-560076, India.
Certification

About this Guide
This document is intended as the guide for unpacking iWave’s iW-RainboW-G21D - RZ/G1H Qseven
Development Platform package and setting up the test environment for it. It also gives details about
safety information and important cautions which should adhere while using the platform.
Development Platform Overview
The iW-RainboW-G21D Development Platform incorporates RZ/G1H Qseven SOM which is based on
Renesas high performance RZ/G1H (Octa Core - Quad ARM Cortex A15 and Quad A7 MPUs) and
Qseven Compatible Carrier Board. This platform can be used for quick prototyping of any high end
applications in verticals like Automotive, Industrial & Medical. The board is highly packed with all
necessary on-board connectors to validate almost complete RZ/G1H CPU features.
INTRODUCTION
Important Note
Warning
Use ESD Protection
ROHS complaint
Check the local regulations for disposal of electronic products
Important Symbols Used
O1
Quick Start Guide

Check the local regulations for disposal of electronic products.
Safety Information
 Before unpacking and installing the Development Platform or adding devices on it, carefully read all
the manuals that came with the package.
 Place the product on a stable surface. To avoid short circuits in electronics, keep all conducting
material away from the Development Platform.
 Avoid using board in extreme dust, humidity and temperature conditions. Do not place the
Development Platform in wet area.
 Before using the Development Platform, make sure that all cables are correctly connected and the
power adapter is correctly selected.
 Make sure that Electrical Outlet where you connected the power adapter is not damaged and
working fine.
 If the power adapter is broken, do not try to fix it by yourself. To prevent electrical shock hazard,
disconnect the power cable from the electrical outlet before displacing the system.
 Don’t try to remove the Qseven SOM module from the Development platform unless really
required.
 Before connecting or removing Qseven SOM module from the Development platform, ensure that
power cable is unplugged and ESD antistatic guidelines are followed.
UNPACKING
O2
iW-RainboW-G21D

Quick Start Guide
O3
Unpacking Guidelines
Please follow the below guidelines while unpacking the RZ/G1H Qseven Development Platform.
Static electricity can destroy electronics in the platform. Make sure to
follow the ESD precautions to prevent damage to the platform and injury
to the user.
Wear the anti-static wristband while unpacking and handling the Development platform to
prevent electrostatic discharge.
Use anti-static pad/mat with proper grounding to place the Development platform.
Don't touch the inside surface of the Development platform circuit board.
Self-grounding: Touch a grounded conductor every few minutes to discharge any excess
static build-up.
Make sure that packing box is facing upwards while opening.
Make sure that the entire packing list items mentioned in Package Checklist are present.

Do not proceed with installation, if any of the items listed in the above
checklist is missing or damaged. Contact iWave support team.
O4

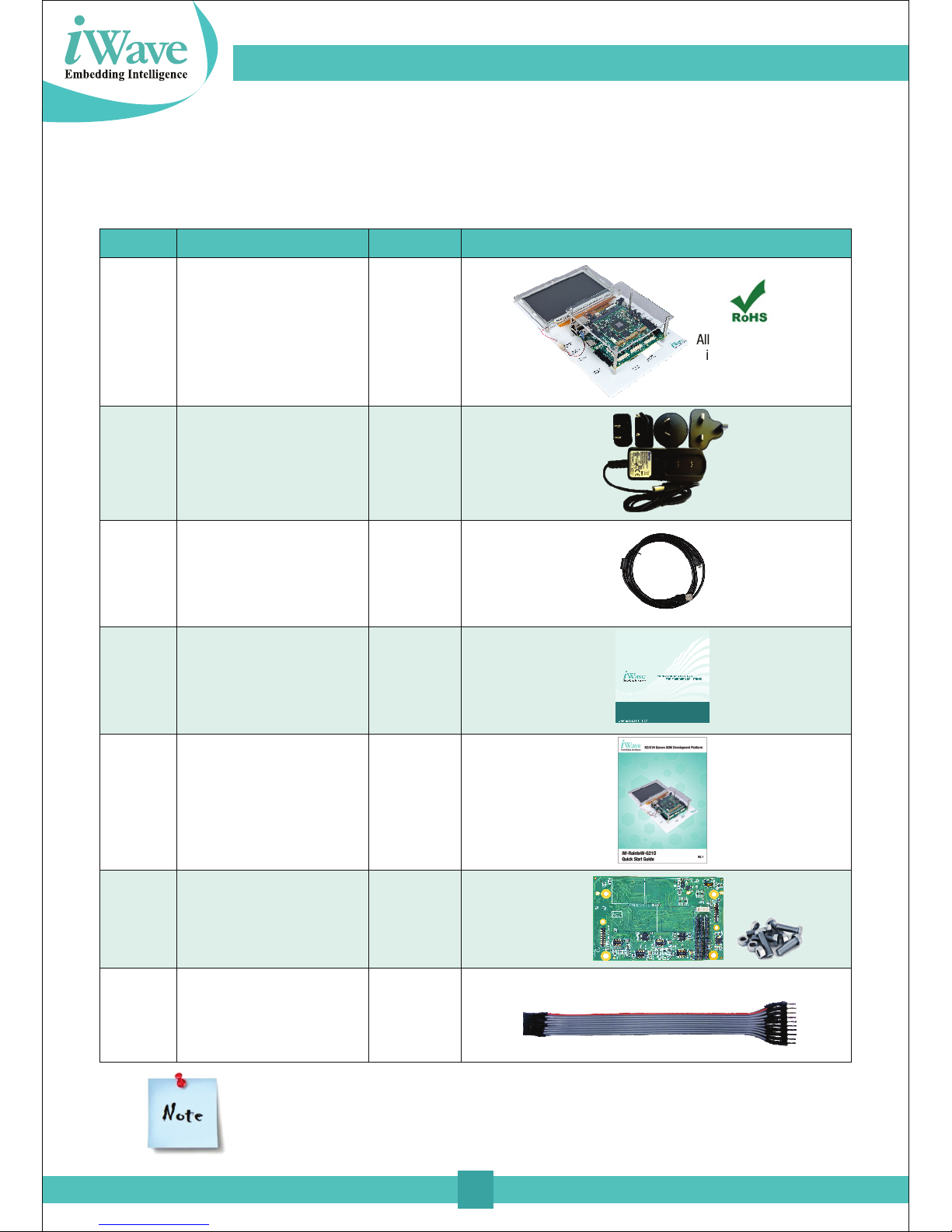

Package Checklist
The RZ/G1H Qseven Development Platform will be shipped with the following items:
Sl. No.
1
iW-RainboW-G21D
RZ/G1H
Qseven Development
Platform
1
Package Item Qty Image
212V,2A Power Adaptor
with universal plugs
1
All components used
in this platform is
Lead free and
ROHS complaint
1
4 1
DVD
(Please refer
DVD Content section)
3
Quick Start Guide
Hard copy
1
5
6
USB OTG Cable
1
Camera Add On Module
(With Screw Bag)
Optional
Custom JTAG Cable
7
Optional
iW-RainboW-G21D

O5
Quick Start Guide
Get to Know the RZ/G1H Development Platform
Renesas RZ/G1H MPU
Quad ARM Cortex®-A15 MPCore® @ 1.4GHz
2GB DDR3 (Expandable )
4GB eMMC Flash (Expandable )
2MB SPI NOR Flash (Expandable)
Power ON/OFF Switch
Board Configuration Switch
Reset Switch
Debug UART through USB Micro AB Connector
Data UART (SCIFB1) x 1 Port through Header
USB3.0 Host x 1 Port through Dual stack USB3.0 Type A Connector
PCIe x 1 Port
SATA x 1 Port (Optional)
100/1000Mbps Ethernet through RJ45MagJack
USB2.0 Host x 1 Port through Type A Connector
USB2.0 OTG x 1 Port through Micro AB Connector
CAN x 1 Port through Header
I2S Audio Codec with 3.5mm Audio IN and OUT jack
7” RGB LCD Connector with CapacitiveTouch
SPI Flash (MSIOF0)
RTC Coin Cell holder
Fan Header
80pin Expansion Connector x 3 (To connect Add-On-Module)
Quad ARM Cortex®-A7 MPCore® @ 780MHz
CPU
Memory
On Board Switches
Serial Interface
High Speed Interface
Communication Interface
Audio/Video Interface
Additional Features
General Specification Power Supply : 12V,2A Power Input Jack
Form Factor : 120mm X 120mm Nano ITX
RZ/G1H Qseven Carrier Board Features
RZ/G1H Qseven SOM Features
Real Time Clock RTC Controller
The RZ/G1H Qseven Development platform consists of 70mmx70mm RZ/G1H Qseven SOM and
120mmx120mm Nano-ITX form factor Qseven Carrier Board. The RZ/G1H Qseven Development
platform supports the following features.
SDHI (4bit) x 1 Port
HDMI Output through HDMI Transmitter x 1 Port
USB2.0 Host x 1 Port through Dual stack USB3.0 Type A Connector
Headers JTAG Header x 1 (Optional)
SPI Programming Header x 1 (Optional)

The RZ/G1H Qseven SOM major components location are shown in the below figure.
Refer SOM Hardware User Guide for more details.
O6
O6
Top View of SOM
Bottom View of SOM
MXM Edge Conn. (J1)
JTAG Header (J2)
VIN0/8bit eMMC Switch (SW2)
VIN1/EthernetAVB Switch (SW1)
SPI Programing Header (J3)
Expansion Connector 1 (J6)Expansion Connector 2 (J5)
iW-RainboW-G21D

The RZ/G1H Qseven Carrier Board major components location are shown in the
below figure.
Refer Development Platform Hardware User Guide for more details.
O7
Quick Start Guide
Bottom View of Qseven Carrier Board
Top View of Qseven Carrier Board
HDMI Conn. (J24)
USB 3.0 Conn
(J23, Bottom)
USB 3.0 Conn
(J23, Top)

This section describes the step by step procedure to setup the test environment for RZ/G1H Qseven
Development Platform.
Read the Development Platform Documents
Setting Board Configuration Switch
Setting up the Debug port
Power ON the Development platform
Before setting up the test environment, one must read all the documents of the RZ/G1H Qseven
Development platform to know about its features and get familiar with it. These documents are
available in the DVD which comes along with the RZ/G1H Qseven Development platform Package.
Below mentioned documents are available in the DVD,
RZ/G1H Qseven DevKit Quick start Guide (This Guide)
RZ/G1H Qseven SOM Hardware User Guide
RZ/G1H Qseven DevKit Hardware User Guide
RZ/G1H Qseven SOM Software User Guide
RZ/G1H Qseven SOM Release Notes for Software
Getting Start
Read the Documents
SETTING UP THE TEST ENVIRONMENT
Refer DVD contents section to know about the DVD content
structure and platform related document’s path.
08
iW-RainboW-G21D

Quick Start Guide
11

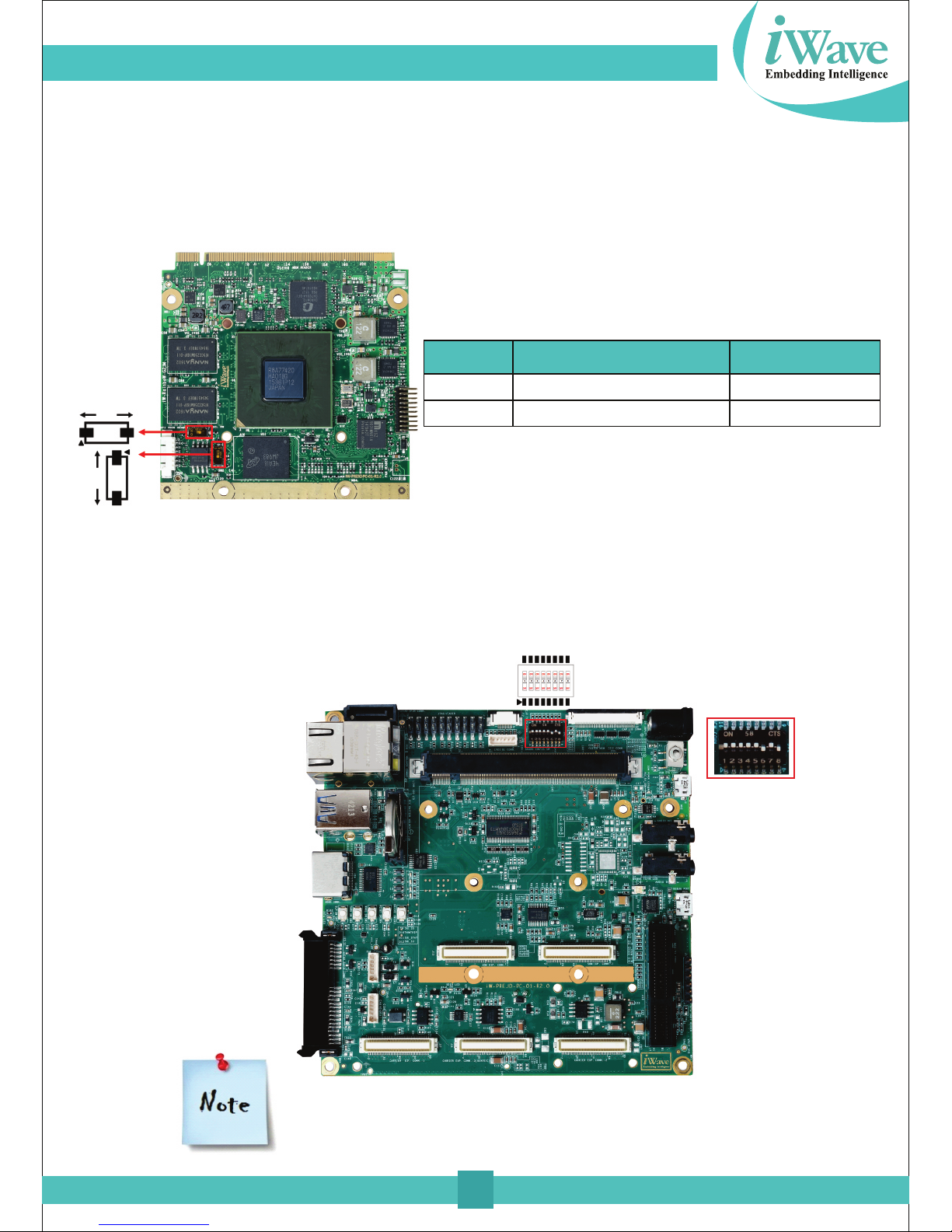

Configuration Switch Setting - RZ/G1H Qseven SOM
Refer Development Platform Hardware User Guide for more details.
The RZ/G1H Qseven SOM has two single bit DIP switch SW1 and SW2 for configuration setting. This
switch can be used to select one interface over other as given in the below table.
VIN0 EtherAVB
SW1
SW2
VIN1
8bit eMMC
SW2
SW1
Board Configuration
Switch (SW2)
Default Setting
“11111010”
SW1
SWITCH ON (HIGH) OFF (LOW)
VIN0 Ethernet AVB
VIN1 and eMMC in 4bit mode eMMC in 8bit mode
SW2
The RZ/G1H Qseven Development platform has one 8bit Board configuration switch (SW2) to configure
the carrier board specific feature setting. Each bit of this switch is used to select the different features or
modes. Default setting of Board configuration switch is “11111010” as shown in the figure.
Configuration Switch Setting - RZ/G1H Qseven Carrier Baord
09

10
iW-RainboW-G21D

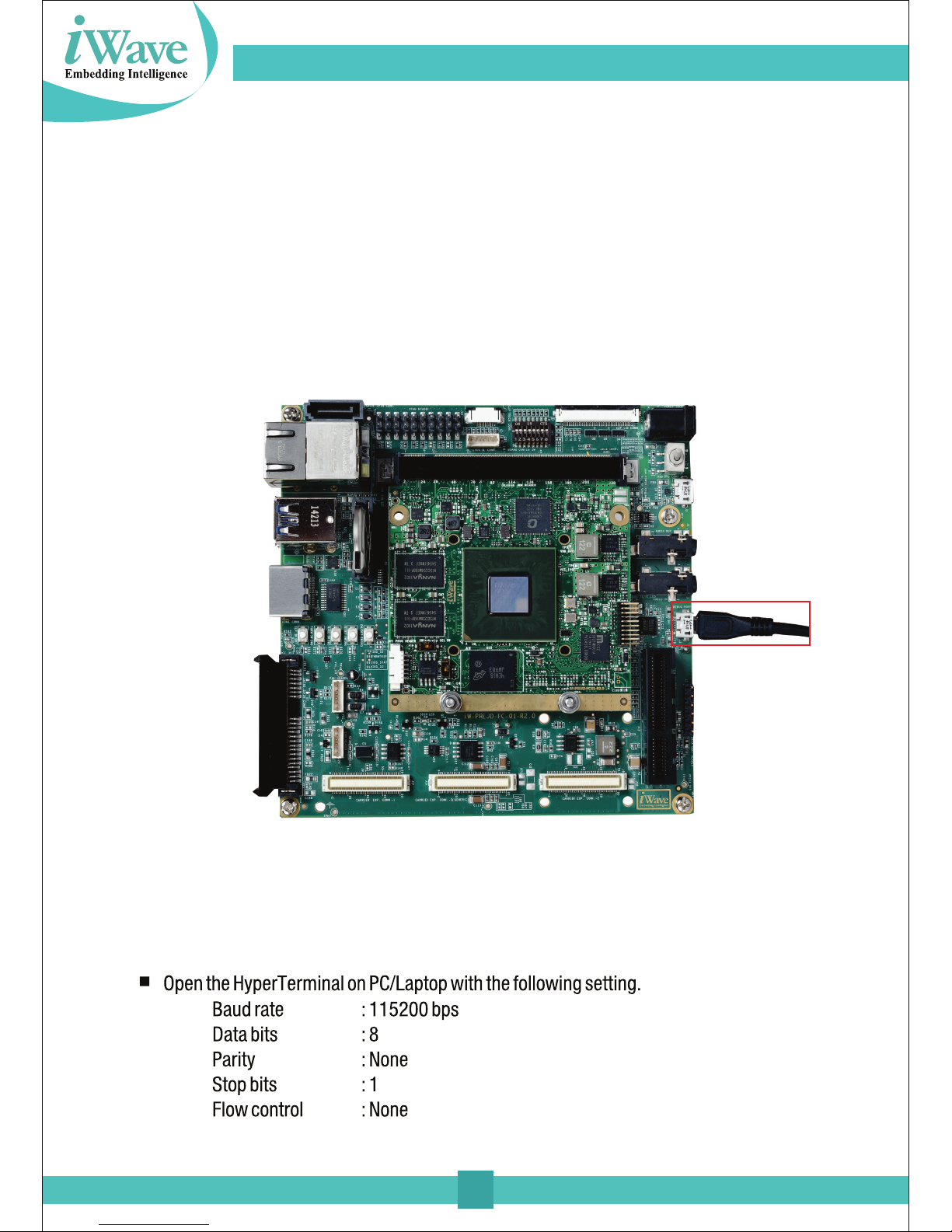

Please follow the below procedure to setup the Debug Micro USB port of RZ/G1H Qseven Development
Platform.
Debug Port Setting
Debug Port Connection
Connect TypeA end of USB cable to PC and MicroB end of USB cable to Development
platform's debug Micro USB connector(J3) as shown below.
Install the driver for Debug USB Port in Host PC/Laptop using the below link.
Drivers located at: http://www.ftdichip.com/Products/ICs/FT232R.htm

11
Quick Start Guide

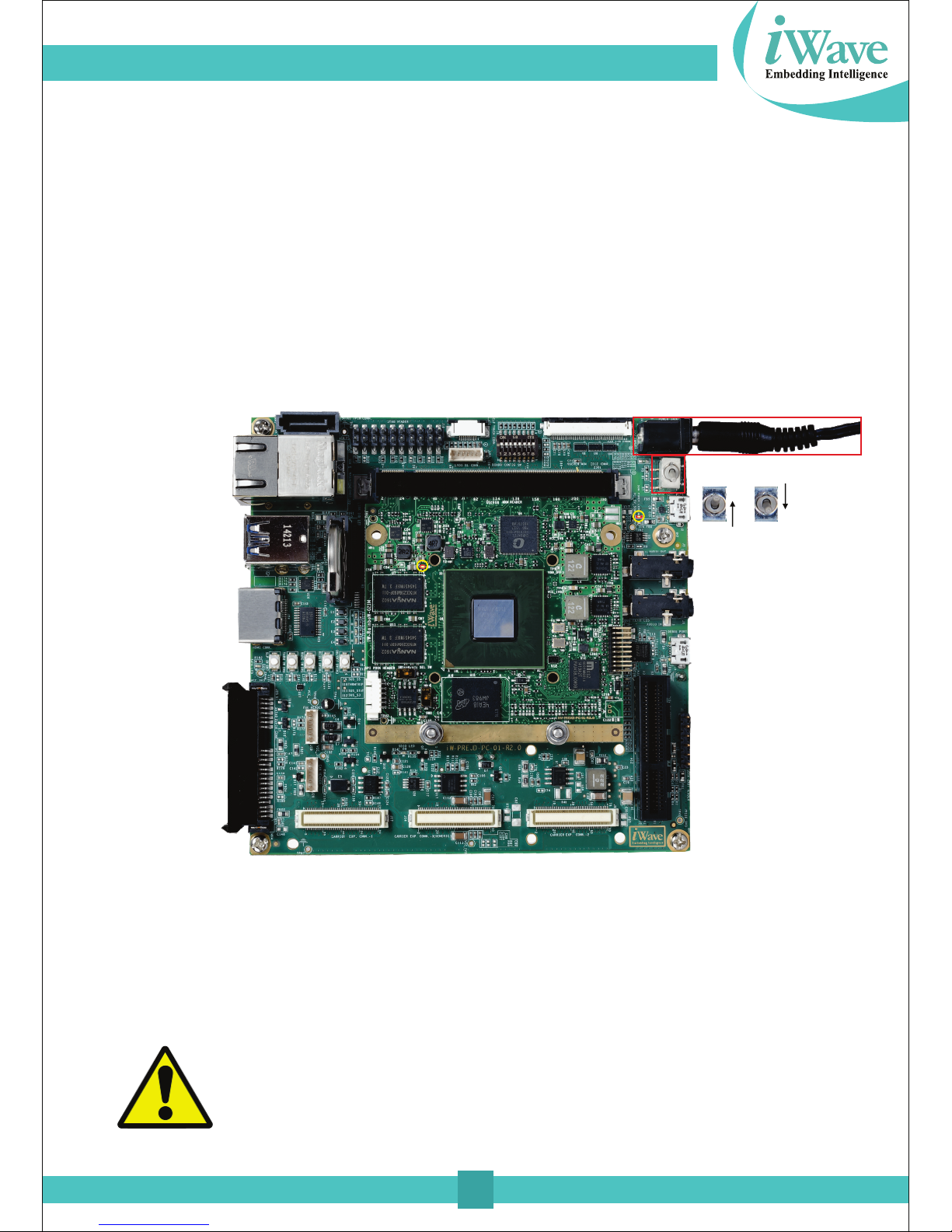

The RZ/G1H Qseven Development platform comes with 12V, 2A power supply with universal plugs.
Please follow the below procedure to power ON the Development platform.
Powering ON the Development Platform
Connect the 12V power supply plug to the power connector (J4) of the Development platform
as shown below and switch ON the power supply.
Once Power is applied to the Development platform, the Red Power LEDs in the RZ/G1H
Qseven SOM and carrier board will glow as shown in the above image.
Do not use different power adapter other than the supplied one.
Do not proceed with installation, if any of the Power Status LEDs are blinking
or not glowing. Contact iWave support team.
Power Supply Connection
OFF
ON

Once power is applied to the RZ/G1H Qseven Development Platform as explained in the previous
section, the HyperTerminal of the PC/Laptop which is connected to the Development platform will
immediately show the boot messages of the boot loader.
iWave supports below mentioned Operating System Releases for RZ/G1H Qseven Development
Platform.
Linux 3.10.31(or higher)
Android KitKat 4.4.2 (or higher)
Depending upon the supported Operating system and boot loader on particular delivery, the Hyper
Terminal will show the boot messages as described in the following section.
Done with Test Environment
1. Platform comes with bootable binary in default boot media.
2. Make sure that all the steps mentioned in Getting Start section is followed.
12
iW-RainboW-G21D

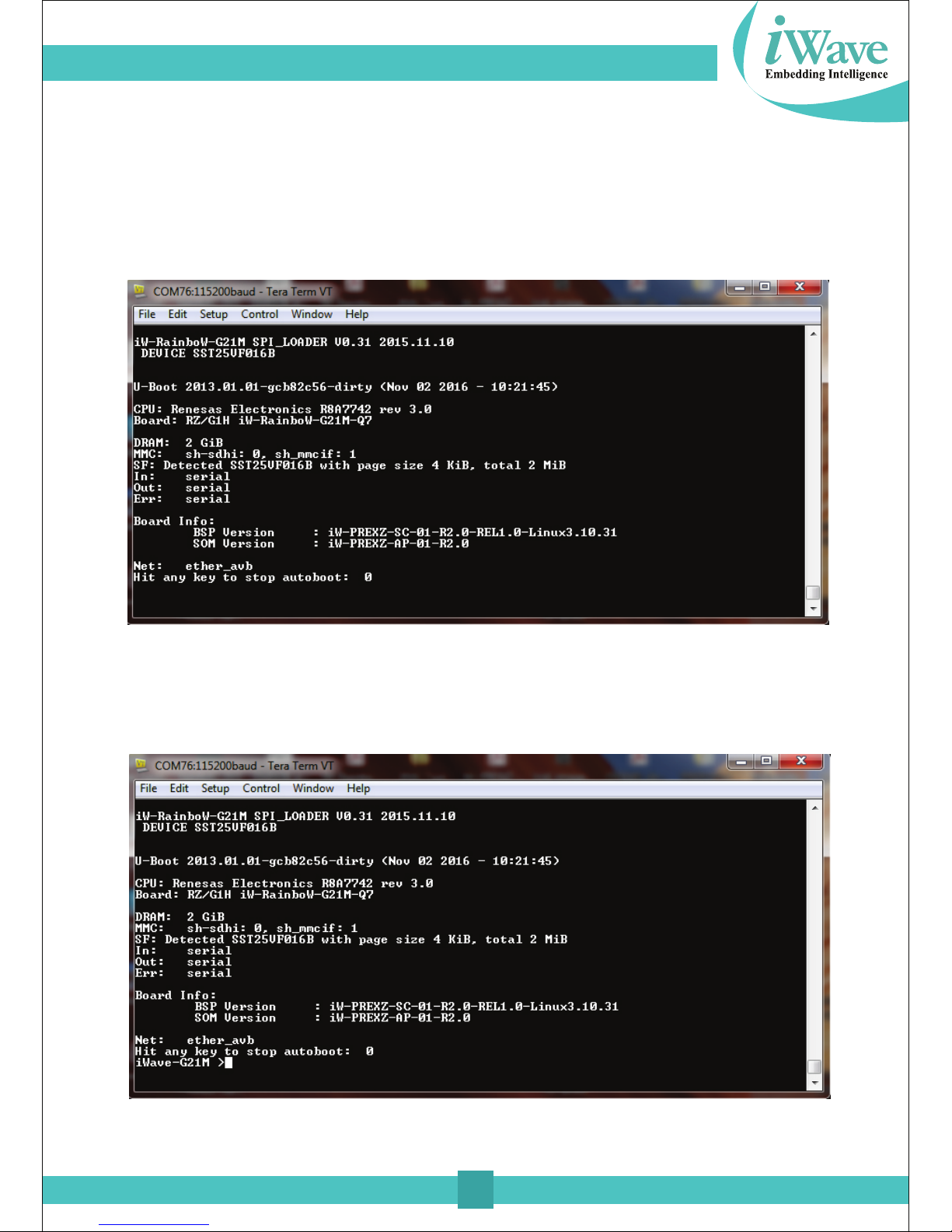

In Linux Release, U-boot boot messages will appear in Hyper Terminal as shown below.
Immediately after power on, press any key in HyperTerminal to go to the U-boot command prompt
as shown below. Otherwise Linux will launch automatically.
Linux Test Environment
U-boot on Terminal
U-boot Command Prompt
13
Quick Start Guide

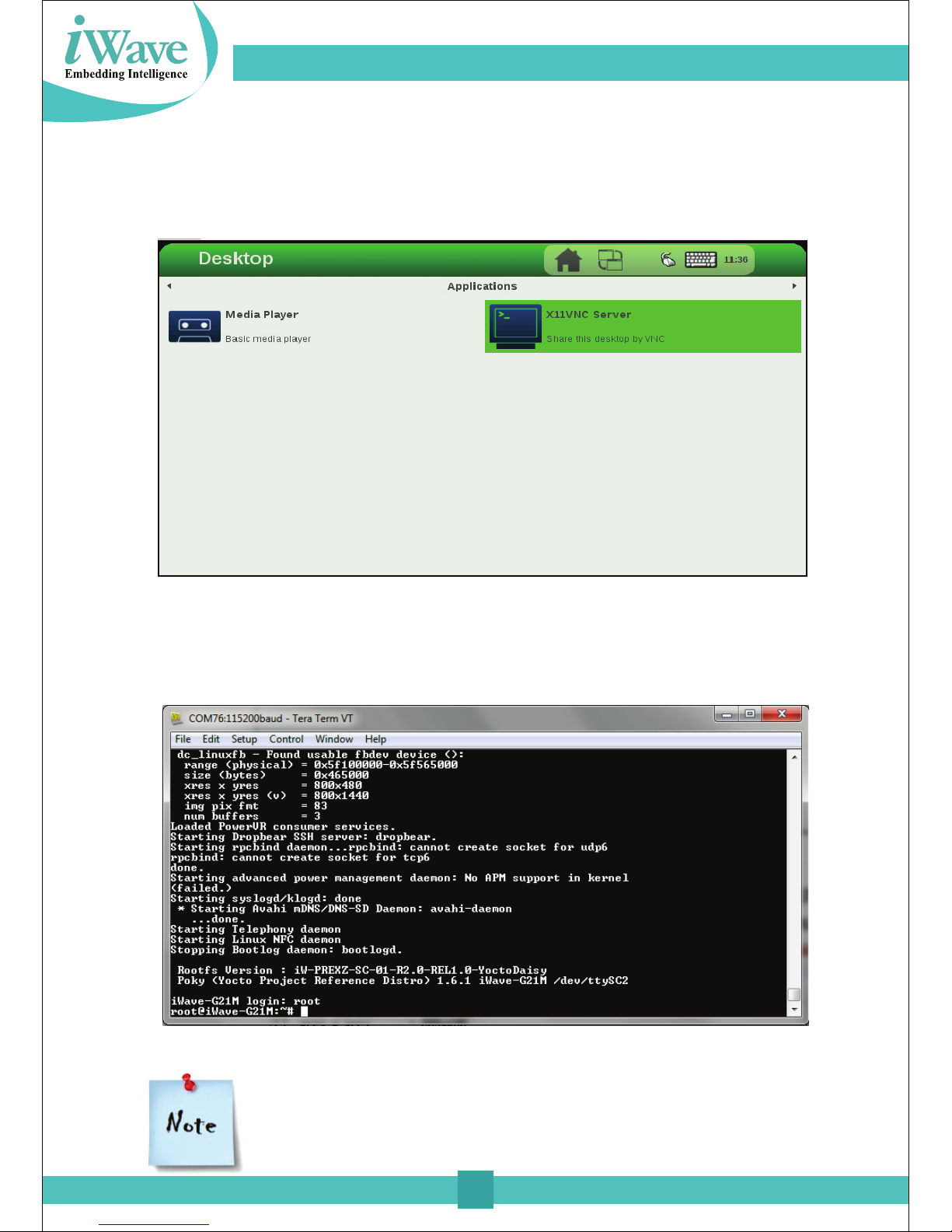

Once Linux is launched, the LCD will show the Yocto images as shown below and HyperTerminal
will show the Linux Login.
To Login in Linux, enter “root” in terminal and you will get the Linux command prompt as shown
below. Once you get the prompt you are done with Test Environment setup on Linux delivery.
LCD after Linux Launch
Linux Command Prompt
Refer Linux Software User Guide for further details.
14
iW-RainboW-G21D

DVD Contents
The following figure shows the DVD content structure for Linux Operating System Release.
DVD Contents
15
Quick Start Guide
iWave continuously improves software releases with latest kernel version.
Contact iWave for latest software release detail.
Linux Release DVD Contents

RZ/G1H Camera Add On Module
iWave supports Camera Add-on Module for RZ/G1H Development platform, which supports
following features.
For More details about Camera Add-on Module, contact iWave Sales Team.
Quick Start Guide
16
10/100Mbps Ethernet Header x 1 Port
8bit CMOS Camera (VIN0, VIN1, VIN2 and , VIN3) x 4 Ports
16bit CMOS Camera (VIN0 and VIN1) x 2 Ports
Communication Features
Video Features
General Specification
CAN1 Header x 1 Port
RZ/G1H Camera Add On Module Features
High Speed UART RS232 Header (HSCIF0) x 1 Port
Serial Interface Features Data UART RS232 Header (SCIF0, SCIF1, SCIFA2, SCIFB2) x 4 Port
Form Factor : 90mm X 60mm
iW-RainboW-G21D
(Or)

iWave’s other Products
iW-RainboW-G22M-RZ/G1E SODIMM SOM
The RZ/G1E SODIMM SOM is industry latest ultra-compact yet highly integrated SOM based on
Renesas high performance RZ/G1E Dual ARM Cortex A7 MPU running at 1GHz. A single ruggedized
miniature SODIMM connector allows compact carrier board form factors which is ideally suitable
for space constraint embedded applications.
iW-RainboW-G20M-RZ/G1M/G1N Qseven SOM
RZ/G1M/G1N Qseven SOM which is based on Renesas high performance RZ/G1M/G1N Dual
ARM Cortex A15 MPU and Qseven Compatible Carrier Board. This platform can be used for
quick prototyping of any high end applications in verticals like Automotive, Industrial & Medical

CANADA
Create Control
234900 Rawlison Cr.
Langle
ITALY
AT Embedded Solutions SRL
Via Carducci, 35
20090 - Trezzano S/N
Milano - Italy
Tel: [phone]
Email: [email protected]
EUTECSYS SAS
13 avenue morane saulnier,
Immeuble Guynemer, CS 60740,
78457 velizy-villacoublay,
France
Tel: [phone]
Email: [email protected]
NETHERLANDS, LUXEMBOURG
JAPAN
iWave Japan, Inc.
8F-B, Kannai Sumiyoshi Building,
3-29, Sumiyoshi-cho, Naka-ku, Yokohama,
Kanagawa, Japan.
Ph: [phone]
Email: [email protected]
www.iwavejapan.co.jp
SINGAPORE
iWave Japan, Inc.
30 Marsiling Industrial Estate Road 5,
#04-05C, Singapore 739211
Mob: [phone]
Email: [email protected]
EUROPE
iWave Europe
Postbus 6197
3130 DD Vlaardingen
The Netherlands
Ph: [phone]
Email: [email protected]
GERMANY
USA
