Introduction
Quick Start Guide (QSG)
This Quick Start Guide (QSG) is designed for users to quickly
understand the iW-RainboW-G34D i.MX 8M Mini or
iW-RainboW-G37D i.MX 8M Nano SODIMM SOM Development
Platform and start the evaluation. It provides the instructions
for setting-up the Development Platform from the packed box.
Development Platform Description
Some Key Features of the Board Include:
vi.MX 8M Mini Q/QL/D/DL/S/SL SoC or
i.MX 8M Nano Q/QL/D/DL/S/SL SoC

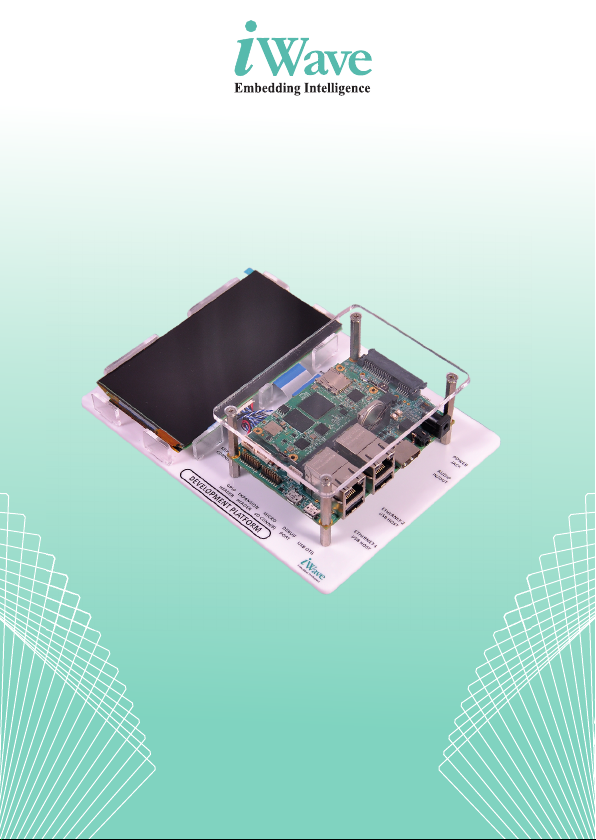

The iW-RainboW-G34D- i.MX 8M Mini or iW-G37D- i.MX 8M
Nano SODIMM Development Platform is a demonstration,
development and experimentation platform based on the
NXP’s i.MX 8M Mini or i.MX 8M Nano SoC. This Development
Platform incorporates with i.MX 8M Mini or i.MX 8M Nano SoC
based SODIMM SOM and SODIMM Carrier Board with all
necessary interface connectors for developing a complete
embedded application.
Quick Start Guide
Quick Start Guide
vLPDDR4-1GB (Expandable)
veMMC-8GB (Expandable)
v802.11 a/b/g/n/ac Dual Band WiFi with BT 5.0
v5.5” FHD AMOLED Display with CAP touch
vGigabit Ethernet Port
v100mmx72mm Pico ITX form factor
01

This Development Platform is ESD
sensitive. Handle the product only in
accordance with the installation
instructions given in the manual.
Therefore ESD precautions should
be taken care during transport and
handling.
Safety
iW-RainboW-G34D i.MX 8M Mini or
iW-RainboW-G37D i.MX 8M Nano
SODIMM Development Platform is
designed by using RoHS and REACH
c omp l i ant c o mpo n e nt s a n d
m a n u f a c t u re d o n l e a d f r e e
production process.
Environmental Compliance
Product Disposal
ESD Protection
Check the local regulations for
disposal of electronic products
before disposing.
It is must to use a ESD ground strap
or other grounded source before
u n p a c k i n g o r h a n d l i n g t h e
iW-RainboW-G28D
iW-RainboW-G34D
02

Quick Start Guide
iW-RainboW-G25D
Step 1 - Unpacking
Remove the Development Platform from antistatic cover and
place it above the ESD free area. Use anti-static pad/mat with
proper grounding to place the Development Platform. Don't
touch inside surface of the circuit board.
03
iW-RainboW-G28D
Quick Start Steps
Avoid using board in extreme dust, humidity and temperature
conditions. Also this Development Platform is not water proof.
Keep away from wet surface.
Package Box
Quick Start Guide
03
Quick Start Guide
Quick Start Guide

Step 2 - What's Inside The Box ?
04
Make sure that, below deliverables are received without any
physical damage.
iW-RaniboW-G28D
5V,2.5A Power Supply USB OTG Cable
QSG DVD*
i.MX 8M Mini or i.MX 8M Nano DevKit
iW-RainboW-G28D
iW-RainboW-G34D
04
*DVD is optional in some Configuration

Step 3 - Read DVD Contents
Given DVD contains below deliverable folders.
1. Binaries
2. Documents
3. Source Code
4. Programming Tool
Delivery binaries are available in Binaries folder and Source
code files are available in Source Code folder. Also Documents
folder contains Hardware User Guide, Software User Guide,
Software Release Note and Quick Start Guide (this guide).
Before moving to next step, one must go through all the
documents including Hardware User Guides and get familiar
about the hardware section of iW-RainboW-G34D i.MX 8M Mini
or iW-RainboW-G37M i.MX 8M Nano SODIMM Development
Platform.
Source code can be customized according to user wish and
corresponding binaries can be generated. Once the binaries
generated, user can download the binaries in to the
Development platform using programming tool.
05
Quick Start Guide
Quick Start Guide

Step 4 -Quick View-SOM
iW-RainboW-G28D
TOP View
BOTTOM View
iW-RainboW-G34D
6. eMMC
06
1. Wi-Fi & BT Module
2. LPDDR4
3. i.MX 8M Mini or
i.MX 8M Nano SoC
4. Micro SD Conn.
iW-RainboW-G28D
iW-RainboW-G34D
06
1234
5
6
5

Step 5-Quick View-Carrier Board
07
Quick Start Guide
07
Quick Start Guide
Quick Start Guide
TOP View
BOTTOM View
6
5
3
2
1
7
8
9
12
13
14
16
17
18
19
25
10
11
15
1.Power Jack
2.Audio In/Out Jack
3. *HDMI Connector
4.RTC Header
5.Eth Jack & USB2.0 Conn.-1**
6.Eth Jack**&USB2.0 Conn.-2**
7.USB OTG Connector
8.Debug UART Connector
9.UART Header
10.Expansion Header
11. *CAN Header
12.GPIO Header
13. *LVDS Back light Conn.
14.SODIMM Edge Conn.
15.Boot Mode switch
16. *SATA Connector
17.Reset Switch
18.Power Switch
19. *Parallel Camera Conn.
20.Mini PCIe Connector
21.JTAG Connector
22. .*Resistive Touch Conn
23.MIPI CSI 40 Pin Conn.
24.MIPI DSI 20 Pin Conn.
25.Micro SD Connector
20 21
22
23
24
4
*Not supported.
**Not supported in i.MX 8M Nano SoC

Quick Start Guide
iW-RainboW-G25D
Install the driver for Debug Port in Host PC/Laptop using the
below link.
http://www.ftdichip.com/Products/ICs/FT232R.html
Connect Type-A end of USB cable to PC and Micro AB end of
USB cable to Development platform's debug Micro USB
connector(J8) as shown below.
08
Step 6- Setting-Up
Debug Port Setting
Setup the Debug Terminal parameters.
Baud Rate : 115200
Data bits : 8
Parity : None
Stop Bits : 1
Flow Control : None
iW-RainboW-G28D
iW-RainboW-G34D
08

Warning:
1. Do not try to connect any other power supply other than the supplied one
along with the Development Kit.
2. Do not plug or remove the SOM from carrier board with live power.
3. Contact iWave If power LEDs are not glowing.
Once Power is applied to iW-RainboW-G34D i.MX 8M Mini or
iW-RainboW-G37D i.MX 8M Nano SODIMM Development
Platform, the Red Power LEDs in the i.MX 8M Mini or i.MX 8M
Nano SODIMM SOM and carrier board will glow as shown in the
Connect the 5V power supply plug to the power connector (J2)
of the iW-RainboW-G34D/G37D platform as shown below and
switch ON the power supply.
09
iW-RainboW-G28D
09
Quick Start Guide
Quick Start Guide
Power-ON the Development Platform

Quick Start Guide
iW-RainboW-G25D
Step 7 - Test Environment setup
Linux 4.14 (or higher)

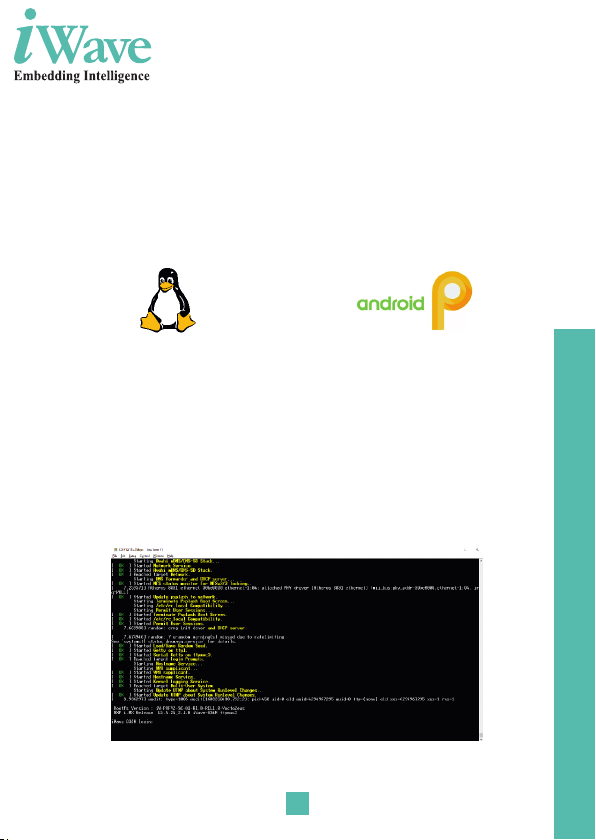

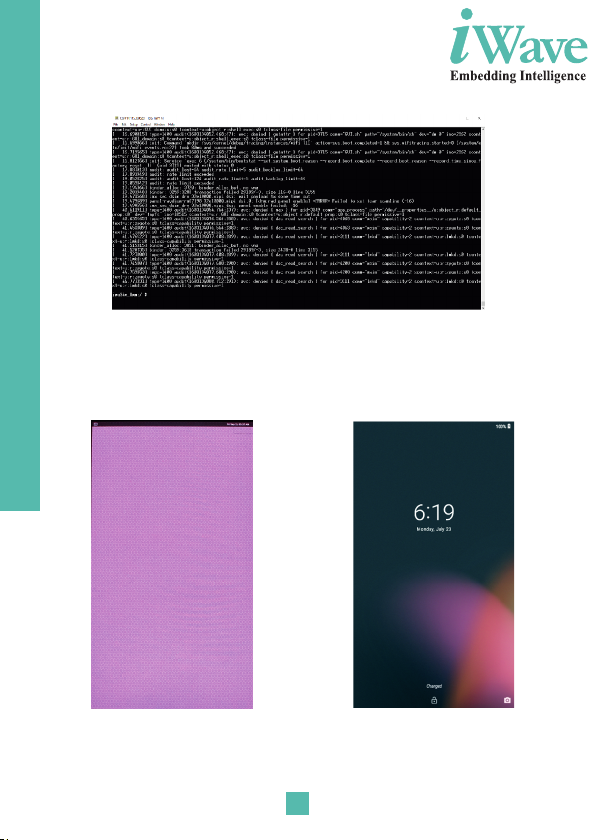

Once the board power is up and if boot get success, depending
upon the supported Operating system and the boot loader on
particular delivery, boot messages being prompted in the
terminal window as shown below. Press the Enter key in
terminal and then its done with Test Environment setup on
particular delivery.
User must go through "Software User Guide" and get familiar
about software section of iW-RainboW-G34D-i.MX 8M Mini or
iW-RainboW-G37D-i.MX 8M Nano SODIMM Development Board.
Operating System Support
Android Pie 9.0 (or higher)
iW-RainboW-G28D
iW-RainboW-G34D
10
Command Prompt (Linux)

iW-RainboW-G25D
Quick Start Guide
11
iW-RainboW-G28D
Quick Start Guide
11
Quick Start Guide
Quick Start Guide
Android Home Screen
Linux Home Screen
Command Prompt (Android)

Quick Start Guide
Product Name : i.MX 8 QM/QP SMARC SOM
Processor : NXP’s iMX 8 QM/QP SoC
RAM : 4GB LPDDR4*
Application : Industrial control systems & HMI, Portable
medical devices, Augmented & Virtual reality
Product Name : i.MX 8M SMARC SOM
Processor : NXP’s i.MX 8M Q/D/DL SoC
RAM : 2GB LPDDR4*
Application : Industrial HMI, Building Automation, Imaging
& Scanning
* RAM size is expandable. Contact iWave team for further details

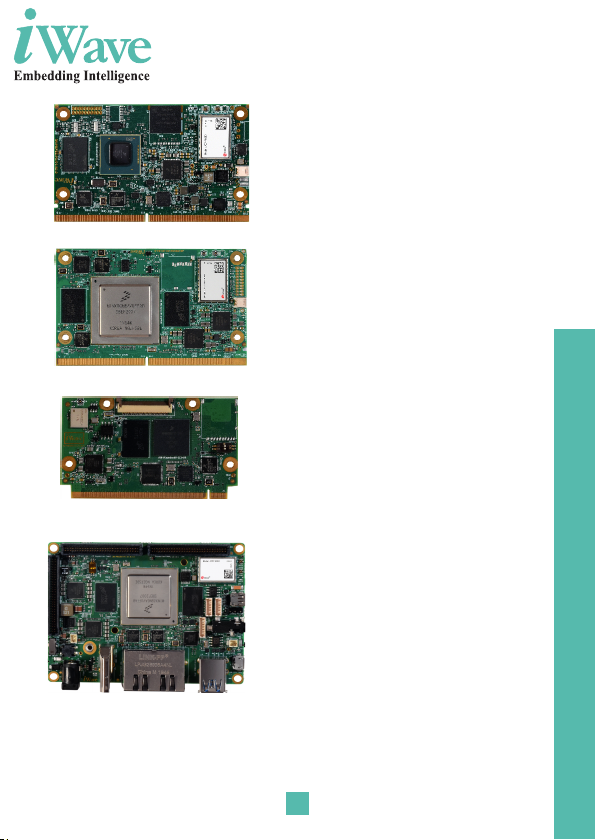

iWave’s Other Products
12
iW-RainboW-G28D
iW-RainboW-G34D
12
Product Name : i.MX 8M Mini/Nano µQseven SOM
Processor : NXP’s i.MX 8M Mini or i.MX 8M Nano SoC
RAM : 1GB LPDDR4*
Application : Industrial HMI, Home Automation, Consumer
& Pro Audio Systems
Product Name : i.MX 8 QM/QP Pico ITX SBC
Processor : NXP’s i.MX 8 QM/QP SoC
RAM : 4GB LPDDR4*
Application : Industrial Motor Control, Sensor Fusion,
Industrial IoT, Complex consumer, medical, and industrial
embedded computing applications

Need More Help ?
iWave Systems provide Technical Support to all customers
around the world.
gEmail
Write your technical quires to [email protected]
gPhone
Call us on : [phone], 26781643, 26786245
gLive Chat
We provide Live Chat technical support to our customers.
Contact your iWave sales window to enable Live Chat support.
gOffice Address
iWave Systems Technologies Pvt. Ltd.
No. 7/B, 29th Main, BTM Layout 2nd Stage,
Bengaluru - 560 076, India.
For Return Merchandise Authorization (RMA), below web link,
http://www.iwavesystems.com/support/rma.html
Warranty support for Hardware: 1 Year from iWave or iWave's
EMS partner.
For warranty terms, go through below web link,
http://www.iwavesystems.com/support/warranty.html
Warranty & RMA
13
Quick Start Guide
Quick Start Guide
iW-PRFYZ-UM-01-R1.0-REL1.0-QSG

NETHERLANDS, BELGIUM
JAPAN
iWave Japan, Inc.
8F-B, Kannai Sumiyoshi Building,
3-29, Sumiyoshi-cho, Naka-ku, Yokohama,
Kanagawa, Japan.
Ph: [phone]
Email: [email protected]
www.iwavejapan.co.jp
Adelco Electronics BV
Venkelbaan 55
2908 KE Capelle aan den IJssel,
The Netherlands.
Tel: [phone]
Email: [email protected]
Ph: [phone], 26781643
Israel
Value Technologies Ltd.
P.O. BOX 3161, Tel-Mond, Israel
4060000
Tel: [phone]
Fax: [phone]
Email: [email protected]
FRANCE
EUROPE
iWave Europe.
International Sales and Marketing,
Europe.
3130 DD Vlaardingen The Netherlands
Ph: [phone]
Email: [email protected]
Our Partners
Across The Globe
Unitronic Gmbh
Muendelheimer Weg 9,
D-40472 Duesseldorf,
Germany
Tel: [phone] - 0
Email: [email protected]
RUSSIA KOREA
J.S Communications
#913, Dojung Tower, Anyang-ro 115,
Manan-gu, Anyang-si, Gyeonggi-do, Korea
Tel : [phone]
Email: [email protected]
Headquarters: INDIA
iWave Systems Tech. Pvt. Ltd.
7/B, 29th Main, BTM Layout 2nd Stage,
Bengaluru-560076,India.
Ph: [phone], 26781643
Fax: [phone]
Email: [email protected]
www.iwavesystems.com
GERMANY
FRANCE
EUROCOMPOSANT
1, rue Rene Caudron - BP 15
78960 Voisins-le-Bretonneux,
France
Tel: [phone]
Fax: [phone]
Email: [email protected]
Symmetron
Business-Park River City,
Leningradskoe Shosse 69,
Building 1, Moscow, Russia, 125445.
Tel: [phone]
Email: [email protected]
SWEDEN
Acte Solutions AB
Box 4115,
SE-171 04 Solna,
Sweden.
Tel: [phone] / 46
Email: [email protected]
GLOBAL
Arrow Electronics, Inc.
9201 East Dry Creek Road
Centennial, CO 80112 USA
NA: [phone]
[email protected]
EMEA: [phone]
[email protected]
Asia: [phone]
[email protected]
GLOBAL
Future Electronics
237 Hymus Blvd.,
Pointe Claire, Quebec,
Canada H9R 5C7.
Tel: [phone]
Email: [email protected]
EMEA: [phone]
[email protected]
Asia: [email protected]
GLOBAL
Mouser Electronics, Inc.
1000 North Main Street
Mansfield, Texas 76063
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
TURKEY
ÖZDİSAN ELEKTRONİK A.Ş.
701 Brooks Avenue South
Thief River Falls, MN 56701-0677
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
UNITED STATES
iWave US
1692 Westmont Ave., Campbell,
CA95008 USA
Ph: 408-206-5958
Email: [email protected]
Embedded Technologies, Inc
2870 Scott St, Suite 101,
Vista, CA USA ,
Ph: 1 760 598 2870,
Email: [email protected]
USAGLOBAL
Digi-Key Corporation
701 Brooks Avenue South
Thief River Falls, MN 56701-0677
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
