IWILL Motherboard DJ800 User manual

Overview
Hardware Installation
IWILL DJ800 Motherboard
User’s Manual
BIOS Setup
Version 1.1
FB25634000

DJ800 Motherboard
________________________________________________________________
ii User’sManual

DJ800 Motherboard
Disclaimer
The manufacturer makes no representations or warranties regarding the contents of this manual
and specifically disclaims any implied warranties of merchantability or fitness for any particular
purpose. Furthermore, the manufacturer reserves the right to revise this publication or make
changes in the specifications of the product described within it at any time without notice and
without obligation to notify any person of such revision or change.
Trademarks
Microsoft and Windows are registered trademarks of Microsoft Corp. Intel and Xeon are
registered trademarks of Intel Corporation. Texas Instruments are registered trademarks of Texas
Instruments Corporation. Other product names used in this manual are the properties of their
respective owners and are acknowledged.
Copyright
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this manual, nor any of the material
contained here in, may be reproduced without the express written consent of the manufacturer.
IWILL ©Copyright 2004
Important: The information in this document is subject to change without notice.
iii User’s Manual

Table of Contents
1: Overview ....................................………………….…………................. 1-1
Packing list………………………………………………………………………………..1-1
Getting Help………………………………………………………………………….…...1-5
DJ800 Specification .....................................……………………………..………...... 1-6
2: Components and Jumper setting .........................……………………... 2-1
Mainboard Map ...............................................................……....………………….. 2-2
Components List………………………………………………………………………….2-3
Jumper Setting……………………………………………………………………………2-4
Rear Panel I/O Panel.……………………………………………………..……………..2-7
Additional I/O Connectors…………………………………………………………...…2-9
EPS12V Power Connectors …………….....................……………….………........ 2-14
Primary IDE Connectors……………………………………………………………….2-15
3: Hardware Installation……………………………………………………….3-1
Motherboard Installation..............……….......……………………….…………......... 3-2
Installing the Processor and Heatsink ............…………………….…………....…….3-3
Memory Installation Procedure……………..…………………………..………………3-7
Installing Expansion Cards………….....................……………………………….... 3-9
Powering on your System……………………………………………………………3-10
_____________________________________________________________________
User’sManual iv

DJ800Motherboard
4: BIOS Setup ..............................................………………………........... 4-1
Starting the BIOS Setup .....................................……………………..…………….4-2
Using the BIOS Setup Utility.........................…...................................................... 4-4
Main Menu ......................................………………………………………….…......... 4-6
Advanced Menu ...............................…………………………...................................4-7
Boot Menu ...............................…………………………........................................ 4-8
Boot Setting Configuration Submenu .......………………………......................... 4-9
Exit Menu………………………………………………………………………..……….4-11
5: OS and Drivers Installation ..........................……...……………........... 5-1
OS Installation……………………………………………………….............….…………...5-2
Drivers Installation………………………………………………………….……………….5-3
________________________________________________________________________
v User’sManual

Chapter1 Overview
Chapter 1
Overview
________________________________________________________________________
Overview 1-1

DJ800 Motherboard
Package
DJ800 Motherboard
Three jumper caps (Extra caps in case original caps get lost)
One Power Installation CD (contains drivers and utilities)
DJ800 User’s manual
Rear panel I/O shield
Two sets of SATA cables
One ATA-66/100 IDE cable
One floppy disk drive cable
Two Hat Springs for CPU cooler
Two CPU back plates
________________________________________________________________________
Overview 1-2

DJ800 Motherboard
YOU MUST HAVE ENOUGH SYSTEM INTEGRATION KNOWLEDGE
BEFORE THE INSTALLATION
GENERAL SAFETY PRECAUTIONS
Keep the area around the Server clean and free of clutter.
Servers weigh a lot. When lifting the system, two people should lift slowly from
opposite ends with their feet spread out to distribute the weight. Always keep your
back straight and lift with your legs.
Place the chassis top cover and any system components that have been removed
away from the system or on a table so that they won’t accidentally be stepped on.
While working on the system, do not wear loose items such as neckties and
unbuttoned shirtsleeves. They can come into contact with electrical circuits or get
pulled into a cooling fan.
Remove any jewelry or metal objects from your body, which are excellent metal
conductors and can create short circuits and harm you if they come into contact with
printed circuit boards or areas where power is present.
ESD PRECAUTIONS
Electrostatic discharge (ESD) is generated by two objects with different electrical charges
coming into contact with each other. An electrical discharge is created to neutralize this
difference, which can damage electronic components and printed circuit boards. The
following measures are generally sufficient to neutralize this difference before contact is
made to protect your equipment from ESD:
Use a grounded wrist strap designed to prevent static discharge.
Keep all components and printed circuit boards (PCBs) in their antistatic bags until
ready for use.
1-3 Overview

Chapter1 Overview
Touch a grounded metal object before removing the board from the antistatic bag.
Do not let components or PCBs come into contact with your clothing, which may
retain a charge even if you are wearing a wrist strap.
Handle a board by its edges only; do not touch its components, peripheral chips,
memory modules or contacts.
When handling chips or modules, avoid touching their pins.
Put the motherboard and peripherals back into their antistatic bags when not in use.
For grounding purposes, make sure your computer chassis provides excellent
conductivity between the power supply, the case, the mounting fasteners and the
motherboard.
After accessing the inside of the system, close the system back up and secure it to
the rack unit with the retention screws after ensuring that all connections have been
made.
OPERATING PRECAUTIONS
Check package contents
Missing or damaging accessories
Please contact your vendor immediately
Motherboard damage
Please contact your vendor immediately
Prepare minimum system components
Intel Xeon @800MHz FSB Processor
At least one Registered DDR2 memory module
Graphic card with PCI-Express interface
At least one SATA or IDE HDD
EPS12V Power Supply with 460W or above
____________________________________________________________________________________________________________
Overview 1-4

DJ800 Motherboard
GETTING HELP
If a problem arises with your system during Installation or Operation, you should first ask
your dealer for help as they have most likely configured your system. They generally
have the best grasp of your issues and the fastest response for your symptoms. If your
dealer is near your location, it is recommended that you first bring your system to them to
have it serviced instead of attempting to solve the problem yourself.
If those options don't work for you, IWILL also provides some helpful resources to help
you.
1. Visit IWILL® website at Http://www.iwill.net and navigate to this product’s page
which contain links to product updates such as Jumper settings or BIOS updates.
2. The FAQ (Frequently Asked Questions) sections in the IWILL website are often
helpful since other users often have the same questions.
3. Email us at: [e-mail] and we will try to answer your questions within 5
business days.
1-5 Overview

Chapter1 Overview
DJ800 SPECIFICATIONS
Processor zIntel® Dual Xeon Socket 604 CPUs
zSupports 800MHz FSB
Chipset zIntel E7525 Chipset MCH
zIntel ICH5R
zIntel PXH
zWinbond 83627 HF
Memory z8 DIMMs for 240-pin DDR2 400 DIMM sockets
zUses Registered DDR2 with ECC or Non-ECC memory
zSupports total system memory size of up to 16GB
On-Board LAN zIntel 82541PI Gigabit Ethernet Controller
zOne RJ-45 connectors for GbE
zSupport PME
Audio
zIntegrated Analog Device AD1980
zProfessional 6-channel Audio with S/PDIF out
zSupport MIC IN/LINE OUT for the front panel
zAC '97 CODEC
USB z4 x external USB 2.0 ports
z4 x internal USB 2.0 ports
IEEE-1394 zTI TSB43AB22
zOne pin header for front panel IEEE-1394 port
zOne external IEEE-1394 header
Serial ATA
z2 Serial ATA ports supported by HR with RAID 0, 1
z4 Serial ATA ports supported by Marvell
zSupport RAID 0, 1, 10
zSupport hot swap
Expansion
Slots
zOne PCI Express x16 slot for graphics
zOne PCI Express x4 slot
zOne PCI-X 64-bit/133 MHz
zTwo PCI-X 64-bit/100 MHz
zOne PCI 32-bit / 33 MHz
___________________________________________________________________________________________________________
Overview 1-6

DJ800 Motherboard
Internal I/O
connector
z34-pin Floppy Connector
z4-pin CD-In and Aux-In audio input connector
IDE Bus
z2x 40-pin IDE connectors, supports up to four (4) Enhanced
IDE devices
zDual Channel Master Mode
zUltra DMA 100/66/33
Rear Panel I/O
zPS/2 mouse and keyboard connectors
z1 x UART 16550 serial port (COM1)
z1 x 25-pin parallel port with ECP/EPP support
z4 x on board USB 2.0 ports
z1 x Gigabit Ethernet LAN RJ-45 port
z1 x IEEE-1394 port
z1 x S/PDIF Out
zRear Out and Center Out
zAudio Phone Jacks - Line Out, Mic In, Line-In.
System BIOS
zAMI BIOS
zFlash write protection by BIOS and one jumper
zACPI 1.1
zAPM 1.2
zSupport ACPI S1, S3
zSupport ASF 2.0
System Management zSupport AC power failure
Form Factor
zEATX form factor
z12’’x13’’
zEEB 3.5
zEPS 12V power connectors (24 pin + 8 pin)
________________________________________________________________________
1-7 Overview

Chapter2 HardwareInstallation
Chapter 2
Components and Jumper Setting
____________________________________________________________________________________________________________
Hardware Installation 2-1

DJ800 Motherboard

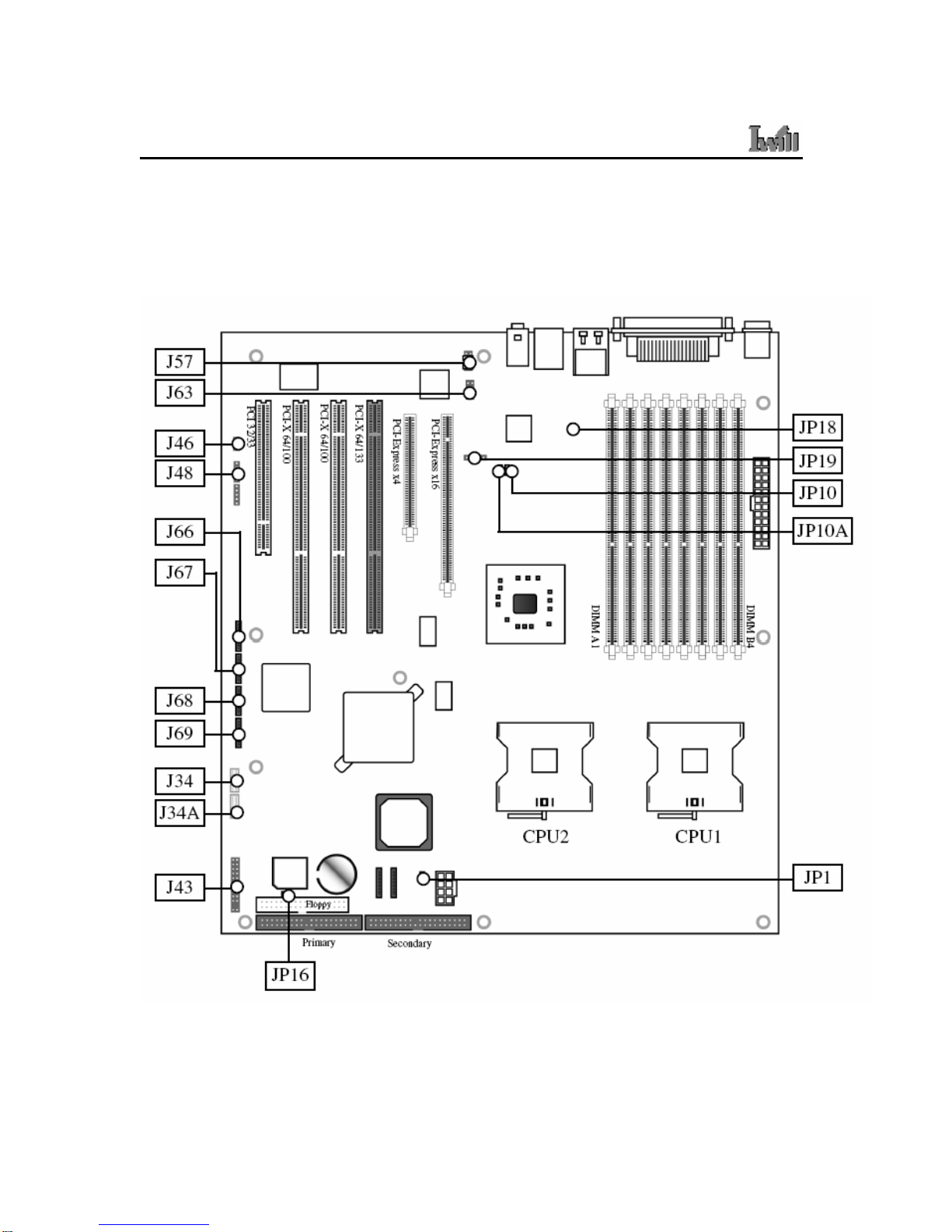

MAINBOARD MAP
____________________________________________________________________________________________________________
Component and Jumper Setting 2-2

Chapter2 Component and Jumper Setting
Components List
CPU1; CPU2 Intel Xeon Socket604 Processor
Primary; Secondary IDE Driver Connectors
Floppy Floppy Disk Driver Connector
PCI Slots PCI-Express x16, x4 Slots; PCI-X 100,133; PCI
DIMM B4~A1 Memory Socket for DDR2 Memory
JP1 Clear CMOS Header
JP10 and JP10A Memory Voltage Select Jumper
JP16 BIOS Flash Protect Jumper
JP18 USB Power Select Jumper
JP19 LAN Power Select Jumper
J34 &J34A USB 2.0 Ports and Header
J43 Front Panel Switch Header
J46 WOL Connector
J48 SMBus Connector
J57 Front Audio Jumper
J63 IEEE 1394 (FireWire) Header
J66, J67, J68, J69 Serial ATA Connector
________________________________________________________________________
Component and Jumper Setting 2-3

DJ800 Motherboard
Jumper Setting

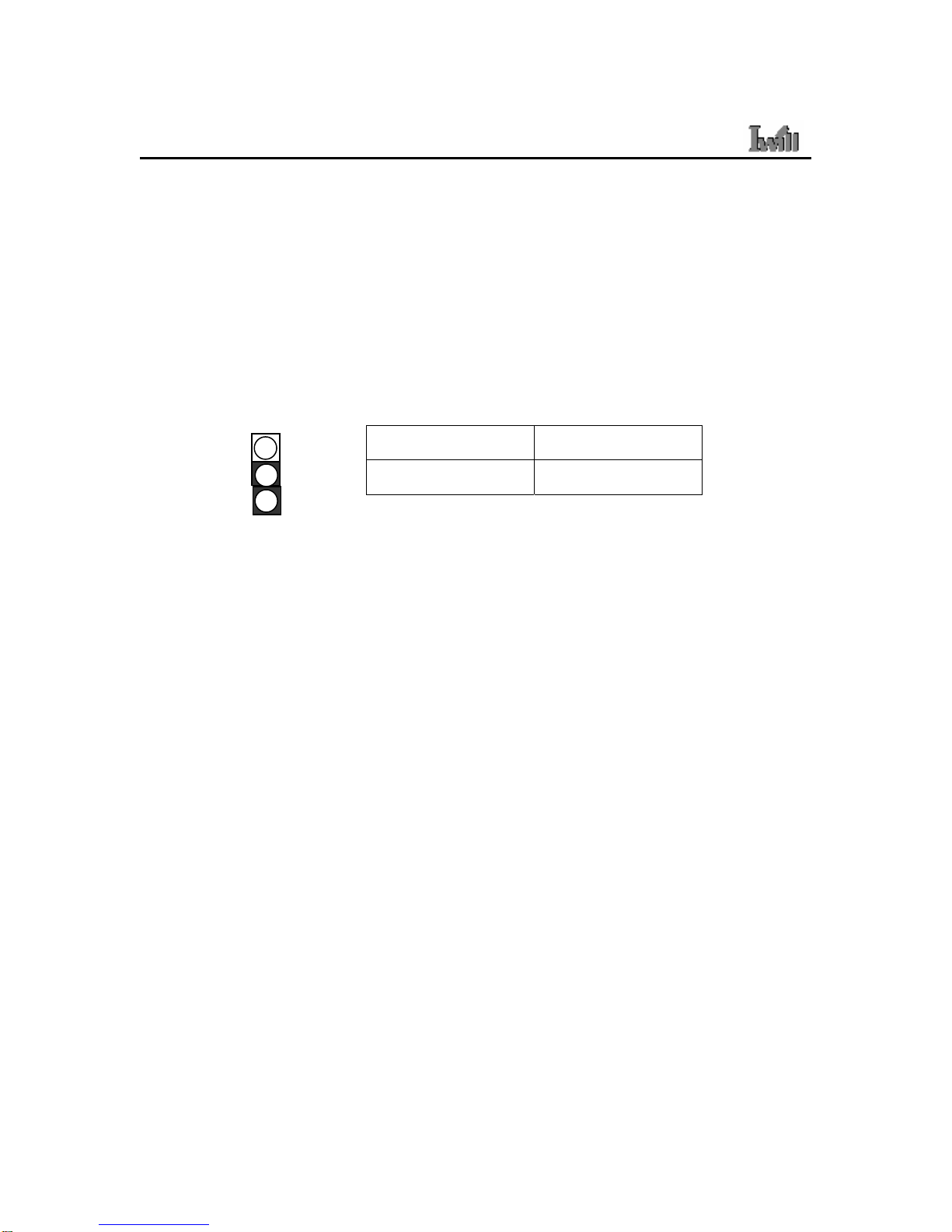

JP1: Clear CMOS Header
The onboard button cell battery powers the CMOS RAM. It contains all the BIOS setup
information. Keep the jumper connected to pins 1-2 (Default) to retain the RTC data as
shown below.
Under certain circumstances, you will need to reset system settings. Follow these
instructions to clear the CMOS RTC data:
1. Turn off the computer.
2. Short pins 2 and 3 with a jumper for a few seconds.
3. Replace the jumper to pins 1 and 2.
4. Turn on your computer by pressing the power-on button.
5. Hold down <F2> during boot and select either <Load Optimal Defaults> or
<Load Failsafe Defaults> in the “Exit” section. Then go through the BIOS setup
to re-enter user preferences.
________________________________________________________________________
2-4 Component and Jumper Setting
1 1-2 2-3
2 Normal (Default) Clear CMOS
3

Chapter2 Component and Jumper Setting
JP10 and JP10A: Memory Voltage Select Jumper
This header lets you adjust the memory voltage.
JP10A JP10 VDDR JP10 JP10A
1.8V 1-2 1-2
1.85V 1-2 2-3
1.9V 2-3 1-2
1.95V 2-3 2-3
JP16: BIOS Flash Protect Jumper
This jumper protects the system from unnecessary updating or flashing of the BIOS. It
secures the BIOS therefore prevents accidental overwriting of the data stored in flash
memory.
JP16
1-2 By Soft
2-3 Lock
Open Unlock
3
1 2
JP18: USB Power Select Jumper
This header lets you set your USB headers power status. You can choose power standby
or not.
____________________________________________________________________________________________________________
Component and Jumper Setting 2-5
1 1-2 2-3
2 VCC5 Stand By VCC5
3

DJ800 Motherboard

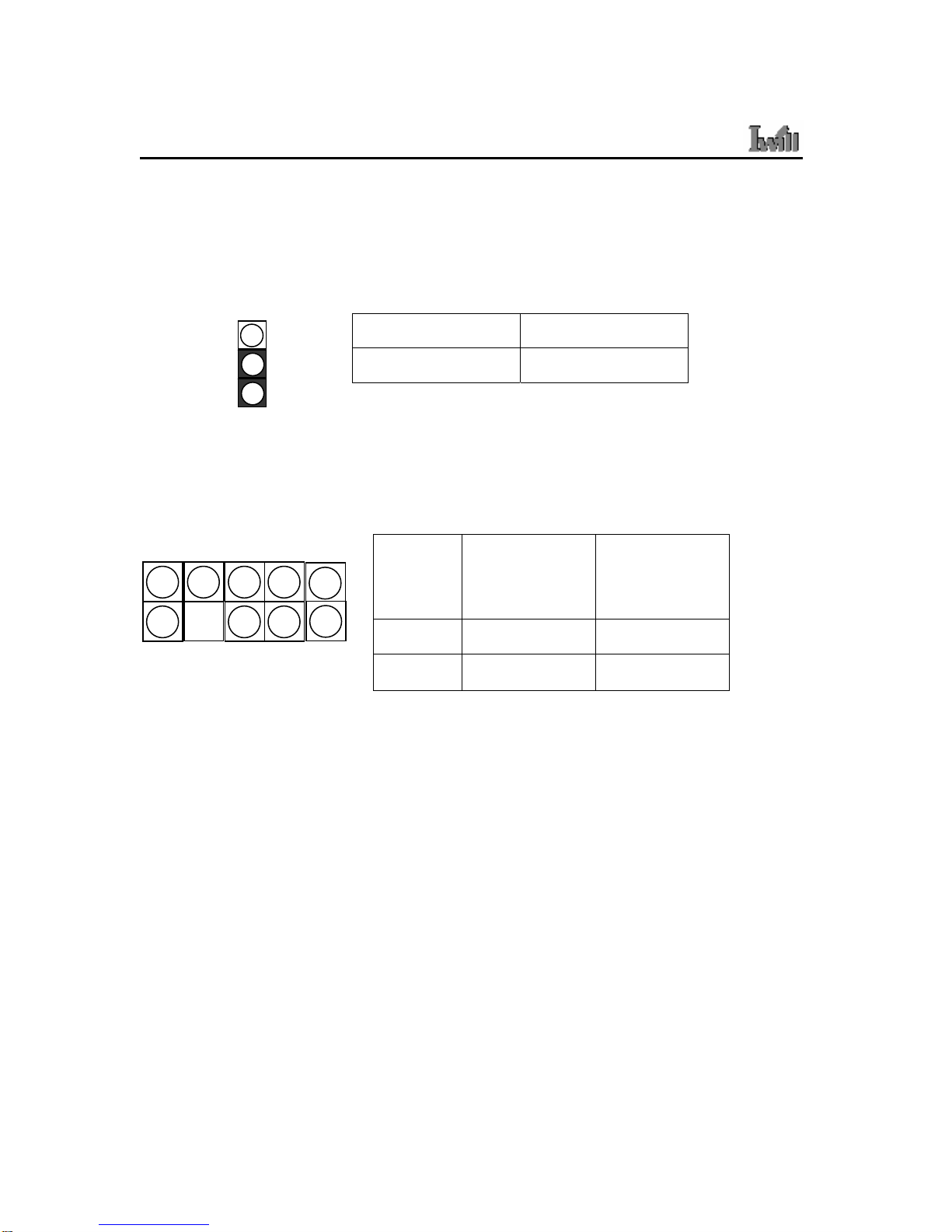

JP19: LAN Power Select Jumper
This header lets you set your LAN connectors power status. You can choose power
standby or not.
1-2 2-3
1
VCC33 Stand By VCC33
2
3
J57: FrontAudio Jumper
This header lets you enable or disable the function of the front audio connector.
J57 W/O FRONT
AUDIO
CONNECTOR
WITH FRONT
AUDIO
CONNECTOR
5-6 SHORT OPEN
9-10 SHORT OPEN
1
9
10
____________________________________________________________________________________________________________
Component and Jumper Setting 2-6

Chapter2 Component and Jumper Setting
REAR PANEL I/O PORTS
This is an illustration of the Mainboard rear I/O port array
PS/2 Mouse Connector (6-pin Female)
The system will direct IRQ12 to the PS/2 mouse if one is detected. If no mouse is
detected, IRQ12 will be free for expansion cards to use.
PS/2 Keyboard Connector (6-pin Female)
This connection is for standard keyboards using a PS/2 (mini DIN) plug. This connector
will not accept standard AT size (large DIN) keyboard plugs. You may need a DIN to
mini DIN adapter for standard AT keyboards.
Universal Serial Bus Ports (4-pin Female)
Four onboard external USB 2.0 ports are available for connecting USB devices. Refer to
USB 2.0 Ports & Header for more information.
________________________________________________________________________
Component and Jumper Setting 2-7

DJ800 Motherboard
IEEE 1394/ FireWire Connector (6-pin Male)
You have one (1) onboard IEEE 1394 connector port for connecting FireWire devices.
Refer to IEEE 1394 Ports & Header for more information.
Serial Port (COM1) Connector (9-pin Male)
The COM1 serial port can be used for pointing devices or other serial devices.
Parallel Printer Connector (25-pin Female)
You can enable the parallel port and choose an IRQ through the BIOS. You can choose
between ECP and EPP support through the BIOS setup.
Onboard LAN Port (RJ-45)
This Mainboard uses Intel 82541PI Gigabit Ethernet Controller. Refer to the Onboard
LAN User Guide for further information.
Audio Jacks (Phone Jacks)
The interface is supported by the onboard Analog Device AD1980. It has 3 phone jacks
for Line-Out, Microphone In, and Line-In.
S/PDIF Port
DJ800 also provides the S/PDIF out, Rear Out, and Center Out function.
________________________________________________________________________
Component and Jumper Setting 2-8
