IWILL P55XU User manual

1
EC Declaration of Conformity
We
Iwill Corp.
No. 9-1, Kong 6th RD.,
Lin Kou 2nd Industrial
Park, Taipei, Taiwan R.O.C.
declare under sole responsibility that the
P55XU/XUW motherboard
meets the intent of Directive 89/336/ECC for Electromagnetic Compatibility.
Compliance was demonstrated to the following specifications as listed in the
official Journal of the European Communities:
EN 50081-1 Emissions:
EN 55022 Radiated, Class B
EN 55022 Conducted, Class B
EN 60555-2 Power Harmonics
EN 50082-1 Immunity:
IEC 801-2 Electrostatic Discharge
IEC 801-3 RF Radiat
IEC 801-4 Fast Transient

2
About This Manual
This manual will guide the user how this SCSI motherboard was consisted. All
useful information will be described in later chapters. Keep this manual for your
futureupgradeor system configuration changed.
The chapter Quick Installation ---
This cha pter’s description is suitable for most user, Just follow step by step in
installing the system.
The chapter Overview ---
Describe the feature and specificaton of this SCSI motherboard.
The chapter Manufacture Default ---
This SCSI motherboard haspre-setting before ship out and this pre-setting default
is suitable for most user.
The Hardware Installation ---
Describes the hardware detailspecification and connection.
The ATX Form-Factor Overview ---
The ATX is the new generation form-factor.
The Award BIOS Setup ---
Detail description of this SCSI motherboard, no need to change the manufacture
default unless you have conflict in yoursystem.
The SCSI BIOS Setup ---
The AdaptecSCSI BIOS setup.
This manual is subject to change without notice.
This manual contains information protected by copyright law. All rights are
reserved. No any part of this document may be used or reproduced in any forms
or by any means, or stored in a database or retrieval system, without prior written
permission.
Trademark
Intel / Pentium is trade markof Intel Corporation andall other product namesare trademarks and
registered trademarksof their respective owners.
Warning
This motherboardis carefully designedwith Intelspec.to fullysupport P54Cprocessor upto 200Mhz
and the new P55C. Since Intel is notshipingthe new P55C CPU with 200Mhz at the point that we
deliver this motherboardsowe hold the responsibilityon if Intel change anyspec.that causethe new
processor notfunctionproperlyin thismotherboard.

3
Contents
Chapter 0- Quick Installation P4
Chapter 1- Overview P14
1.1 Features P14
1.2 Specifications P16
Chapter 2- Quick Installation P17
Chapter 3- Hardware Installation P18
3.1 Preparation and Inspection P18
3.2 Placement P19
3.3 CPU group P21
3.4 Cache Memory P24
3.5 D-RAM Configuration P24
3.6 SCSI Interface P27
3.7 RAIDBUS P31
3.8 IDE Interface P31
3.9 USB P32
3.10 Enhanced Multi-IO P33
3.11 Other P34
Chapter 4- ATX Form-Factor Overview P37
Chapter 5- Award BIOS Setup P40
5.1 Entering Setup P43
5.2 Standard CMOS Setup P46
5.3 BIOS Features Setup P50
5.4 Chipset Feature Setup P55
5.5 Power Management Setup P62
5.6 PNP/PCI Configuration P66
5.7 Integrated Peripherals P69
5.8 Load Setup Defaults P71
5.9 Supervisor/User Password P72
5.10 IDE HDD Auto Detection P73
5.11 HDD Low Level Format P73
5.12 Save & Exit Setup P73
5.13 ExitWithout Saving P73
Chapter 6- SCSI BIOS Setup P74
6.1 When to Use the SCSI Select Utility P74
6.2 SCSI Select Utility option P75
6.3 Configure / View Host AdapterSettings Menu P76
6.4 SCSI Disk Utilities P81

4

5
CHAPTER0
Quick Installation
Several easy installation steps will be described in this chapter to help the
experienced users for quick installation. If you are new user and need to know
more about this motherboard, please start from Chapter 1.
Socket 7
U. SCSI
TM
M1
ISA
PS2
S1
LPT
KB
S2
PCI
JP11
CPU
FDD
P. IDE
ATX P.
JP25
P.Control
S. IDE
USB
M2
M3
IR
J5
J10
J15
J17
BIOS
Figure 1:Connectors for P55XU

6
TM
Socket 7
RAID
W. SCSI
Figure 2 : Connectors for P55XUW only
Socket 7
JP25
3.52
3.38
3.2
3.1
2.9
AUTO
J21
JP9
JP26
JP23
TM
JP10
120
133
166
200
C200+
233
RSV
266
300
T75
150
J19
JP6
2.83
Figure 3 : Jumpers location

7
Connector Function Description
ATX P. 20 pin Standard ATX power input connector
BIOS BIOS (Basic Input Output System)
CPU 321 pin Socket 7 CPU socket
M1 DIMM1 (Dual In-line Memory Module ) Bank 2
M2 DIMM2 (Dual In-line Memory Module ) Bank 1
M3 DIMM3 (Dual In-line Memory Module ) Bank 0
FDD 34 pin Floppy Disk Drive with key protect connector
LPT 25 pin Parallel D-Sub connector
IR 6 pin pin-header connector
ISA 4 x ISA(Industrial Standard Architecture) 98 pin expansion slot
JP11 Fan Power connector
J5 SIMM Socket (Single In-line Memory Module ) Bank 1
J10 SIMM Socket (Single In-line Memory Module ) Bank 1
J15 SIMM Socket (Single In-line Memory Module ) Bank 0
J17 SIMM Socket (Single In-line Memory Module ) Bank 0
JP25 2 pin power switch connector for ATX power supply
KB 6 pin PS2 keyboard Mini-DIN connector
P. IDE40 pin Primary IDE with key protect connector
PCI 4 x PCI version 2.1 compliance 120 pin PCI (Peripheral
Component Interface)expansion slot
RAID 60 pin extension slot for working with Adaptec RAIDBUS 1130
adapter
P. Control Front panel signal control connector
RST—Reset Switch
SCSI—SCSI detect LED
IDE—IDE detect LED
SMI—System Management Interface switch
Speaker—Speaker connector
Keylock—Keylock switch connector
PS2 6 pin PS2 mouse Mini-DIN connector
S. IDE 40 pin Secondary IDE with key protect connector
S1 9 pin Serial 1 D-Sub connector
S2 9 pin Serial 2 D-Sub connector
U. SCSI 50 pin Ultra SCSI with key protect connector
USB 20 pin Universal Serial Bus connector
W. SCSI 68 pin Wide SCSI with key protect connector (P55XUW only)

8
Jumper Setting
J19/J21 BIOS Mode select
JP6 Reserved for manufacture use
JP9 SCSI port Enabled/ Disabled select
JP10 CPU clock select
JP23 CPU working voltage select
JP25 Remote power switch
JP26 CMOS clear select
Quick Installation

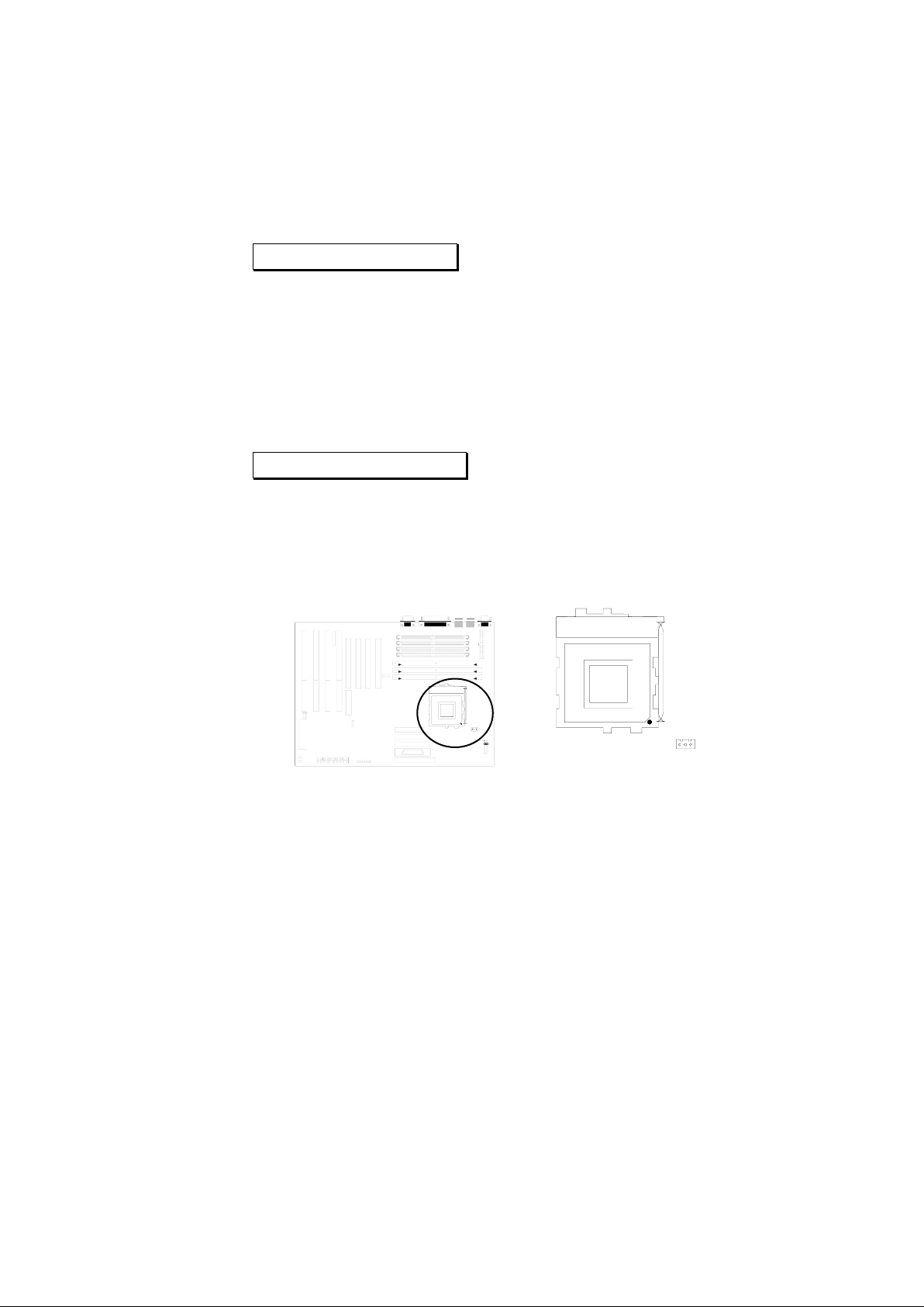

Step 1. Install CPU
Pull up theCPU handlebar, place the CPU into thesocket in
gentle/ horizontalway then pull down the handle barback to
its original place. Care must taken for the CPU’s direction
when was inserted.
Socket 7
J11
Socket 7
J11

9
CPU
2
3
1
4

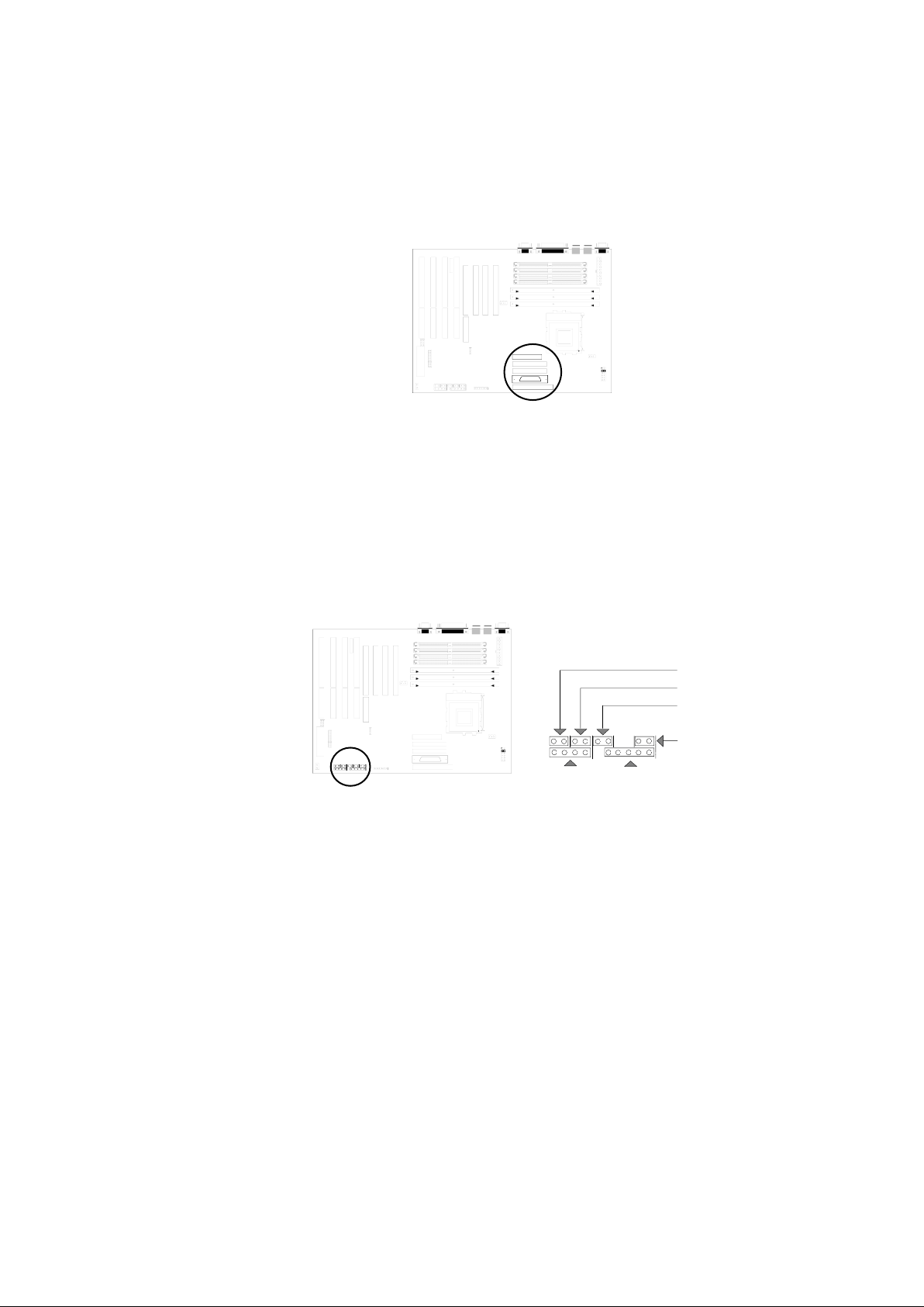

Step 2. Install CPU Cooler
Hook the CPU Cooler’s metal la tch one side to the CPU
socket’s peg, then press the meta l latch again to fit into
anotherside.
Warning: Care mustbe taken when the CPU Cooler was installed, if not
a suitable force might scrach this motherboard.
7
6
To Cabinet's speaker
To Motherboard's speaker
To JP11
Metal Latch
5
Peg
JP11
+12V
GND
Control

10
Step 3. Adjust the CPU voltage (default is “3.52V”)
This motherboard is shipped with CPU voltuage default at
“3.52V”, is for most Intel Pentium P54C processor, with this
manufacturedefault voltuagewill working with all of IntelPentium or
compatibleprocessor. Or reference to the Appendix A—CPU for more
information
Socket 7
3.52V
3.38V
2.83V
2.70V
2.50V
AUTO
120
133
150
166
75
90
100
110
180
200
Cyrix
JP23
JP23
3.52
3.38
3.2
3.1
2.9
AUTO
2.83
Step 4. Adjust the CPU frequency
With the special design on this motherboard.Once thejumper
cap was inserted, it will automatically caculate the Internal/
External Clock and CLKMUL (Clock Multiplier). Just insert
the jumpercap to the CPU real frequency.The manufacture
defa ult is based on “Intel Pentium 166 MHz” There are moredetail
description on Chapter3.3.3 CPU Clock Select and Appendix A—CPU
for more information.

11
Socket 7
JP10
JP10
120
133
166
200
C200+
233
RSV
266
300
T75
150
.
Step 5. Install the Memory Module
For at least two pieces 72 pin SIMM(Single In-line Memory
Module) or one piece 168 pin DIMM(Dual In-line Memory
Module)mustinserted in this 64 bit Pentium basemotherboard.
The J18, J19 were combined as Bank0,the same Bank0
addressis DIMM1. Also J16, J17 occupied theBank1 address
the same asDIMM2.
Socket 7
M1
M2
M3
J5
J10
J15
J17
SIMM Module (Bank1)
M1
M2
M3
J5
J10
J15
J17
SIMM Module (Bank0)
DIMM Module (Bank2)
DIMM Module (Bank1)
DIMM Module (Bank0)
Step 6. Install the Internal Peripherals
The internal peripherals meansdevicesthat in the computer
chassis like the Floppy Disk Drive, HardDisk Drive, CD ROM
Drive …etc. With this motherboard package, there are 34, 40,
50 and 68(P55XUW only) pin flat cable. Use these cablesto
connect the motherboard a nd interna l devices. All flat cable’s
connectorhousing have the key protect,this will guide you the
correct direction when you insert.

12
Socket 7
Step 7. Install the External Peripherals
The externaldevice meansdevicesthat outsidethe computer
chassis like the Serial mouse,Printer, PS/2 Mouse, External
Modem…etc.
Step 8. Install the Reset switch
Most computerchassis provides a reset switch to front pannel
control. Use thechassis provides a 2 pin housing and connect
to this reset switch(any direction can function this). This will
provides the system a hardwarereset once thesystem was hang.
Socket 7
RST
SCSI
IDE
LED
SPEAKER
KEYLOCK
1
1
1

13

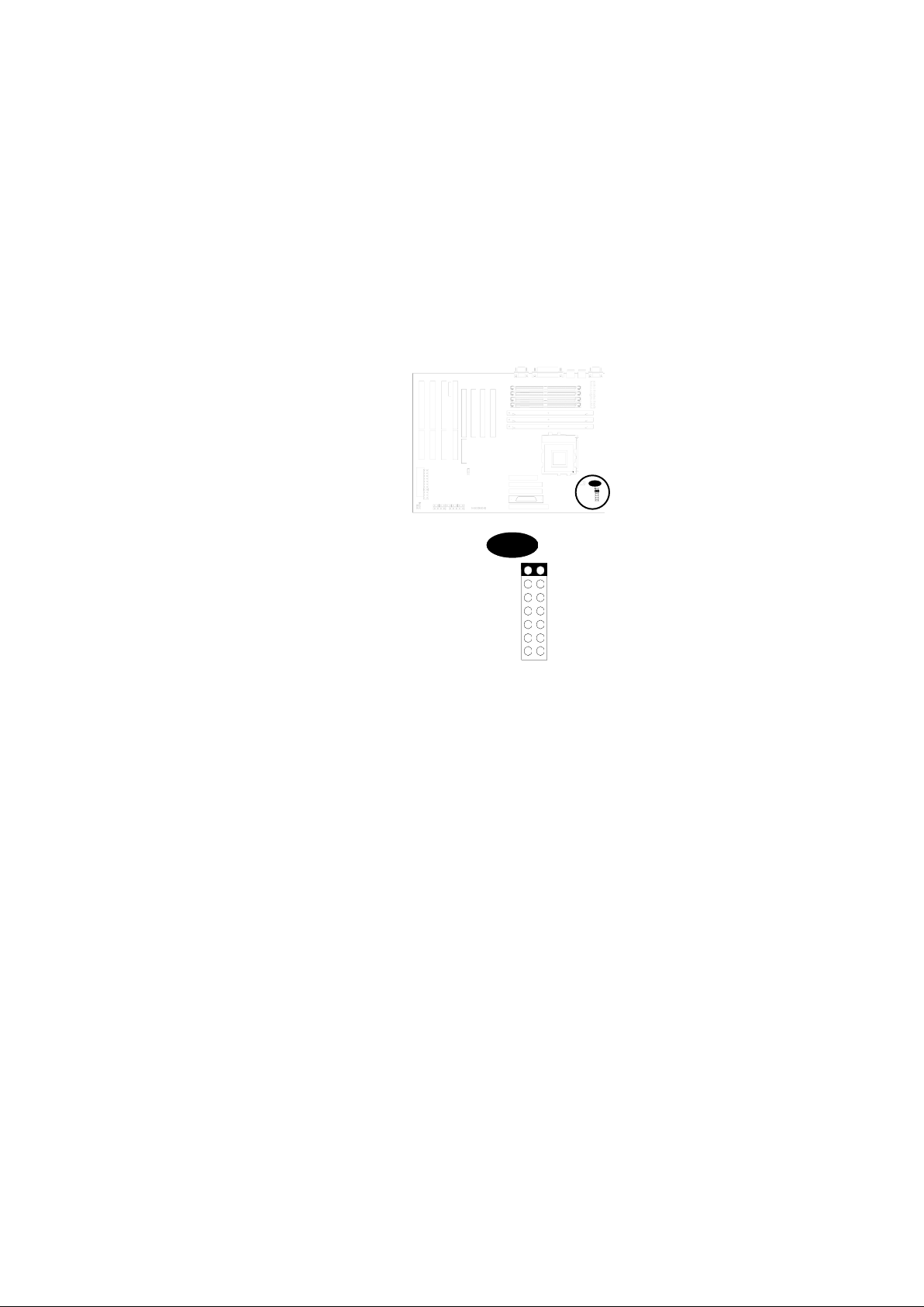

Step 10. Install the Keylock
Most computerchassis will provides a keylock switch.
Normally connect the marked keylock connectorto the
motherboard keylock.This will cause the keyboard out of
function once you switch the keylock to “Lock”. This will
prevent any un-authorized keyin.
Step 11. Install the Speaker
Connect the speaker to the motherboard’s speaker connector.
(normally the red cableis +5V power) Or follow the Chapter-0
Quick Installation Step 2, if you use the original manufacture
provides CPU cooler or reference to theCPU Cooler’s operation manual)
Step 12. Install the Power LED
Some computerchassis provides a power LED for identify if
the system is on or off. Connect the power LED to the
motherboard’s TB LED connector. (normally the red ca ble is
+5V power)
Step 13. Install the Devices LED
Socket 7
RST
SCSI
IDE
LED
SPEAKER
KEYLOCK
1
1
1
Some computerchassis provides a device LED(Like HDD LED)
for identify if the device is under working or not. Connect the
device LED to the motherboard’s IDE/ SCSI LED connector.
(normally the red cableis +5V power)
Step 14. Install the Power Input
This SCSI motherboard providesan ATX power input. A set
20 pin connector for motherboard’s power input. Once the ATX
power was placed on this system, the JP25(front panelpower
on/off switch) is necessory to be connected.
Step 15. Install the Keyboard

14
Follow the keyboard cable’s key direction and connect to this
motherboard.
Step 16. Install the Display Card
Finally, follow the display card you have and insert in
horizontaldirection into the PCI/ISA expansion slot.
Step 17. Power on the system
Once the system was power on, on the lower left corner of the
screen will show ”Press DEL to enter SETUP, ESC to skip
memory test”. Then press “DEL” to enter BIOS setup for the
first time power on and choose the “LOAD SETUP
DEFAULTS” then BIOS will responds “Loa d SETUP
defa ult(Y/N)?”, press “Y” and “Enter”. Final choose “SAVE to
CMOS and EXIT (Y/N)?” by pressing “Y” and “Enter”.
Step 18. Enjoy this power SCSIMotherboard
After these steps of installation, thesystem should prepared
and can run most software.And you can follow the Operation
System and Application software install procedule to run.
Reference to the following Chapterforany un-normalon this
system or more information.

15
CHAPTER1
Overview
Thank you for purchasing this P55XU/XUW SCSI Motherboard. This operation
manual will guide you to proper configure and install. It has an overview of the
engineer design and feature of this board. Also, this manual provides useful
information for your later upgrade or change the configuration. Keep this, for
your future need.
1.1 Featuress
This P55XU/XUW SCSI Motherboard is the newest ATX form factor based
memberto our SCSI Motherboard solution products families. It incorporated with
Intel 6th generation 430TX Chipset and Adaptec new PCI Ultra SCSI AIC-
7860(AHA-2940AU) / Ultra Wide SCSI AIC-7880(AHA-2940UW) that double/
fourtimes the SCSI speed. In order to support fully plug and play I/O,an Ultra I/O
that contain keyboard and real time clock is used for users to enjoy the plug and
play function. This SCSI motherboard has designed with ATX form factor to
improve the easy access memory module, long add-on card support and some of
the new featuresthat traditionalAT form factorcan not achieved.
Run with faster and use one single jumper cap to adjust the CPU speed is very
important function that this SCSI Motherboard supports. It supports P54C up to
200 MHz and Intel’s new generation P55C processor tha t support MMX
technology. Of course, the AMD K6 from 200 MHz, K5 up to 200 MHz and Cyrix
6x86L up to PR200 MHz all are supported on this SCSI motherboard. The fixed
feature on-board 512KB L2 pipelined burst cache design well prepared to run
heavy applications.
Run with faster system memory is another plus on this SCSI Motherboard to
outperform the whole system performance. It equipe 4 of the 72 pin SIMM that
support both fast page and EDO DRAM also with three of the 168 pin DIMM
memory socket that support the new synchonousDRAM.
◼CPU:
CPU socket (socket 7) supports theflexibility of different type of current
Cyrix (M1, M2), AMD (K5, K6) and futureIntel Pentium processor. One
easy jumperdesign, while choosing your CPU speed from 75 to 266MHz.
◼BIOS:

16
2 Mega bit Award BIOS, supportsbootableCD-ROM, bootableSCSI
harddisk, USB,on-screen "Plug & Play" setup for Adaptec SCSI,
Enhanced IDE, and Ultra Multi-IO. Support Flash ROM ( This ROM
provides better upgrade ability for user to updatetheir BIOS data on the
system board,user can down-load/ update newer version BIOS from
Internet or diskette file.
◼Cache memories:
High performance write-back Level 2 externalstatic RAM cache.This
supports 512KBSynchronousPipeline Burst Cache on-baord.

17
◼Memories:
4 X 72-pin SIMM(Single In Line Memory Module)
3 X 168-pin DIMM(Dual In Line Memory Module) (Rev 1.1)
Support up to 256MB (minimum of 8MB ) on board.for both the Fast
Page Mode and Extended Data Output (EDO) module.The four SIMM
modules were devided into two Banks(Bank 1 & Bank 0). There arealso
three DIMM modules were devided the three Banks(Bank 3 & Bank 1 &
Bank 0), the DIMM modules were only support for 3.3V Un-buffered.The
memory will not upgrade(memory size will not increase), if the memory
modules were inserted in the sameBank.This meansif the SIMM module
J5/J10 was firstly inserted, then it is useless while DIMM module M2 was
inserted again,because they were occupied the same memory bank.
◼Ultra/ Ultra Wide SCSI interface:
P55XU equipe with Adaptec PCI Ultra SCSI ( AIC-7860 chip )
built in which is equilevent to Adaptec AHA-2940AU PCI SCSI
controller. Data transfer rate up to 20MB/Sec.
P55XUW equipe with Adaptec PCI Ultra Wide SCSI (AIC-7880
chip) built in which is equilevent to Adaptec AHA-2940UW PCI
SCSI controller. The data transfer rate up to 40MB/Sec.
Support the Adaptec / IWILL RAIDBUS slot (only availablewith
P55XUW).
Complete software driver from Adaptec Inc., include EZ-SCSI
forDOS/Windows, Netware, Windows NT , OS/2 , SCO Unix ,
Unixware.
◼Expansion slots:
4 X 16-bits ISA slots, 4 X 32-bits PCI slots and 1 X RAID Port
(P55XUW only) slot.
(PCI#5 is occupied by theAdaptec SCSI.) (PCI Rev 2.1)
◼IDE functions:
Support Ultra DMA/33 Bus MasterIDE.
Support bootable CD-ROM.
Built in dualPCI Bus EIDE Channels.
Support ATAPI (AT Attachment Packet Interface)
◼USB interface (Universal Serial Bus):
Plug and Play devices outside the computerbox
Up to 12Mbit
Easy of use
◼In-Put power:
Support theATX power supply connector
On-board 3.3V regulator
Support the remote On/Off switch

18
◼Floppy Interface:
Support both 3 1/2"and 5 1/4" floppy disk drives and Tape Drive
(360K / 720K/ 1.2M / 1.44M / 2.88MB)
Enabled/Disable selectable from system BIOS
Non-Burst ModeDMA Option,16 Byte Data FIFO
3 Mode Driver (option)
◼Serial Port:
Two high speed 16550 UART serial port
IRQ selectable from BIOS.
Address changeableform system BIOS
NS16C550 compatible,Programmable Baud Rate Generator
◼Parallel Port
IRQ selectable for IRQ5(278h), IRQ7(378h) from system BIOS.
Standard mode--Compatiblewith IBM PC/AT Printer port
EPP Mode --Enhanced Parallel Port compatible(EPP) compatible
IEEE 1284
ECP Mode --Microsoft & Hewlett Packard Extended Capabilities
Port (ECP) Compatible
IncorporatesChiProtect Circuit for protection against damage due to
printer power-on
1.2 Specifications
◼Physical Dimensions:Length: 305mm / Width: 245mm
◼Environmental Requirements:
Temperature0-55 degrees C (operating or storage)
5% to 95% non-condensingrelative humidity

19
CHAPTER2
Quick Installation
This SCSIMotherboard isshippedwith
manufacturepresetat :
1. CPU Clock at 166 MHz
2. Adaptec SCSIChip Enabled
3. Adaptec Wide SCSI Mode Enabled
(P55XUW only)
4. SCSI Terminator Control by BIOS
5. 512K Pipeline Burst Cache on board
6. Printer ECP Mode at DMA3
7. Printer at IRQ7, Address at 378h
8. Serial 1 at IRQ4, Serial 2 at IRQ3
9. PS/2 MOUSE at IRQ 12
Referenceto the Chapter 3 & Chapter 4, if you
havedevices conflictwith themanufacturedefault.
CHAPTER3

20
HardwareInstallation
3.1 Preparation and Inspection
This P55XU/XUW SCSI Motherboard,like all electronic equipment is static
sensitive. Please take the proper precautionswhen handling this board.You
should avoid static up. If possible, You should ground yourself by touching a
metaltableor yourcomputerframe.Keep the board in its conductive wrapping
until it is configured and ready to be installed in yoursystem.
For installation, you may need some or all of the following tools:
‧SCSI HDD drive/devices manual(s).
‧IDE HDD drive/devices and floppy drive manual(s).
‧Peripherals that connect to yoursystem's manual(s).
‧MS DOS diskettes with FDISK and FORMAT programs.
‧Medium size flat blade screwdriver.
‧Medium sized Phillips head screwdriver.
‧A 3/16 inch nut driver or wrench.
You should find the Following components when open the box :
1. P55XU/XUW SCSI Motherboard.
2. This Operation Manual
3. Adaptec softwaredriver Diskette (EZ-SCSI).
4. Adaptec 7800 Family ManagerSet softwaredriver Diskettes.
5. Adaptec EZ-SCSI Manual( OEM ).
6. Adaptec 7800 Family ManagerSet Manual.
7. 68 pins Wide SCSI signal flat cable (P55XUW only).
8. 50 pins internal SCSI signal flat cable.
9. 40 pins internal IDE signal cable.
10. 34 pins internal Floppy Disk Drive signal cable.
11. Musical CPU Cooler.
12. USB Riser Card (optional)
13. External SCSI-2 port expansion kit (optional).
14. External Wide SCSI port expansion kit (optional).
15. High speed printer portsoftware driver (optional).
