The JA-114E, JA-114E-GR, JA-114E-AN, JA-114E-WH Bus access module
with LCD, keypad and RFID
The JA-114E, JA-114E-GR, JA-114E-AN, JA-114E-WH 1 / 2 MLU51116
The access module is a component of the JABLOTRON system.
Its modular architecture enables users to create a combination whose size of
installation perfectly meets their needs. The device should be installed by
a trained technician with a valid certificate issued by authorized distributor.
The product is compatible with the JA-101Kx or higher control
panels.
The module comprises first a control segment (1), an LCD display (4),
an RFID chip card / tag reader and keypad (5) . The JA-192E, JA-192E-GR,
JA-192E-AN, JA-192E-WH segments can be used to extend the unit by the
required number of segments (the max. allowed amount is 20 on one unit).
The tilting keypad cover (7) can be removed if the user prefers permanent
access. It also works as an RFID card / tag reader.

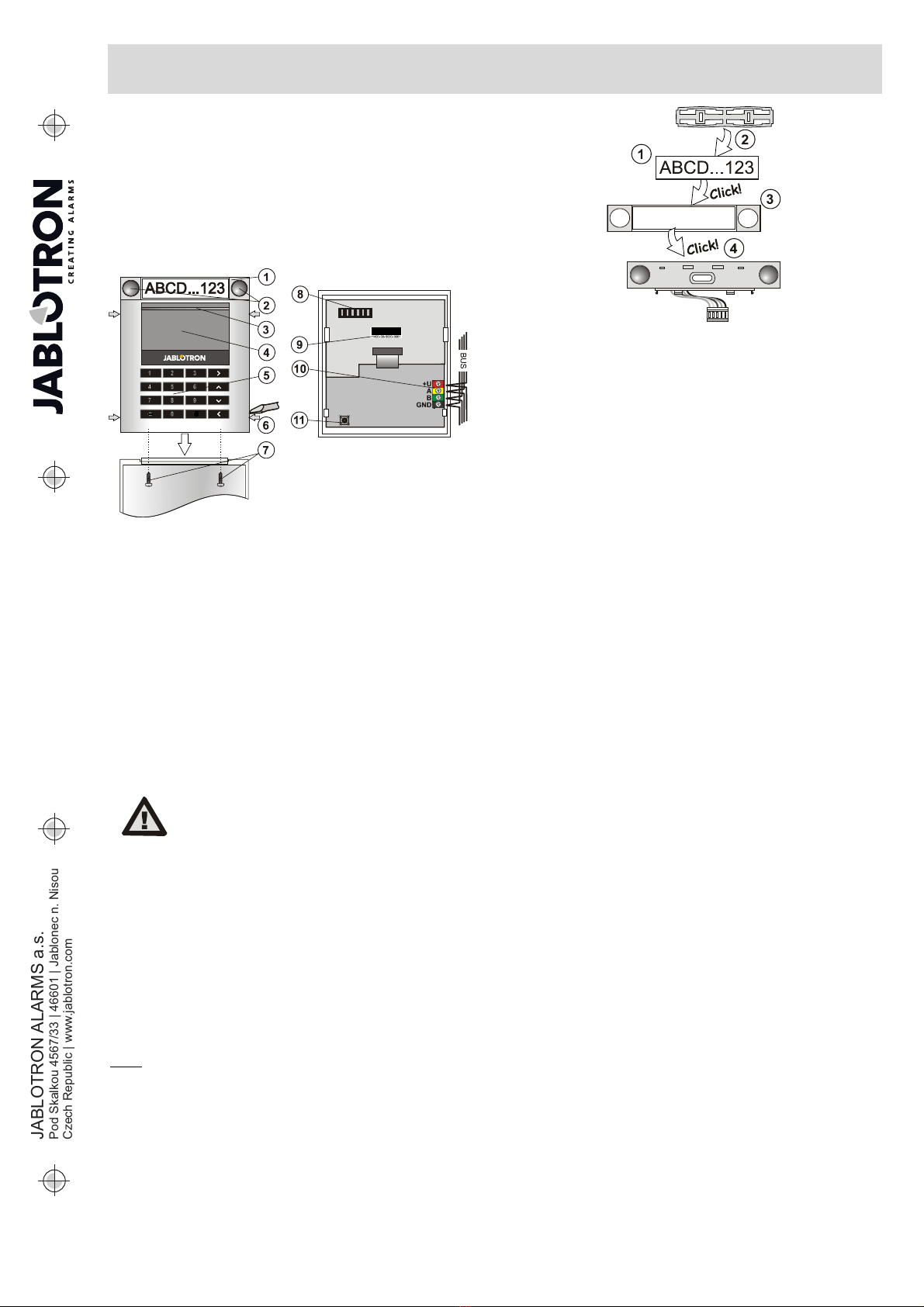

Figure 2: 8 – Connector for control
segments; 9 – production code;
10 – BUS terminals; 11 – tamper
contact
Figure 1 : 1 – control segment; 2 – segment buttons; 3 – backlit activation
button; 4 – LCD; 5 – access module with RFID reader; 6 – tabs for module
opening; 7 - cover screws
Installation
1. Press the four tabs (6) on the sides and release the keypad from
the plastic base.
2. When installing more control segments, first remove the socket cover
on the 1st segment.
3. Remove the transparent plastic cover from the segments (by levering
on both sides of the segments near the buttons).
4. Always connect the segment wires to the connector of the previous
segment and click them into each other (we recommend coiling the wires
by turning the segment by 360° – this will prevent any possible damage
to the wires between the plastic parts). Use this method to install
all the required segments. Finally, push the socket cover in.
5. Push the cable through the plastic base and attach it to the selected
place together with the segments using screws. If more segments are
required, fix them onto the wall using screws as well.
6. Connect the BUS cable to the BUS terminals (10).
When connecting the module to the BUS,
always switch the power off.
7. Insert the module into the base.
8. Proceed according to the control panel installation manual.
Basic procedure:
a. When the device is switched on, the yellow backlit activation button
(3) starts flashing repeatedly to indicate that the module has not been
enrolled into the system.
b. Go to the F-Link software, select the required position
in the Devices window and launch the enrollment mode by clicking
on the Enroll option.
c. Press the backlit activation button (3) above the screen –
the module is thus enrolled and the yellow LED indicator goes off.
9. When you have completed the installation, insert descriptive labels onto
the segment transparent covers and close them, see figure 3. Label
printing is a part of the F-Link software (Devices window, at the module
position – Internal settings).
Notes:
The module can also be enrolled to the system by entering its
production code (9) in the F-Link software or using a bar code scanner.
All numbers stated under the bar code shall be entered (1400-00-0000-
0001).
To comply with the EN 50131-3 norm it is necessary to fix the cover
tabs (6) by the screws from the accessories. In picture no 1 the cover
tabs are displayed and marked by the arrows.
Figure 3: Inserting a label into a control segment
Unit modifications
If you need to change the unit’s individual segments, it is possible
to separate them by levering the corresponding separating gaps from one side
(sideways from the buttons). Make sure the system BUS is disconnected.
Setting the properties
Go to the Devices window in the F-Link software. When you are at
the module position, use the Internal settings option. The particular unit is
displayed and it is possible to set its properties. Internal settings is separated
into 2 basic tabs: Segments and Settings.
It is possible to set the required functions for individual segments (control
of sections, section status signalling, alarm triggering, PG output control, PG
output status signalling, etc.). More details are available in the F-Link software.
3rd optional setting tab Common segment – settings and function
description
A common segment (up to 2 of them allowed on one module unit) simulates
the simultaneous pressing of several segments which are placed on this
module and which control sections. In the Segments tab and select
the specific segment function called Common segment A (B). Then in
the new tab Common segment select the segments which will be operated
en bloc.
Note: A module has to be equipped with a minimum of 3 segments otherwise this
function can not be used.
The selected sections will all be set / unset after pressing a button on
the common segment.
If the states of the segments which are operated by the common segment
are mixed, then only the segments that need changing will be set / unset.
If partial setting is enabled for some segments, then the common segment
respects this: 1st press = partially setting, 2nd press = full setting. It is not
suitable to combine a common segment with a common section
The indication of the common segment is: all segments unset = green,
some set (partially set) = yellow, all sections fully set = red.
In the Settings tab you can set all other module functions like acoustic
signalling, backlight intensity, RFID reader mode, optical and acoustic
indication, LCD display settings, etc. Details related to settings can be found
in the installation manual of the control panel and of course in the tooltips
displayed by the F-Link software.
Optical indication
Activation button – indicates the system status. No light – sleep mode,
green light – everything OK, green flashes – authorisation performed, red
flashes – alarm, yellow light – fault, yellow flashes – not enrolled to the system,
yellow double flash – Service mode.
Note: The activation button doesn´t indicate module tamper activation in
Service mode.
Segments – don´t indicate a thing when Service mode is entered or when
the segment has the function None. The optical indication of a PG segment
can be inverted. The only exception for segment indication is when a mains
fault has been detected, then this setting is automatically disabled.
Module can be preset to the following 6 indication levels:
1. Indicates permanently – BUS modules indicate permanently only if
an external power supply is connected. Without an external power
supply it indicates the same as option 2. When the mains is restored
the module indicates permanently again.
2. Section / PG status change on keypad – the module indicates when
the section / PG status has been changed. The status change is
indicated on the specific segment. Entrance delays and alarms are
indicated by the whole module.
3. Section / PG status change on segment – the module indicates
when a section / PG output status has been changed. A segment
status change, an entrance delay and an alarm is indicated on
a specific segment.
4. Segment status change on keypad – The module indicates when
the status of a segment has been changed (setting, unsetting, PG ON,

The JA-114E, JA-114E-GR, JA-114E-AN, JA-114E-WH Bus access module
with LCD, keypad and RFID
The JA-114E, JA-114E-GR, JA-114E-AN, JA-114E-WH 2 / 2 MLU51116
PG OFF). The change of the status is indicated only on the specific
segment.
5. Entrance delays / alarms on segment – the module indicates
entrance delays and alarms on a specific segment.
6. Wake-up by pressing – the module optically and acoustically
indicates after the front cover has been opened and also when
a button or segment has been pressed.
Acoustic indication
It can be set regardless of the module’s optical indication and sleep
mode. The module can indicate entrance / exit delays or alarms. During
valid authorization (by user code or RFID card), the acoustic indication of
exit delays is supressed. By pressing the indication button the module is
muted permanently. Entrance delays and alarms are indicated until their
times expire, but only if the activation button is not pressed.
Technical specifications
Power from control panel BUS (9…15 V)
Current consumption in standby mode (For back-up) 15 mA
Maximal current consumption for cable selection 100 mA
Each additional control segment 0.5 mA
RFID Frequency 125 kHz
Maximal RFID magnetic field intensity -5.4 dBμA/m (measured at 10m)
Dimensions 102 x 130 x 33 mm
Weight 220 g
Operating temperature range -10 °C to +40 °C
Average operational humidity 75 % RH, non-condesing
Enviroment indoor general
Certification body Trezor Test s.r.o. (nr. 3025), Telefication B.V.
In compliance with ETSI EN 300 330, EN 50130-4, EN 55032,
EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, T 031
Can be operated according to ERC REC 70-03
Recommended screw 4 x ø 3.5 x 40 mm (countersunk head)
JABLOTRON ALARMS a.s. hereby declares that the JA-114E,
JA-114E-GR, JA-114E-AN, JA-114E-WH is in a compliance with
the relevant Union harmonisation legislation: Directives
No: 2014/53/EU, 2014/35/EU, 2014/30/EU, 2011/65/EU.
The original of the conformity assessment can be found at
www.jablotron.com - Section Downloads.
