Jamec pem Pro series User manual

58.3067 - 8 metre x 10mm (3/8”)

Extreme Ultraex Reinforced Air Hose

58.4023 - 8 metre x 12mm

Extreme Ultraex Reinforced Water Hose

Air and Water Hose Reel

Operating Instructions

METRE

1

3

4

2

6

5

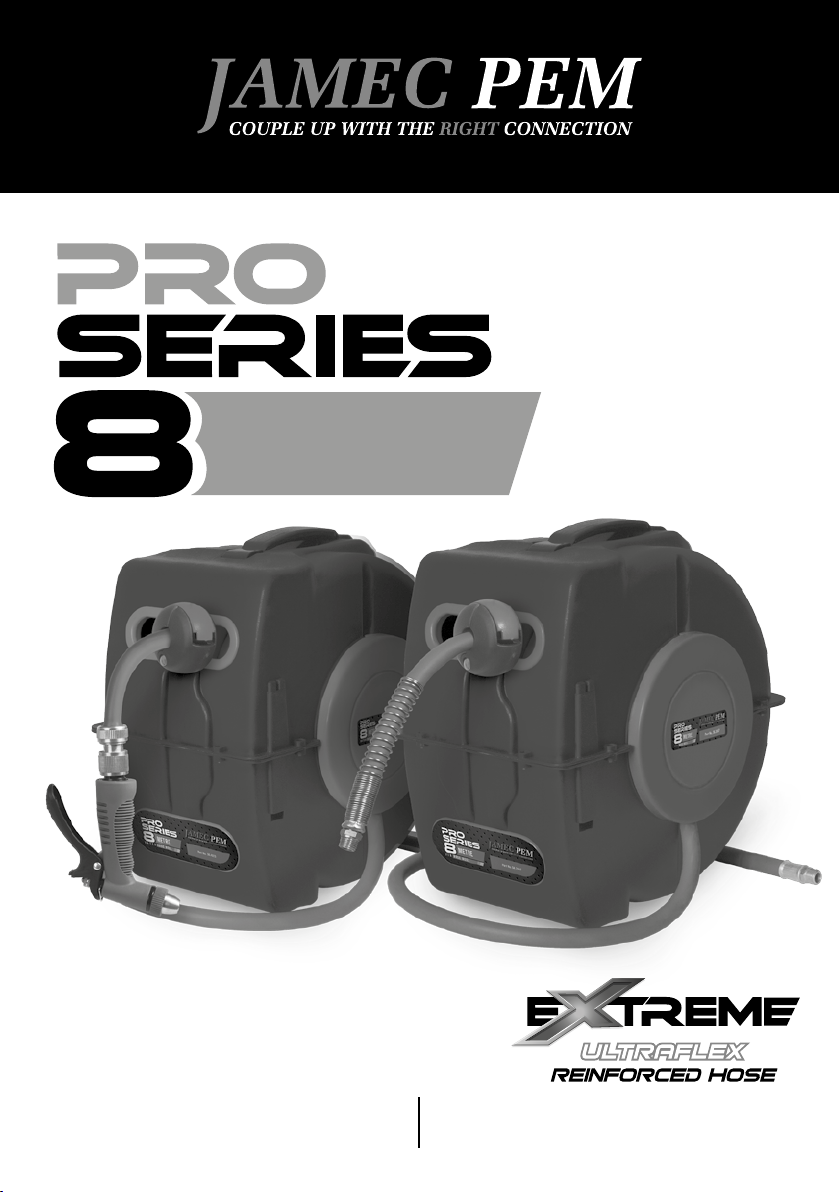

The Jamec Pem PRO SERIES Hose Reel is

suitable for most water and compressed air

applications and is ideal for use around

the home, automotive workshop or

industrial site.

FEATURES

• Click lock mechanism with self

retracting hose

• Hose layering system

• 180° swivel wall mount bracket

• Brass ttings

• Roller hose guides for easy retraction

of hose

• Flexible hard wearing, kink resistant

Extreme Ultraex Reinforced Hose.

• Adjustable hose stopper

• Includes wall mounting bracket

PRODUCT IDENTIFICATION

1. Mounting Bracket

Pivot Pin

Fully Enclosed Case

Carry Handle

1 metre Leader Hose

Hose with Adjustable Stopper

9. Water Gun (with water model only)

1

2

3

4

5

6

7

I NS TAL L ATI ON

The JamecPem PRO SERIES Reel can be

mounted in a horizontal or vertical position.

1. Chose a location that is near to the water

source or compressed air source.

2. For large areas, place the hose reel at the

centre of the work area.

3. When mounting the hose reel vertically,

ensure there is adequate clearance under

the reel to prevent injury or damage.

4. Mounting bracket must be installed on

a at surface.

Note: It is recommended to install the

mounting bracket 0.8 metre (minimum)

above the oor level.

5. Drill 4 x M8 holes to

match the holes located

in the Mounting Bracket.

(Fig. 1)

6. Connect the hose reel

to the Mounting Bracket

with the Pivot Pin.

(Fig. 2)

Note: For xed in-line

position, t the locking

plate onto the Mounting

Bracket prior to inserting

the pivot pin. (Fig. 3)

7. Connect the inlet

leader hose to the

source using the

ttings supplied.

Note: Apply thread sealing

tape to all air line and air

hose ttings.

OPE R ATI ON

1. Slowly pull out the hose to the required

length. A ‘clicking’ noise will be heard every

revolution of the inner drum. To lock the reel,

allow the hose to retract slowly after hearing

the second or third ‘click’.

2. To release the hose, pull out the hose until

the ‘clicking’ noise stops, and then allow the

hose to slowly retract while guiding the hose

back into the hose reel. The self layering

mechanism will coil the hose back onto the

inner drum.

3. To avoid injury and damage, always hold

the hose while it is retracting.

IMPORTANT:

If the hose becomes tangled and will not

retract - slowly pull out the hose past the

tangled section and then allow the hose to

slowly retract while guiding it back into the

hose reel.

Always ensure the hose is clean and

not twisted.

0.8 metre min.

Fig. 1 Mounting Bracket

Fig. 2 Pivot Pin

Fig. 3 Locking Plate

SPECIFICATIONS

Part

No.

Hose

Length

Hose

Material

Working

Pressure

Hose

I.D.

Hose

O.D.

Leader

Hose

Inlet

Size

58.3067 8 m Extreme Ultraex

Reinforced

Max. 300 p.s.i.

(20 BAR)

9.2 mm 15.2 mm 1 m 1/4” BSP

58.4023 8 m Extreme Ultraex

Reinforced

Max. 150 p.s.i.

(10 BAR)

10.5 mm 16.5 mm 1 m 12mm

tap tting

MAINTENANCE

• Always keep the hose clean.

• If the hose becomes dirty, clean it with

a damp cloth while retracting.

• DO NOT twist the hose while in use.

• Mount the hose reel in a sheltered area to

assist and protect the performance of the

hose and hose reel.

• DO NOT allow the hose to contact any

corrosive chemicals or uids.

• Always retract the hose when not in use.

• The JamecPem Hose Reel contains a

pre-tensioned spring inside the inner drum

assembly.

Do not attempt to open the inner drum

assembly.

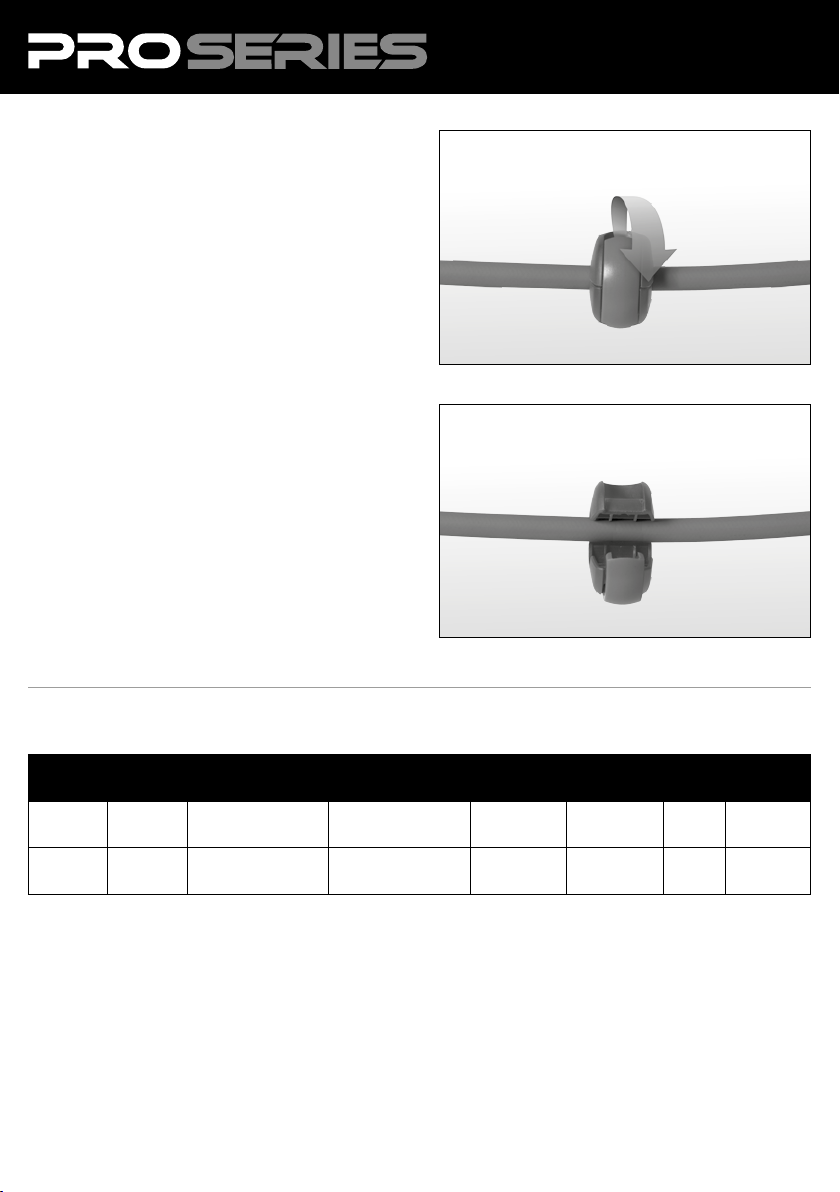

ADJUSTING THE STOP-BALL

The location of the hose stopper can be

adjusted to allow more hose or less hose to

be exposed when fully rewound.

1. Pull out the desired length of hose, ensuring

the hose reel is in the lock position.

2. Open the latch on the hose stopper and

move it to the desired position on the hose.

3. Re-latch the hose stopper at desired

position

CAUTION:

Always make sure the hose reel is in the

locked position before removing the hose

stopper and make sure the hose stopper is

securely fastened before unlocking the reel.

WARRANTY

& CLAIM PROCEDURE

The JamecPem Hose Reel is covered against

defects in material and workmanship.

In the instance of a warranty claim, the owner

will be entitled to a replacement unit or a

sufcient repair of the defective part/s and

or component/s to ensure normal operating

condition of the hose reel.

WARRANTY EXCLUSIONS

The hose, rubber o-rings and hose stopper

are deemed normal wear items and are not

covered under warranty.

The warranty does not extend to parts or

components affected or damaged by

accident, normal wear, misuse, neglect or

faulty installation.

To register a warranty claim contact:

Companion Brands

Phone: 1300 555 197

Fax: 1300 555 198

E-mail: enquires@companionbrands.com.au

NOTES

________________________________________________________________________________

NOTES

________________________________________________________________________________

Distributed by

Companion Brands

Bundoora VIC 3083

www.companionbrands.com.au

jamecpem.com.au

JAM3649
