Jandy Jandy Pro Series User manual

H0295200 Rev E
ENGLISH
WARNING
FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and
qualified in pool equipment by the jurisdiction in which the product will be installed where such state
or local requirements exist. The maintainer must be a professional with sufficient experience in pool
equipment installation and maintenance so that all of the instructions in this manual can be followed
exactly. Before installing this product, read and follow all warning notices and instructions that accompany
this product. Failure to follow warning notices and instructions may result in property damage, personal
injury, or death. Improper installation and/or operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can
cause serious injury, property damage, or death.
ATTENTION INSTALLER - This manual contains important information about the
installation, operation and safe use of this product. This information should be given to
the owner/operator of this equipment.
Jandy®Pro Series
Diatomaceous Earth Pool Filters
DEV
INSTALLATION AND
OPERATION MANUAL

Page 3
ENGLISH
Jandy®DE Pool Filters |Installation & Operation Manual
Table of Contents
EQUIPMENT INFORMATION RECORD
DATE OF INSTALLATION
INSTALLER INFORMATION
INITIAL PRESSURE GAUGE READING (WITH CLEAR FILTER)
PUMP MODEL HORSEPOWER
FILTER MODEL SERIAL NUMBER
NOTES:
Section 1. Safety Information .......................... 4
1.1 Important Safety Warning................................... 4
1.2 General Safety Instructions ................................ 4
Section 2. General Information ....................... 5
2.1 Introduction......................................................... 5
2.2 Description ......................................................... 5
2.3 General Requirements ....................................... 5
2.4 DE Requirements ............................................... 5
2.5 SpecicationsandDimensions .......................... 5
Section 3. Installation Instructions ...................6
3.1 Filter Location..................................................... 6
3.2 Anchor Bracket Installation................................. 6
3.3 Filter Preparation................................................ 6
3.4 Filter Plumbing ................................................... 7

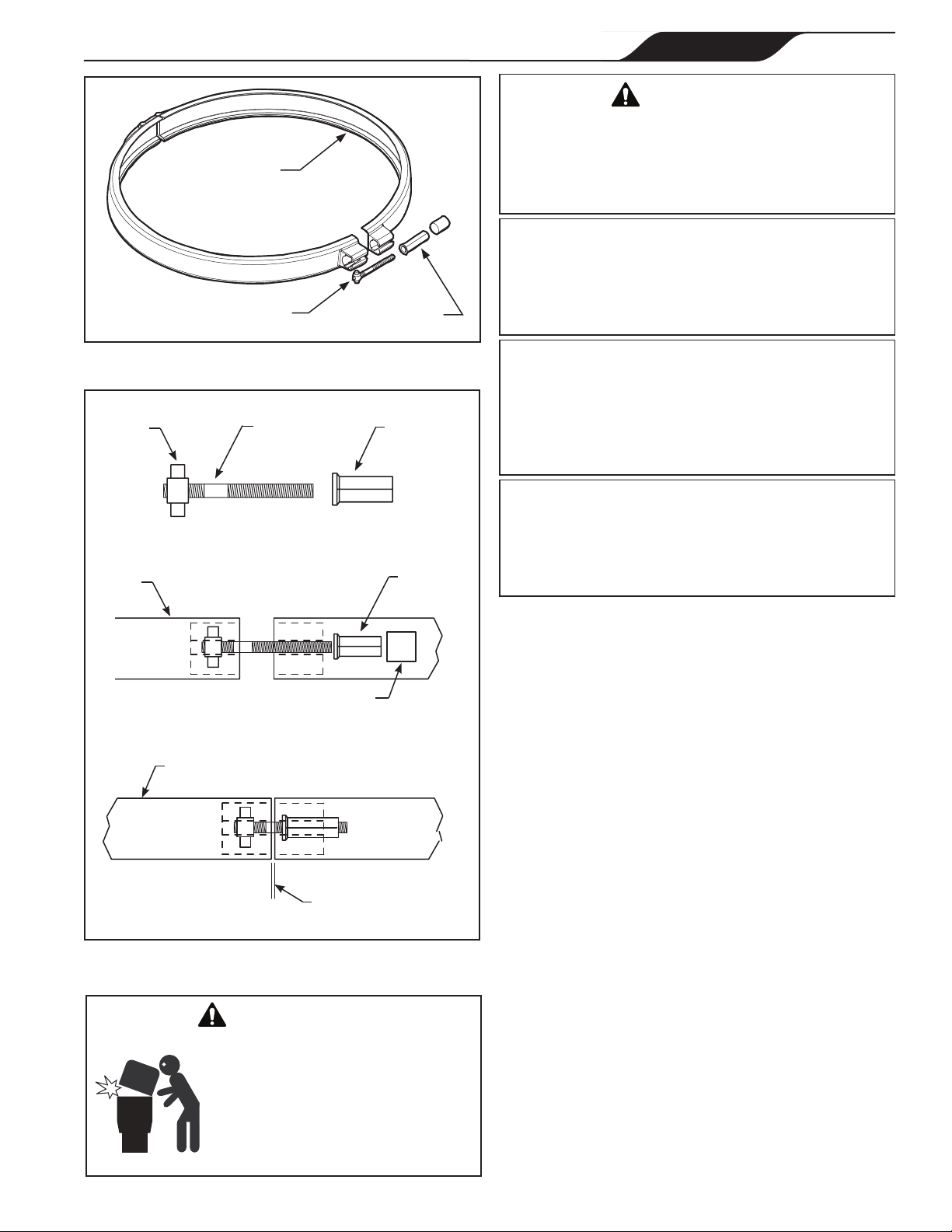

3.5 Clamp Installation, DEV Series .......................... 8
Section 4. Start-Up and Operation .................. 9
4.1 Preparing Diatomaceous Earth .......................... 9
4.2 Coating the Filter Grids .................................... 10
4.3 New Pool and Seasonal Start-up ..................... 10
4.4 Valve Operation................................................ 10
Section 5. Filter Disassembly
and Assembly ................................11
5.1 Filter Tank Disassemby/Assembly.....................11
5.2 Filter Grid Disassembly/Assembly.....................11
Section 6. Maintenance.................................. 12
6.1 General Maintenance ....................................... 12
6.2 Backwashing .................................................... 12
6.3 Pressure Gauge ............................................... 12
6.4 Cleaning the Filter Grids with Water................. 12
6.5 Cleaning Filter Grids with Muriatic Acid............ 13
Section 7. Winterizing .................................... 13
Section 8. Troubleshooting ........................... 13
Section 9. Parts List and Exploded View ..... 15
9.1 Jandy DEV Filter Parts List .............................. 15
9.2 Exploded View of Jandy DEV Filter.................. 15

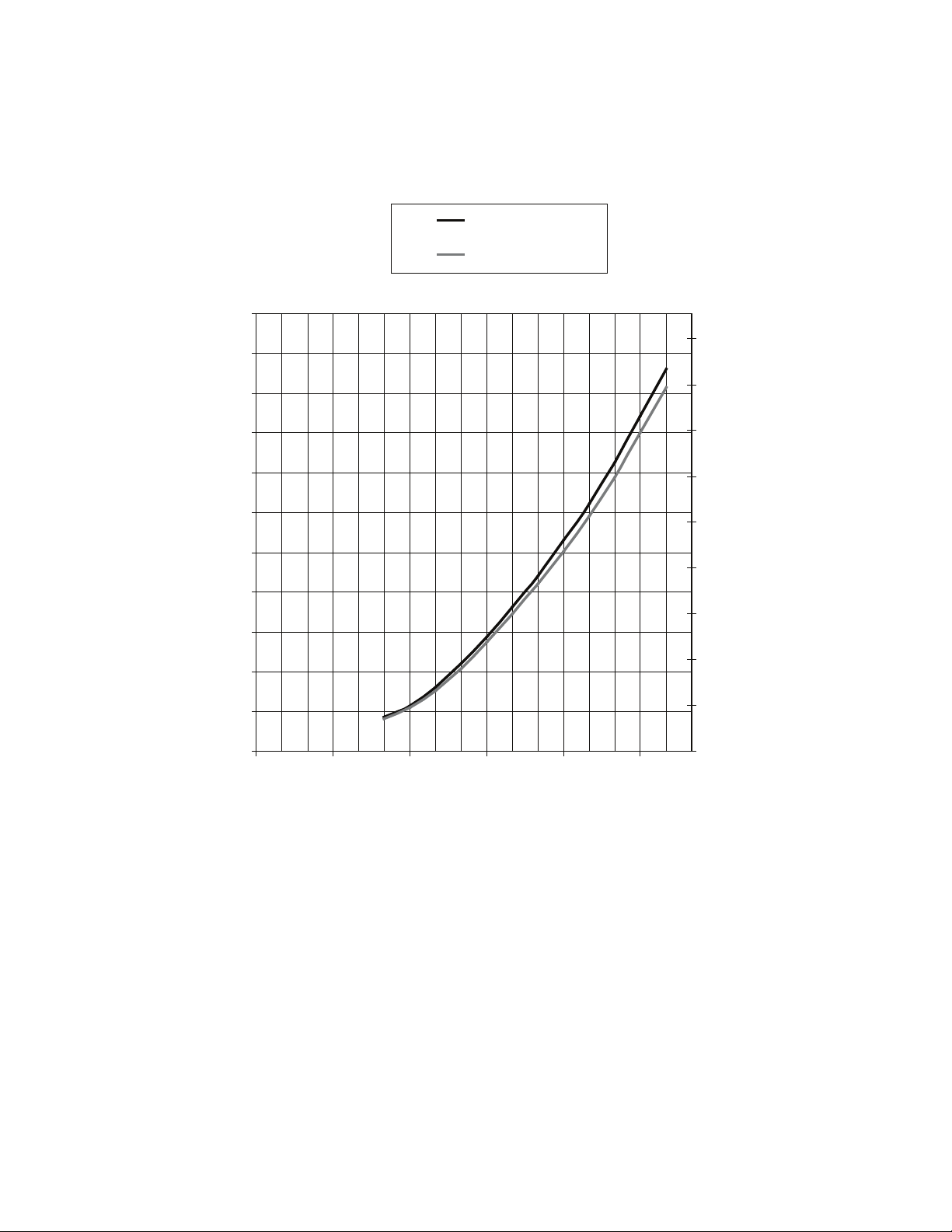

Section 10. Head Loss Curves ........................ 16
10.1 Jandy DEV Filter Design Head
Loss Curves ..................................................... 16

Page 4 ENGLISH Jandy®DE Pool Filters |Installation & Operation Manual
Section 1. Safety Information
1.1 Important Safety Warning
WARNING
• Do not connect system to an unregulated city water system or other external source of
pressurized water producing pressures greater than 35 PSI.
• Pressurized air in system can cause product failure or also cause the filter lid to be blown off
which can result in death, serious personal injury, or property damage. Be sure all air is out
of system before operating or testing the equipment.
WARNING
MAXIMUM OPERATING PRESSURE OF THE FILTER IS 50 PSI. NEVER SUBJECT THE
FILTER TO ANY OPERATING PRESSURE EXCEEDING 50 PSI.
This filter operates under high pressure. When any part of the circulating system, i.e., filter,
pump, valve(s), clamp, etc. is serviced, air can enter the system and become pressurized when
the system is restarted. Pressurized air can cause product failure or also cause the filter lid to
be blown off which can result in death, serious personal injury or property damage. To avoid this
potential hazard, follow all of the instructions in this manual.
WARNING
To minimize risk of severe injury or death the filter and/or pump should not be subjected to the
piping system pressurization test.
Local codes may require the pool piping system to be subjected to a pressure test. These
requirements are generally not intended to apply to the pool equipment such as filters or pumps.
Jandy Pro Series pool equipment is pressure tested at the factory.
If however this WARNING cannot be followed and pressure testing of the piping system must include
the filter and/or pump BE SURE TO COMPLY WITH THE FOLLOWING SAFETY INSTRUCTIONS:
• Check all clamps, bolts, lids, lock rings and system accessories to ensure they are properly installed
and secured before testing.
• RELEASE ALL AIR in the system before testing.
• Water pressure for test must NOT EXCEED 35 PSI.
• Water temperature for test must NOT EXCEED 100°F (38°C).
• Limit test to 24 hours. After test, visually check system to be sure it is ready for operation.
Notice: These parameters apply to Jandy Pro Series equipment only. For non-Jandy equipment, consult
equipment manufacturer.
1.2 General Safety Instructions
ATTENTION INSTALLER
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner/operator of this equipment.
1. Use equipment only in a pool or spa installation.
2. Before repositioning valve(s) and before beginning the assembly, disassembly, or adjustment of the clamp,
or any other service of the circulating system; (A) turn the pump off and shut off any automatic controls to
ensure the system is not inadvertently started during servicing; (B) open the air release valve; (C) wait until all
pressure is relieved (air will have stopped owing from the air release valve).
3. Whenever installing the lter clamp follow Section 3.5 of this manual, "Clamp Installation".
4.
Once service on the circulation system is complete, follow Section 4 of this manual, "Start-up and Operation".
5. Maintain circulation system properly. Replace worn or damaged parts immediately.
6. Be sure that the lter is properly mounted and positioned according to these installation instructions.
7. Do not pressure test above 35 PSI. Pressure testing must be done by a trained pool professional.
READ AND FOLLOW ALL INSTRUCTIONS

Page 5
ENGLISH
Jandy®DE Pool Filters |Installation & Operation Manual
28 in.
18
"A"
10½in.
½in.
Section 2. General Information
2.1 Introduction
This manual contains information for the proper installation
and operation of the DEV Jandy Diatomaceous Earth (DE)
Filters. Procedures in this manual must be followed exactly.
For technical assistance, contact our Technical Support
Department at 1.800.822.7933.
2.2 Description
Dirty water ows into a two or three port diverter valve,
then into the lter through the lower bulkhead on the
bottom of the tank and is directed through the DE grids.
The debris is collected on the surface of the grids as the
water ows through them. The clean water is directed
into the manifold, then through the outlet tube, and
nally, out of the lter through the upper bulkhead
on the bottom half of the tank. The ltered water then
goes through the two or three port diverter valve and is
returned through the piping system to the pool.
As debris collects in the lter, the pressure will rise
and water ow to the pool will diminish. The lter will
eventually become so plugged with debris that it will
be necessary to perform the backwash procedure. It
is important to know when to backwash the lter. See
Section 6 for further discussion of backwashing the lter.
NOTE A filter removes dirt and other suspended particles
but does not sanitize the pool. Pool water must be
sanitized and chemically balanced for clear water.
The filtration system should be designed to meet
local health codes. At a minimum, the system should
turnover the total volume of water in your pool two to
four times in a 24-hour period.
2.3 General Requirements
1. For best overall performance, place the system as
close to the pool as possible.
2. The lter should be located on a level concrete
slab so that the orientation of the valve outlets and
the pressure gauge are convenient and accessible
for the installation and operation of the unit.
3. Protect the lter from the weather.
4. If tting a chlorinator and/or any other device
into the ltration plumbing circuit, great care
must be exercised to ensure that the appliance is
installed in accordance with the Manufacturer’s
Instructions and any standards that may exist.
5. We recommend the use of barrel unions to connect
each component of the water conditioning system
to ease in future servicing. Barrel unions are
provided with all Jandy lters.
WARNING
The maximum working pressure for this filter is 50 psi.
Never subject the filter to working pressure exceeding
50 psi. Working pressures above 50 psi can cause
product failure or also cause the filter lid to be blown
off, which can result in death, serious personal injury,
or property damage
6. When performing hydrostatic pressure tests or
when testing for external leaks of the completed
ltration and plumbing system, ensure that the
maximum pressure the ltration system is subjected
to does not exceed the maximum working pressure
of any of the components within the system.
2.4 DE Requirements
See your local pool distributor or dealer for DE type
recommendations. See Table 2 on page 10 for the amount
of DE to be used.
2.5 SpecicationsandDimensions
See Table 1 and Figure 1.
Table1. DEFilterSpecications
DEV48 DEV60
Filter Area (ft2) 48 60
Design Flow Rate (gpm/ft2) 2.00 2.00
Max Flow Rate Residential (gpm) 120 150
Max Flow Rate Commercial (gpm) 96 120
Six Hour Capacity (gal) 34,560 43,200
Normal Start Up Pressure (psi) 6-15 6-15
Max. Working Pressure (psi) 50 50
Dimension "A" 41 in. 47 in.
Figure 1. Dimensions, Jandy DEV Series Filter with
Jandy NeverLube® Backwash Valve
CL INLET
OUTLET CV INLET
Port on
CV Model
Only

Page 6 ENGLISH Jandy®DE Pool Filters |Installation & Operation Manual

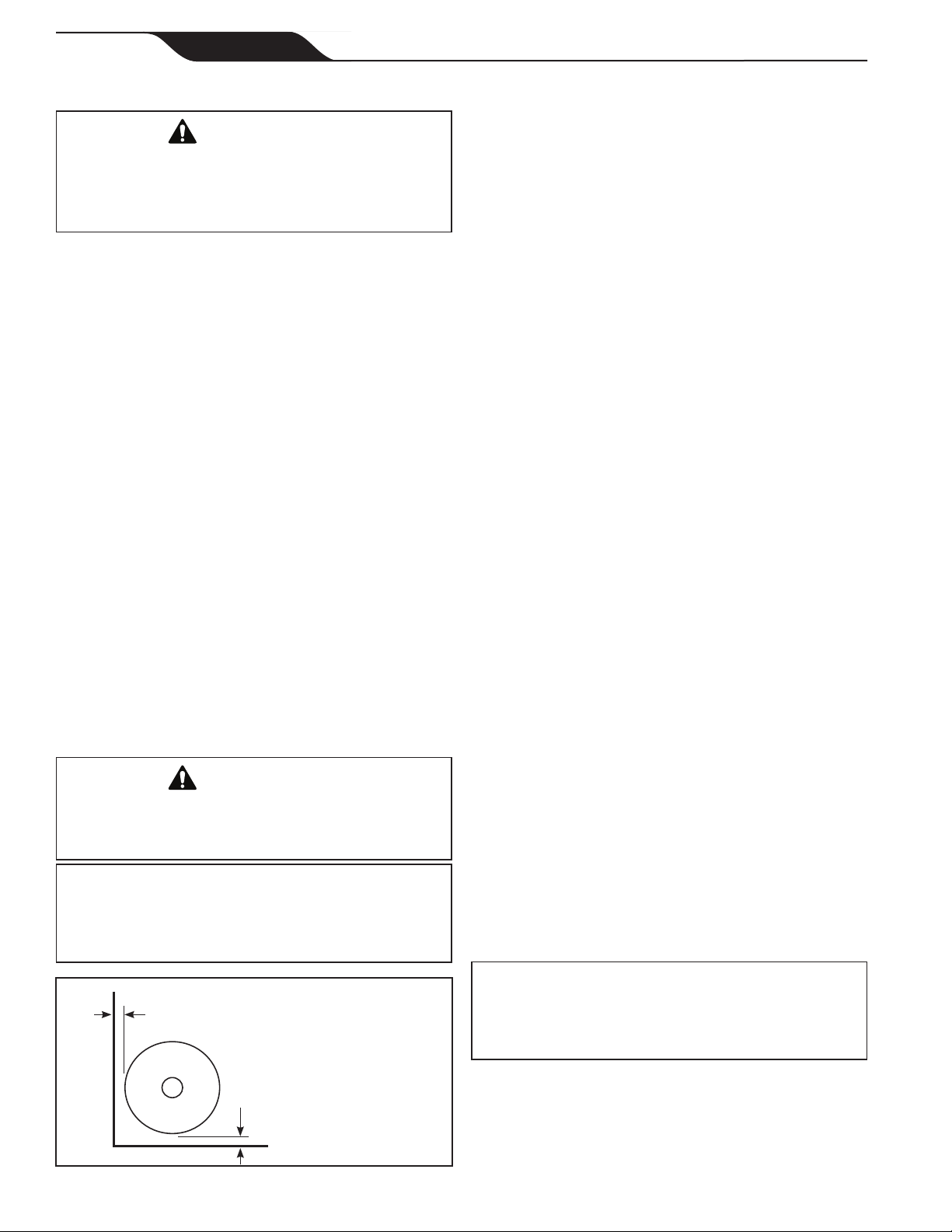

Figure 2. Filter Location
Section 3. Installation Instructions
WARNING
Use equipment only in a pool or spa installation. Do not
connect system to an unregulated city water system or
other external source of pressurized water producing
pressures greater than 35 psi.
3.1 Filter Location
1. Select a well-drained area, one that does not ood
when it rains. Damp, non-ventilated areas should
be avoided.
2. The lter should be installed on a rm, solid, and
level surface or platform to avoid risk of settlement.
Do not use sand to level the lter as the sand will
wash away; lter systems can weight up to 800
pounds once loaded with media. Check local
building codes for additional requirements. (Ex.
Equipment pads in Florida must be concrete and
equipment must be secured to the pad.)
3. Install electrical controls at least ve (5) feet from
the lter. This will allow enough room to stand
away from the lter during start-up.
4.
Allow sufcient clearance around the lter to permit
a visual inspection of the clamp ring. See Figure 2.
5. Allow sufcient space above the lter to remove
the lter lid and lter element for cleaning and
servicing.
6. Position the lter to safely direct water drainage.
Align the air release valve to safely direct
pressurized purged air or water.
WARNING
Water discharged from an improperly positioned filter
or valve can create an electrical hazard which can
cause death, serious injury or property damage.
CAUTION
Maintain your pressure gauge in good working order.
The pressure gauge is the primary indicator of how the
filter is operating.
7. If the lter needs to be located above the water
level of the pool, it can be raised 2.5 ft. without
affecting the pump efciency. A check valve is
recommended on the suction line to the pump.
8. If the lter is to be installed below the water level
of the pool, isolation valves should be installed on
both the suction and return lines to prevent back
ow of pool water during any routine servicing
that may be required.
3.2 Anchor Bracket Installation
In Florida, building codes require that all appliances
be securely fastened to the equipment pad in order to
withstand high wind pressures created by hurricanes.
Zodiac Pool Systems, Inc. provides an anchor bracket kit
for this purpose. Please see the Parts List in Section 9 of
this manual for the correct part number.
NOTE Anchor screws and washers are not included with the
filter or the anchor bracket kit. Zodiac®recommends
that a ¼" x 2¼" long stainless steel Tapcon®type
concrete screw be used to mount the anchor bracket
to the equipment pad. The Tapcon type concrete screw
meets Florida buliding code requirements.
After placing the lter on the equipment pad, as outlined
in Section 3.1, drill a 5/32" hole in the concrete at each of
the four (4) brackets on the lter. (The correct size drill
bit is usually provided with the concrete screws when
purchased.)
Install the Tapcon screws and washers through each of
the four (4) anchor brackets to secure the lter to the
equipment pad. See Figure 3. Do not over-torque the
screws.
3.3 Filter Preparation
1. Check carton for damage due to rough handling
in shipment. If carton or any lter components are
damaged, notify carrier immediately.
2. Carefully remove the accessory package.
3. With the carton in an upright position, remove the
lter tank from the carton.
CAUTION
DO NOT move the filter tank without the shipping
screw in place or the filter grids may be damaged while
installing the filter tank.
4. A visual inspection of all parts should be made
now. See the parts list on page 15.
FILTER
6" MINIMUM
CLEARANCE
6" MINIMUM CLEARANCE

Page 7
ENGLISH
Jandy®DE Pool Filters |Installation & Operation Manual
Filter Base
Drill 5/32” Hole
Mounting Tab
Mounting Bracket
#12x1” Stainless Steel Pan
Head Screws (Qty 2)
Drill Two 3/32” Holes
Through Filter Base
1/4” x 2-1/4” S.S. Tapcon®
Screw and S.S. Washer
3-1/2” Thick
(Min.)
Concrete Pad

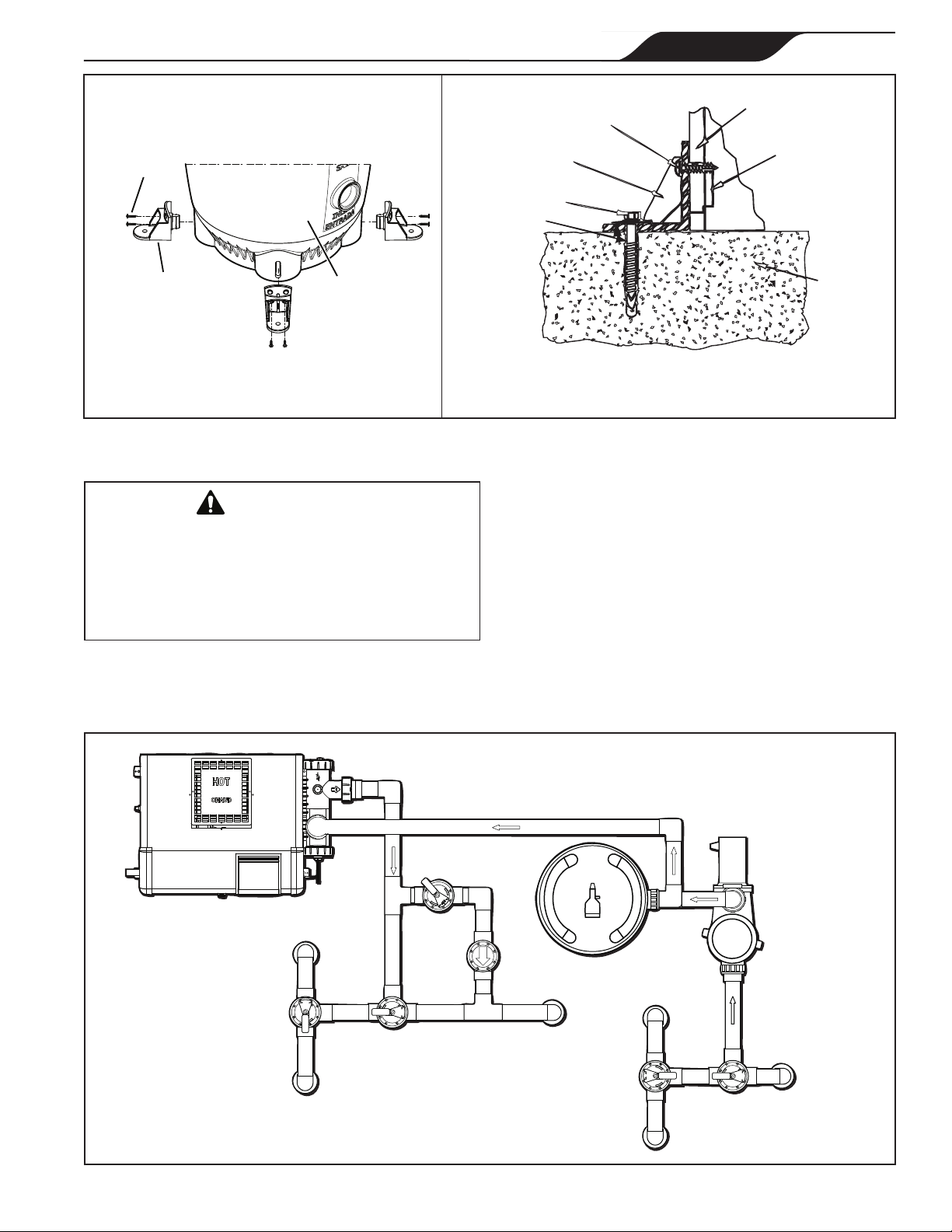

Figure 3. Anchor Filter to Equipment Pad
Heater
Waterfall
Pool Return
Spa Make Up
Spa Return
From Pool Skimmer
From Pool
Drain
Spa Suction
Pump
Check
Valve
To Inlet Port
Filter
2. If doubt exists as to the pressure which the
system will be subjected to, install an ASME®
approved automatic Pressure Relief Valve or
Pressure Regulator in the circulation system
set to the lowest working pressure of any of the
components in the system.
3. Place the lter on the concrete pad, lined up with
the inlet/outlet pipes, see Figure 4. Remove the
shipping screw.
4. To mount the pressure gauge/air release assembly
to the top of the lter tank (located in the
accessory bag):
Figure 4. Basic Pool/Spa Combination Plumbing
Anchor
Bracket
(Qty 4)
#12x1” Pan Head
Stainless Steel
Screw (Qty 8)
Tank Bottom
Filter Tank Anchor Bracket Installation Anchor Bracket to Platform Installation
From Outlet Port
3.4 Filter Plumbing
WARNING
To avoid an electrical shock hazard, which can result
in serious injury or death, ensure that all electrical
power to the system is turned off before approaching,
inspecting or troubleshooting any leaking valves
or plumbing that may have caused other electrical
devices in the surrounding area to get wet.
1. This lter operates under pressure. When clamped
properly and operated without air in the water
system, this lter will operate in a safe manner.

Page 8 ENGLISH Jandy®DE Pool Filters |Installation & Operation Manual
Figure 5. Pressure Gauge/Air Release Assembly
a. Place the smaller, thicker o-ring onto the
threads of the tank adapter, see Fig. 5. Slide the
tank adapter through the coupling nut and into
the lter tank. Use the ats on the tank adapter
to tighten. Do not overtighten.
b. Place the larger, thinner o-ring onto the gauge
housing. Thread the housing into the coupler
on the tank adapter.
c. Orient the gauge/air release assembly in the
desired position. Raise and thread the locknut
onto the bottom of the gauge/air release
assembly. Hand tighten the nut only. Using a
wrench to tighten the nut may damage the nut,
gauge or air release assembly.
5. To reduce pressure losses, 2" (minimum) piping is
recommended for plumbing the system.
6. For best efciency use the fewest possible
number of ttings. This will prevent a restriction
in the water ow.
7. Make all plumbing connections in accordance
with local plumbing and building codes. Filter
connections are provided with an o-ring seal. To
avoid damage to the o-rings, use only a silicone
base lubricant on the o-rings. Do not use pipe
joint compound, glue or solvent on inlet/outlet
union coupling nuts.
8. Keep piping tight and free of leaks. Pump suction
line leaks may cause air to be entrapped in lter
tank or loss of prime at the pump. Pump discharge
line leaks may show up as dampness or jets of
water.
9. Support the inlet/outlet pipes independently to
prevent any undue strains on the lter's two (2) or
three (3) port diverter valve.
10. Connect the pipes using the unions supplied with
the lter. Do not use teflon tape or pipe dope on
any unions. Assemble the unions dry and hand
tighten.
CAUTION
Be sure that all provisions for wastewater disposal
meet local, state or national codes. During any
backwashing or draining process, 100 gallons or more
of pool water will be discharged. Do not discharge
water where it will cause flooding or damage.
3.5 Clamp Installation, DEV Series
1. Be certain that the o-ring seat is clean and that the
o-ring is in position in the lower tank half. Press
the lter lid onto the lower half, sandwiching the
o-ring between the two (2) halves.
2. Holding the ends of the lter clamp apart, position
the hinged segment of the lter clamp over both
upper and lower tank anges. Bring the ends of
the lter clamp together.
3. Place the "T" nut and threaded rod assembly into
the clamp. Be sure the "T" nut is seated in the
clamp in the proper orientation. See Figure 6.
4. Use a 9/16" socket on the tightening nut until
the clamp ring halves touch each other, or are
within 1/16", see Fig. 7 but do not overtighten
as the clamp can break. If unable to tighten
as indicated, do not operate the lter and call a
service technician immediately.
WARNING
Follow these instructions carefully.
Improper clamp installation can
cause product failure or also cause
the filter lid to be blown off, which
can result in death, serious injury, or
property damage.
WARNING
NEVER start pump while standing
within five (5) feet of the filter. Starting
the pump while there is pressurized
air in the system can cause product
failure or also cause the filter lid to
be blown off, which can cause death,
serious personal injury or property
damage.
Housing
O-Ring
Tank Adapter
Tank Adapter to
Housing Coupler
O-Ring

Page 9
ENGLISH
Jandy®DE Pool Filters |Installation & Operation Manual
Figure 7. Filter Clamp Ring Assembly
"T" Nut Threaded
Rod
Tighten-
ing Nut w/
Shoulder
Clamp Ring,
Closed Position
GAP NOT TO EXCEED
1/16"
Figure 6. Filter Clamp Ring
Clamp
Ring
Tighten-
ing Nut w/
Shoulder
Use a 9/16" Socket
WARNING
NEVER operate the filter system
at more than 50 psi of pressure.
Operating filter system in excess of
50 psi can cause product failure or
also cause the filter lid to be blown
off, which can cause death, serious
personal injury or property damage.
WARNING
Changing the two (2) or three (3) port diverter valve
handle while there is pressurized air in the system can
cause product failure or also cause the filter lid to be
blown off, which can cause death, serious personal
injury or property damage.
CAUTION
Dust released during normal handling of diatomaceous
earth can cause eye and respiratory irritation.
Prolonged breathing of excess concentrations of dust
may cause lung damage.
CAUTION
Never operate the filter in excess of three (3) minutes
without use of diatomaceous earth (DE). DE is the
substance that filters the water, the filter cloth merely
supports the DE. Operating without DE will damage
filter grids and shorten filtering cycles.
CAUTION
DO NOT operate the filter at water temperatures
above 105° F (40.6° C). Water temperatures above the
manufacturer’s recommendations will shorten the life
span of the filter and void the warranty.
5. After the rst week of operation, check the clamp
and retighten if necessary.
6. Check the lter clamp at least once a month.
Section 4. Start-Up and
Operation
4.1 Preparing Diatomaceous Earth
Your lter requires diatomaceous earth (DE) for proper
ltration and operation. The lter grids must be precoated
with DE in order to protect their surfaces and provide
the most efcient ltering action. Refer to Table 2 for the
proper quantity of DE to use with your lter.
1. Using a one (1) pound coffee can, ll the can
with diatomaceous earth (DE). Do not pack or
compress the DE into the can.
2. Mix the required amount of DE with sufcient
water in a separate bucket to make a thin, milky
mixture (slurry).
NOTE Excess DE will clog the system. Use amount specified
in this manual.
3. Use the following instructions to coat the lter
grids.
Clamp Ring
"T" Nut and
Threaded Rod Tightening Nut
w/ Shoulder

Page 10 ENGLISH Jandy®DE Pool Filters |Installation & Operation Manual
Rinse
Closed
Recirculate
Backwash
Waste
Filter
R
Table 2. DE Slurry Mixture
Model No. DE Quantity No. of 1 lb.
Coffee Cans
(lbs.) (kg.)
DEV48 5.0 2.0 10
DEV60 6.0 2.7 12
4.2 Coating the Filter Grids
1. Prepare the recommended amount of DE as
outlined in Section 4.1.
2. Start the lter system as outlined in Section 4.3.
3. With the pump running and the pool skimmer
valve open, slowly pour the mixture directly into
the pool's skimmer basket. The slurry will be
drawn into the lter.
4. After coating grids, rotate the bezel of the
pressure gauge so that the arrow next to the word
"CLEAN" is aligned with the needle of the gauge.
This marks the original starting pressure of the
system.
5. Clean the lter when the pressure of the system
increases so that needle of the gauge aligns with
the arrow next to the word "DIRTY" on the bezel
of the gauge. This indicates an increased pressure
of between 10 and 12 psi above original starting
pressure.
4.3 New Pool and Seasonal Start-up
1. Set the lter valve (two (2) or three (3) port
diverter or backwash) to the "FILTER" position.
2. Open the pump hair/lint pot lid and ll the pump
basket with water to prime the system. Replace
the lid. (You may have to do this several times on
new and seasonal start-ups.)
3. Completely open the air release valve on the
gauge/air release assembly by turning the knob on
the back of the assembly fully counterclockwise
(do not remove the knob).
4. Be sure to open any lter isolation valves that
were installed in the system and make sure that
the lter drain plug is in place.
5. Stand clear of the filter and start the pump to
circulate water through the system. When a steady
stream of water starts to come out of the air
release valve, close the valve.
6. If this is a new lter, or the lter has just been
backwashed, add the DE slurry as described in
section 4.2.
7. Watch the pressure gauge to be sure that the
pressure does not exceed 50 psi in the lter for
normal operation. If the pressure approaches
these limits, turn off the pump and backwash the
lter, see Section 6.2. If the pressure remains high
after backwashing and reapplying the DE slurry,
refer to the troubleshooting guide on page 14 to
identify possible causes and solutions.
8. After the pressure gauge has stabilized, turn the
bezel ring so that the arrow next to the word
"CLEAN" aligns with the needle of the gauge. As
the lter cleans the water, the grids will clog over
time, and the pressure will increase. When the
needle of the pressure gauge aligns with the arrow
next to the word "DIRTY" on the bezel ring, it is
time to backwash the lter. See Section 6.2.
4.4 Valve Operation
1. The ow of water through a DE lter is controlled
by an optional backwash valve or two (2) or three
(3) port diverter valve.
2. The handle on top of the backwash valve or
diverter valve can be moved to different positions.
The function of each position is described below.
See Figure 8.
NOTE Depending on the model of backwash valve or diverter
valve installed with your filter, it may have all or only
some of the positions described in Table 3.
Figure 8. Diverter Valve Handle Positions

Page 11
ENGLISH
Jandy®DE Pool Filters |Installation & Operation Manual
JANDY
PN S0109500
8. While the DE lter grid assembly is out of the
lter tank, rinse the inside of the tank with water.
Replace drain plug.
9. Gently rinse the grids with water. After cleaning
the lter grids, place the grid assembly back into
the lter tank bottom. See Sections 6.4 and 6.5 for
further grid cleaning instructions.
10. Replace the tank o-ring and tank lid.
11. Reinstall the tank clamp ring. See Section 3.5 for
tank clamp ring installation.
12. If applicable, open the valves closed in step 4.
5.2 Filter Grid Disassembly/Assembly
1. Remove the complete grid assembly by following
the instructions in Section 5.1, steps 2-6.
2. Remove the manifold by rst unscrewing the tie
rod knob in the center of the manifold. Then lift
the manifold assembly off of the grids and the
outlet tube.
3. Remove the top spacer from the grids.
4. The individual lter grids can now be removed
from the grid support. Use care to avoid damaging
the grids.
5. See Figure 8 for the arrangement of lter grids in
the lter grid assembly.
6. To reassemble the lter grid assembly, arrange the
lter grids into position on the bottom plate, see
Fig. 9. Use the plastic top spacer to hold the grids
in place.
WARNING
NEVER attempt to assemble,
disassemble or adjust the filter when
there is pressurized air in the system.
Starting the pump while there is any
pressurized air in the system can
cause product failure or also cause
the filter lid to be blown off, which can
cause death, serious personal injury
or property damage.
Table 3. Valve Positions for Diverter Valve
Position Function
FILTER Normal filtration and vacuuming.
BACKWASH Cleaning filter by reversing the
flow.
RINSE Used after backwash to flush dirt
from the valve.
WASTE Bypasses filter; used for
vacuuming waste or lowering
water level.
RECIRCULATE Bypasses filter for circulating
water to the pool.
CLOSED Shuts off all flow to the filter and
pool.
Section 5. Filter Disassembly
and Assembly
5.1 Filter Tank Disassemby/Assembly
1. Backwash lter according to the instructions in
Section 6.2.
NOTE Omit this step when first starting a new filter.
2. Turn off the pump. Switch off the circuit breaker
to the pump motor.
3. IMPORTANT: Completely open air release
valve on top of the filter tank to release all
pressure from inside the tank and system.
4. If the equipment is installed below water level,
close the lter isolation valves on the system to
prevent ooding.
5.
Close the lter isolation valves on the system to
prevent ooding. Remove the drain plug located at the
bottom of the lter tank and allow the tank to drain.
6. Remove the tank clamp ring from the lter and
remove the tank lid. Inspect the tank o-ring for
cracks or tears and replace if necessary
7. Pull the DE lter grid assembly out of the lter
tank bottom. Use the handles molded into the
manifold to aid lifting.

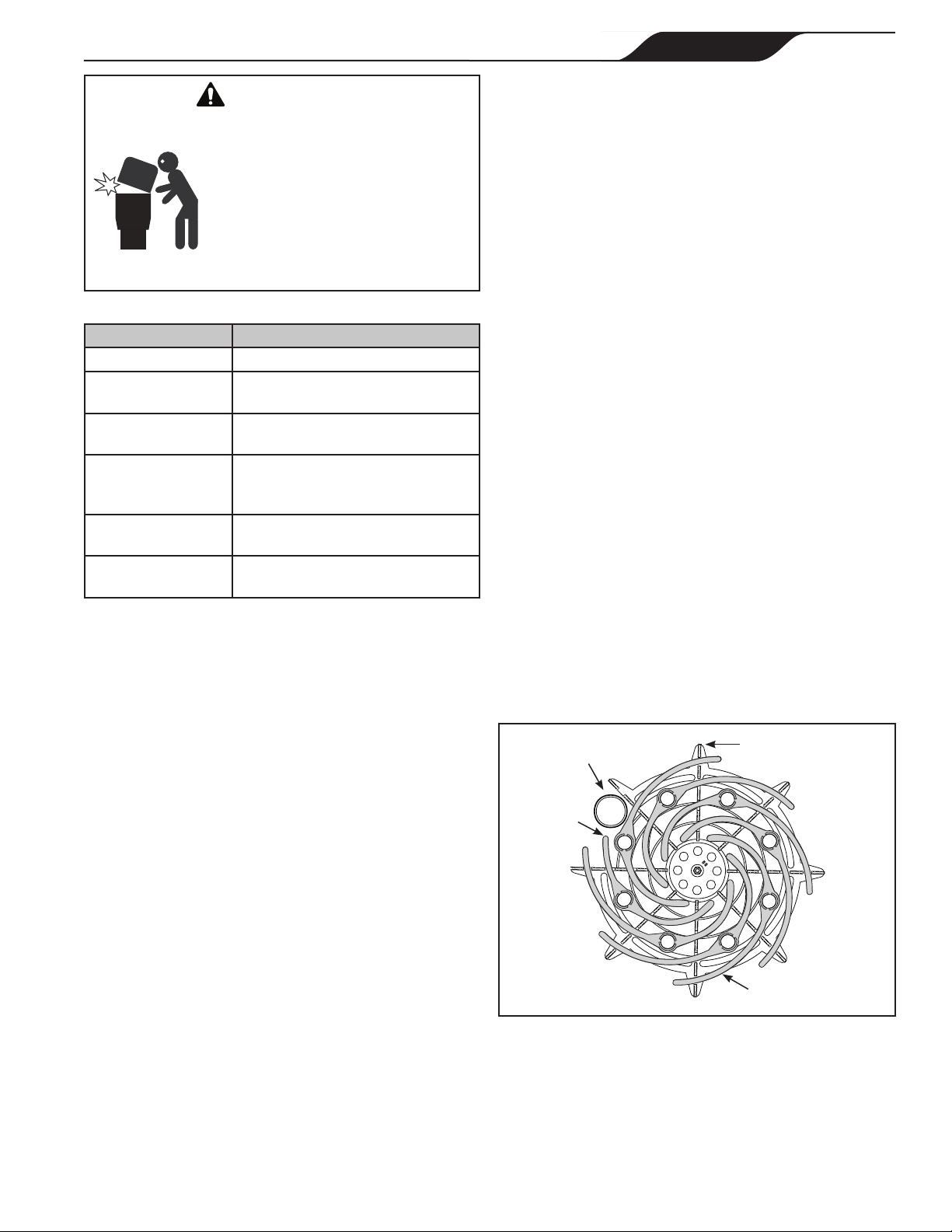

Figure 9. Filter Grid Arrangement
OUTLET
PIPE WITH
O-RING
DEL
FILTER
GRID,
SHORT
SPAN
DEL FILTER GRID
(7 REQUIRED)
BOTTOM PLATE
7. Inspect the o-ring at the top of the outlet tube for
cracks or excessive wear. Replace if necessary.
8. Assemble the manifold to the top of the assembly.
Make sure that the grids and outlet tube t
securely into the manifold and that the retaining
rod extends up through the hole in the center of
the manifold.

Page 12 ENGLISH Jandy®DE Pool Filters |Installation & Operation Manual
6.2 Backwashing
1. With the lter pump off, set the backwash valve
or diverter valve handle to the "BACKWASH"
position.
CAUTION
Maintain your pressure gauge in good working order.
The pressure gauge is the primary indicator of how the
filter is operating.
2. Open the air release valve.
3. Stand clear of the lter and start the pump to
circulate the water backwards through the lter to
the waste line.
4. When a steady stream of water is expelled
through the air release valve, close the valve.
5. Run the pump until the backwash discharge water
is clear (repeat steps 1 thru 5 if required).
6. Switch the lter pump off.
7. Follow the procedure for coating the lter grids as
described in Section 4.2.
6.3 Pressure Gauge
1. During operation of the ltration system, check
the pressure gauge/air release assembly for air or
water leaks at least once a week.
2. Keep the pressure gauge in good working order.
If you suspect a problem with the gauge, Zodiac®
recommends that you call a service technician to
do any work on the lter/pump system.
6.4 Cleaning the Filter Grids with Water
1. Turn off the pump and switch off the circuit
breaker to the pump motor. Open the air release
valve on top of the lter tank. Close the lter
isolation valves. Remove the drain plug.
2. Once all pressure has been relieved, remove the
clamp ring and the lter lid. Inspect the o-ring for
cracks or tears and replace if necessary.
3. Remove the lter grid assembly from the lter.
Follow the instructions in Section 5.1.
4. Using a garden hose, thoroughly ush all
contaminates from the lter grid surfaces.
9. Place the tie rod knob on the tie rod and tighten.
Tighten until the lter grid assembly is snug.
Do not overtighten.
10. Reassemble the tank o-ring and tank lid.
11. Reinstall the tank clamp ring. See Section 3.5 for
clamp installation.
Section 6. Maintenance
6.1 General Maintenance
1. Wash outside of lter with a mild detergent
and water. Rinse off with a hose. Do not use
solvents to clean the filter. Solvents will
damage the plastic components of the filter.
2. Inspect the DE lter grids at least twice a year.
Remove any foreign material that has not been
backwashed out of the system.
3. Check pressure during operation at least once a
week.
4. Remove any debris from the pumps and pool
skimmer baskets.
5. Check pump and lter for any leaks. If any leaks
develop, turn off the pump and call a pool
service technician.
6. Product safety signs or labels should be
periodically inspected and cleaned by the product
user as necessary to maintain good legibility for
safe viewing distance.
7. Product safety signs or labels should be replaced
by the product user when a person with normal
vision, including corrected vision, is no longer
able to read the safety signs or label message
panel text at a safe viewing distance from
the hazard. In cases where the product has an
extensive expected life or is exposed to extreme
conditions, the product user should contact either
the product manufacturer or some other source to
determine means for obtaining replacement signs
or labels.
CAUTION
Be sure that all provisions for wastewater disposal
meet local, state or national codes. One hundred
gallons (100 gals.) or more of pool water will be
discharged during filter backwashing. Do not discharge
water where it will cause flooding or damage.
8. Installation of new replacement safety signs or
labels should be in accordance with the sign or
label manufacturer's recommended procedure.

Page 13
ENGLISH
Jandy®DE Pool Filters |Installation & Operation Manual
WARNING
Working with muriatic acid can be dangerous. When
cleaning filter grids, always wear rubber gloves and
eye protection. Add acid to water, do not add water
to acid. Splashing or spilling acid can cause severe
personal injury and/or property damage.
5. See Section 5.2 for reassembly of the lter tank
and lter grids.
6.5 Cleaning Filter Grids with Muriatic
Acid
1. Check with your local pool store or service
company to see if they offer lter grid de-scaling
services.
2. Stiffening of the lter grid fabric is caused by
mineral deposit buildup. It is usually due to
deposits of either magnesium, calcium, alkalines
or carbonates. Removal of these deposits may
be accomplished by soaking the lter grids in a
plastic tub or pail with six (6) parts water to one
(1) part hydrochloric acid (muriatic acid).
3. Wear rubber gloves and eye protection when
mixing the solution, and handling or rinsing the
lter grids.
4. Soak for at least four (4) hours.
5. Rinse the lter grids thoroughly with water.
6. See Sections 5.1 and 5.2 for reassembly of the
lter tank and lter grids.
Section 7. Winterizing
1. Turn off the pump and circuit breakers.
2. Open the air release valve and move the diverter
valve handle to a position between two (2) ports.
This will allow air to ow to all ports.
3. Remove the drain plug at the base of the lter to
ensure that the tank is empty. Store the drain plug
and seal it in a safe place. Do not reinstall until
next season at start-up.
4. Drain system piping of all water.
5. Cover the system with a tarpaulin or plastic sheet
to protect it from the weather.
Section 8. Troubleshooting
1. For a list of common problems and solutions, see
the Troubleshooting Guide on the following page.
2. Zodiac®recommends that you call a service
technician to do any work on the lter/pump
system. For technical assistance, contact our
Technical Support Department at 1.800.822.7933.

Page 14 ENGLISH Jandy®DE Pool Filters |Installation & Operation Manual
Table 4. Troubleshooting Guide
Fault Symptom Possible Problems Solutions
Water is not clear. Insufficient disinfectant level.
Incorrect pool chemistry.
Heavy bathing and/or dirt loads.
Insufficient running times.
Filter is dirty.
Hole in filter element.
Check and adjust disinfectant level.
Test and adjust water chemistry.
Adjust filter time and/or water chemistry.
Increase pump run time.
Backwash filter per instructions.
Replace filter grids.
Low water flow. Filter system strainer baskets dirty.
Air leaks on suction side of pump.
Restrictions or blockage in either
suction or return lines.
Filter grids need to be cleaned or
replaced.
Pool water level too low.
Pump not primed.
Pump impeller vanes blocked.
Pump operating under speed (low
voltage).
Check and clean skimmer and pump
baskets.
Check all connections between pool
intake and pump.
Check all lines for debris or partially
closed valves.
Clean or replace filter grids per
instructions.
Fill pool so level is above pump inlet line.
Fill pump with water at basket and replace
lid.
Technician required.
Technician or electrician required.
Short filter cycles. Presence of algae clogging filter.
Incorrect water chemistry.
Strainer baskets not being used and/or
broken. (Allow debris into pump.)
Pump output exceeds design flow rate
of filter.
Ineffective cleaning.
Check disinfectant content.
Check pH, total alkalinity and TDS.
Replace baskets.
Check pump performance.
Clean or replace filter grids per
instructions.
High pressure on start-up. Small eyeball fitting in Pool/Spa.
Partially closed valve on return line.
Too large of pump.
Filter grids dirty.
Replace with larger diameter fitting.
Check and fully open all valves on return
line.
Check pump and filter selection.
Clean filter grids per instructions.
Dirt returns to pool. Hole in filter grid fabric.
Worn o-ring seal inside filter.
Cracked manifold.
Replace filter grid per instructions.
Replace o-ring.
Replace the manifold assembly.

Page 15
ENGLISH
Jandy®DE Pool Filters |Installation & Operation Manual
Key
No. Description Part No.
1 Handle Assembly w/ Hardware (set of 2) R0357100
2 Handle Hardware (set of 4) R0359900
3Gauge/Air Release Assembly R0357200
4 Pressure Gauge R0359600
5Tank Adapter w/O-ring R0552000
6 Tank Lid DEV60 R0357300
Tank Lid DEV48 R0554700
7 Top Spacer for DE Grids R0359700
8 Spacer, DEV48/60, Large Filter R0405100
9Breather Tube Assembly R0358700
10 Manifold Assembly R0359000
11 Tie Rod w/Knob & Lock Nuts, DEV 60 R0359300
Tie Rod w/Knob & Lock Nuts, DEV 48 R0554800
12 Tank Clamp Ring w/ Rod Assembly R0357400
13 Threaded Rod and Retainer R0357500
14 Tank O-ring R0357800
15 Outlet Tube/Elbow Assembly w/O-
rings, DEV60
R0358100
Outlet Tube/Elbow Assembly w/O-
rings, DEV48
R0555100
16 Inlet Elbow w/O-ring R0358400
17 DE Grid Support R0359500
18 DE Grid, Full Size, DEV60 (7 required) R0359100
DE Grid, Full Size, DEV48 (7 required) R0555000
19 DE Grid, Short Span, DEV60 (1 only) R0359200
DE Grid, Short Span, DEV48 (1 only) R0554900
20 Tie Rod Knob R0359400
21 Ring, Retaining R0405200
22* O-ring Replacement Kit R0358000
23 Bottom Assy, Universal Unions R0466500
24 Bulkhead Assembly with O-ring R0465600
25 Anchor Bracket Kit (Set of 4) R0465500
26 Universal Half Unions (set of 4) and
Drain Plug Cap (not shown)
R0461800
27* Complete set of Jandy DEV60 filter
grids (7 full-size, 1 short span)
R0442600
28* Complete set of Jandy DEV48 filter
grids (7 full-size, 1 short span)
R0442700
29 Universal Half Union (Set of 1) R0522900
30 Drain Cap Assembly R0523000
31 Grid Assembly, DEV48, Complete R0501300
Grid Assembly, DEV60, Complete R0501400
7
8
20
9
10
19
18
31
12
14,23
13
11
17
23,21
25
23
15
23
26,29
16,23
23
24
30
*Parts not shown on key view
Section 9. Parts List and
Exploded View
9.1 Jandy DEV Filter Parts List
9.2 Exploded View of Jandy DEV Filter

Zodiac Pool Systems LLC
2882 Whiptail Loop East #100, Carlsbad, CA 92010
1.800.822.7933 | www.ZodiacPoolSystems.com
©2019 Zodiac Pool Systems LLC. ZODIAC®is a registered trademark of Zodiac International,
S.A.S.U., used under license. All trademarks referenced herein are the property of their respective
owners.
H0295200 Rev E
0
2
4
6
8
10
12
14
16
18
20
22
0 30 60 90 120 150
0
1
2
3
4
5
6
7
8
9
DEV48
DEV60
Design
Head
Loss
(ft head)
Design
Pressure
Drop
(psi)
Flow Rate (gpm)
Section 10. Head Loss Curves
10.1 Jandy®DEV Filter Design Head Loss Curves
