Jandy PureLink User manual

Installation and Operating Data
H0573500-
Installation and
Operation Manual
WARNING
FOR YOUR SAFETY - This product must be installed and serviced by a professional pool/spa
service technician. The procedures in this manual must be followed exactly. Failure to follow
warning notices and instructions may result in property damage, serious injury, or death.
Water Purication System
Power Center and Cell Kit
For use with

Page 3
Section 1. Safety Information ....................... 4
Section 2. System Description ...................... 5
2.1 ElectricalSpecications............... 6
Section 3. Installation Instructions Model
PureLink AP700 and AP1400 ...... 8
3.1 Materials and Tools...................... 8
3.2 PlumbingCongurations ............. 8
3.2.1 Recommended Plumbing
Conguration....................... 8
3.2.2 Alternate Plumbing
Congurations ..................... 9
3.3 Installing AquaLink RS PureLink
Power Center................................ 12
3.4 Earth Bonding (Grounding) ......... 13
3.5 Installing the APURE700 and
APURE1400 Cell and Flow/Temp/
Salinity Sensor ............................. 14
3.6 Connection to the AquaLink®RS
PureLink Control System............. 16
Section 4. Pool Water Preparation ................ 17
4.1 Determining Pool Size
(m3of Water)................................ 17
4.2 Determining Pool Size (Gallons). 17
4.3 Selecting Model Size ................... 18
4.4 Chemistry You Need to Know ..... 18
4.5 Optimum Pool Water Conditions 19
4.6 Chlorine Testing .......................... 19
4.7 Salt (NaCl sodium chloride) ....... 19
4.7.1 What Type of Salt to Use?... 19
4.7.2 How Much Salt to Use?....... 20
4.7.3 How to Add Salt to the Pool? 20
Section 5. Operating Instructions.................. 23
5.1 Using the Front Panel Controls.... 23
5.2 Reading the Display..................... 24
5.3 Operation...................................... 25
5.4 Startup.......................................... 26
5.4.1 Shocking .............................. 26
5.4.2 Apply Power........................ 26
5.5 Operating in Winter...................... 26
5.6 Recommendations........................ 27
Section 6. User Maintenance Instructions .... 28
6.1 Daily............................................. 28
6.2 Weekly ......................................... 28
6.3 Monthly........................................ 28
6.4 Electrolytic Cell Cleaning............ 28
6.5 Flow/Temp/Salinity Sensor
Cleaning ....................................... 29
6.6 Winterizing................................... 30
Section 7. Troubleshooting ........................... 31
7.1 Problems and Corrective Action .. 31
7.2 Service Codes............................... 34
7.3 Additional Letter Codes............... 34
Section 8. Temperature Conversion.............. 35
Section 9. AP700 and AP1400 Exploded Views
and Replacement Kits .................. 36
9.1 AquaLink RS PureLink Power
Center........................................... 36
9.2 2” PVC Union, Electrolytic Cell.. 37
9.3 PureLink Flow Sensor.................. 37
Table of Contents

Page 4
WARNING
To reduce the risk of electric shock, re or injury, service should only be attempted by a qualied Pool Service
Professional.
WARNING
When mixing acid with water, ALWAYS ADD ACID TO WATER. NEVER ADD WATER TO ACID.
WARNING
Do not operate electrolytic cell without proper ow or water circulation. A buildup of ammable gases would
result in hazardous conditions.
WARNING
RISK OF ELECTRIC SHOCK, FIRE, PERSONAL INJURY, OR DEATH.
Installation must be done in accordance with the National Electric Code (NEC, NFPA-70) and/or any other
applicable local and national installation codes.
A green colored terminal (or a wire connector marked “G”, “GR”, “Ground” or “Grounding”) is provided within
the terminal compartment. To reduce risk of electric shock, connect this terminal or connector to the grounding
terminal of your electric service or supply panel with a conductor equivalent in size to the circuit conductors
supplying this equipment.
Power supply must be interconnected with Pool Pump motor power source. This insures the chlorinator and
pool pump will turn on and off together.
Use of chemicals other than those recommended may be hazardous. Follow the Chemical Manufacturers
Instructions.
It is recommended that the water Flow/Temp/Salinity Sensor is installed in the same piping as the electrolytic
cell, without any valves or diverters between them. (See Figure 1).
The Flow/Temp/Salinity Sensor must be mounted as in Figure 12.
Section 1. Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS
LIRE LA NOTICE TECHNIQUE.
All electrical work must be performed by a licensed electrician and conform to all national, state, and
local codes. When installing and using this electrical equipment, basic safety precautions should always be
followed, including the following:
DANGER
To reduce the risk of injury, do not remove the suction ttings of your spa or hot tub. Never operate a spa or hot
tub if the suction ttings are broken or missing. Never replace a suction tting with one rated less than the ow rate
marked on the equipment assembly.
WARNING
To Reduce the Risk of Injury -
a) The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and
104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for young
children and when spa use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of
pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C).
c) Before entering a spa or hot tub, the user should measure the water temperature with an accurate
thermometer since the tolerance of water temperature-regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with
the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system
problems, or diabetes should consult a physician before using a spa.
f) Persons using medication should consult a physician before using a spa or hot tub since some medication
may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.

Page 5
WARNING
Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature
of the body reaches a level several degrees above the normal body temperature of 98.6° F. The symptoms of
hyperthermia include dizziness, fainting, drowsiness, lethargy, and an increase in the internal temperature of the
body. The effects of hyperthermia include: 1) unawareness of impending danger; 2) failure to perceive heat; 3)
failure to recognize the need to exit spa; 4) physical inability to exit spa; 5) fetal damage in pregnant women; 6)
unconsciousness resulting in a danger of drowning.
WARNING
Risk of electric shock - Install the power center at least ve (5) feet (152.4cm) from the inside wall of the pool
and/or hot tub using non-metallic plumbing. Canadian installations must be at least three (3) meters from the
water.
Children should not use spas or hot tubs without adult supervision.
Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment.
People using medications and/or having an adverse medical history should consult a physician before using a spa
or hot tub.
AVERTISSEMENT
Danger d'electrocution - Les installations Canadiennes doivent se trouver à au moins trois (3) mètres de l’eau.
Ne pas laisser les enfants utiliser une cuve de relaxation sans surveillance.
Pour éviter que les cheveux ou une partie du corps puissent être aspirés, ne pas utiliser une cuve de relaxation si
les grilles de prise d'aspiration ne sont pas toutes en place.
Les personnes qui prennent des médicaments ou ont des problèmes de santé devraient consulter un médecin
avant d’utiliser une cuve de relaxation.
WARNING
People with infectious diseases should not use a spa or hot tub.
To avoid injury, exercise care when entering or exiting the spa or hot tub.
Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible
drowning.
Pregnant or possibly pregnant women should consult a physician before using a spa or hot tub.
Water temperature in excess of 100°F/38°C may be injurious to your health.
Before entering a spa or hot tub measure the water temperature with an accurate thermometer.
Do not use a spa or hot tub immediately following strenuous exercise.
Prolonged immersion in a spa or hot tub may be injurious to your health.
Do not permit any electric appliance (such as a light, telephone, radio, or television) within 5 feet (1.5 m) of a spa
or hot tub.
The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas.
Water temperature in excess of 100°F/38°C may be hazardous to your health.
AVERTISSEMENT
Les personnes atteintes de maladies infectieuses ne devraient pas utiliser une cuve de relaxation.
Pour éviter des blessures, user de prudence en entrant dans une cuve de relaxation et en sortant.
Pour éviter l’évanouissement et la noyade éventuelle, ne prendre ni drougue ni alcool avant d’utiliser une cuve de
relaxation ni quand on s’y trouve.
Les femmes enceintes, que leur grossesse soit conrmée ou non, devraient consulter un médecin avant d’utiliser
une cuve de relaxation.
Il peut être dangereux pour la santé de se plonger dans de l’eau à plus de 38°C/100°F.
Avant d’utiliser une cuve de relaxation mesurer la témperature de l’eau à l’aide d’un thermomètre précis.
Ne pas utiliser une cuve de relaxation immédiatement après un exercice fatigant.
L’utilisation prolongée d’une cuve de relaxation peut être dangereuse pur la santé.
Ne pas placer d'appareil électrique (luminaire, téléphone, radio, téléviseur, etc) à moins de 1.5m de cette cuve de
relaxation.
La consommation d’alcool ou de drogue augmente considérablement les risques d’hyperthermie mortelle dans
une cuve de relaxation.
Il peut etrê dangereux pour la santé de se plonger dans de l’eau à plus de 38°C/100°F.

Page 6
CAUTION
A terminal bar marked "GROUND" is provided within the power center. To reduce the risk of electrical shock,
connect this terminal bar to the grounding terminal of your electric service or supply panel with a continuous
copper conductor having green insulation and one that is equivalent in size to the circuit conductors supplying this
equipment, but no smaller than no. 12 AWG (3.3mm). In addition, a second wire connector should be bonded with
a no. 8 AWG (4.115mm) copper wire to any metal ladders, water pipes, or other metal within ve (5) feet (1.52m)
of the tub.
SAVE THESE INSTRUCTIONS
Attention installer: Install to provide drainage of compartment for electrical components.
WARNING
To avoid injury ensure that you use this control system to control only packaged pool/spa heaters which have built-
in operating and high limit controls to limit water temperature for pool/spa applications. This device should not be
relied upon as a safety limit control.

Page 7
Section 2. System Description
2.1 Product Description
The PureLink System is an all-in-one, Chlorine Generator and Control System Power Center and Cell Kit
for use with AquaLink RS PDA, All Button, or OneTouch controllers.
ATTENTION INSTALLER: Various application notes (including more detailed
instructions) are available from the Dealer covering installation, operation,
maintenance, and plumbing of the chlorinator system.

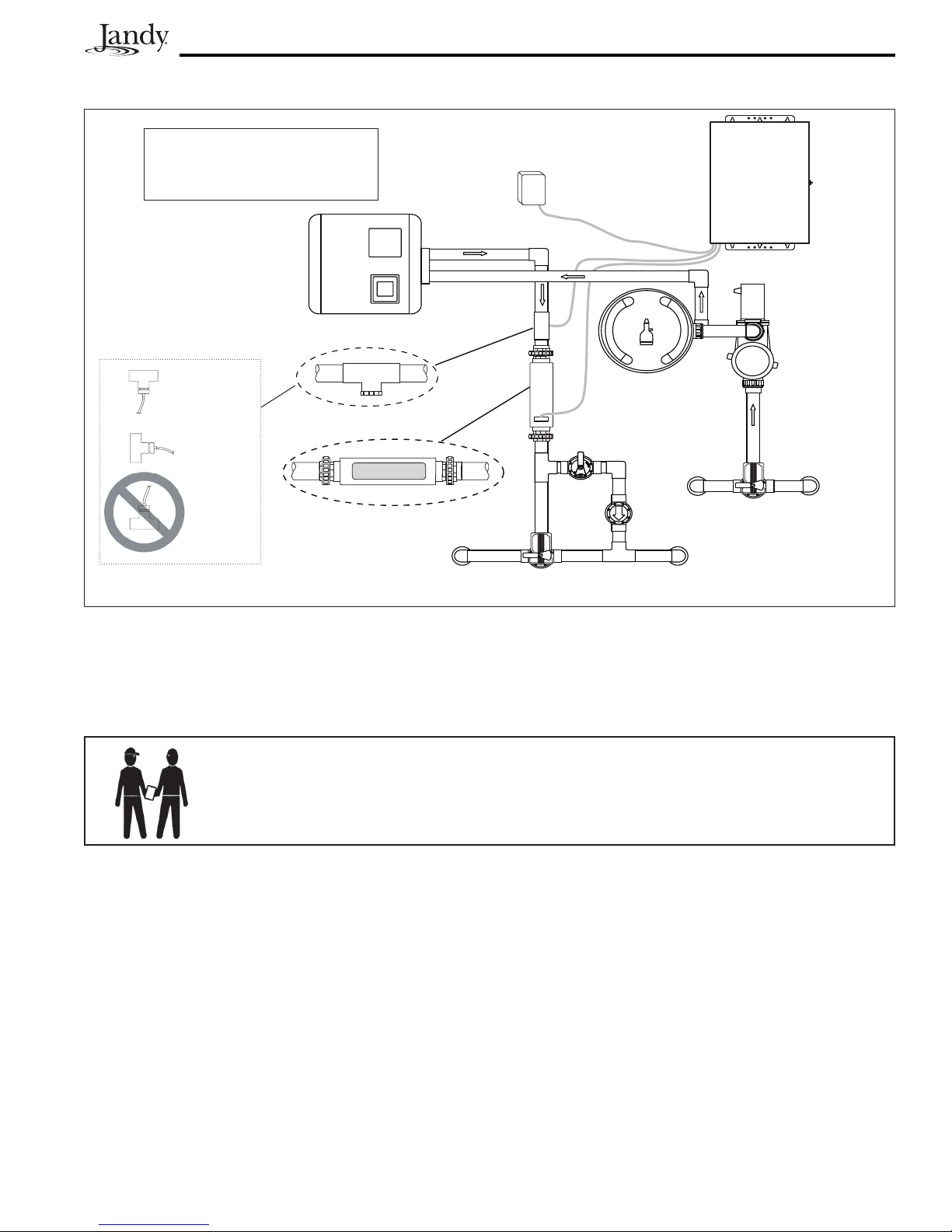

Figure 1. Typical PureLink Installation With Options
AquaPure
Pump
Filter
AquaLink RS
PureLink
Power Center
Flow/Salinity Sensor
Cell
Heater
Spa IntakePool Intake
Spa ReturnPool Return
Options List
1. ORP/External Control Interface
2. ORP/Freeze Control Unit
3. Heater
ORP Unit
(Control Signal from ORP Unit to
ORP Interface/Aux Board)
The PureLink Power Center and Cell Kit uses a process known as electrolysis to produce sodium
hypochlorite (liquid chlorine) from a low concentration of salt added to the pool water. Hypochlorite kills
bacteria, oxidizes organic material, and kills algae then reverts back to salt. The PureLink then reuses the
salt and the process starts over again. The PureLink system is comprised of the following three component
parts.
Power Center The AquaLink RS PureLink Power Center converts AC electrical current to a low
voltage DC current which is required by the cell to perform the electrolysis. The
power center is connected with the pool circulation pump electrical source so that
theelectrolyticcellonlyoperateswhenthepoolpumpison.Theowportionofthe
Flow/Temp/Salinity Sensor is a backup device only.

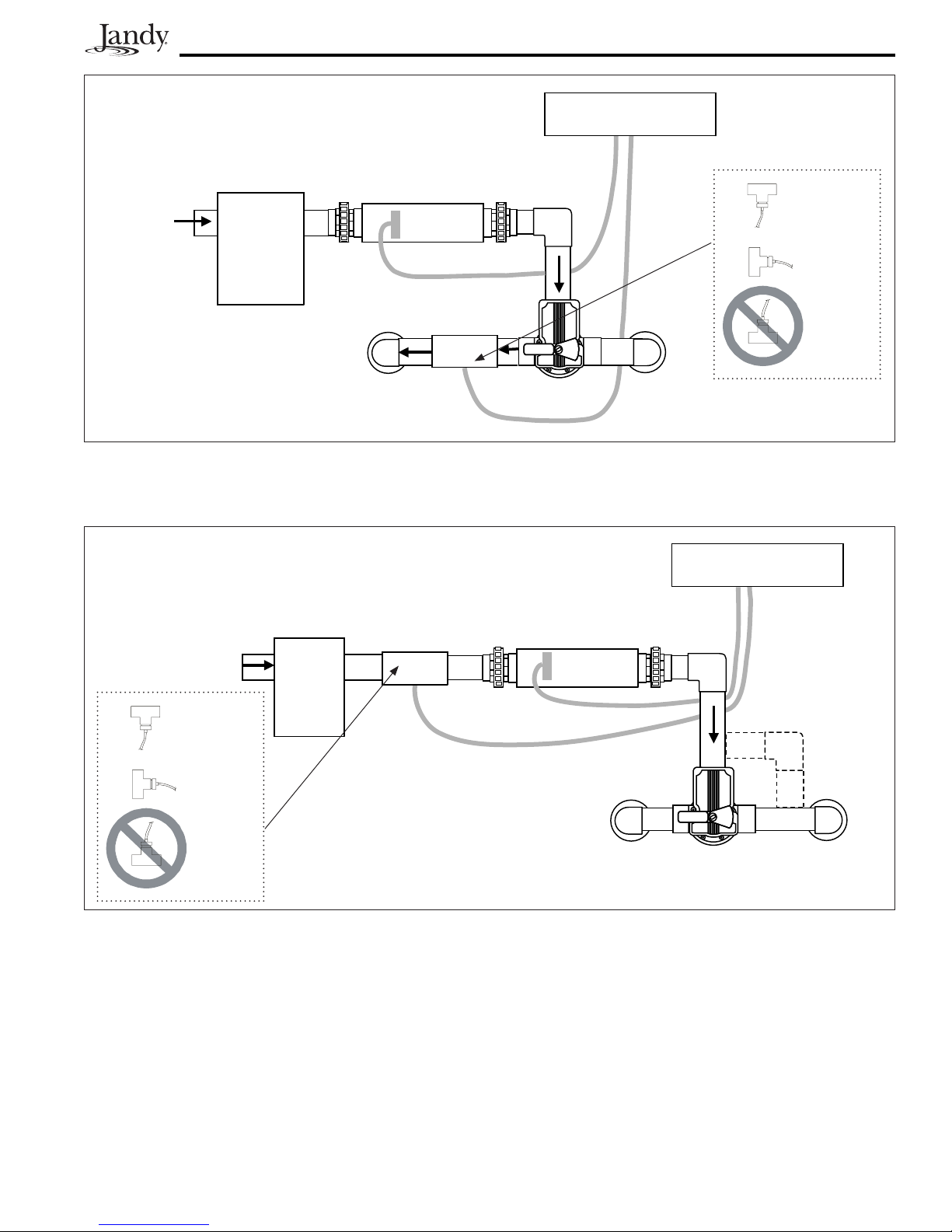

Detail A
Detail B
Detail C
Preferred
Not Preferred
Hazardous

Page 8
Electrolytic Cell The PureLink electrolytic cell contains bipolar electrodes which perform the
electrolysis and produce chlorine when energized with DC current. Chlorine
is generated as pool water containing salt passes through the cell. The chlorine
production can be varied by either adjusting the Chlorine Production Level on the
power center or by varying the number of hours the PureLink is on each day. The
PureLink automatically cleans the Cell electrodes once every 3 hours by reversing
polarity. This does not interrupt the production of Chlorine.
Flow/Salinity/Temperature Sensor The Flow/Temp/Salinity Sensor only allows the Cell to operate if
thereisadequatewaterowthroughtheCell.ThesalinityportionoftheFlow/Temp/
Salinity Sensor detects the level of salt in the pool water. This salt level is displayed
in grams per liter (gpl) on the Liquid Crystal Display (LCD) whenever the salinity
button is pressed. This eliminates the need for manual pool water salinity testing.
Pool Temperature is now available on all models by pressing the Temperature button.
2.2 ElectricalSpecications
Circuit Protection 2 pole 20 AMP device at the Electrical Panel.
Model AP700 Model AP1400
Input: 115 VAC, 50/60 Hz, 1.5 AMPS
230 VAC, 50/60 Hz, 0.75 AMPS
Input: 115 VAC, 50/60 Hz, 2.5 AMPS
230 VAC, 50/60 Hz, 1.25 AMPS
Output: 22-30 VDC @ 3 AMPS maximum Output: 22-30 VDC @ 6 AMPS maximum
Chlorine: 0.625 lb. / 24 Hr. (283 gm / 24 Hr.) Chlorine: 1.25 lb. / 24 Hr. (567 gm / 24 Hr.)
External
Control:
ORP/External Control Connector
AquaLink®RS485 Connector
External
Control:
ORP/External Control Connector
AquaLink®RS485 Connector
CAUTION
Factory wired for 230 VAC service. If available electrical service is 115 VAC, the power supply
wiring must be changed to operate on 115 VAC as shown in Figure 2b.
The PureLink is powered from the LOAD SIDE of the pool circulation pump relay; therefore, if the
available electrical service is 115 VAC, then the pump must also be wired for 115 VAC.

Page 9
Figure 2a. 230 VAC Wiring Diagram for the AquaLink RS PureLink System
Filter Pump Relay Aux. 3 Relay
Load 2
Line 2
Load 1
Line 1
Wire Nut to
120 VAC Power
Low voltage raceway (do not run high voltage in this compartment)
Breakers
Ground
Neutral
Blower
(120 VAC)
Filter Pump
(240 VAC)
PRIMARY
24 VAC
SECONDARY
VAC
Primary
Secondary
A B
PureLink
Back PCB
Ribbon Cable from
Front PCB
To PureLink
Cell
Test
Switches
4321
RED BLK YEL GRN
AquaLink RS ORP
24 VAC
Flow Salinity
Sensor
Ribbon Cable
to Back PCB
PureLink
Front PCB
Front PCB Shown removed from the Power
Center. Front PCB Located in front of Back PCB
and behind AquaLink RS PCB
(Middle Primary Wires Not Used)
Wiring Harness to PureLink Cell
DC Cord (22-30 VDC)
Green
Black/White
Multiplex Board (J1 through J4)
J1J2J3J4

Page 10
Figure 2b. 115 VAC Wiring Diagram for the AquaLink RS PureLink System
Filter Pump Relay Aux. 3 Relay
Load 2
Line 2
Load 1
Line 1
Wire Nut to
120 VAC Power
Low voltage raceway (do not run high voltage in this compartment)
Breakers
Ground
Neutral
Blower
(120 VAC)
Filter Pump
(115 VAC)
PRIMARY
24 VAC
SECONDARY
VAC
Primary
Secondary
A B
PureLink
Back PCB
Ribbon Cable from
Front PCB
To PureLink
Cell
Test
Switches
4321
RED BLK YEL GRN
AquaLink RS ORP
24 VAC
Flow Salinity
Sensor
Ribbon Cable
to Back PCB
PureLink
Front PCB
Front PCB Shown removed from the Power
Center. Front PCB Located in front of Back PCB
and behind AquaLink RS PCB
Wired to Neutral Bar
Wiring Harness to PureLink Cell
DC Cord (22-30 VDC)
Green
Black/White
Multiplex Board (J1 through J4)
J1J2J3J4
Blk/Wht
Blk/Yel Blk/Red
Blk

Page 11
Section 3. Installation Instructions Model PureLink AP700 and AP1400
3.1 Materials and Tools
NOTE Salt not included. See pages 18 - 21.
Installation Materials Furnished Tools Needed for Installation
PureLink with AP700/AP1400 Kits
(1 ea.) Electrolytic Cell
(2 ea.) 2” PVC Unions with O-rings
(1 ea.) PVC Tee for Sensor Mounting
(1 ea.) Roll Teon Tape
(1 ea.) Flow/Temp/Salinity Sensor 16 ft (4.88 m) cable
(1 ea.) 16 ft (4.88 m) DC Power Cord
(1 ea.) Strain Relief Bracket
PureLink with Power Center
(1 ea.) AquaLink RS PureLink Power center
(2 ea.) Wire Nuts
(1 ea.) Owner’s Manual - Warranty Information
(1 ea.) Installation Template
Tape Measure
Phillips & Flathead Screwdrivers
Pliers
Hacksaw
Voltmeter to determine line voltage of AC wiring to power supply
Electric Drill Motor and 1/4 “ masonry drill bit for mounting power supply on
block or stucco wall
An NSF® approved All Purpose Cleaner Primer
An NSF® approved All Purpose Cement (such as Weld-On 794, 793)
3.2 PlumbingCongurations
 3.2.1 RecommendedPlumbingConguration
The preferred installation is that the Sensors and Cell are plumbed in the return line to the pool after
(downstream)allthepoolequipment,suchasthelterorheater.TheCellandSensorTeettingare
designed to be plumbed into 2” PVC pipe. Adapters can be used for systems with 1.5” plumbing. Figures 3
and4illustratetherecommendedplumbingconguration,whichresultinthemostreliableoperation.
Note The PureLink is powered from the LOAD SIDE of the pool circulation pump relay. This ensures that the Cell
only operates when the pool pump is ON. The Flow Sensor serves as a protection device to ensure there is
sufcient ow for the cell to operate.
WARNING
When using electrical products, basic precautions should always be followed, including the following:
• RISK OF ELECTRIC SHOCK WHICH CAN RESULT IN SERIOUS INJURY OR DEATH. Before
attempting installation or service, ensure that all power to the device is disconnected/turned off at
the circuit breaker.
• Grounding is required. The unit should be installed by a qualied service representative and
should be properly grounded. (See Section 3.4, Earth Bonding).
• Install to permit access for servicing.
• Read Section 1,Safety Information. Before attempting any electrical wiring, be sure to read
and follow Safety Instructions. Wiring should only be attempted by a qualied professional.

Page 12
Figure 4. Recommended Plumbing Conguration with Cell and Sensors #2, Side View
 3.2.2 AlternatePlumbingCongurations
There are alternate plumbing layouts to allow for chlorination of the pool during spa spillover operation, but
prevent over-chlorination of the spa during “spa only”operation(seeFigures5and6).Theconguration
shown in Figure 5 will only chlorinate the pool. Whereas Figure 6 allows chlorination of the pool or spa.
IfthePureLinkiscontrolledbyanAquaLinkRS,thePureLinkisnotiedwhentheAquaLinkRSisinSpa
Mode and adjusts to 10% of the AquaLink RS output setting to ensure the spa is not over-chlorinated.
Note The PureLink is powered from the LOAD SIDE of the pool circulation pump relay. This ensures that the Cell
only operates when the pool pump is ON. The Flow Sensor serves as a protection device to ensure there is
sufcient ow for the Cell to operate.
Spa
Return
Sensors
Pool
Return
AquaPure
Heater
Ground
Cell
Mounted
Vertically
Jandy Valve Actuator (JVA)
Detail A
Detail B
Detail C
Preferred
Not Preferred
Hazardous
Figure 3. Recommended Plumbing Conguration with Cell and Sensors #1, Top View
Pool
Return
Spa
Return
Cell Sensors
Heater
JANDY
Detail A
Detail B
Detail C
Preferred
Not Preferred
Hazardous

Page 13
Pool
Return
Spa
Return
Cell
Sensors
Heater
AquaLink RS PureLink
Power Center
JANDY
JANDY
Figure 5. Alternate Plumbing Conguration with Cell and Sensors, Without Spa Bypass for Spillover, Top
View
Detail A
Detail B
Detail C
Preferred
Not Preferred
Hazardous
Spa
Bypassfor
Spillover
Pool
Return
Cell
Sensors
Heater
Spa
Return
JANDY
JANDY
AquaLink RS PureLink
Power Center
Figure 6. Alternate Plumbing Conguration with Cell and Sensors, With Spa Bypass for Spillover, Top
View. This will allow for Chlorination of the Pool and Spa.
Detail A
Detail B
Detail C
Preferred
Not Preferred
Hazardous

Page 14
WARNING
AVOID HAZARDOUS PLUMBING: Do not mount the Flow/Temp/Salinity Sensor and Cell as shown
in Figures 7 and 8. If a valve is located improperly between the ow/temp/salinity sensor and the
electrolytic cell, it may cause the cell to operate without water ow through the cell which can create a
HAZARDOUS condition.
Spa
Return
Sensors
AquaPure
Heater
Pool
Return
Cell
Mounted
Vertically

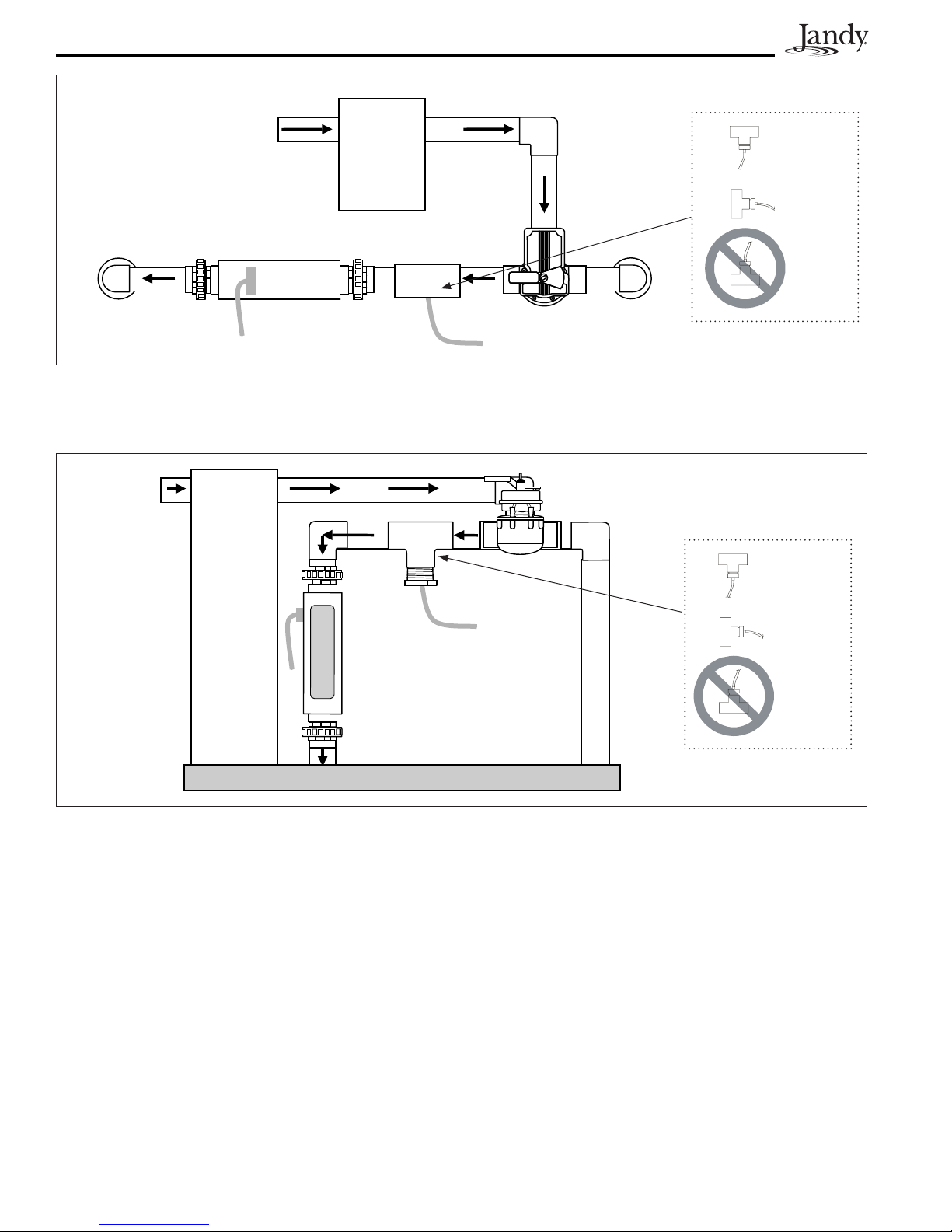

Figure 7. Hazardous Plumbing Conguration with Cell and Sensors, Cell Mounted on Pool Return Line
AquaPure
Spa
Return
Sensors
Pool
Return
Heater
Cell
Mounted
Vertically
Figure 8. Hazardous Plumbing Conguration with Cell and Sensors, Cell Mounted on Spa Return Line

Page 15
CAUTION
The Power Center is not to be considered as suitable for use as Service Equipment. Therefore, it is
required to have the appropriate means of disconnection, circuit isolation, and/or branch circuit protection
installed upstream of the Power Center.

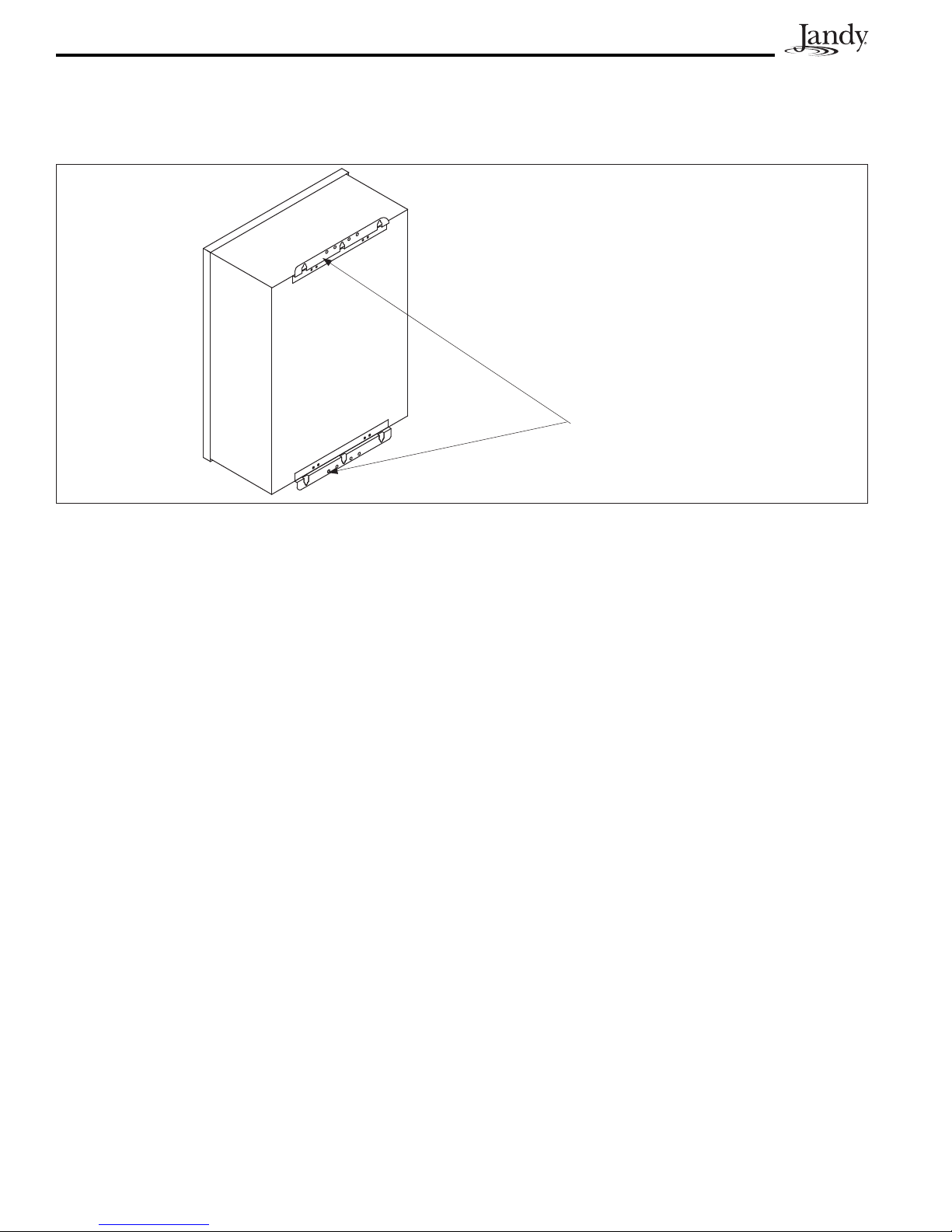

Figure 9. Removing the Power Center Mounting Brackets from Shipping Position
Remove the four (4) screws that
secure the brackets to the Power
Center during shipping
Mounting
Brackets
(2)
Figure 10. Mark Holes using Power Center Mounting Bracket
Mounting Bracket
Mark Holes on Mounting Surface
4"
4"
3.3 Installing AquaLink RS PureLink Power Center
NOTE The Power Center should be located at or near the equipment pad.
1. LocatethePowerCenteratleastve(5)feetormoreawayfrompool/spaandve(5)feetoffthe
ground. All national, state, and local codes are applicable.
NOTE For Canadian installations, the Power Center must be at least three (3) meters (9.8 feet) away from the pool/
spa and 1.5 meters (5 feet) above the ground.
2. The power center comes with two full length, heavy duty mounting brackets fastened to the back of the
Power Center during shipping. Remove the four (4) screws that are holding the two (2) brackets and
the cardboard shipping cover in place (see Figure 9). Remove and discard the cardboard.
3. Using the top mounting bracket as a guide, mark three (3) holes on the mounting surface where the
power center will ultimately reside (see Figure 10). Drill the holes in the mounting surface.
NOTE The three mounting holes are four inches (4") apart center to center.
NOTE Use heavy-weight screws. The Power Center with all available components installed weighs approximately 50
pounds.

Page 16
4. Reinstall the mounting brackets to the top and bottom of the back of the Power Center using the four
(4) screws that were removed in Step 2. Ensure that the brackets are rotated from the original shipping
position (see Figure 11).
Reinstall Mounting Brackets
(Ensure to Rotate from
Original Shipping Position)
Figure 11. Reinstall Mounting Brackets on Power Center
5. Hang the Power Center on the surface using the three (3) holes drilled in Step 3. With the Power Center
in place, mark three holes for the bottom bracket mounting.
NOTE As with the top brackets, the bottom bracket requires three (3) mounting holes. The three mounting holes are
four inches (4") apart center to center.
6. Drill the holes and install the screws.
7. Level the Power Center and tighten all screws, ensuring that the Power Center is securely fastened to
the mounting surface.
8. Check source voltage. (All units are factory wired for 230 VAC). In order to use on 115 VAC, the
internal factory wiring of the power center must be changed. (See wiring diagram page 7 Figure 2).
3.4 Earth Bonding (Grounding)
A solid, copper # 8 awg (8.4 mm2) wire is recommended for connecting the power center to a Permanent
Earth Ground connection that is acceptable to the local inspection authority. Refer to your local codes for
the acceptable grounding wire gauge. Attach the bonding point located on bottom of the power center to
a Common Earth Bonding Point. Do not use the PureLink Power Center as the Common Bonding Point.
Each piece of non-PureLink related pool equipment requiring a ground should be bonded to the Common,
Approved Earth Bonding Point. Never ground pool pump to the power center.

Page 17
WARNING
ATTENTION INSTALLER: If The Flow/Temp/Salinity Sensor is not installed properly, it may allow
the Cell to operate without water ow. This would cause a buildup of ammable gases resulting in a
HAZARDOUS Condition.
• Mount as shown in Figure 12 Detail A. This will result in the most reliable operation.
• The Flow/Temp/Salinity Sensor must be mounted:
(1) in the same line as the Electrolytic Cell.
(2) with no valves or diverters between the Flow/Temp/Salinity Sensor and Cell.
(3) preferably between the Pool Pump and the Cell.
• Do not mount the Flow/Temp/Salinity Sensor as shown in Detail C of Figure 12. This mounting
position can be HAZARDOUS.
• Anytime the Flow/Temp/Salinity Sensor is connected or disconnected and reconnected, the AC
power to the unit must be turned off and back on (Cycle Power). If power is not cycled, unreliable
operation of the Flow/Temp/Salinity Sensor will result.

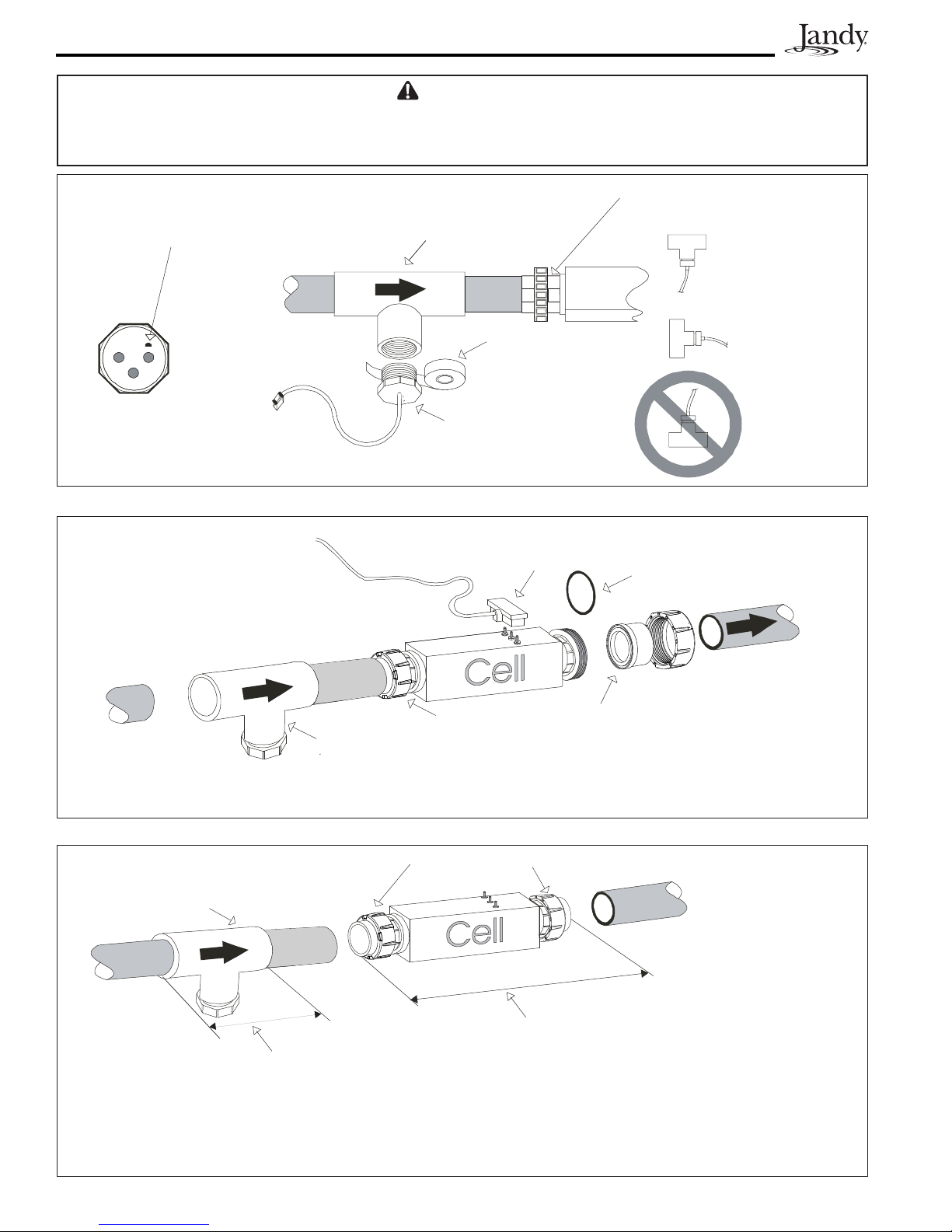

3.5 Installing the PureLink Cell and Flow/Temp/Salinity Sensor
NOTE: Maximum operating Pressure is 517 kPa or 75 PSI - Minimum Flow Rate is 20 GPM (76 LPM).
1. Be sure pool pump is turned off.
2. It is recommended that the Flow/Temp/Salinity Sensor and Electrolytic Cell be installed in the pool
returnlineafterthelterandheater.WaterpassesthroughtheFlow/Temp/SalinitySensorbeforethe
Cell. The Cell can be installed in either a horizontal (as shown in Figure 13) or a vertical position.
3. Position the Flow/Temp/Salinity Sensor Tee and Cell in the recommended position (see Figure 12
Detail A, Figures 3 and 4, Figures 5 and 6, and Figure 1).
4. Locate a suitable section of pipe, approximately 21 inches (533 mm) long or follow the recommended
plumbing diagrams beginning on page 9, Figures 3, 4, 5, and 6. The Flow/Temp/Salinity Sensor cable
and Cell DC cord must be able to reach from the power center to this section.
5. Cut out a 131/8” (337 mm) section of the 2” (50 mm) pipe to insert the Cell. Cut an additional 2¼” to
insert the Flow/Temp/Salinity Sensor Assembly (see Figure 14).
6. Clean the cut ends of the pipe and 2 inch x 2 inch x 1½ inch Tee with an appropriate NSF®approved
All Purpose cleaner/primer. Glue the PVC Tee onto the cut pipe ends using an appropriate All Purpose
NSF®approved Cement. Tighten the PVC Union nuts. Hand Tighten Only. Allowsufcientdrying
time before pressurizing system.
7. Wrap the Flow/Temp/Salinity SensorthreadswithTeontapeONLY(donotusesiliconeorpipedope).
Be sure the Flow/Temp/Salinity Sensor (circular metal disks) are free of glue, excess Teon tape, or
any other debris.
8. Install the Flow/Temp/Salinity Sensor into the 1½ inch threaded opening of the 2 inch x 2 inch x 1½
inch Tee. Tighten to prevent water leakage. Do not over tighten.
9. Install the strain relief provided with the PureLink Cell Kit into the low voltage knock out. Feed the
connector end of the Flow/Temp/Salinity SensorcablethroughtheDCcordstrainrelieftting.Be
certain the connector is clean and dry, then plug the cable into the connector on the power center
Printed Circuit Board as shown in Figures 2a and 2b. (Do not pull Flow/Temp/Salinity Sensor cable
too tight, allow a little slack).

Page 18
Figure 13. Cell Installation
O-Ring
Seal
DC Cord Plug is Connected
to Terminal Studs
PVC Union 2" PVC Union
and 2" Nut
2" x 2" x 1½"
PVC TEE
Figure 14. Pipe Cutout
PVC Unions and 2" Nuts
For a 2" pipe, the cutout is 131/8" with the full
unions, without the Tee.
For a 50 mm pipe, the cutout is 337 mm with the
full unions, without the Tee.
NOTE Total length of the electrolytic cell with the
full unions is 155/8".
2" x 2" x 1½"
PVC Tee
For a 2" pipe, the cutout is 2¼"
for the Tee.
For a 50 mm pipe, the cutout is
77 mm for the Tee.
NOTE Total length of the PVC
Tee is 4¾".
Figure 12. Flow/Temp/Salinity Sensor
Flow Sensor Face
Must Be
Clean Connector
Sensor
2" x 2" x 1-1/2"
PVC TEE
From Pump
Teflon
Tape
Cell
Detail A
Detail B
Detail C
Preferred
Not Preferred
Hazardous
Sometimes
Not Covered
Flow Sensor Face
Must Be
Clean i/ Sal nityFlow / Temp
2" PVC Union
WARNING
Do not operate the electrolytic cell without water circulation. A buildup of ammable gases will result
in hazardous conditions.

Page 19
CAUTION
Do not overtighten the strain relief tting. Overtightening can cause damage to the Flow/Temp/Salinity
Sensor cable or DC cord.
10. Plug the DC cord into the Cell stud terminals protruding from the Cell top (see Figure 13). The DC
cord can be plugged into the cell in either direction.
11. ConnecttheDCcordtothePowercenter.FeedtheDCcordthroughthesamestrainreliefttingas
the Flow/Temp/Salinity Sensor. Plug the DC cord into the two spade connectors of the wiring harness
located in the low voltage raceway of the power center, see Figure 2. This wiring harness establishes
the connection between the Cell and the Printed Circuit Board mounted on the back plate.
12.TightenstrainreliefttingscrewsfortheFlow/Temp/Salinity Sensor and the DC cord. Do not pull
Flow/Temp/Salinity Sensor cable or DC Cord too tight. Allow a little slack cable inside of Power
center Enclosure.
13. Prior to reattaching front cover, check the wiring. Be sure the Flow/Temp/Salinity Sensor is plugged
in. The DC cord should be plugged in. Also, check the AC wiring.
14. Plug the ribbon cable attached to the front cover PC board into Printed Circuit Board mounted on the
backplate (see Figure 2). Now reattach the power center front cover to the backplate.
3.6 Connection to the AquaLink®RS PureLink Control System
The Jandy AquaLink RS PureLink is a multi-function pool controller and can fully control the function of
the AquaPure chlorine generator. The AquaPure will display JA when a button is pressed at the AquaPure
while the Jandy AquaLink RS PureLink is in control. Adjustment of the AquaPure chlorine production rate
can be controlled from the main menu of the AquaLink RS Controller (All Button, OneTouch, or PDA).
Boost mode may be activated from the AquaPure while the AquaLink RS is online. Refer to the
AquaLink RS Operation Manual (or AquaLink RS PDA Operation Manual) for more information. The
AquaPure temperature, salinity, service codes, and LED indicators operate as normal.
NOTE The AquaPure Chlorine Generator will communicate with AquaLink RS using rmware versions JJ or later.
ReferringtoFigures2aor2b,wirethePureLinkPowerCentertransformertotheloadsideofthelter
pump relay.
NOTE The screw terminals are removable to aid in installation.

Page 20
ATTENTION INSTALLER: Various application notes (including more detailed
instructions) are available from the Dealer covering installation, operation,
maintenance, and plumbing of the chlorinator system.
Section 4. Pool Water Preparation
4.1 Determining Pool Size (m3of Water in Your Pool)
•Rectangular Pools
Average length (meters) x average width (meters) x average depth (meters) = m3capacity.
• Circular Pools
Diameter (meters) x diameter (meters) x average depth (meters) x 0.79 = m3capacity.
• Oval Pools
Long diameter (meters) x short diameter (meters) x average depth (meters) x 0.79 = m3capacity.
• Sloping Sides
Multiply total m3by 0.85 = m3capacity.
4.2 Determining Pool Size (Gallons of Water in Your Pool)
• Rectangular Pools
Average length (feet) x average width (feet) x average depth (feet) x 7.5 = gallon capacity.
• Circular Pools
Diameter (feet) x diameter (feet) x average depth (feet) x 5.9 = gallon capacity.
• Oval Pools
Long diameter (feet) x short diameter (feet) x average depth (feet) x 5.9 = gallon capacity.
• Sloping Sides
Multiply total gallons by 0.85 = gallon capacity.

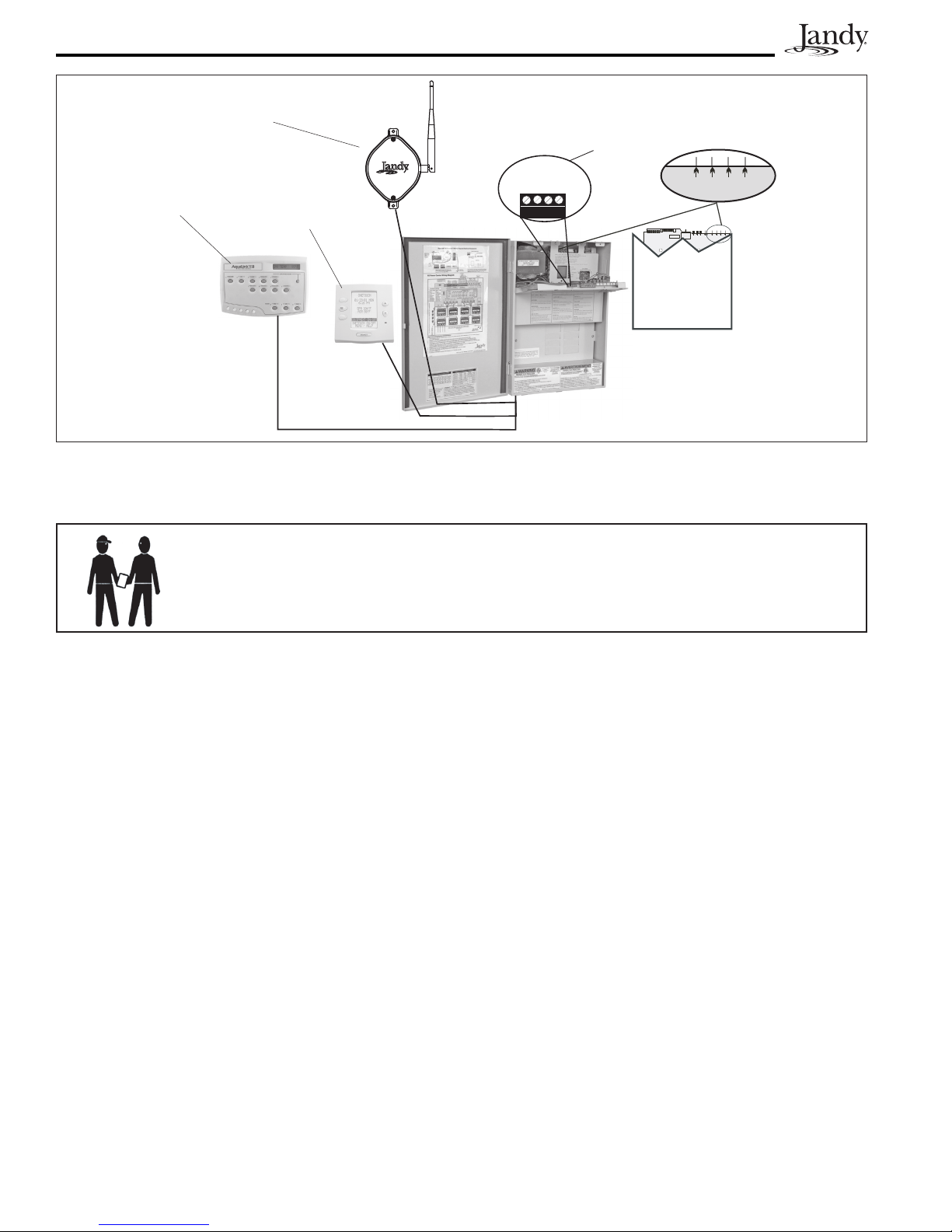

Figure 15. Wiring a PureLink Control System Network
PureLink
Power Center
Front PCB
Reverse Side
Test Points
A to K
Flow
Sensor
R S
Test
Switches
Aux Board
H ORP
24VAC
RedBLK YEL GRN
AquaLinkRS
or
4321
RED BLK YEL GRN
RED BLK YEL GRN
AquaLink RS
AquaPure
Red, 4-Pin
Terminal Bar
or Behind PCB
Support Plate
All Button
OneTouch
Transceiver J-box for PDA
(Pool Digital Assistant)
