Jandy JEF-IN User manual

FOR YOUR SAFETY: This product must be installed and serviced by
a contractor who is licensed and qualified in pool equipment by the
jurisdiction in which the product will be installed where such state or
local requirements exists. In the event no such state or local requirement
exists, the installer or maintainer must be a professional with sufficient
experience in pool equipment installation and maintenance so that all of
the instructions in this manual can be followed exactly. Before installing
this product, read and follow all warning notices and instructions
that accompany this product. Failure to follow warning notices and
instructions may result in property damage, personal injury, or death.
Improper installation and/or operation will void the warranty.
If these instructions are not followed exactly, a fire or
explosion may result, causing property damage, personal
injury, or death.
Installation Instructions
WARNING
Erosion Feeder
Model JEF-IN (In Line Version)
Model JEF-OFF (O󰀨 Line Version)

Page 2
Table of Contents
Section 1. Important Safety Instructions .........3
Section 2. Product Information .........................4
Model JEF-OFF (Off Line Version).........................................4
Model JEF-IN (In Line Version) ..............................................5
Section 3. In Line Installation (JEF-IN) .............6
Section 4. By-Pass Installation (JEF-OFF)....... 7
Connecting the Chlorinator.....................................................8
Connecting Dosing Tube To Pipework....................................9
Section 5. Operation......................................... 11
Section 6. Replacing Tablets ........................... 13
Section 7. Winterizing ......................................13

Page 3
Section 1. Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS
RISK OF FIRE OR EXPLOSION.
Only use slow dissolving Tri-Chlorine tablets in this chemical dosing
unit and NEVER mix di󰀨erent chemical products together. Failure to
observe the above warning could result in an explosion and re.
CALCIUM HYPOCHLORITE IS NOT TO BE USED IN ANY FORM.
Never open the dosing unit lid when the unit is running. Before doing
so, turn off the pool circulation pump and close all valves. Ensure you
take the following precautions: Do not smoke in the vicinity of the unit,
wear adequate eye and hand protection and avoid inhaling any gas
that may be released. Apart from occasions when the unit needs to be
re-filled or maintained, always ensure that the return line back to the
pool is open to avoid the accumulation of any gases.
SAVE THESE INSTRUCTIONS
DANGER

Page 4
Section 2. Product Information
Before you begin installation, verify you have all necessary parts
(see Tables 1 & 2 below).

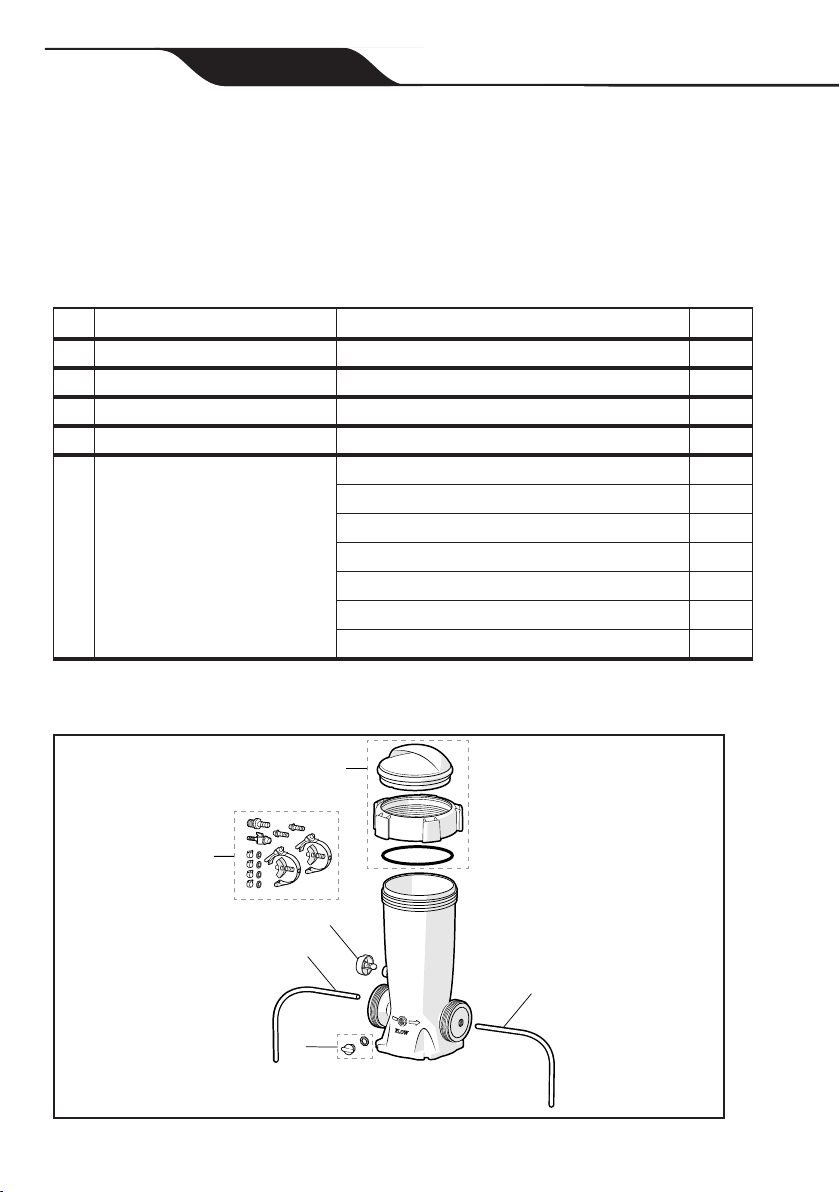

Model JEF-OFF (Off Line Version)
KIT PART NO. COMPONENT DESCRIPTION QTY
1 R0885000 Lid assembly with o-ring 1
2 R0885100 Flow control knob with o-rings 1
3 R0885200 Drain plug 1
4 R0885300 7.5’ Tubing 1
5 R0885400 Hose clamps 4
Pipe clamps 2
Pipe connector 2
Pipe adaptor 2
Rubber gasket 4
Drain valve 1
Check valve 1
Table 1. Components
1
5
2
3
4
4
Figure 1. JEF-OFF Off Line

Page 5
Model JEF-IN (In Line Version)
KIT PART NO. COMPONENT DESCRIPTION QTY
1 R0885000 Lid assembly with o-ring 1
2 R0885100 Flow control knob with o-rings 1
3 R0885200 Drain plug 1
4 R0449000 Universal union kit 1
Table 2. Components
1
2
3
4
4
Figure 2. JEF-IN In Line

Page 6
JEF-IN JEF-OFF
Pool (80F) Spa (104F) Pool (80F) Spa (104F)
Maximum Output (lb/day) 2.8 4.3 4.2 6.7
Midpoint Output (lb/day) 2.0 2.9 1.8 4.1
Maximum Head Lose (50 GPM) 2.52 psi (5.8 ft.) -
Chamber Capacity 3” Tablets 6 lbs. (13 qty)
Body Dimensions 16”H x 12.5”W x 7”D 16”H x 8.25”W x 7”D
Plumbing Connections Jandy Universal Unions
2” x 2.5” 1/2” Tubing Fittings
Erosion Speed Adjustment Integrated Dial Valve
Winterizing Plug Integrated Drain Plug
Lid Seal Type Easy-Open Radial Seal
Lid Clearance Required 1.5” Above Installed Height
Feeder Body Material UV Stabilized ABS
Feeder Lid Material UV Stabilized ABS

Page 7
Section 3. In Line Installation (JEF-IN)
DO NOT INSTALL chlorine feeder before the heating system. Damage
to the heating system may occur.
In order to prevent risk of serious property damage, injury or death:
Wear eye and skin protection while maintaining or servicing this unit.
Do not inhale fumes from the chlorinator or chemical container.
Chlorine feeder may be under pressure. Use caution removing cover.
NOTE: Install a Check Valve before the Erosion Feeder to prevent the backow
of corrosive liquids and gases that may damage equipment.
1. Install the dosing unit down-stream of the heating system, if no heating
system is installed down-stream of the lter, see Figure 3(a).
NOTE: Ideally, the dosing unit should be installed above water level, but below
the lter outlet level, in order to avoid the gases being trapped when
the pump is shut down. If the unit has to be installed below the pool
water level, isolating ball valves MUST also be installed before and
after the dosing unit in order to allow future maintenance. We strongly
recommend the tting of a non-return valve to protect the equipment
room from chemical attack, should a situation arise where water
siphons back through the system.
2. Determine the desired location on a pipe segment at least 16 inches long.
The dosing unit cannot be mounted on a vertical, or sloping pipe.
3. Make the appropriate cuts in the pipe where you will be installing the cell.
4. Connect the unit to the pipework via the ½” union connections using PTFE
tape. Do not overtighten.
CAUTION
WARNING

Page 8
NOTE: In installations with a ow of greater than 50 g.p.m. (189.3 l.p.m),
install the unit on a by-pass to allow the correct adjustment of the
dosing rate and to avoid damage to the unit caused by excess ow.

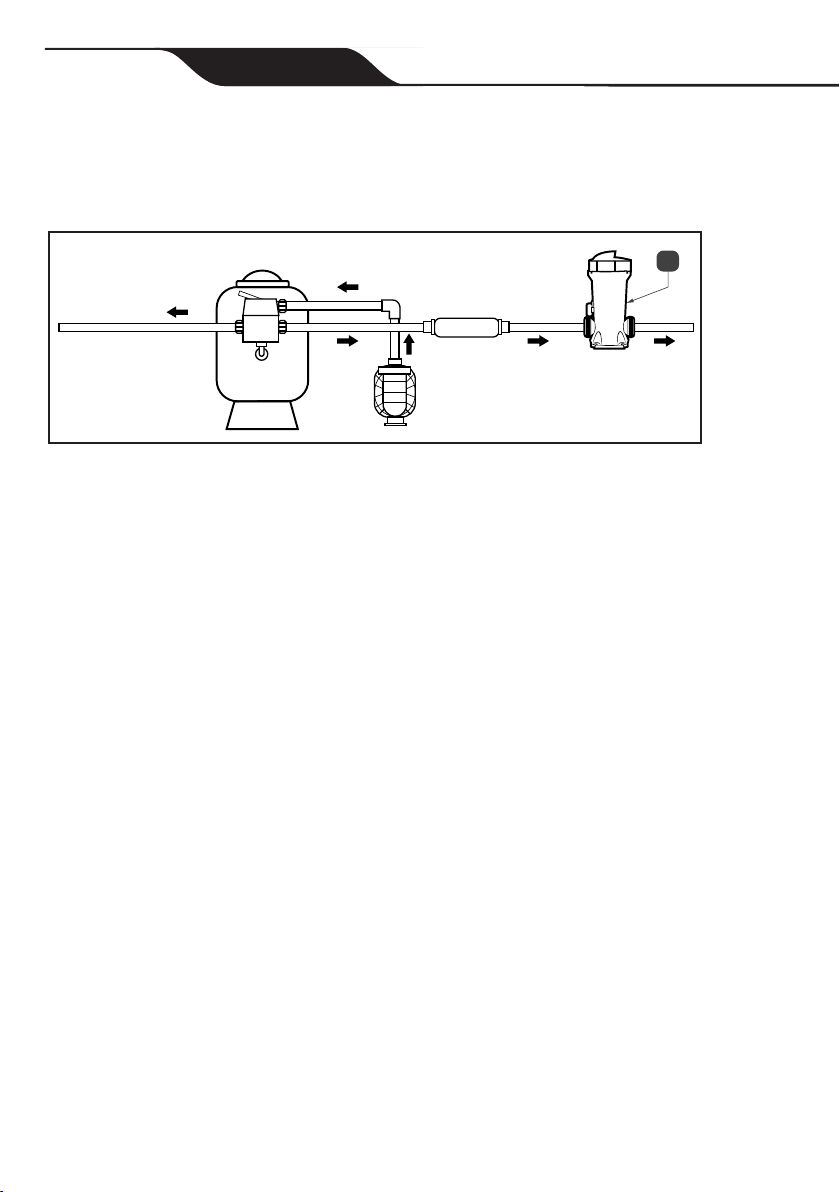

Figure 3. In Line Installation Configuration
a
Section 4. By-Pass Installation (JEF-OFF)
NOTE: There are two versions of the plumbing nipples included with this
feeder: one for use with 1 1/2” (50mm) PVC (Figure 4) and one for
2” (63mm) PVC.
1. Position the dosing unit on a level surface as close to the lter and
pump as possible. Do not install in copper plumbing.
2. The inlet connection must be made in the pipework between the pump
and lter. This connection will feed water into the dosing unit.
3. The outlet connection must be made down-stream of the heating
system or, if no heating system is installed, down-stream of the lter,
see Figure 4(a). This connection will be feeding treated water from the
dosing unit into the plumbing system.
4. Cut the dosing tube to the required lengths, ensuring the cuts are
clean, square and free of burrs.

Page 9
a
Figure 4. By-Pass Installation Configuration
Connecting the Chlorinator
5. Place the o-ring (5a) on the 1/4” check valve tting (5b) and thread
into the outlet side of the feeder. Do not over-tighten the tting.
6. Place the at rubber gasket (4x missing on diagram) onto the control
valve (5d). Place a small amount of teon tape (not included) onto the
valve threads.
7. Thread the control valve into the feeder on the inlet side. Do not over-
tighten.
8. Connect a section of the black tubing for the feeder inlet (5c) to the
hose barb on the control valve (5d).
9. Use one of the hose clamps (5f) to secure the tubing to the tting. Do
not over-tighten the hose clamp.
10. Connect a section of the black tubing for the feeder outlet (5e) to the
hose barb on the check valve (5b).
11. Use one of the hose clamps (5f) to secure the tubing to the tting. Do
not over-tighten the hose clamp.

Page 10
Figure 5. Connecting Hardware
c
a
f
d
e
b
f
Connecting Dosing Tube To Pipework
12. INLET CONNECTION: Locate the inlet connection that you previously
determined to be the best place to provide untreated water to the feeder.
This will be the higher pressure connection for the system. Select an
orientation for the feeder nipple that will not interfere with any operation of
the pool, and will not be prone to breakage.
13. Drill a 3/8” (10mm) hole on one side of the pipe. TAKE CARE NOT TO
DRILL THROUGH THE OTHER SIDE OF THE PIPE.
14. Place a gasket on the pipe-side of the proper nipple and put the nipple
through the hole in the pipe clamp (Figure 6).
15. Tighten the pipe clamp down enough to compress the gasket but do not
over-tighten.
16. OUTLET CONNECTION: Locate the outlet connection that you previously
determined to be the best place to return treated water from feeder to the
pool return. This will be the lower pressure connection for the system.
Select an orientation for the feeder nipple that will not interfere with any
operation of the pool, and will not be prone to breakage.
17. Drill a 3/8” (10mm) hole on one side of the pipe. TAKE CARE NOT TO
DRILL THROUGH THE OTHER SIDE OF THE PIPE.

Page 11
18. Place a gasket on the pipe-side of the proper nipple and put the nipple
through the hole in the pipe clamp (Figure 6).
19. Tighten the pipe clamp down enough to compress the gasket but do not
over-tighten.
20. Install the black feed tubes to the nipples with the hose clamps, paying
close attention to the inlet and outlet orientations. Ensure that the tubing
does not interfere with the maintenance of the pool equipment, and will not
be prone to being stepped on or otherwise disturbed.
21. Prior to adding chemicals, run the system and inspect hose connections
and seals to ensure there are no leaks.
Figure 6. Connecting Hardware

Page 12
In order to prevent risk of serious property damage, injury or death:
• Wear eye and skin protection while maintaining or servicing this unit.
• Do not inhale fumes from the chlorinator or chemical container.
• Chlorine feeder may be under pressure. Use caution removing cover.
Section 5. Operation
NOTE: The consumption of chlorine in swimming pools varies according to
use, temperature, exposure to sunlight, and other factors. Initially you
will need to experiment with the control valve to ensure that the unit
doses enough chemical to maintain the above residual. Start with the
valve in the middle position. Test the residual regularly and open the
valve a little more if the residual is not being reached or close a little
if it is being exceeded. Once desired level is reached, leave the valve
set in this position.
Elevated chemical concentrations and Hazardous Gas - The
introduction of potentially hazardous gas or elevated chemical
concentrations into the pool or spa during backwash and periods of
no ow in the circulation system can cause serious personal injury, or
death. To avoid, use the following guidelines:
• Set dosage indicator to zero before stopping water ow through the
chlorinator.
• Minimize backwash time.
• Do not shut o󰀨 pump for extended periods.
• Do not allow bathers into the pool or spa area until full ow through
the circulation system has been established.
WARNING
WARNING

Page 13
FOR MODELS BEARING THE NSF-50 MARK
NSF-50 requires a flow indicating device, or flow meter, to be installed with
all flow through chemical feeders. Purchase and Install a flow meter per
manufacturer’s instructions provided with the flow meter.
NSF-50 certified using BioGuard Basic 3” Chlorinating Tab, with 99%
Trichloro-s-triazinetrione.
To avoid risk of property damage, serious injury or death,
Calcium Hypochlorite is not to be used in any form.
1. This tablet feeder is designed to help you maintain a chlorine residual.
Always start a new feeder installation by ensuring that the chlorine is
already at a proper residual level. The residuals should be:
• Residual Chlorine Pool: 1.0 - 4.0 ppm
Spa: 2.0 - 5.0 ppm
2. Allow the dosing unit to run 15 minutes.
3. Turn o󰀨 the pump and turn the control valve to the “OFF” position, after
rst making a note of its running position.
4. Close the valves on the return line to avoid the system draining . Wait a
minute before removing the lid.
WARNING

Page 14
Section 6. Replacing Tablets
1. Shut o󰀨 the pump and turn the control valve to the closed position..
2. Wait one minute to allow water and fumes to drain from feeder.
3. Remove the cap and locking ring by depressing the locking ring tab to
disengage it from the notch in the feeder housing. Rotate the locking ring
counterclockwise to remove the ring and cap as one assembly. Rell with
proper sized chlorine tablets. NEVER MIX CHLORINE TABLET TYPES OR
CHLORINE WITH BROMINE.
NOTE: Keep an eye on the tablet level in the unit, preferably reload BEFORE
they run out.
4. Ensure that the cap o-ring is seated properly in the groove on the cap.
Place the cap on the housing and rotate the locking ring clockwise until the
locking tab snaps into place on the housing.
5. Return the inlet control valve to its normal running position, open all valves
and switch on the pump.
Section 7. Winterizing
NOTE: If the equipment room is subject to freezing conditions, it will be
necessary to drain your dosing unit following these instructions.
1. Remove the drain plug and the lid.
2. Remove any remnants of undissolved chemical tablets, rinse out the body
with clean water.
3. Allow the unit to drain down then replace the drain plug and loosely replace
the lid without tightening the locking ring fully.

Page 15
NOTES

ZODIAC®is a registered trademark of Zodiac International, S.A.S.U., used
under license. All other trademarks referenced
herein are the property of their respective owners.
©2021 Zodiac Pool Systems LLC
Zodiac Pool Systems LLC
2882 Whiptail Loop # 100, Carlsbad, CA 92010
1.800.822.7933 | www.ZodiacPoolSystems.com

POUR VOTRE SÉCURITÉ : Ce produit doit être installé et entretenu par un
entrepreneur disposant d’une licence et qui est qualifié en équipement de
piscine par la juridiction dans lequel le produit est installé lorsque de telles
exigences fédérales ou locales existent. En l'absence d'exigences étatiques ou
locales, l'installateur ou le responsable de l'entretien doit être un professionnel
disposant de suffisamment d'expérience dans l'installation et l'entretien
d'équipement de piscine afin de suivre avec précision toutes les directives
contenues dans ce manuel. Avant d’installer ce produit, lire et suivre tous les
avertissements et toutes les directives qui accompagnent ce produit. Tout
non-respect des instructions d’avertissement peut entraîner des dommages
matériels, des blessures corporelles ou même la mort. Une mauvaise
installation ou utilisation annule la garantie.
Si ces directives ne sont pas suivies à la lettre, un incendie
ou une explosion peut entraîner un dommage matériel, une
blessure corporelle ou même la mort.
Directives d’Installation
AVERTISSEMENT
Chloration par
Érosion
Modèle JEF-IN (version en ligne)
Modèle JEF-OFF (version hors ligne)

Page 18
Table des matières
Section 1. Consignes de sécurité
importantes ...................................3
Section 2. Information sur le produit................ 4
Modèle JEF-OFF (version hors ligne) ....................................4
Modèle JEF-IN (version en ligne)...........................................5
Section 3. Installation en ligne (JEF-IN) ...........7
Section 4. Installation de la dérivation
(JEF-OFF)........................................8
Raccordement du chlorinateur ...............................................9
Raccordement du tube de dosage à la tuyauterie................10
Section 5. Fonctionnement..............................12
Section 6. Remplacement des pastilles .........14
Section 7. Hivernage ........................................14

Page 19
Section 1. Consignes de sécurité importantes
LIRE ET SUIVRE TOUTES LES DIRECTIVES
RISQUE D’INCENDIE OU D’EXPLOSION.
Utiliser uniquement des pastilles Tri-chlore à dissolution lente dans
le doseur de produits chimiques et ne JAMAIS mélanger di󰀨érents
produits chimiques. Le défaut de respecter cet avertissement peut
entraîner une explosion ou un incendie.
IL NE FAUT EN AUCUN CAS UTILISER DU CHLORURE DE
CHAUX.
Ne jamais soulever le couvercle du doseur lorsqu’il est en marche.
Avant de le faire, arrêter la pompe de circulation de la piscine et
fermer tous les robinets. Prendre les précautions suivantes : Ne pas
fumer à proximité de l’appareil, porter des lunettes de protection et
des gants; éviter de respirer les gaz qui peuvent s’échapper. Outre
les fois où l’appareil doit être rempli ou maintenu, s’assurer que la
conduite de renvoi à la piscine est ouverte pour éviter l’accumulation
de gaz.
CONSERVER CES DIRECTIVES
DANGER

Page 20
Section 2. Information sur le produit
Avant de commencer l’installation, vérier d’avoir en main toutes les pièces
nécessaires (vous reporter aux tableau 1 et 2 ci-dessous)
Modèle JEF-OFF (version hors ligne)
Nº DE PIÈCE DE LA
TROUSSE
DESCRIPTION DU COMPOSANT QTÉ
1 R0885000 Ensemble de couvercle avec joint torique 1
2 R0885100 Bouton de contrôle de débit avec joints
toriques
1
3 R0885200 Bouchon de vidange 1
4 R0885300 Tubulure de 7,5 po 1
5 R0885400 Brides de tuyau 4
Brides de conduite 2
Connecteur de conduite 2
Adaptateur de conduite 2
Joint d’étanchéité en caoutchouc 4
Robinet de vidange 1
Soupape antiretour 1
Tableau 1. Composants
1
5
2
3
4
4
Figure 1. Modèle JEF-OFF hors ligne
