jbc AD 2700 User manual

AD 2700
ADVANCED SOLDERING STATION
Index Page
English 1
Español 7
Français 13
Deutsch 19
Italiano 25
Instructions manual

2210 cartridges
See page 38 for range
Control unit
AD 2700 230V Ref. 2700200
AD 2700 120V Ref. 2700100
2245 handpiece Ref. 2245000
See page 40 for range
2245 cartridges
2210 handpiece Ref. 2210000

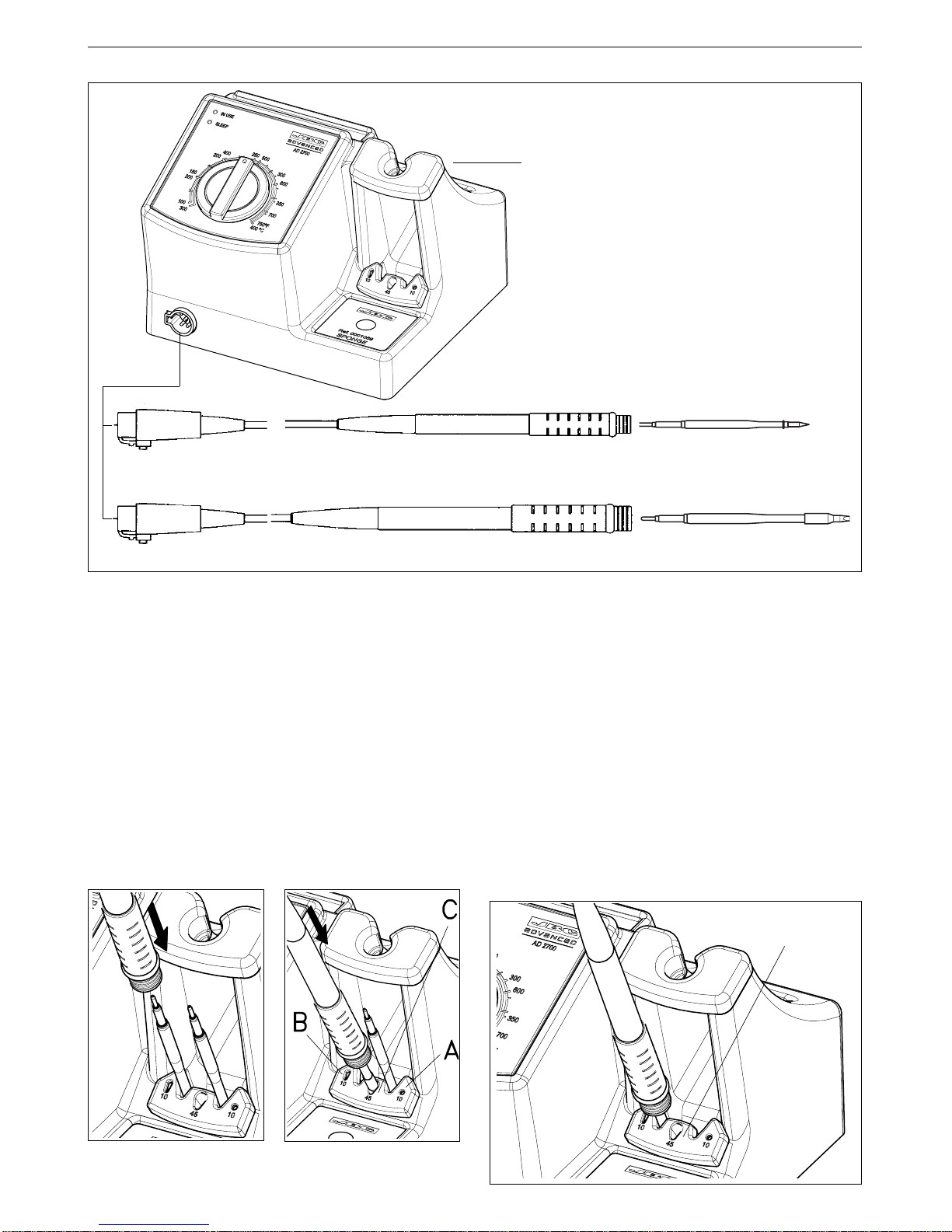

AD 2700 Quick guide
TOOLS: The AD 2700 allows connection of two
types of soldering handpieces: the 2210 (20W
nominalpower)andthe2245(50Wnominalpower).
Each one is to be used with their corresponding
cartridgerange.
SETUP:
1. Connect the power cord to the power socket
at the back of the control unit and to the 230V
powergrid. Switch on the station using the
main switch.
2. Connect your chosen handpiece to the
handpiece connector at the front of the control
unit.
3. Select the desired temperature using the dial.
TOOL'S STATUS:
WORK: When the handpiece is out of its stand,
the green LED "IN USE" is continuously on and
the tip is at working temperature.
SLEEP: When the tool rests in its stand, the yellow
LED "SLEEP" is continuosly on and the tool
temperature idles down to sleep.
POWER CUT OFF: The green LED "IN USE"
flashes when the tool rests in the cartridge
extractor, in this position the station stops heating
the soldering tip.
6. The station will now be ready for use within a
few seconds.
4. Put a cartridge in
the cartridge stand
and pick it up with
the handpiece.
5. Secure thecartridge
by pushing the
cartridge's tip into
the corresponding
opening.
Cartridge
extractor
1
ENGLISH

2
ENGLISH
You have purchased a AD 2700 Advanced control unit.
In order to complete the soldering station you should choose the suitable handpiece
and cartridges for the task to do. The control unit is valid only for the handpieces
2210 and 2245 and corresponding cartridges.
We appreciate the trust you have placed in JBC in purchasing this station. It is
manufactured to the most strictest quality standards in order to give you the best
possible service. Before turning on your station, we recommend you read these
instructionscarefully.

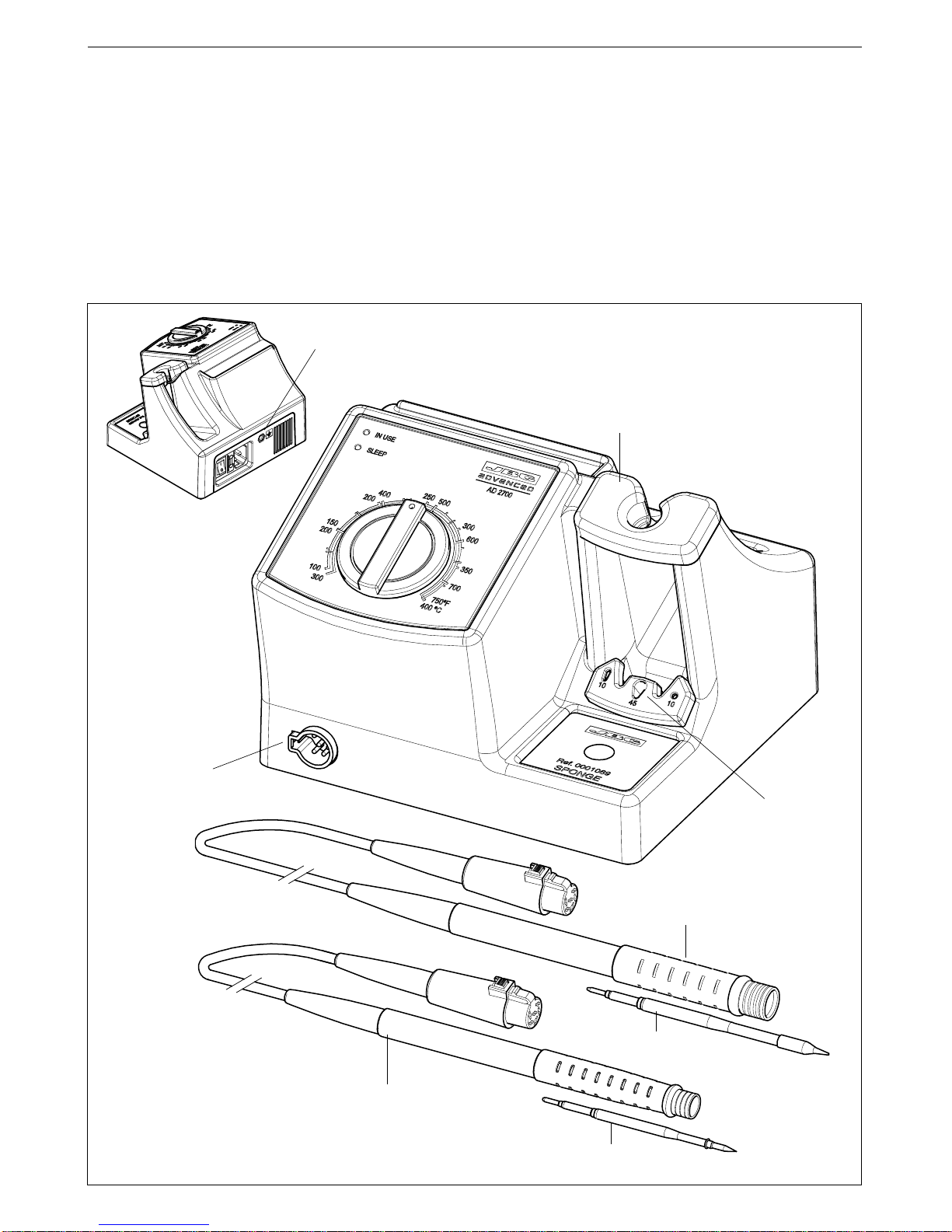

Control unit
AD 2700 230V Ref.2700200
AD 2700 120V Ref.2700100
Cartridge
extractor
Stand
Handpiece connector
2245 handpiece Ref. 2245000
2210 handpiece Ref. 2210000
2245 cartridges
2210 cartridges
Equipotential connector

Technical specifications
- Temperature selection from 95 to 400°C or
200 to 750ºF (±5%).
- Power: 75W.
- Safety transformer, mains separator and
double isolation, with integrated temperature
protection fuse.
-AD 2700 230V control unit Ref. 2700200
Input: 230V 50Hz. Output: 24V
-AD 2700 120V control unit Ref. 2700100
Input: 120V 60Hz. Output: 24V
- Total weight of unit: 2.6 Kgs (6,5lbs).
- ESD protected housing.
Typical surface resistance: 105-1011Ohms/
square.
- Complies with CE standards on electrical
safety, electromagnetic compatibility and
antistatic protection.
- Equipotential connector and the tool tip are
connected to station mains ground supply for
ESD protection.
Structure of AD 2700 soldering station
The AD 2700 has 3 basic modules giving you full
flexibility for choosing what you need for the work
in hand, the modules being supplied separately.
Control unit
-AD 2700 230V Ref. 2700200
-AD 2700 120V Ref. 2700100
Handpieces
-2210 Ref. 2210000
Power: 20W. For high precision work, SMD, etc.
-2245 Ref. 2245000
Power: 50W. For general soldering work.
One version of 2245 soldering iron handpiece
covered with a heat insulator is available.
-2245 comfort handpiece Ref. 2245110
Other handpieces:
-2245 comfort handpiece 3 mt Ref. 2245120
-2245 handpiece with set screw Ref. 2245130
-2245 soft grip handpiece Ref. 2245140
-2245 hard grip handpiece Ref. 2245150
Cartridges
-2210 cartridge range (for the 2210 handpiece)
on page 40.
-2245 cartridge range (for the 2245 handpiece)
on page 38.
The 2210 and 2245 handpieces and cartridges
comply with the MIL-SPEC-2000 referring to the
potential difference between the soldering tip and
ground connection, must be less than 2 mV.
For a station to work properly, a control unit, a
handpiece and one cartridge are needed.
AD 2700 control unit
The station is supplied with:
- Control unit which incorporates a stand with
sponge and cartridge extractor.
- Connection cable to mains.
- Instructions manual.
- Transport packaging.
RECOMMENDATIONS FOR USE
For soldering
- Clean the contacts and the printed circuit
to be desoldered of dust or dirt.
- Preferably select a temperature below
350°C (662ºF). Excess temperature may
cause the printed circuit tracks to break
loose.
- The tip must be well tinned for good heat
conduction. If it has been inoperative for
any length of time, it should be retinned.
Safety measures
- Incorrect use of this tool may cause fire.
- Be cautious when using the tool in places
where inflamable products are stored.
- Heat can cause fire to inflamable products
even when they are not in sight.
- Do not use when the atmosphere is
explosive.
- Place the tool back on its stand in order to
let it cool down before you store it.
ENGLISH
3
This product should not be thrown in the
garbadge.

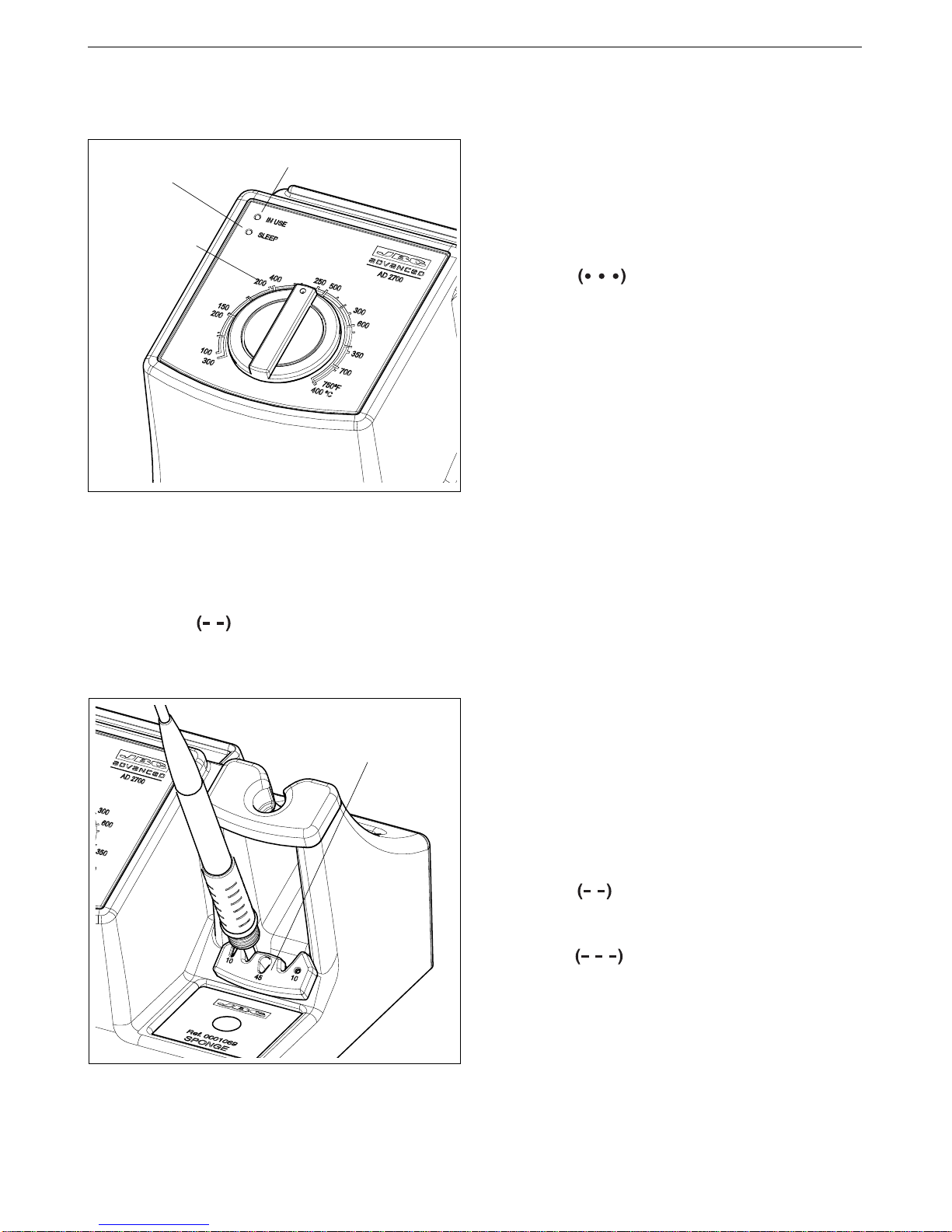

The LEDs indicate the station’s different working
modes.
1. The station without a tool connected or
with a soldering iron touching the cartridge
extractor: The green light IN USE flashes with the
sequence .
In this case, no power is supplied to the soldering
iron.
2. Tool out of the support: The green light IN
USE is permanently lit, indicating that the
soldering iron tip is at working temperature.
OPERATION
LED lights
Green LED (IN USE)
Yellow LED (SLEEP)
Dial
3. Tool in the support (sleep mode): The yellow
light SLEEP is permanently lit.
So that a tool goes into sleep mode, apart from
being placed in its support, the programmed
sleep temperature needs to be less than the
temperature on the dial or the prefixed
temperature.
4. The tool is out of the support for more than
5 minutes:The yellow SLEEP light flashes with
the sequence , recommending its
replacement in the support.
5. Station with previously fixed temperature.
(Only for users of the AC 2600 console ref.
2600000).
Soldering iron out of support:
- If the dial is above the prefixed temperature,
the green light IN USE is lit the majority of the
time, switching off briefly at regular intervals.
- If the dial is below the prefixed temperature,
the green light IN USE is not lit the majority of the
time, lighting up briefly at regular intervals.
- If the dial is at the prefixed temperature, the
green light is permanently lit.
6. Temperature tool increase at the top end of
the scale. (Only for users of the AC 2600 console
ref. 2600000).
The console allows us to increase in a maximum
of 50ºC or 100º F the temperature of the tool
when the dial is placed at the top end of the scale
and it is shown with a quick flash of the led IN
USE.
ERRORS
When the handpiece or the cartridge is in an open
circuit, the green light IN USE flashes with the
sequence .
When the handpiece or the cartridge is in a short
circuit, the green light IN USE flashes with the
sequence .
If any of the above mentioned causes is corrected,
the station will start working automatically.
When there is has been an excess of power
supplied, for example with very thick and
repetitive solders, the green and yellow lights will
flash simultaneously. To correct this error, the
station should be turned off to avoid overheating.
When the temperature lowers, turn the station on
again.
Cartridge
extractor
4
ENGLISH

2- Place the handpiece on top of the new
cartridge, press it slightly down and remove
the handpiece.

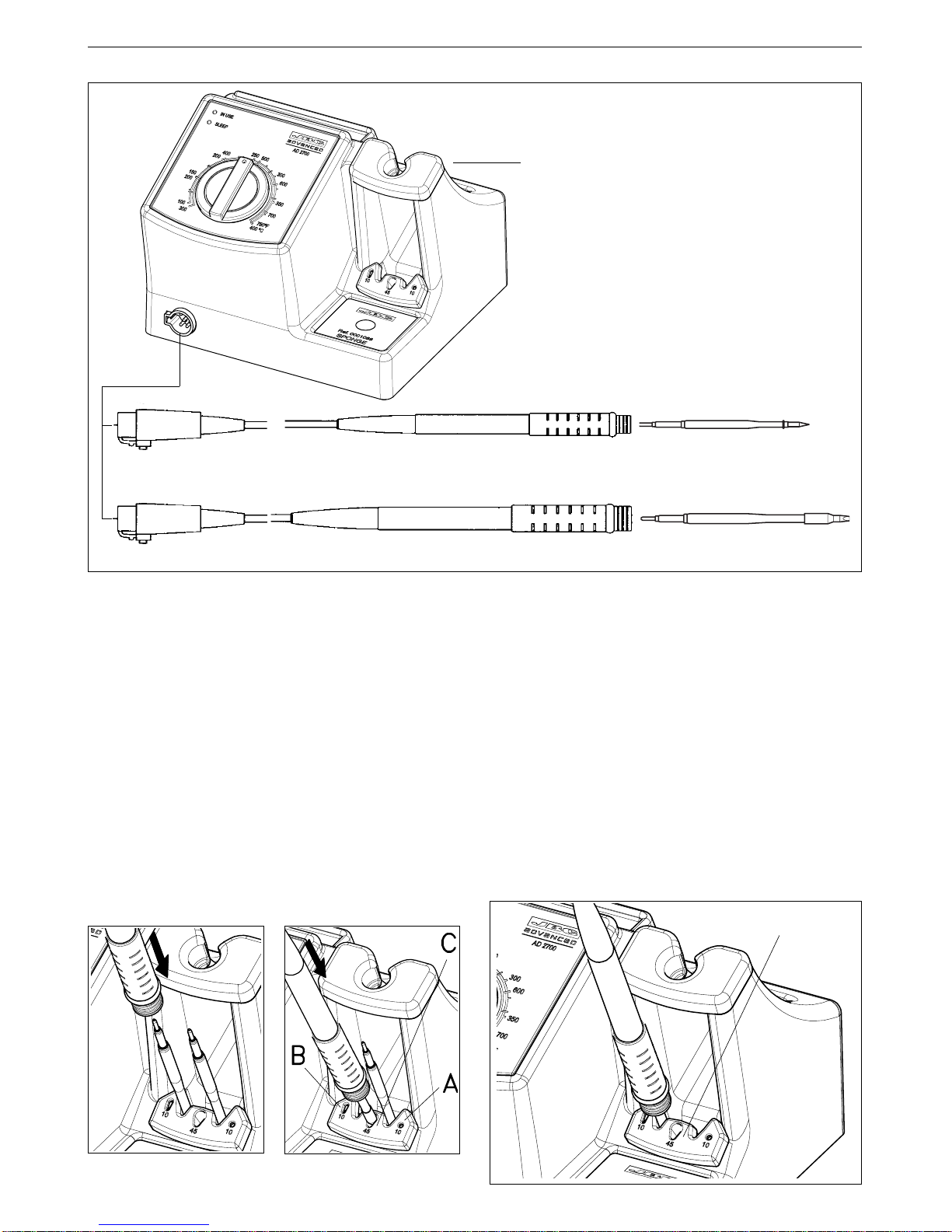

Changing the handpiece's cartridge
With the Advanced system, the cartridge can
be changed quickly, without turning off the
station, so you have two soldering irons in one.
Here is what to do to change the cartridge:
1- Place the handpiece and remove the
cartridge.
3- Press the cartridge into the opening A, B or C:
A. For straight 2210 cartridges.
B. For curved 2210 cartridges.
C. For 2245 cartridges.
SLEEP FUNCTION
Tool in sleep mode
One of the Series Advanced features is that
when the tool is placed in the holder, the
temperature at the tip drops automatically to the
sleep temperature (sleep). This function is only
possible because of the quick response time
which does not make the user realise the
temperature rise to reach the selected
temperature. Thanks to the sleep mode, oxidation
levels at the tip are much lower and therefore tip
life extended to 3 to 5 times under equal
conditions of use.
To indicate that the tool is in sleep-mode, the yellow
light in the control unit remains permanently lit.
These parameters can be modified using the
AC 2600 console Ref. 2600000.
In order to take full advantage of the sleep
function and as a security measure, it is
necessary to place the tool in the stand
when it is not being used.
Alignment
XX
XXXXX
Important.
- It is essential to insert the cartridge till the
end for a good connection. Take the mark
as reference.
5
ENGLISH
The tip life is directly related to the
temperature and time. With a greater
temperature for a longer time, the tip duration
is reduced in an exponential form.
Due to this, it is advisable to keep the soldering
iron in the support at sleep temperature (200ºC
approximately) to increase the tip life.

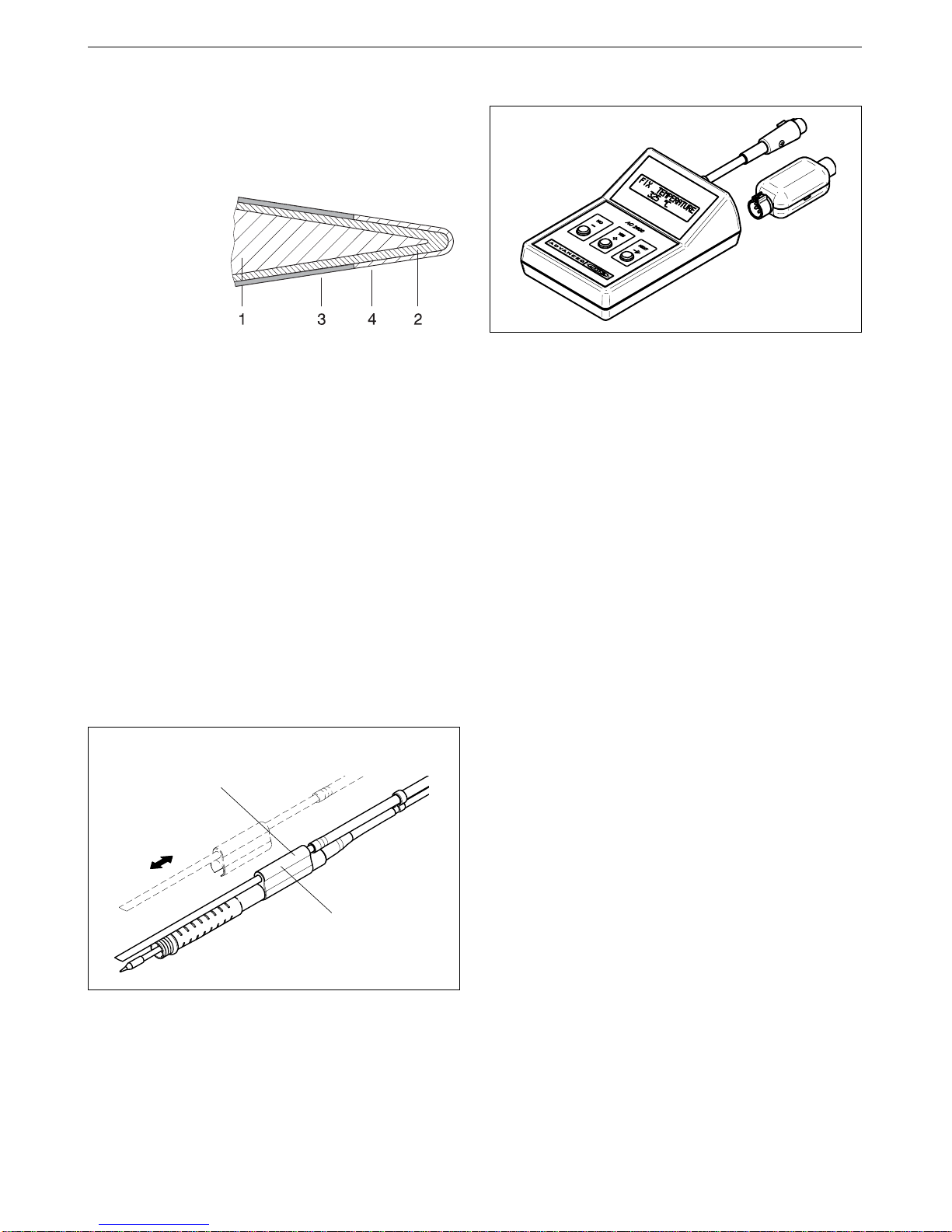

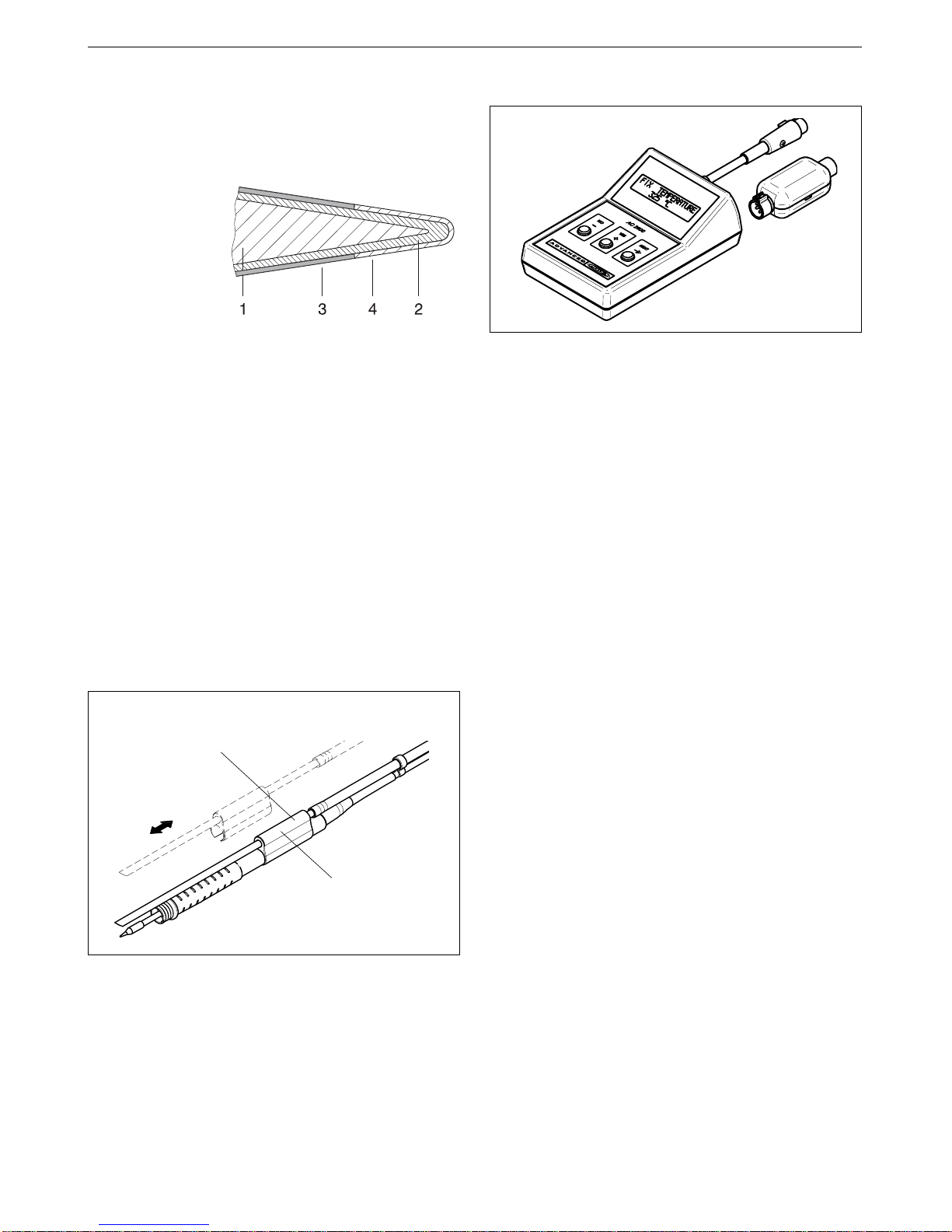

Advanced series cartridge
The cartridge is made of the heating element
which has the heating system, a temperature
sensor and a long life tip.
The long-life tip is basically made of:
1Copper
2Iron
3Chromium
4Tin plate
Tip care recommendations
Except for the copper core, the rest of metals
are placed galvanically on relatively thin layers,
therefore it is necessary to avoid anything which
could cause their destruction.
To clean the tips, use the sponge included with
the stand and check that it is slightly moisted.
Only deionised water (car battery water) shouldOnly deionised water (car battery water) should
Only deionised water (car battery water) shouldOnly deionised water (car battery water) should
Only deionised water (car battery water) should
be used in order to wet the spongebe used in order to wet the sponge
be used in order to wet the spongebe used in order to wet the sponge
be used in order to wet the sponge. If normal
water was to be used, it is very likely that the tip
will become dirty due to the salts dissolved within
the water.
To re-tin the soldering tips, we recommend
using the TT 9900 tip tinner/cleaner ref. 9900000.
JBCreservestherighttomaketechnicalchangeswithoutprior
notification.
AC 2600 console
The AC 2600 console is designed for modifying
the original regulation program parameters of the
following Advanced control units:
-AD 2700 soldering station.
-DI 3000 and DI 2850 digital soldering stations.
-AD 4300 and DD 5700 dual soldering stations.
-AR 5800 and DS 5300 desoldering stations.
-AM 6800 rework station.
-DM 6700 4 tool station.
-AL 2500 solder feed system.
In order to connect anIn order to connect an
In order to connect anIn order to connect an
In order to connect an AC 2600 consoleconsole
consoleconsole
console to anto an
to anto an
to an AD
2700,,
,,
, a version 6.0 or above will be necessara version 6.0 or above will be necessar
a version 6.0 or above will be necessara version 6.0 or above will be necessar
a version 6.0 or above will be necessaryy
yy
y..
..
.
Any lower version won’t allow you to fixAny lower version won’t allow you to fix
Any lower version won’t allow you to fixAny lower version won’t allow you to fix
Any lower version won’t allow you to fix
temperatures abovetemperatures above
temperatures abovetemperatures above
temperatures above 370ºC (700ºF)370ºC (700ºF)
370ºC (700ºF)370ºC (700ºF)
370ºC (700ºF) and the sleepand the sleep
and the sleepand the sleep
and the sleep
temperature will be an 8% higher than thetemperature will be an 8% higher than the
temperature will be an 8% higher than thetemperature will be an 8% higher than the
temperature will be an 8% higher than the
selected oneselected one
selected oneselected one
selected one..
..
.
Changes avalaible to perform:
- Fixing the the working temperature.
- Selection of temperature units in Celsius grades
-°C- or Fahrenheit -°F-.
- Modification of sleep temperatures and standby
times.
- Adjustment of temperature.
- Set the parameters back to the original
parameters.
- Read-out data:
Working hours.
Sleep cycles and sleep hours.
Cartridge and iron changes.
Program version.
AC 2600
Ref. 2600000
ENGLISH
6
Fume extractor accessories
Specially designed for the Advanced Series
2210 and 2245 handpieces. Easily clips onto
the handpiece and can be quickly removed for
easy maintenance.
For 2210 handpiece
Ref.0003450
For 2245 handpiece
Ref. 0003435

Cartuchos 2210
Vea la gama en la página 38
Unidad de control
AD 2700 230V Ref. 2700200
AD 2700 120V Ref. 2700100
Lápiz 2245 Ref. 2245000
Vea la gama en la página 40
Cartuchos 2245
Lápiz 2210 Ref. 2210000
AD 2700 Guía rápida
HERRAMIENTAS: La estación AD 2700 permite
la conexión de dos tipos de lápices soldadores:
el2210(potencianominal20W)yel 2245(potencia
nominal 50W). Cada uno se debe usar con su
correspondiente gama de cartuchos.
PUESTA EN MARCHA:
1. Conecte el cable red a la toma de corriente
de la unidad de control y a un enchufe (230V).
Ponga en marcha la estación usando el
interruptor.
2. Conecte el lápiz seleccionado al conector
para el lápiz que hay en la parte frontal de la
unidad de control.
3. Seleccione la temperatura usando el dial.
ESTADOS DE LA HERRAMIENTA:
TRABAJO: Cuando el lápiz está fuera del
soporte, la luz verde IN USE está encendida
continuamente y la punta del soldador está a la
temperatura de trabajo.
REPOSO: Cuando la herramienta está colocada
en su soporte, la luz amarilla SLEEP está
encendida continuamente y la temperatura de la
herramienta desciende hasta la temperatura de
reposo.
CORTE DE POTENCIA: La luz verde IN USE
parpadea cuando la herramienta está colocada
en el extractor de cartuchos, en esta posición la
estación deja de alimentar el soldador.
6. La estación estará preparada para trabajar
en unos segundos.
4. Ponga un cartucho
en el extractor de
cartuchos y
levántelo con el
lápiz.
5. Asegure el cartucho
apretando la punta
del cartucho sobre
el orificio
correspondiente.
Extractor de
cartuchos
ESPAÑOL
7

Agradecemos la confianza depositada en JBC al adquirir esta estación. Ha sido
fabricadaconlasmásestrictasnormasdecalidadparaprestarleelmejorservicio.
Antes de poner en marcha el aparato, recomendamos leer con atención las
instruccionesqueacontinuaciónsedetallan.
Usted ha adquirido una unidad de control Advanced AD 2700.
Para que la estación soldadora esté completa debe elegir el lápiz y los cartuchos
adecuados al trabajo a realizar. La unidad de control es válida para los lápices
2210 y 2245 con sus respectivos cartuchos.
Unidad de control
AD 2700 230V Ref.2700200
AD 2700 120V Ref.2700100
Extractor de
cartuchos
Soporte
Conector lápiz
Lápiz 2245 Ref. 2245000
Lápiz 2210 Ref. 2210000
Cartuchos 2245
Cartuchos 2210
Conector equipotencial
8
ESPAÑOL

Datos técnicos
- Selección de la temperatura entre 95 y 400°C
o 200 y 750ºF (±5%).
- Potencia: 75W.
- Transformador de seguridad, separador de
red y doble aislamiento, con fusible integrado
de protección de temperatura.
- Unidad de control AD 2700 230VRef. 2700200
Entrada: 230V 50Hz. Salida: 24V
- Unidad de control AD 2700 120VRef. 2700100
Entrada: 120V 60Hz. Salida: 24V
- Peso unidad completa: 2.6 Kgs.
- Caja antiestática.
Resistencia típica superficial: 105-1011 Ohms/
cuadro.
- Cumple la normativa CE sobre seguridad
eléctrica, compatibilidad electromagnética y
protección antiestática.
- El borne equipotencial y la punta del soldador
están en conexión directa a la toma de tierra de
red para protección ESD.
Estructura de la estación soldadora AD
2700
Para disponer de la máxima flexibilidad y
adaptarse al trabajo a realizar, está dividida en
tres módulos básicos, que se suministran por
separado.
Unidad de control
-AD 2700 230V Ref. 2700200
-AD 2700 120V Ref. 2700100
Lápices soldadores
-2210 Ref. 2210000
Potencia: 20W. Para trabajos de precisión, SMD,
etc.
-2245 Ref. 2245000
Potencia: 50W. Soldadura en electrónica general.
Existe una versión del lápiz 2245 con mango
cubierto de un aislante térmico.
- Lápiz 2245 confort Ref. 2245110
Otros lápices:
- Lápiz 2245 confort 3 mt Ref. 2245120
- Lápiz 2245 con fijación cartucho Ref. 2245130
- Lápiz 2245 soft grip Ref. 2245140
- Lápiz 2245 hard grip Ref. 2245150
Cartuchos
- Gama de cartuchos 2210 (para el lápiz 2210).
- Gama de cartuchos 2245 (para el lápiz 2245).
Vea la gama de cartuchos en las pag. 38, 39 y 40.
Los lápices y cartuchos 2210 y 2245 cumplen las
especificaciones MIL-SPEC-2000 en cuanto a
diferencia de potencial entre la punta del soldador
y la toma de tierra, que debe ser menor de 2 mV.
Para tener una estación operativa mínima se
necesita una unidad de control, un lápiz y un
cartucho.
Unidad de control AD 2700
Se suministra compuesta por:
- Unidad de control que incorpora soporte con
esponja y extractor de cartuchos.
- Cable de conexión a red.
- Manual de instrucciones.
- Envase de transporte.
RECOMENDACIONES DE USO
Para soldar
- Los componentes y el circuito deben estar
limpios y desengrasados.
- Con preferencia seleccione una temperatura
inferior a 350°C. El exceso de temperatura
puede provocar el desprendimiento de las
pistas del circuito impreso.
- La punta debe estar bien estañada para
conducir bien el calor. Si permanece mucho
tiempo en reposo, estáñela de nuevo.
Medidas de seguridad
- El uso incorrecto de la herramienta puede
ser la causa de un incendio.
- Sea muy prudente cuando utilice la
herramienta en lugares donde hay
materiales inflamables.
- El calor puede producir la combustión de
materiales inflamables incluso cuando no
esten a la vista.
- No usar en la presencia de una atmósfera
explosiva.
- Coloque la herramienta en su soporte
después de usarla y dejela enfriar antes de
almacenarla.
9
ESPAÑOL
Este producto no debe ser tirado a la
basura.
