jbc B-iRON 115 User manual

Nano B·iRON Station
B·iRON 115
INSTRUCTION MANUAL

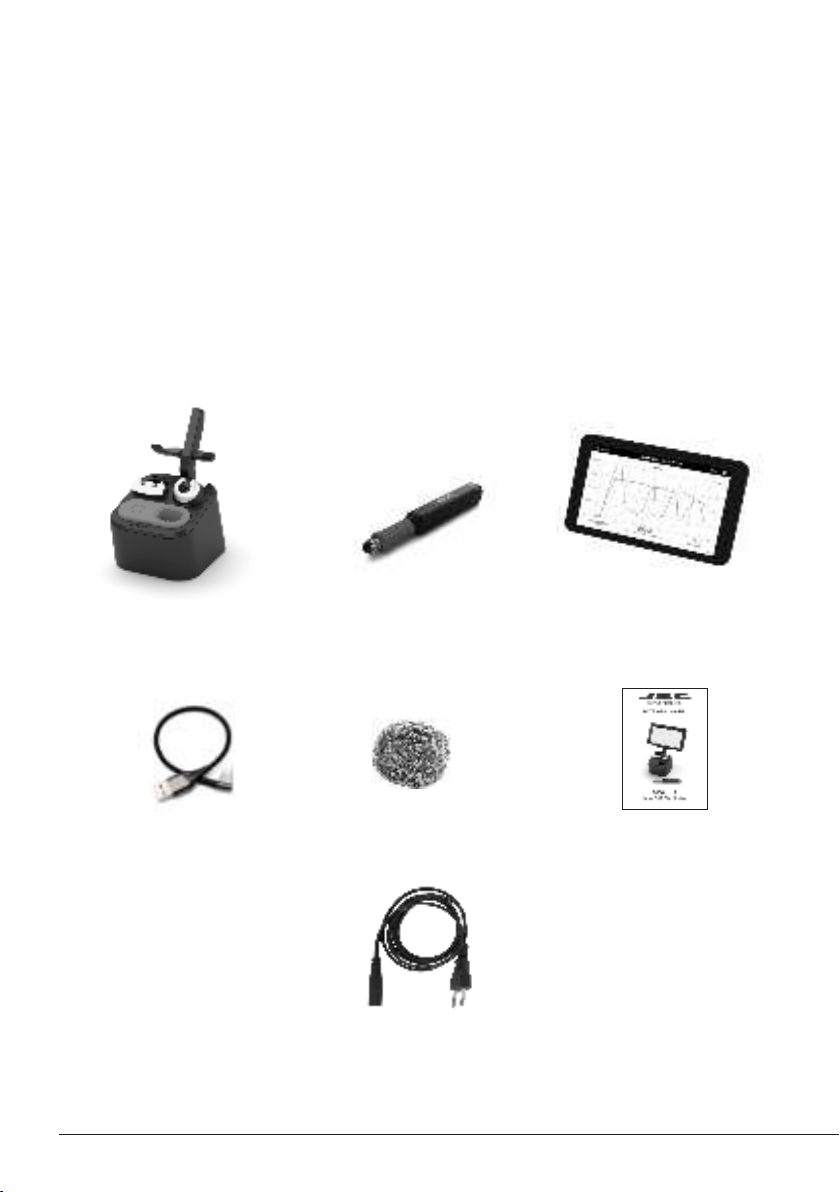

Packing List
The following items are included:
Power Cord ........................................................................................................................................................ 1 unit*
Ref. 0027380 120V - N. America, Taiwan 0027378 230V - United Kingdom
0027381 230V - India 0027379 230V - China
0027382 230V - Europe 0028103 100V - Japan
* according to purchased station reference.
Manual .............................. 1 unit
Ref. 0027926
Stand for
B 115 Nano Tool ............ 1 unit
Ref. B115-SA
Brass Wool ..................... 1 unit
Ref. CL0300
already assembled in the stand
B 115 Nano Tool ........ 1 unit
Ref. B115-A
This manual corresponds to the following references:
Console included*:
BI115UA 120 V - N. America, Taiwan
BI115IA 230 V - India
BI115A 230 V - Europe
BI115 K A 230 V - United Kingdom
BI115HA 230 V - China
BI115 JA 100 V - Japan
Cable USB ....................... 1 unit
Ref. 0028092
B·iRON Console ........ 1 unit*
*included according purchased
reference
Console not included*:
BI115UQA 120 V - N. America, Taiwan
BI115IQA 230 V - India
BI115QA 230 V - Europe
BI115KQ A 230 V - United Kingdom
BI115HQA 230 V - China
BI115 JQ A 100 V - Japan
2

Wiper
Console Support
Tool Stand and Charger

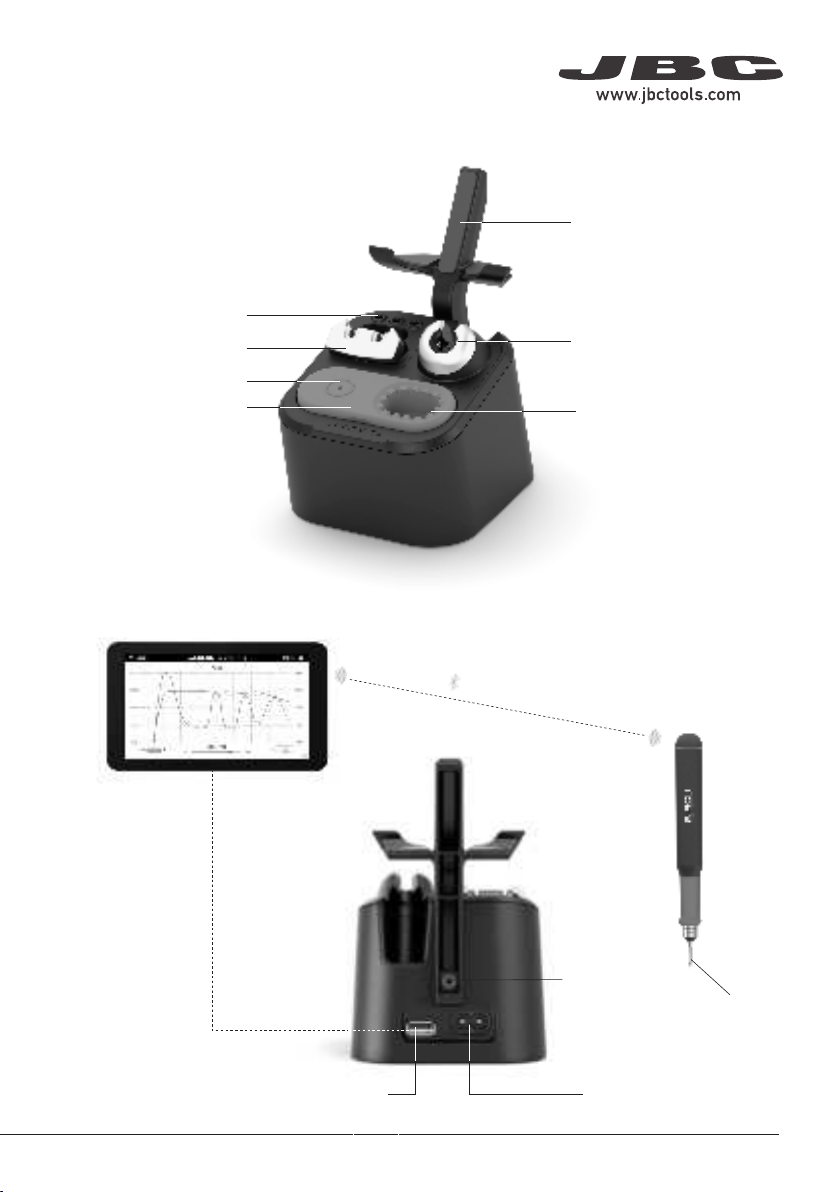

Features and Connections
B 115
Nano Tool
B·iRON Console
Note: for references without console blue tooth
device like PC or mobile can be connected.
Power Socket
USB Connector
USB Cable
(only for charging)
Bluetooth
Connection
Stand for
B 115 Nano Tool
Screw to
detach the
Support

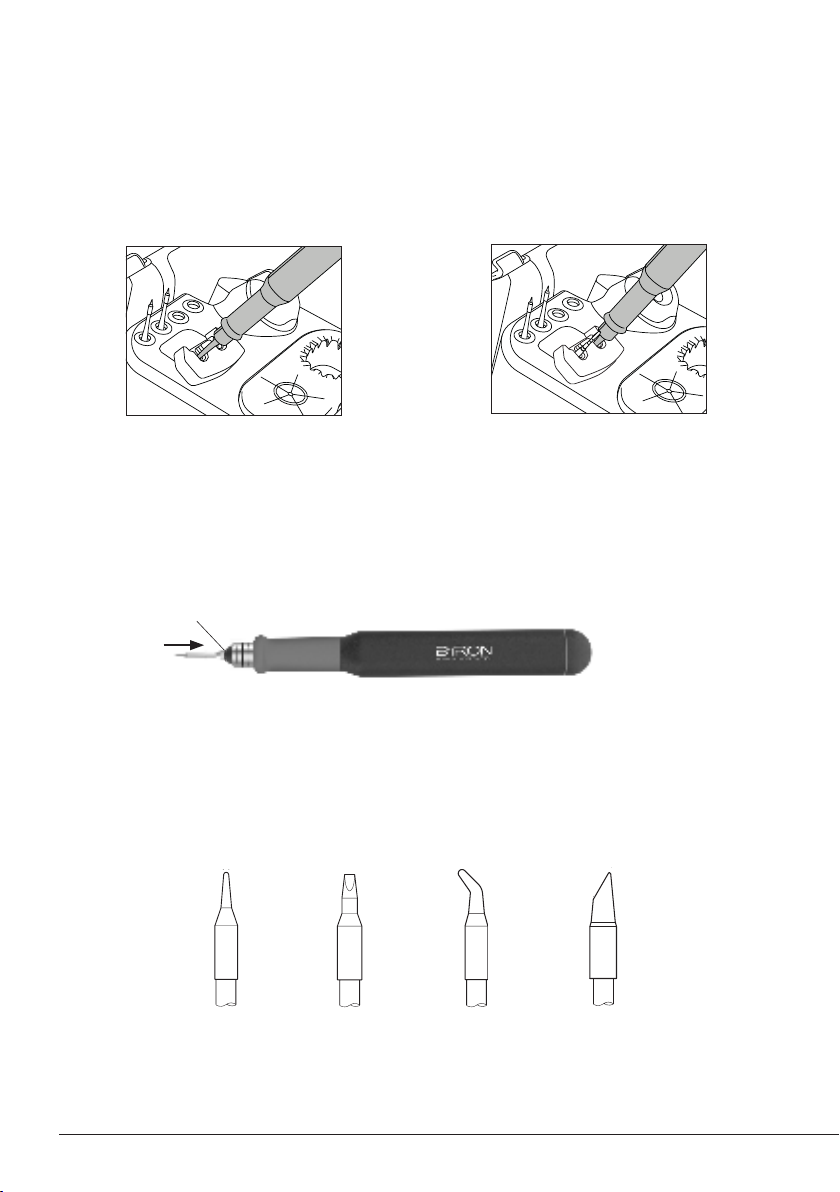

Quick Tip Changer

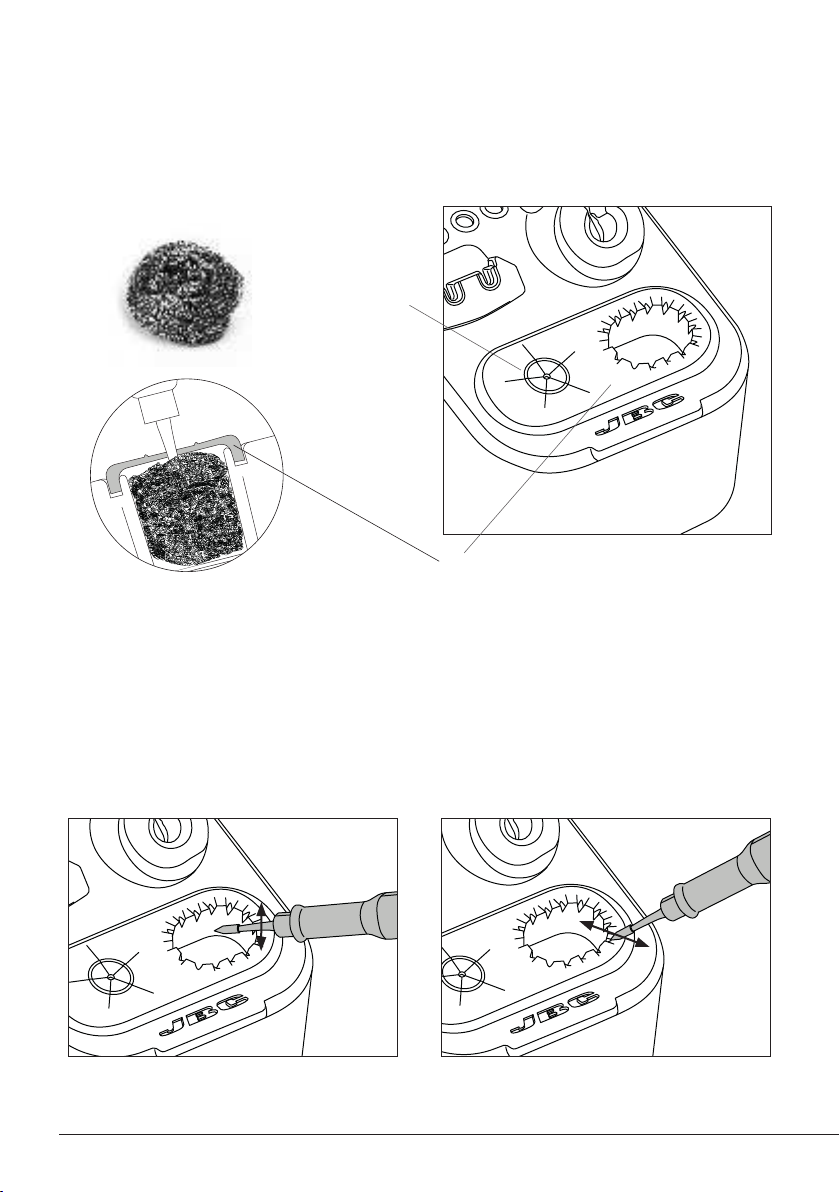

Brass Wool (inside)
Cartridge Storage

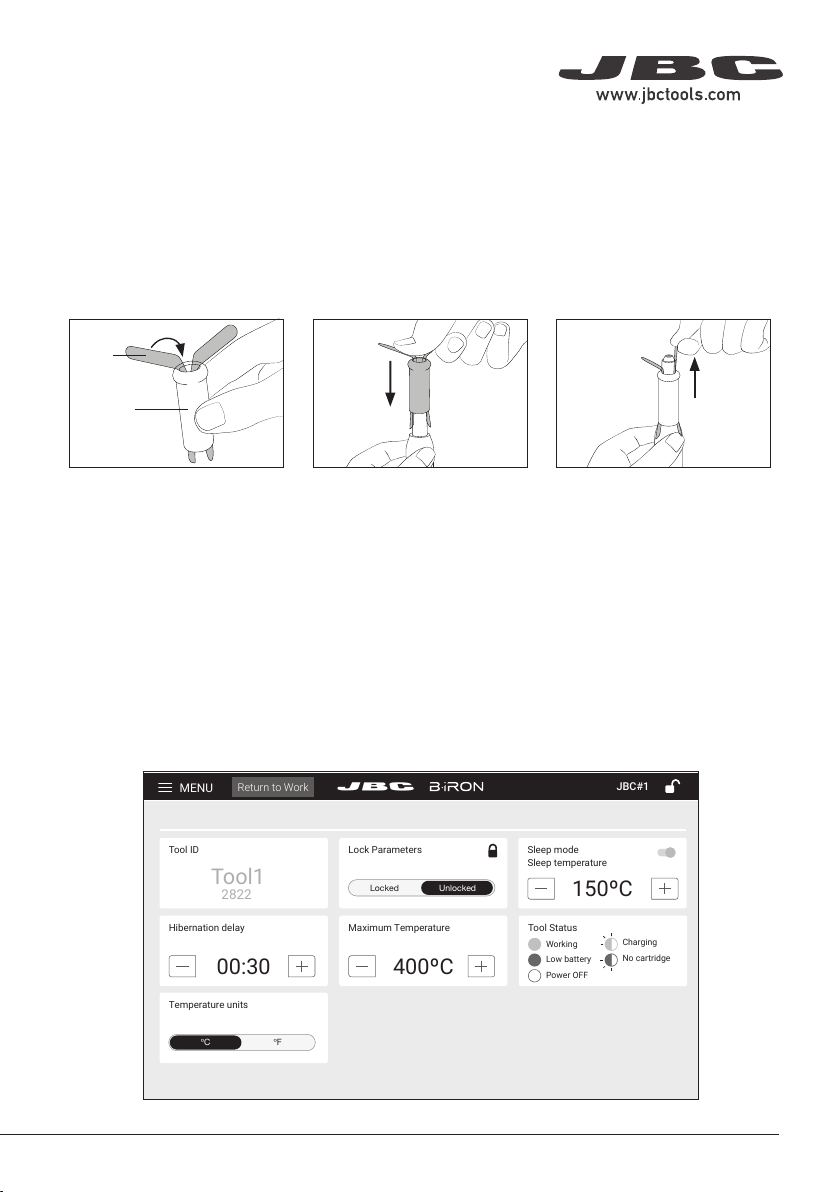

Antisplash Membrane
Cartridge
C115-Range,
not included
3

Quick Start
Connect the stand to the mains (100 - 240 V).

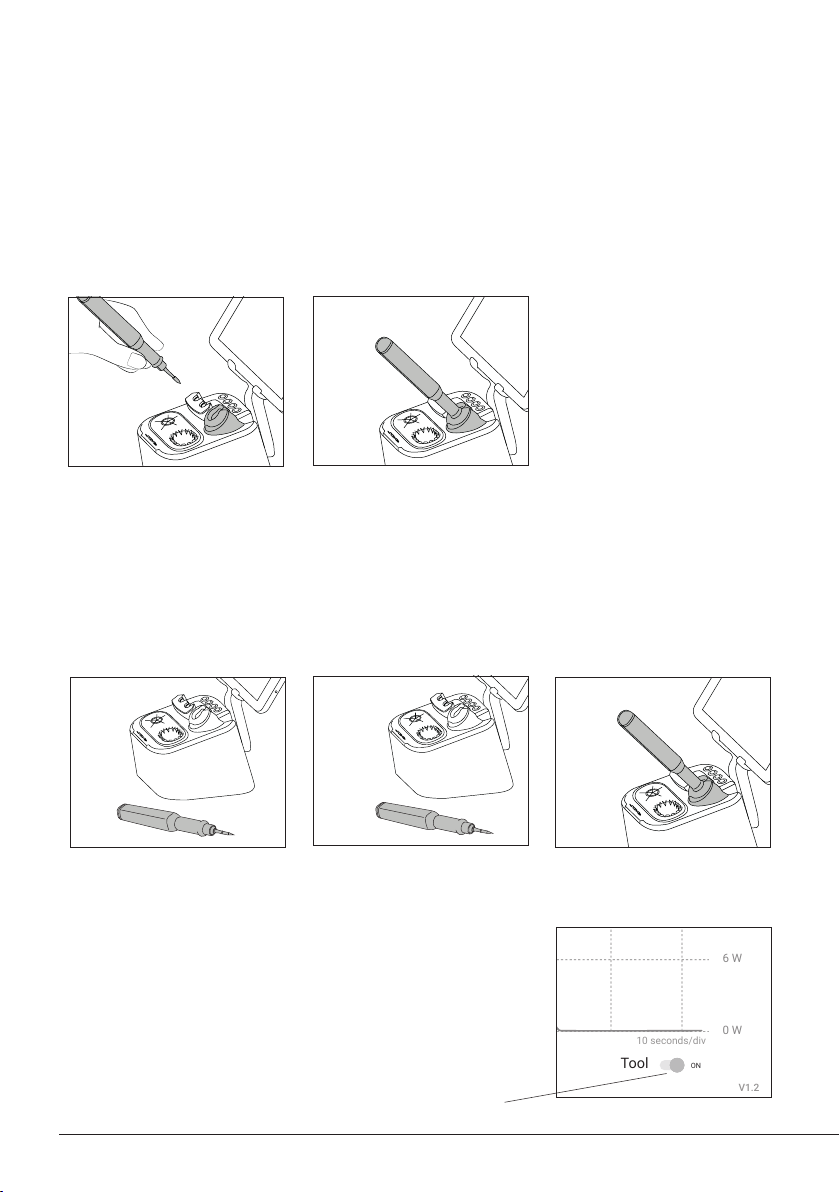

Insert a cartridge into the tool (1) and place it into
the charger on the stand (2).
Note: Charge the tool completely (30 min)
before using for the first time.
The status indicator light idicates as follows the
tool status:
21
Status Indicator Light
1. Connection
2. Cartridge Insertion and Charging
green working/soldering
green blinking charging
alternating
red/green blinking
low battery,
less than 20%
red blinking: no cartridge
no color: power OFF
4

JBC
JBC
JBC
JBC
JBC
JBC
JBC
Tool1
Tool2
Devices
MENU
JBC
Return to Work
JBC
210
JBC
Tool
ON
MENU
24 W
18 W
12 W
6 W
0 W
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
JBC
JBC
JBC
JBC
JBC
JBC
JBC
JBC#1
115
Temperature
and Power
Grafics
Application Menu Connected Tool
Temperature
Selection Slider
Tool Status
Battery
Level
Tool
Status
The work screen shows the graph of the current tip temperature and the power supplied to the tip by
moving the graph permantely to the left.
3. Switching on Console/Device

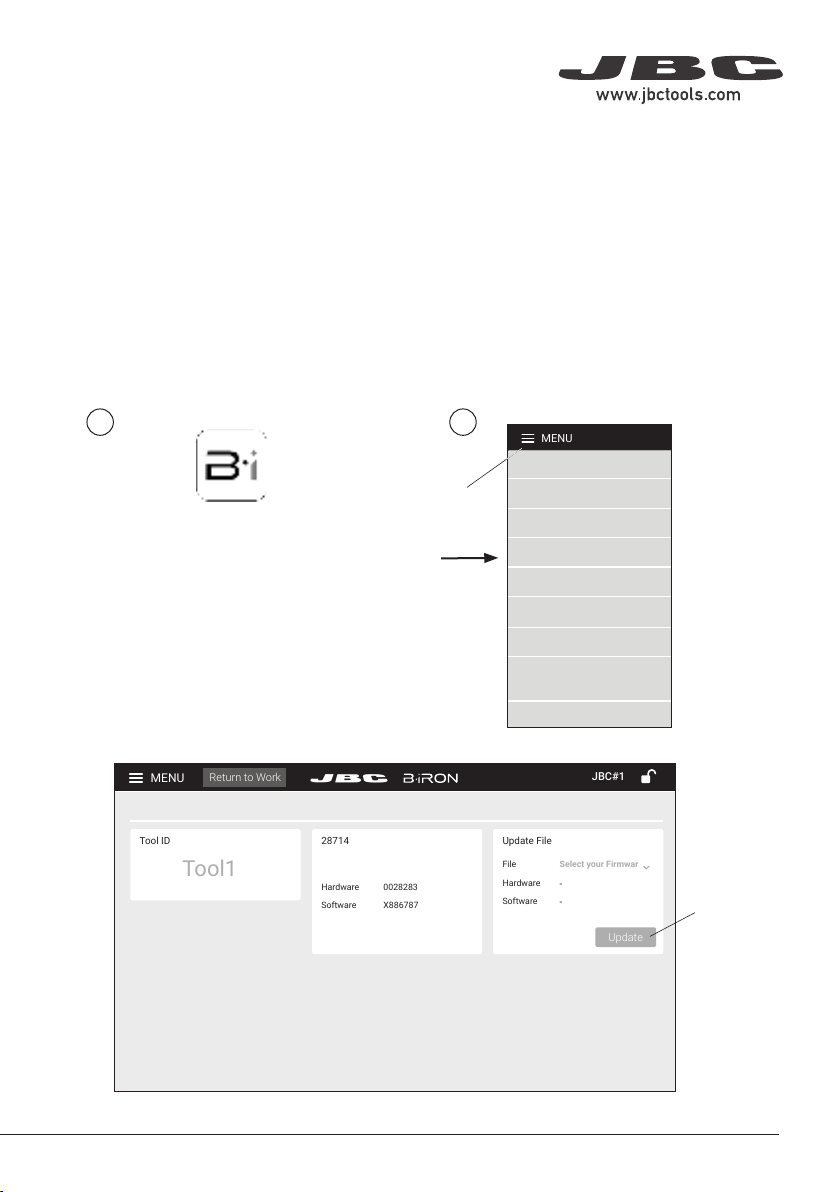

Select the tool from the detection list.Turn on the console/device and open the B·iRON
Application:
4. Selecting Tool
Console Work Screen
5
